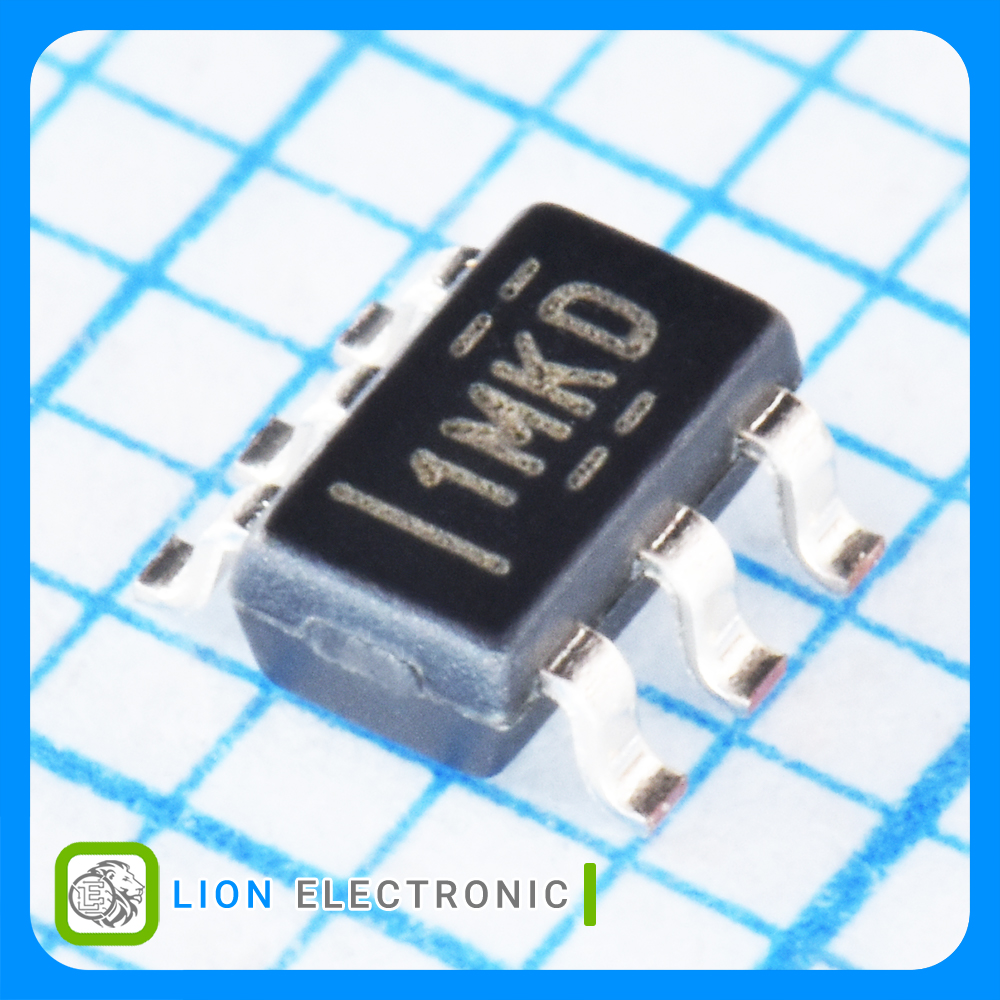

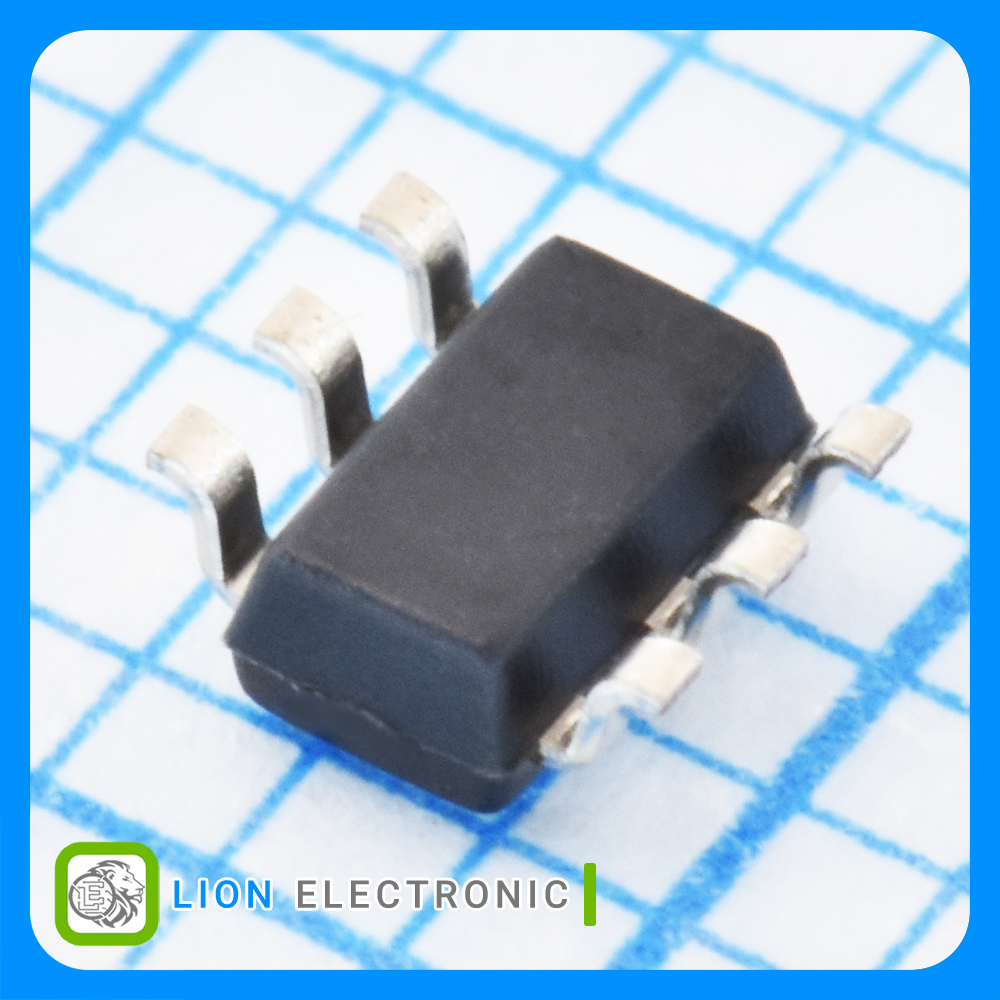

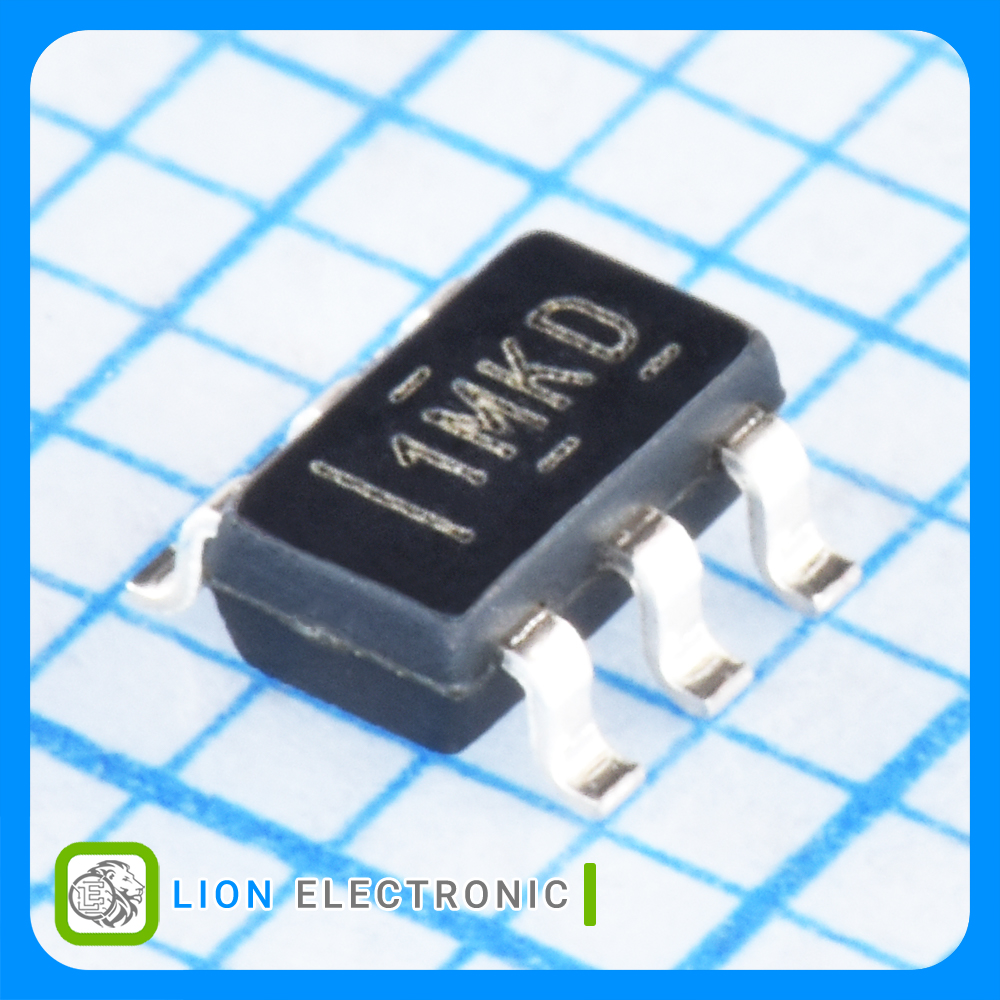

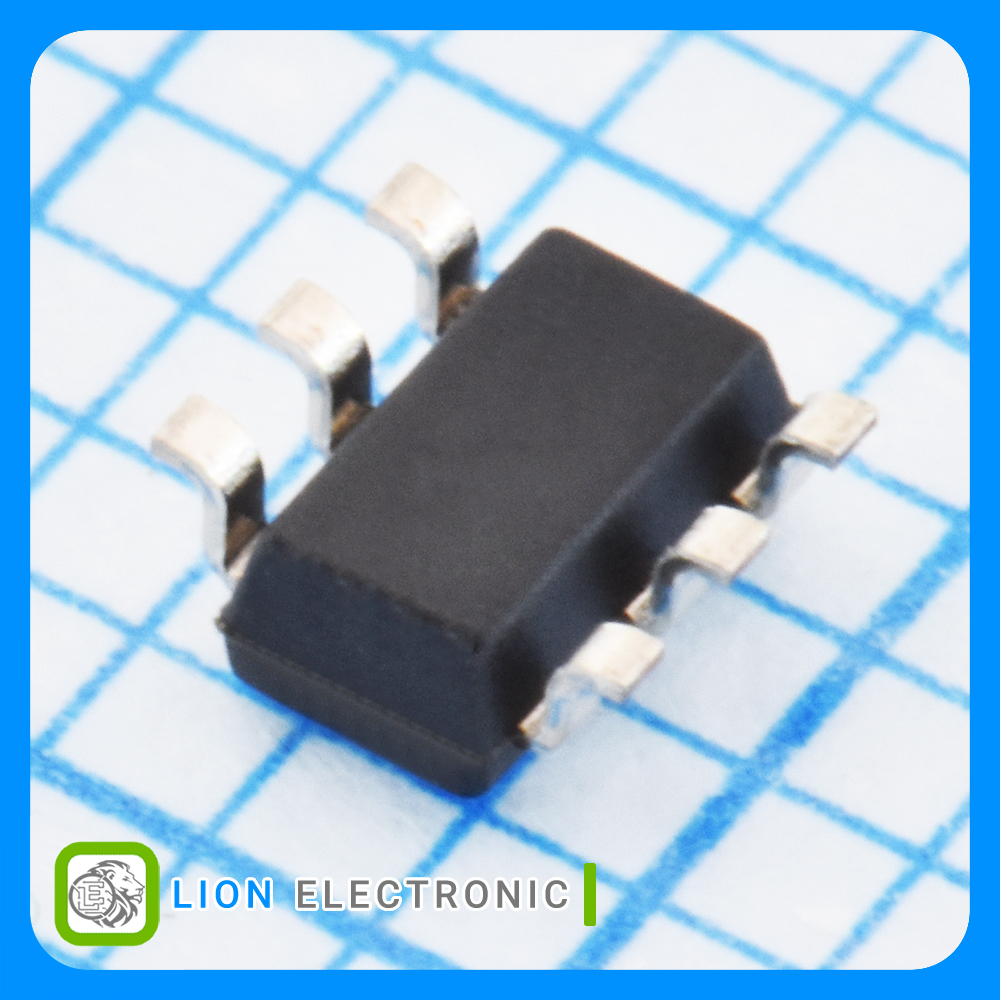

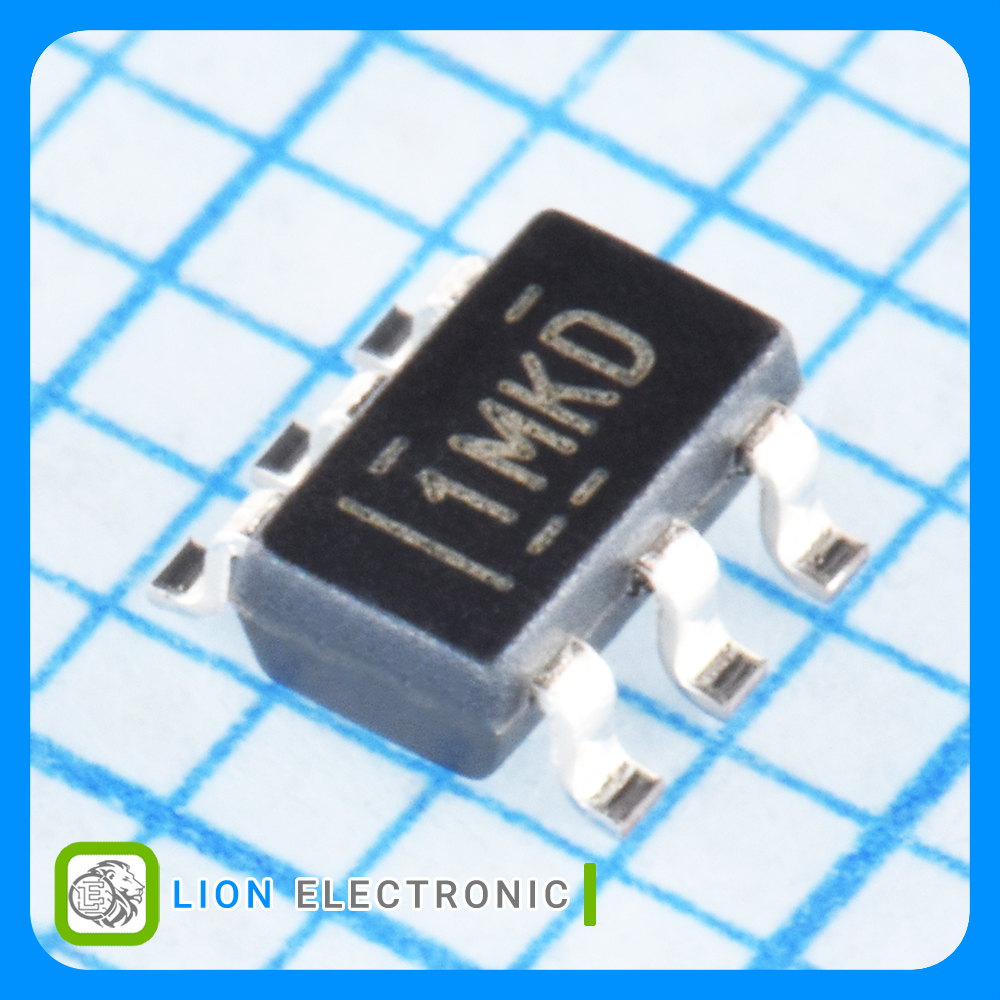

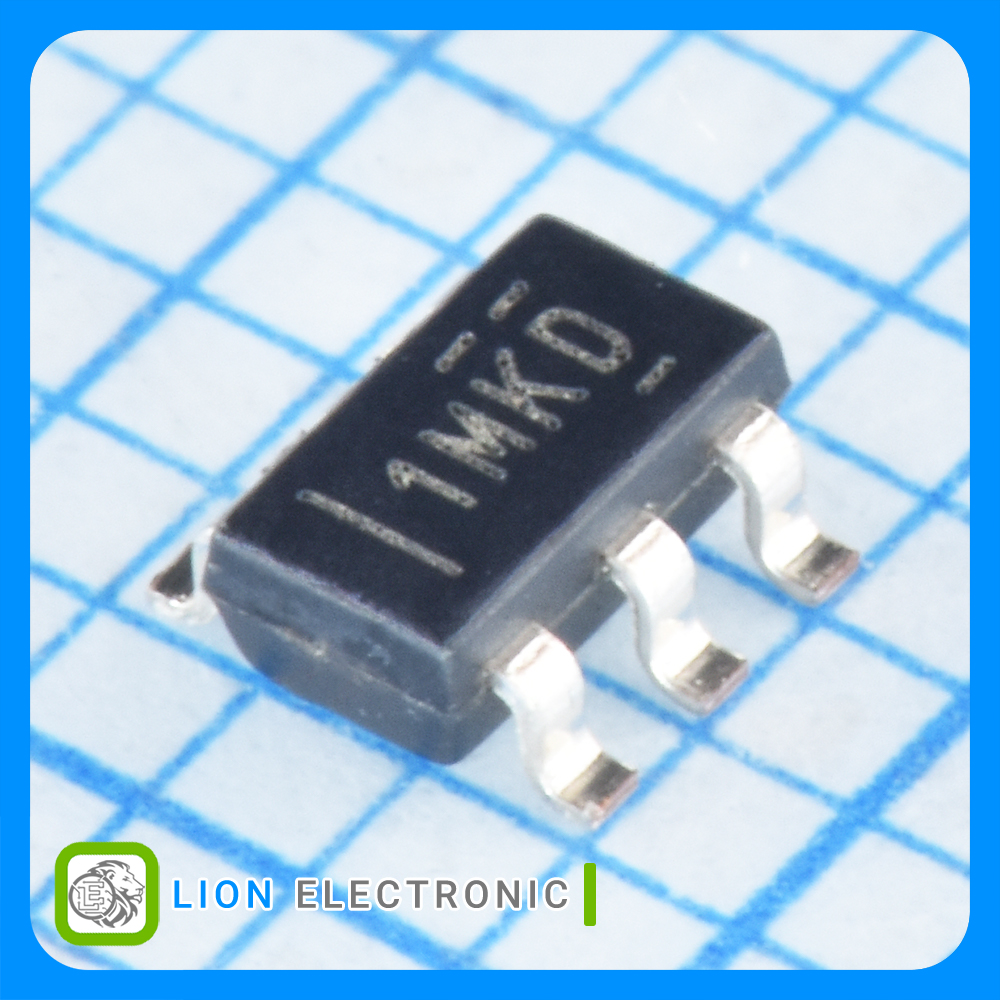

REF3450IDBVR
REF3450IDBVR
Part Number
2429
Lion Part
Datasheet
Texas Instruments Manufacture
منبع ولتاژ مرجع سری کمدریفت، کممصرف، کمحجم 5 ولت دقت 0.05% با پکیج SOT-23-6
Low-Drift, Low-Power, Small-Footprint Series Voltage Reference 5V, 0.05% Accuracy with SOT-23-6 Package
معرفی
منبع ولتاژ مرجع سری کمدریفت، کممصرف، کمحجم 5 ولت دقت 0.05% با پکیج SOT-23-6
Low-Drift, Low-Power, Small-Footprint Series Voltage Reference 5V, 0.05% Accuracy with SOT-23-6 Package
Specifications
- Reference Type: Series Precision References
- Output Voltage: 5V
- Shunt Current - Max: 10mA
- Series VREF - Input Voltage - Max: 12V
- Temperature Coefficient: 6PPM/C
- Initial Accuracy: 0.05%
- Mounting Style: SMD/SMT
- Package/Case: SOT-23-6
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات آیسی ولتاژ رفرنس REF3450IDBVR
آیسی ولتاژ رفرنس REF3450IDBVR
Part Number
Series Precision References
Reference Type
0.05%
Initial Accuracy
6PPM/C
Temperature Coefficient
10mA
Shunt Current - Max
12V
Series VREF - Input Voltage - Max
Reel
Packaging
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
+125C
Maximum Operating Temperature
5V
Output Voltage
SOT-23-6
Package-Case
