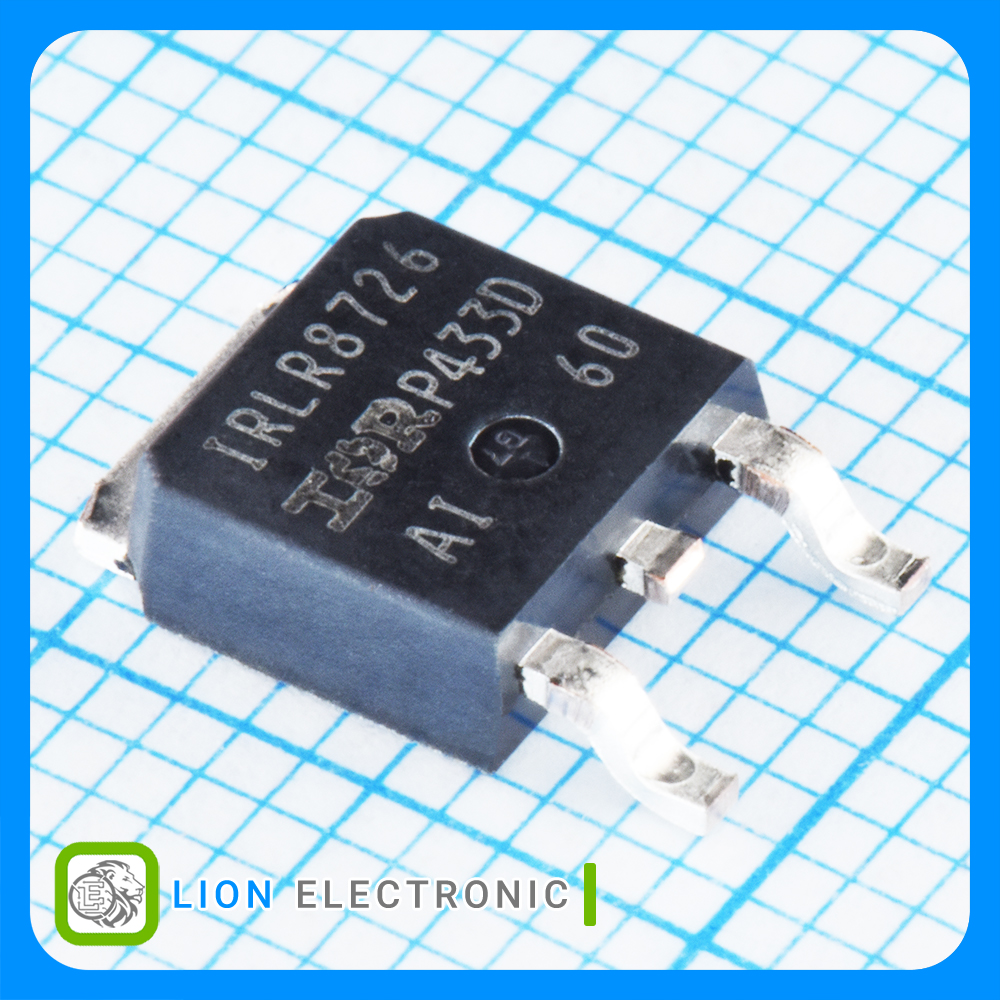

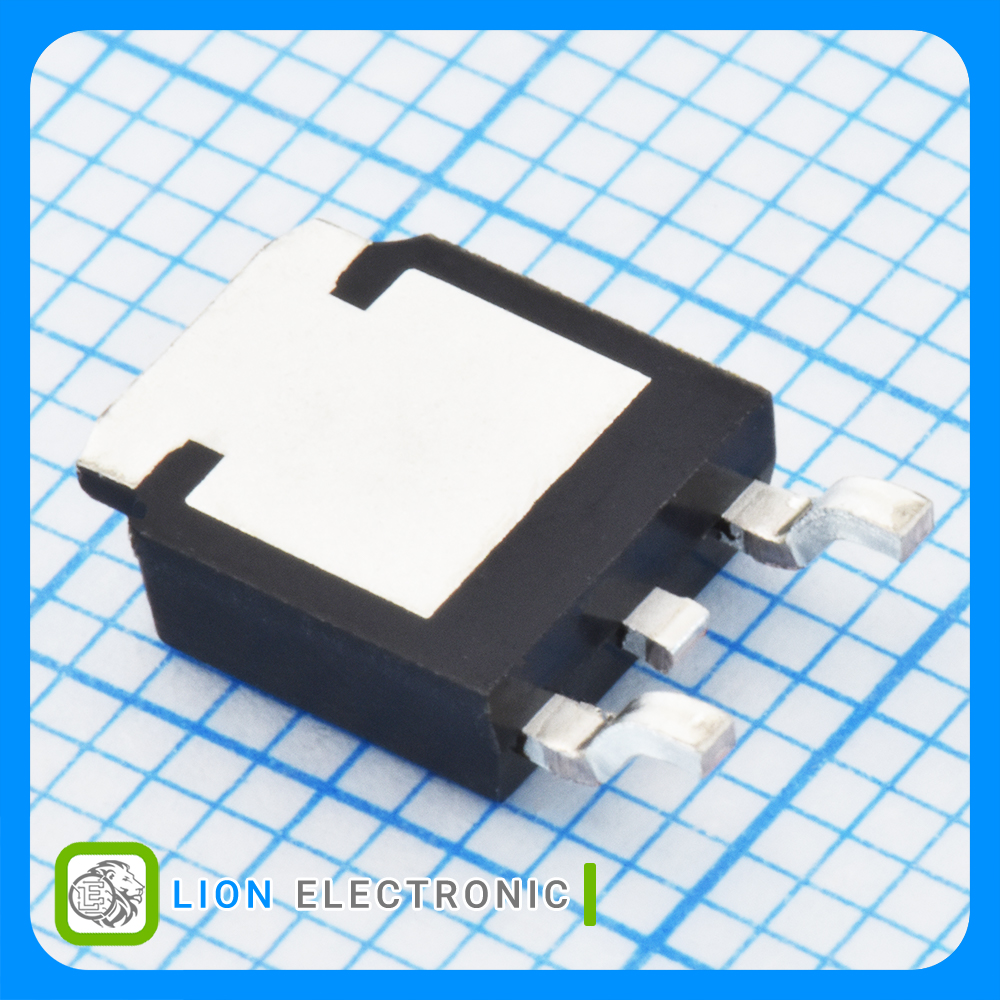

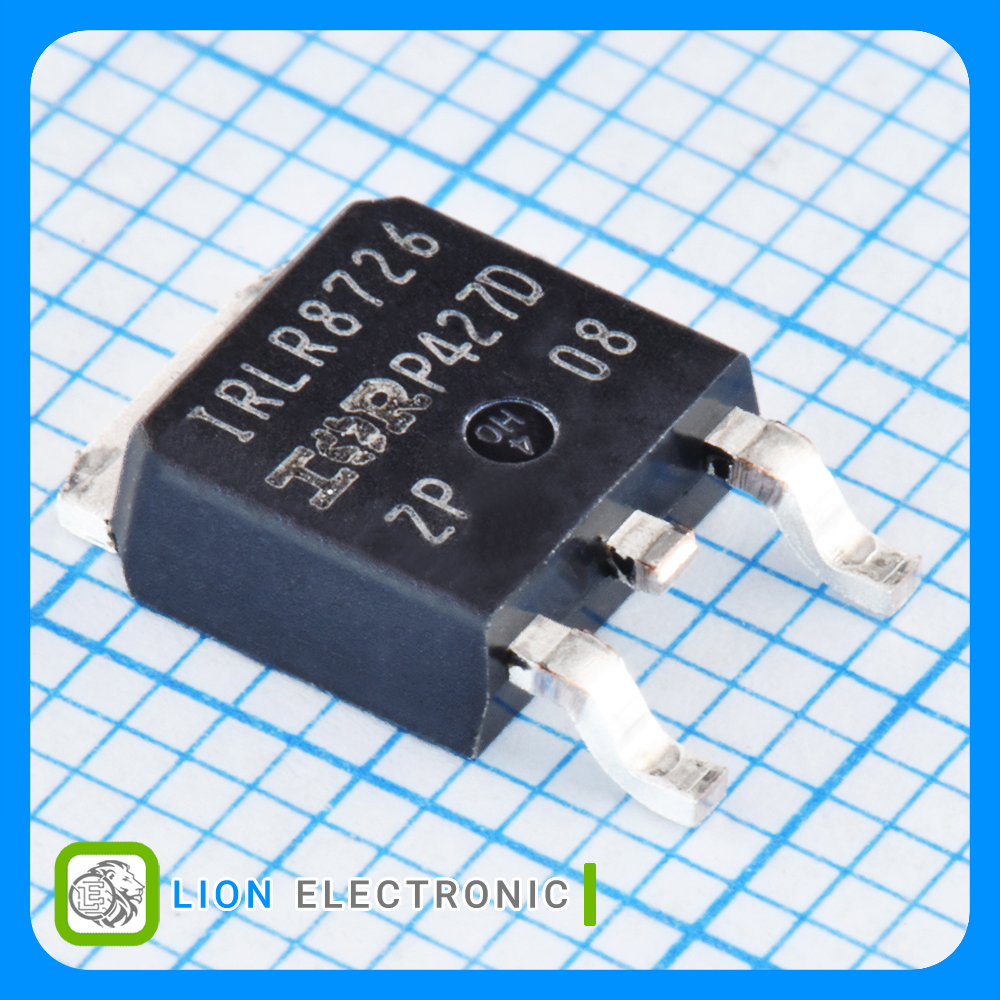

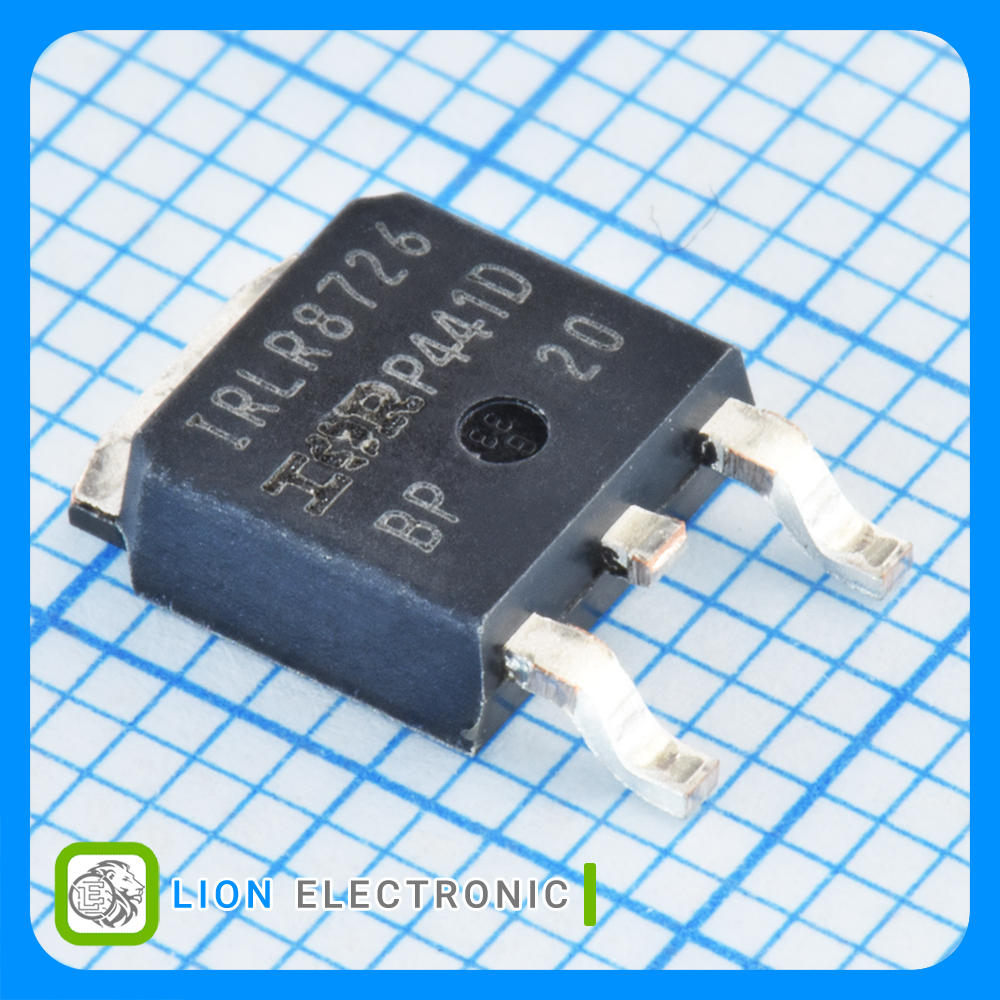

IRLR8726TR
IRLR8726TR
Part Number
2450
Lion Part
Datasheet
International Rectifier Manufacture
ماسفت 30 ولت 86 آمپر نوع N با پکیج TO-252-3
MOSFET 30V, 86A N-Channel with TO-252-3 Package
معرفی
ماسفت 30 ولت 86 آمپر نوع N با پکیج TO-252-3
MOSFET 30V, 86A N-Channel with TO-252-3 Package
Specifications
- Package/Case: DPAK
- Vds - Drain - Source Breakdown Voltage: 30V
- Id - Continuous Drain Current: 86A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 1.35V
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 4mΩ
- Pd - Power Dissipation: 75W
- Qg - Gate Charge: 15nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +175C
- Packaging: Reel
مشخصات ماسفت IRLR8726TR
ماسفت IRLR8726TR
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Reel
Packaging
SMD/SMT
Mounting Style
±20V
Vgs - Gate - Source Voltage
30V
Vds - Drain - Source Breakdown Voltage
+175C
Maximum Operating Temperature
4mΩ
Rds On - Drain - Source Resistance
1.35V
Vgs th - Gate - Source Threshold Voltage
15nC
Qg - Gate Charge
DPAK
Package-Case
75W
Pd - Power Dissipation
86A
Id - Continuous Drain Current
