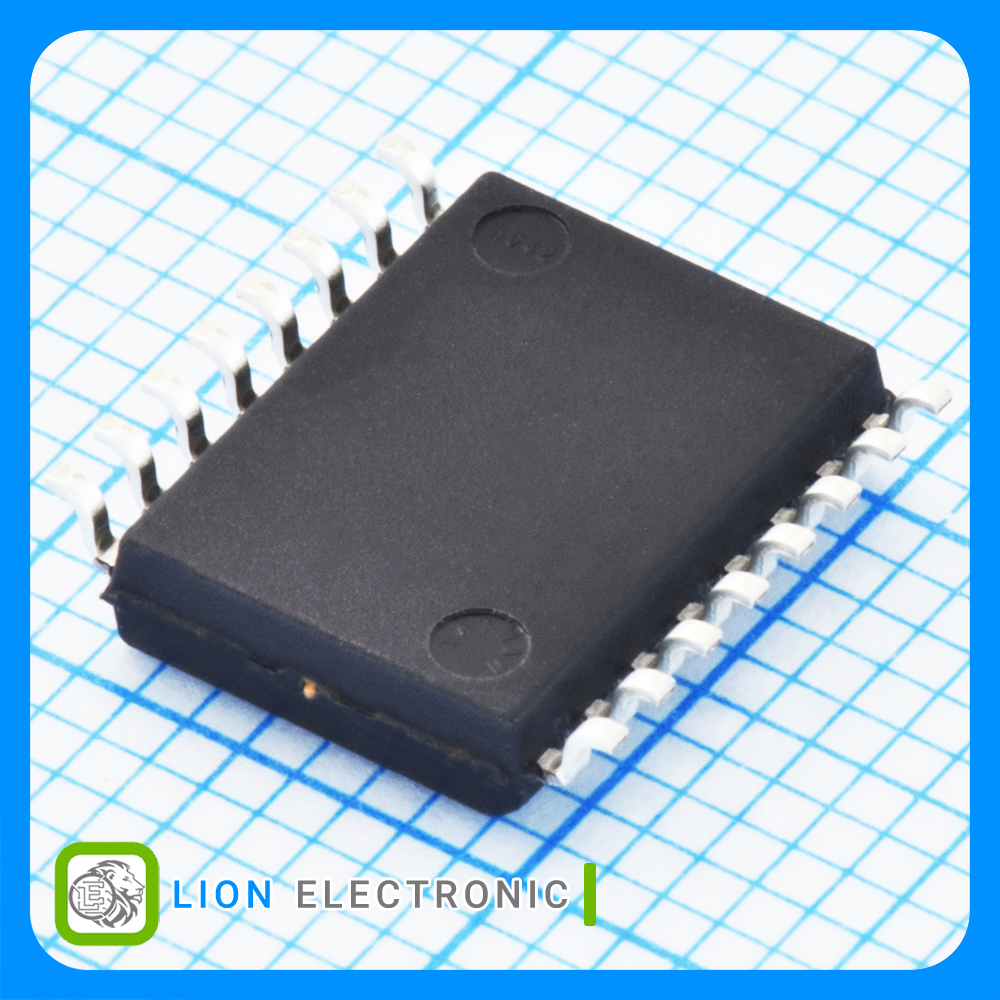

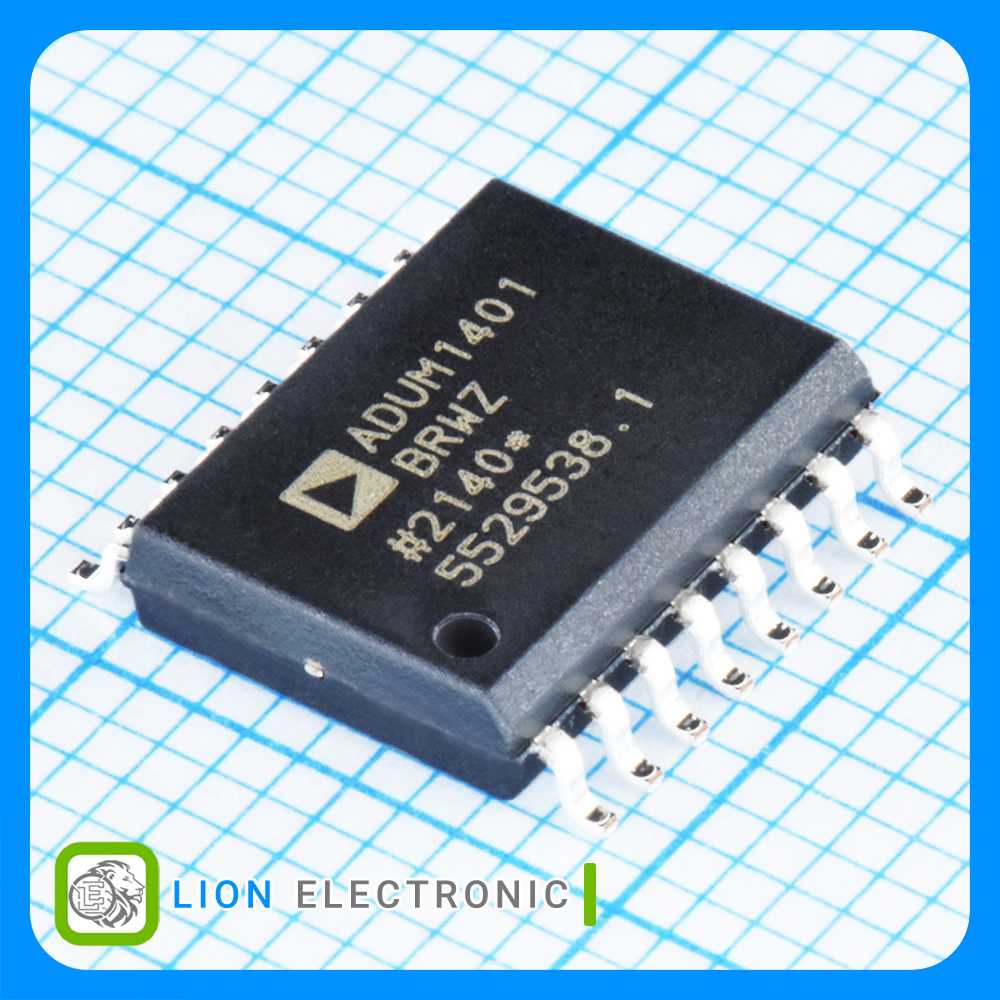

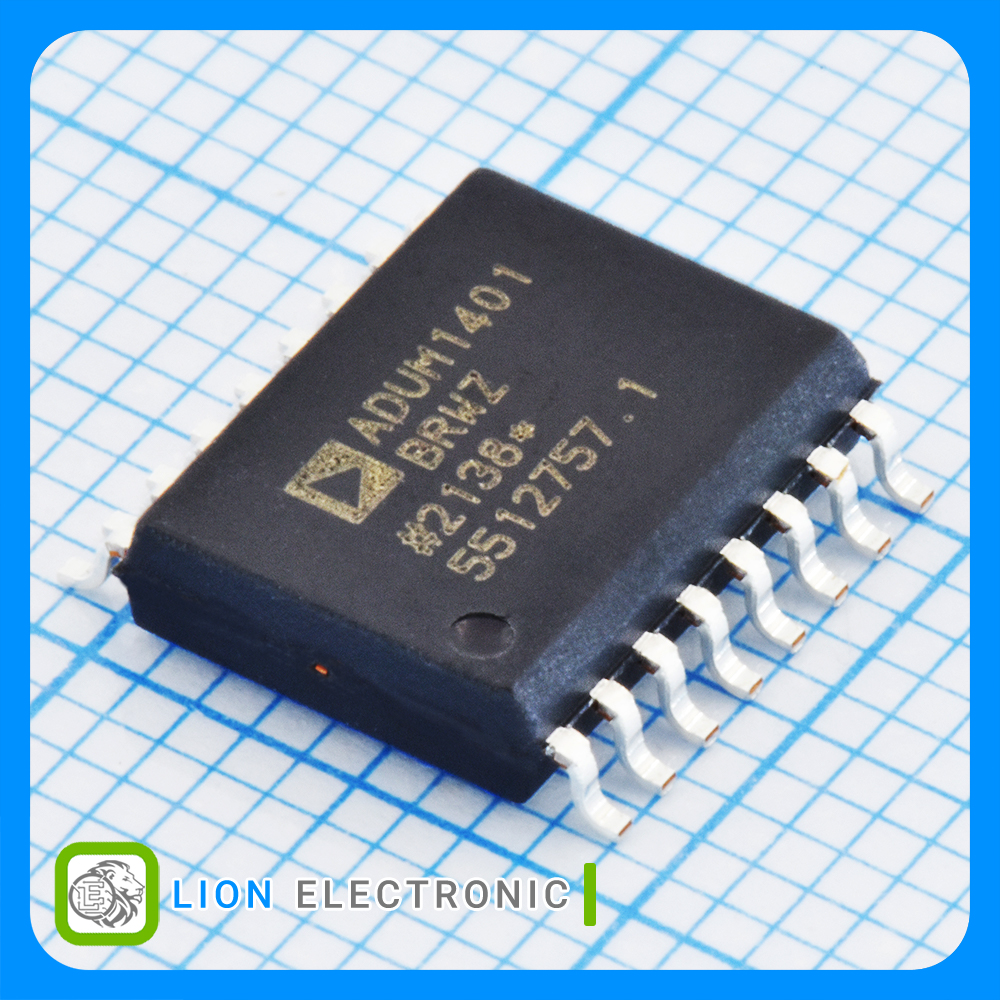

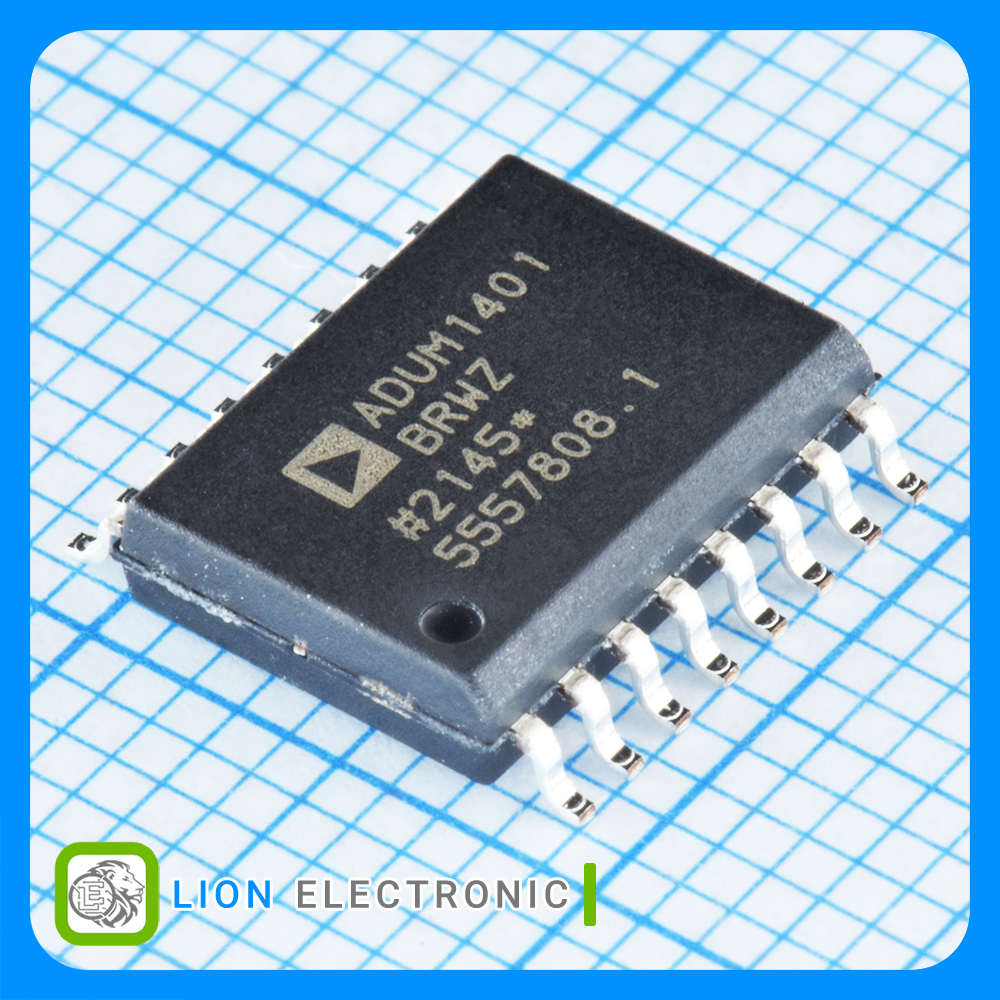

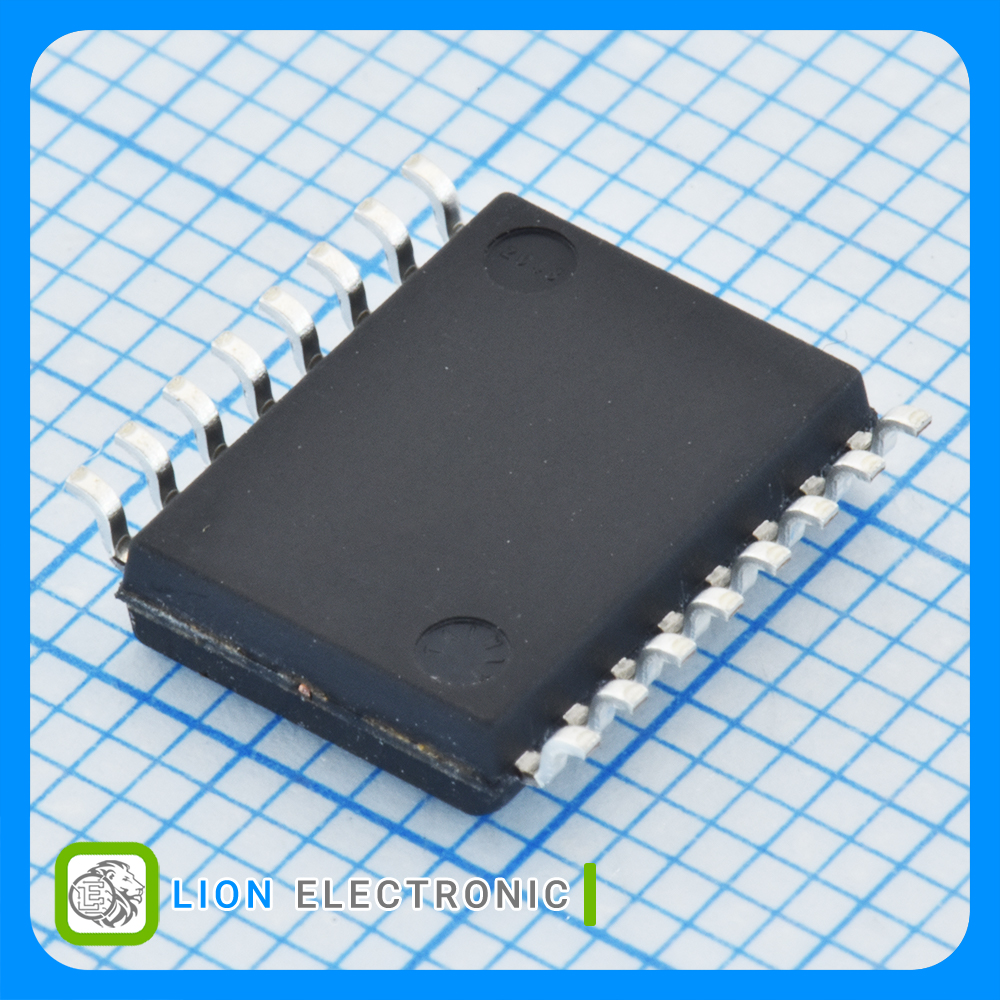

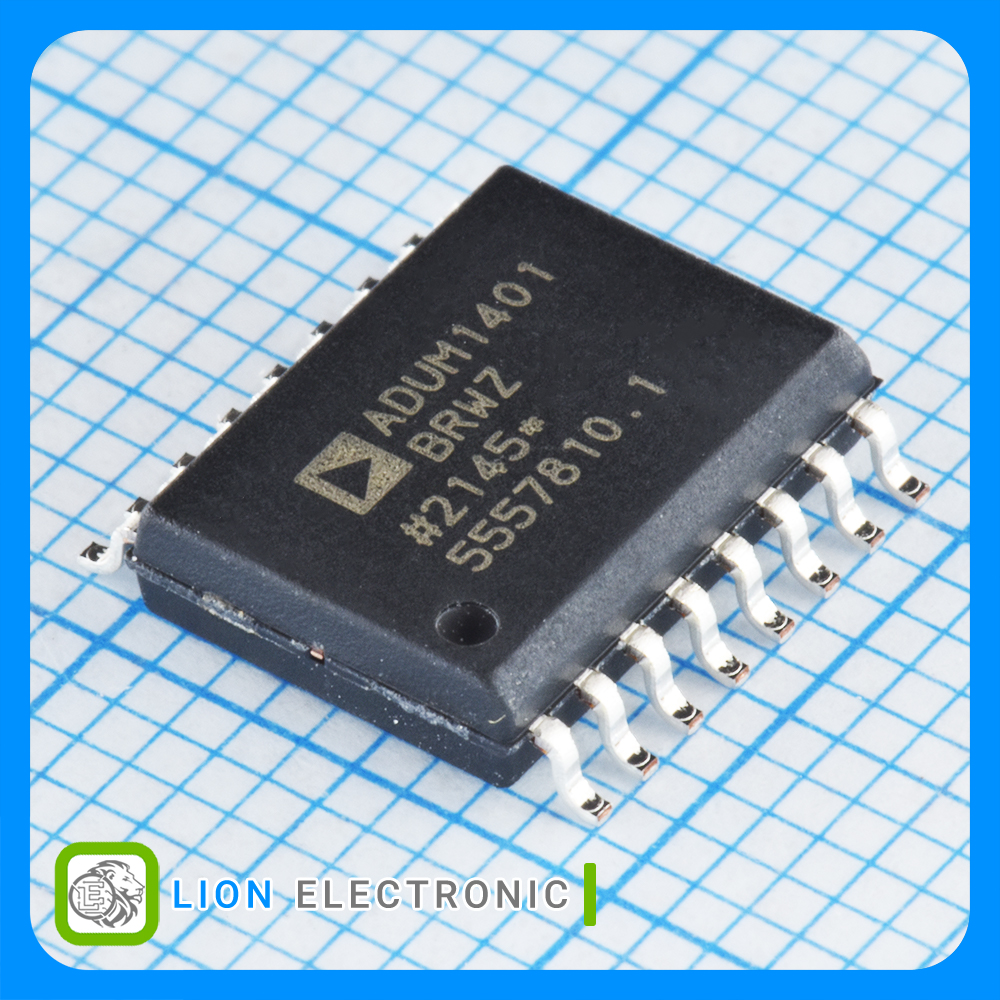

ADUM1401BRWZ
ADUM1401BRWZ
Part Number
2519
Lion Part
Datasheet
Analog Devices Manufacture
ایزولاتور دیجیتال 4 کاناله دو طرفه با ایزولاسیون 2.5 کیلوولت RMS و نرخ 10Mb/s و ولتاژ 5.5 ولت با پکیج SOIC-16
4-Channel Digital Isolator Bidirectional, 2.5kVrms, 10Mb/s, 5.5V with SOIC-16 Package
معرفی
ایزولاتور دیجیتال 4 کاناله دو طرفه با ایزولاسیون 2.5 کیلوولت RMS و نرخ 10Mb/s و ولتاژ 5.5 ولت با پکیج SOIC-16
4-Channel Digital Isolator Bidirectional, 2.5kVrms, 10Mb/s, 5.5V with SOIC-16 Package
Specifications
- Number of Channels: 4
- Polarity: Bidirectional
- Isolation Voltage: 2.5kVrms
- Data Rate: 10Mb/s
- Propagation Delay Time: 50ns
- Isolation Type: Magnetic Coupling
- Supply Voltage - Max: 5.5V
- Supply Voltage - Min: 2.7V
- Operating Supply Current: 57mA
- Mounting Style: SMD/SMT
- Package/Case: SOIC-16
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +105C
- Packaging: Reel
مشخصات ADUM1401BRWZ
ADUM1401BRWZ
Part Number
Bidirectional
Polarity
Magnetic Coupling
Isolation Type
2.5kVrms
Isolation Voltage
4
Number of Channels
Reel
Packaging
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
50ns
Propagation Delay Time
+105C
Maximum Operating Temperature
10Mb/s
Data Rate
5.5V
Supply Voltage - Max
2.7V
Supply Voltage - Min
57mA
Operating Supply Current
SOIC-16
Package-Case
