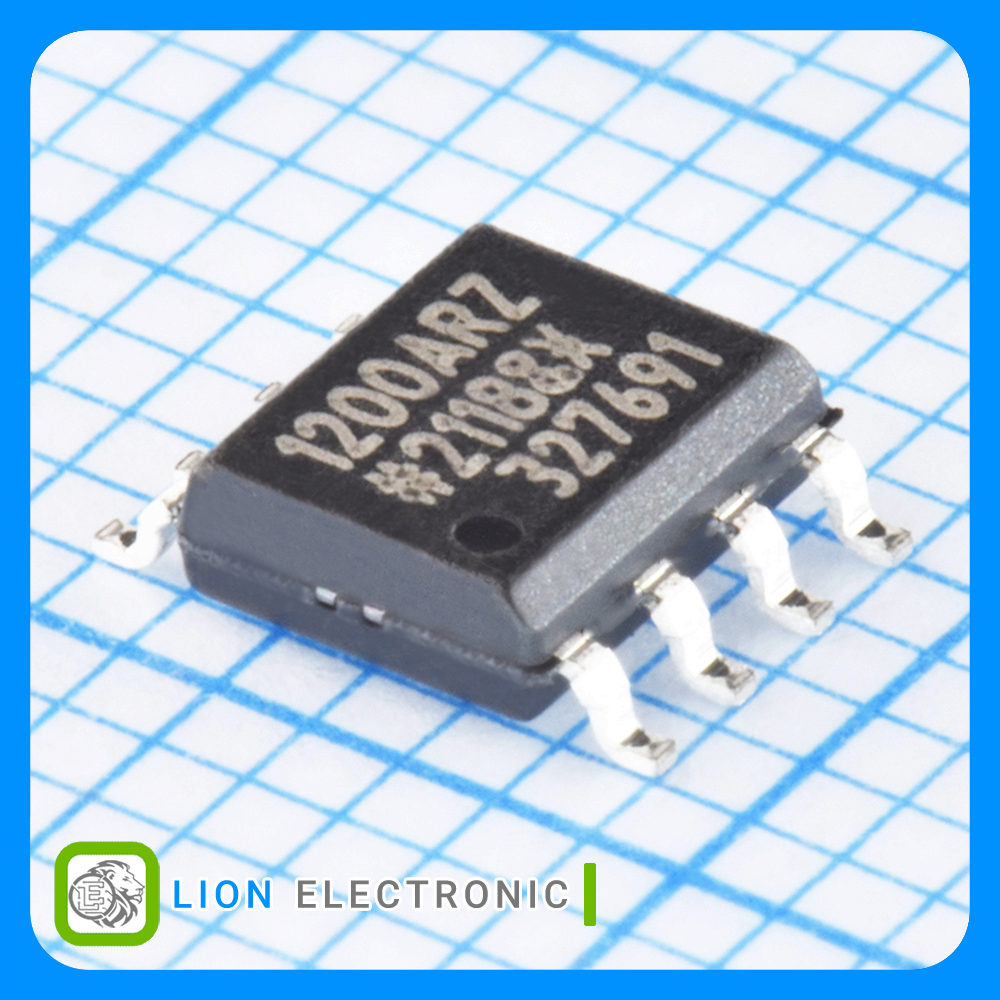

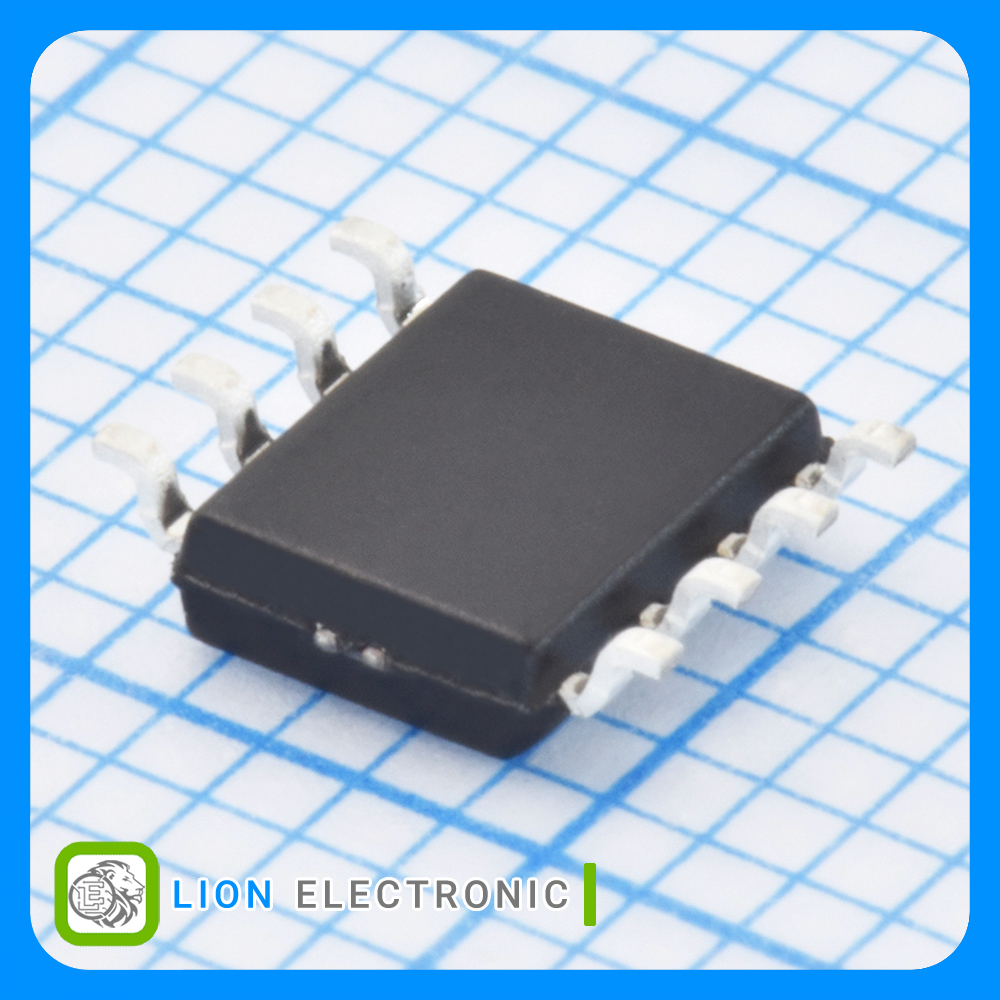

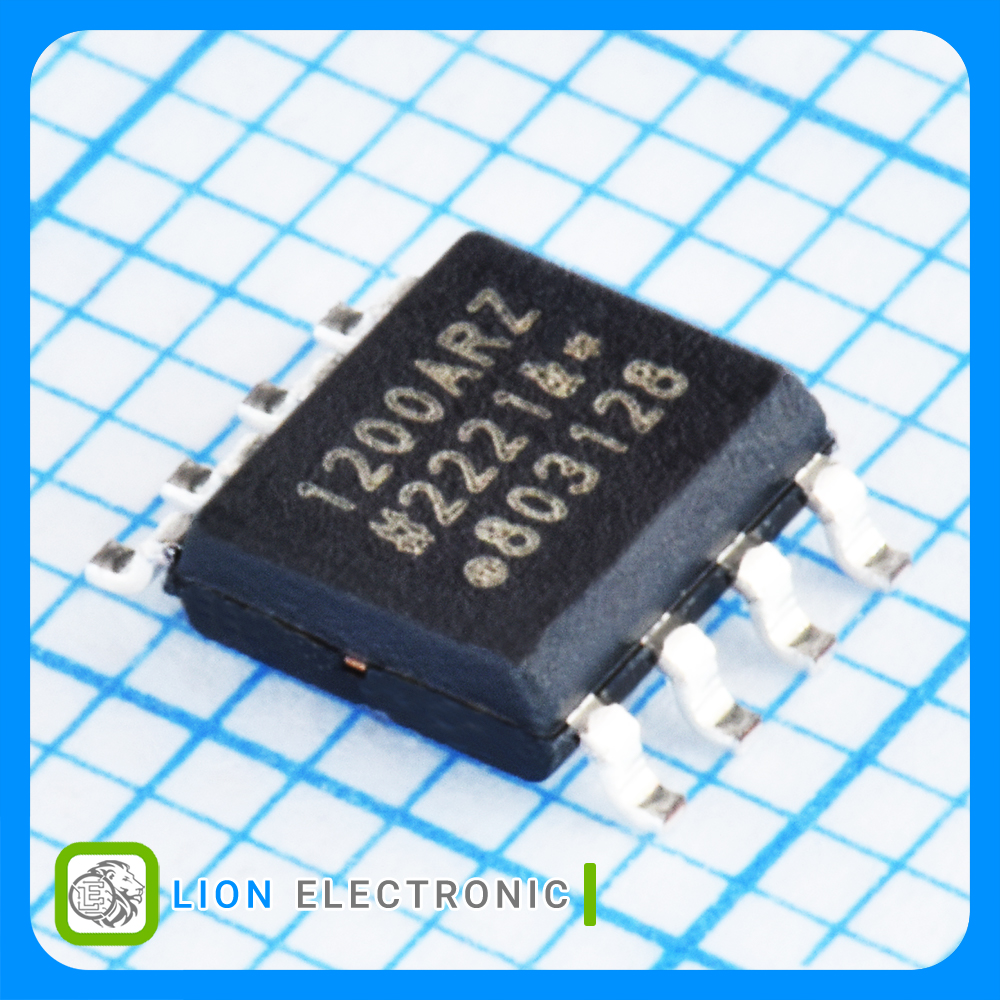

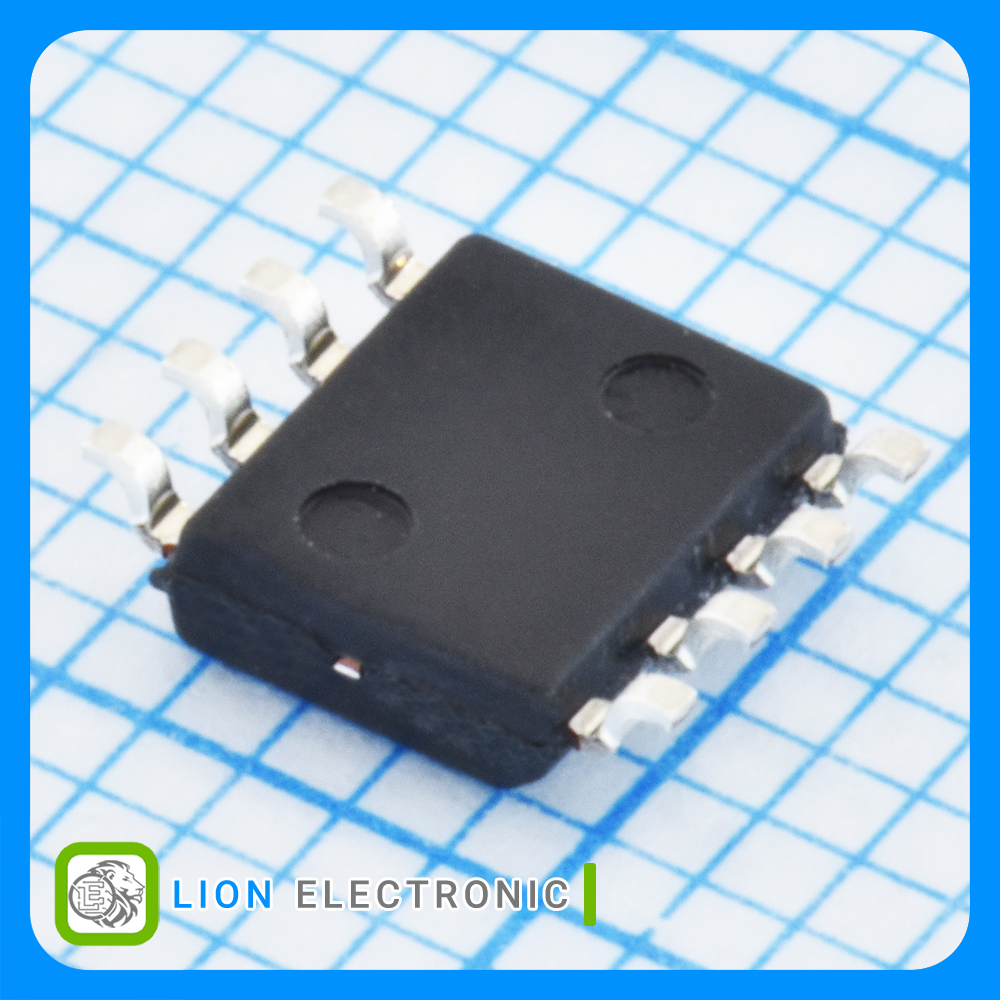

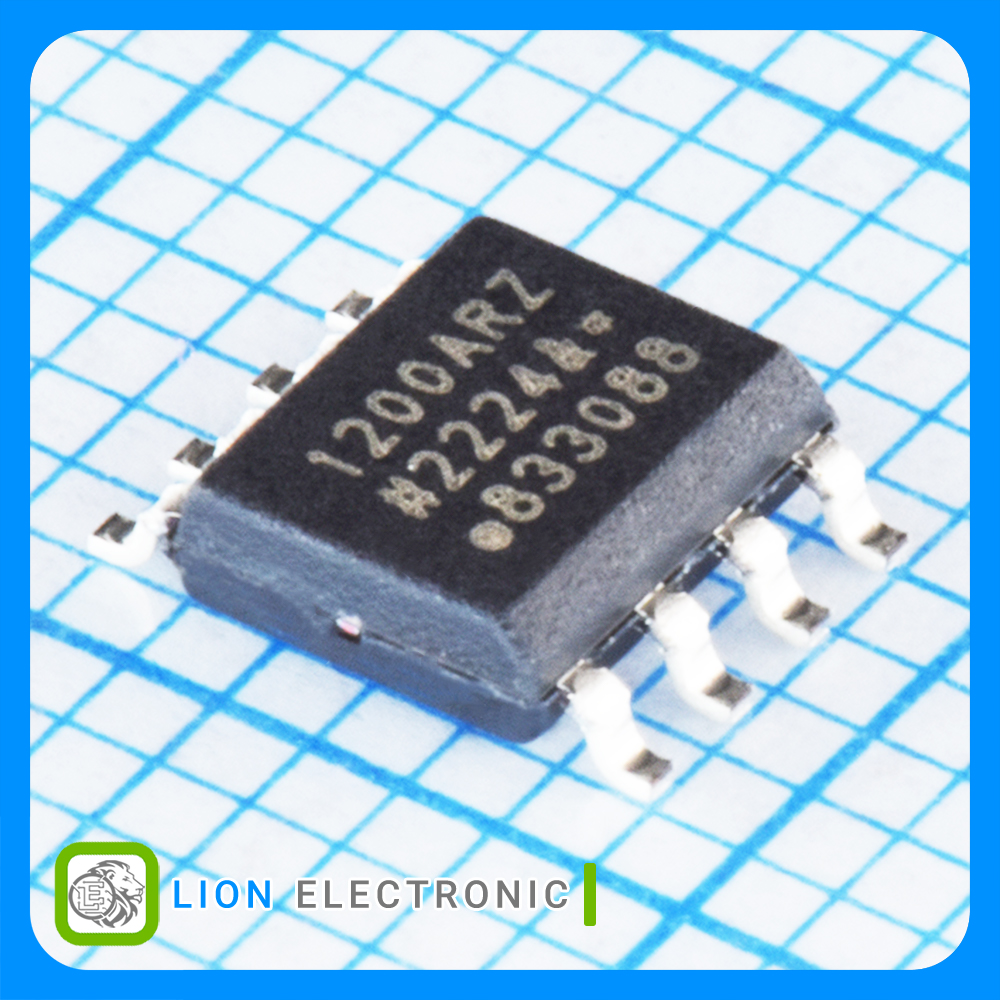

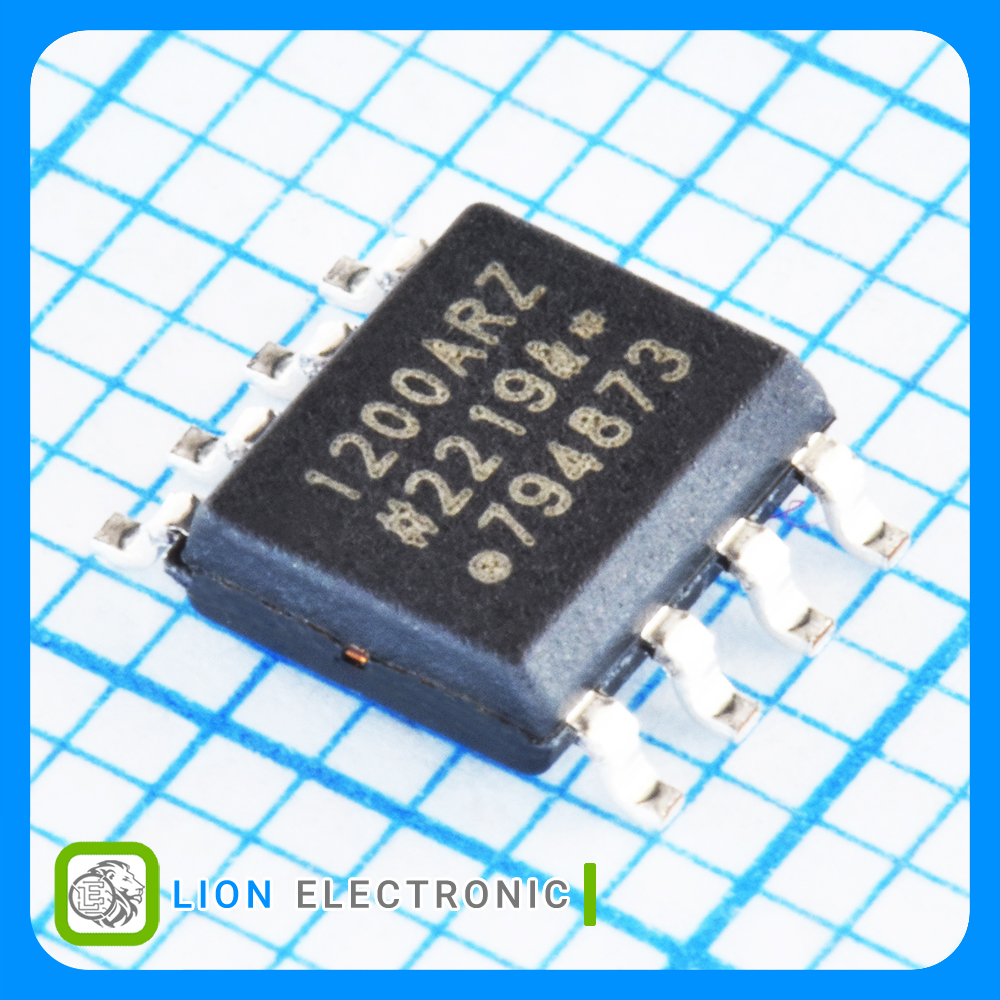

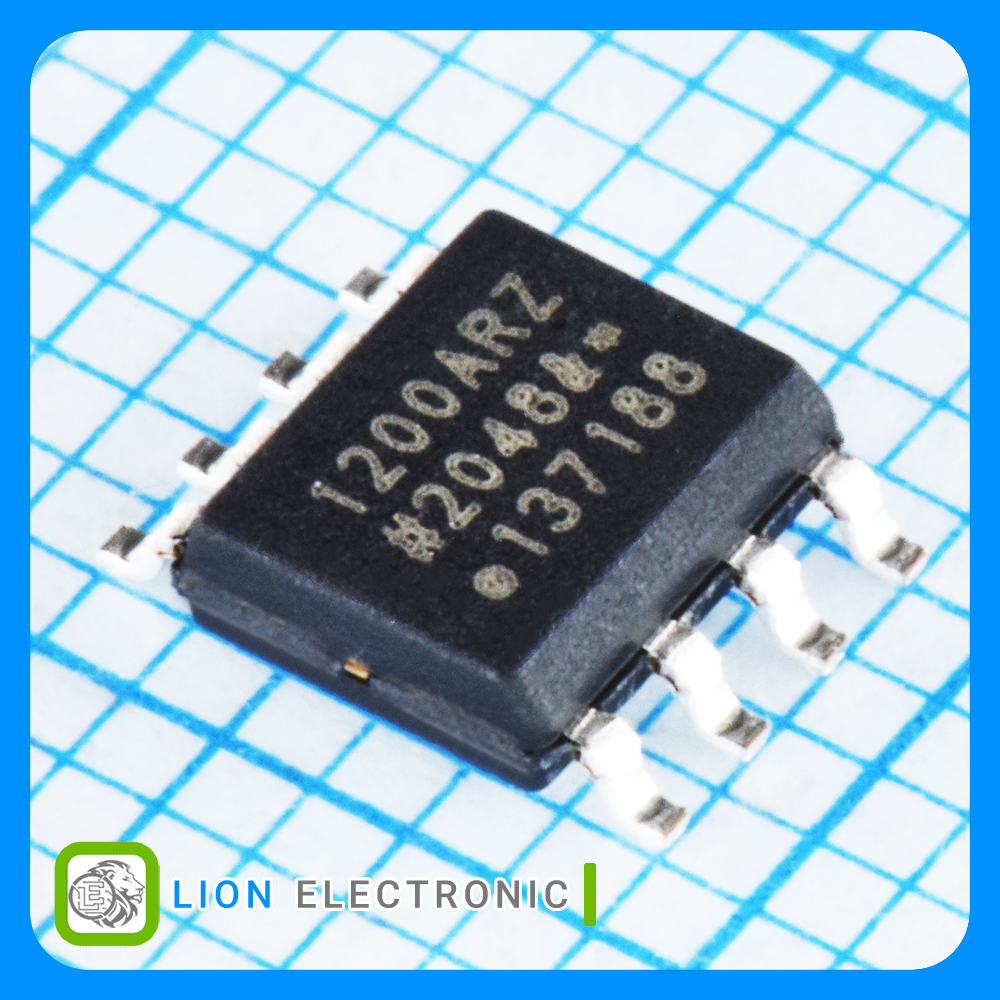

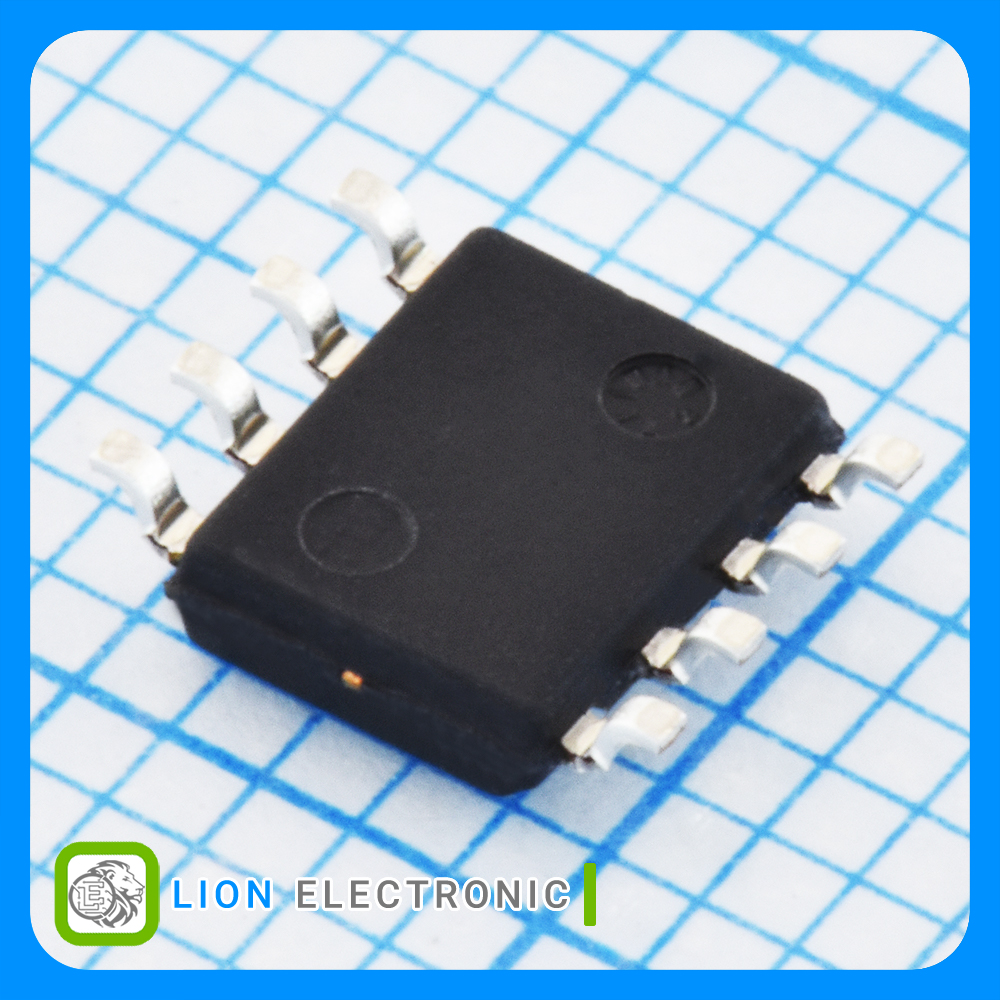

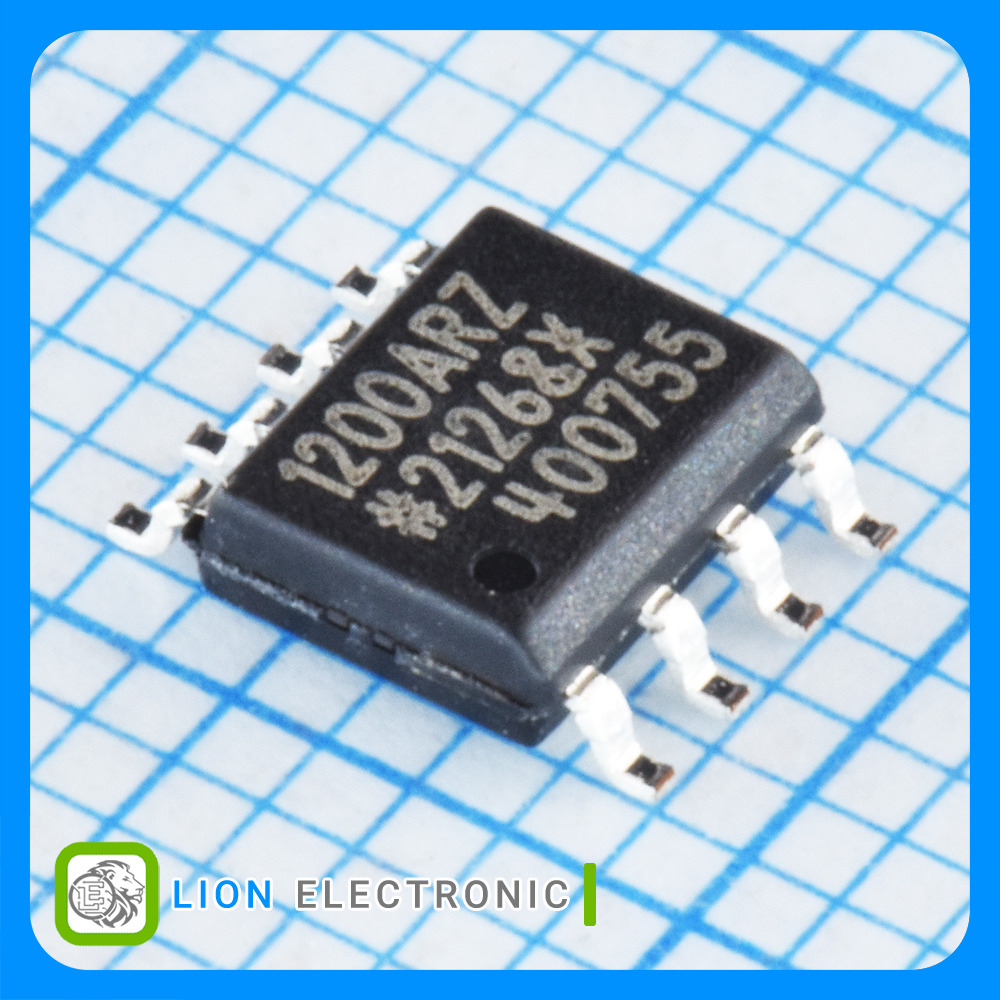

ADUM1200ARZ
ADUM1200ARZ
Part Number
2550
Lion Part
Datasheet
Analog Devices Manufacture
ایزولاتور دیجیتال 2 کاناله یکطرفه با ایزولاسیون 2.5 کیلوولت RMS و نرخ 25 مگابیت بر ثانیه، ولتاژ تغذیه 2.7 تا 5.5 ولت با پکیج SOIC-8
Dual-Channel Digital Isolator Unidirectional, 2.5kVrms, 25Mb/s, 2.7 - 5.5V Supply with SOIC-8 Package
معرفی
ایزولاتور دیجیتال 2 کاناله یکطرفه با ایزولاسیون 2.5 کیلوولت RMS و نرخ 25 مگابیت بر ثانیه، ولتاژ تغذیه 2.7 تا 5.5 ولت با پکیج SOIC-8
Dual-Channel Digital Isolator Unidirectional, 2.5kVrms, 25Mb/s, 2.7 - 5.5V Supply with SOIC-8 Package
Specifications
- Number of Channels: 2
- Polarity: Unidirectional
- Isolation Voltage: 2.5kVrms
- Data Rate: 25Mb/s
- Propagation Delay Time: 150ns
- Isolation Type: Magnetic Coupling
- Supply Voltage - Max: 5.5V
- Supply Voltage - Min: 2.7V
- Operating Supply Current: 4.3mA
- Mounting Style: SMD/SMT
- Package/Case: SOIC-8
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +105C
- Packaging: Reel
مشخصات ADUM1200ARZ
ADUM1200ARZ
Part Number
2
Number of Channels
Magnetic Coupling
Isolation Type
2.5kVrms
Isolation Voltage
Reel
Packaging
-40C
Minimum Operating Temperature
Unidirectional
Polarity
SMD/SMT
Mounting Style
+105C
Maximum Operating Temperature
150ns
Propagation Delay Time
5.5V
Supply Voltage - Max
25Mb/s
Data Rate
2.7V
Supply Voltage - Min
4.3mA
Operating Supply Current
SOIC-8
Package-Case
