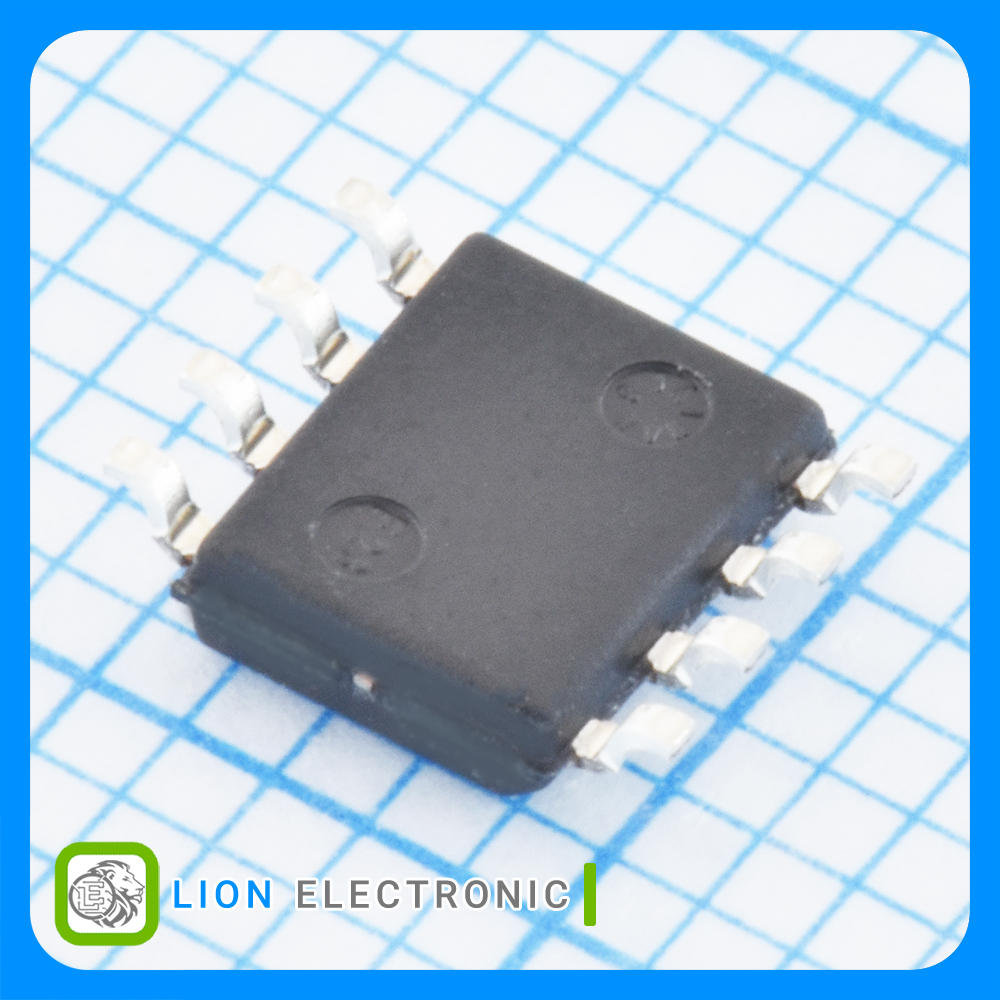

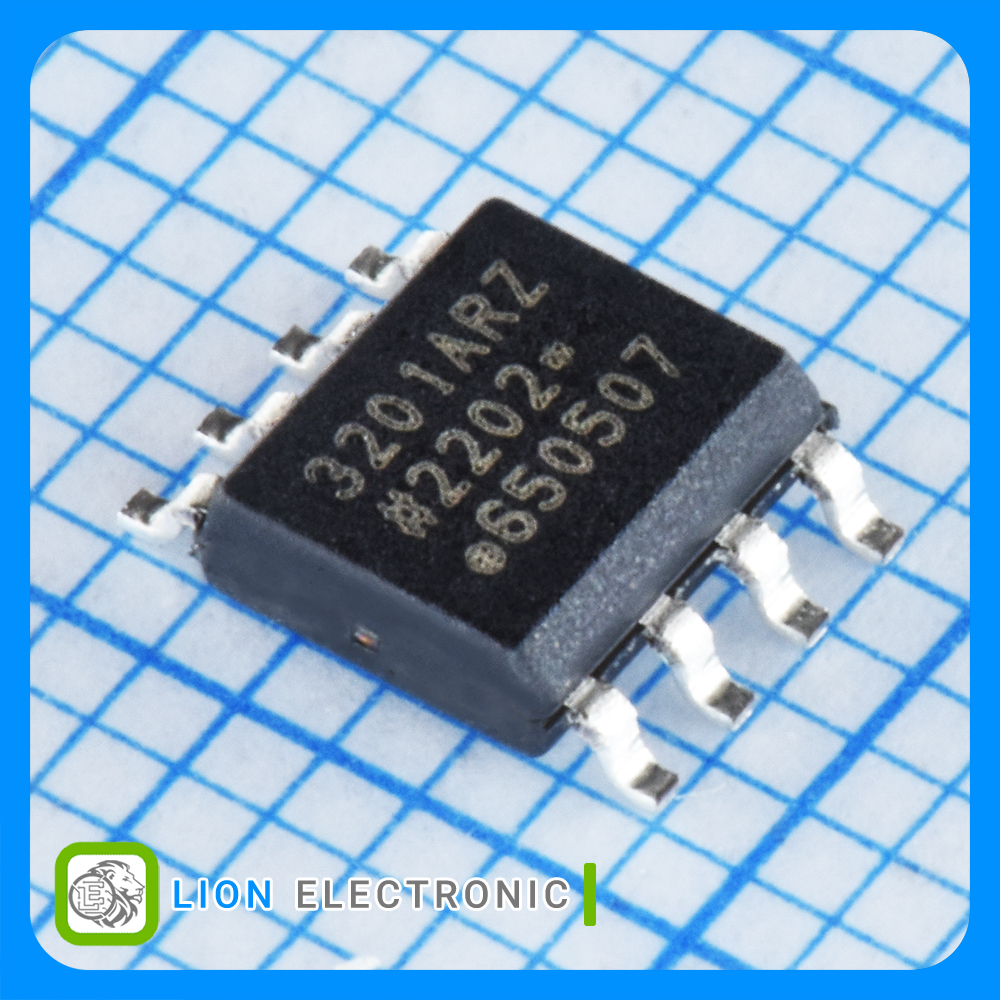

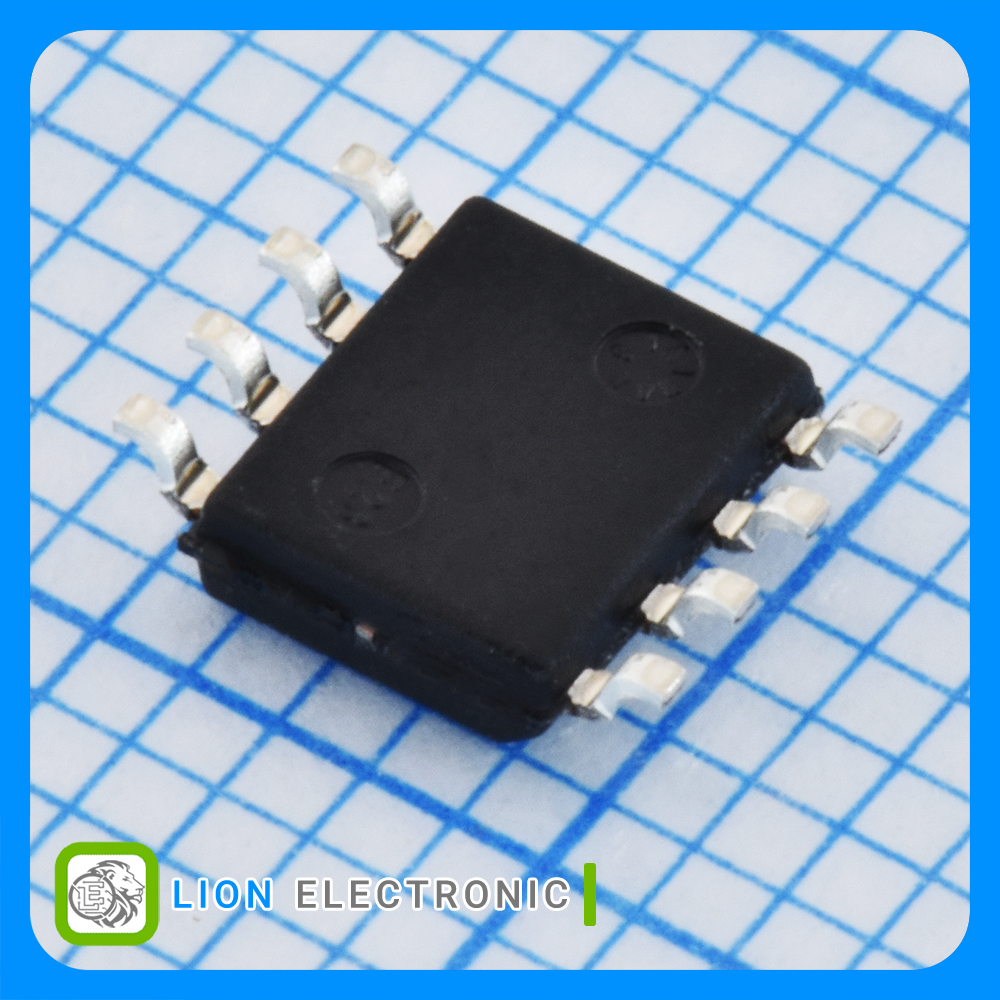

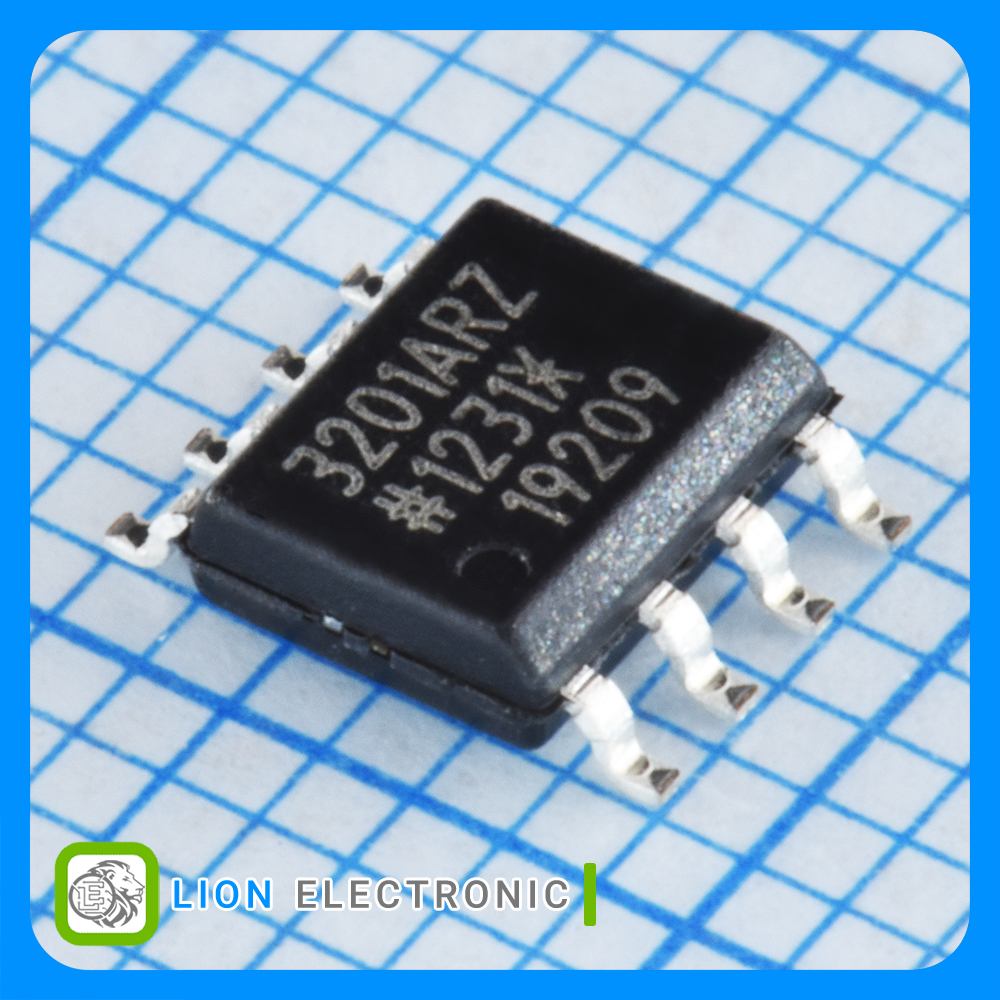

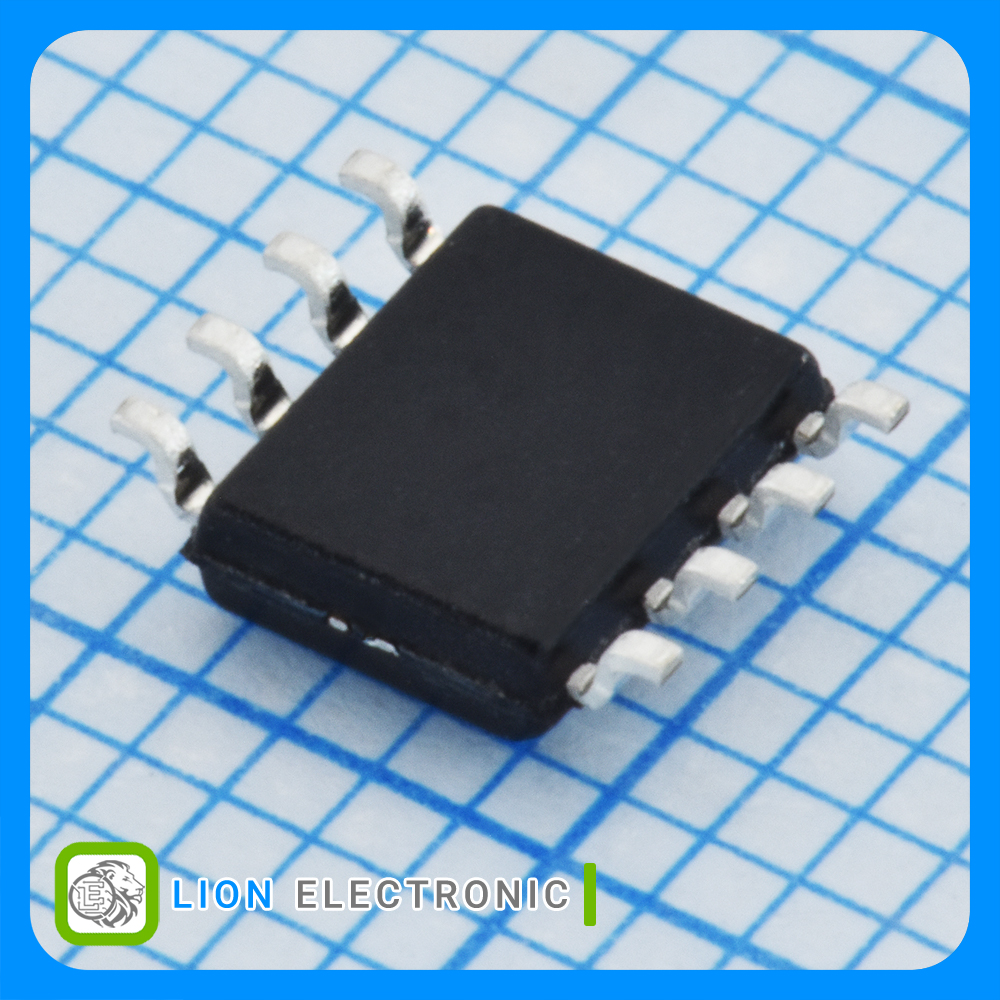

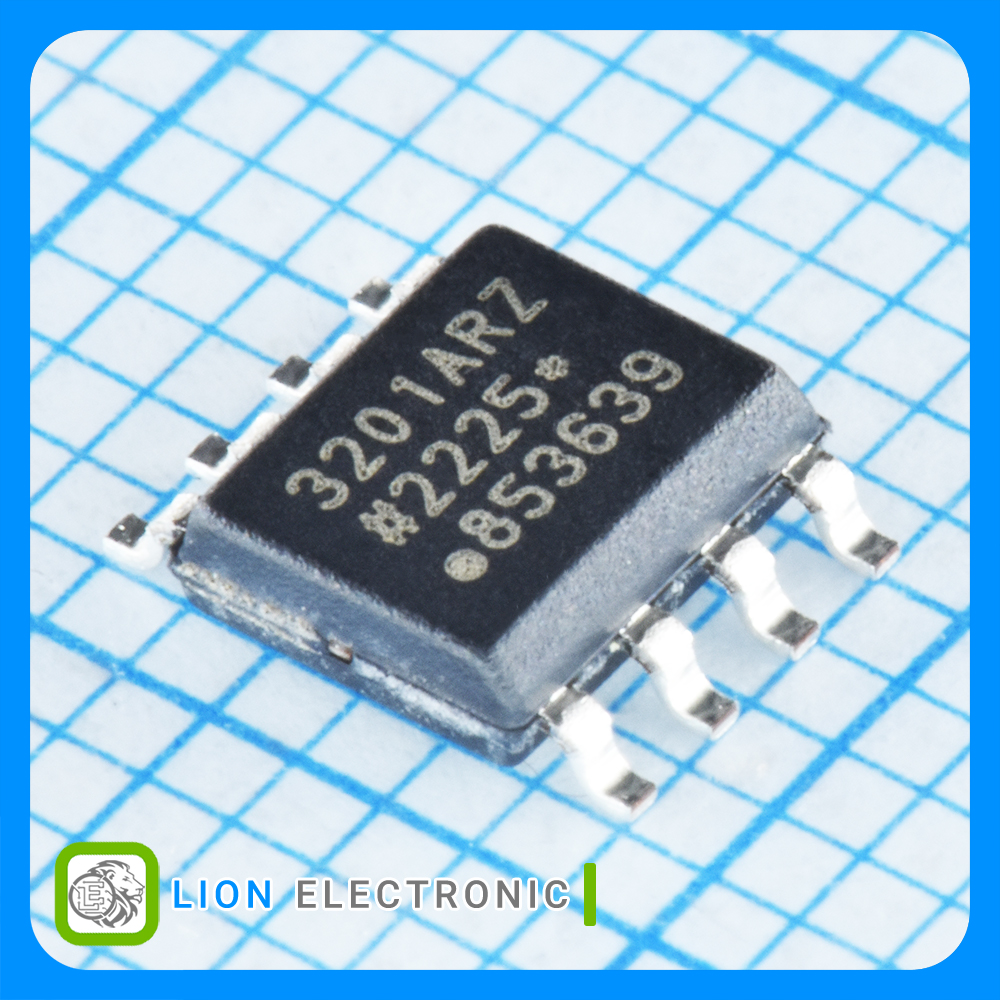

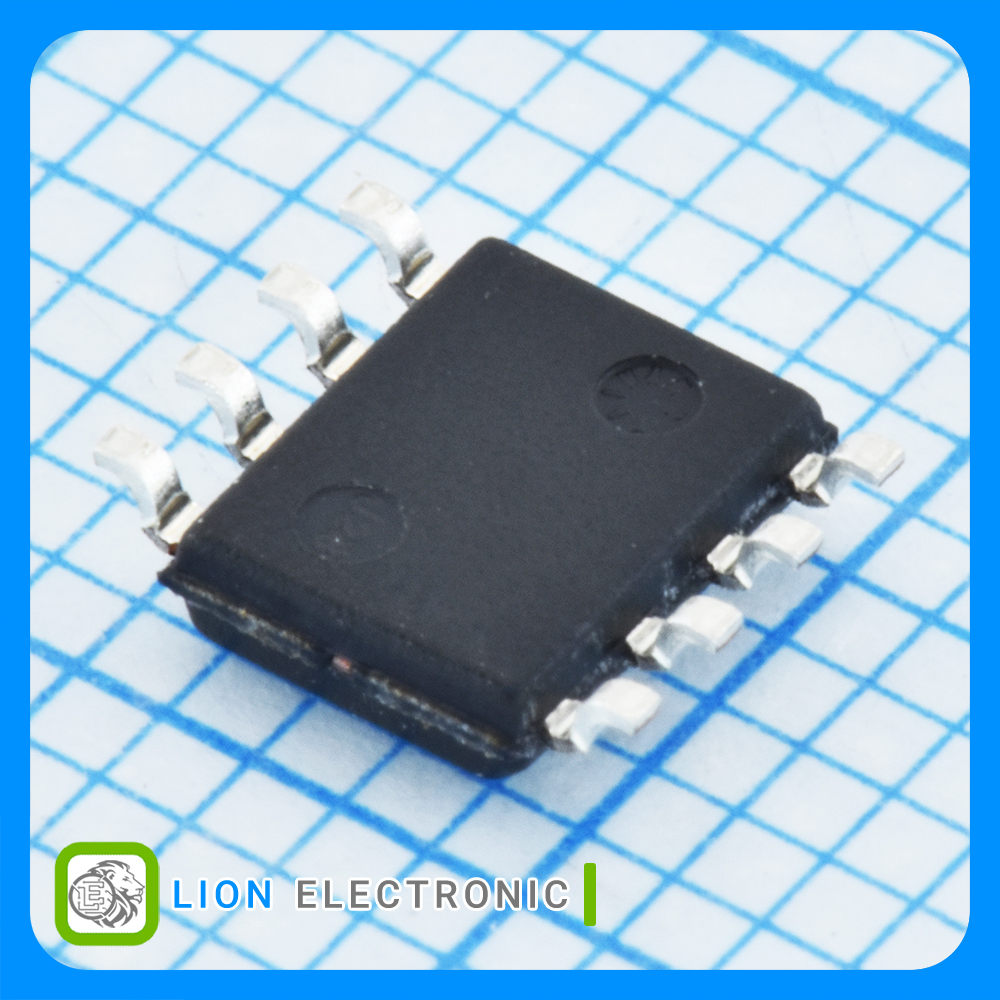

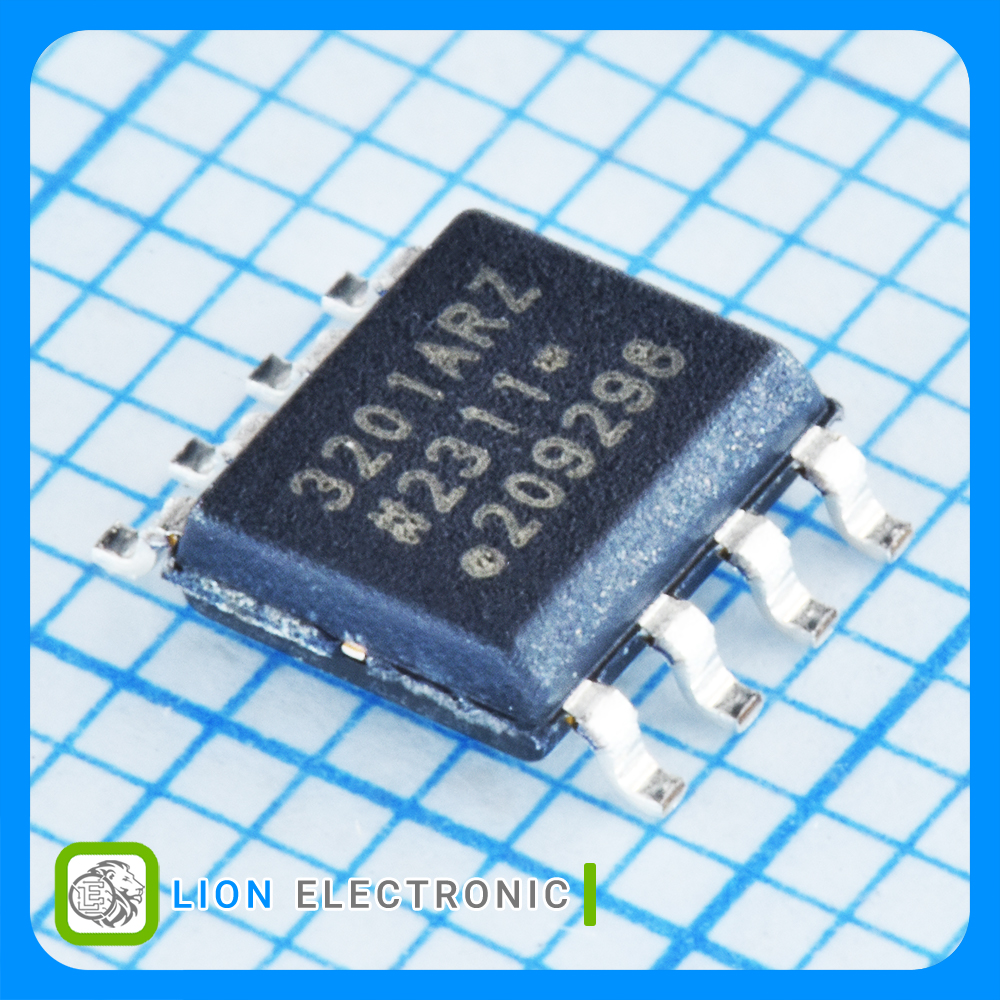

ADUM3201ARZ
ADUM3201ARZ
Part Number
2602
Lion Part
Datasheet
Analog Devices Manufacture
ایزولاتور دیجیتال 2 کاناله یکطرفه با ایزولاسیون 2.5 کیلوولت RMS و نرخ 1Mb/s و ولتاژ 5.5 ولت با پکیج SOIC-8
2-Channel Digital Isolator Unidirectional, 2.5kVrms, 1Mb/s, 5.5V, Enhanced System-Level ESD Reliability with SOIC-8 Package
معرفی
ایزولاتور دیجیتال 2 کاناله یکطرفه با ایزولاسیون 2.5 کیلوولت RMS و نرخ 1Mb/s و ولتاژ 5.5 ولت با پکیج SOIC-8
2-Channel Digital Isolator Unidirectional, 2.5kVrms, 1Mb/s, 5.5V, Enhanced System-Level ESD Reliability with SOIC-8 Package
Specifications
- Number of Channels: 2
- Polarity: Unidirectional
- Isolation Voltage: 2.5kVrms
- Data Rate: 1Mb/s
- Propagation Delay Time: 150ns
- Isolation Type: Magnetic Coupling
- Supply Voltage - Max: 5.5V
- Supply Voltage - Min: 3V
- Operating Supply Current: 1.1mA to 1.3mA
- Mounting Style: SMD/SMT
- Package/Case: SOIC-8
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Tube
مشخصات ADUM3201ARZ
ADUM3201ARZ
Part Number
2
Number of Channels
Magnetic Coupling
Isolation Type
2.5kVrms
Isolation Voltage
-40C
Minimum Operating Temperature
Unidirectional
Polarity
Tube
Packaging
SMD/SMT
Mounting Style
+85C
Maximum Operating Temperature
1Mb/s
Data Rate
150ns
Propagation Delay Time
5.5V
Supply Voltage - Max
3V
Supply Voltage - Min
1.1mA to 1.3mA
Operating Supply Current
SOIC-8
Package-Case
