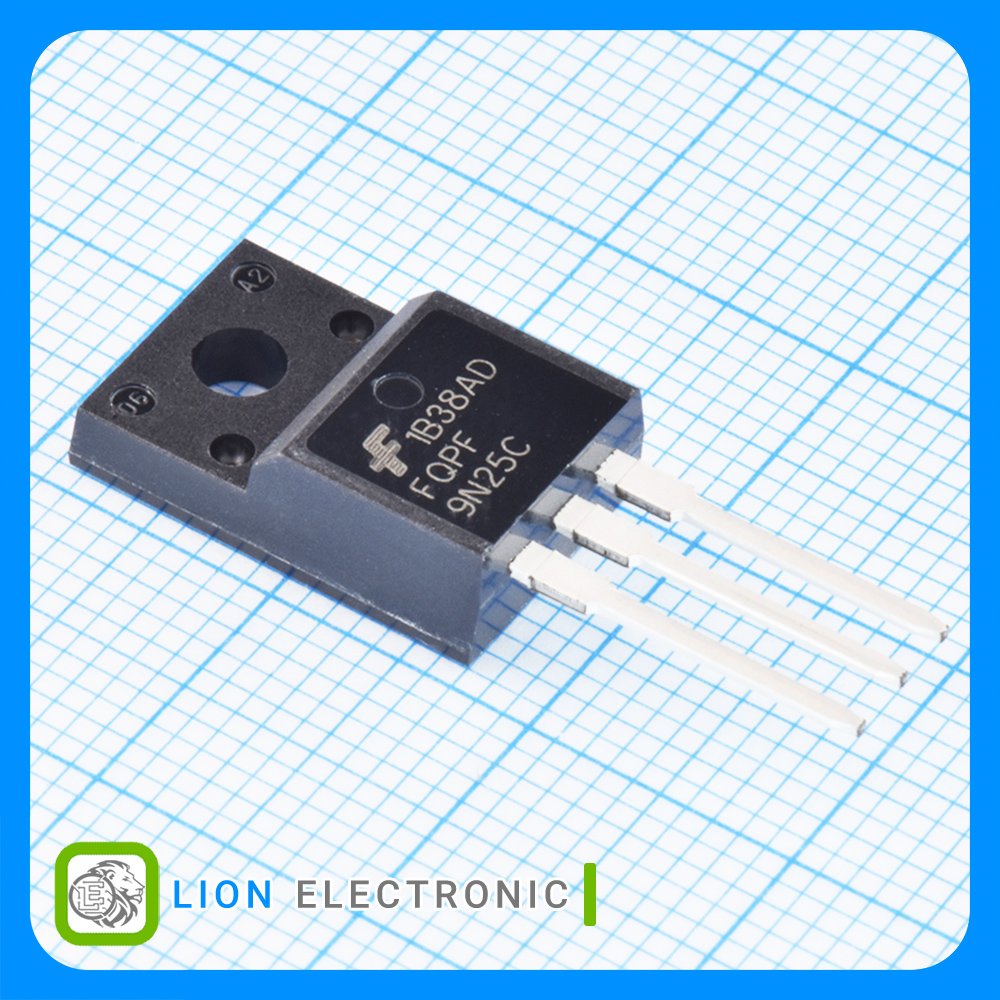

FQPF9N25C
FQPF9N25C
Part Number
2636
Lion Part
Datasheet
ON Semiconductor Manufacture
ماسفت 250 ولت 8.8 آمپر نوع N با پکیج TO-220F
N-CH MOSFET 250V, 8.8A with TO-220F Package
معرفی
ماسفت 250 ولت 8.8 آمپر نوع N با پکیج TO-220F
N-CH MOSFET 250V, 8.8A with TO-220F Package
Specifications
- Package/Case: TO-220FP-3
- Vds - Drain - Source Breakdown Voltage: 250V
- Id - Continuous Drain Current: 8.8A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 2V
- Vgs - Gate - Source Voltage: ±30V
- Rds On - Drain - Source Resistance: 430mΩ
- Pd - Power Dissipation: 38W
- Qg - Gate Charge: 26.5nC
- Mounting Style: Through Hole
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Tube
مشخصات ماسفت FQPF9N25C
ماسفت FQPF9N25C
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Tube
Packaging
Through Hole
Mounting Style
±30V
Vgs - Gate - Source Voltage
+150C
Maximum Operating Temperature
250V
Vds - Drain - Source Breakdown Voltage
2V
Vgs th - Gate - Source Threshold Voltage
26.5nC
Qg - Gate Charge
8.8A
Id - Continuous Drain Current
38W
Pd - Power Dissipation
430mΩ
Rds On - Drain - Source Resistance
TO-220
Package-Case
