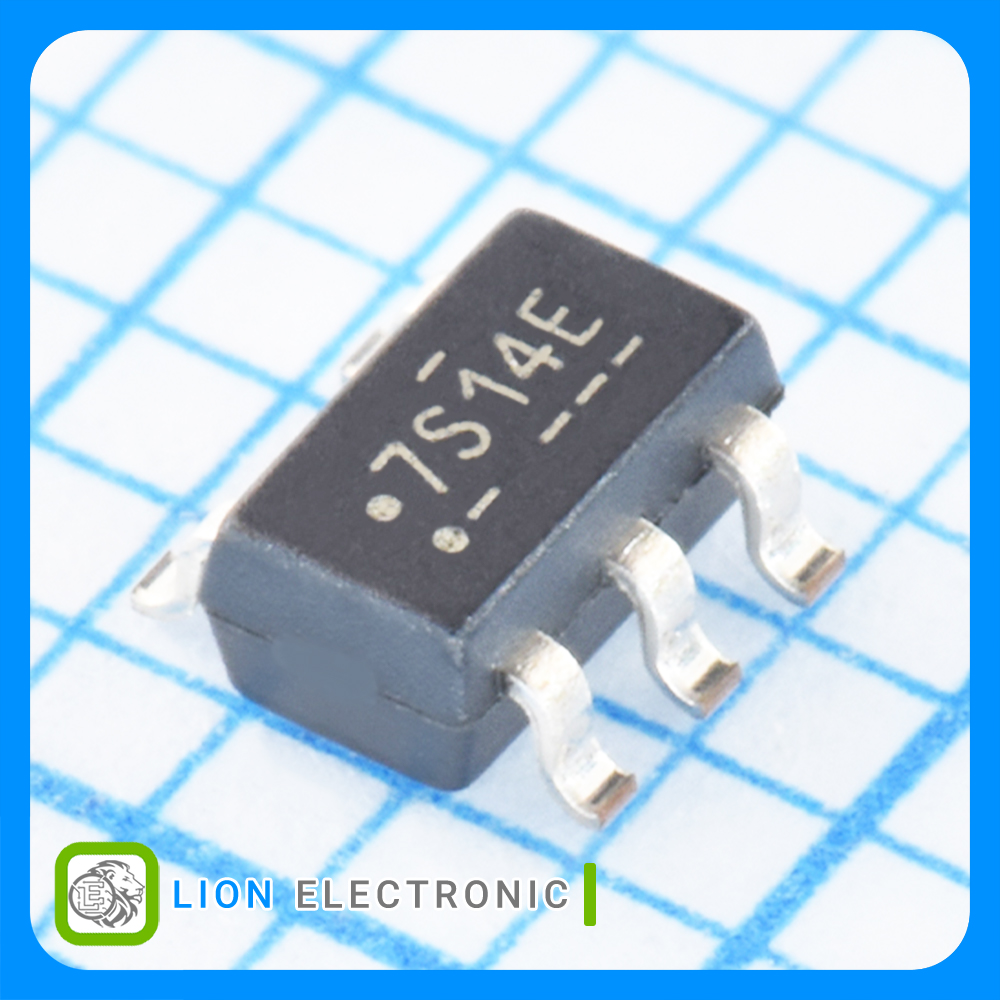

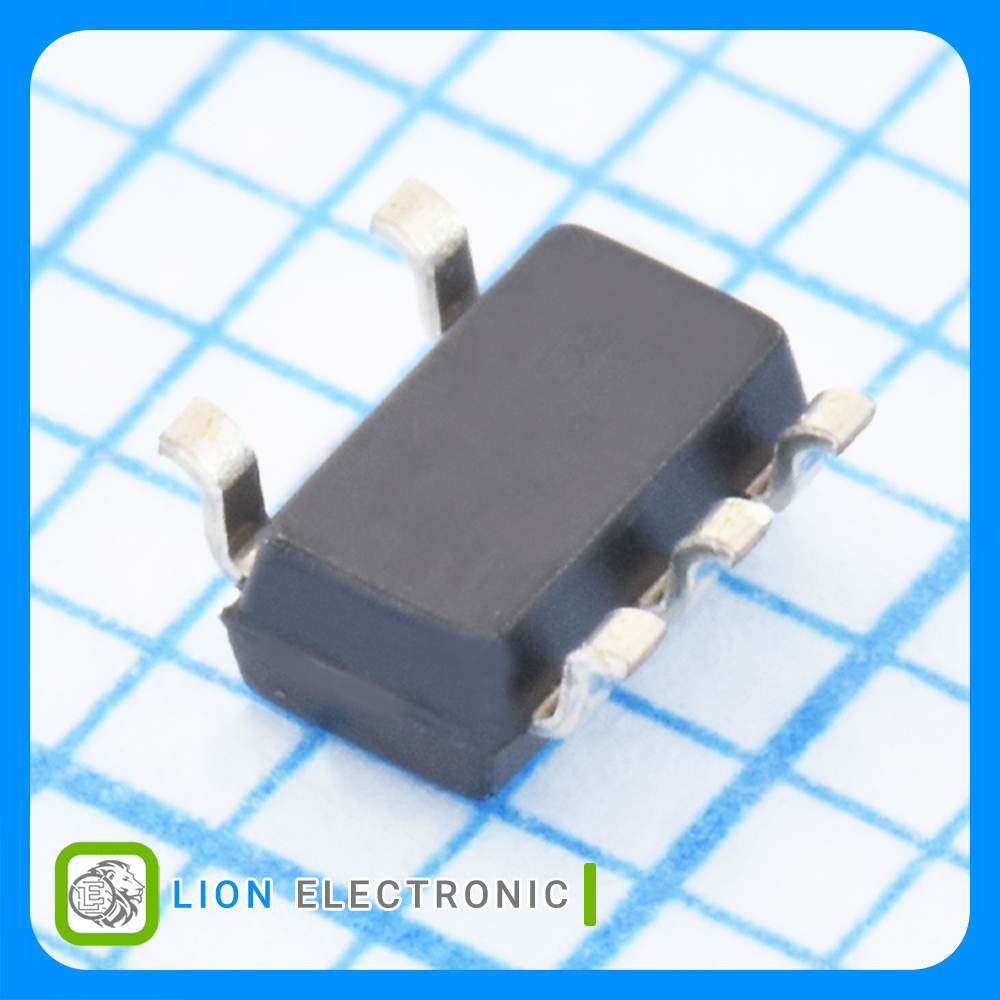

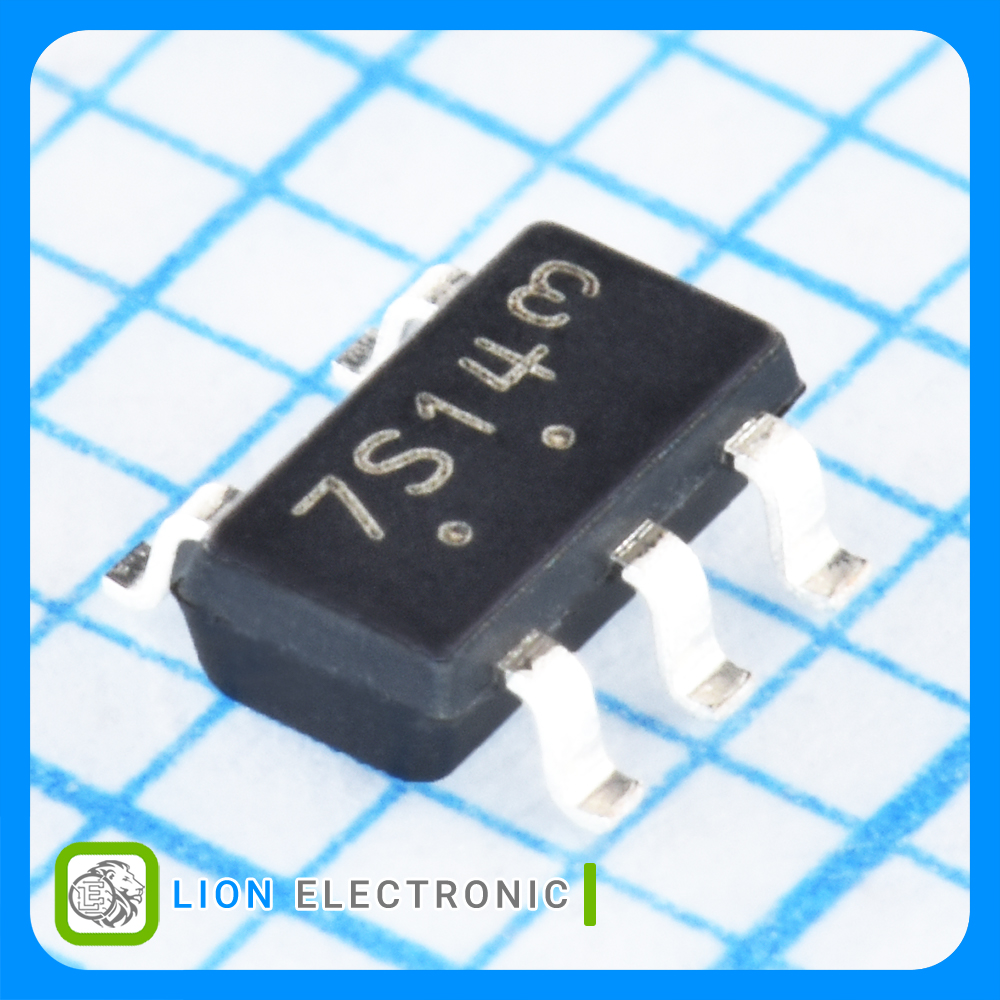

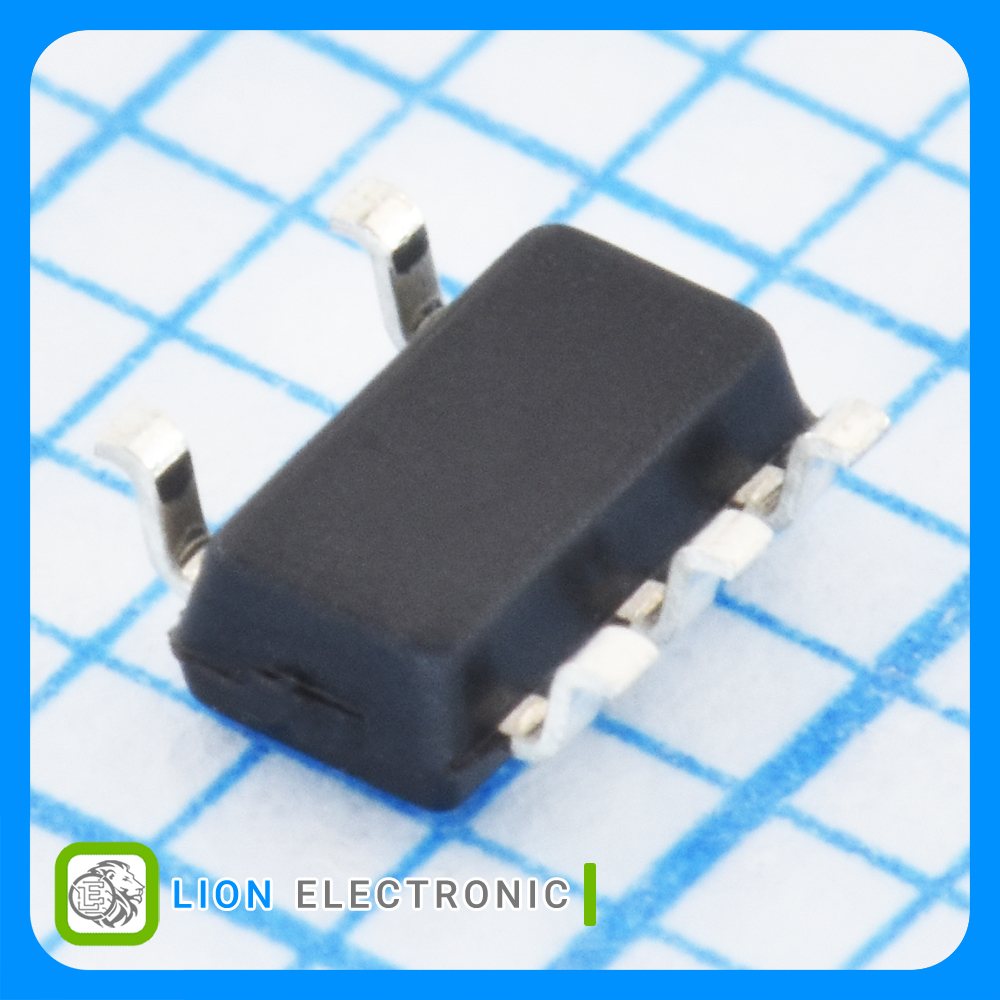

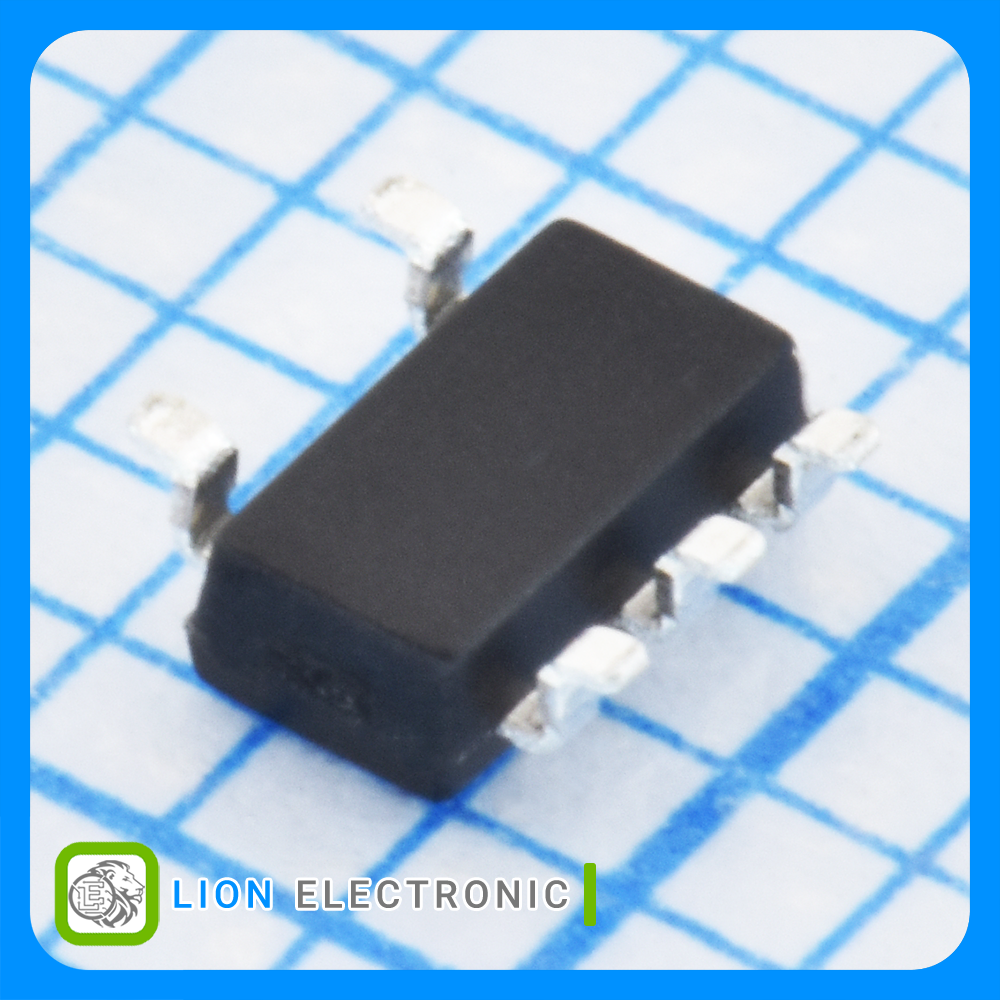

NC7S14M5X
NC7S14M5X
Part Number
2642
Lion Part
Datasheet
ON Semiconductor Manufacture
آیسی لاجیک گیت NOT اشمیتتریگر با 1 ورودی ولتاژ 2 تا 6 ولت با پکیج SOT-23-5
Logic IC Single CMOS Inverter (NOT Gate) with Schmitt Trigger Input, 1 Input Line, 2V - 6V Supply with SOT-23-5 Package
معرفی
آیسی لاجیک گیت NOT اشمیتتریگر با 1 ورودی ولتاژ 2 تا 6 ولت با پکیج SOT-23-5
Logic IC Single CMOS Inverter (NOT Gate) with Schmitt Trigger Input, 1 Input Line, 2V - 6V Supply with SOT-23-5 Package
Specifications
- Logic Family: NC7S
- Logic Type: Schmitt Trigger
- Number of Input Lines: 1
- Number of Output Lines: 1
- Supply Voltage - Max: 6V
- Supply Voltage - Min: 2V
- Mounting Style: SMD/SMT
- Package/Case: SOT-23-5
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات گیت منطقی NC7S14M5X

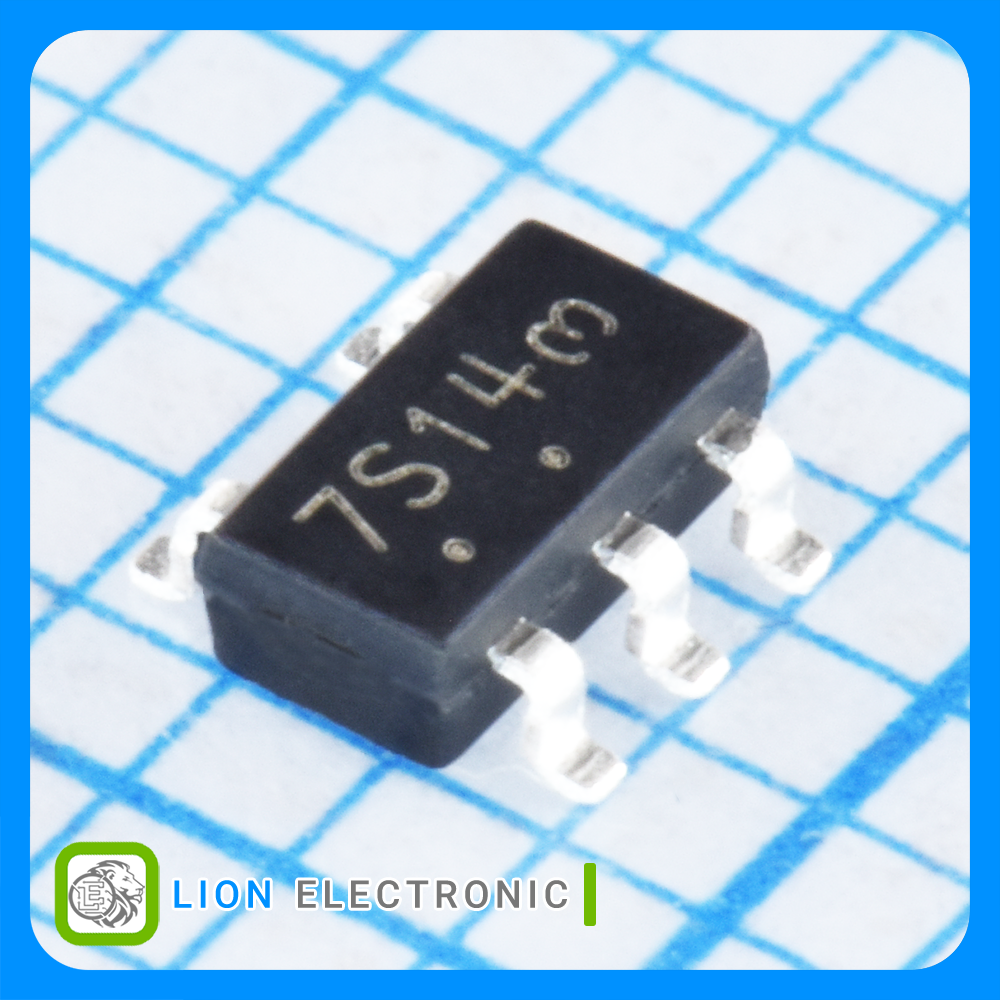

گیت منطقی NC7S14M5X
Part Number
1
Number of Input Lines
1
Number of Output Lines
Reel
Packaging
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
+85C
Maximum Operating Temperature
NC7S
Logic Family
2V
Supply Voltage - Min
Schmitt Trigger
Logic Type
6V
Supply Voltage - Max
SOT-23-5
Package-Case
