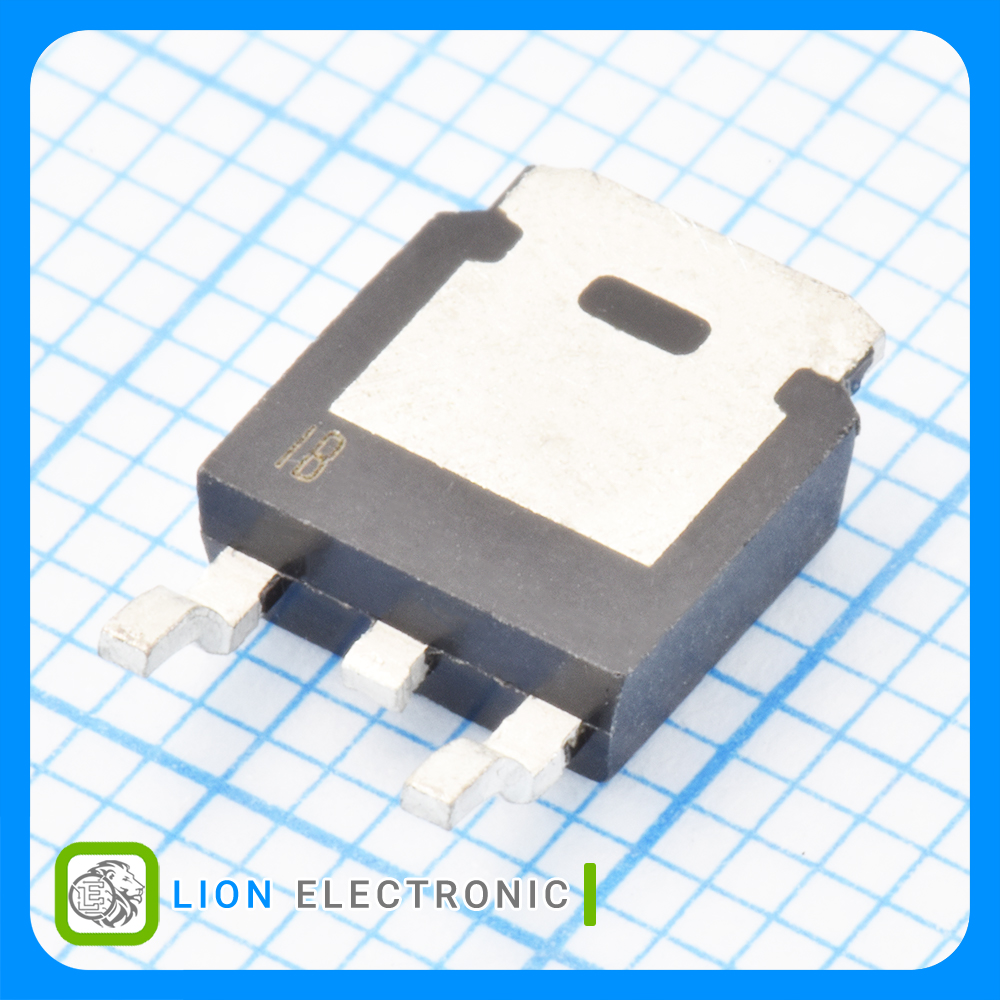

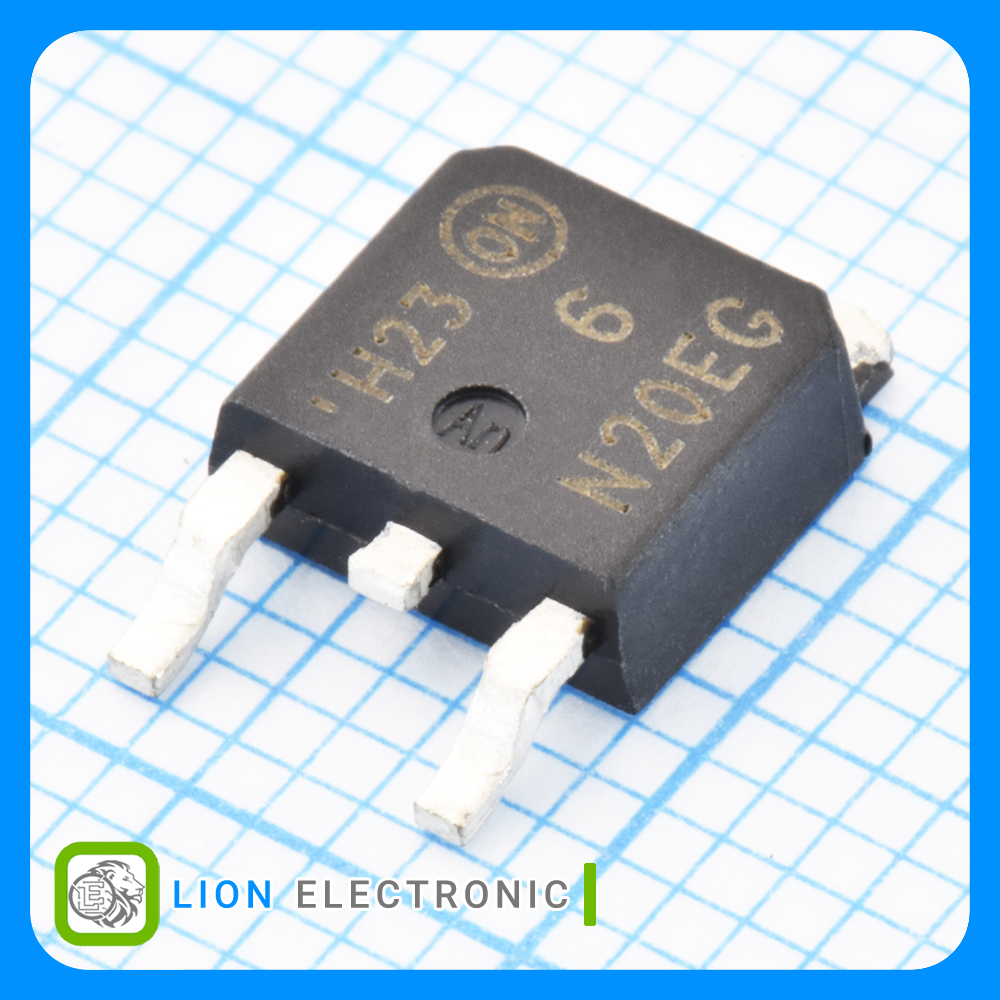

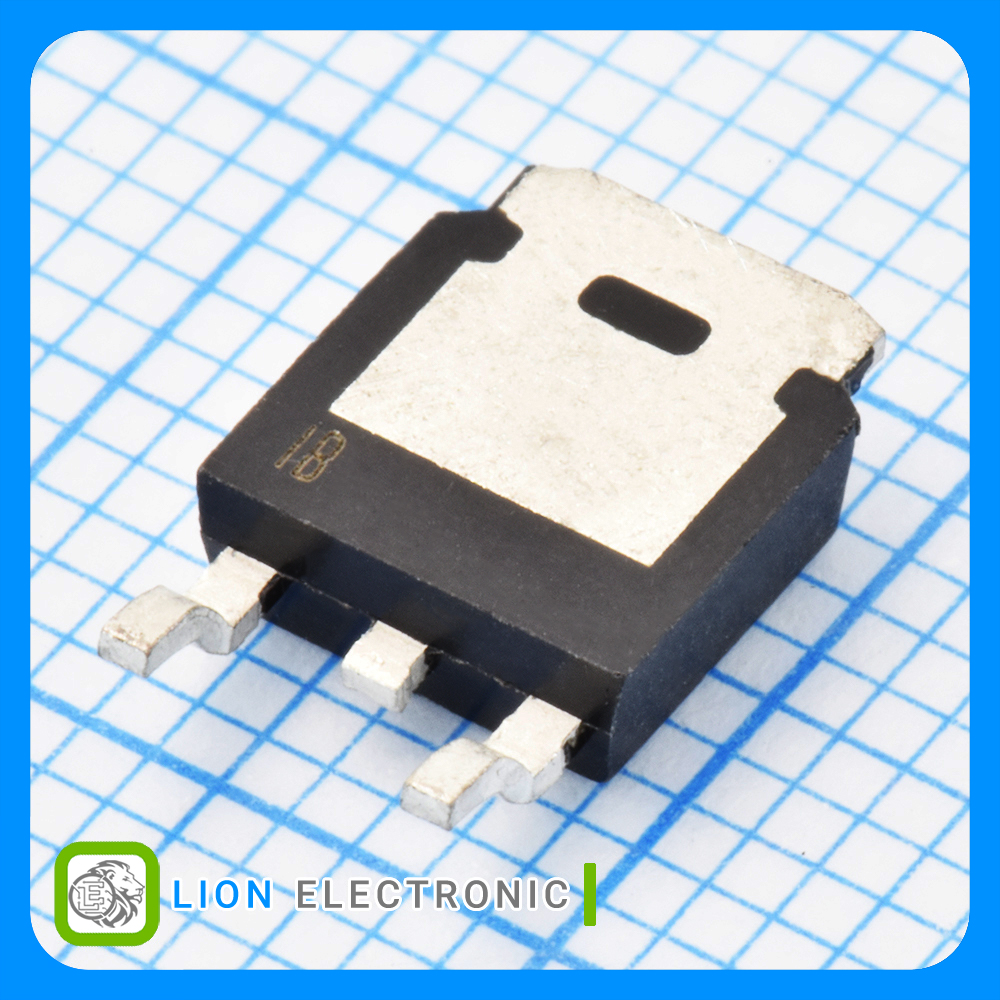

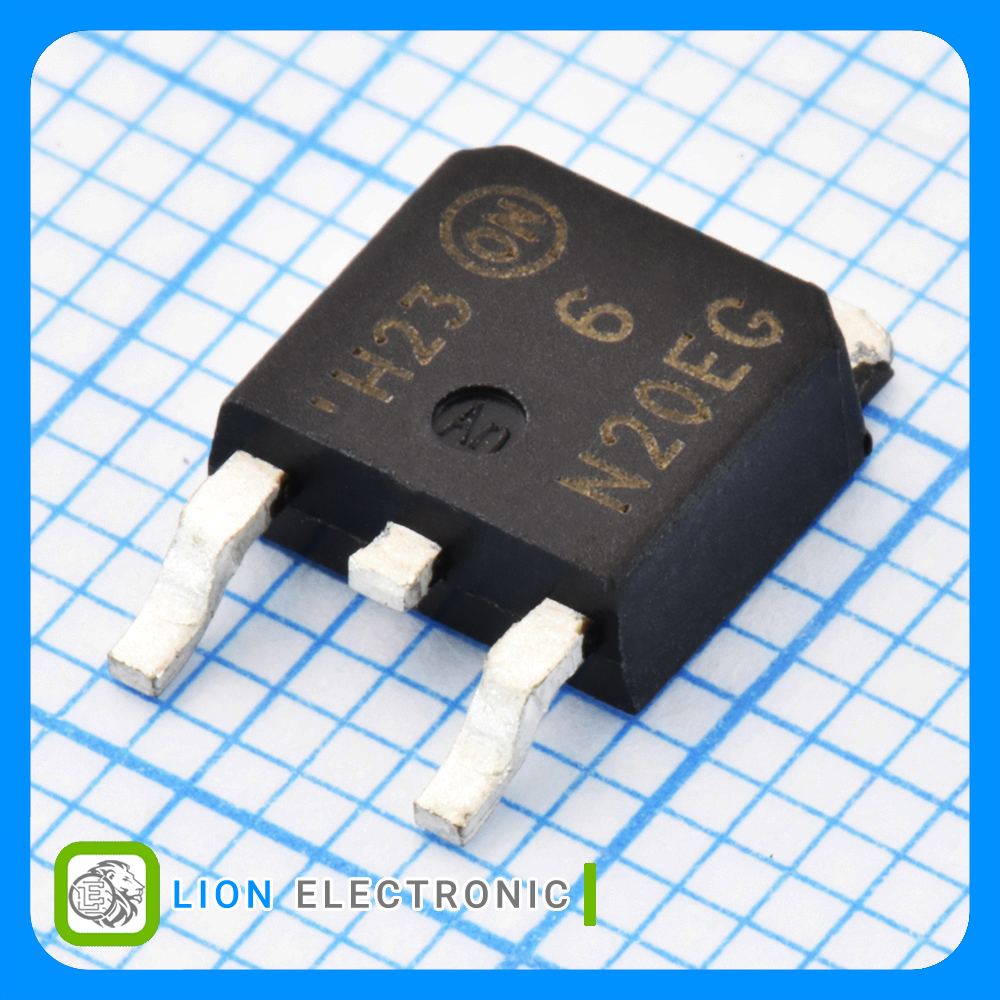

MTD6N20E
MTD6N20E
Part Number
2651
Lion Part
Datasheet
ON Semiconductor Manufacture
ماسفت 200 ولت 6 آمپر نوع N با پکیج TO-252-3
N-CH MOSFET 200V, 6A with TO-252-3 Package
معرفی
ماسفت 200 ولت 6 آمپر نوع N با پکیج TO-252-3
N-CH MOSFET 200V, 6A with TO-252-3 Package
Specifications
- Package/Case: DPAK
- Vds - Drain - Source Breakdown Voltage: 200V
- Id - Continuous Drain Current: 6A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 2V
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 460mΩ
- Pd - Power Dissipation: 50W
- Qg - Gate Charge: 13.7nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Tube
مشخصات ماسفت MTD6N20E
ماسفت MTD6N20E
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Tube
Packaging
SMD/SMT
Mounting Style
±20V
Vgs - Gate - Source Voltage
+150C
Maximum Operating Temperature
200V
Vds - Drain - Source Breakdown Voltage
2V
Vgs th - Gate - Source Threshold Voltage
13.7nC
Qg - Gate Charge
6A
Id - Continuous Drain Current
DPAK
Package-Case
50W
Pd - Power Dissipation
460mΩ
Rds On - Drain - Source Resistance
