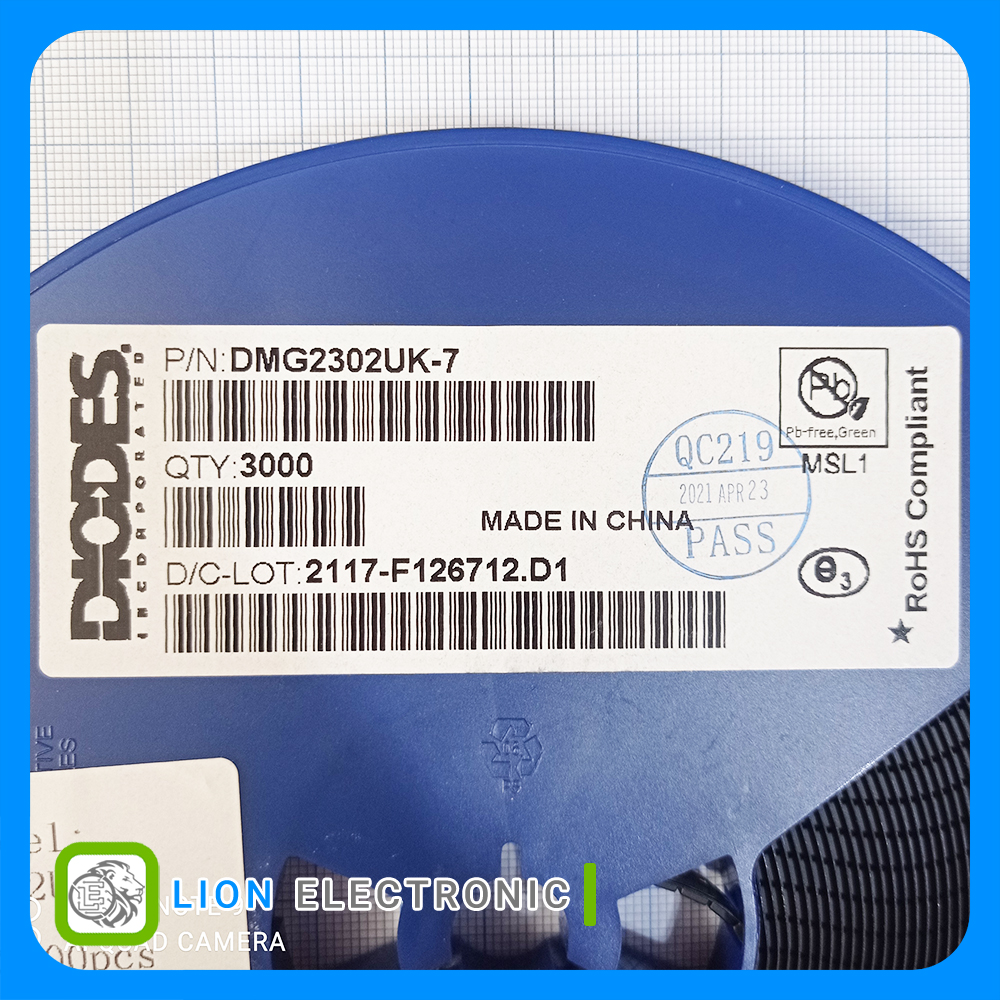

DMG2302UK-7
DMG2302UK-7
Part Number
2655
Lion Part
Datasheet
Diodes Incorporated Manufacture
ماسفت 20 ولت 2.8 آمپر نوع N با پکیج SOT-23

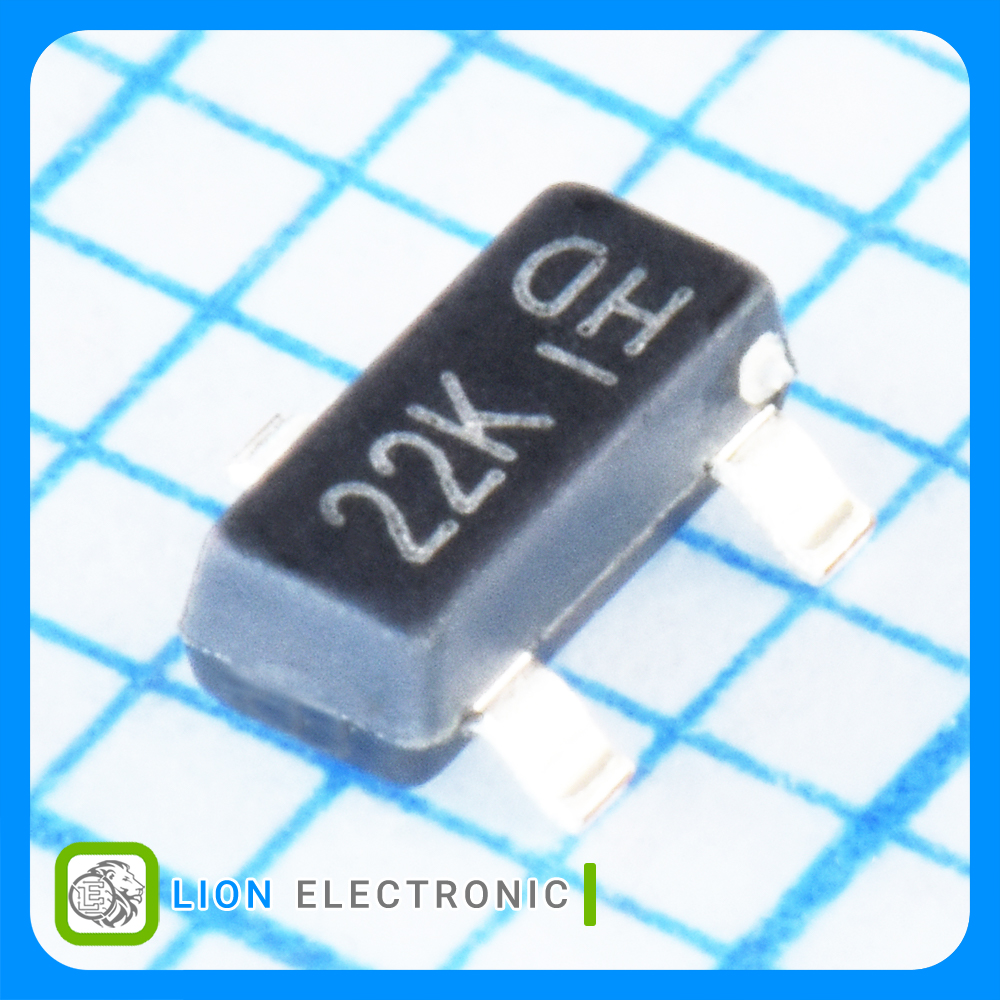

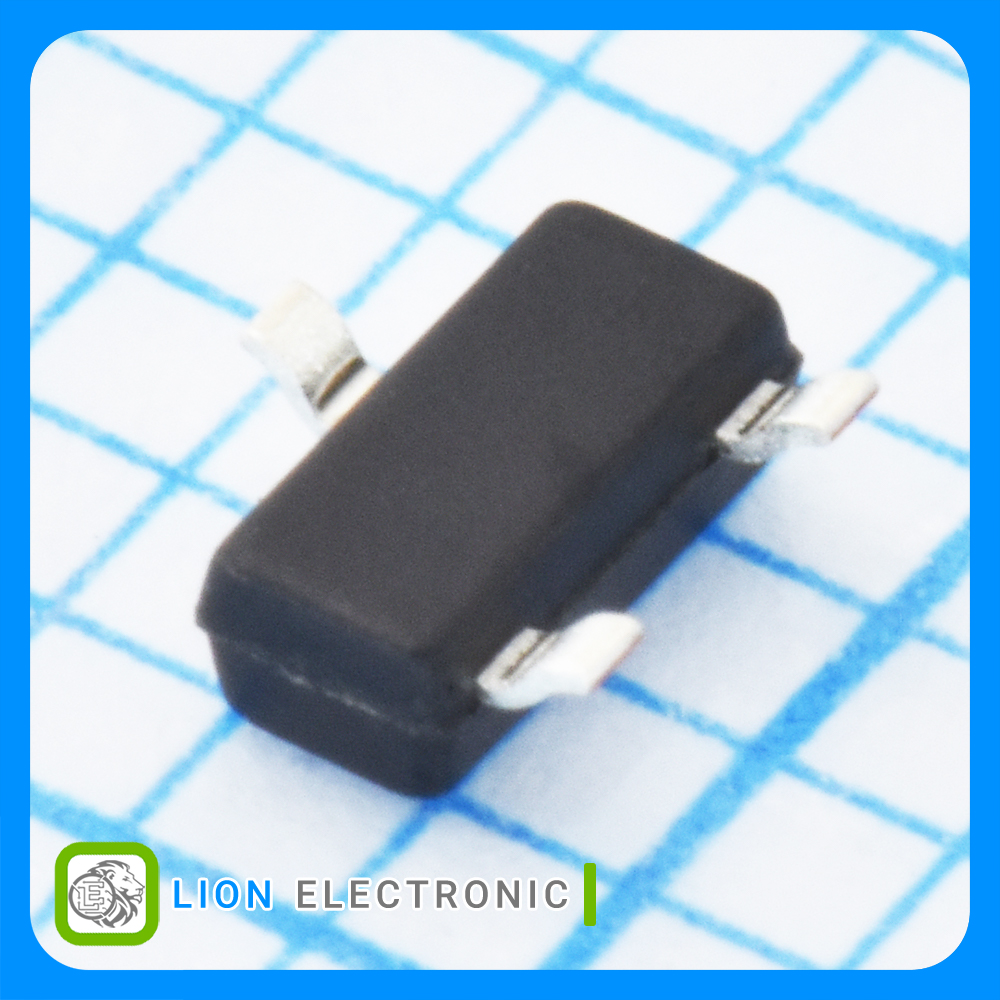

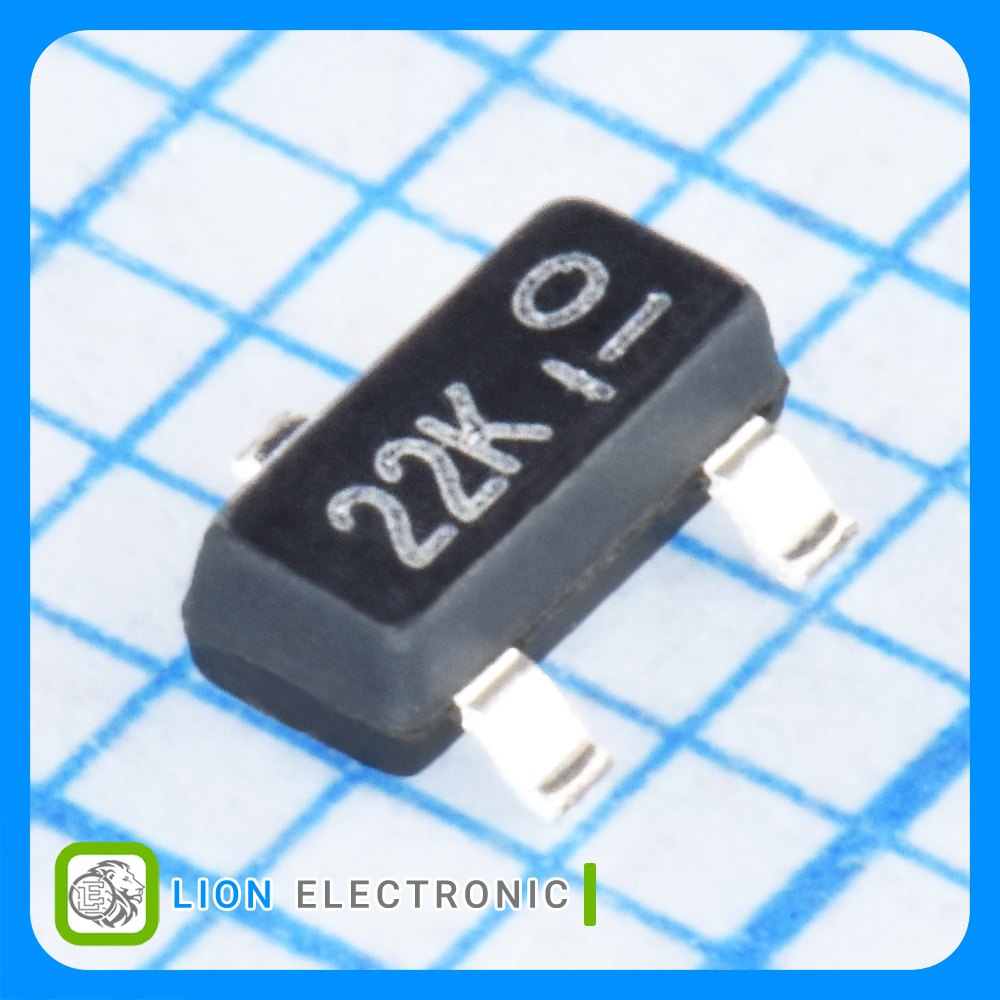

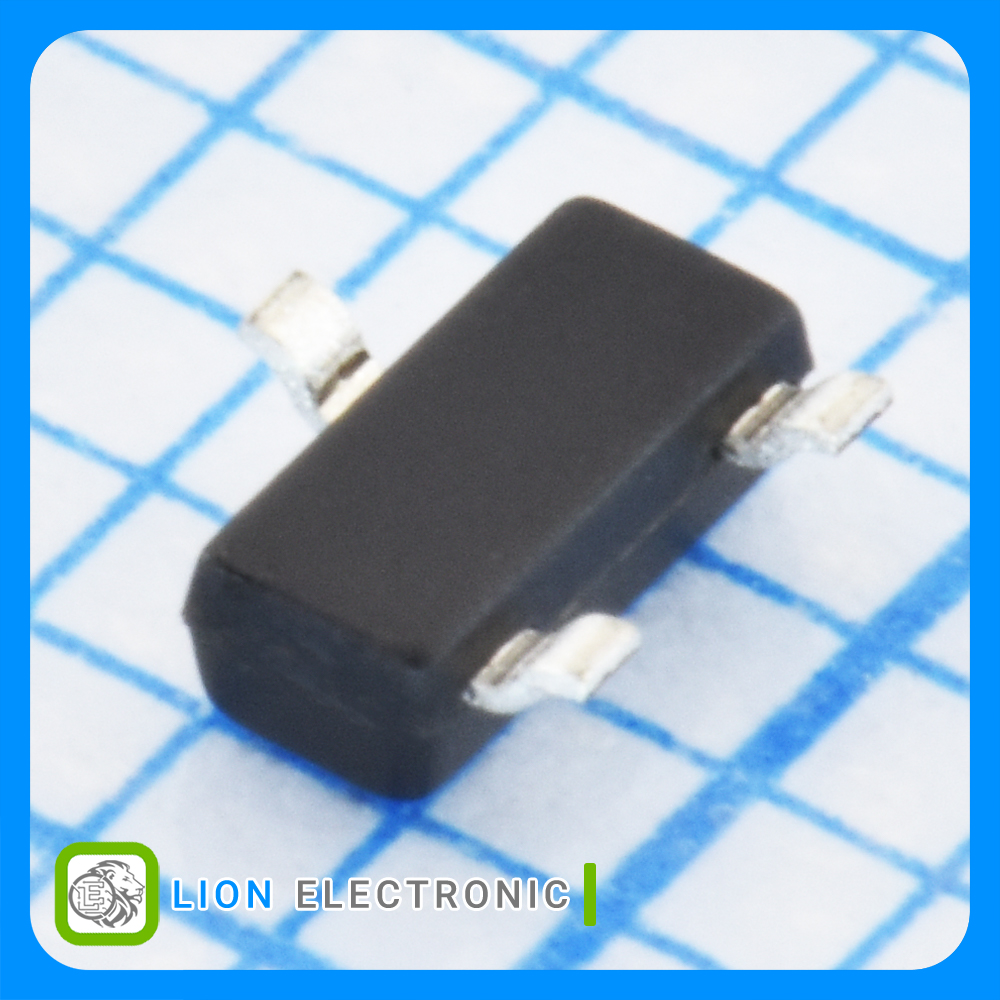

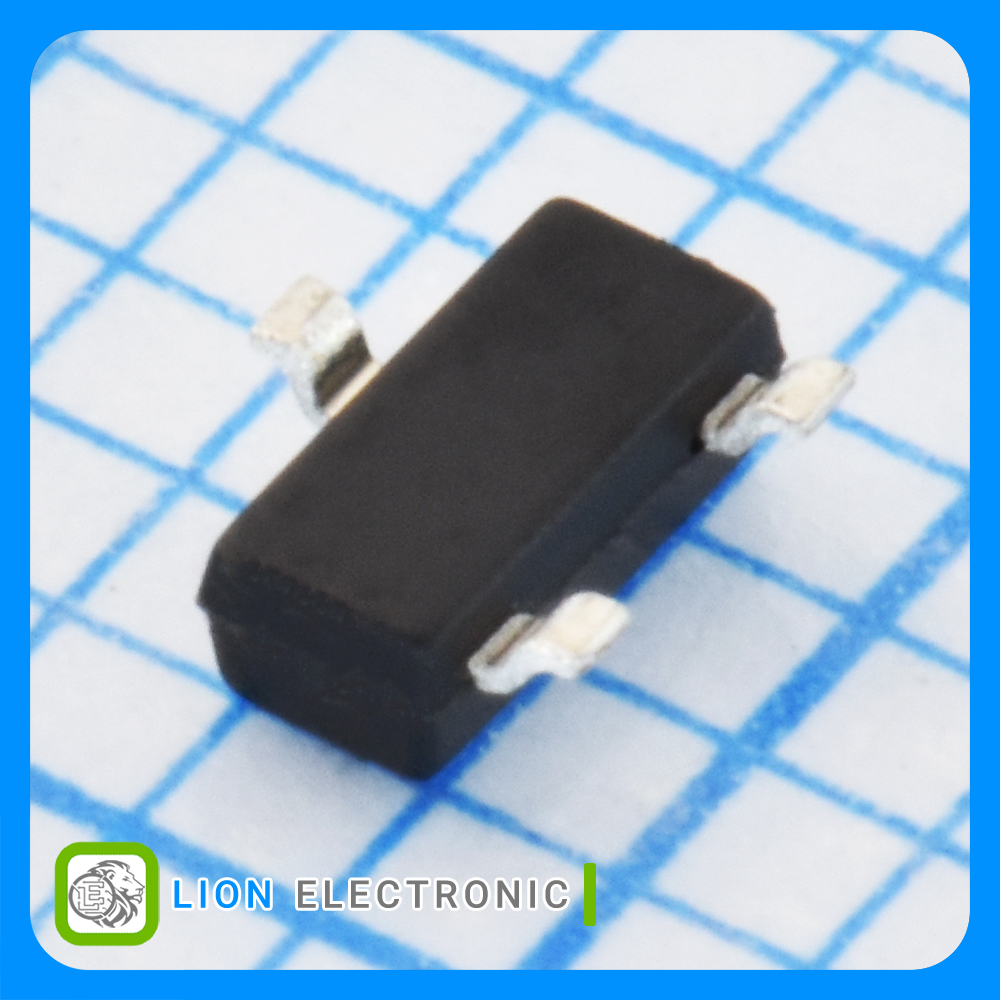

N-CH MOSFET 20V, 2.8A with SOT-23 Package
معرفی
ماسفت 20 ولت 2.8 آمپر نوع N با پکیج SOT-23
N-CH MOSFET 20V, 2.8A with SOT-23 Package
Specifications
- Package/Case: SOT-23-3
- Vds - Drain - Source Breakdown Voltage: 20V
- Id - Continuous Drain Current: 2.8A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 300mV
- Vgs - Gate - Source Voltage: ±12V
- Rds On - Drain - Source Resistance: 90mΩ
- Pd - Power Dissipation: 660mW
- Qg - Gate Charge: 1.4nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات ماسفت DMG2302UK-7

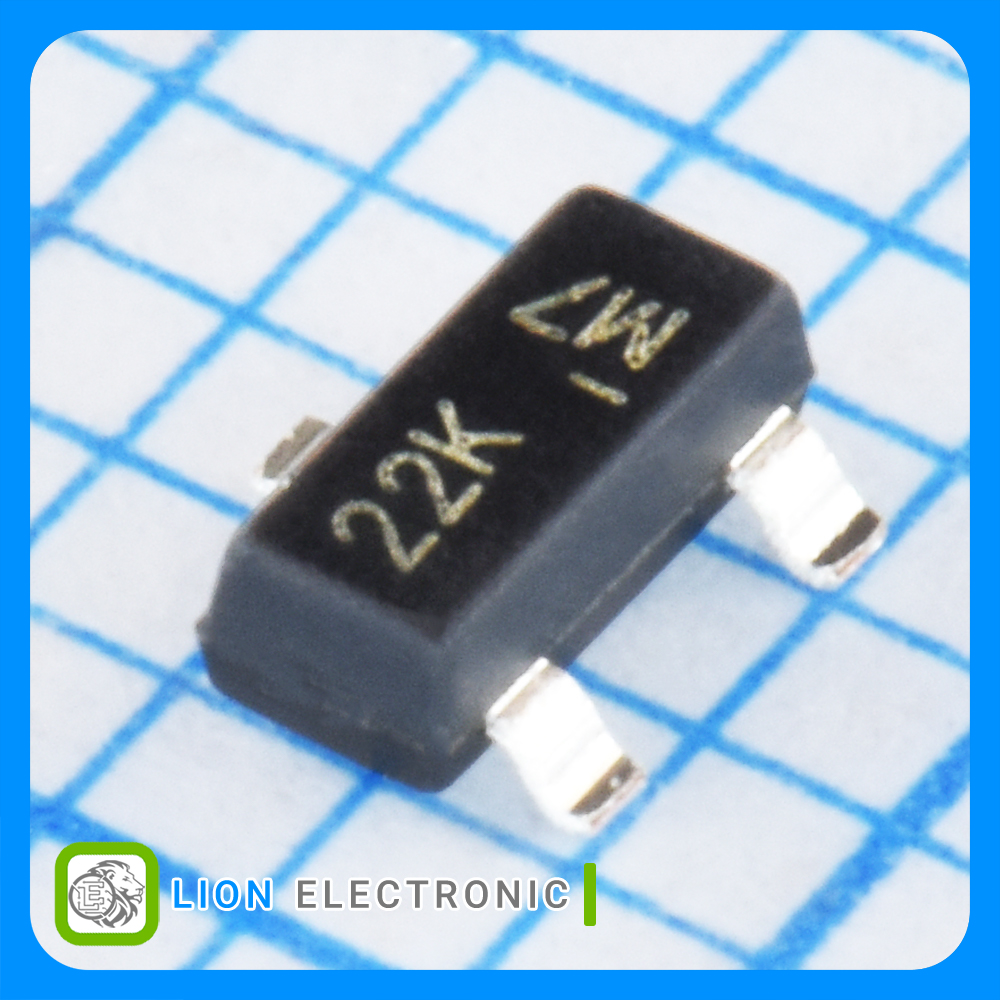

ماسفت DMG2302UK-7
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
1.4nC
Qg - Gate Charge
Reel
Packaging
SMD/SMT
Mounting Style
±12V
Vgs - Gate - Source Voltage
20V
Vds - Drain - Source Breakdown Voltage
300mV
Vgs th - Gate - Source Threshold Voltage
+150C
Maximum Operating Temperature
660mW
Pd - Power Dissipation
2.8A
Id - Continuous Drain Current
90mΩ
Rds On - Drain - Source Resistance
SOT-23-3
Package-Case
