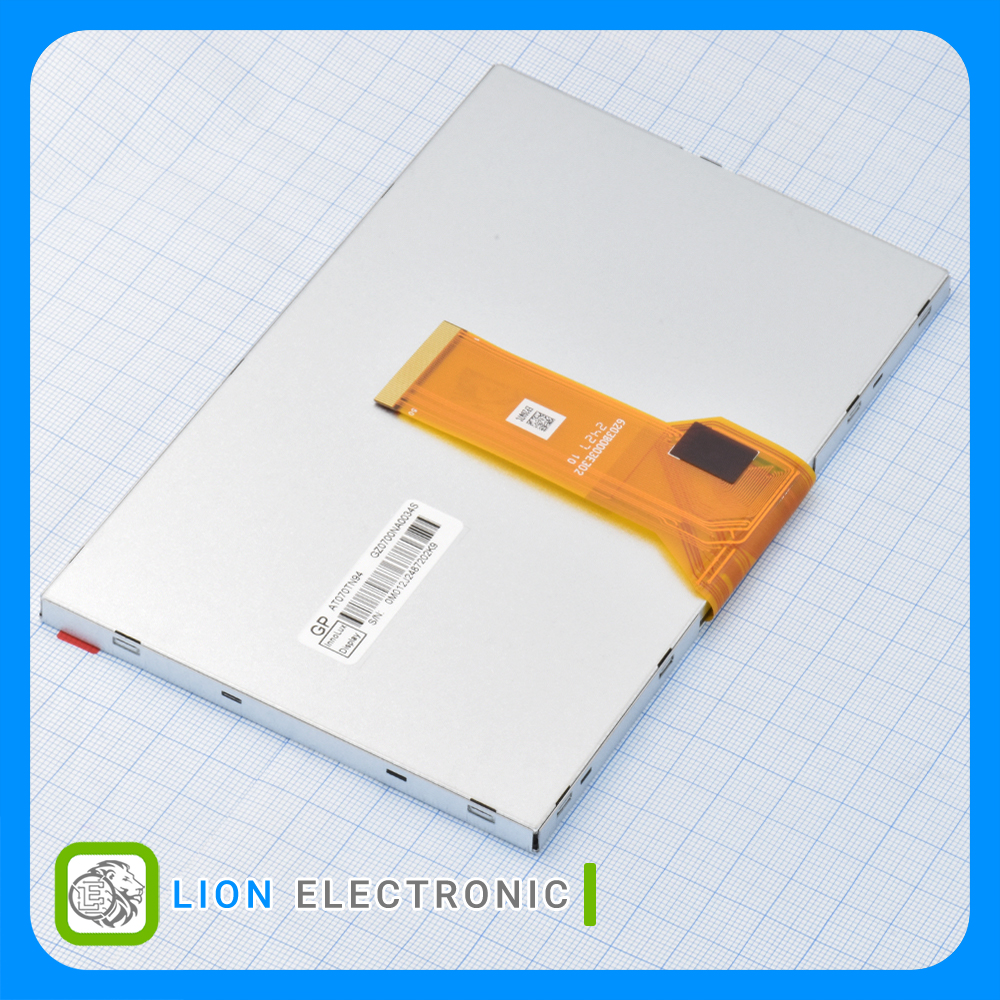

AT070TN94
Innolux
معرفی
نمایشگر LCD/TFT 7.0 اینچ رزولوشن 800 × 3(RGB) × 480 با رابط 24 بیتی (RGB) و کنترلر بدون درایور، بدون تاچ پنل
LCD TFT Display 7.0 inch, 800 × 3(RGB) × 480 with 24bit (RGB) Interface, No Driver Controller, Without Touch Panel
Specifications
- Product: TFT Display
- Interface Type: 24bit (RGB)
- Controller Type: No Driver
- Display mode: Normally White, Transmissive
- Number of Pins: 50
- Resolution: 800 × 3(RGB) × 480
- Operating Supply Voltage: 3.3V
- Touch Panel: No
- Backlighting: Yes
- Display Size - inch: 7.0
- Viewing Area - W x H: 154.08(W) × 85.92(H) mm
- Modules Size - W x H x T: 64.9(W) × 100.0(H) × 5.7(D) mm
- Packaging: Bag
مشخصات نمایشگر(LCD) AT070TN94
نمایشگر(LCD) AT070TN94
Part Number
No
Touch Panel
No Driver
Controller Type
24bit (RGB)
Interface Type
Yes
Backlighting
Bag
Packaging
Normally White, Transmissive
Display mode
-
Diagonal
154.08(W) × 85.92(H) mm
Viewing Area - W x H
64.9(W) × 100.0(H) × 5.7(D) mm
Modules Size - W x H x T
50
Number of Pins
-
Display Resolution - Pixels
7.0
Display Size - inch
800 × 3(RGB) × 480
Resolution
TFT Display
Product
3.3V
Operating Supply Voltage
