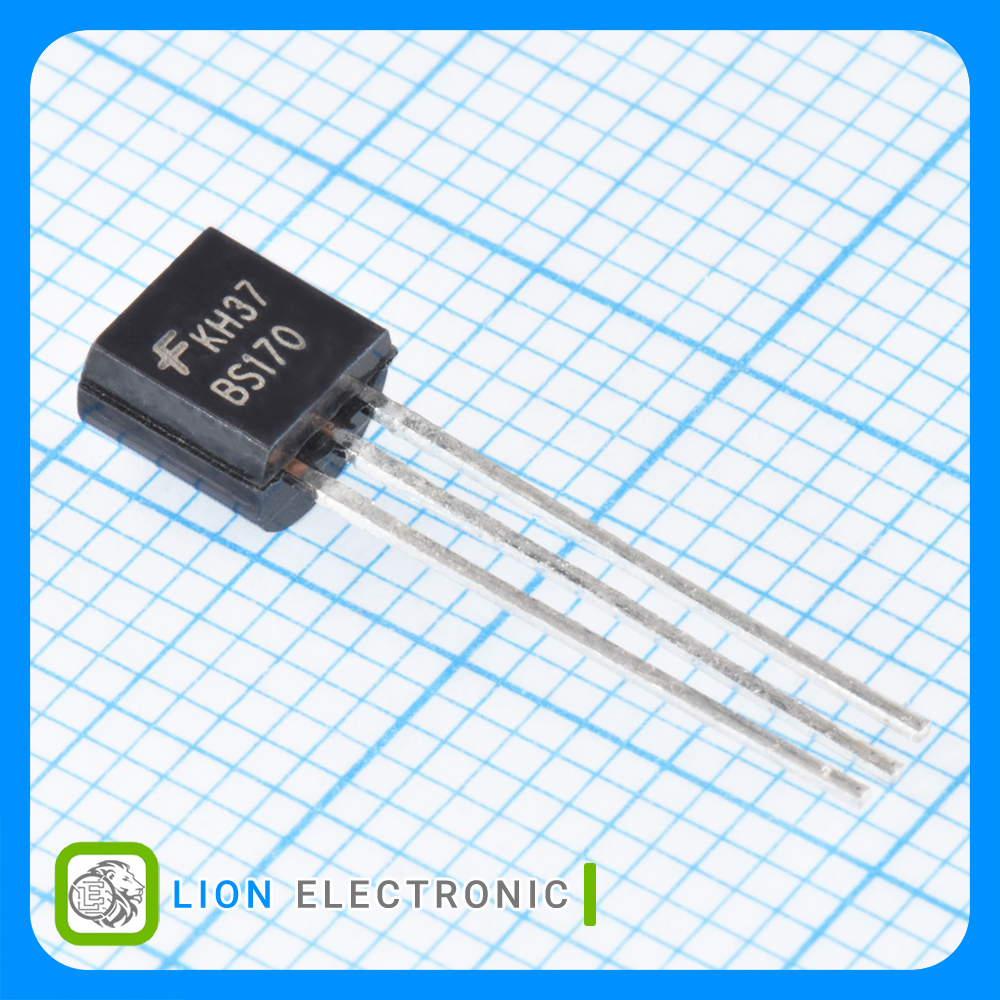

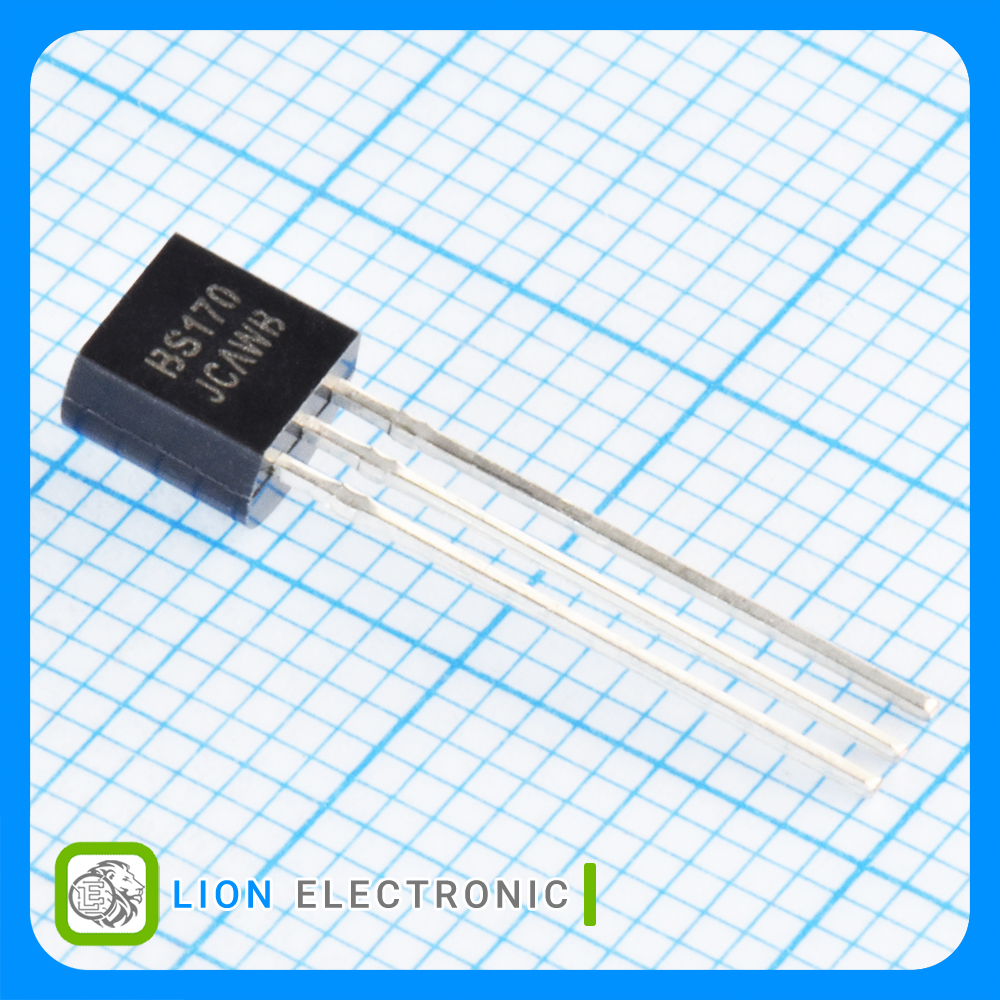

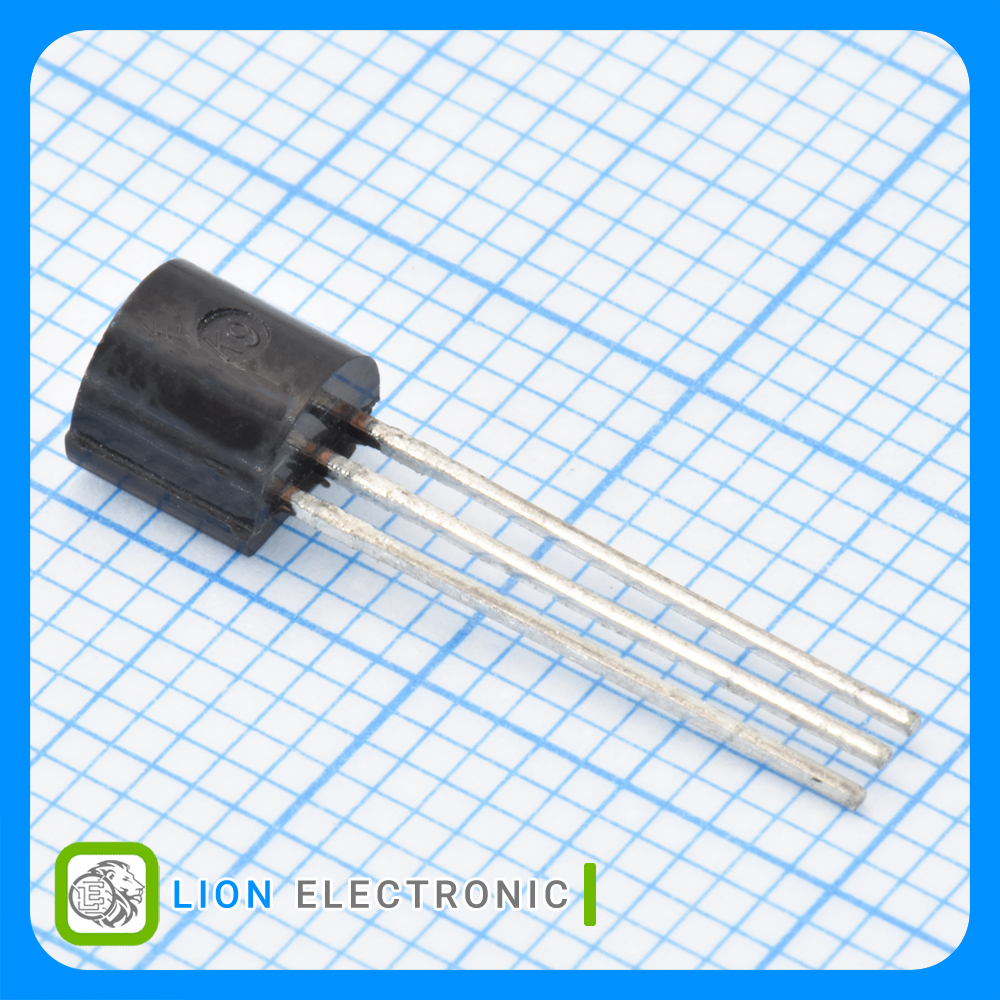

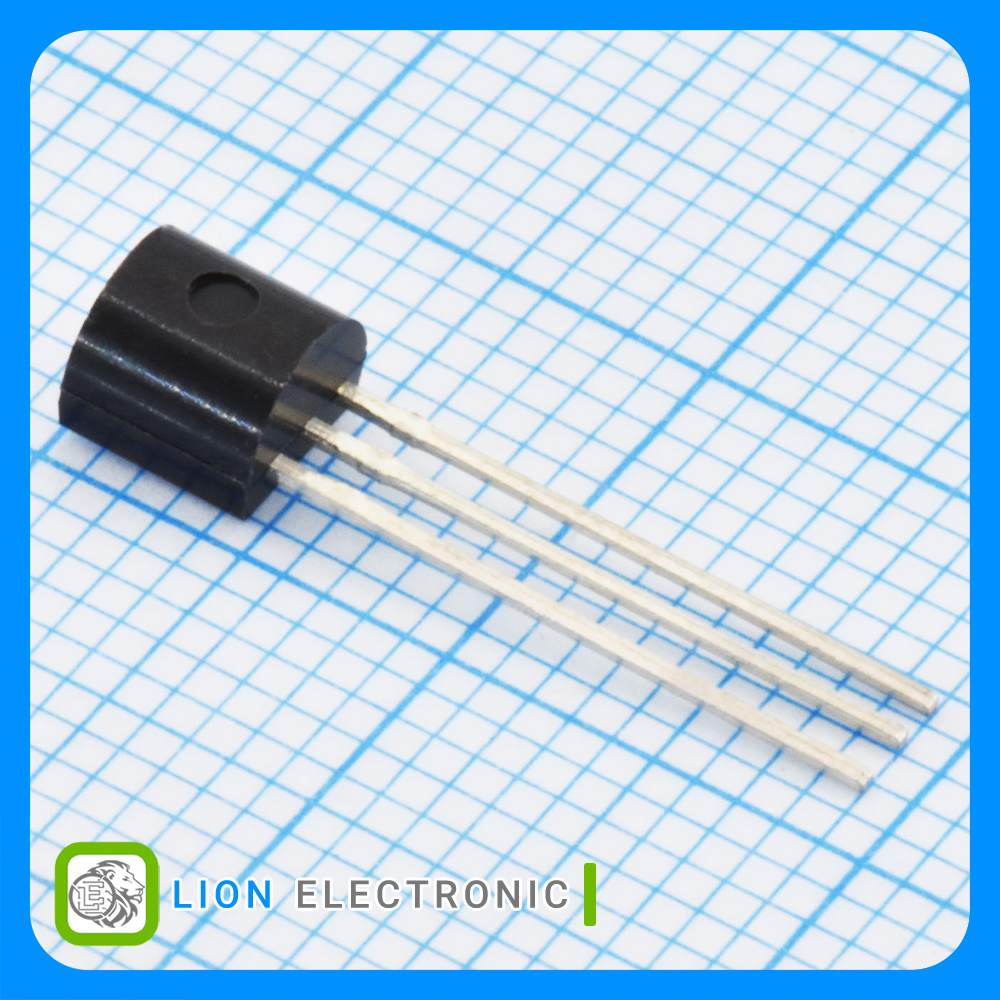

BS170
BS170
Part Number
2674
Lion Part
Datasheet
FAIRCHILD/ONSEMI Manufacture
ماسفت 60 ولت 500 میلیآمپر نوع N با پکیج TO-92-3
MOSFET 60V, 500mA N-Channel with TO-92-3 Package
معرفی
ماسفت 60 ولت 500 میلیآمپر نوع N با پکیج TO-92-3
MOSFET 60V, 500mA N-Channel with TO-92-3 Package
Specifications
- Package/Case: TO-92 (SOT-54)
- Vds - Drain - Source Breakdown Voltage: 60V
- Id - Continuous Drain Current: 500mA
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 800mV
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 1.2Ω
- Pd - Power Dissipation: 830mW
- Mounting Style: Through Hole
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Bulk
مشخصات ماسفت BS170
ماسفت BS170
Part Number
---
Qg - Gate Charge
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Bulk
Packaging
Through Hole
Mounting Style
±20V
Vgs - Gate - Source Voltage
+150C
Maximum Operating Temperature
60V
Vds - Drain - Source Breakdown Voltage
800mV
Vgs th - Gate - Source Threshold Voltage
500mA
Id - Continuous Drain Current
830mW
Pd - Power Dissipation
1.2Ω
Rds On - Drain - Source Resistance
TO-92
Package-Case
