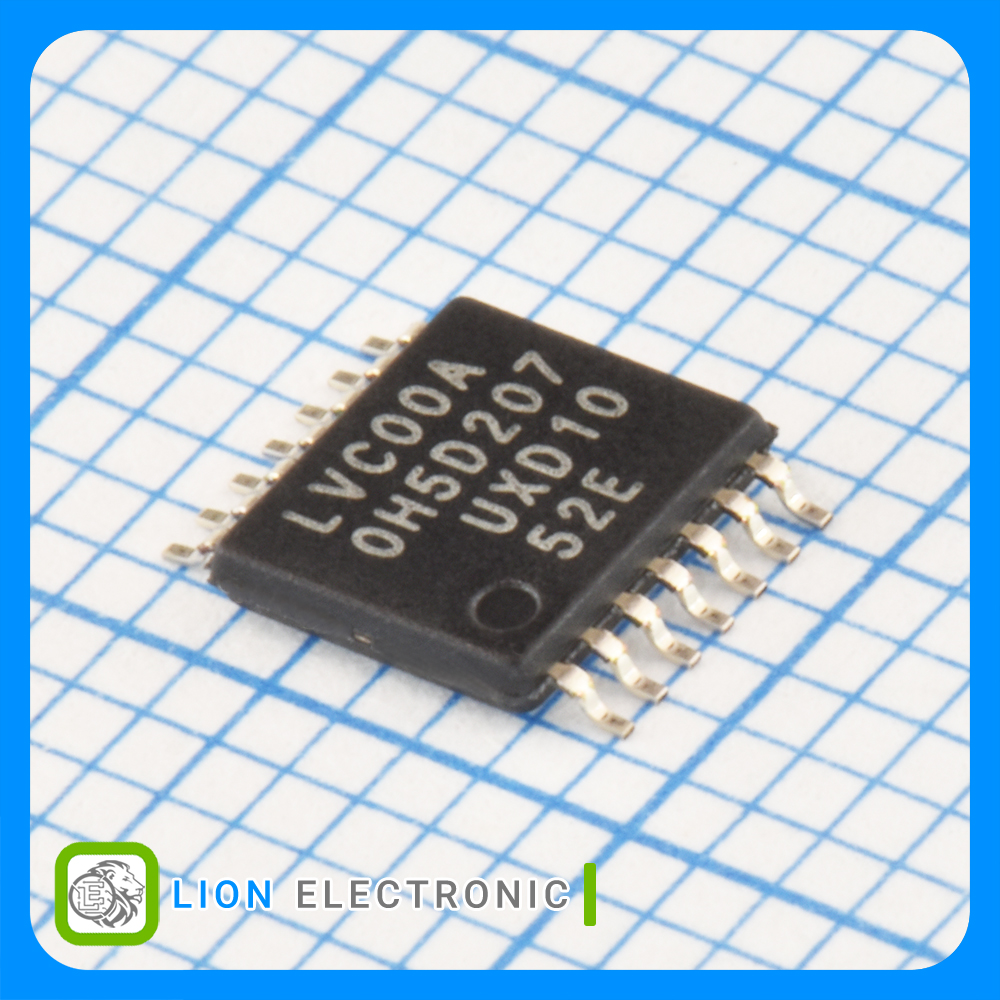

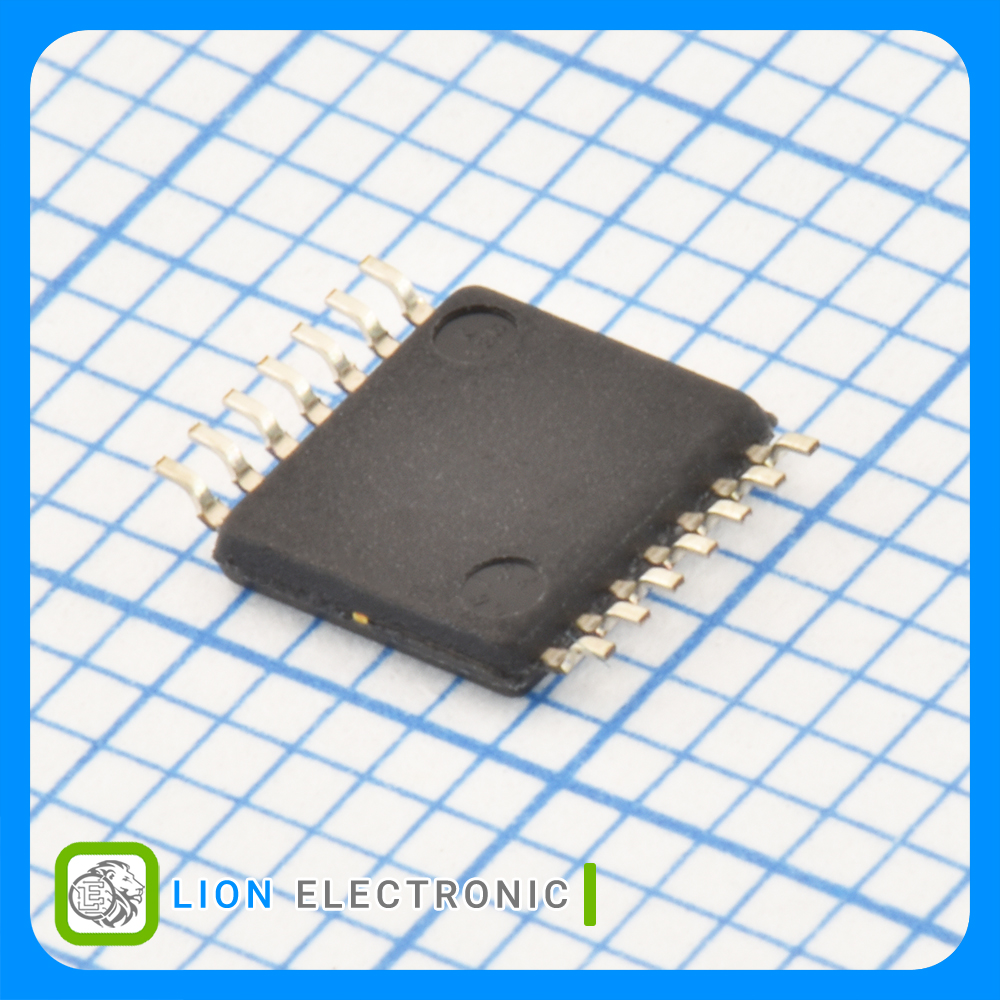

74LVC00APW
74LVC00APW
Part Number
2693
Lion Part
Datasheet
Nexperia Manufacture
آیسی لاجیک چهارگانه گیت NAND با 2 ورودی و 8 ورودی ولتاژ 1.2 تا 3.6 ولت با پکیج TSSOP-14
Logic IC Quad 2 input NAND Gate, 8 Input Lines, 1.2V - 3.6V Supply, Inputs can be Driven from Either 3.3V or 5V Devices with TSSOP-14 Package
معرفی
آیسی لاجیک چهارگانه گیت NAND با 2 ورودی و 8 ورودی ولتاژ 1.2 تا 3.6 ولت با پکیج TSSOP-14
Logic IC Quad 2 input NAND Gate, 8 Input Lines, 1.2V - 3.6V Supply, Inputs can be Driven from Either 3.3V or 5V Devices with TSSOP-14 Package
Specifications
- Logic Family: LVC
- Logic Type: Quad 2 input NAND Gate
- Number of Input Lines: 8
- Number of Output Lines: 4
- Supply Voltage - Max: 3.6V
- Supply Voltage - Min: 1.2V
- Mounting Style: SMD/SMT
- Package/Case: TSSOP-14
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات آیسی لاجیک 74LVC00APW
آیسی لاجیک 74LVC00APW
Part Number
4
Number of Output Lines
Reel
Packaging
-40C
Minimum Operating Temperature
8
Number of Input Lines
Quad 2 input NAND Gate
Logic Type
SMD/SMT
Mounting Style
1.2V
Supply Voltage - Min
3.6V
Supply Voltage - Max
LVC
Logic Family
+125C
Maximum Operating Temperature
TSSOP-14
Package-Case
