FQP4N90C
FQP4N90C
Part Number
2711
Lion Part
Datasheet
ON Semiconductor Manufacture
ماسفت 900 ولت 4 آمپر نوع N با پکیج TO-220-3
N-CH MOSFET 900V, 4A with TO-220-3 Package
معرفی

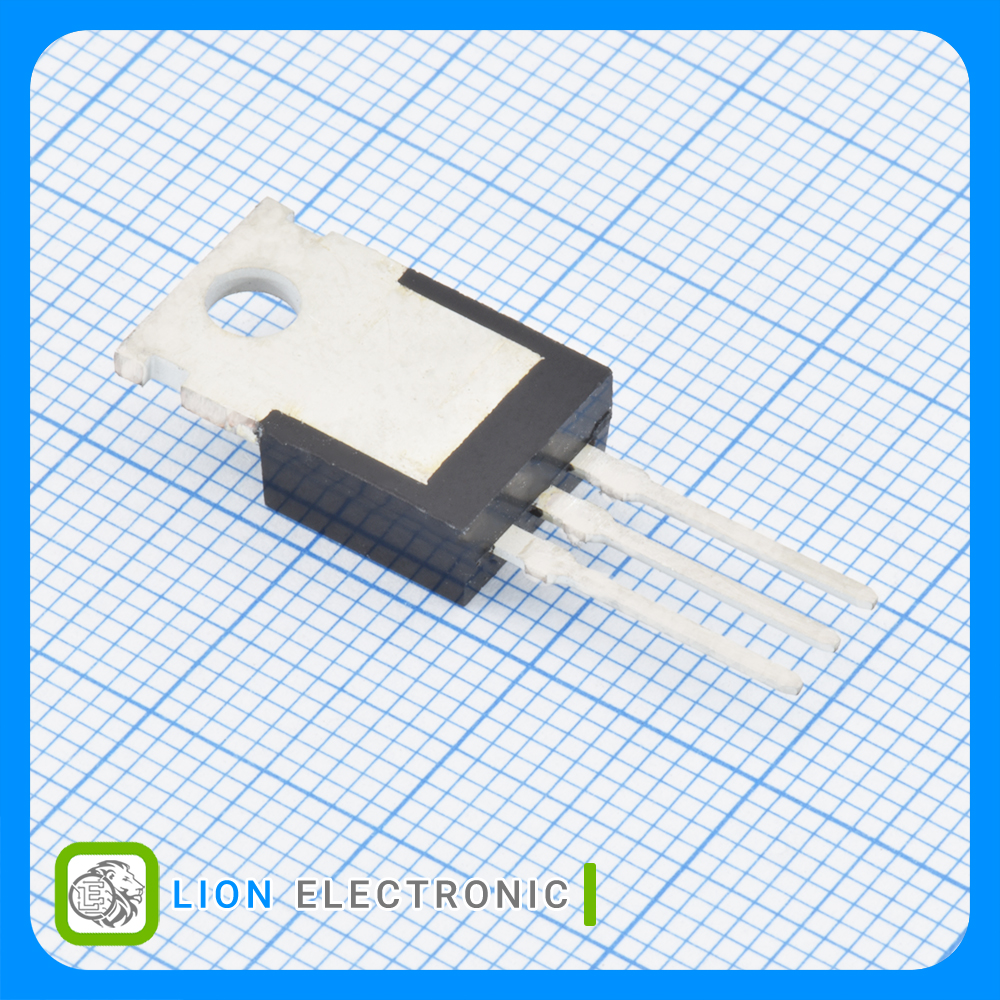

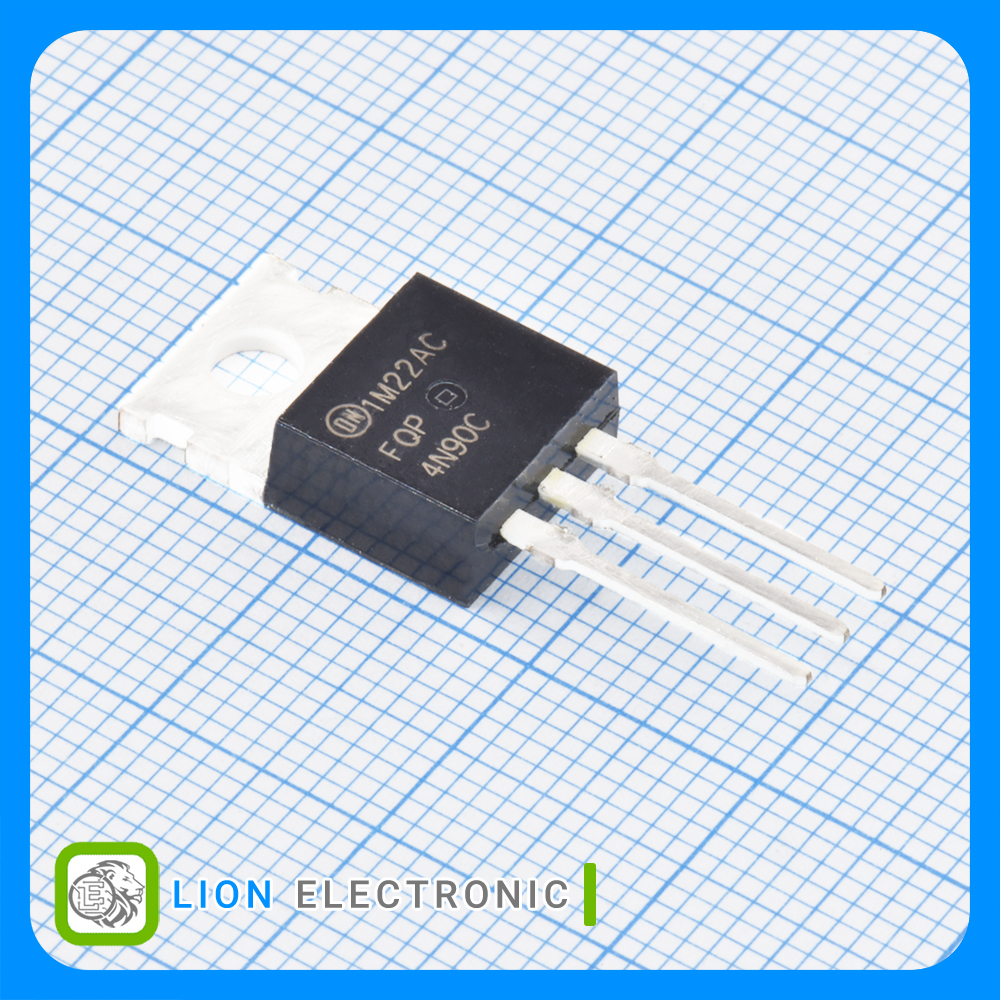

ماسفت 900 ولت 4 آمپر نوع N با پکیج TO-220-3
N-CH MOSFET 900V, 4A with TO-220-3 Package
Specifications
- Package/Case: TO-220-3
- Vds - Drain - Source Breakdown Voltage: 900V
- Id - Continuous Drain Current: 4A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 3V
- Vgs - Gate - Source Voltage: ±30V
- Rds On - Drain - Source Resistance: 3.5Ω
- Pd - Power Dissipation: 140W
- Qg - Gate Charge: 17nC
- Mounting Style: Through Hole
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Tube
مشخصات ماسفت FQP4N90C
ماسفت FQP4N90C
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Tube
Packaging
Through Hole
Mounting Style
±30V
Vgs - Gate - Source Voltage
+150C
Maximum Operating Temperature
900V
Vds - Drain - Source Breakdown Voltage
3V
Vgs th - Gate - Source Threshold Voltage
17nC
Qg - Gate Charge
4A
Id - Continuous Drain Current
140W
Pd - Power Dissipation
3.5Ω
Rds On - Drain - Source Resistance
TO-220
Package-Case
