SVF2N60F
SVF2N60F
Part Number
2747
Lion Part
Datasheet
Hangzhou Silan Microelectronics Manufacture
ماسفت N-CH با ولتاژ 600 ولت و جریان 2 آمپر نوع N با پکیج TO-220FP-3

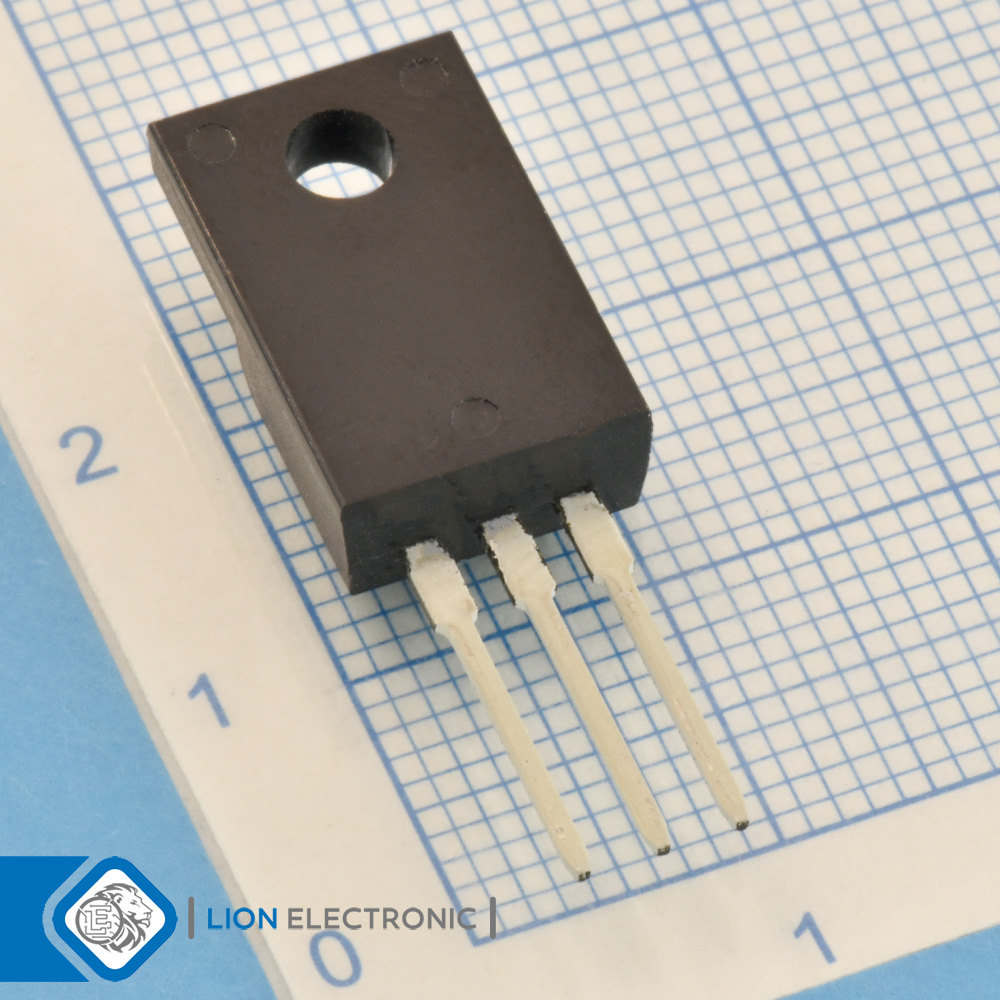

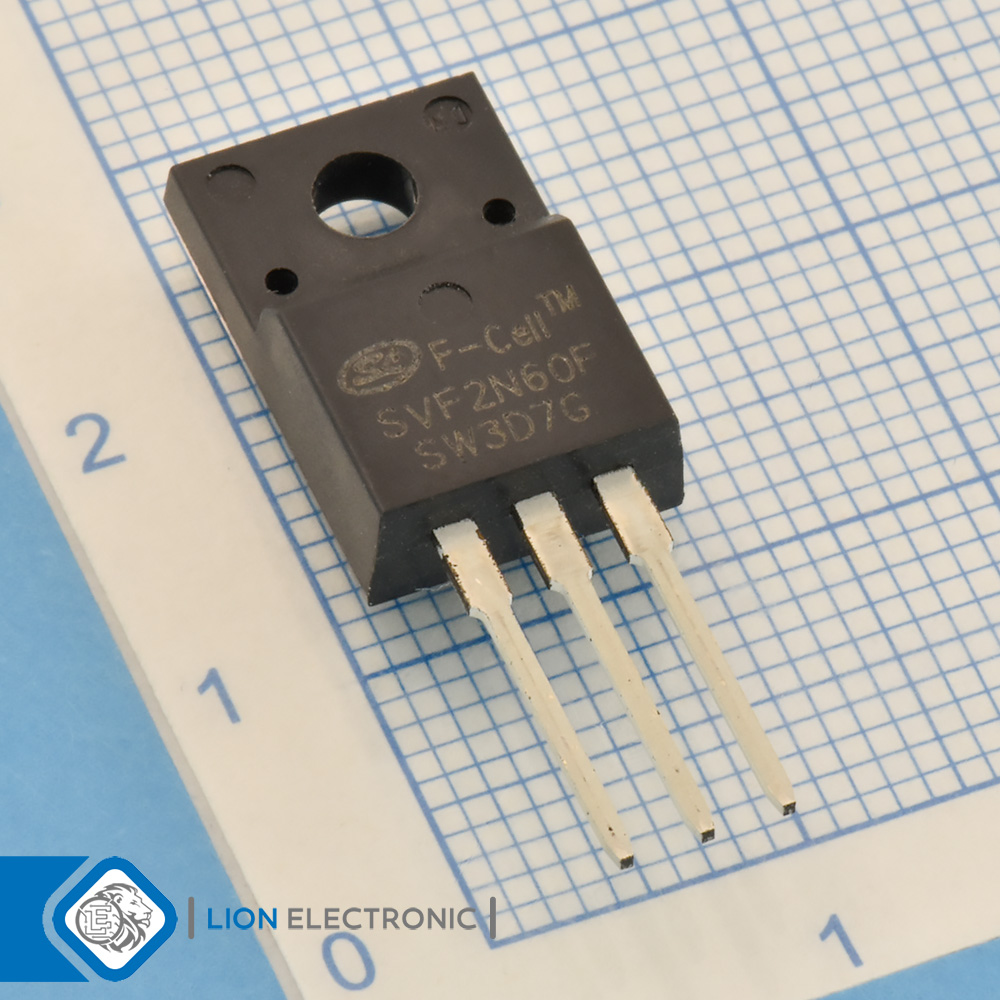

N-CH MOSFET 600V, 2A with TO-220FP-3 Package
معرفی
ماسفت N-CH با ولتاژ 600 ولت و جریان 2 آمپر نوع N با پکیج TO-220FP-3
N-CH MOSFET 600V, 2A with TO-220FP-3 Package
Specifications
- Package/Case: TO-220FP-3
- Vds - Drain - Source Breakdown Voltage: 600V
- Id - Continuous Drain Current: 2A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 2V
- Vgs - Gate - Source Voltage: ±30V
- Rds On - Drain - Source Resistance: 3.7Ω
- Pd - Power Dissipation: 23W
- Qg - Gate Charge: 8.24nC
- Mounting Style: Through Hole
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Tube
مشخصات ماسفت SVF2N60F
ماسفت SVF2N60F
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Tube
Packaging
Through Hole
Mounting Style
±30V
Vgs - Gate - Source Voltage
+150C
Maximum Operating Temperature
8.24nC
Qg - Gate Charge
600V
Vds - Drain - Source Breakdown Voltage
2V
Vgs th - Gate - Source Threshold Voltage
2A
Id - Continuous Drain Current
23W
Pd - Power Dissipation
3.7Ω
Rds On - Drain - Source Resistance
TO-220
Package-Case
