معرفی

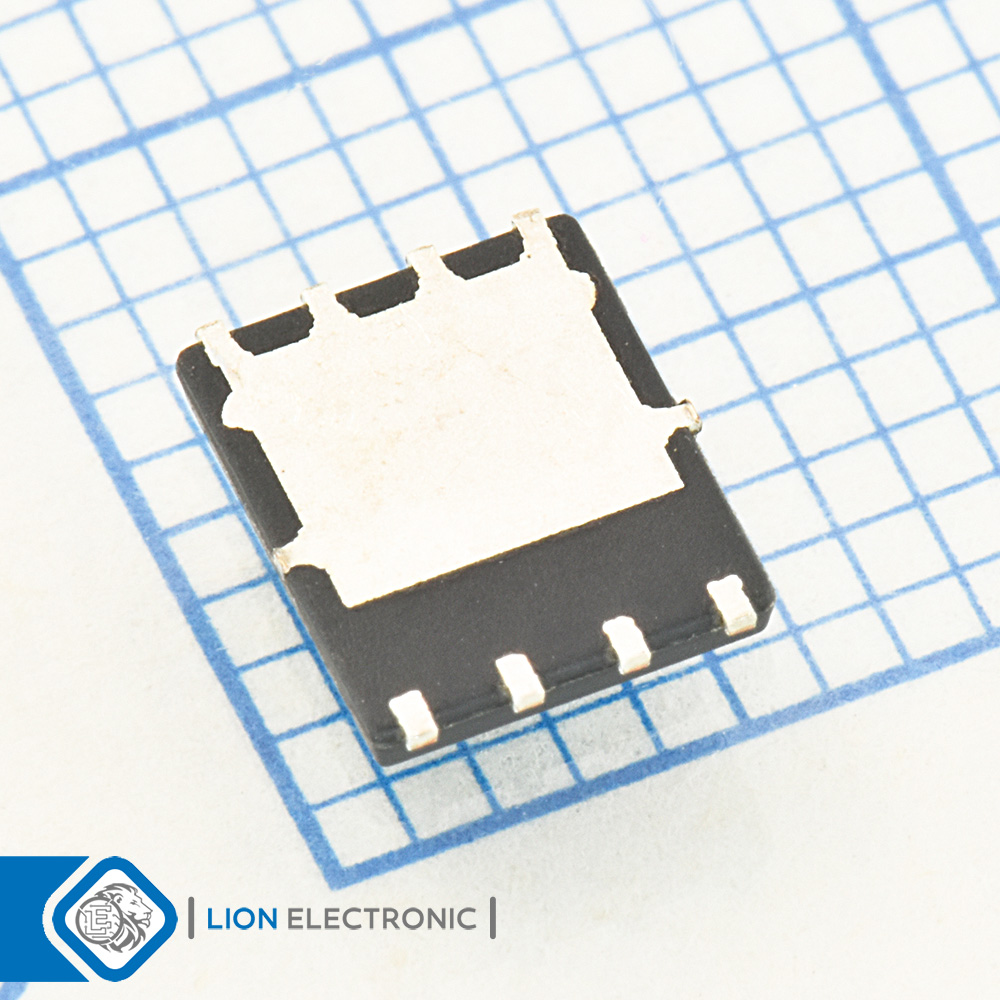

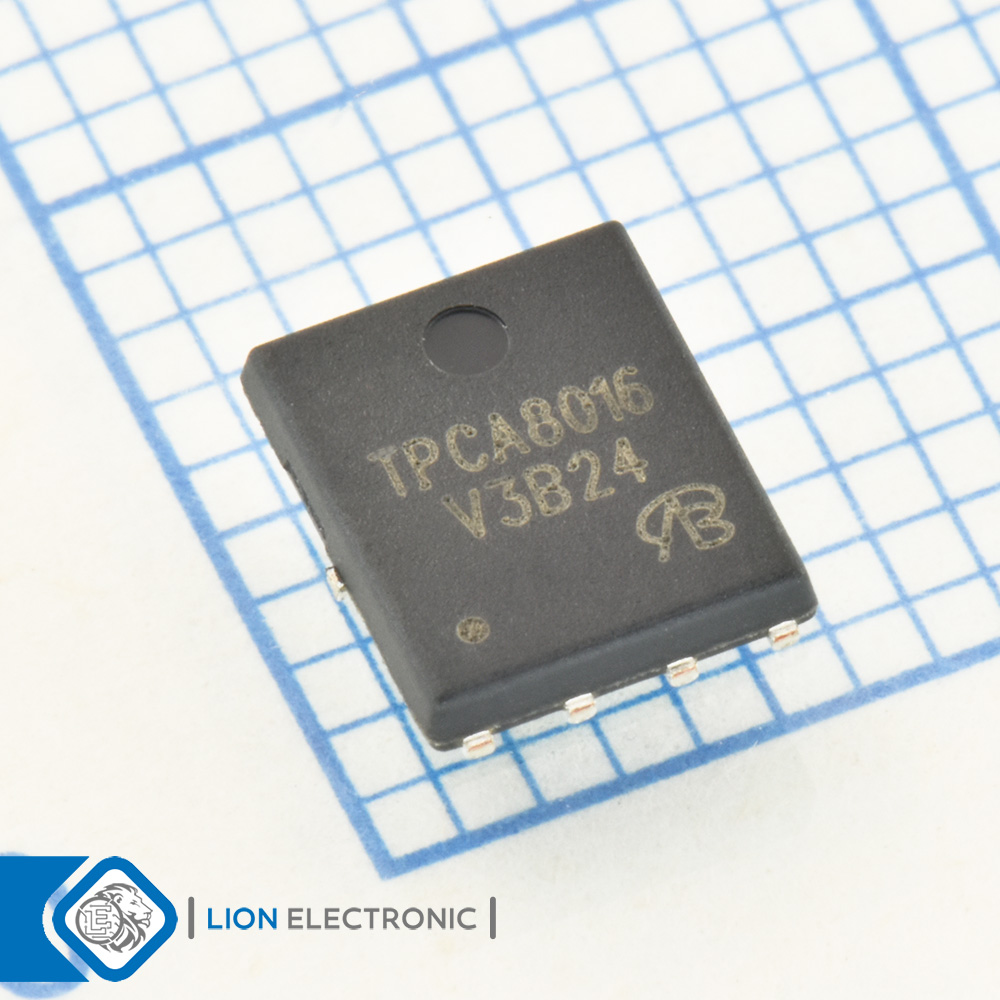

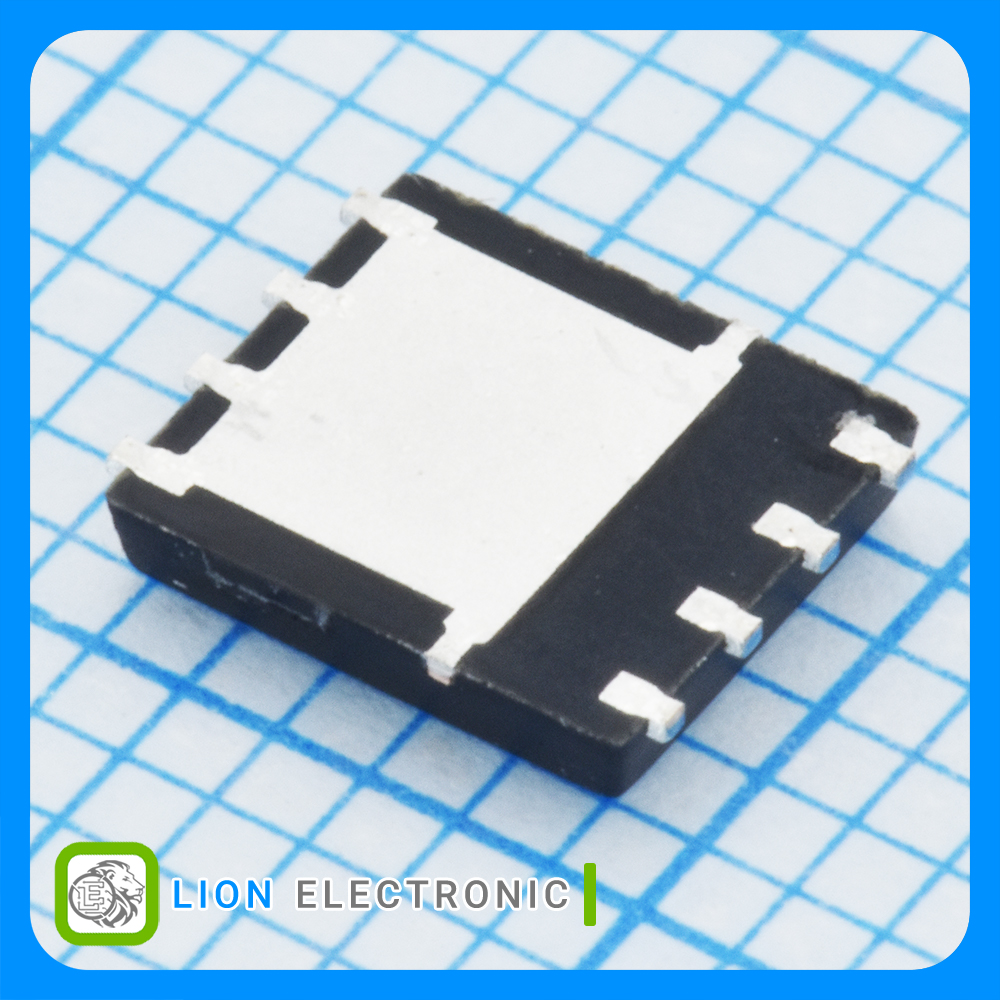

ماسفت N-CH با ولتاژ 60 ولت و جریان 80 آمپر نوع N با پکیج QFN8(5mmx6mm)
N-CH MOSFET 60V, 80A with QFN8(5mm X 6mm) Package
Specifications
- Package/Case: QFN8(5mm X 6mm)
- Vds - Drain - Source Breakdown Voltage: 60V
- Id - Continuous Drain Current: 80A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 2.5V
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 6mΩ
- Pd - Power Dissipation: 136W
- Qg - Gate Charge: 47nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +175C
- Packaging: Reel
مشخصات ماسفت TPC8016-H
ماسفت TPC8016-H
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Reel
Packaging
SMD/SMT
Mounting Style
±20V
Vgs - Gate - Source Voltage
60V
Vds - Drain - Source Breakdown Voltage
+175C
Maximum Operating Temperature
6mΩ
Rds On - Drain - Source Resistance
2.5V
Vgs th - Gate - Source Threshold Voltage
DFN-8
Package-Case
47nC
Qg - Gate Charge
80A
Id - Continuous Drain Current
136W
Pd - Power Dissipation
