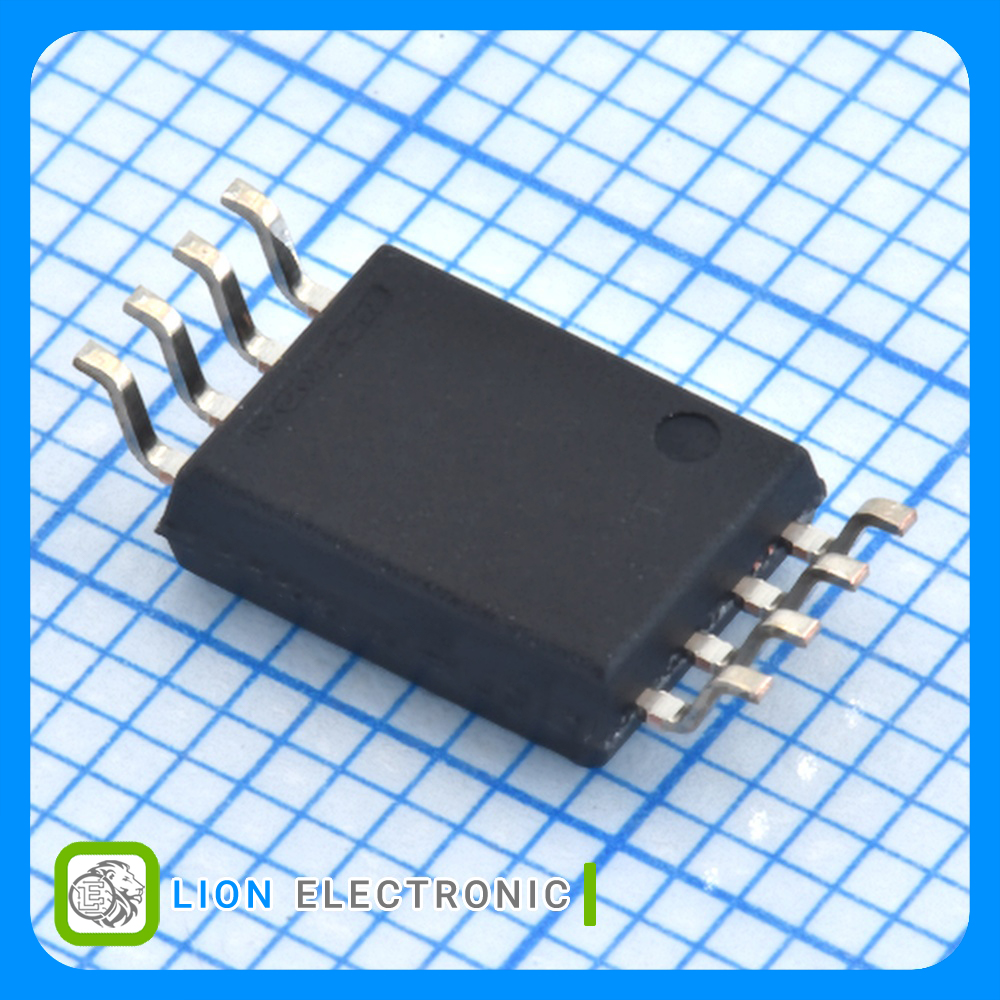

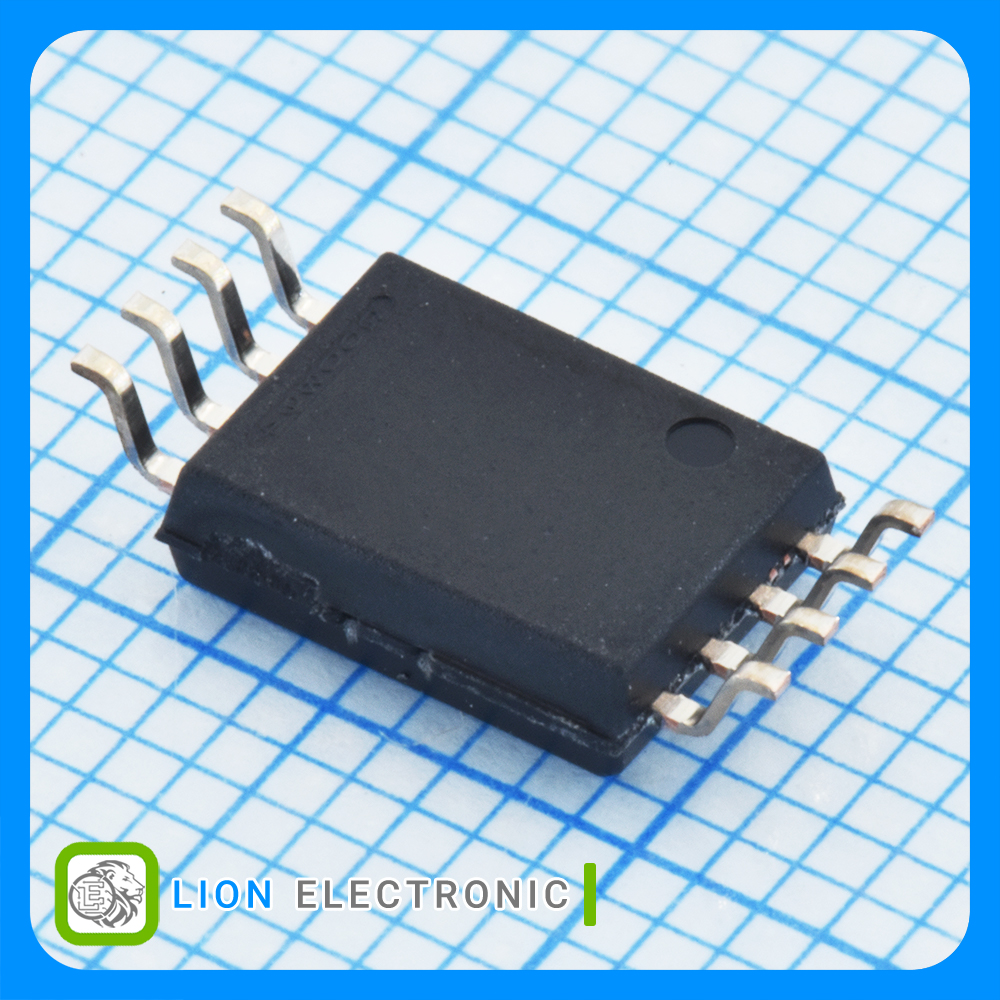

AMC1200BDWVR
AMC1200BDWVR
Part Number
2772
Lion Part
Datasheet
Texas Instruments Manufacture
تقویتکننده ایزوله دقیق و تمام تفاضلی 4.25 کیلوولت RMS با 1 کانال ورودی ±250 میلیولت با پکیج SOIC-8
Precision Fully-Differential Isolation Amplifier 4.25kVrms, 1-Channel, ±250mV Input with SOIC-8 Package
معرفی
تقویتکننده ایزوله دقیق و تمام تفاضلی 4.25 کیلوولت RMS با 1 کانال ورودی ±250 میلیولت با پکیج SOIC-8
Precision Fully-Differential Isolation Amplifier 4.25kVrms, 1-Channel, ±250mV Input with SOIC-8 Package
Specifications
- Isolation Type: Galvanic Isolation
- Number of Channels: 1
- Input Voltage Max: ±250mV
- Nonlinearity: ±0.015%
- Isolation Voltage: 4.25kVrms
- 3dB Bandwidth: 100kHz
- CMRR - Common Mode Rejection Ratio: 118dB
- Vos - Input Offset Voltage: 200uV
- Ib - Input Bias Current: 12.5uA
- Supply Voltage - Max: 5.5V
- Supply Voltage - Min: 2.7V, 4.5V
- Operating Supply Current: 5.4mA
- Mounting Style: SMD/SMT
- Package/Case: SOIC-8
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +105C
- Packaging: Reel
مشخصات آپ امپ ایزوله AMC1200BDWVR

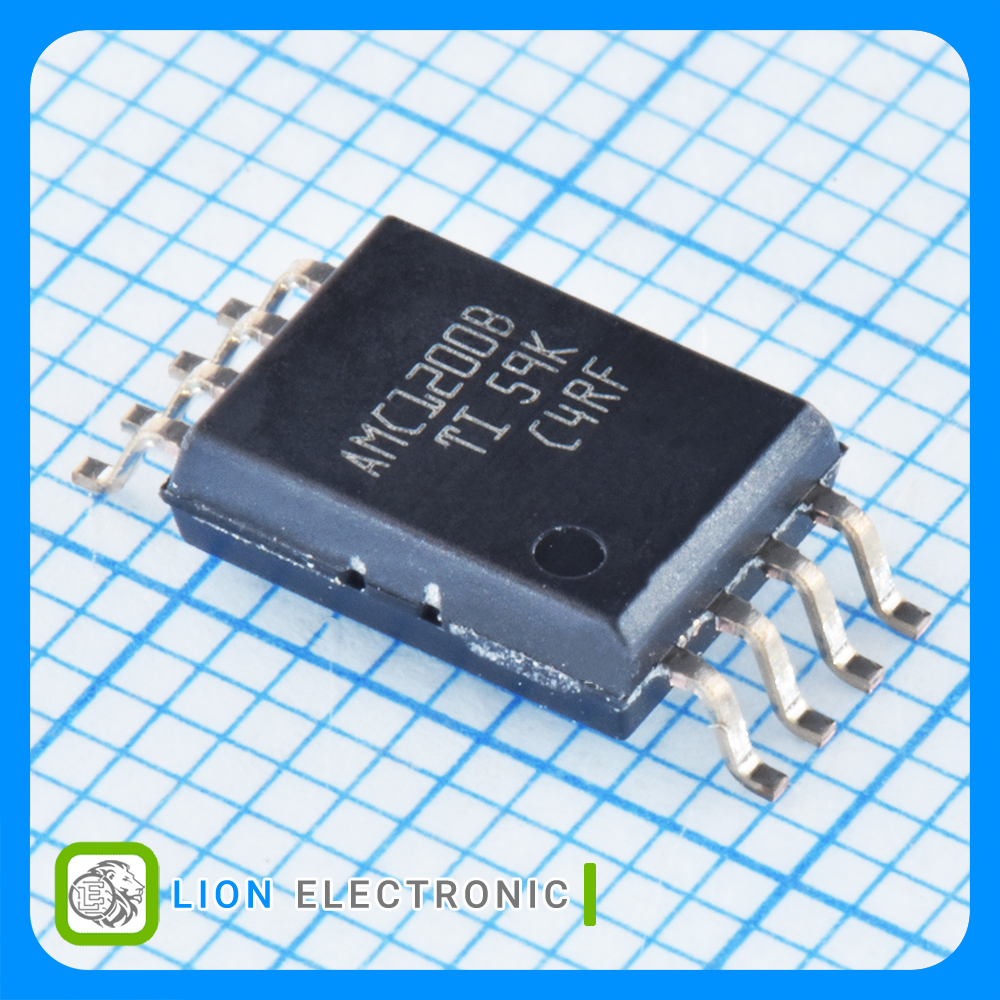

آپ امپ ایزوله AMC1200BDWVR
Part Number
1
Number of Channels
100kHz
3dB Bandwidth
±0.015%
Nonlinearity
Galvanic Isolation
Isolation Type
±250mV
Input Voltage Max
Reel
Packaging
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
4.25kVrms
Isolation Voltage
+105C
Maximum Operating Temperature
5.5V
Supply Voltage - Max
200uV
Vos - Input Offset Voltage
2.7V, 4.5V
Supply Voltage - Min
118dB
CMRR - Common Mode Rejection Ratio
N/A
GBP - Gain Bandwidth Product
12.5uA
Ib - Input Bias Current
5.4mA
Operating Supply Current
SOIC-8
Package-Case
