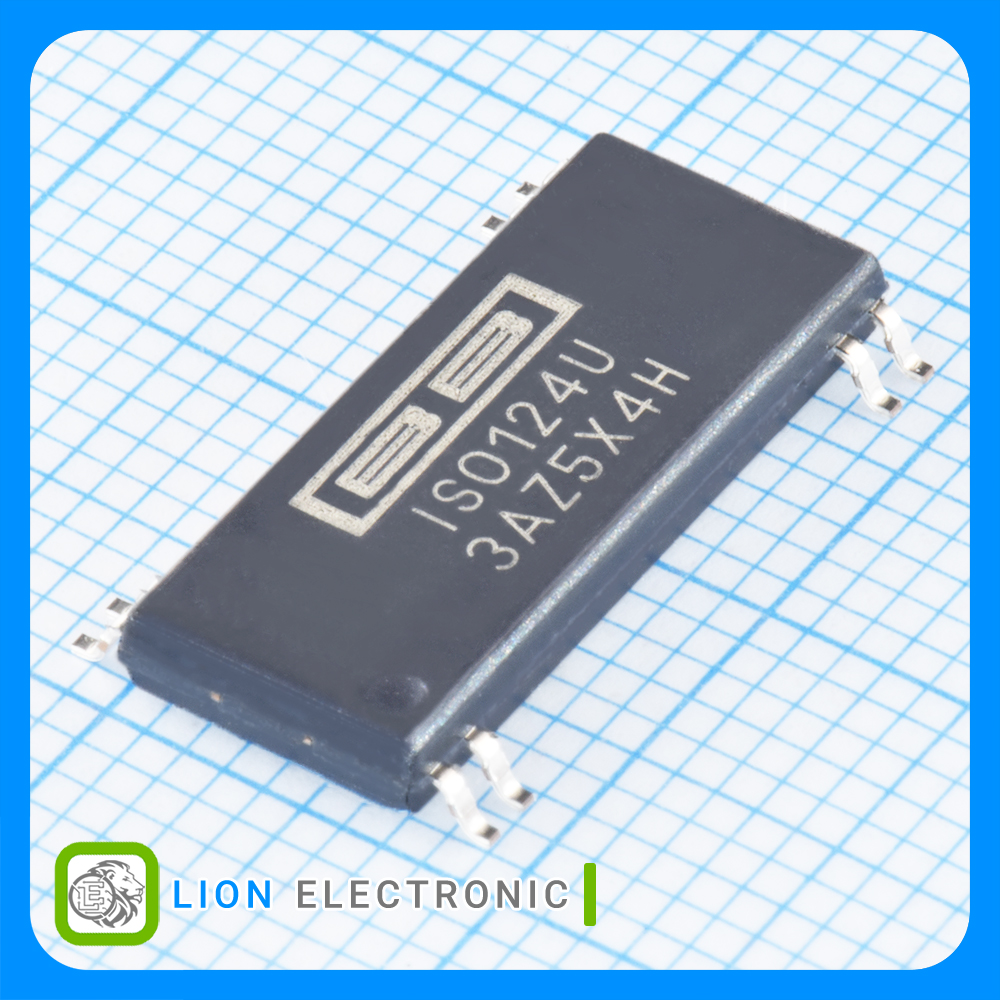

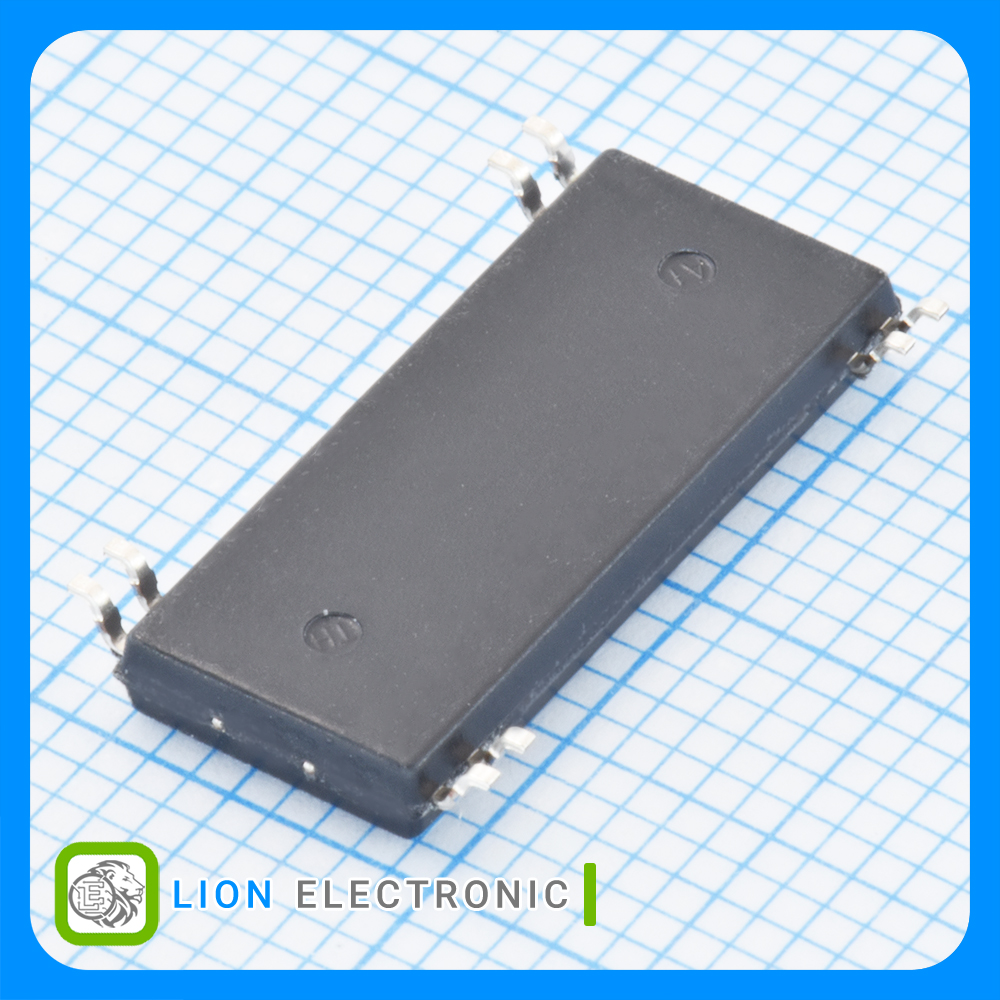

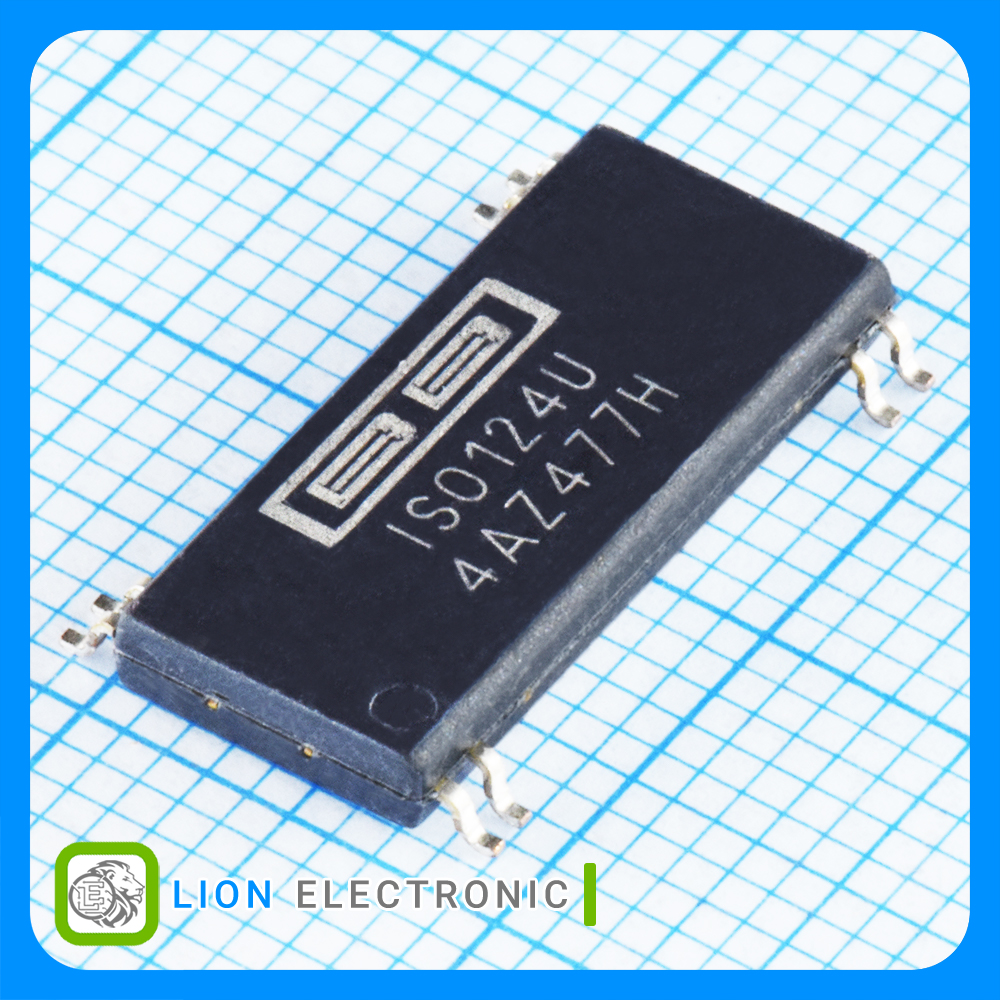

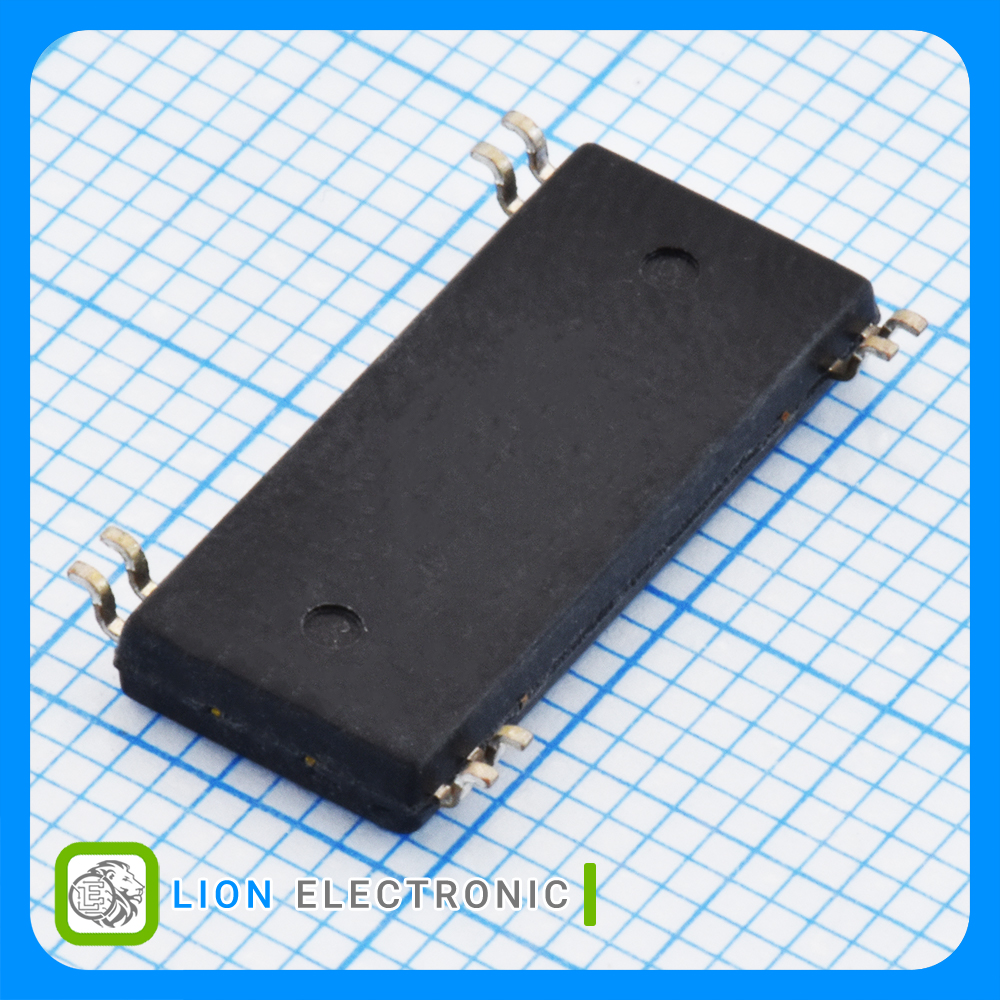

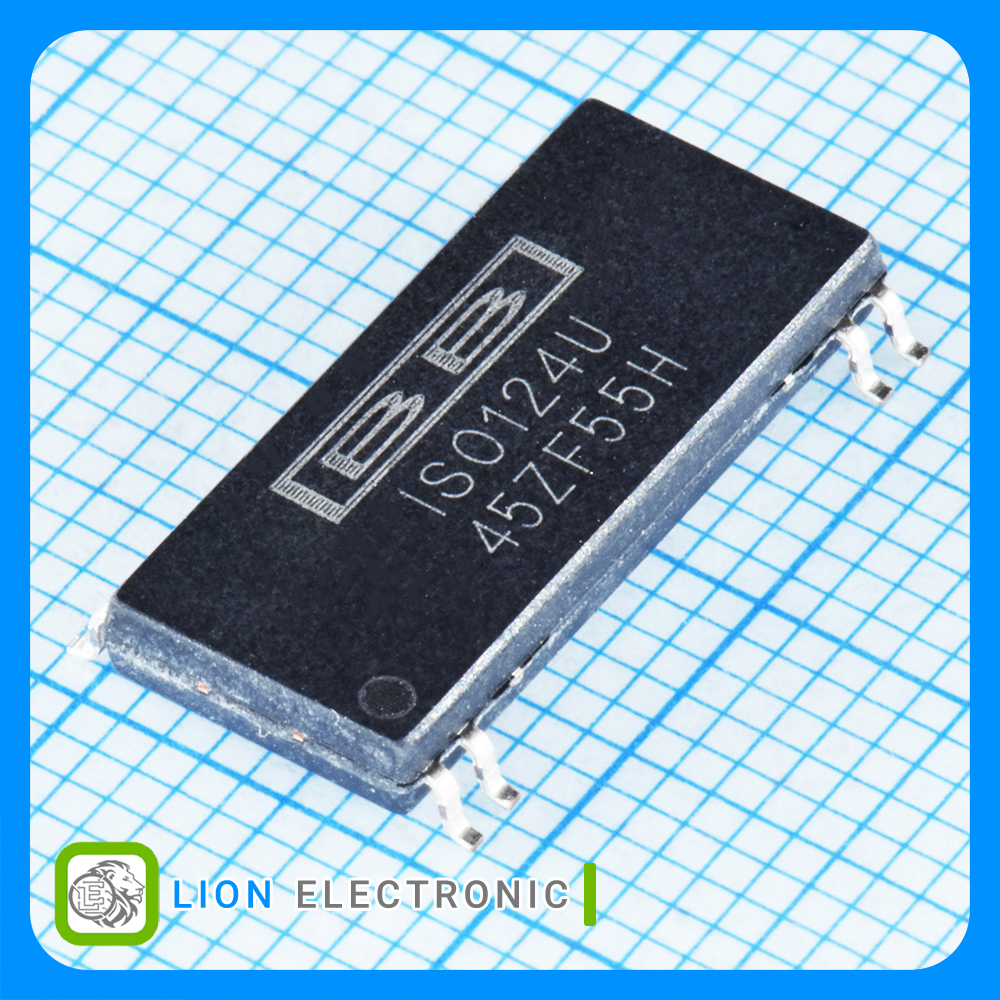

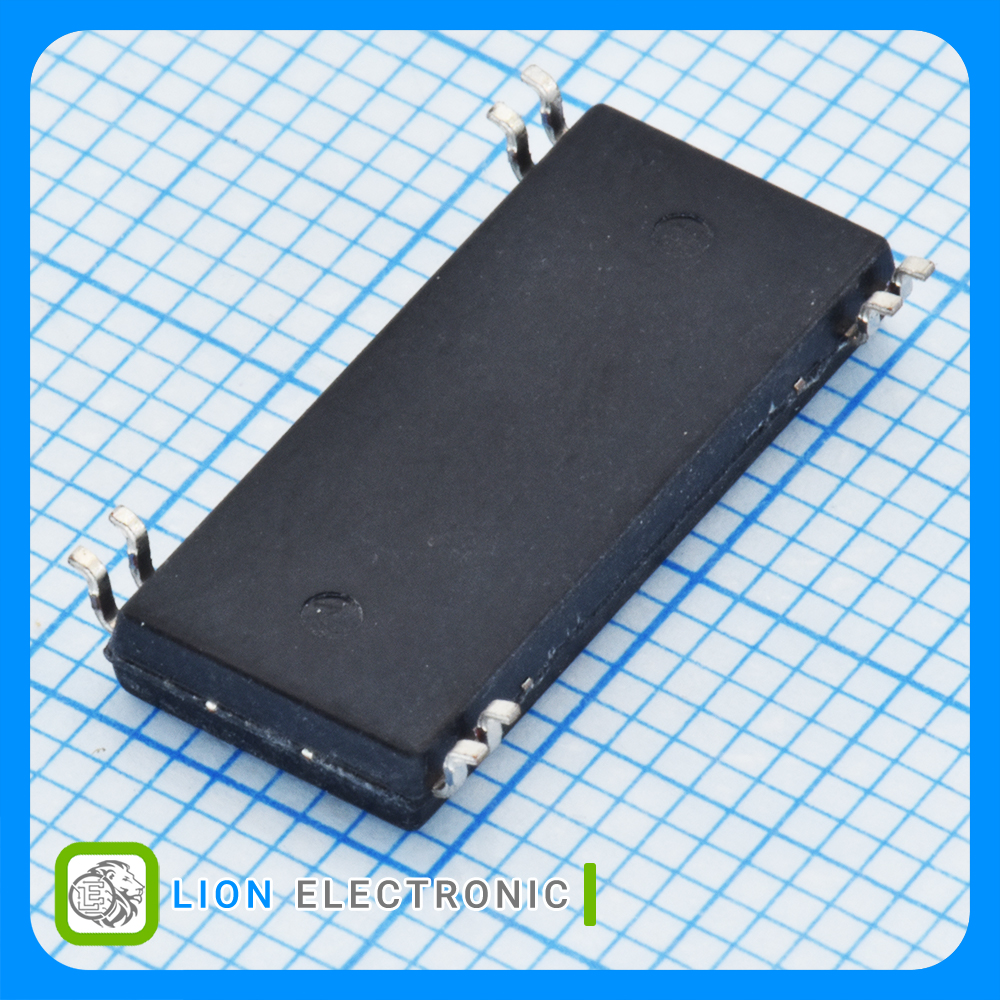

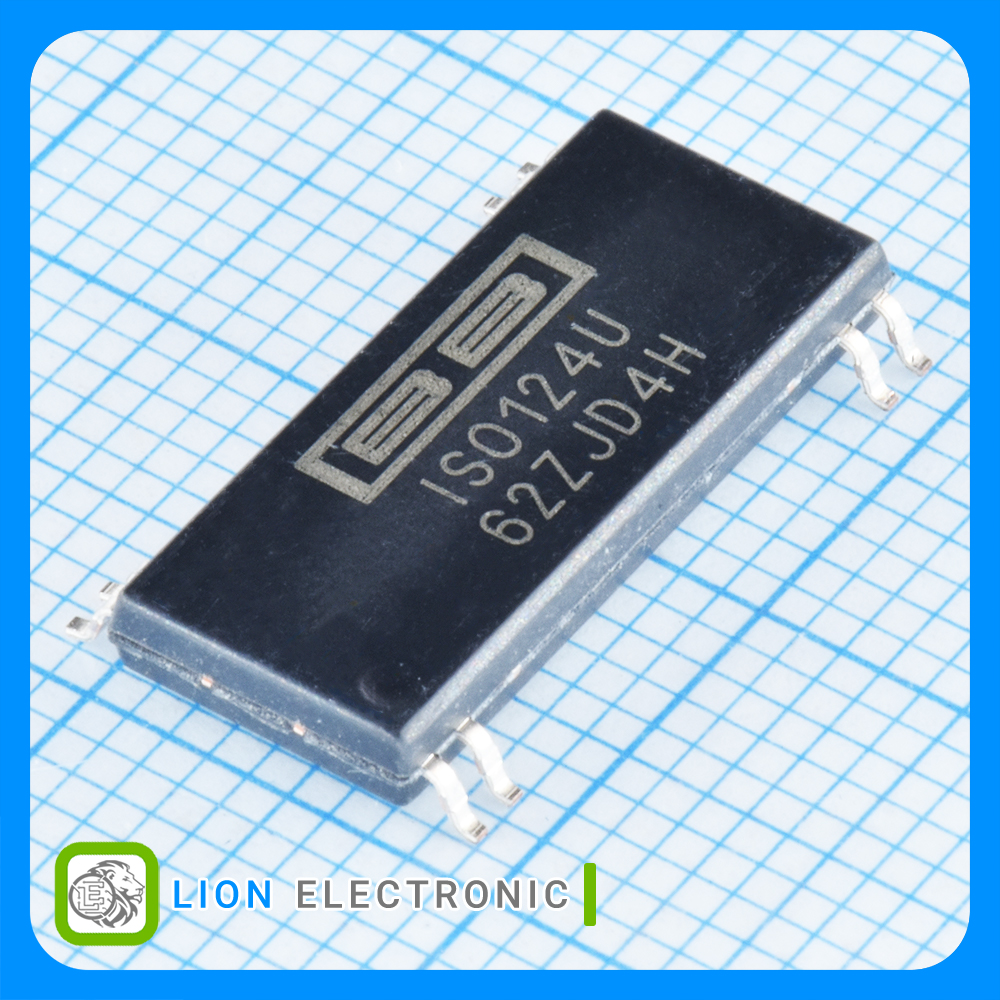

ISO124U
ISO124U
Part Number
2821
Lion Part
Datasheet
Burr Brown/Texas Instrument Manufacture
تقویتکننده ایزوله دقیق 1.5 کیلوولت RMS 1 کاناله ورودی ±10 ولت با پکیج SOIC-8
Isolation Amplifier 1.5kVrms, 1-Channel, ±10V Input, Precision, with SOIC-8 Package
معرفی
تقویتکننده ایزوله دقیق 1.5 کیلوولت RMS 1 کاناله ورودی ±10 ولت با پکیج SOIC-8
Isolation Amplifier 1.5kVrms, 1-Channel, ±10V Input, Precision, with SOIC-8 Package
Specifications
- Isolation Type: Capacitive, Galvanic
- Number of Channels: 1
- Input Voltage Max: ±10V
- Nonlinearity: ±0.005%
- Isolation Voltage: 1.5kVrms
- 3dB Bandwidth: 50kHz
- CMRR - Common Mode Rejection Ratio: 140dB
- Vos - Input Offset Voltage: 50mV
- Supply Voltage - Max: 18V
- Supply Voltage - Min: 4.5V
- Operating Supply Current: 5.5mA
- Mounting Style: SMD/SMT
- Package/Case: SOIC-8
- Minimum Operating Temperature: -25C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات آپ امپ ایزوله ISO124U
آپ امپ ایزوله ISO124U
Part Number
±0.005%
Nonlinearity
1
Number of Channels
50kHz
3dB Bandwidth
Capacitive, Galvanic
Isolation Type
1.5kVrms
Isolation Voltage
Reel
Packaging
SMD/SMT
Mounting Style
+85C
Maximum Operating Temperature
-25C
Minimum Operating Temperature
±10V
Input Voltage Max
18V
Supply Voltage - Max
4.5V
Supply Voltage - Min
140dB
CMRR - Common Mode Rejection Ratio
50mV
Vos - Input Offset Voltage
N/A
GBP - Gain Bandwidth Product
N/A
Ib - Input Bias Current
5.5mA
Operating Supply Current
SOIC-8
Package-Case
