BSC190N15NS3GATMA1
BSC190N15NS3GATMA1
Part Number
2812
Lion Part
Datasheet
Infineon Technologies Manufacture

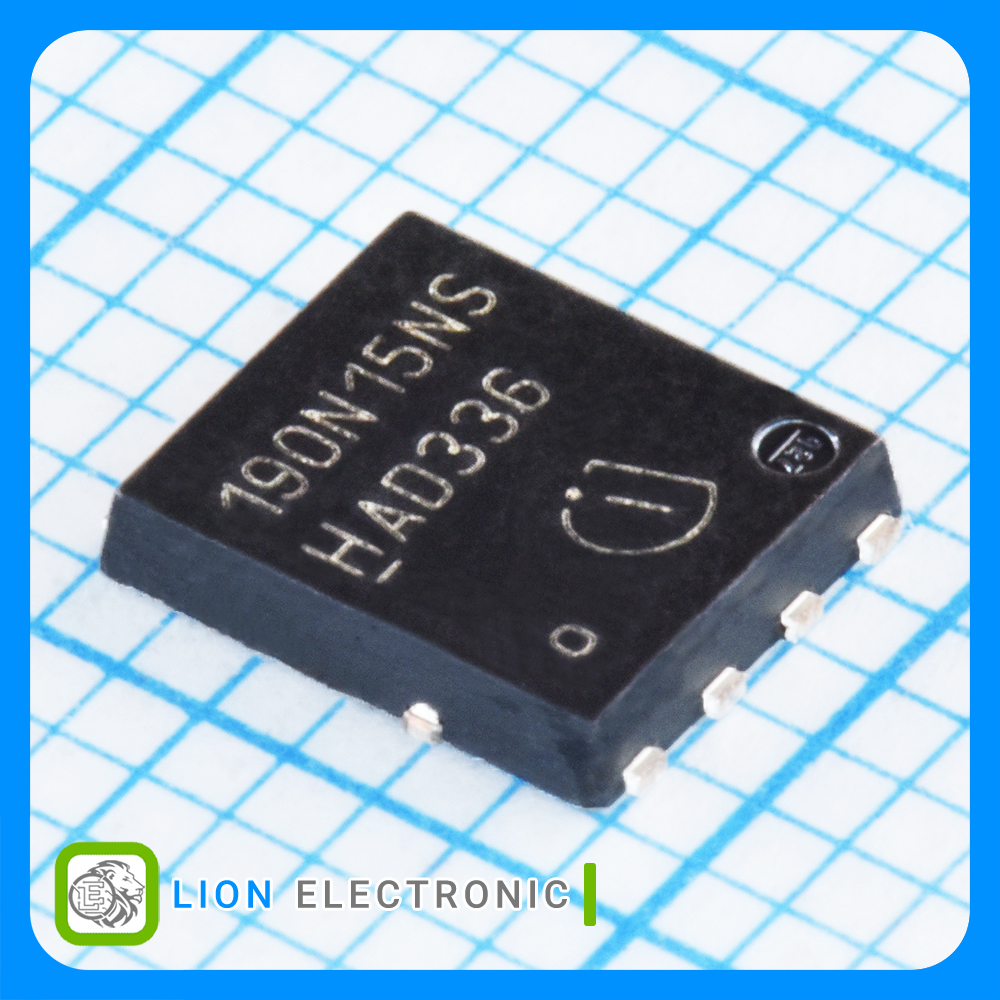

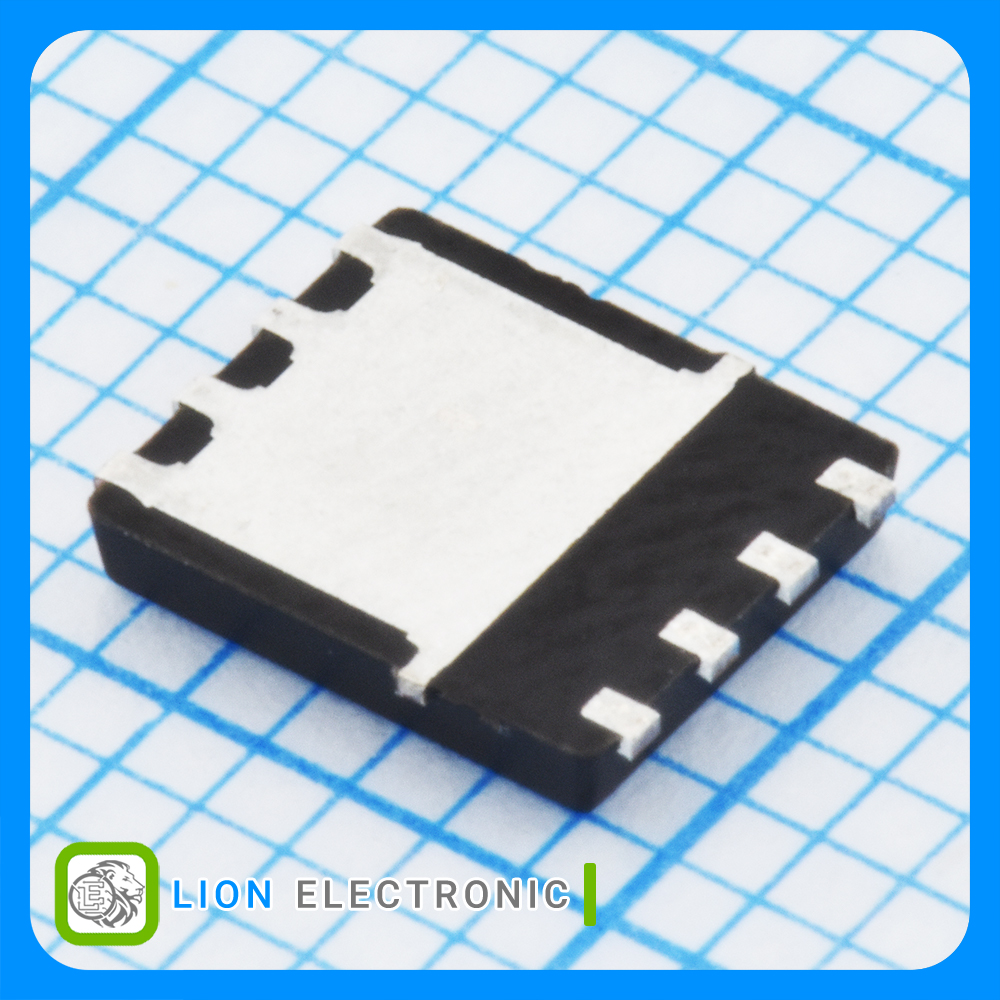

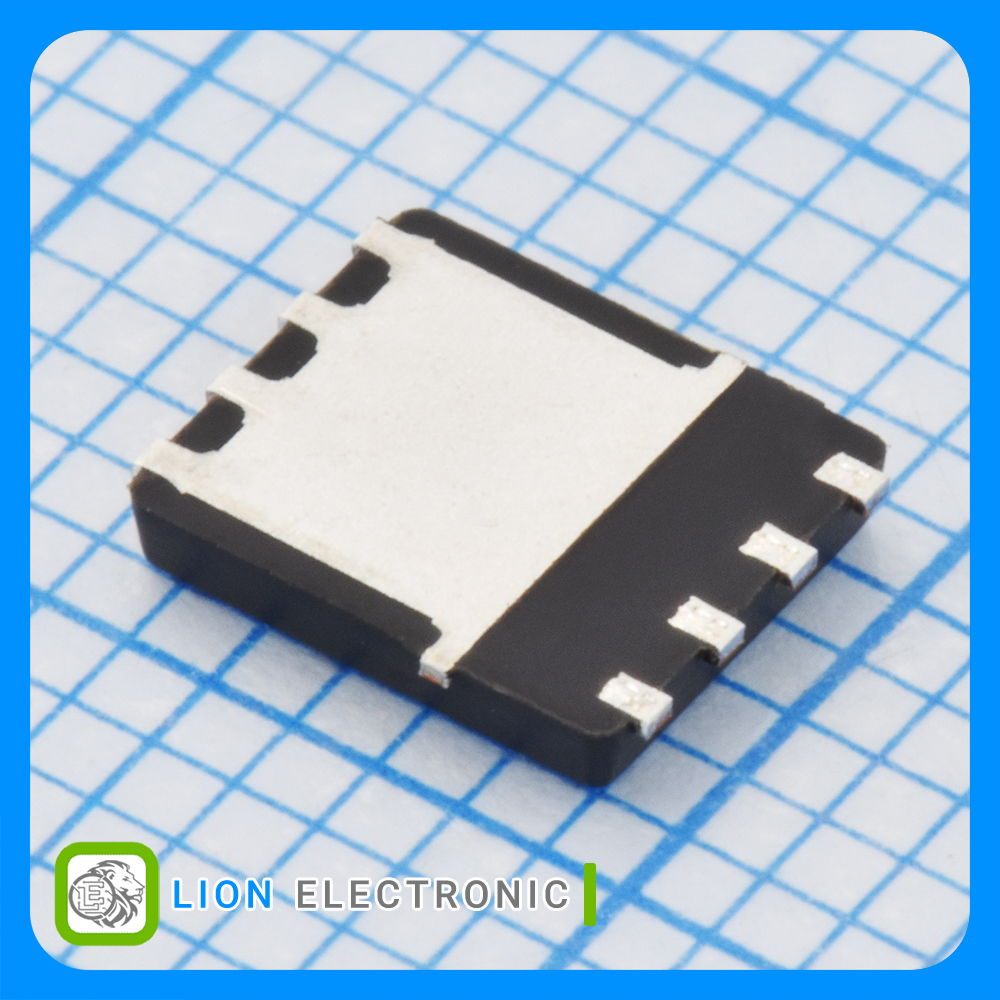

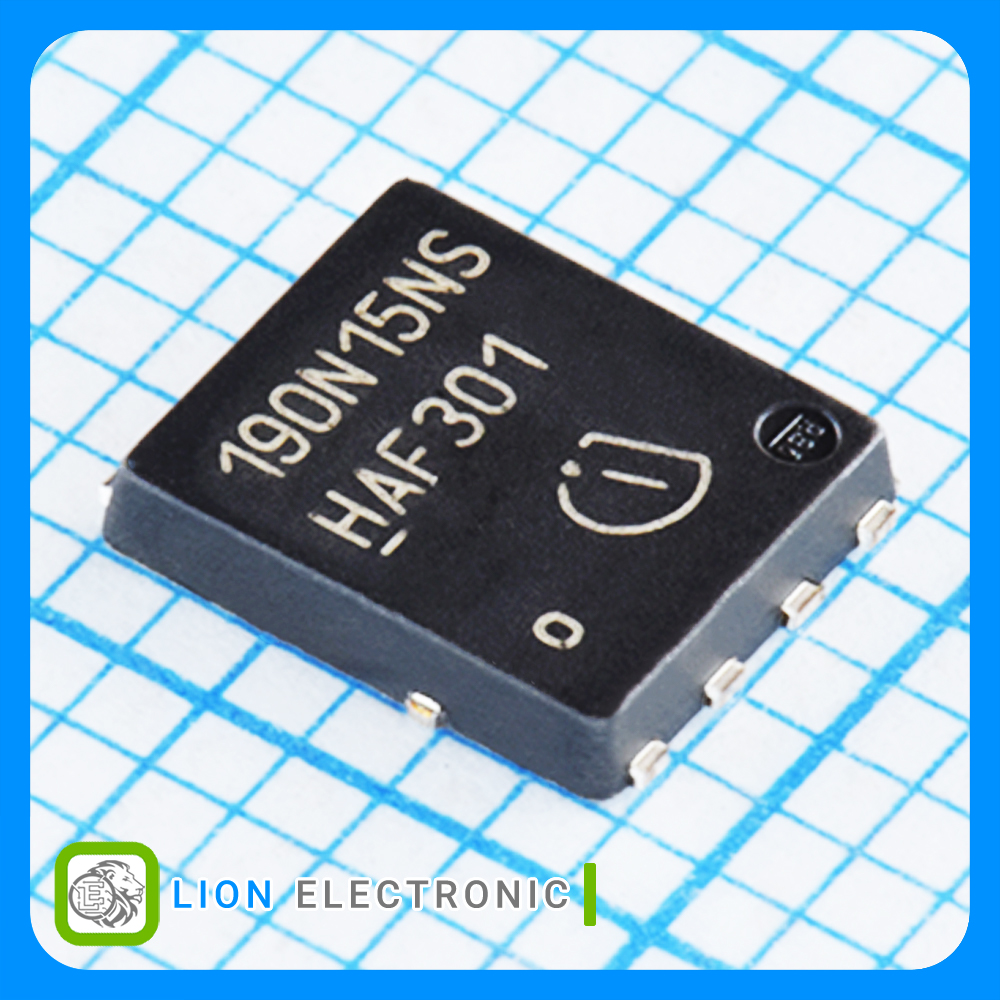

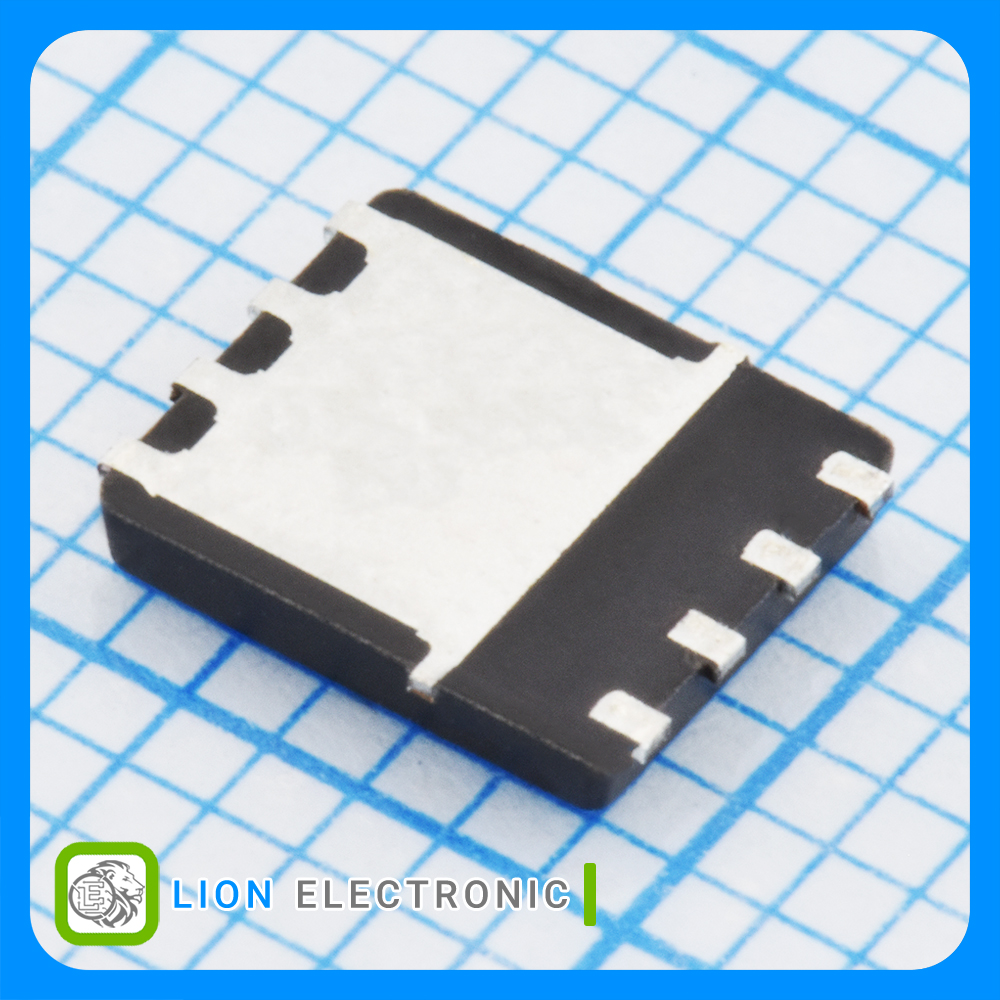

ماسفت N-CH نوع N با ولتاژ 150 ولت و جریان 50 آمپر با پکیج TDSON-8
N-CH MOSFET 150V, 50A with TDSON-8 Package
معرفی
ماسفت N-CH نوع N با ولتاژ 150 ولت و جریان 50 آمپر با پکیج TDSON-8
N-CH MOSFET 150V, 50A with TDSON-8 Package
Specifications
- Package/Case: TDSON-8
- Vds - Drain - Source Breakdown Voltage: 150V
- Id - Continuous Drain Current: 50A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 2V
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 16mΩ
- Pd - Power Dissipation: 125W
- Qg - Gate Charge: 23nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات ماسفت BSC190N15NS3GATMA1

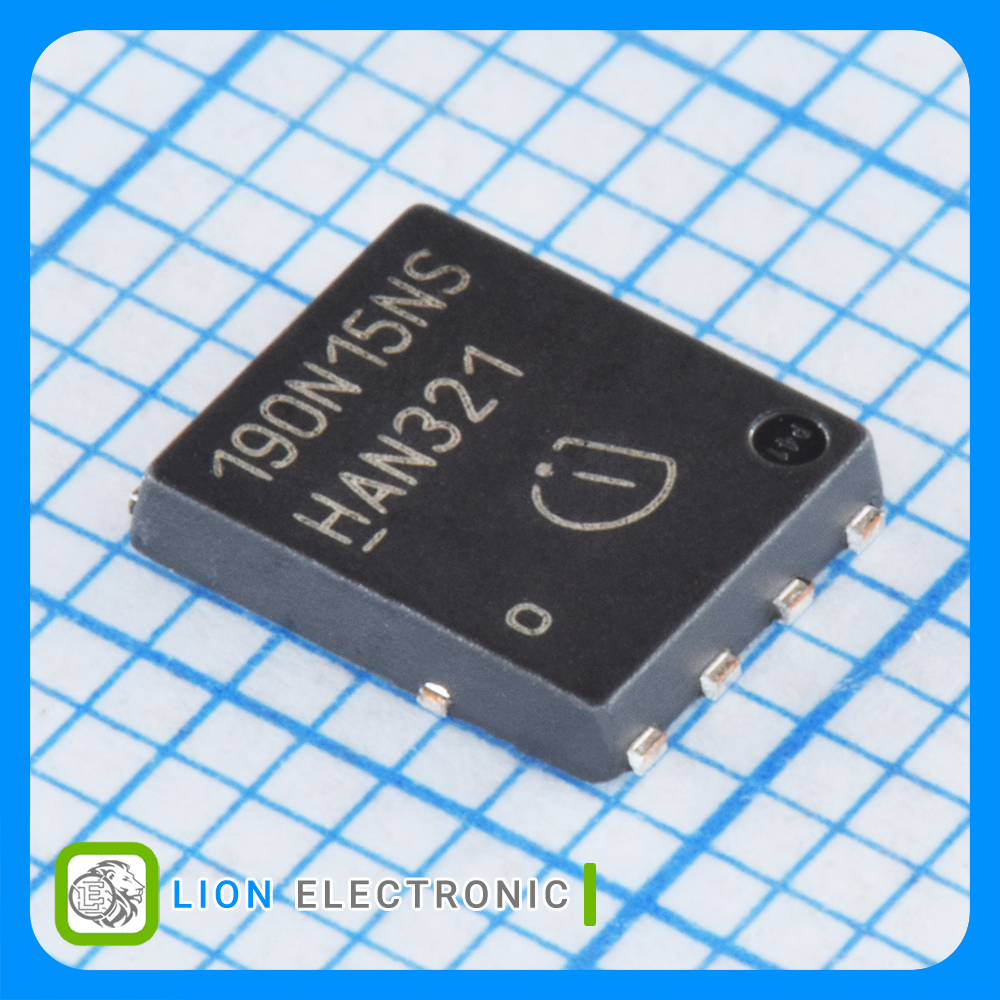

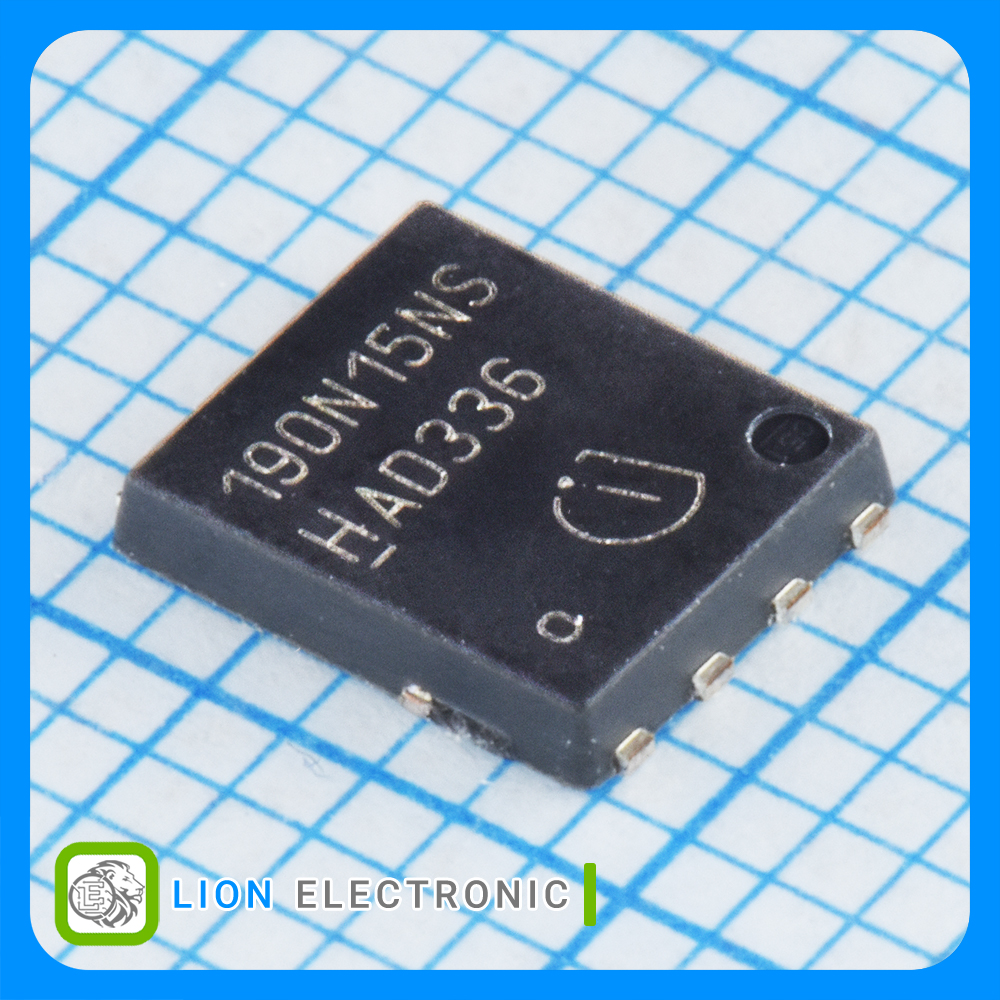

ماسفت BSC190N15NS3GATMA1
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Reel
Packaging
SMD/SMT
Mounting Style
±20V
Vgs - Gate - Source Voltage
+150C
Maximum Operating Temperature
150V
Vds - Drain - Source Breakdown Voltage
2V
Vgs th - Gate - Source Threshold Voltage
23nC
Qg - Gate Charge
16mΩ
Rds On - Drain - Source Resistance
50A
Id - Continuous Drain Current
125W
Pd - Power Dissipation
TDSON-8
Package-Case
