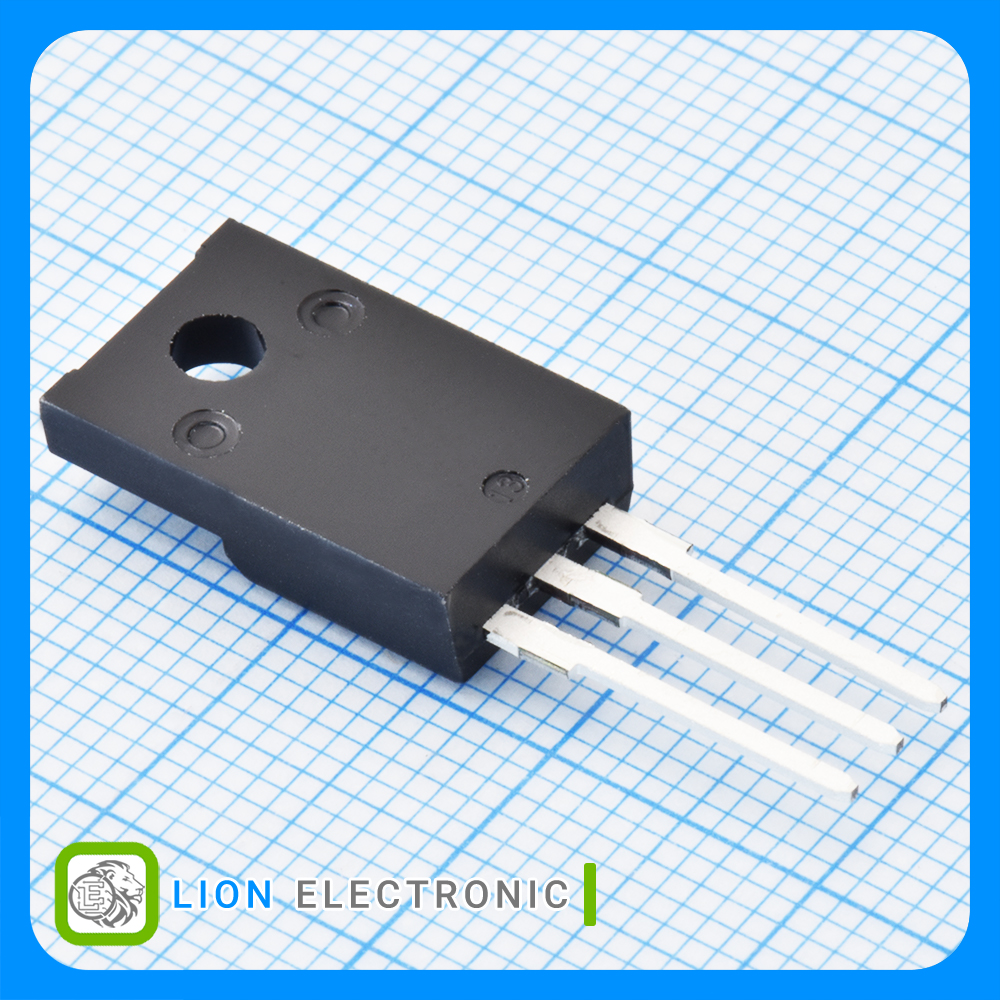

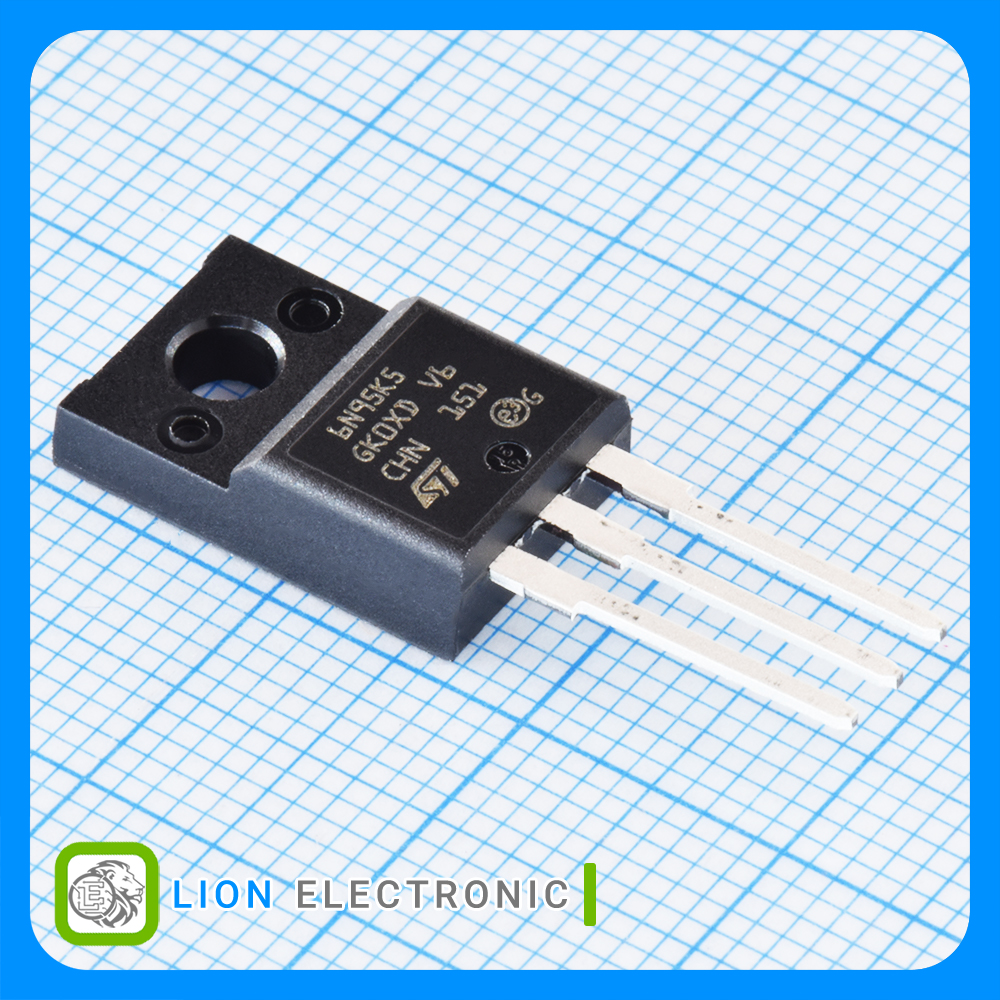

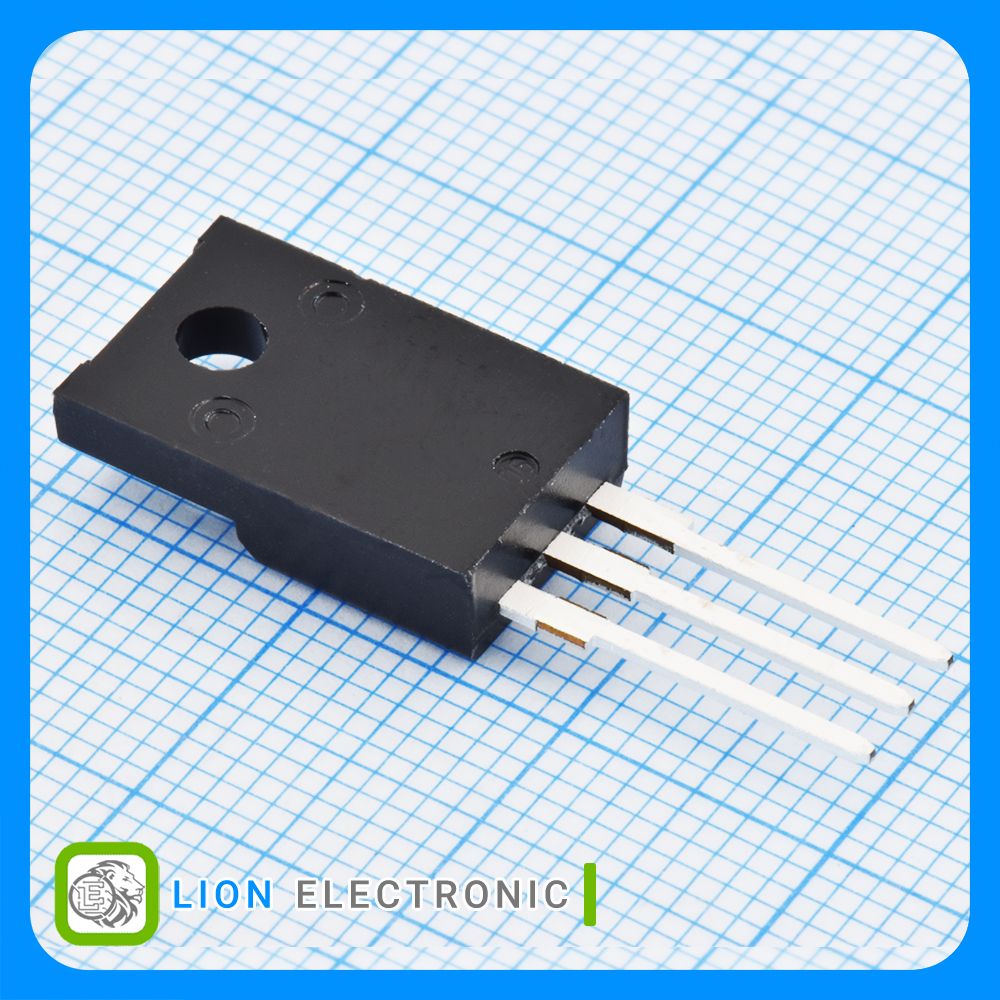

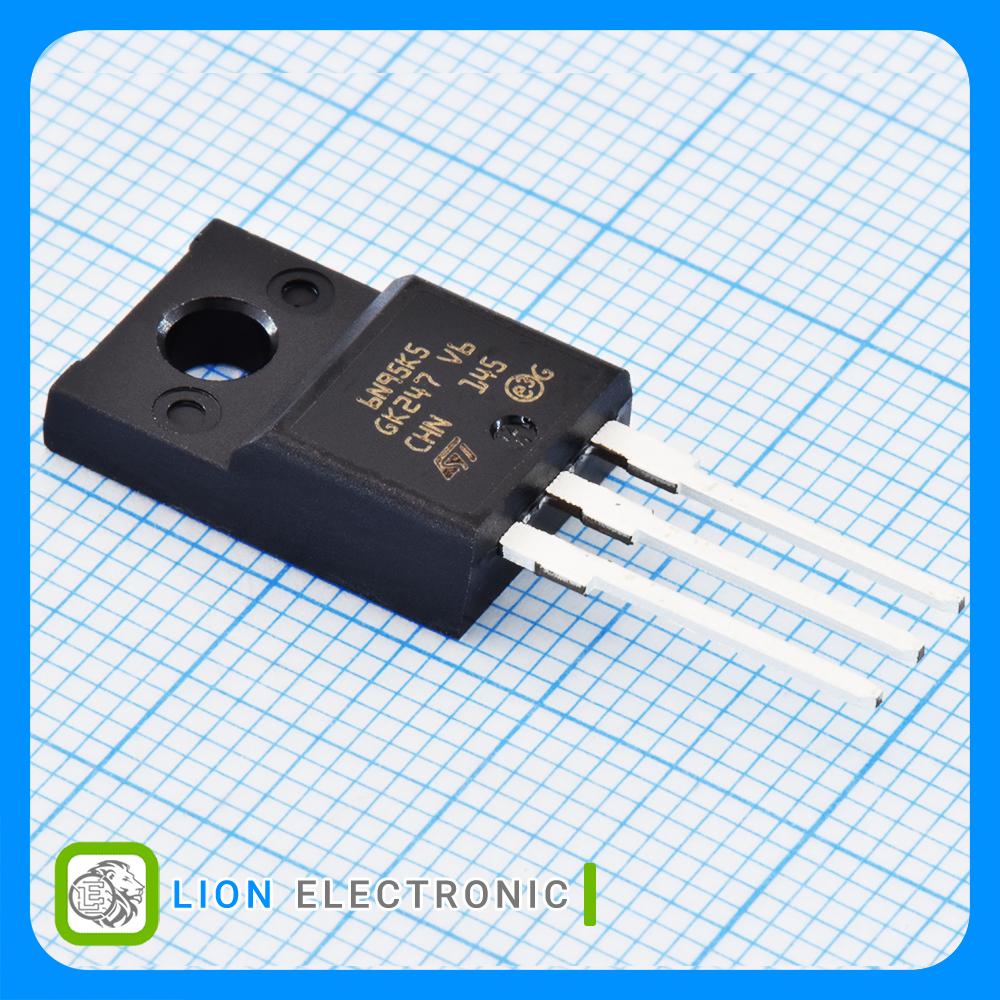

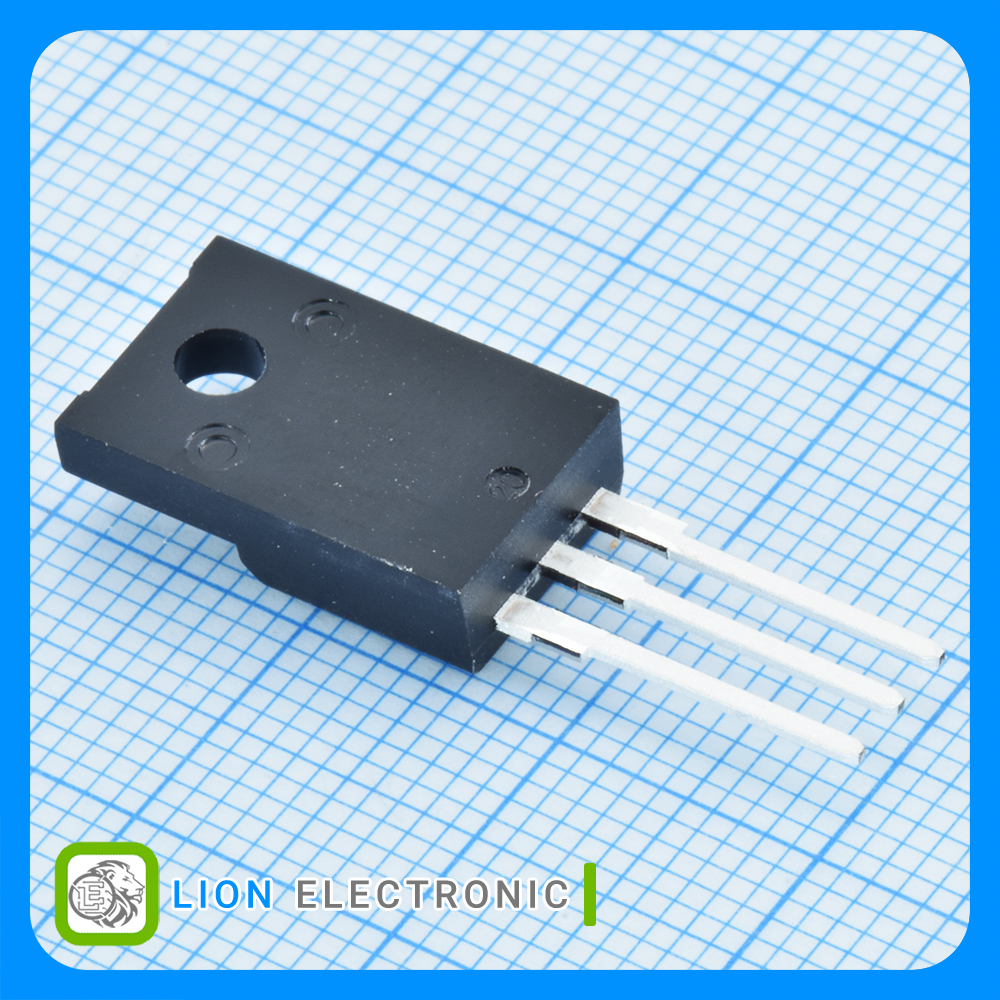

STF6N95K5
STF6N95K5
Part Number
2886
Lion Part
Datasheet
STMicroelectronics Manufacture
ماسفت 950 ولت 9 آمپر نوع N با پکیج TO-220-3
N-CH MOSFET 950V, 9A with TO-220-3 Package
معرفی
ماسفت 950 ولت 9 آمپر نوع N با پکیج TO-220-3
N-CH MOSFET 950V, 9A with TO-220-3 Package
Specifications
- Package/Case: TO-220-3
- Vds - Drain - Source Breakdown Voltage: 950V
- Id - Continuous Drain Current: 9A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 5V
- Vgs - Gate - Source Voltage: ±30V
- Rds On - Drain - Source Resistance: 1.25Ω
- Pd - Power Dissipation: 25W
- Qg - Gate Charge: 13nC
- Mounting Style: Through Hole
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Tube
مشخصات ماسفت STF6N95K5

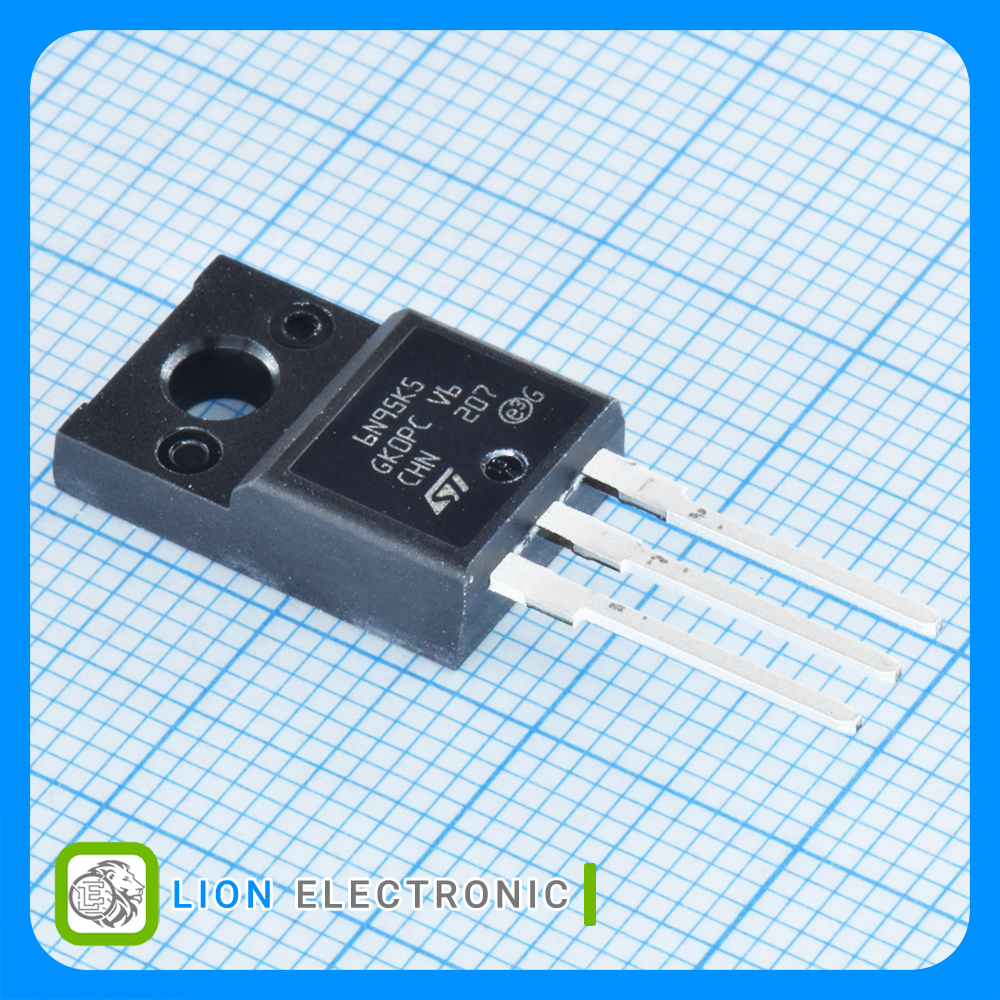

ماسفت STF6N95K5
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Tube
Packaging
Through Hole
Mounting Style
±30V
Vgs - Gate - Source Voltage
+150C
Maximum Operating Temperature
950V
Vds - Drain - Source Breakdown Voltage
13nC
Qg - Gate Charge
5V
Vgs th - Gate - Source Threshold Voltage
9A
Id - Continuous Drain Current
25W
Pd - Power Dissipation
1.25Ω
Rds On - Drain - Source Resistance
TO-220
Package-Case
