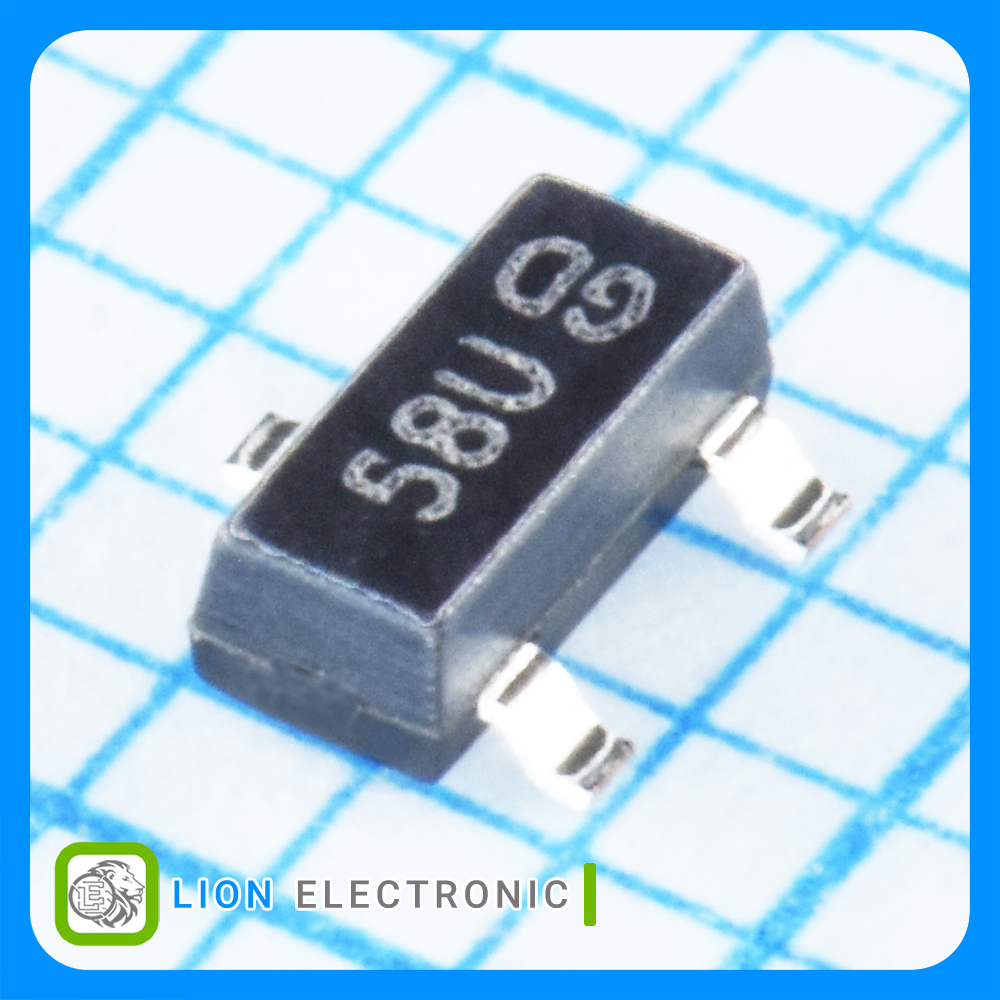

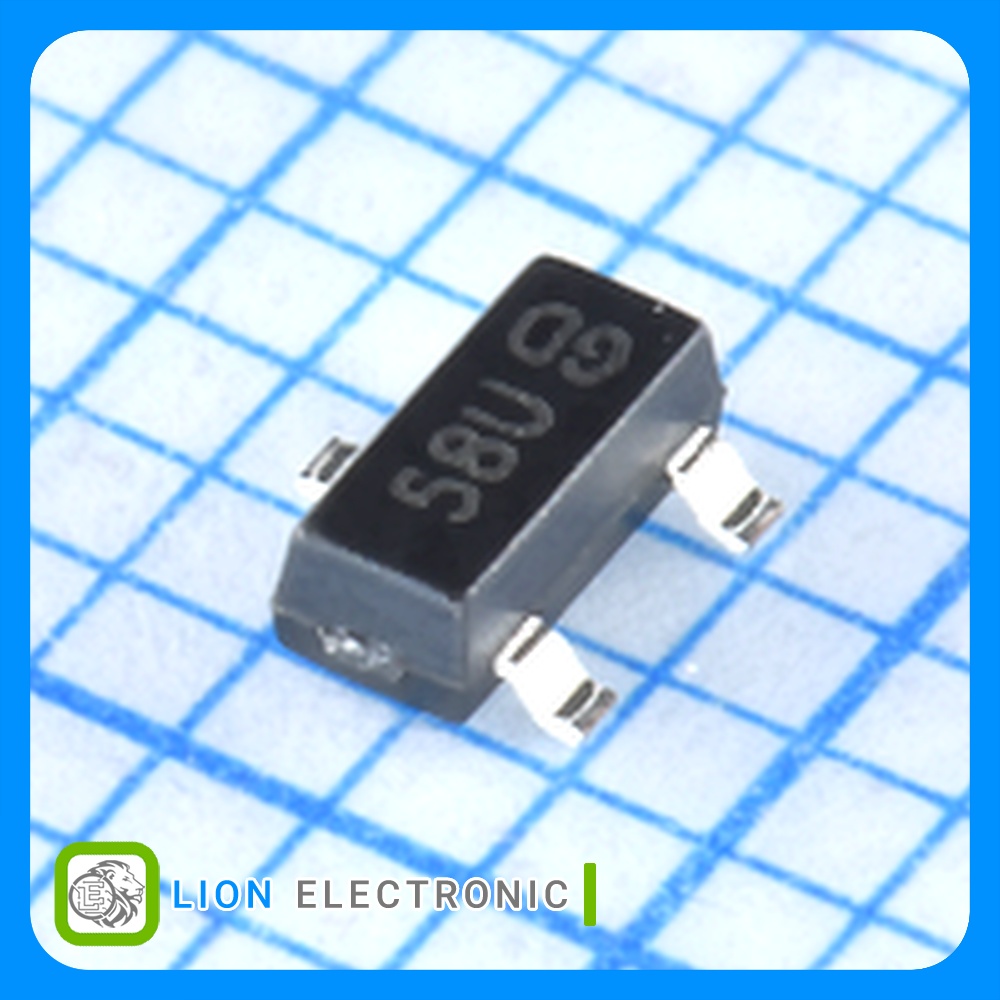

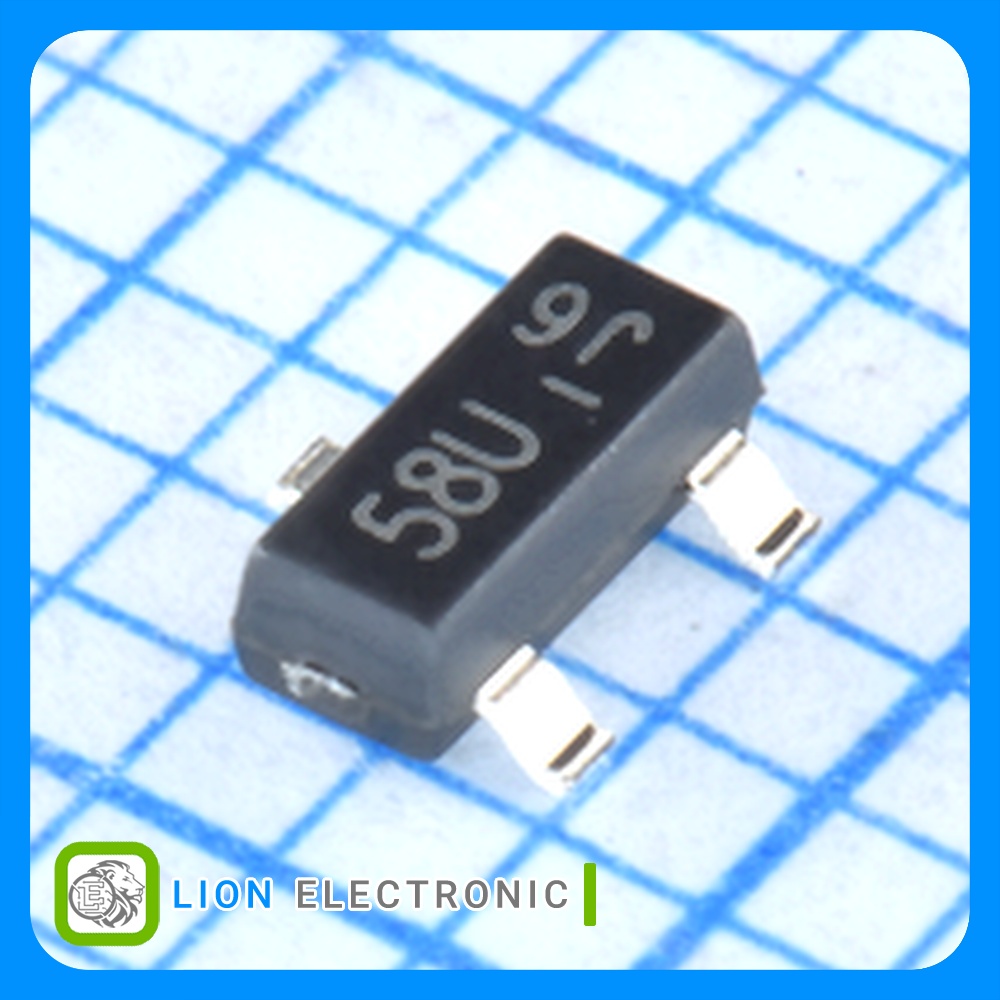

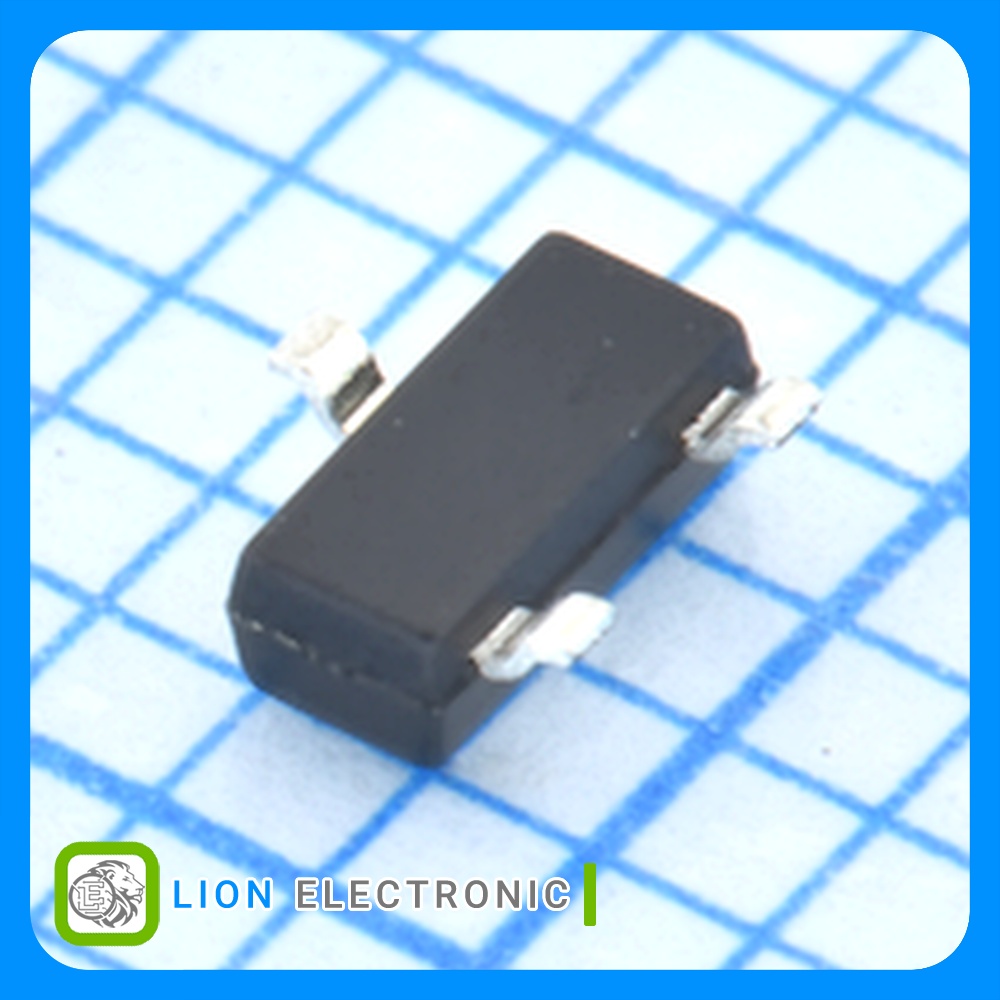

DMN2058U-7
DMN2058U-7
Part Number
2893
Lion Part
Datasheet
Diodes Incorporated Manufacture
ماسفت N-CH با ولتاژ 20 ولت و جریان 4.6 آمپر با پکیج SOT-23-3
N-CH MOSFET 20V, 4.6A with SOT-23-3 Package
معرفی
ماسفت N-CH با ولتاژ 20 ولت و جریان 4.6 آمپر با پکیج SOT-23-3
N-CH MOSFET 20V, 4.6A with SOT-23-3 Package
Specifications
- Package/Case: SOT-23-3
- Vds - Drain - Source Breakdown Voltage: 20V
- Id - Continuous Drain Current: 4.6A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 400mV
- Vgs - Gate - Source Voltage: ±12V
- Rds On - Drain - Source Resistance: 35mΩ
- Pd - Power Dissipation: 1.13W
- Qg - Gate Charge: 7.7nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C

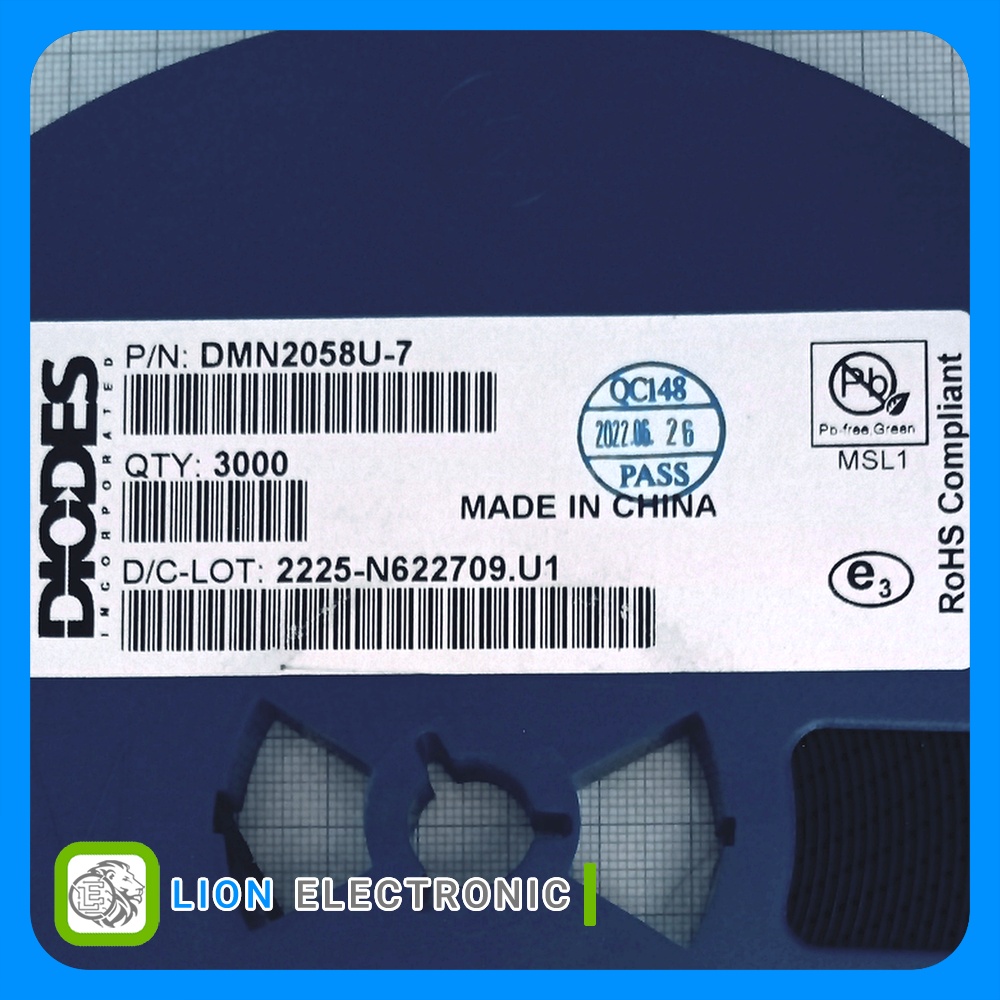

- Packaging: Reel
مشخصات ماسفت DMN2058U-7
ماسفت DMN2058U-7
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Reel
Packaging
SMD/SMT
Mounting Style
±12V
Vgs - Gate - Source Voltage
20V
Vds - Drain - Source Breakdown Voltage
400mV
Vgs th - Gate - Source Threshold Voltage
+150C
Maximum Operating Temperature
7.7nC
Qg - Gate Charge
1.13W
Pd - Power Dissipation
4.6A
Id - Continuous Drain Current
35mΩ
Rds On - Drain - Source Resistance
SOT-23-3
Package-Case
