NCE Power
معرفی

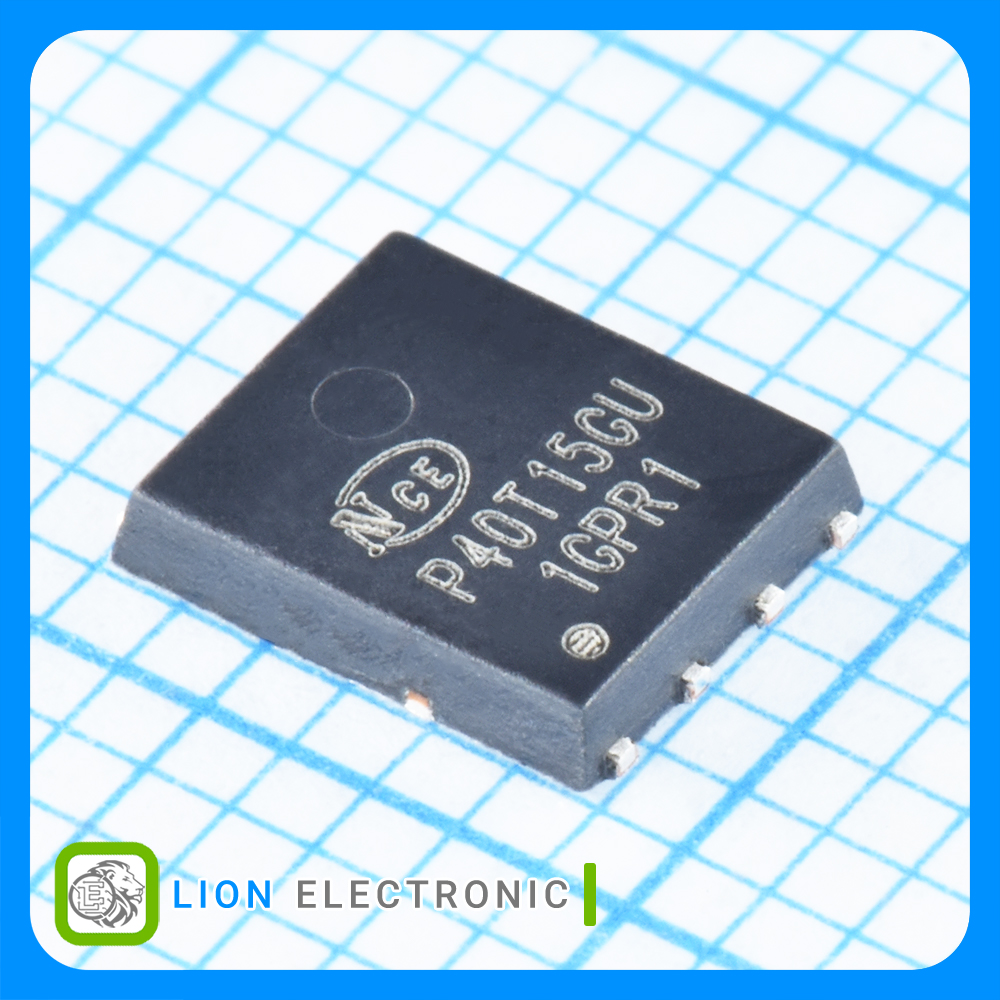

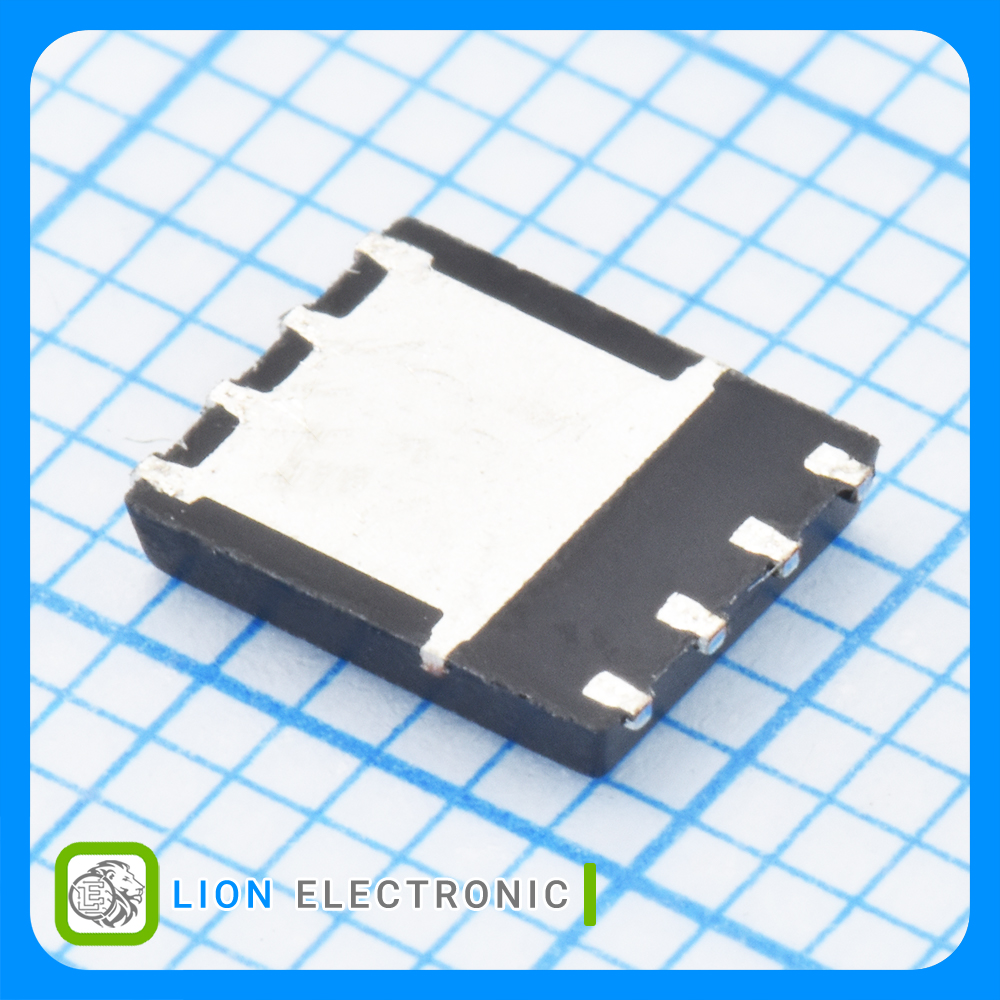

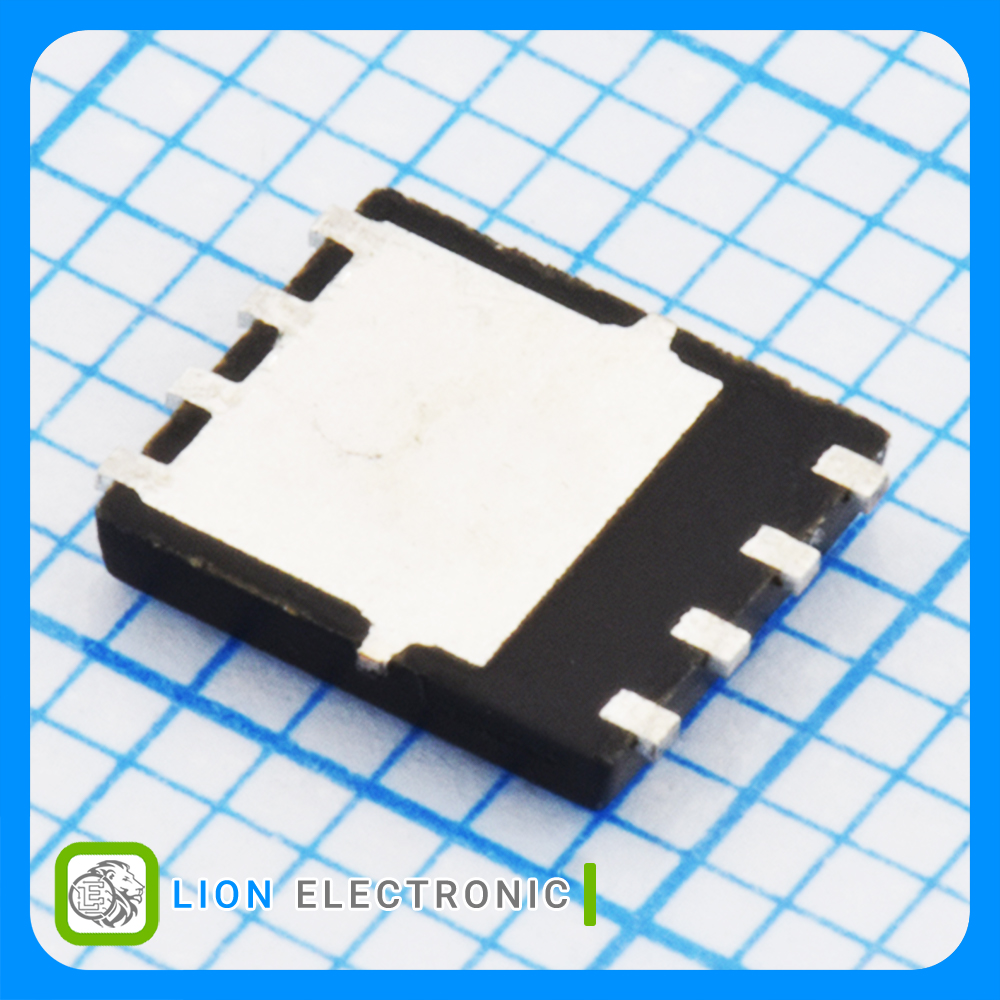

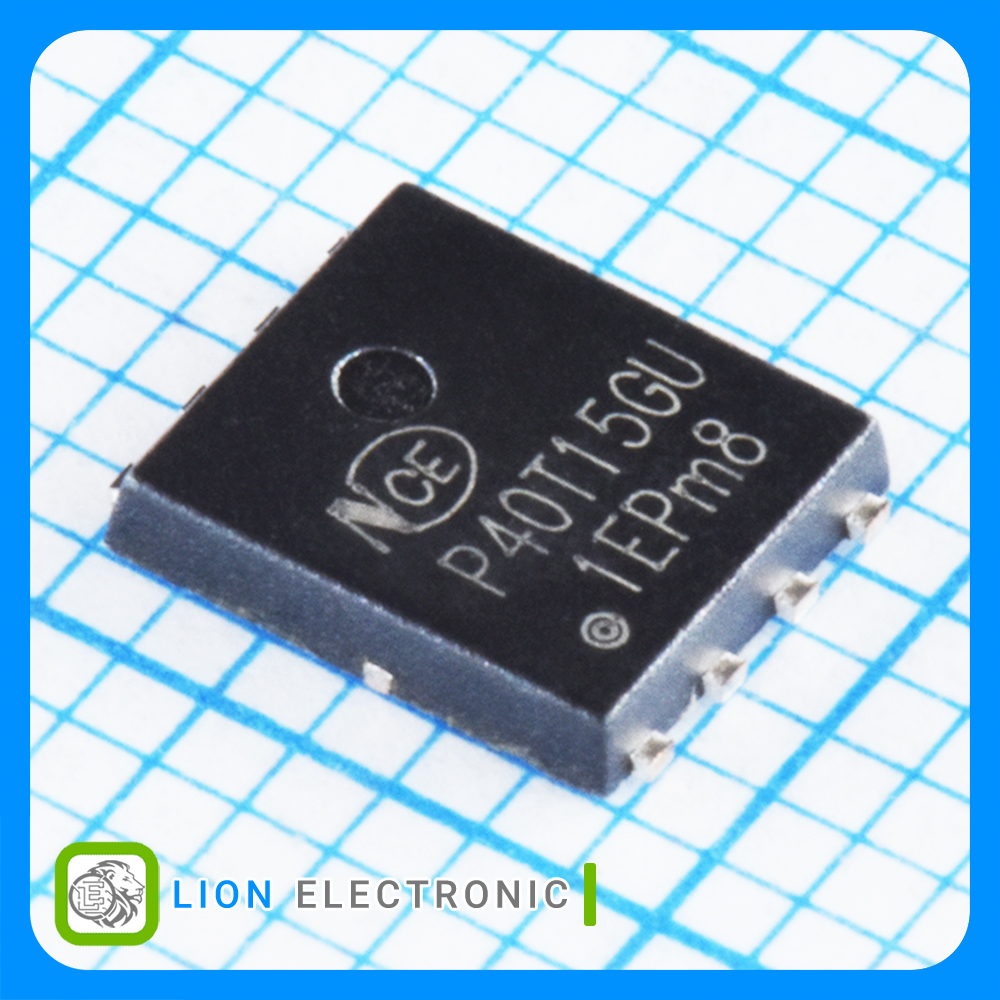

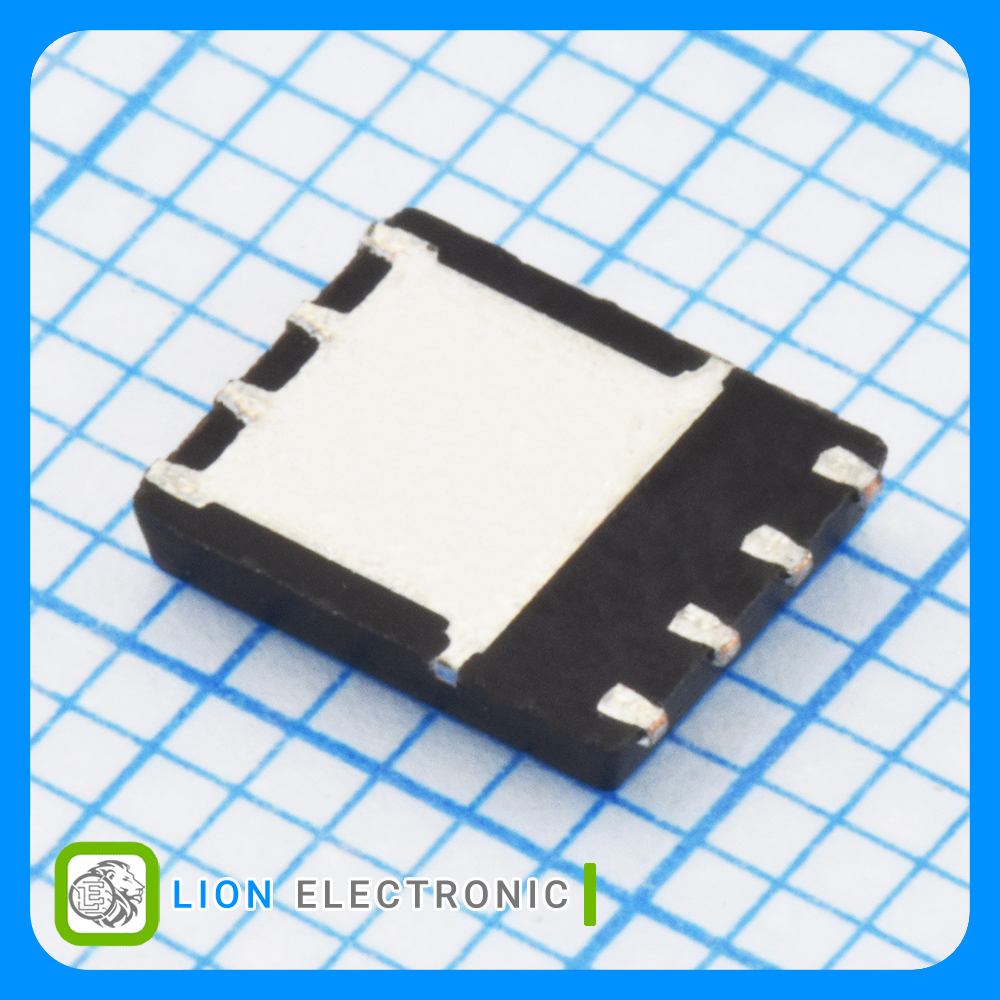

ماسفت N-CH 40 ولت 150 آمپر با پکیج DFN-8
N-CH MOSFET 40V, 150A with DFN-8 Package
Specifications
- Package/Case: DFN-8
- Vds - Drain - Source Breakdown Voltage: 40V
- Id - Continuous Drain Current: 150A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 1V
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 1.09mΩ
- Pd - Power Dissipation: 135W
- Qg - Gate Charge: 91nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات ماسفت NCEP40T15GU

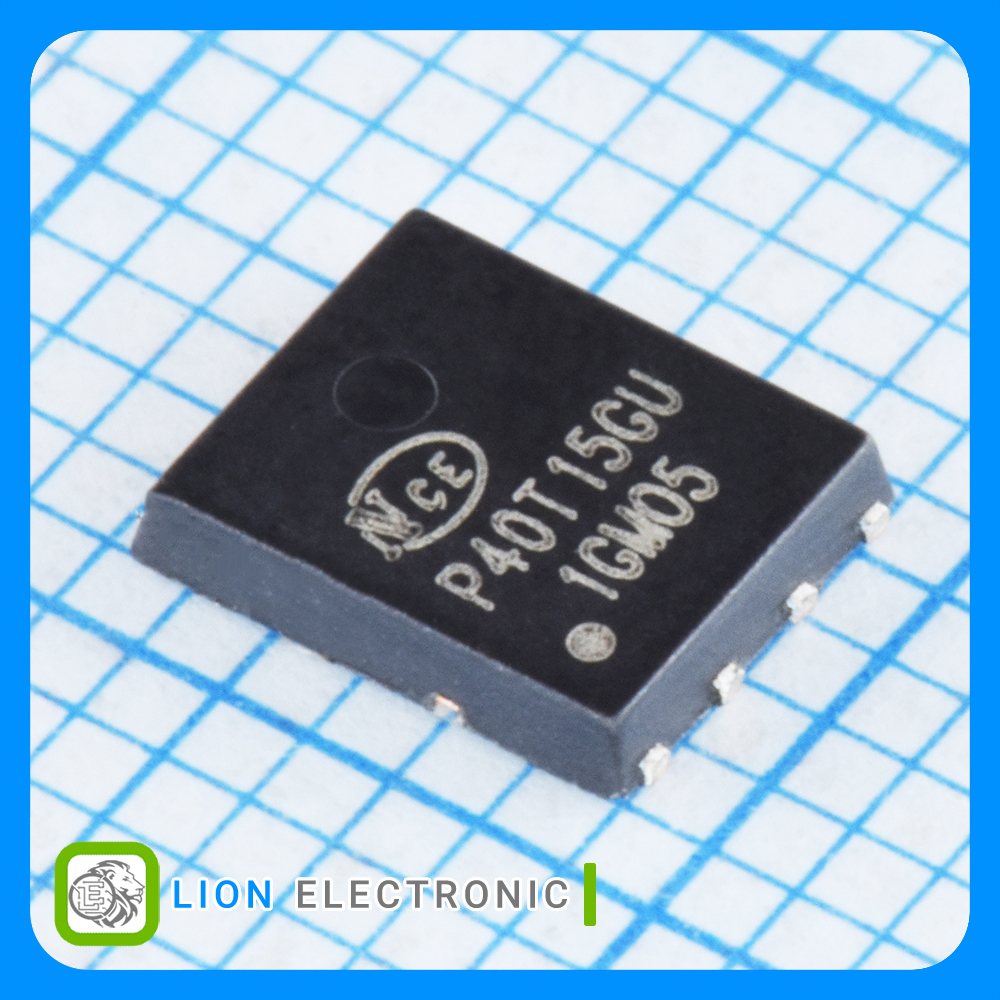

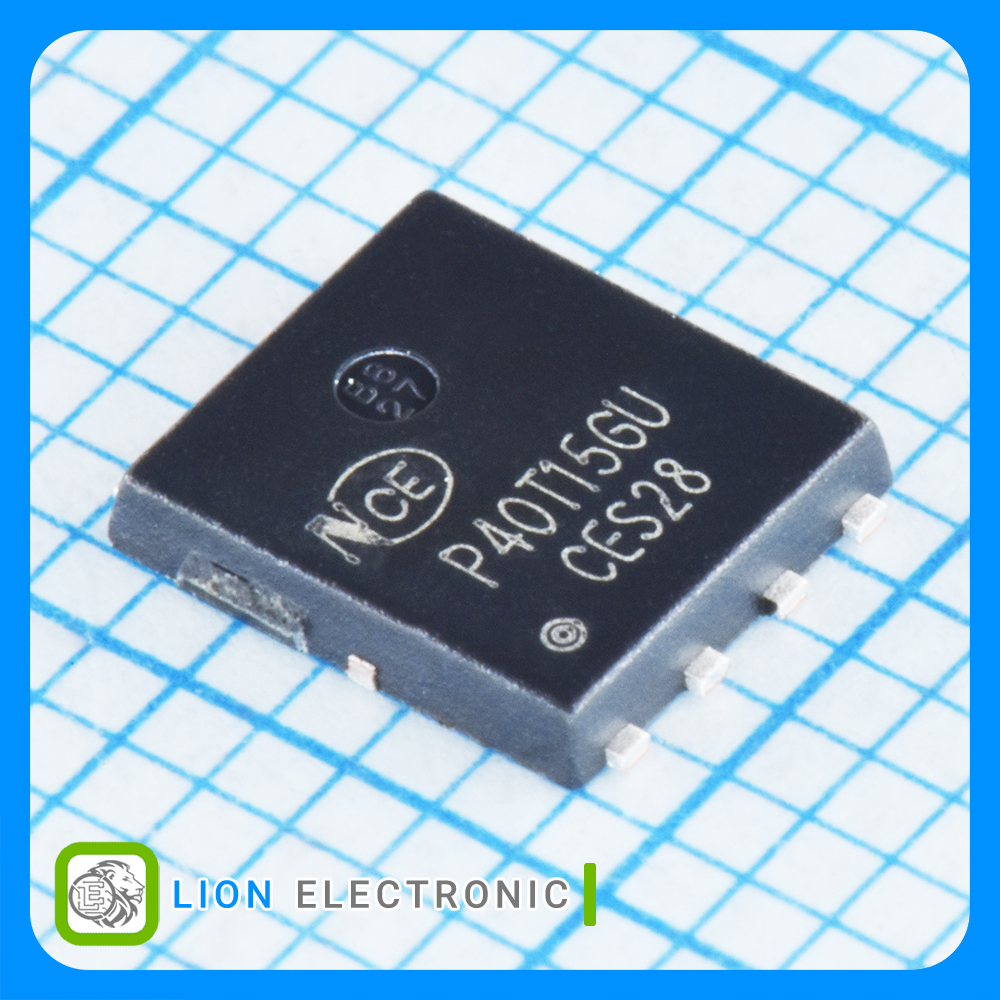

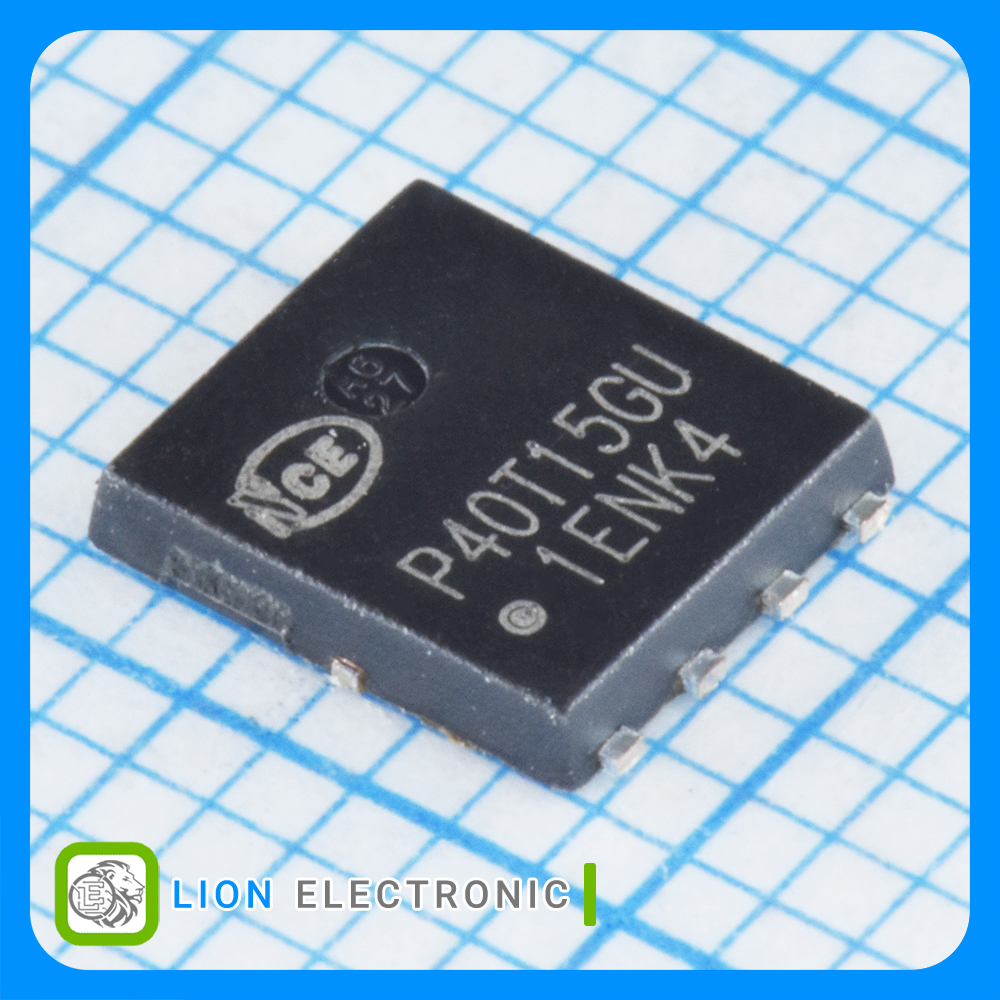

ماسفت NCEP40T15GU
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Reel
Packaging
SMD/SMT
Mounting Style
1.09mΩ
Rds On - Drain - Source Resistance
±20V
Vgs - Gate - Source Voltage
40V
Vds - Drain - Source Breakdown Voltage
+150C
Maximum Operating Temperature
1V
Vgs th - Gate - Source Threshold Voltage
DFN-8
Package-Case
91nC
Qg - Gate Charge
135W
Pd - Power Dissipation
150A
Id - Continuous Drain Current
