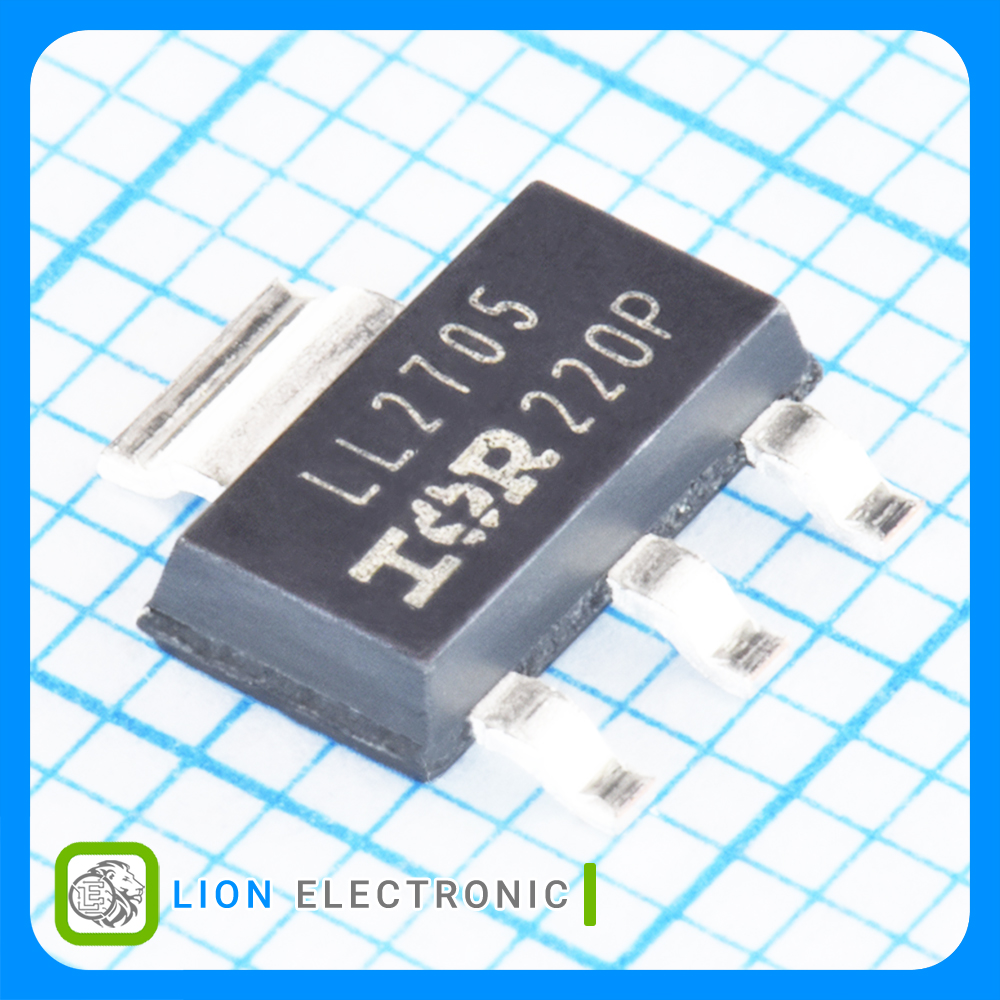

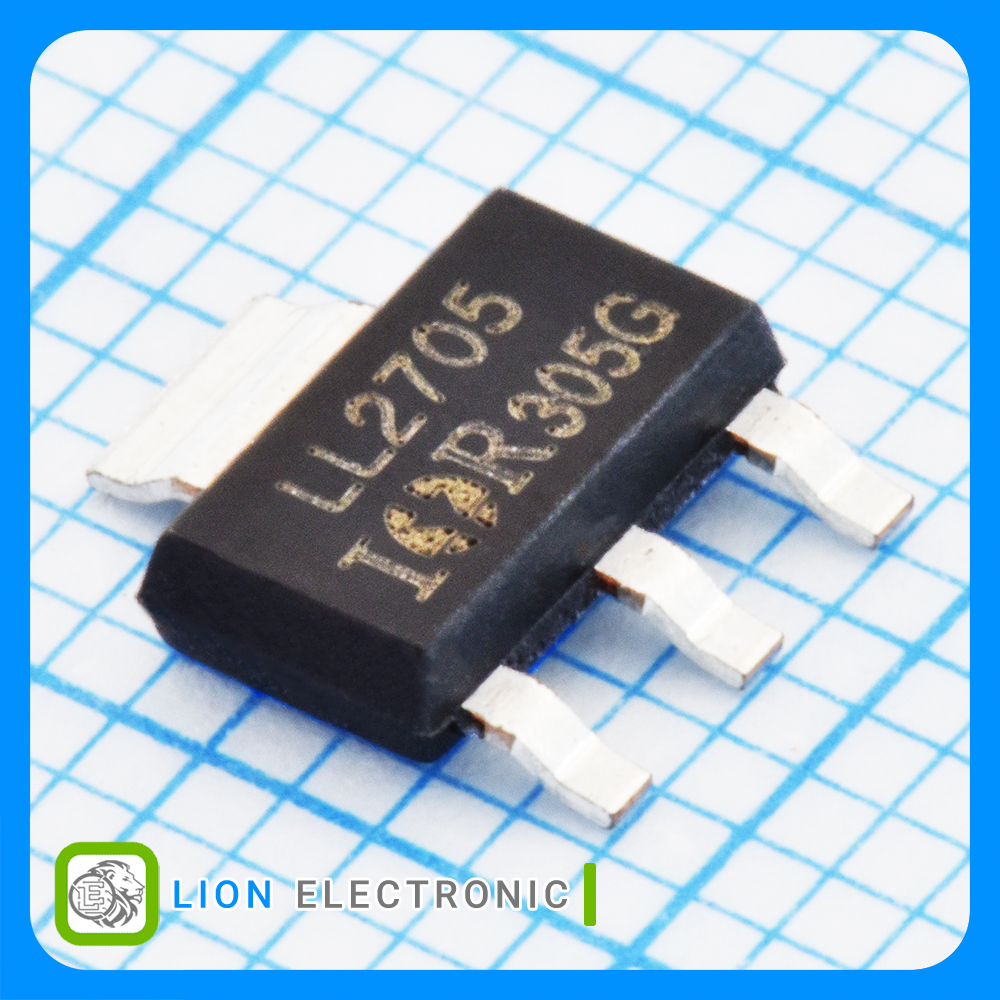

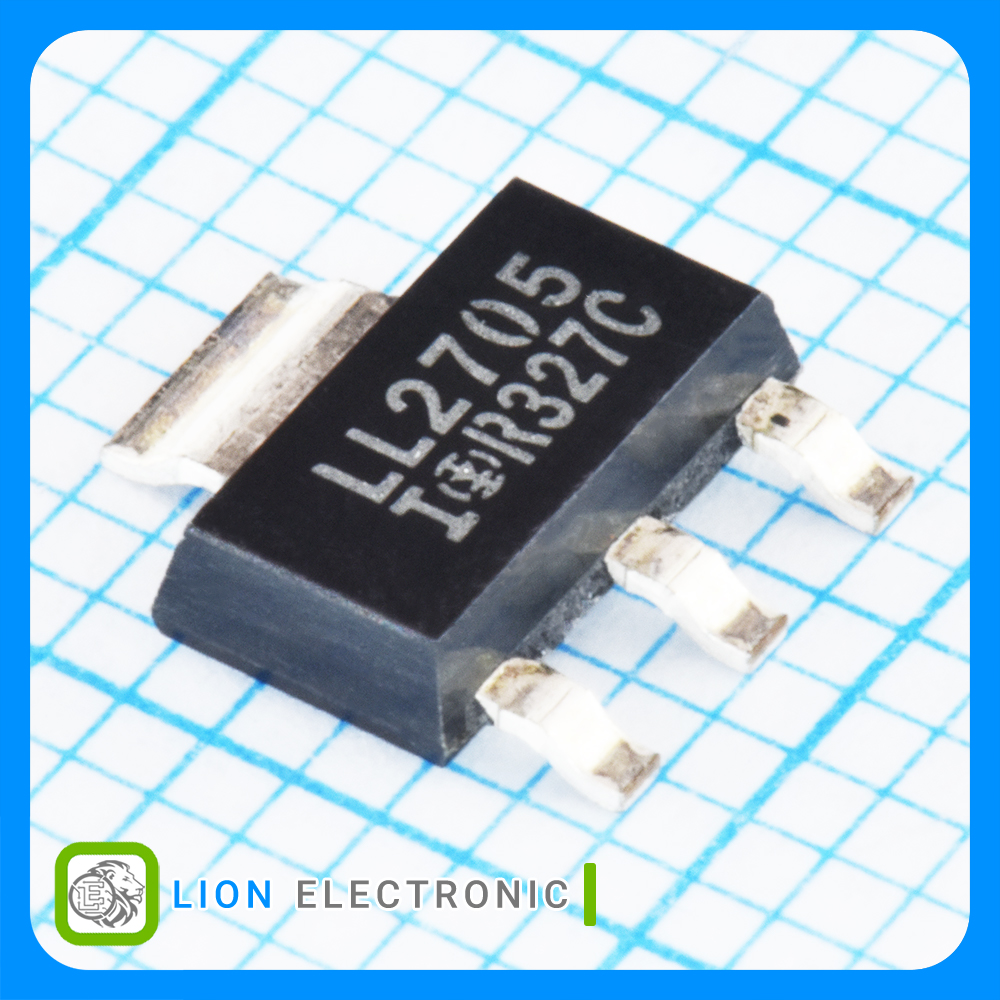

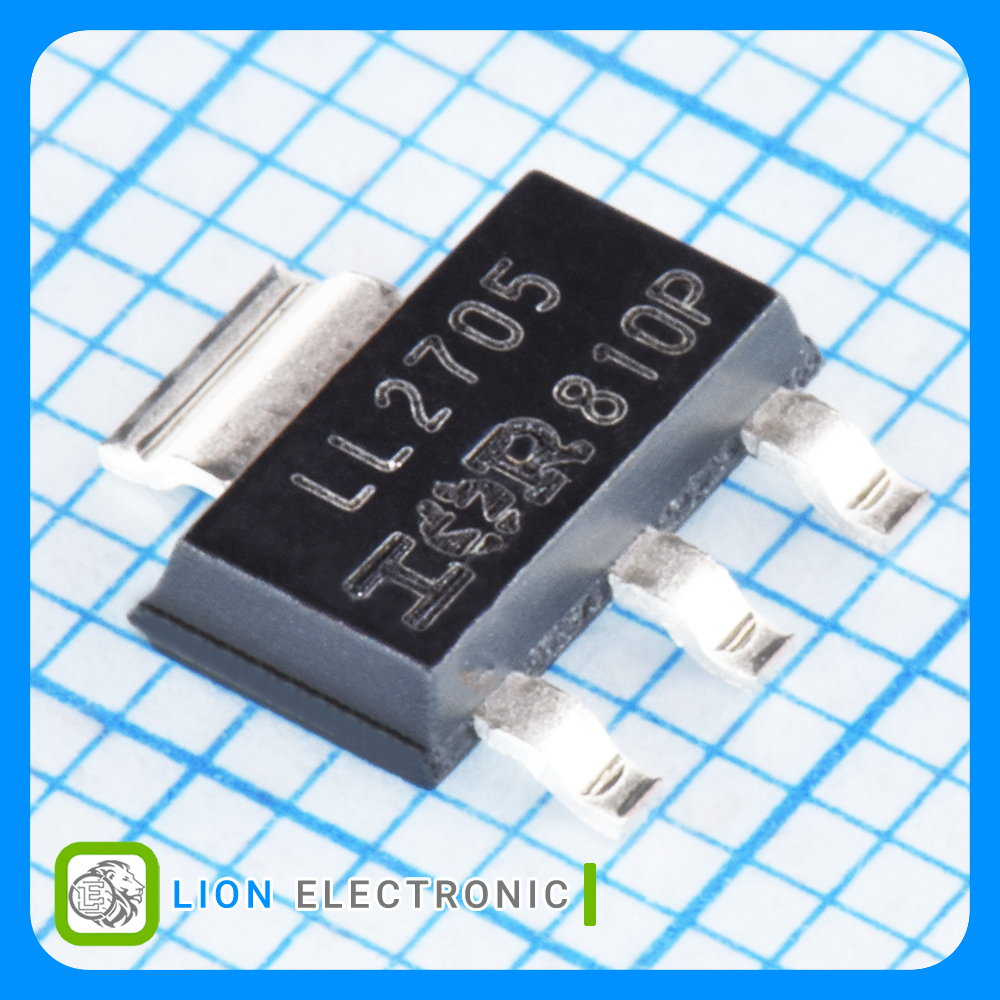

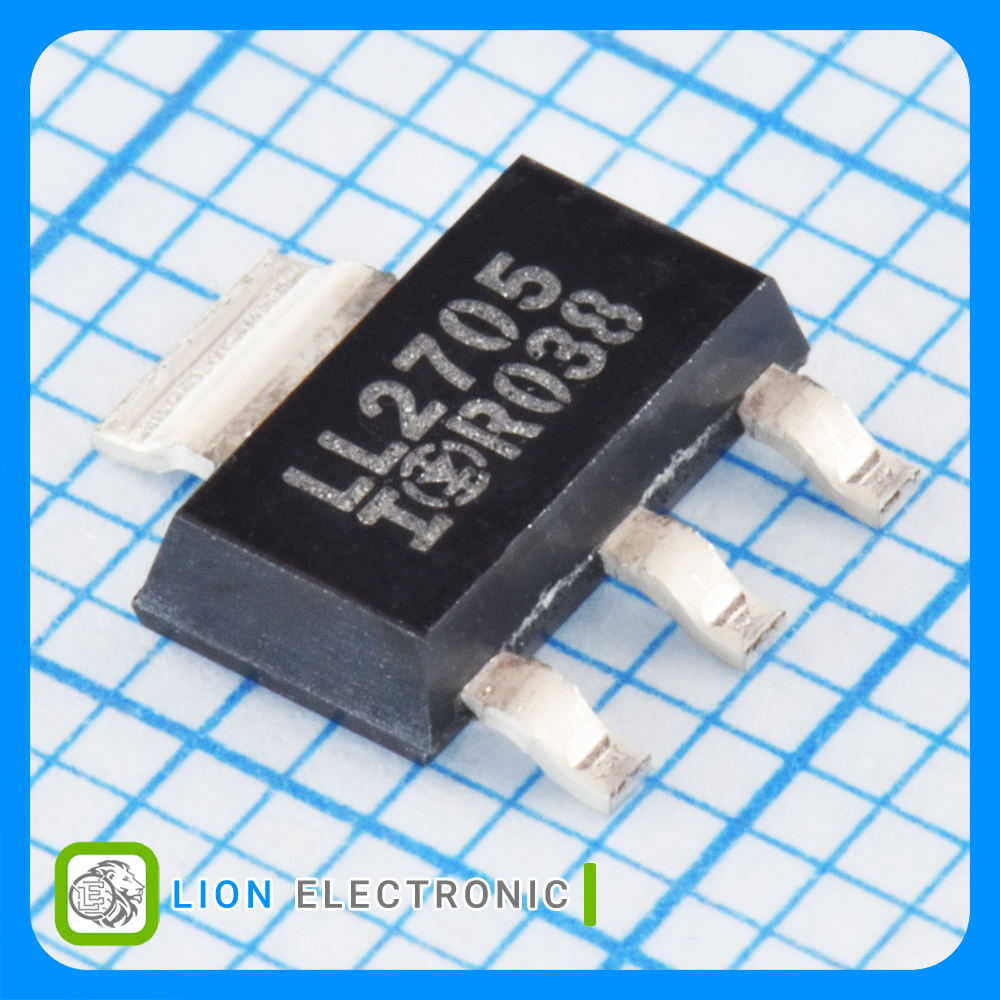

IRLL2705TRPBF
IRLL2705TRPBF
Part Number
2899
Lion Part
Datasheet
Infineon Technologies Manufacture
ماسفت N-CH با ولتاژ 55 ولت و جریان 3.8 آمپر با پکیج SOT-223
N-CH MOSFET 55V, 3.8A with SOT-223 Package
معرفی
ماسفت N-CH با ولتاژ 55 ولت و جریان 3.8 آمپر با پکیج SOT-223
N-CH MOSFET 55V, 3.8A with SOT-223 Package
Specifications
- Package/Case: SOT-223
- Vds - Drain - Source Breakdown Voltage: 55V
- Id - Continuous Drain Current: 3.8A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 1V
- Vgs - Gate - Source Voltage: ±16V
- Rds On - Drain - Source Resistance: 40mΩ
- Pd - Power Dissipation: 2.1W
- Qg - Gate Charge: 32nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات ماسفت IRLL2705TRPBF
ماسفت IRLL2705TRPBF
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Reel
Packaging
SMD/SMT
Mounting Style
±16V
Vgs - Gate - Source Voltage
55V
Vds - Drain - Source Breakdown Voltage
+150C
Maximum Operating Temperature
1V
Vgs th - Gate - Source Threshold Voltage
3.8A
Id - Continuous Drain Current
2.1W
Pd - Power Dissipation
32nC
Qg - Gate Charge
40mΩ
Rds On - Drain - Source Resistance
SOT-223
Package-Case
