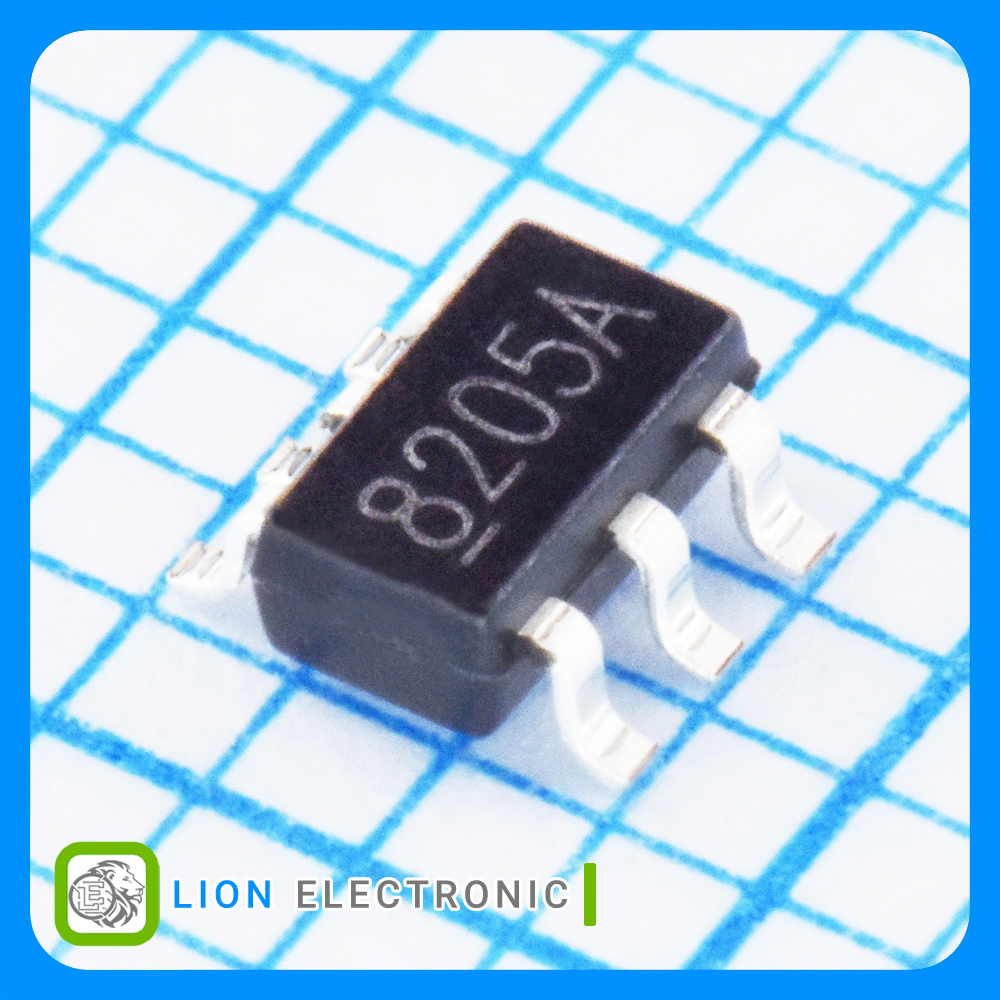

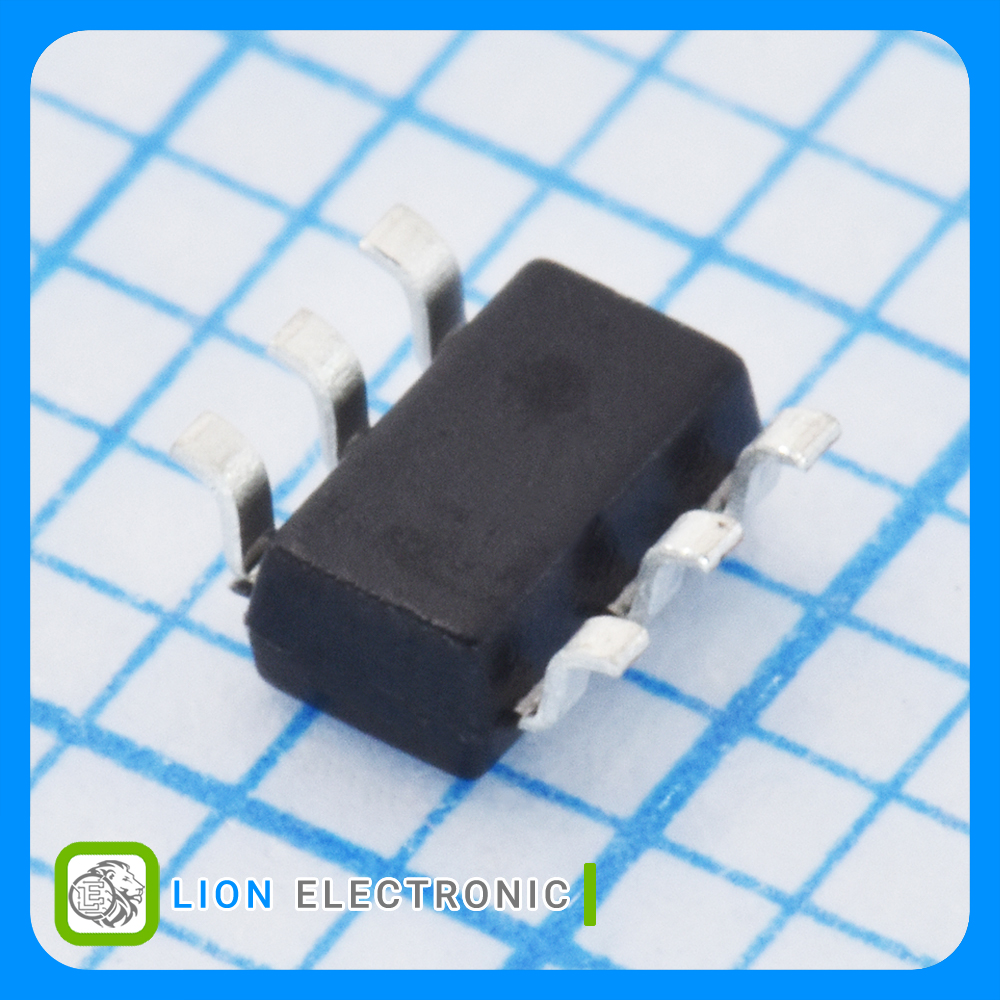

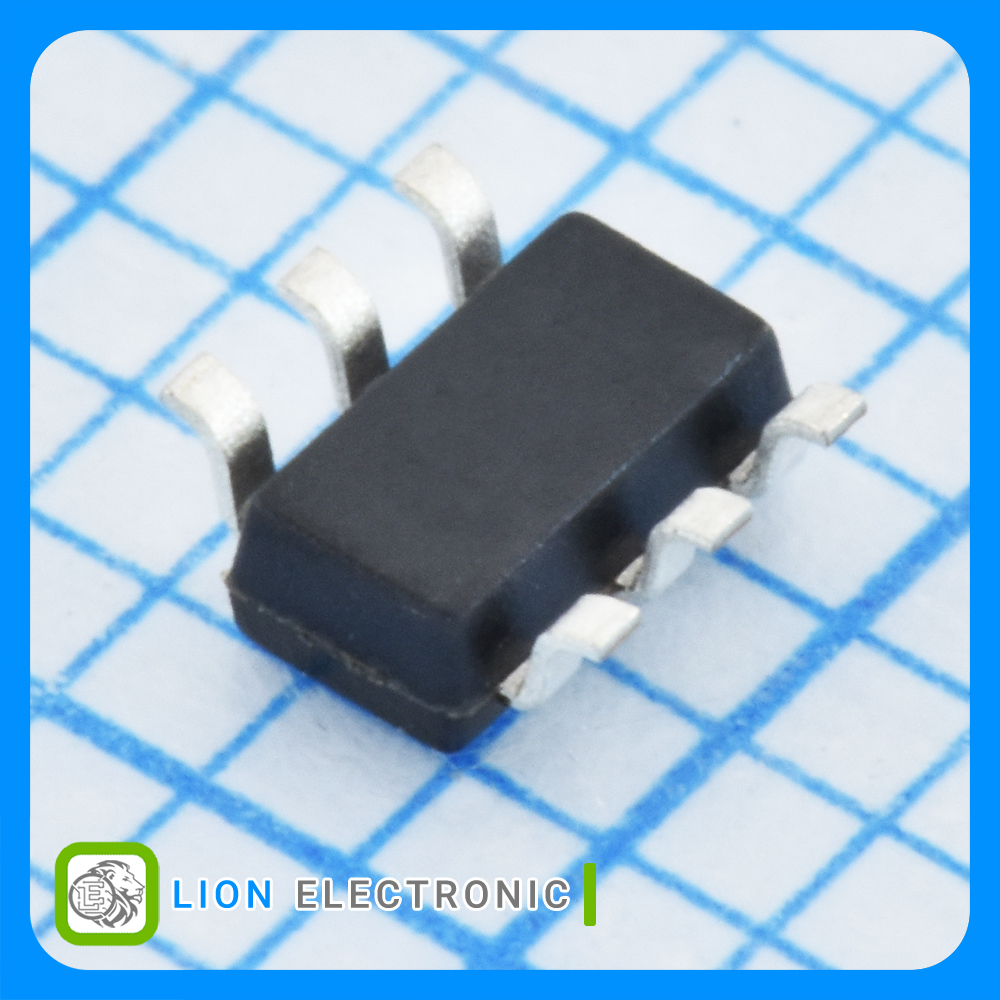

FS8205
FS8205
Part Number
2901
Lion Part
Datasheet
Fortune Semicon Manufacture
ماسفت جفت 20 ولت 6 آمپر نوع N با پکیج SOT-23-6
DUAL N-CH MOSFET 20V, 6A with SOT-23-6 Package
معرفی
ماسفت جفت 20 ولت 6 آمپر نوع N با پکیج SOT-23-6
DUAL N-CH MOSFET 20V, 6A with SOT-23-6 Package
Specifications
- Package/Case: SOT-23-6
- Vds - Drain - Source Breakdown Voltage: 20V
- Id - Continuous Drain Current: 6A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 2
- Vgs th - Gate - Source Threshold Voltage: 450mV
- Vgs - Gate - Source Voltage: ±12V
- Rds On - Drain - Source Resistance: 23mΩ
- Pd - Power Dissipation: 1W
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات ماسفت دوبل FS8205

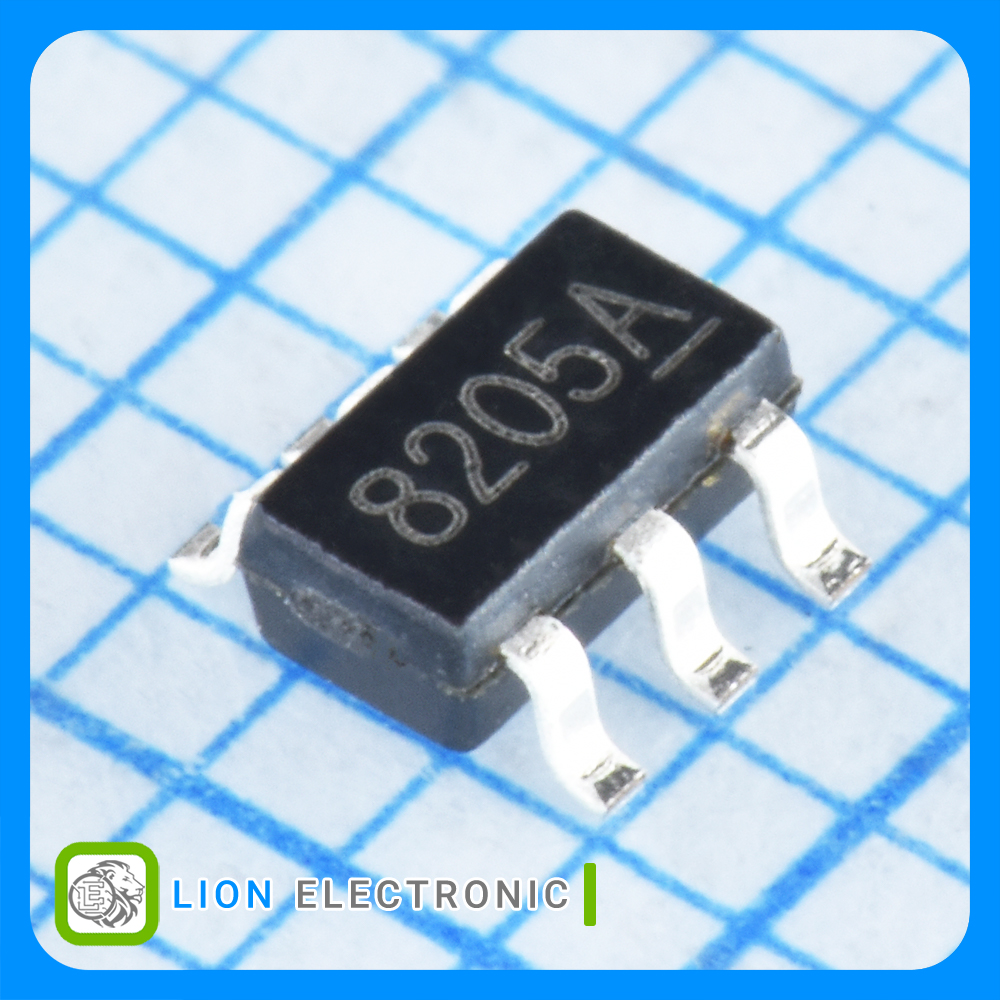

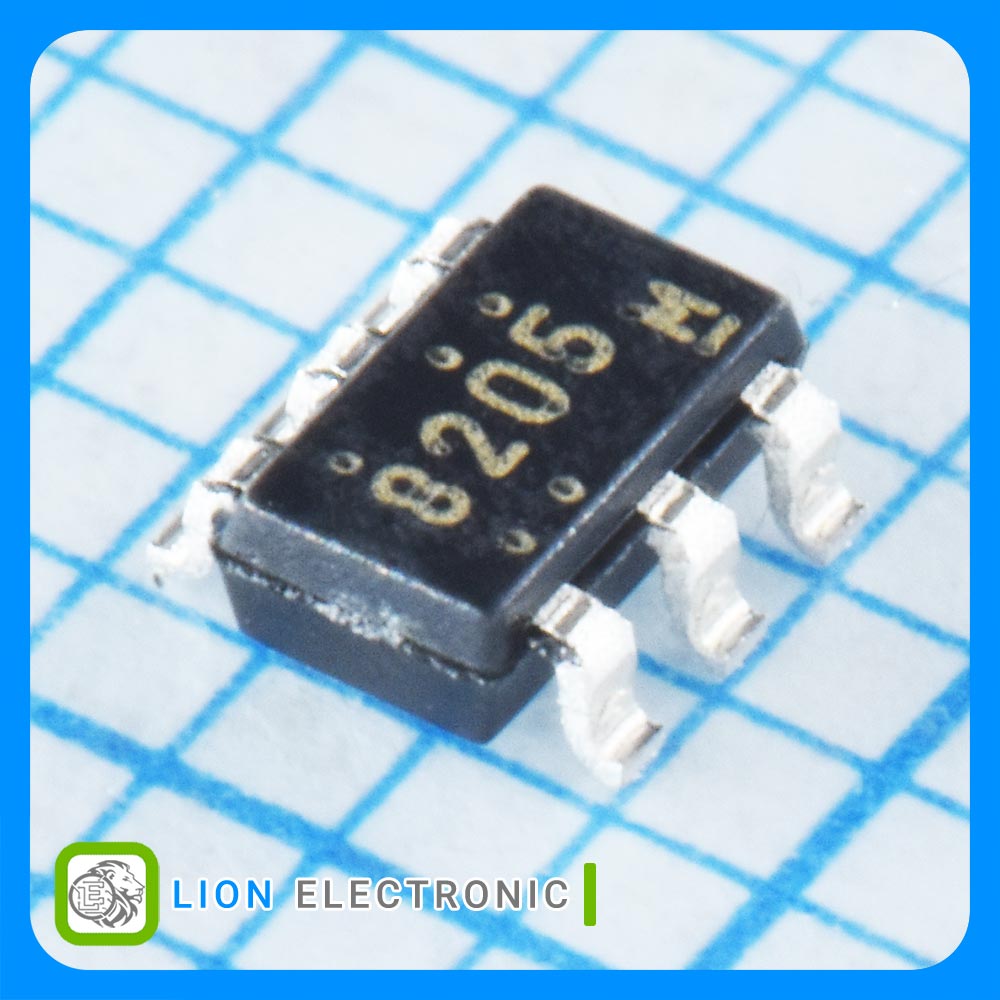

ماسفت دوبل FS8205
Part Number
Enhancement
Channel Mode
2
Number of Channels
-55C
Minimum Operating Temperature
Reel
Packaging
SMD/SMT
Mounting Style
±12V
Vgs - Gate - Source Voltage
20V
Vds - Drain - Source Breakdown Voltage
+150C
Maximum Operating Temperature
450mV
Vgs th - Gate - Source Threshold Voltage
1W
Pd - Power Dissipation
23mΩ
Rds On - Drain - Source Resistance
6A
Id - Continuous Drain Current
N/A
Qg - Gate Charge
SOT-23-6
Package-Case
