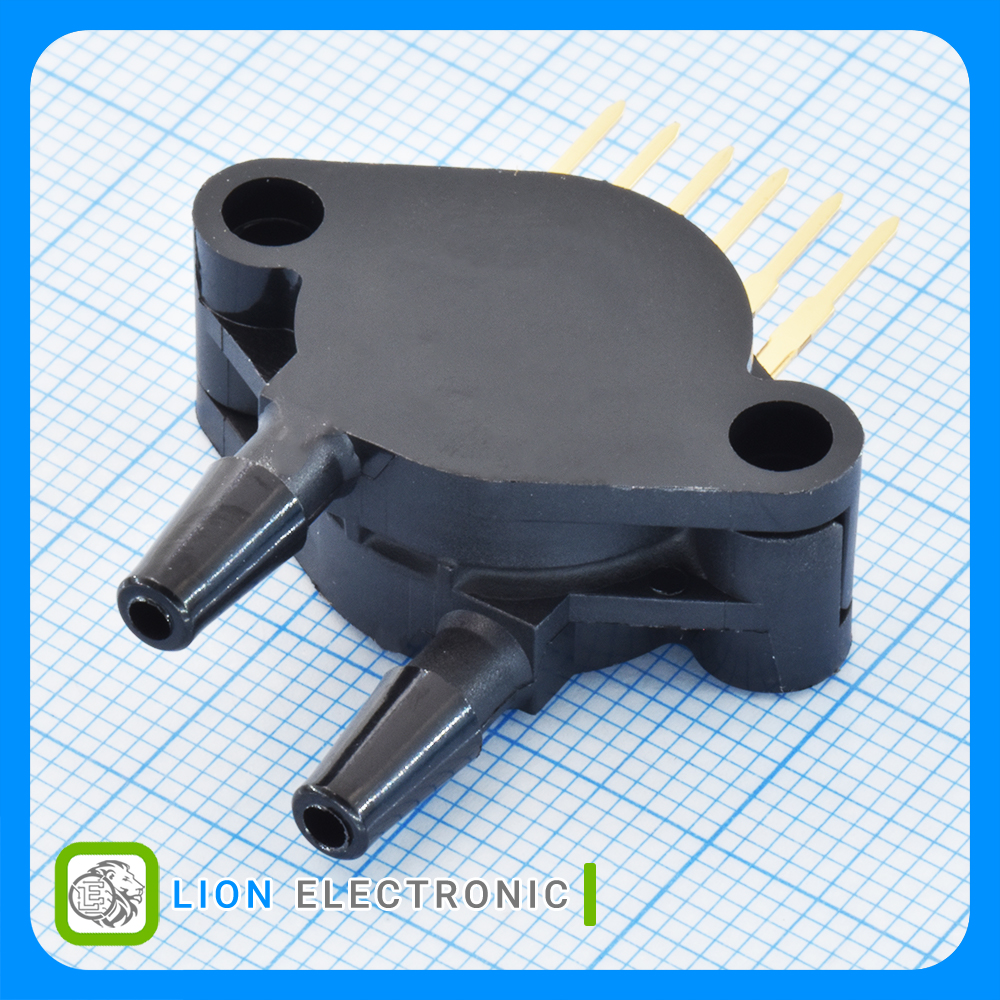

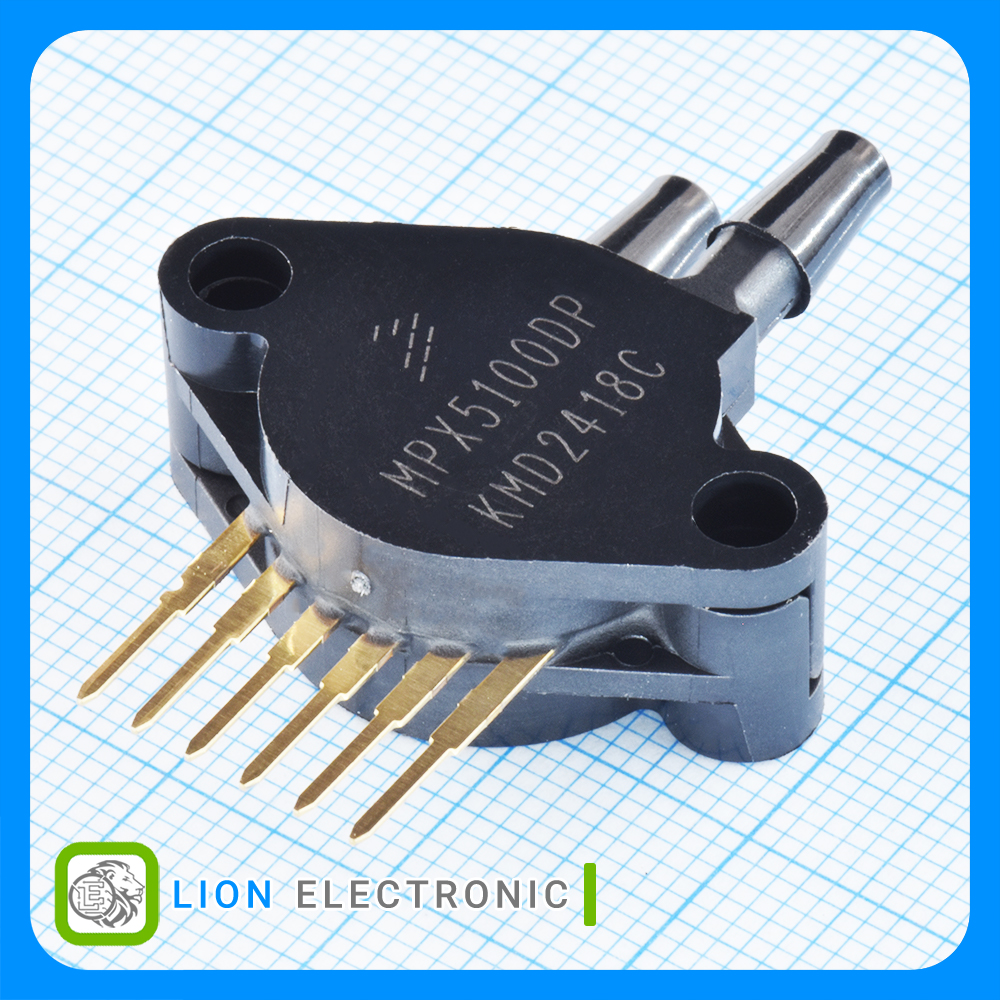

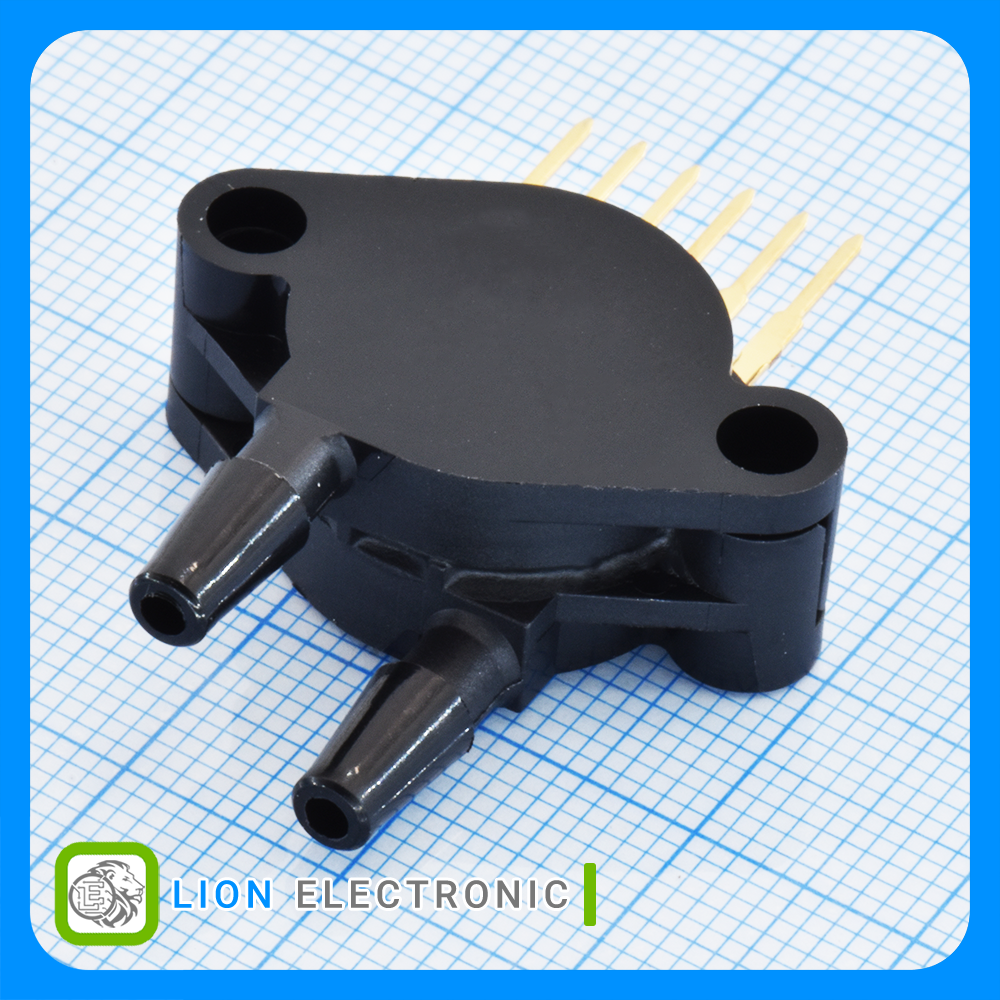

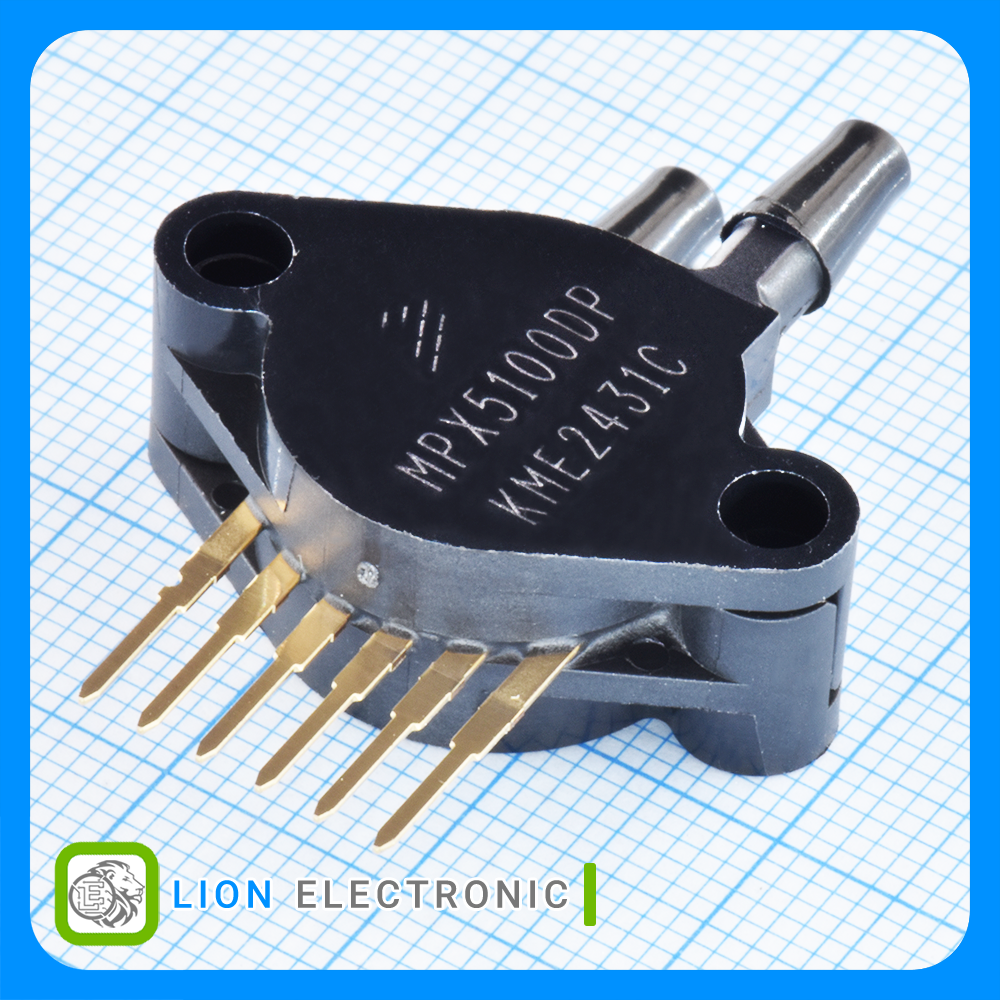

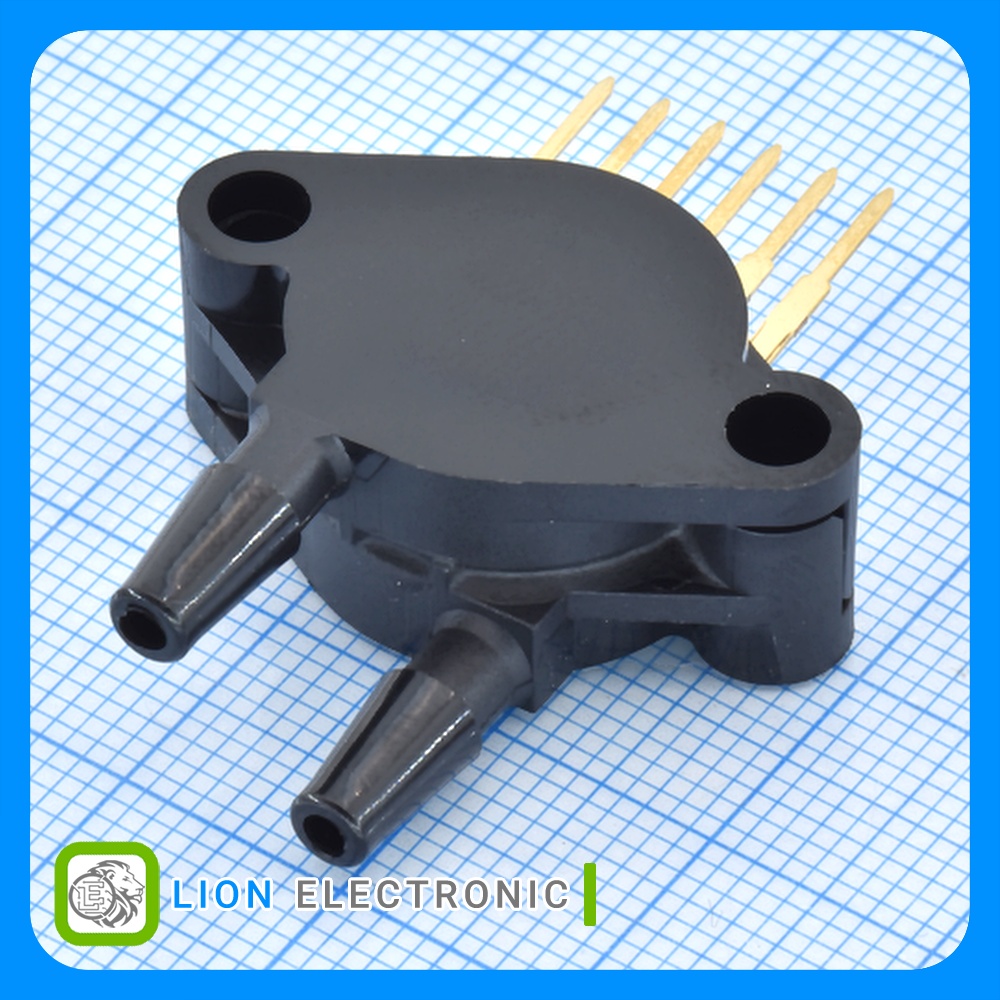

MPX5100DP
MPX5100DP
Part Number
2920
Lion Part
Datasheet
NXP Semiconductors Manufacture
سنسور فشار دیفرانسیلی، گیج و مطلق مجتمع، محدوده اندازهگیری 0 تا 100 کیلوپاسکال، خروجی آنالوگ با دقت 2.5% با پکیج Unibody-6
Integrated Differential, Gauge and Absolute Pressure Sensor, 0 to 100kPa, Analog Output 2.5% Accuracy with Unibody-6 Package
معرفی
سنسور فشار دیفرانسیلی، گیج و مطلق مجتمع، محدوده اندازهگیری 0 تا 100 کیلوپاسکال، خروجی آنالوگ با دقت 2.5% با پکیج Unibody-6
Integrated Differential, Gauge and Absolute Pressure Sensor, 0 to 100kPa, Analog Output 2.5% Accuracy with Unibody-6 Package
Specifications
- Pressure Type: Differential
- Operating Pressure: 100kPa
- Port Type: Double Port
- Output Type: Analog
- Accuracy: 2.5%
- Operating Supply Current: 7mA
- Mounting Style: Through Hole
- Package/Case: Unibody-6
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Tray
مشخصات سنسور فشار MPX5100DP

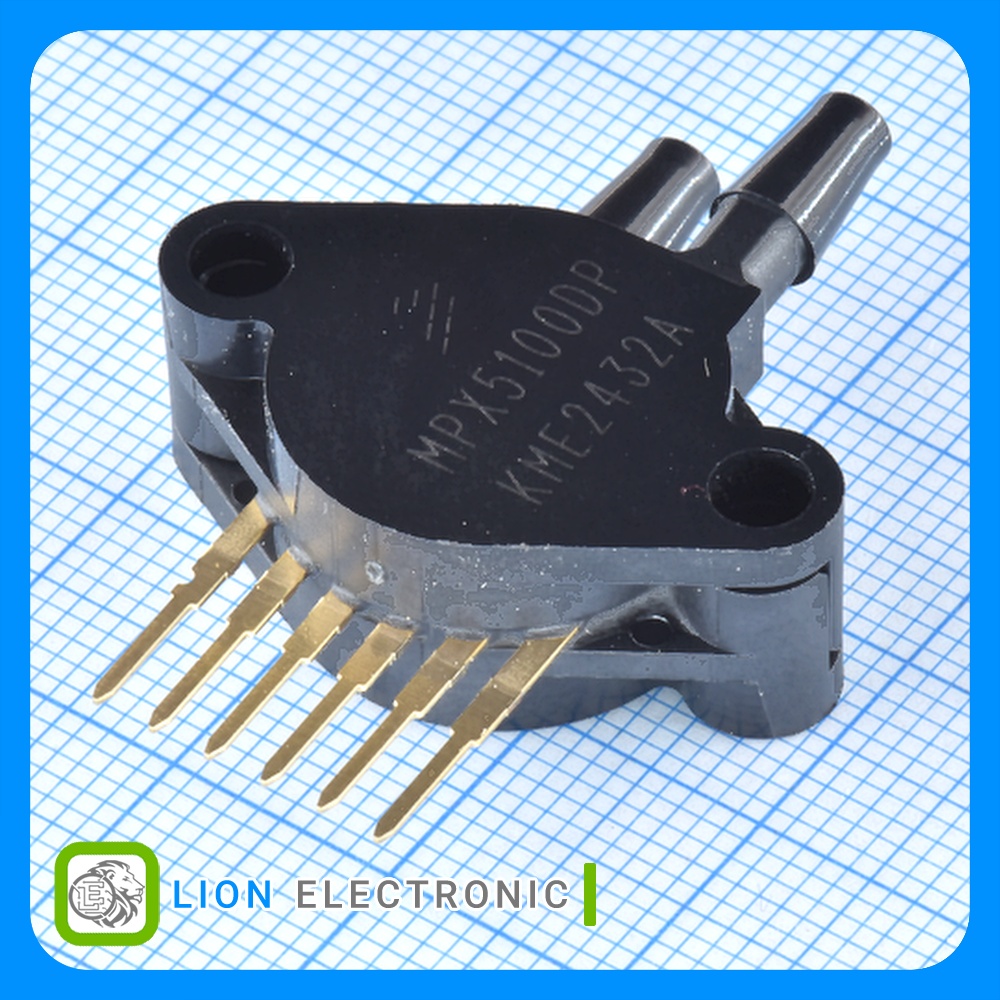

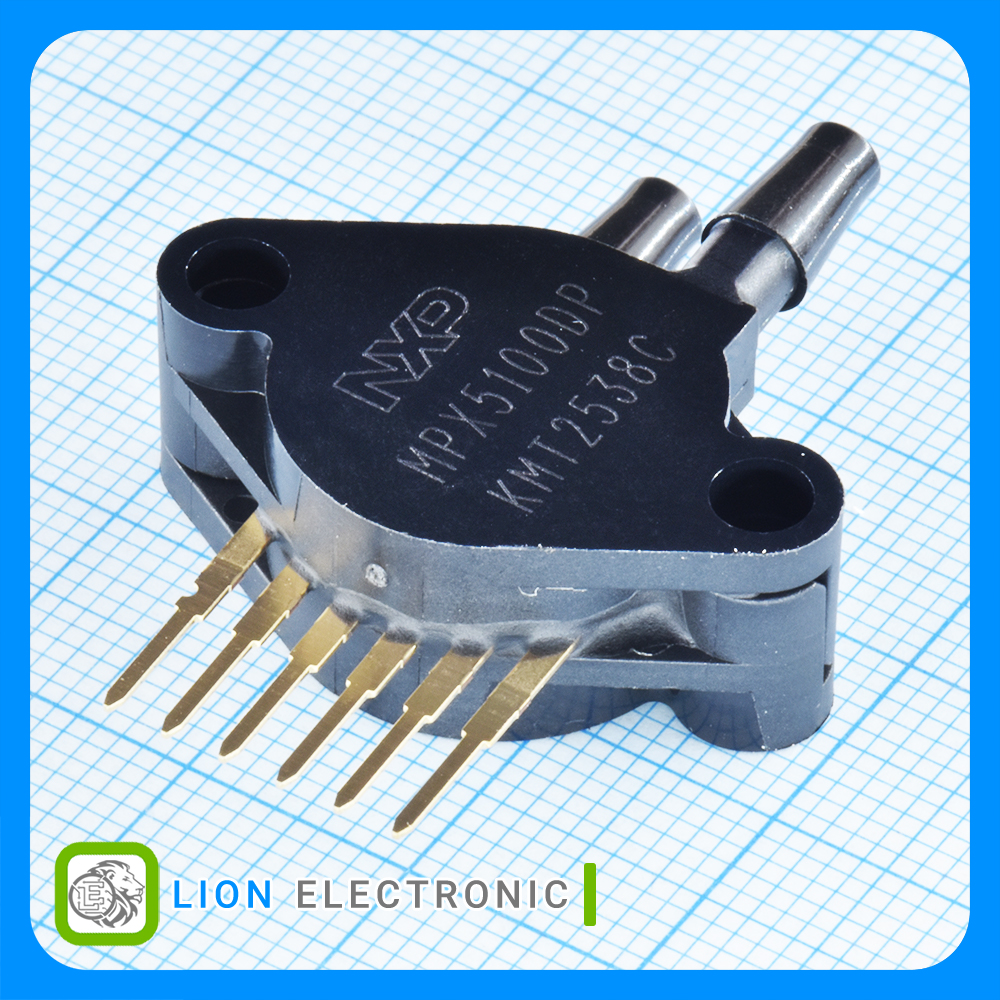

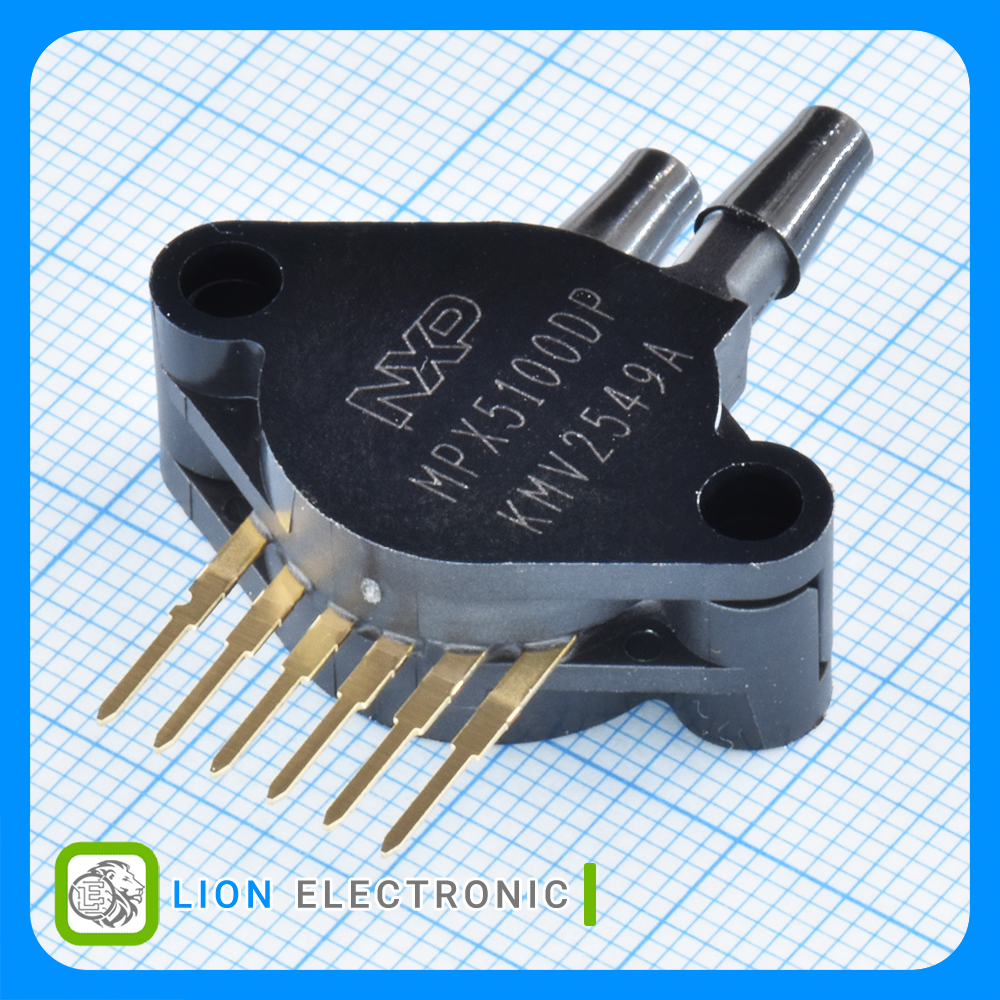

سنسور فشار MPX5100DP
Part Number
Differential
Pressure Type
Double Port
Port Type
Analog
Output Type
-40C
Minimum Operating Temperature
Tray
Packaging
Through Hole
Mounting Style
2.5%
Accuracy
+125C
Maximum Operating Temperature
N/A
Resolution
100kPa
Operating Pressure
7mA
Operating Supply Current
Unibody-6
Package-Case
