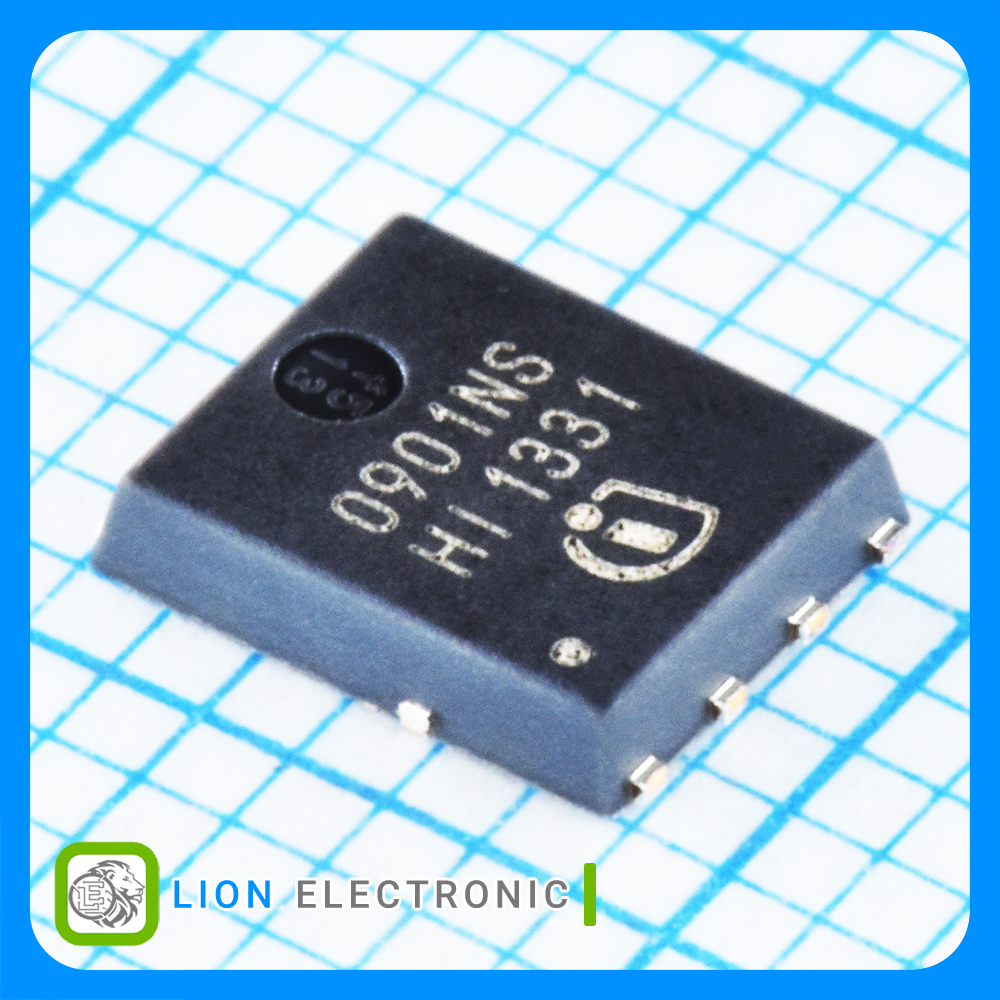

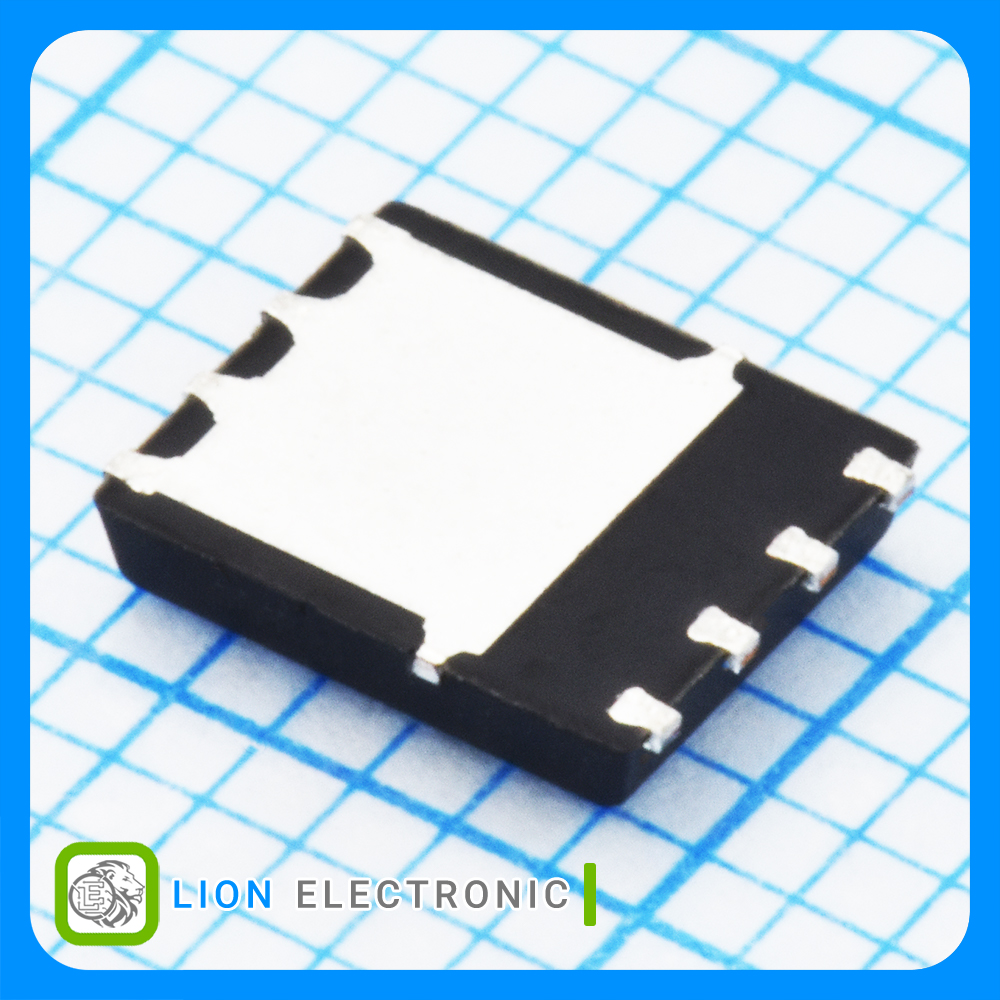

BSC0901NS
BSC0901NS
Part Number
2974
Lion Part
Datasheet
Infineon Technologies Manufacture
ماسفت 30 ولت جریان پیوسته 149 آمپر، جریان 100 آمپر نوع N با پکیج TDSON-8
N-CH MOSFET 30V, 149A Continuous Drain Current, 100A with TDSON-8 Package
معرفی
ماسفت 30 ولت جریان پیوسته 149 آمپر، جریان 100 آمپر نوع N با پکیج TDSON-8
N-CH MOSFET 30V, 149A Continuous Drain Current, 100A with TDSON-8 Package
Specifications
- Package/Case: TDSON-8
- Vds - Drain - Source Breakdown Voltage: 30V
- Id - Continuous Drain Current: 149A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 1.2V
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 1.6mΩ
- Pd - Power Dissipation: 69W
- Qg - Gate Charge: 44nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات ماسفت BSC0901NS
ماسفت BSC0901NS
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Reel
Packaging
SMD/SMT
Mounting Style
30V
Vds - Drain - Source Breakdown Voltage
±20V
Vgs - Gate - Source Voltage
1.6mΩ
Rds On - Drain - Source Resistance
+150C
Maximum Operating Temperature
1.2V
Vgs th - Gate - Source Threshold Voltage
44nC
Qg - Gate Charge
69W
Pd - Power Dissipation
149A
Id - Continuous Drain Current
TDSON-8
Package-Case
