BSS138Q-7-F
BSS138Q-7-F
Part Number
2979
Lion Part
Datasheet
Diodes Incorporated Manufacture

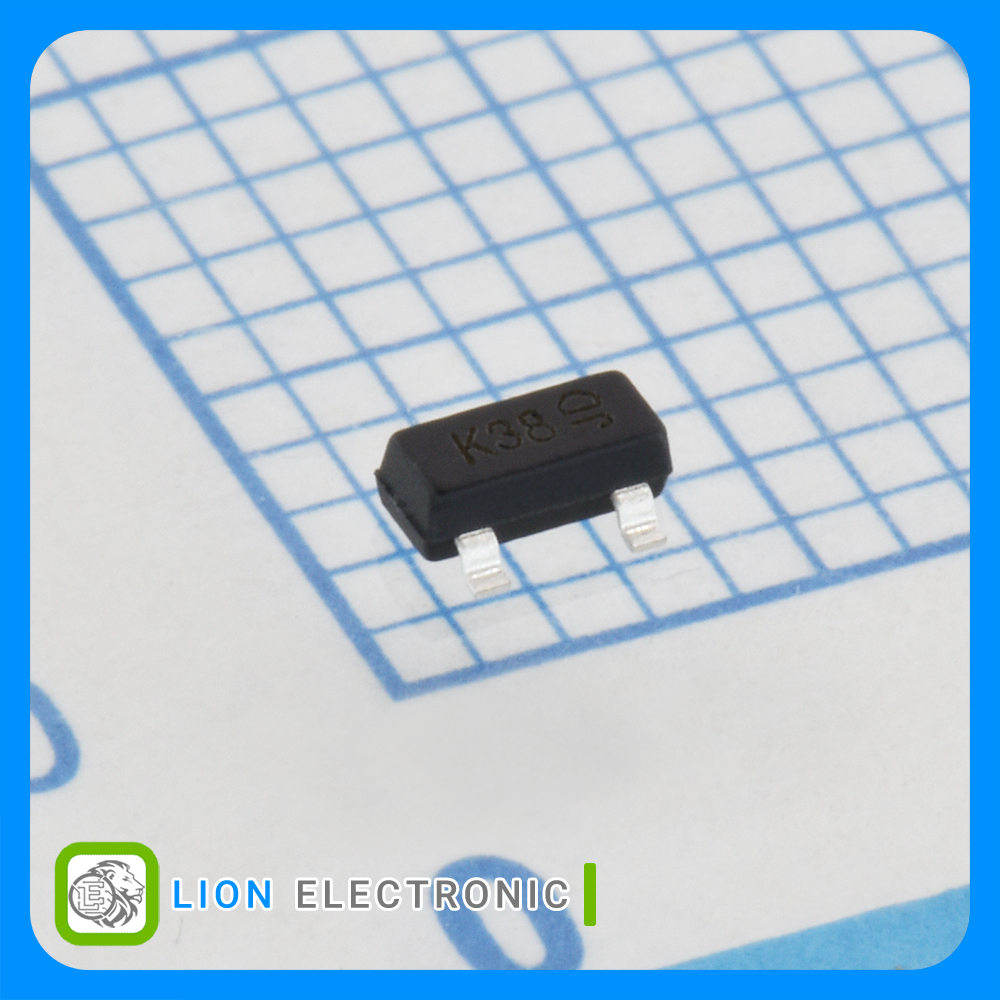

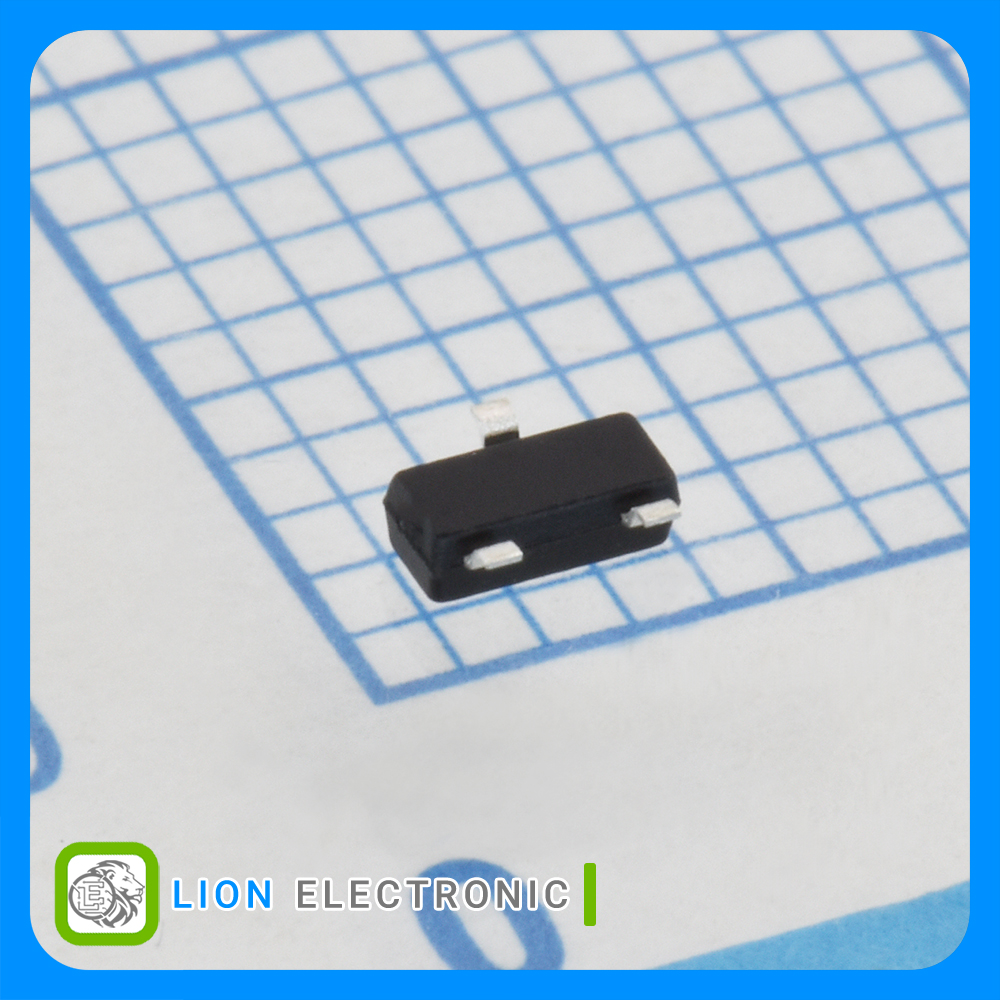

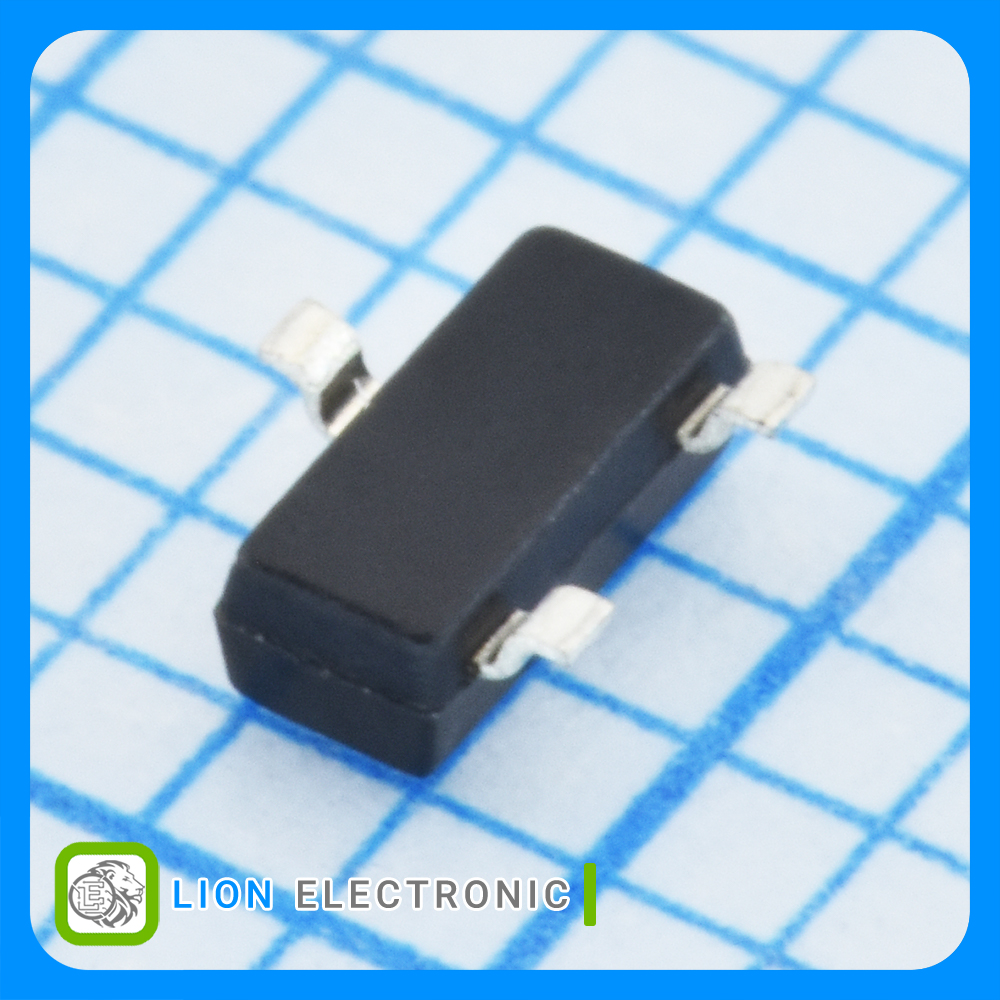

ماسفت N-CH با ولتاژ 50 ولت و جریان 200 میلیآمپر با پکیج SOT-23
N-CH MOSFET 50V, 200mA with SOT-23 Package
معرفی
ماسفت N-CH با ولتاژ 50 ولت و جریان 200 میلیآمپر با پکیج SOT-23
N-CH MOSFET 50V, 200mA with SOT-23 Package
Specifications
- Package/Case: SOT-23-3
- Vds - Drain - Source Breakdown Voltage: 50V
- Id - Continuous Drain Current: 200mA
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 500mV
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 3.5Ω
- Pd - Power Dissipation: 300mW
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C

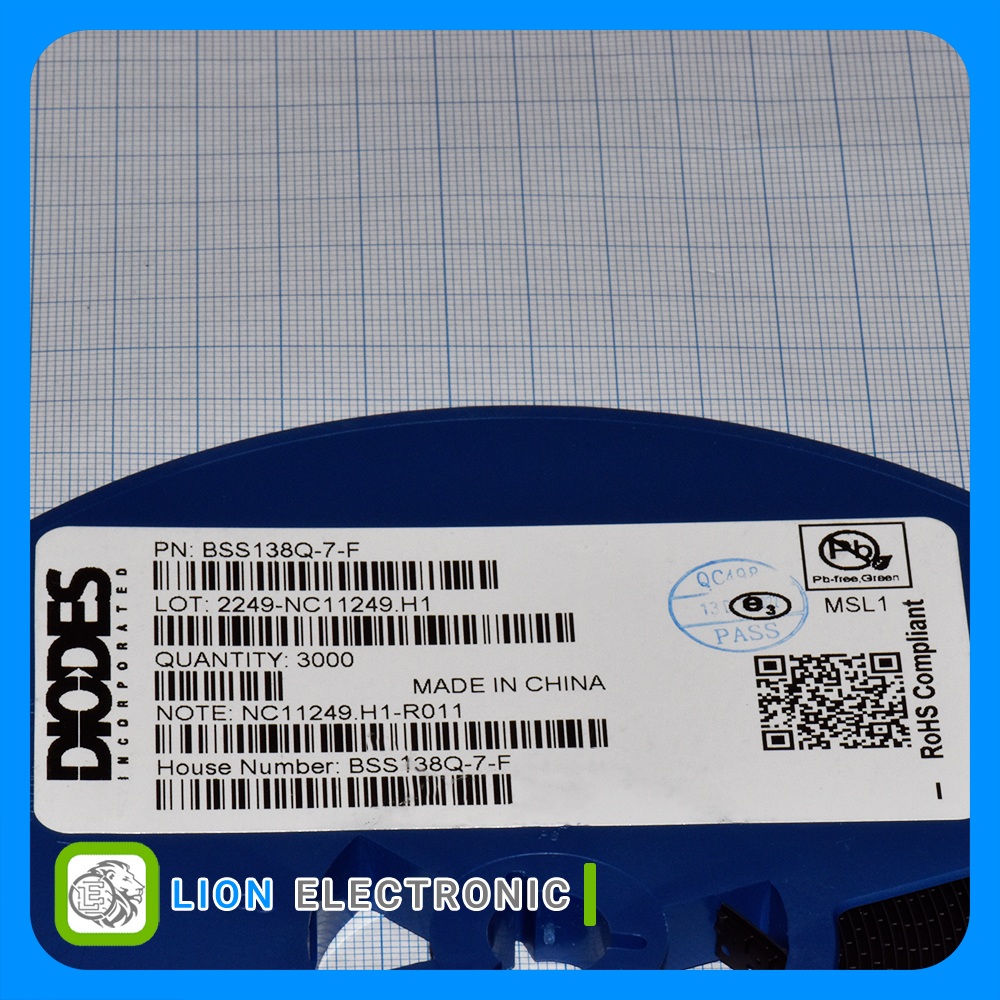

- Packaging: Reel

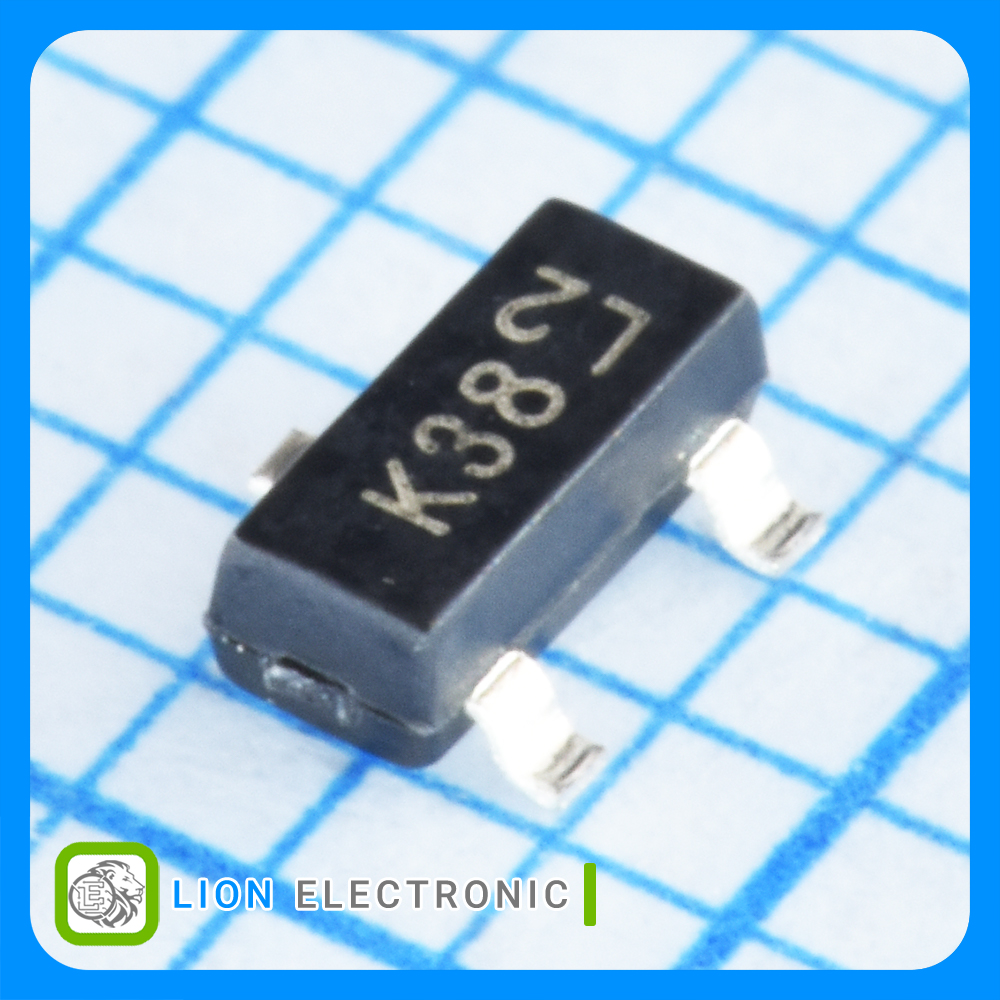

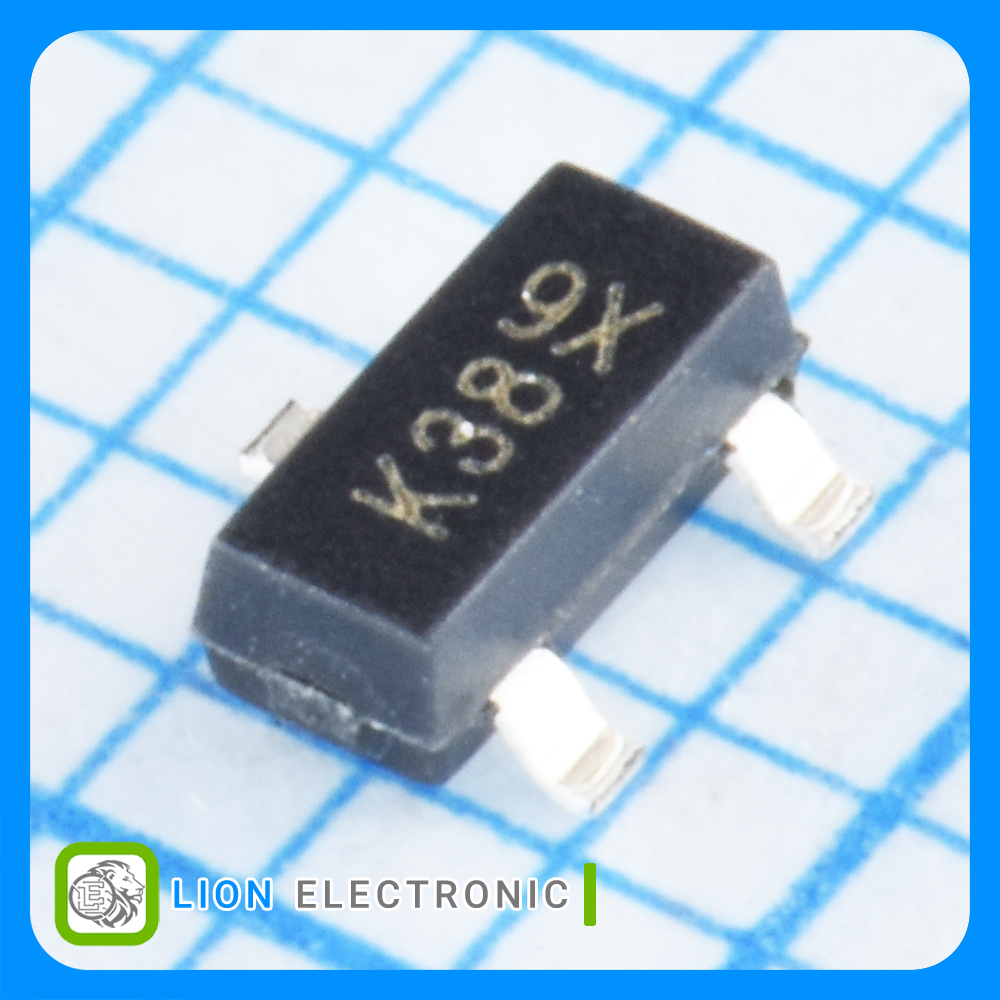

مشخصات ماسفت BSS138Q-7-F
ماسفت BSS138Q-7-F
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Reel
Packaging
SMD/SMT
Mounting Style
±20V
Vgs - Gate - Source Voltage
50V
Vds - Drain - Source Breakdown Voltage
+150C
Maximum Operating Temperature
300mW
Pd - Power Dissipation
500mV
Vgs th - Gate - Source Threshold Voltage
200mA
Id - Continuous Drain Current
N/A
Qg - Gate Charge
3.5Ω
Rds On - Drain - Source Resistance
SOT-23-3
Package-Case
