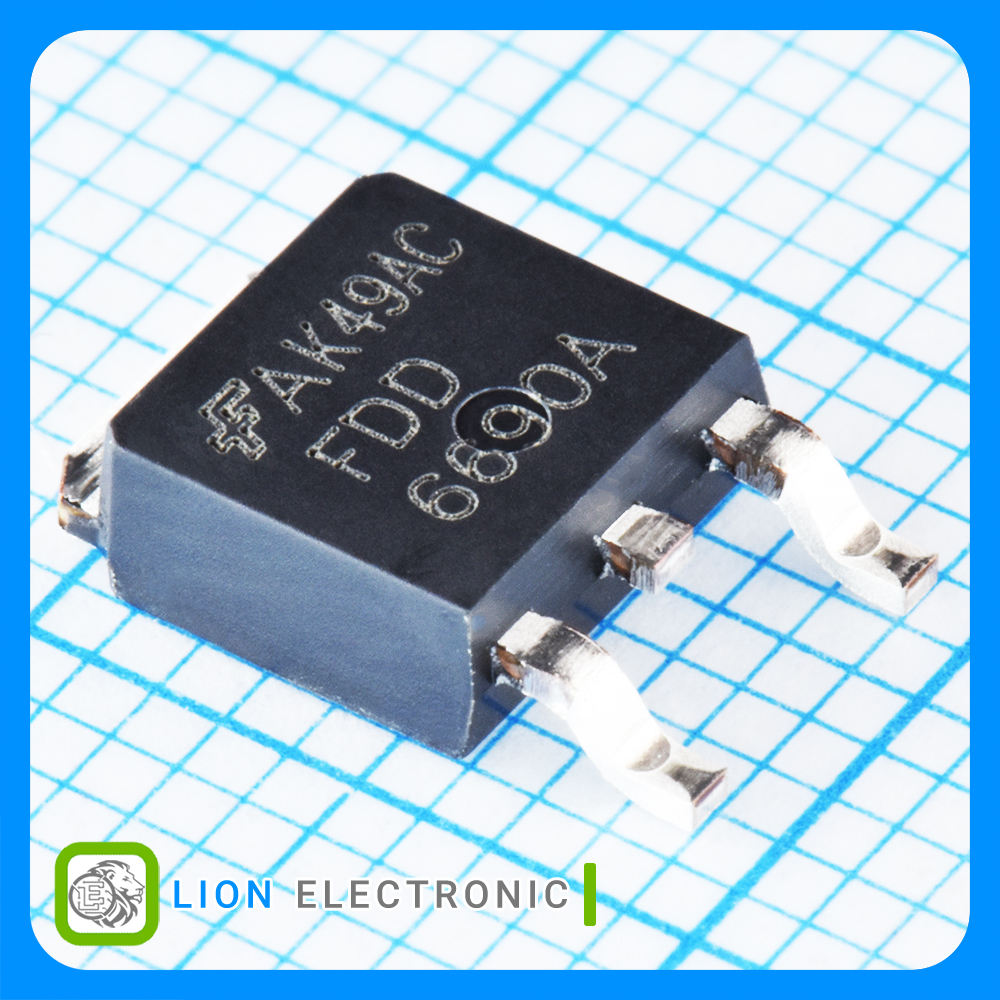

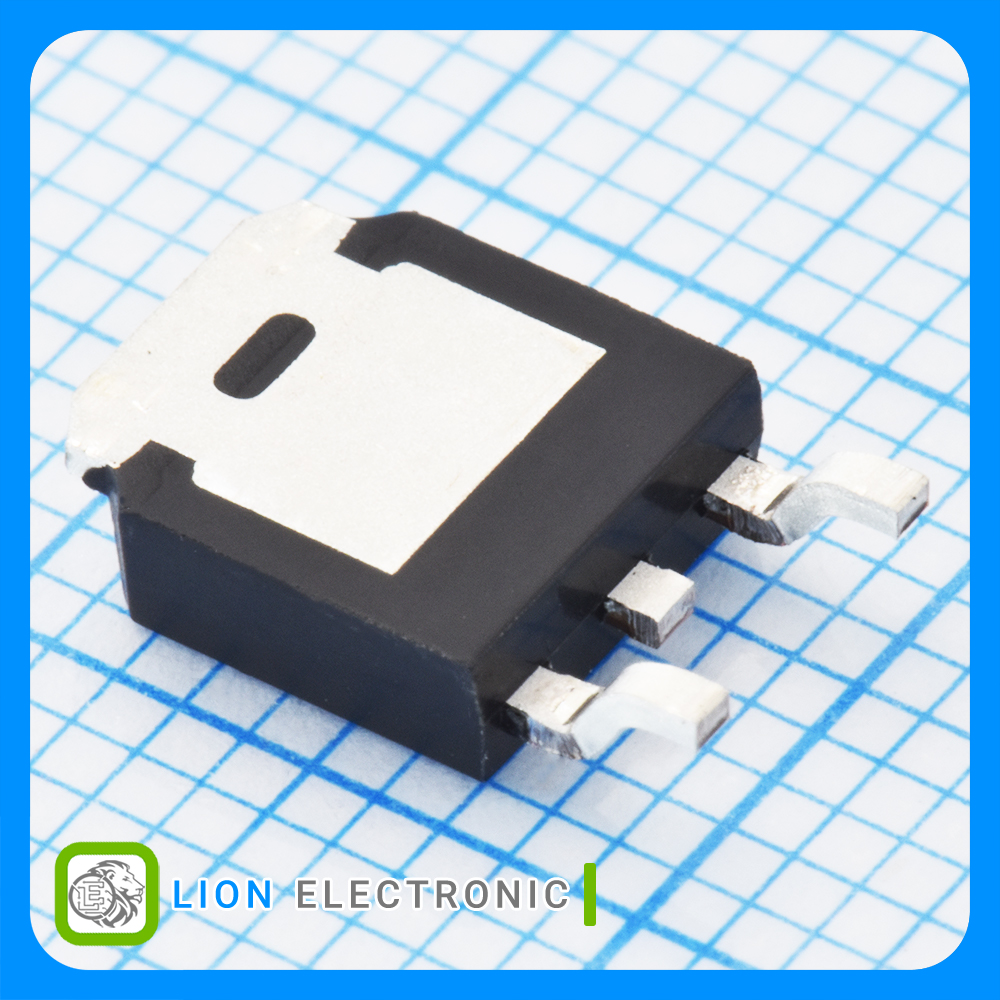

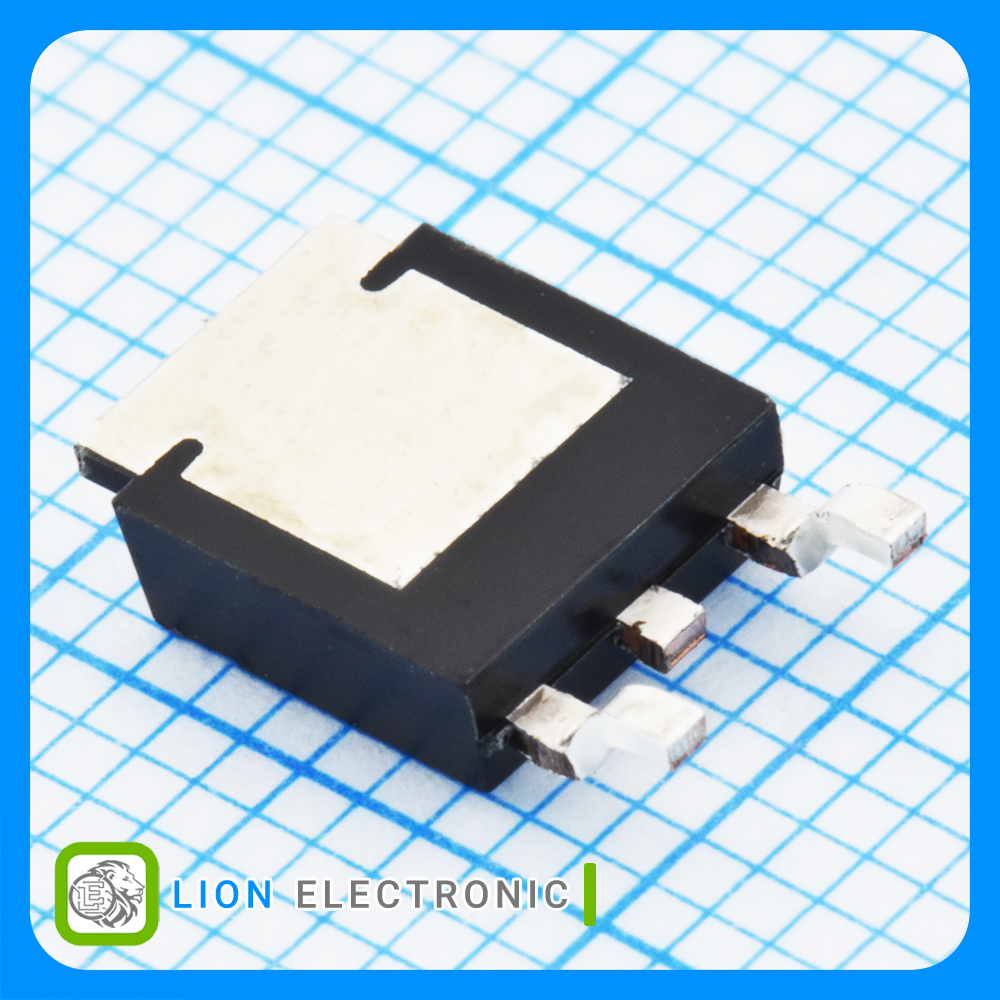

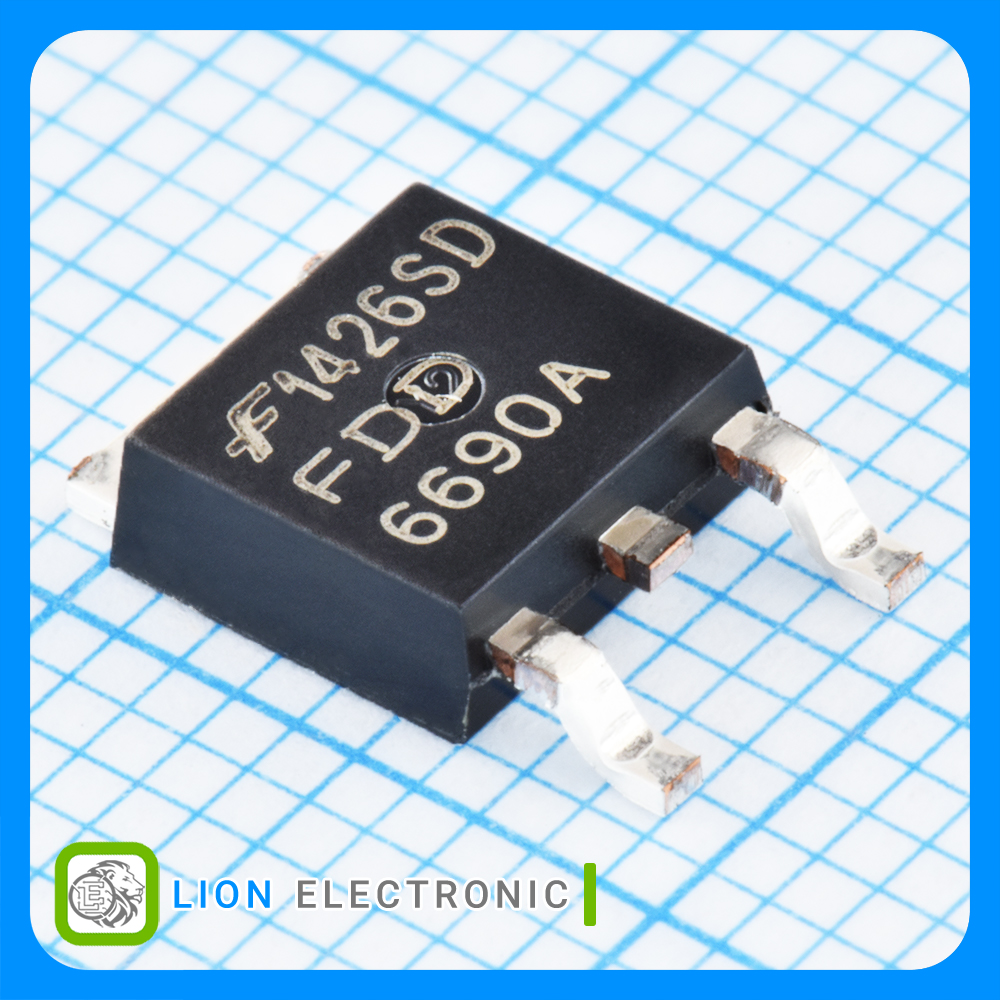

FDD6690A
FDD6690A
Part Number
2980
Lion Part
Datasheet
FAIRCHILD/ONSEMI Manufacture
ماسفت 30 ولت 46 آمپر نوع N با پکیج DPAK
MOSFET 30V, 46A with DPAK Package
معرفی
ماسفت 30 ولت 46 آمپر نوع N با پکیج DPAK
MOSFET 30V, 46A with DPAK Package
Specifications
- Package/Case: DPAK
- Vds - Drain - Source Breakdown Voltage: 30V
- Id - Continuous Drain Current: 46A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 1V
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 7.7mΩ
- Pd - Power Dissipation: 56W
- Qg - Gate Charge: 13nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +175C
- Packaging: Reel
مشخصات ماسفت FDD6690A
ماسفت FDD6690A
Part Number
1
Number of Channels
Enhancement
Channel Mode
N-Channel
Transistor Polarity
-55C
Minimum Operating Temperature
Reel
Packaging
SMD/SMT
Mounting Style
±20V
Vgs - Gate - Source Voltage
30V
Vds - Drain - Source Breakdown Voltage
+175C
Maximum Operating Temperature
1V
Vgs th - Gate - Source Threshold Voltage
7.7mΩ
Rds On - Drain - Source Resistance
13nC
Qg - Gate Charge
DPAK
Package-Case
56W
Pd - Power Dissipation
46A
Id - Continuous Drain Current
