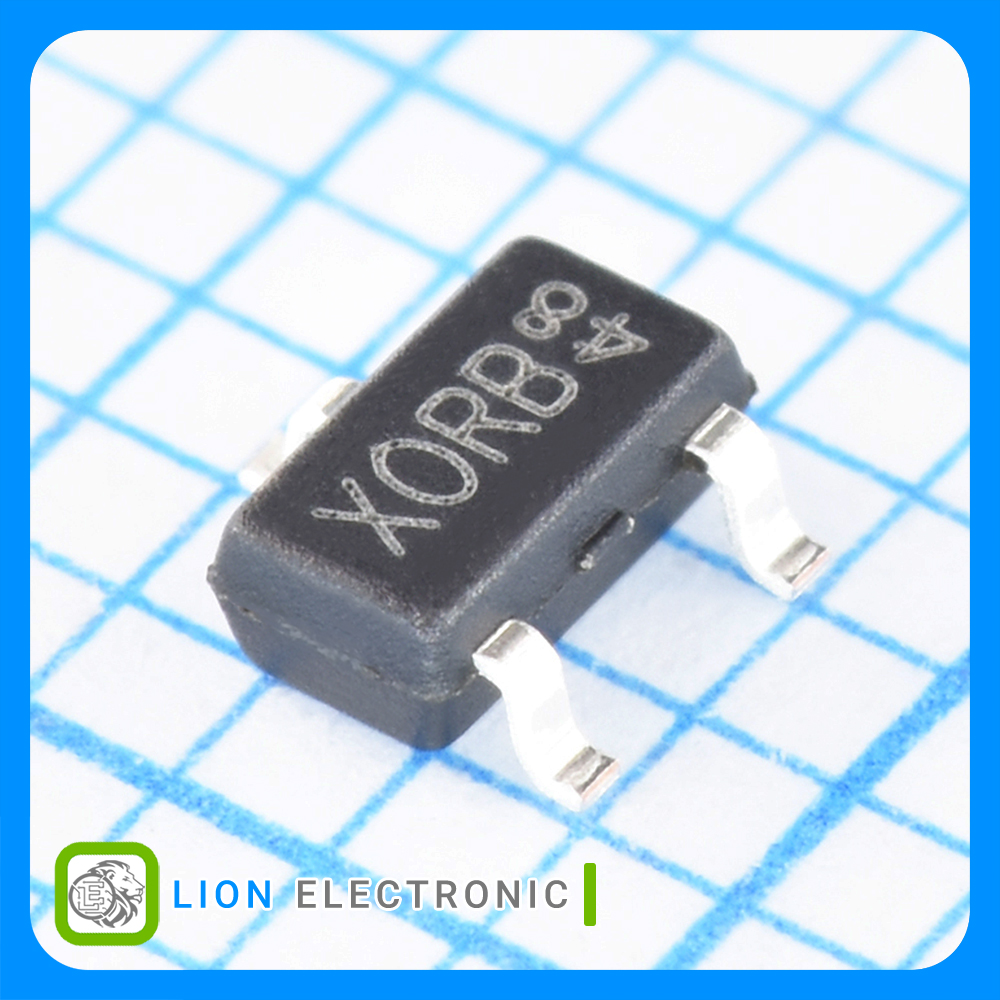

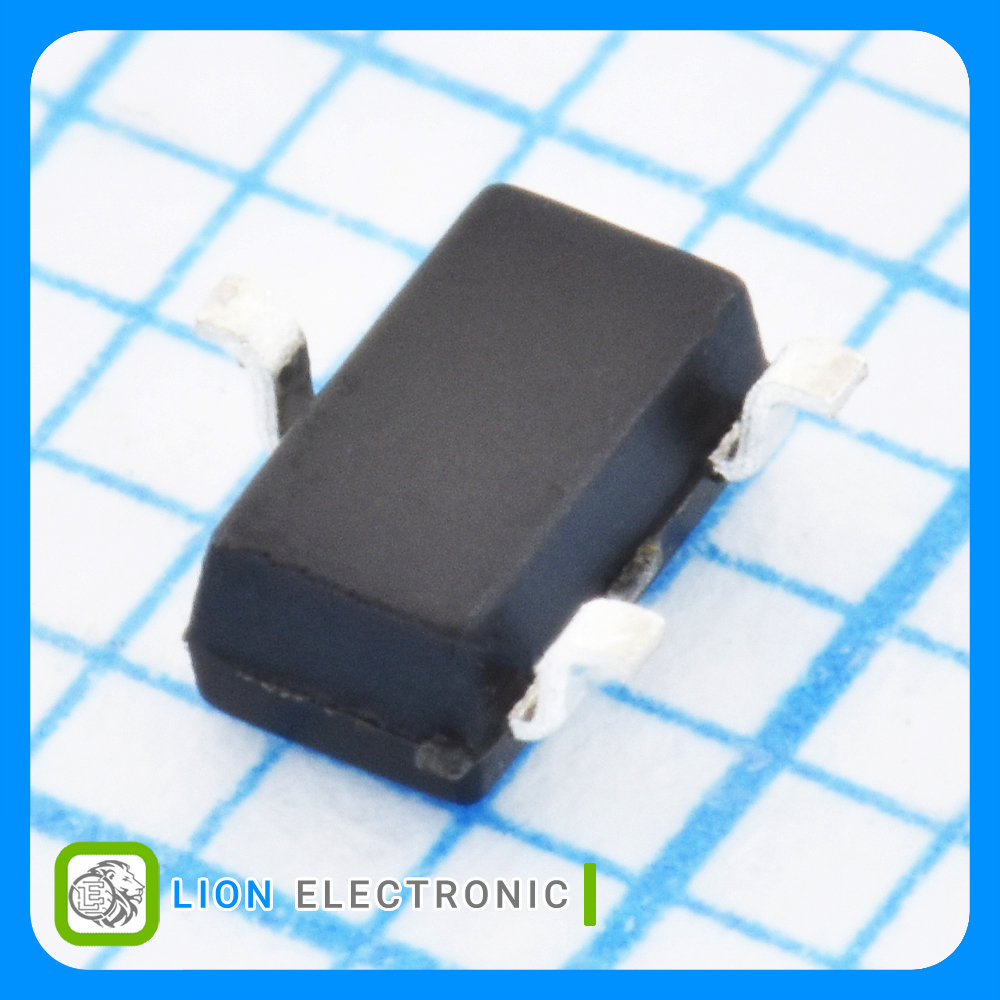

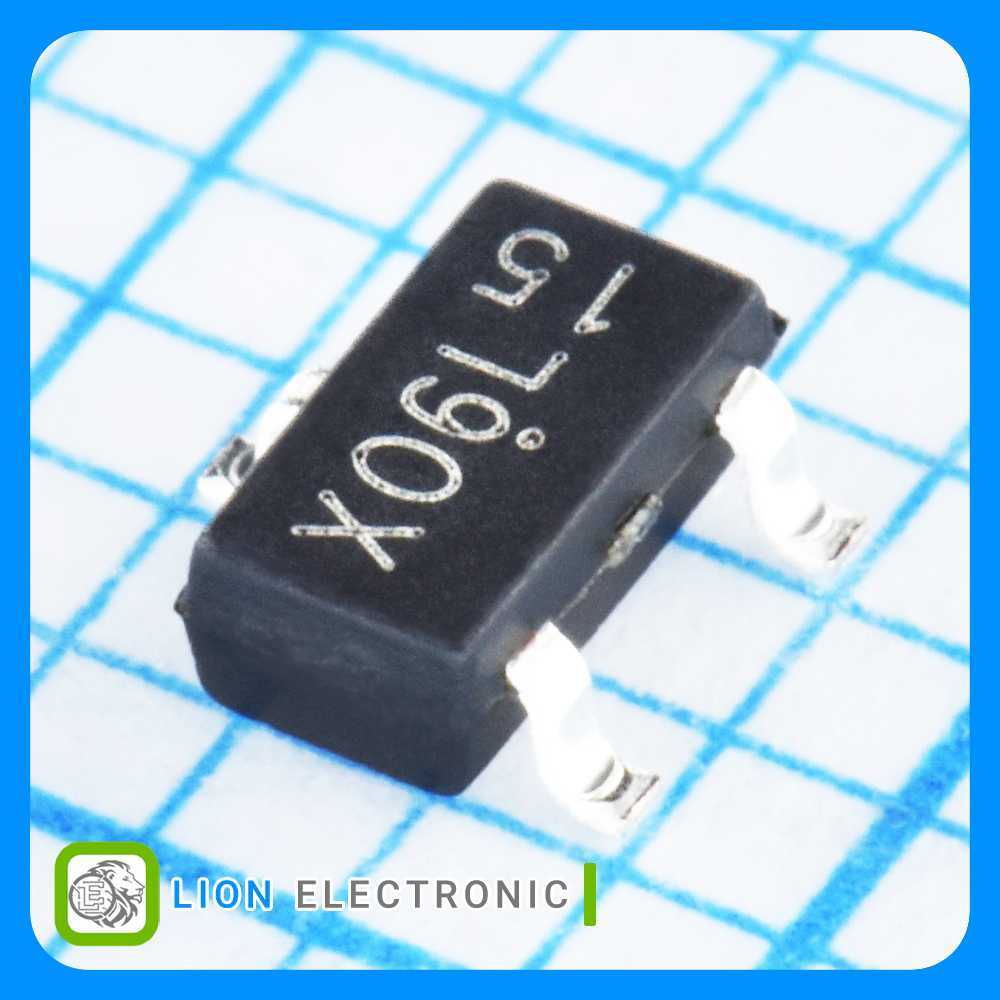

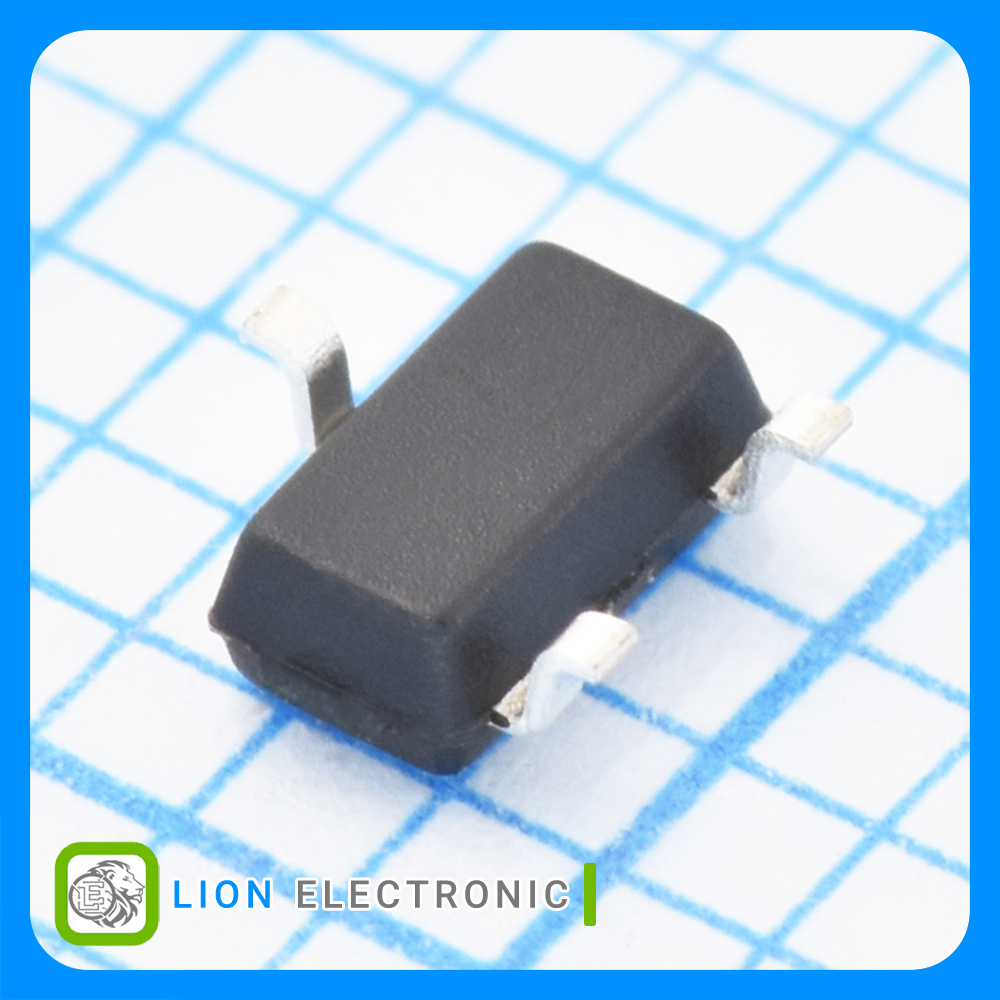

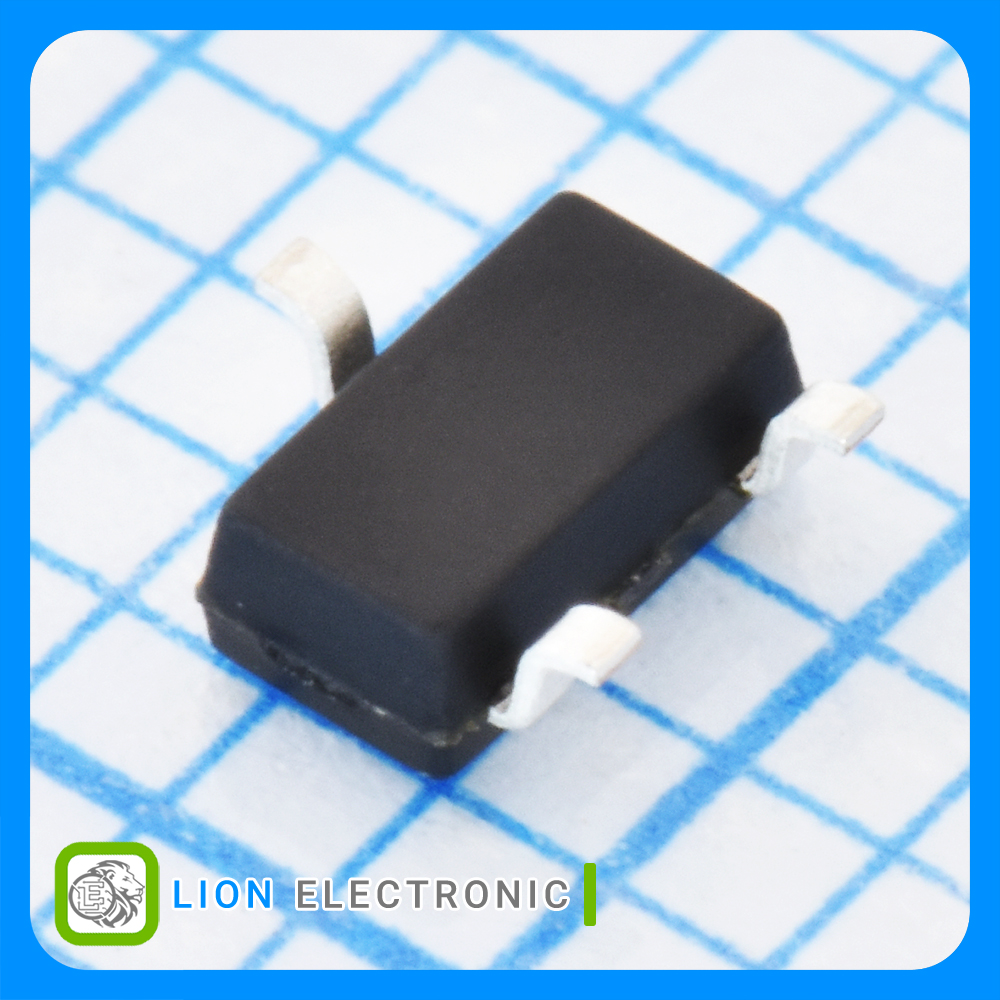

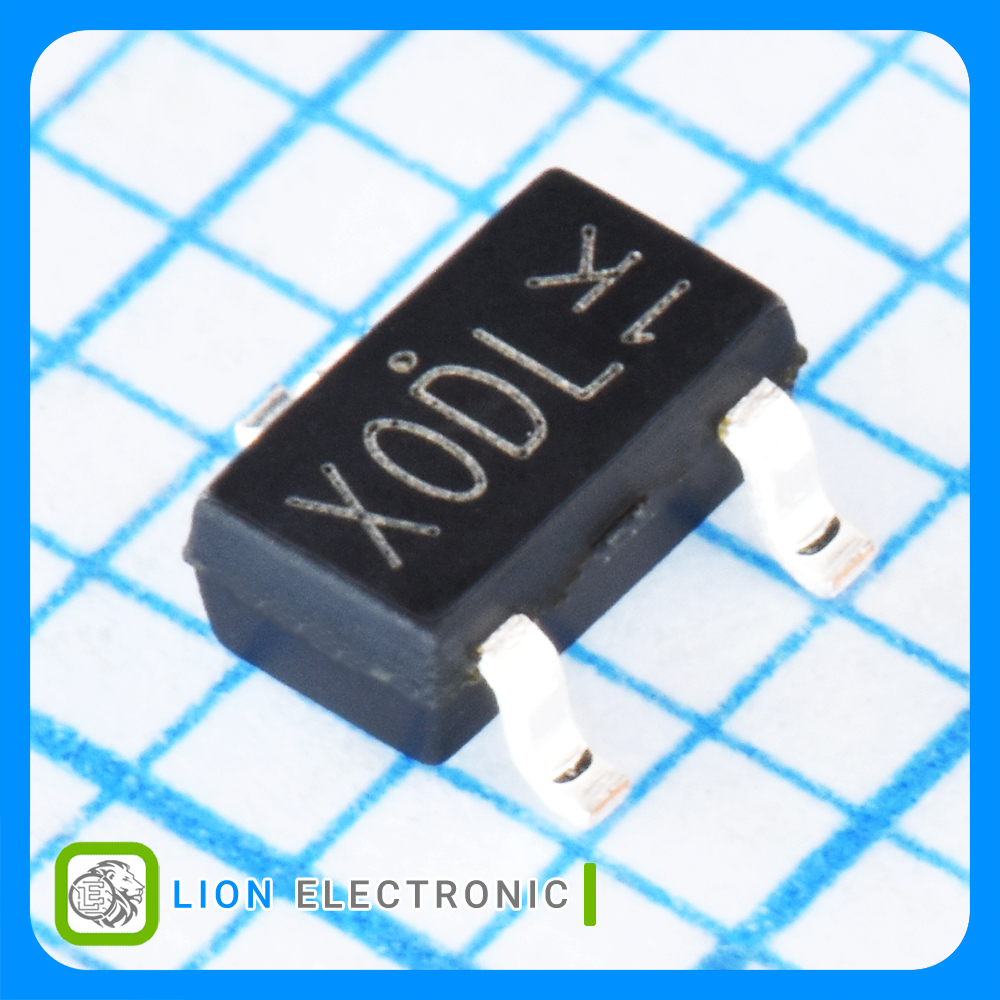

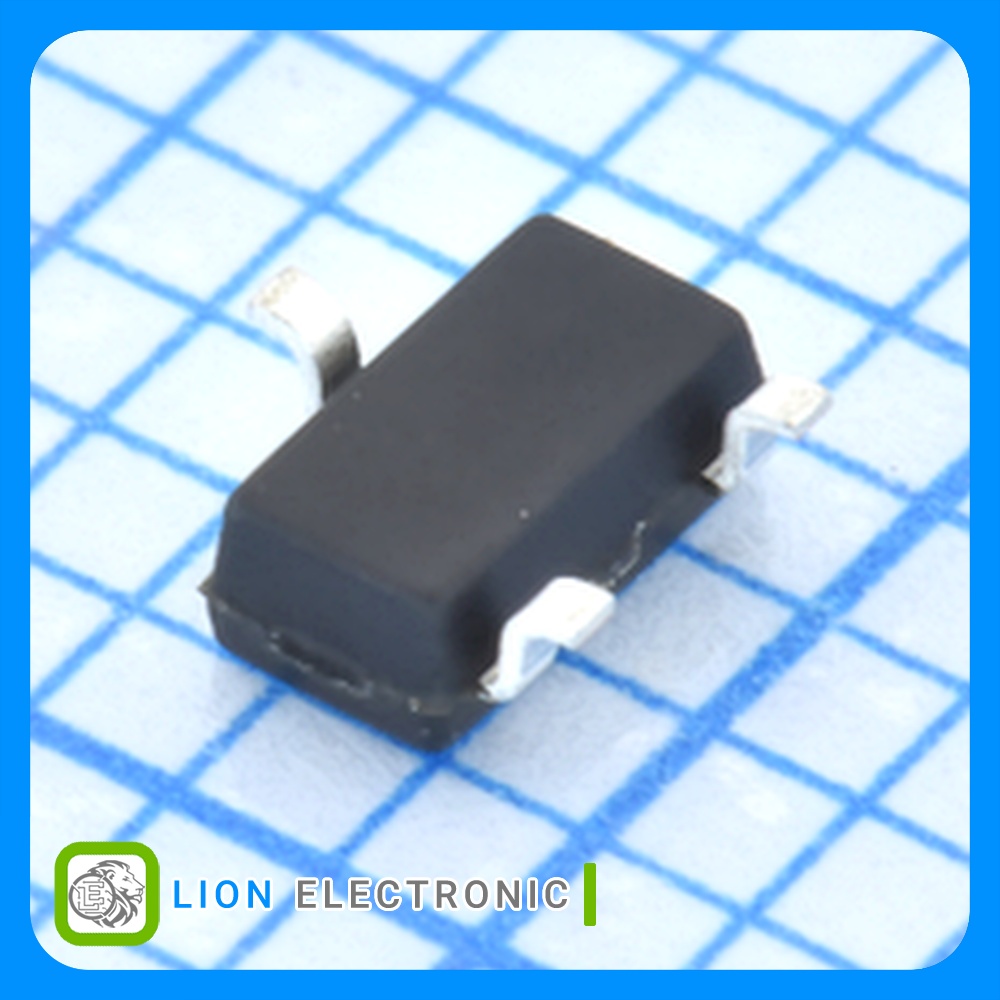

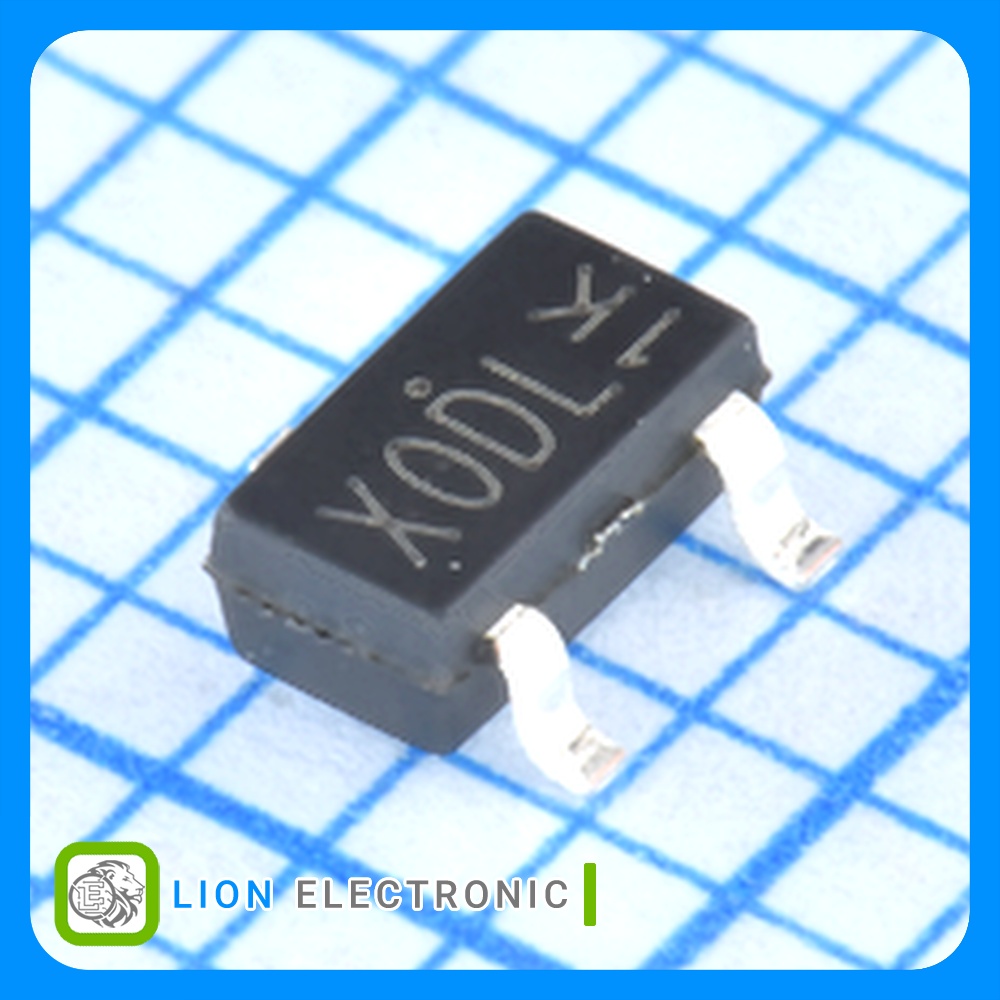

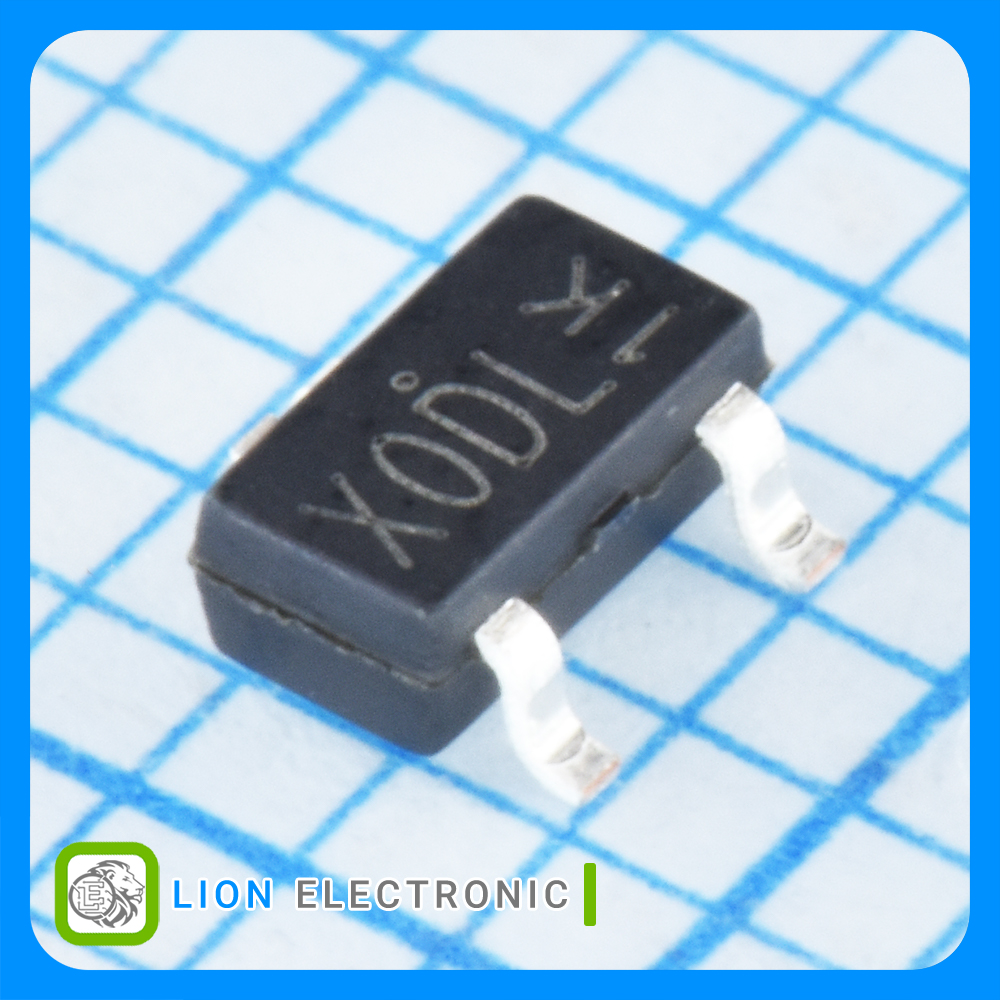

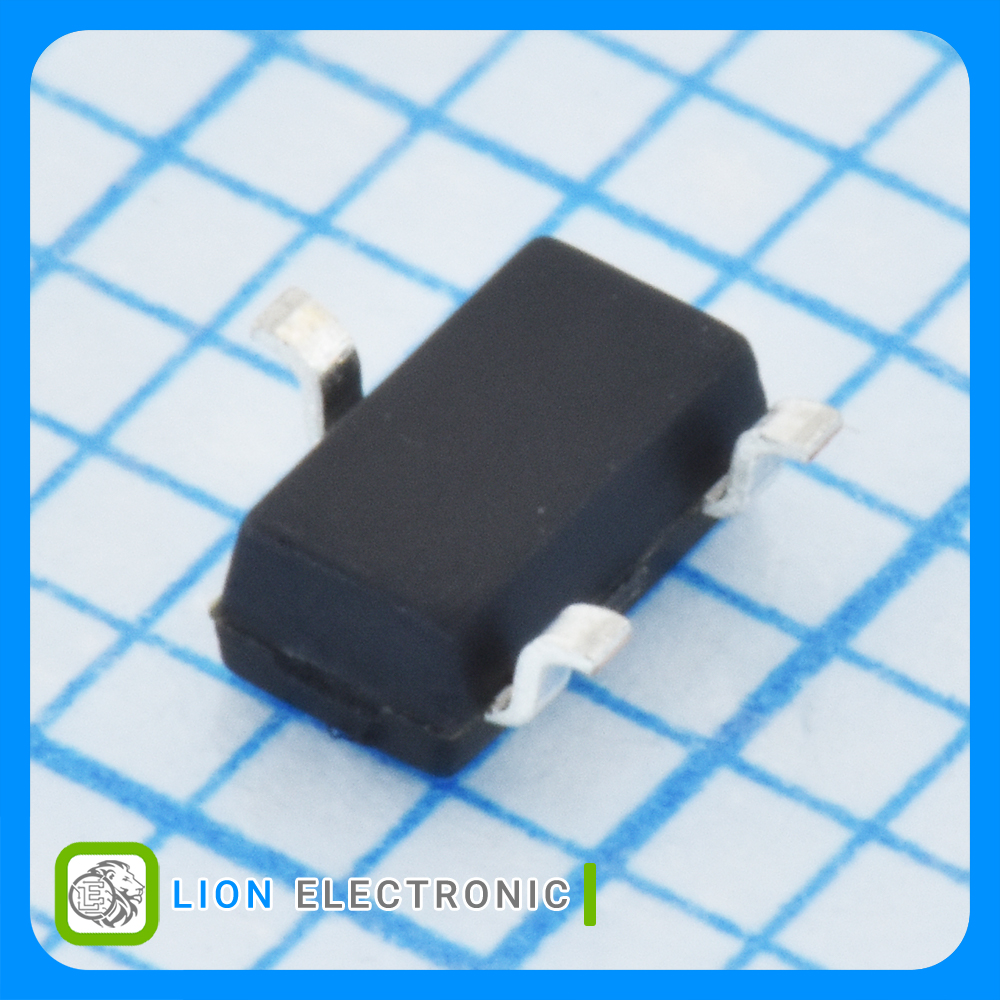

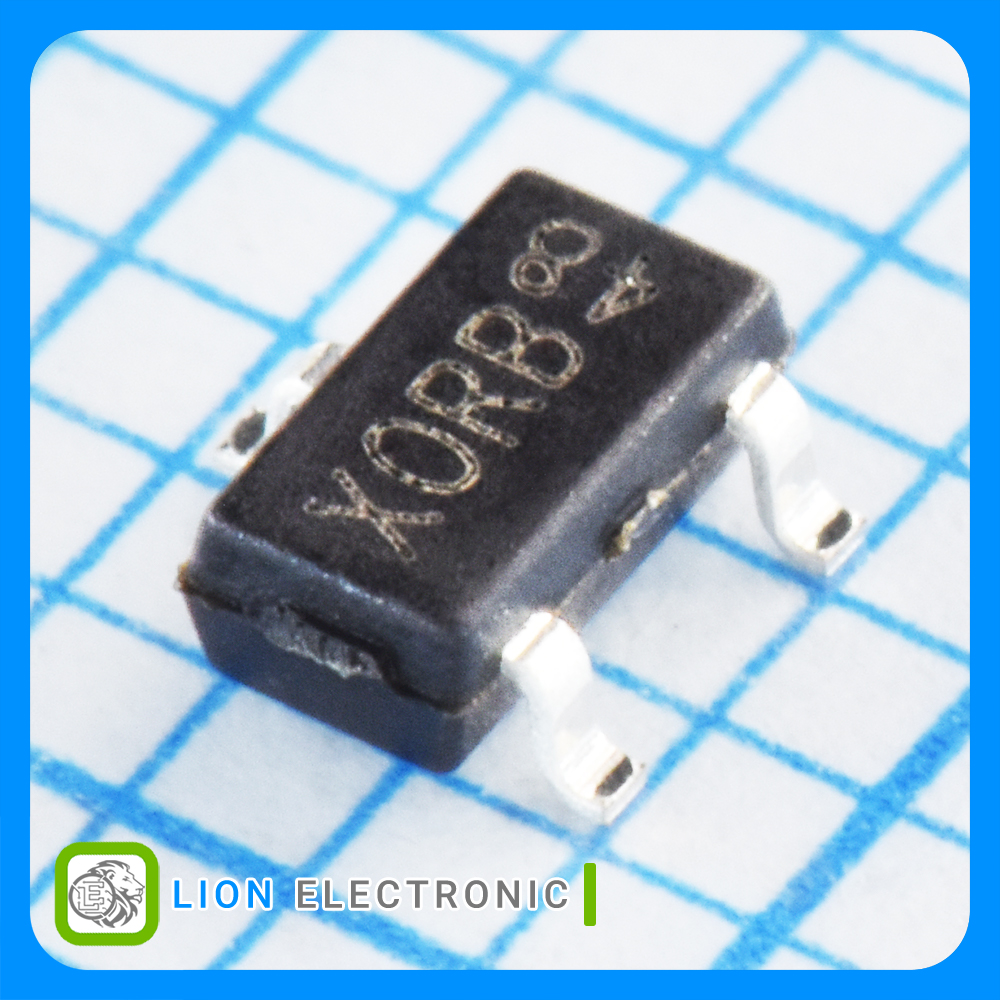

AO3400A
AO3400A
Part Number
2986
Lion Part
Datasheet
Alpha & Omega Semiconductor Manufacture
ماسفت 30 ولت 5.7 آمپر نوع N با پکیج SOT-23-3
MOSFET 30V, 5.7A with SOT-23-3 Package
معرفی
ماسفت 30 ولت 5.7 آمپر نوع N با پکیج SOT-23-3
MOSFET 30V, 5.7A with SOT-23-3 Package
Specifications
- Package/Case: SOT-23-3
- Vds - Drain - Source Breakdown Voltage: 30V
- Id - Continuous Drain Current: 5.7A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 650mV
- Vgs - Gate - Source Voltage: ±12V
- Rds On - Drain - Source Resistance: 18mΩ
- Pd - Power Dissipation: 1.4W
- Qg - Gate Charge: 6nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C

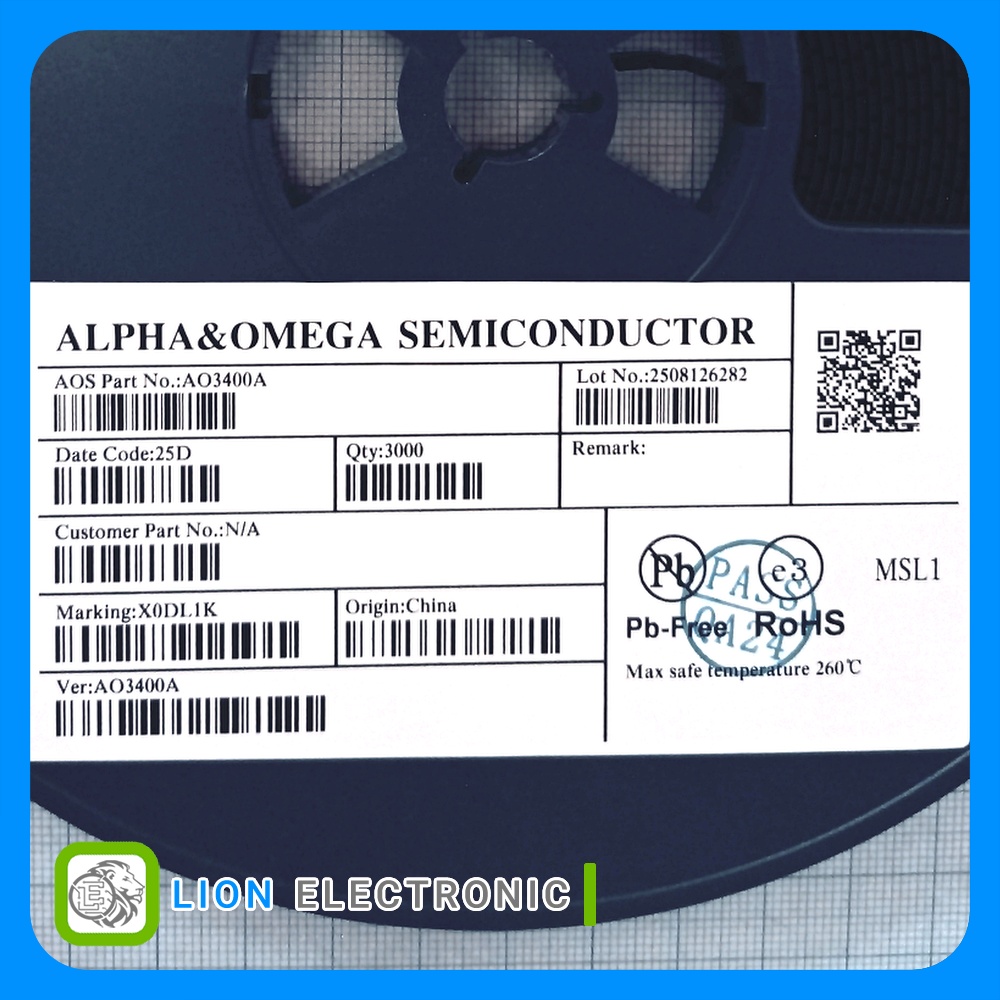

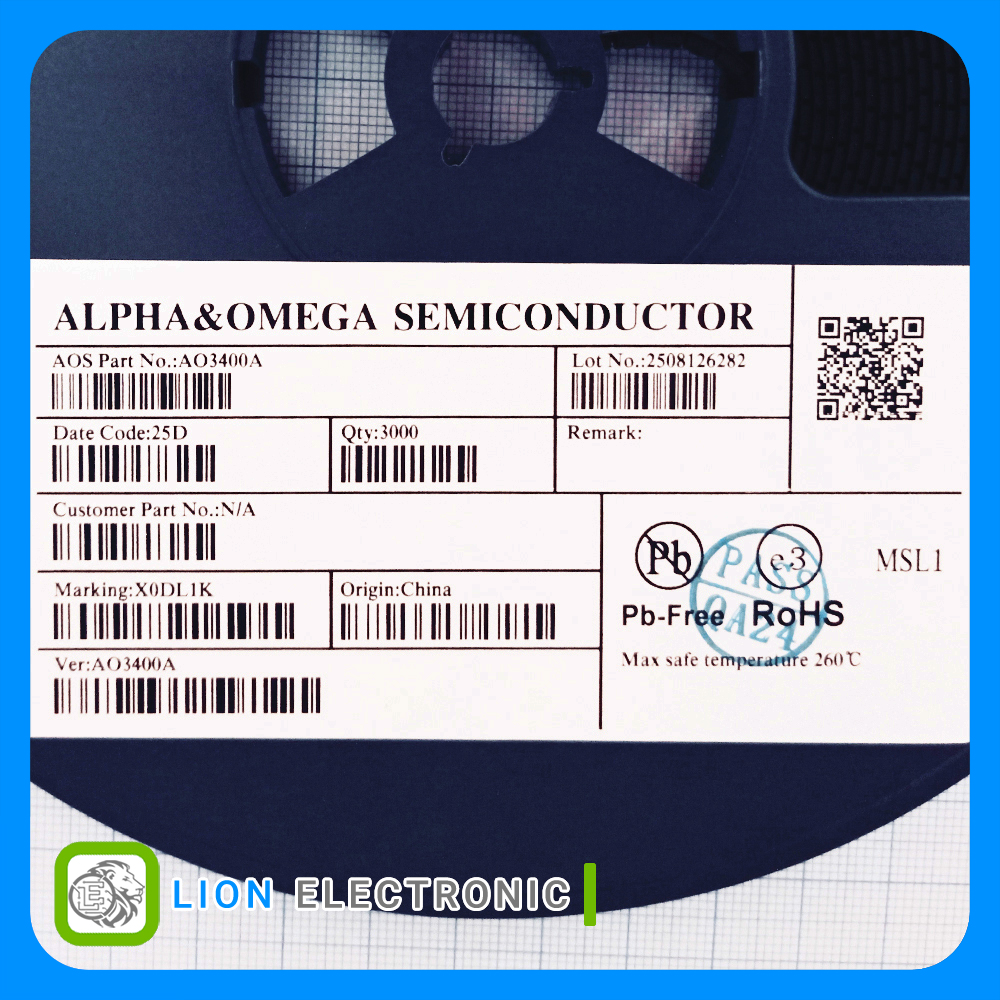

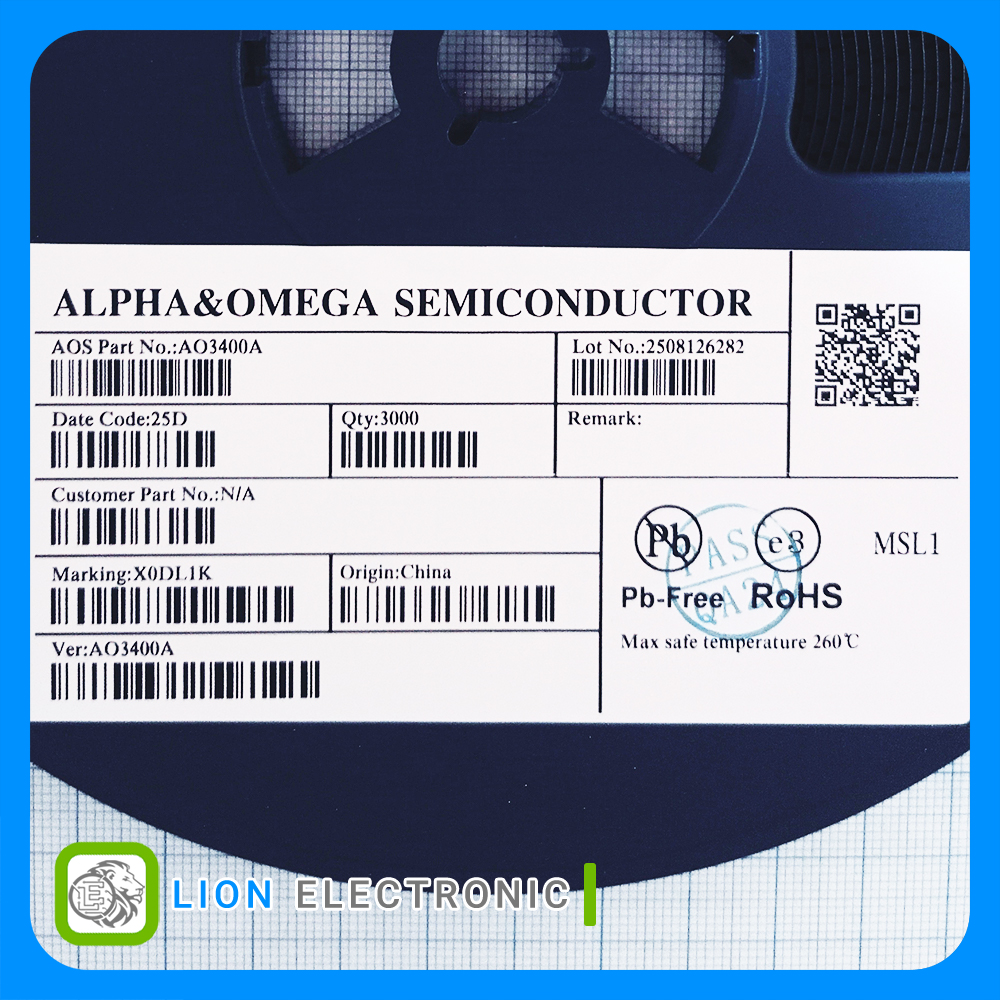

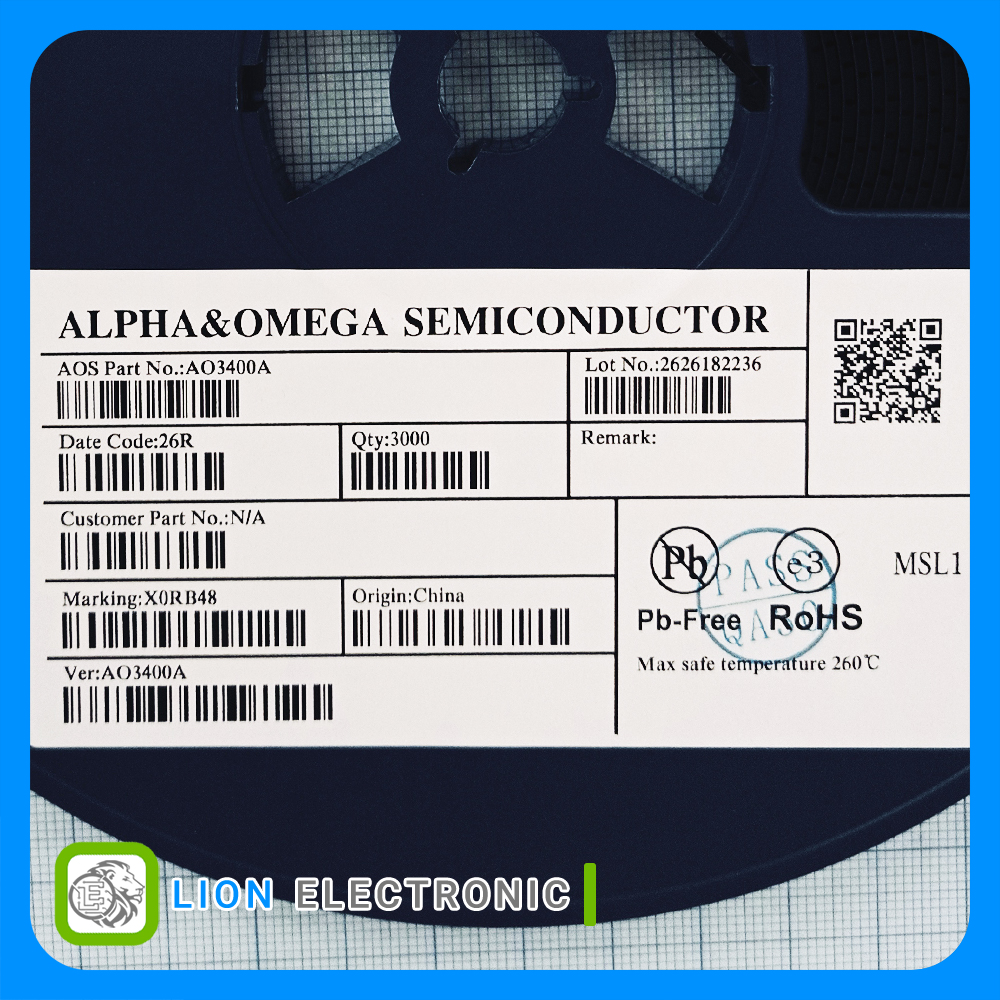

- Packaging: Reel
مشخصات ماسفت AO3400A
ماسفت AO3400A
Part Number
1
Number of Channels
Enhancement
Channel Mode
N-Channel
Transistor Polarity
-55C
Minimum Operating Temperature
Reel
Packaging
SMD/SMT
Mounting Style
±12V
Vgs - Gate - Source Voltage
30V
Vds - Drain - Source Breakdown Voltage
6nC
Qg - Gate Charge
+150C
Maximum Operating Temperature
650mV
Vgs th - Gate - Source Threshold Voltage
1.4W
Pd - Power Dissipation
18mΩ
Rds On - Drain - Source Resistance
5.7A
Id - Continuous Drain Current
SOT-23-3
Package-Case
