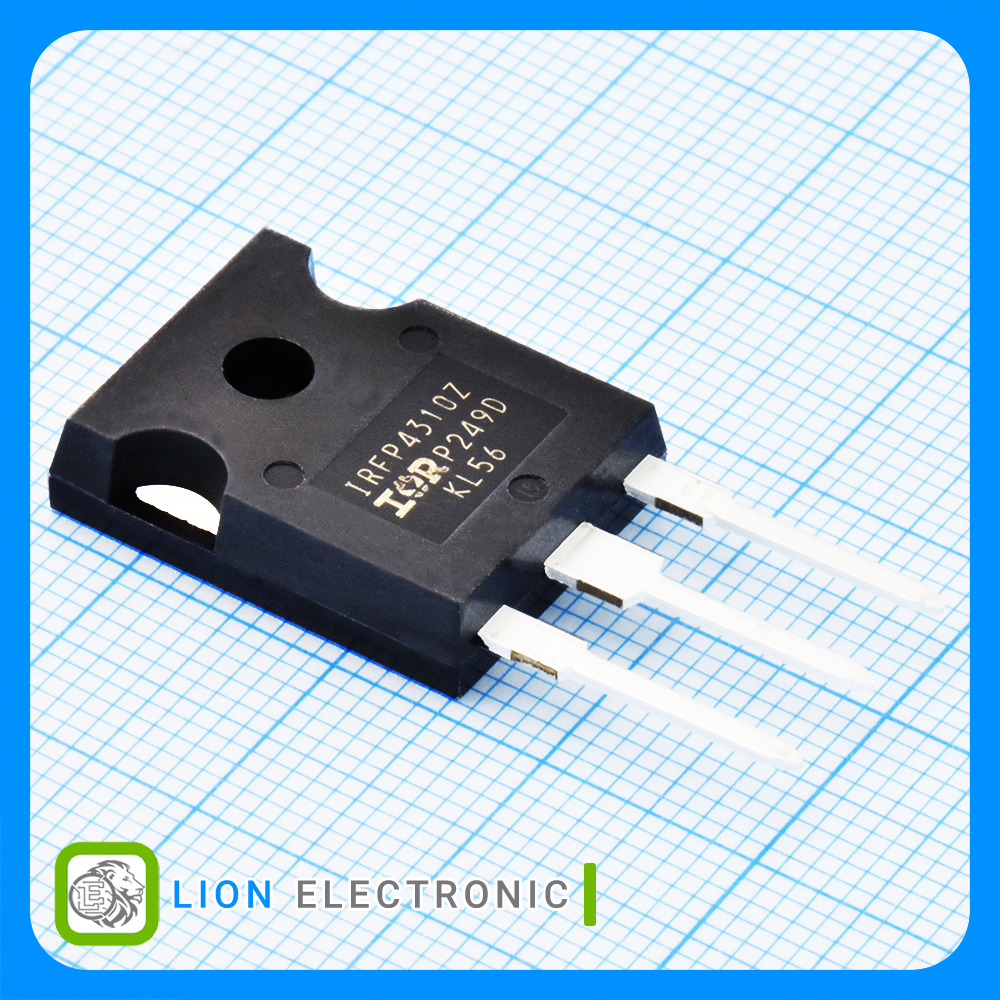

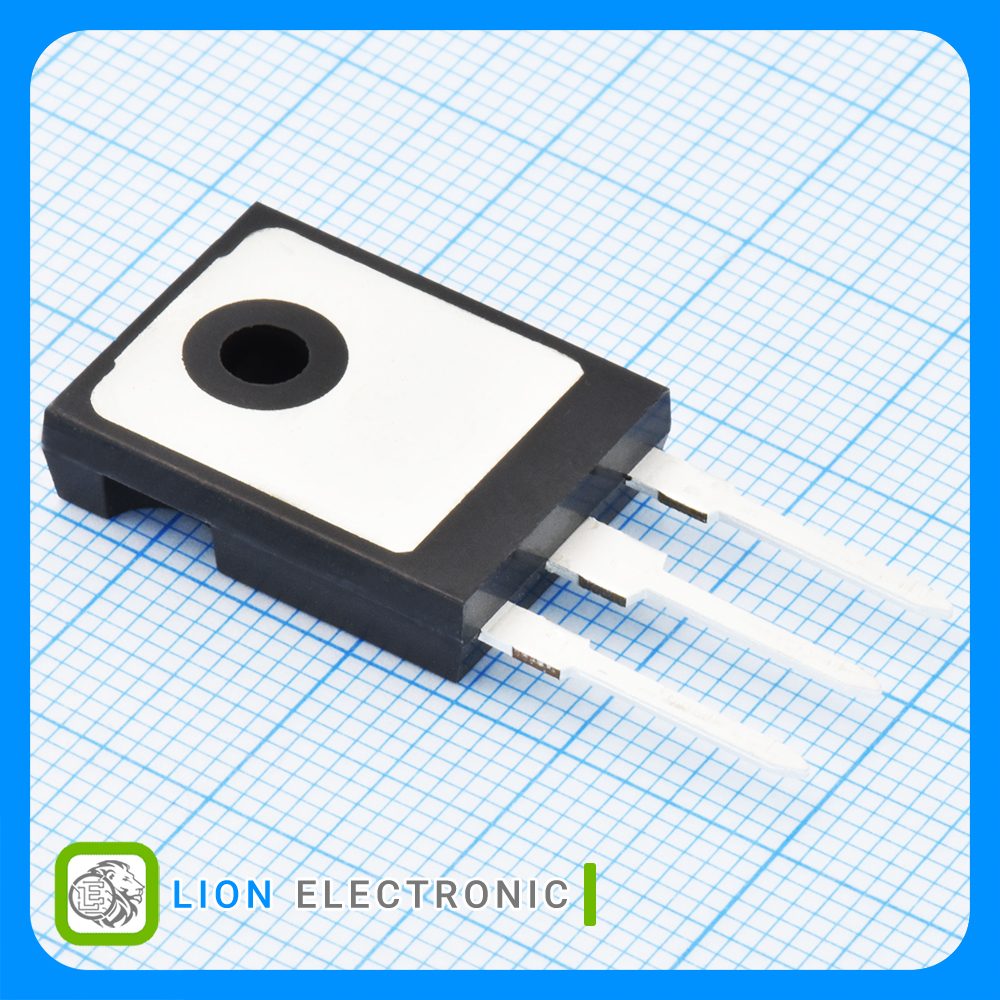

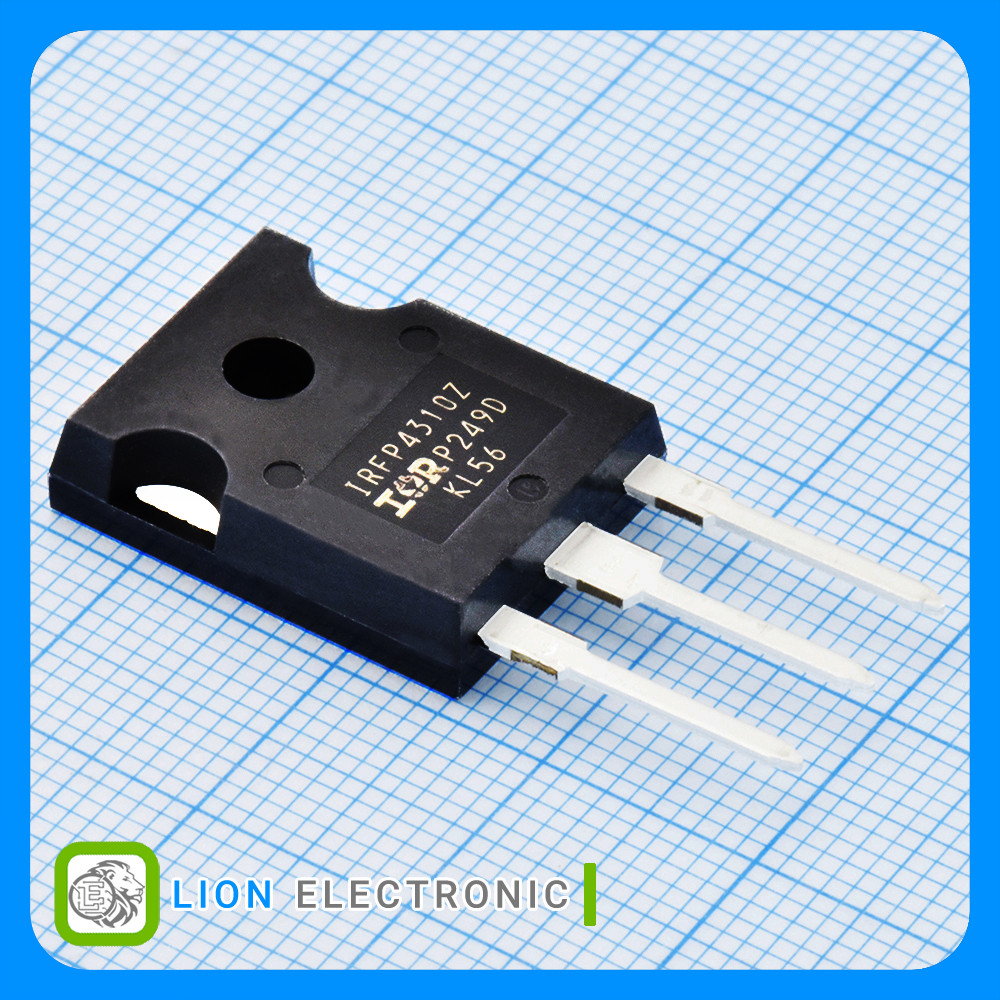

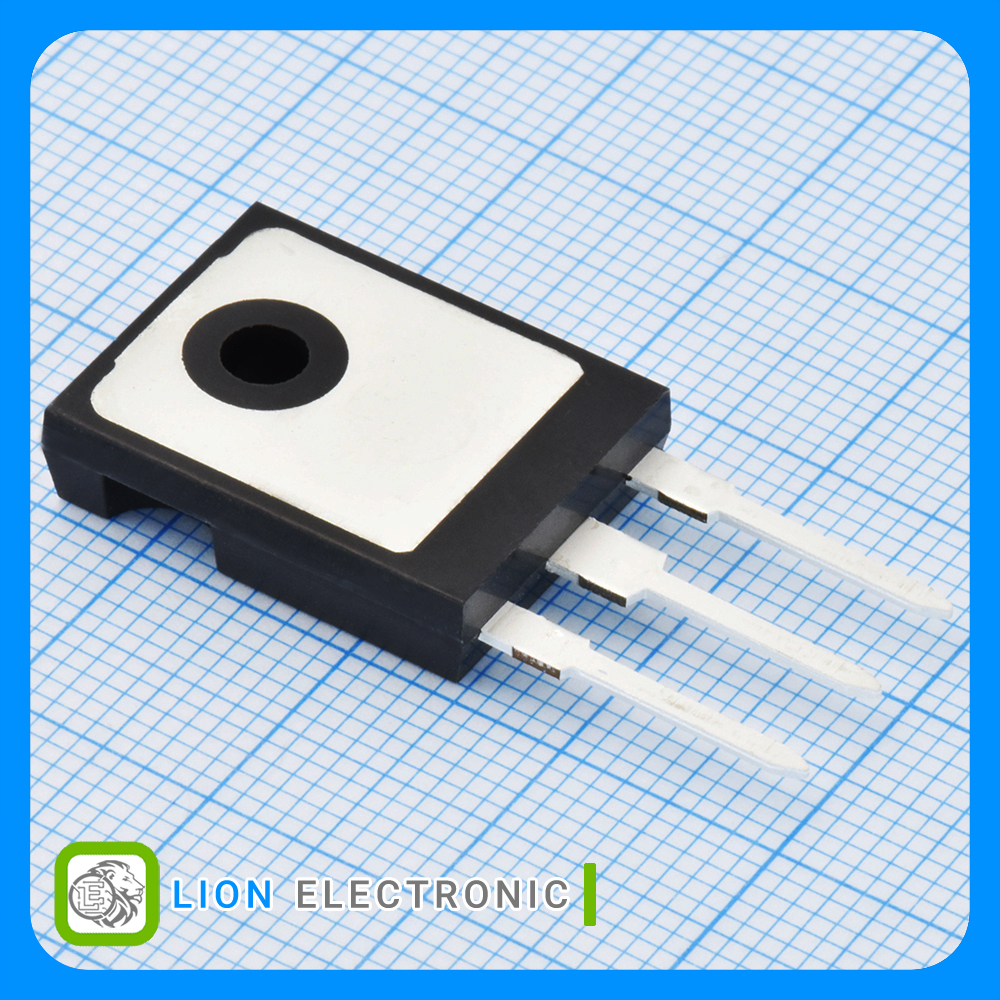

IRFP4310ZPBF
IRFP4310ZPBF
Part Number
3001
Lion Part
Datasheet
International Rectifier Manufacture
ماسفت 100 ولت 134 آمپر نوع N با پکیج TO-247-3
N-CH MOSFET 100V, 134A with TO-247-3 Package
معرفی
ماسفت 100 ولت 134 آمپر نوع N با پکیج TO-247-3
N-CH MOSFET 100V, 134A with TO-247-3 Package
Specifications
- Package/Case: TO-247
- Vds - Drain - Source Breakdown Voltage: 100V
- Id - Continuous Drain Current: 120A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 2V
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 4.8mΩ
- Pd - Power Dissipation: 280W
- Qg - Gate Charge: 120nC
- Mounting Style: Through Hole
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +175C
- Packaging: Tube
مشخصات ماسفت IRFP4310ZPBF

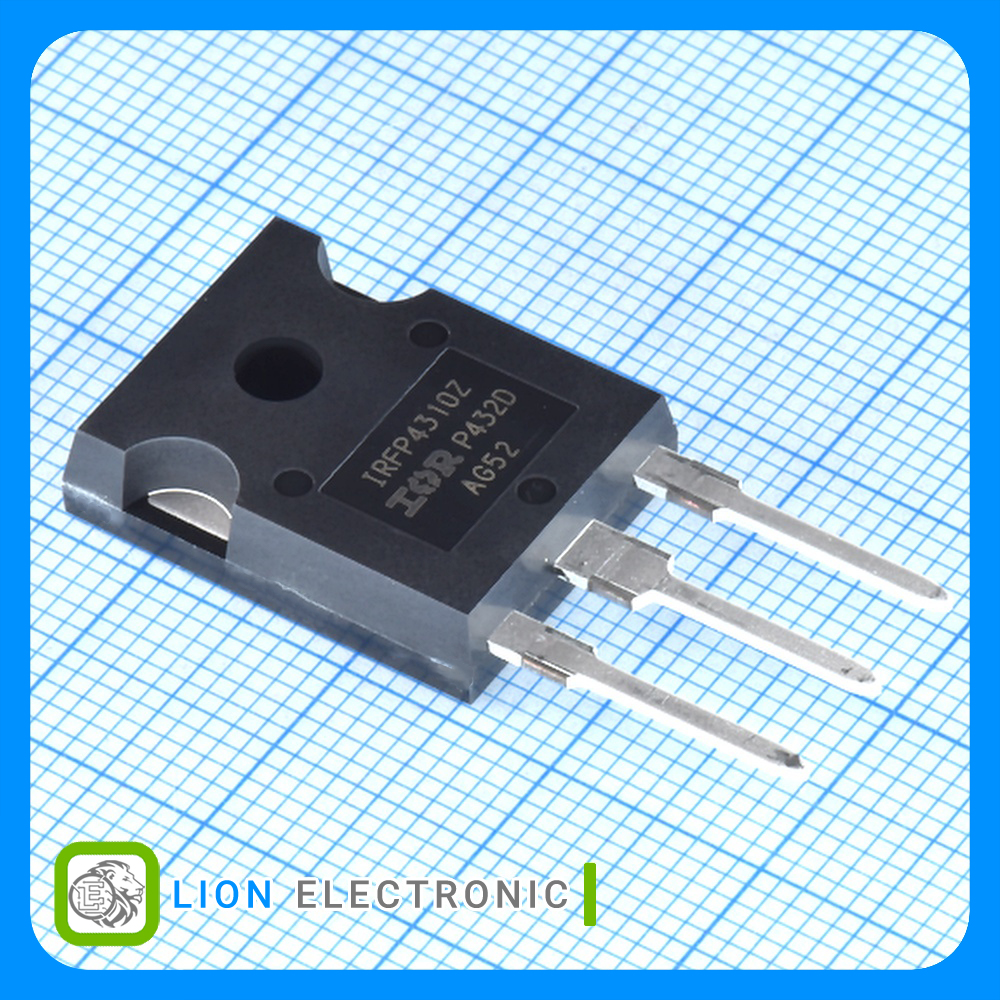

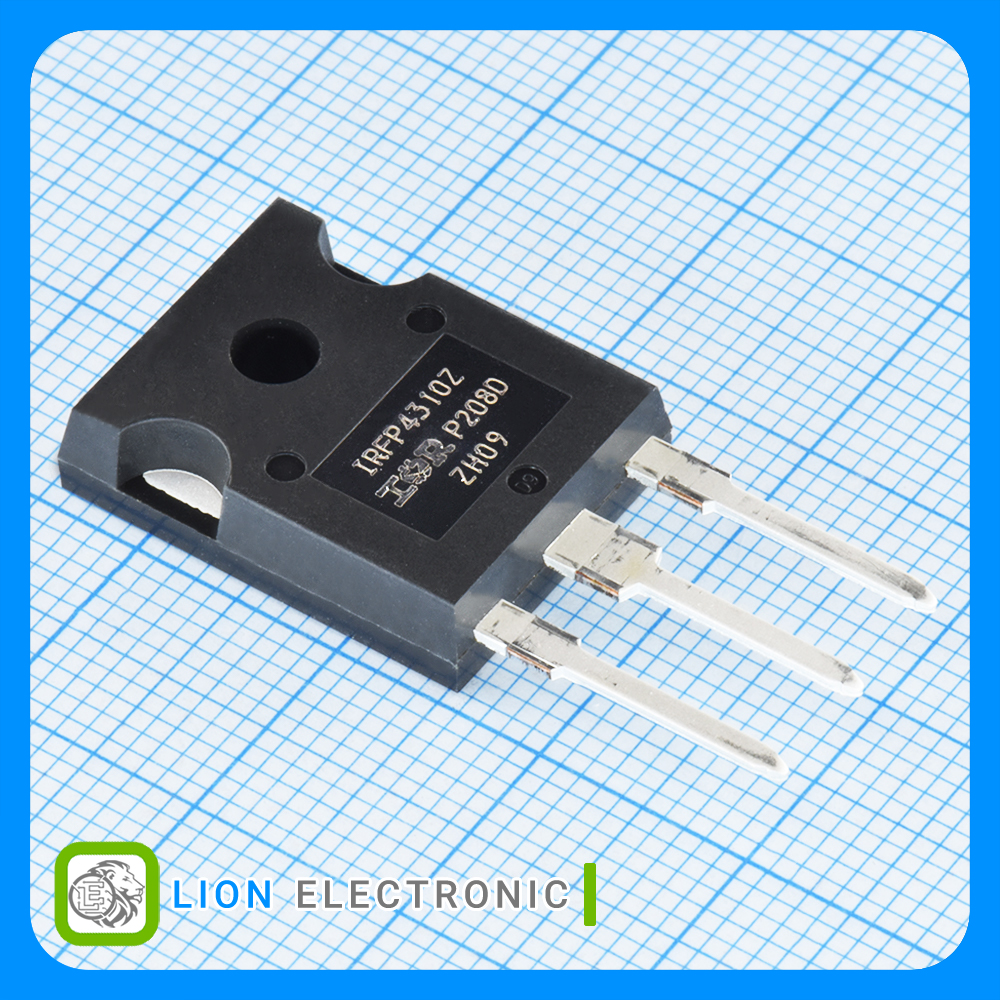

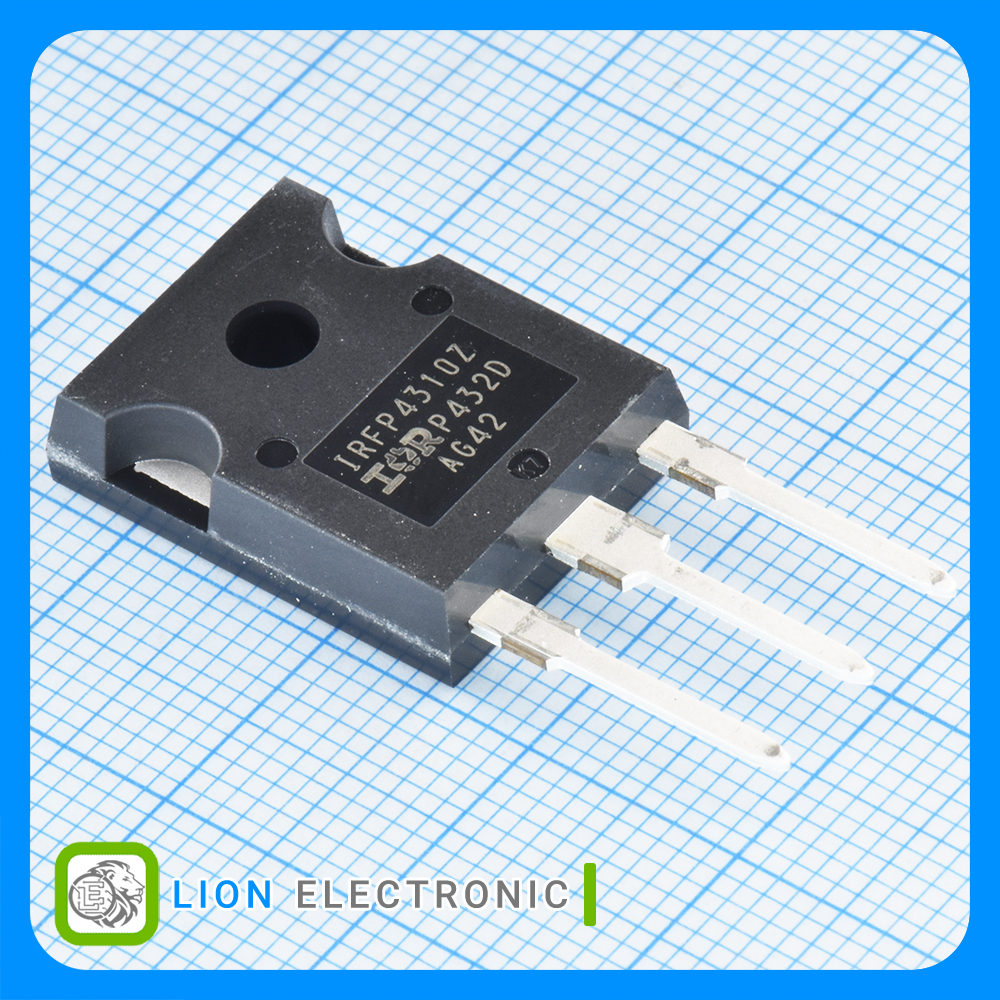

ماسفت IRFP4310ZPBF
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Tube
Packaging
Through Hole
Mounting Style
±20V
Vgs - Gate - Source Voltage
+175C
Maximum Operating Temperature
100V
Vds - Drain - Source Breakdown Voltage
4.8mΩ
Rds On - Drain - Source Resistance
2V
Vgs th - Gate - Source Threshold Voltage
120nC
Qg - Gate Charge
120A
Id - Continuous Drain Current
280W
Pd - Power Dissipation
TO-247
Package-Case
