APM
معرفی

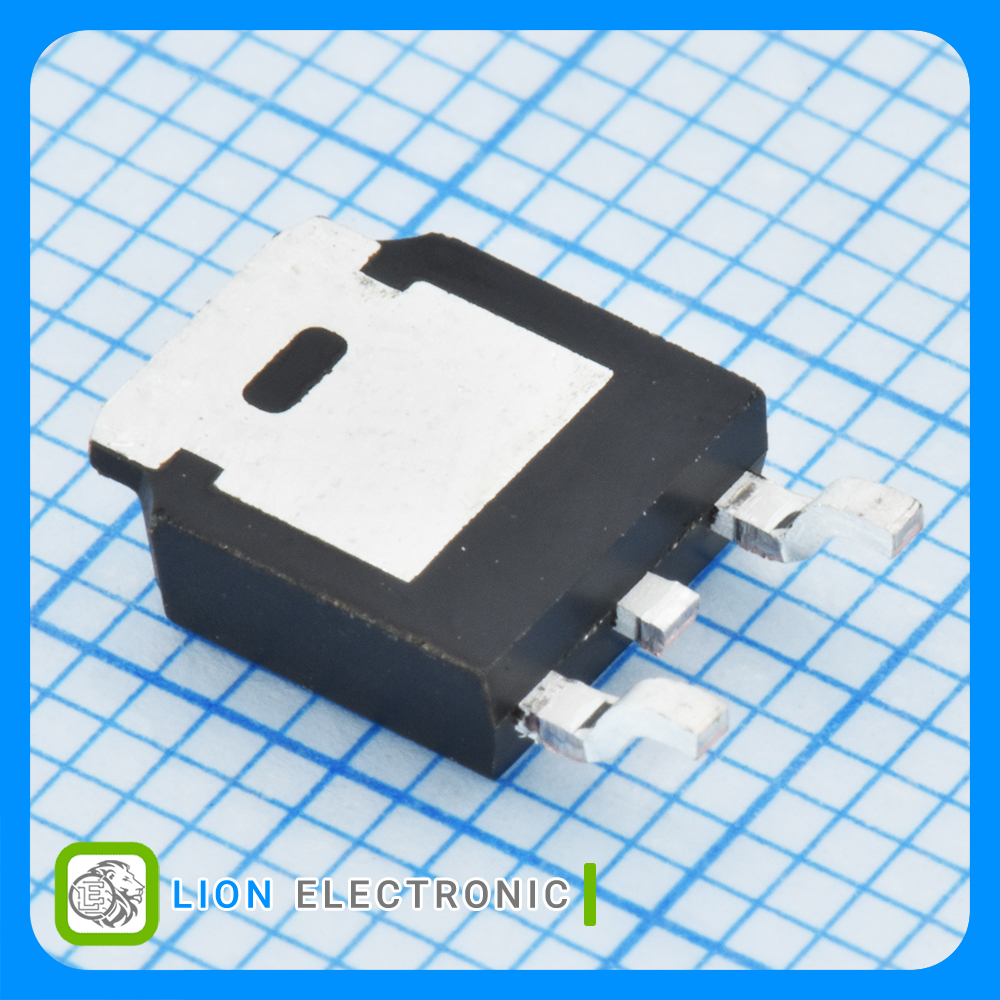

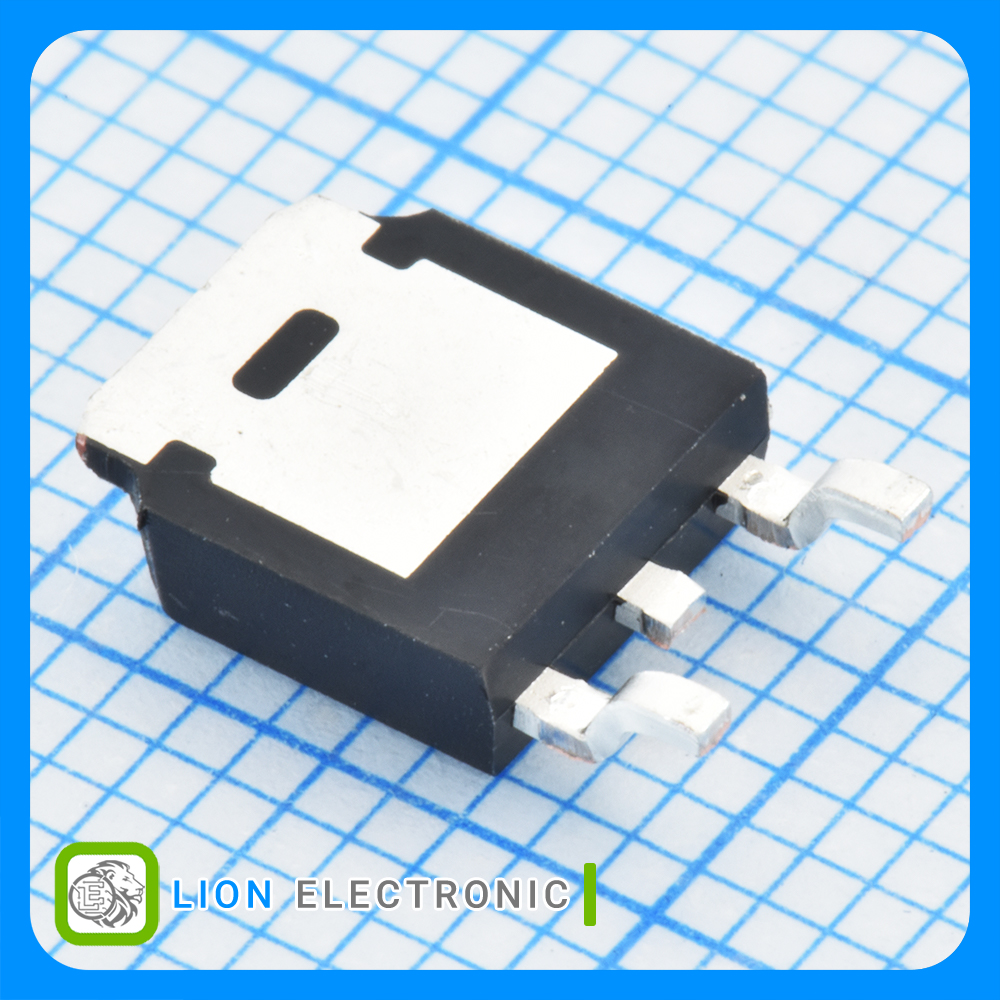

ماسفت 30 ولت 100 آمپر نوع N با پکیج TO-252-3
N-CH MOSFET 30V, 100A with TO-252-3 Package
Specifications
- Package/Case: DPAK
- Vds - Drain - Source Breakdown Voltage: 30V
- Id - Continuous Drain Current: 100A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 1V
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 3.6mΩ
- Pd - Power Dissipation: 68W
- Qg - Gate Charge: 45nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +175C
- Packaging: Reel
مشخصات ماسفت AP100N03D

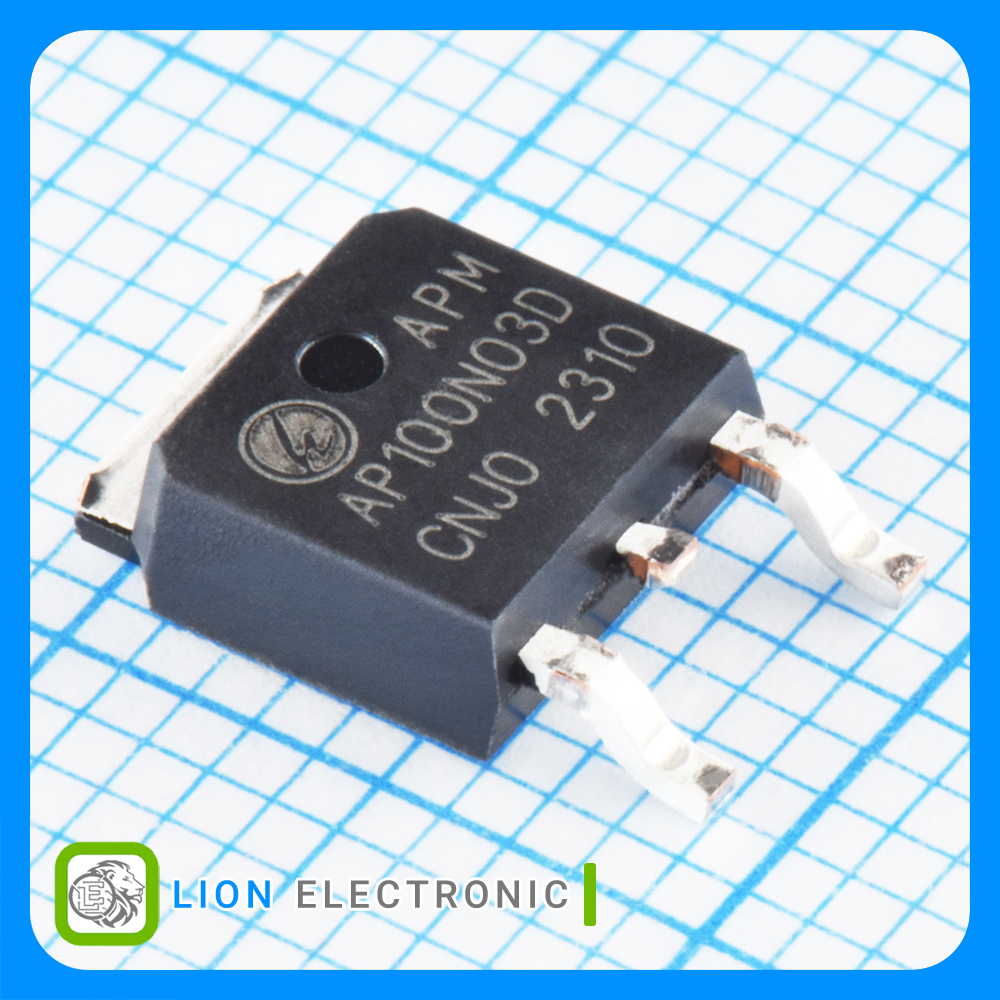

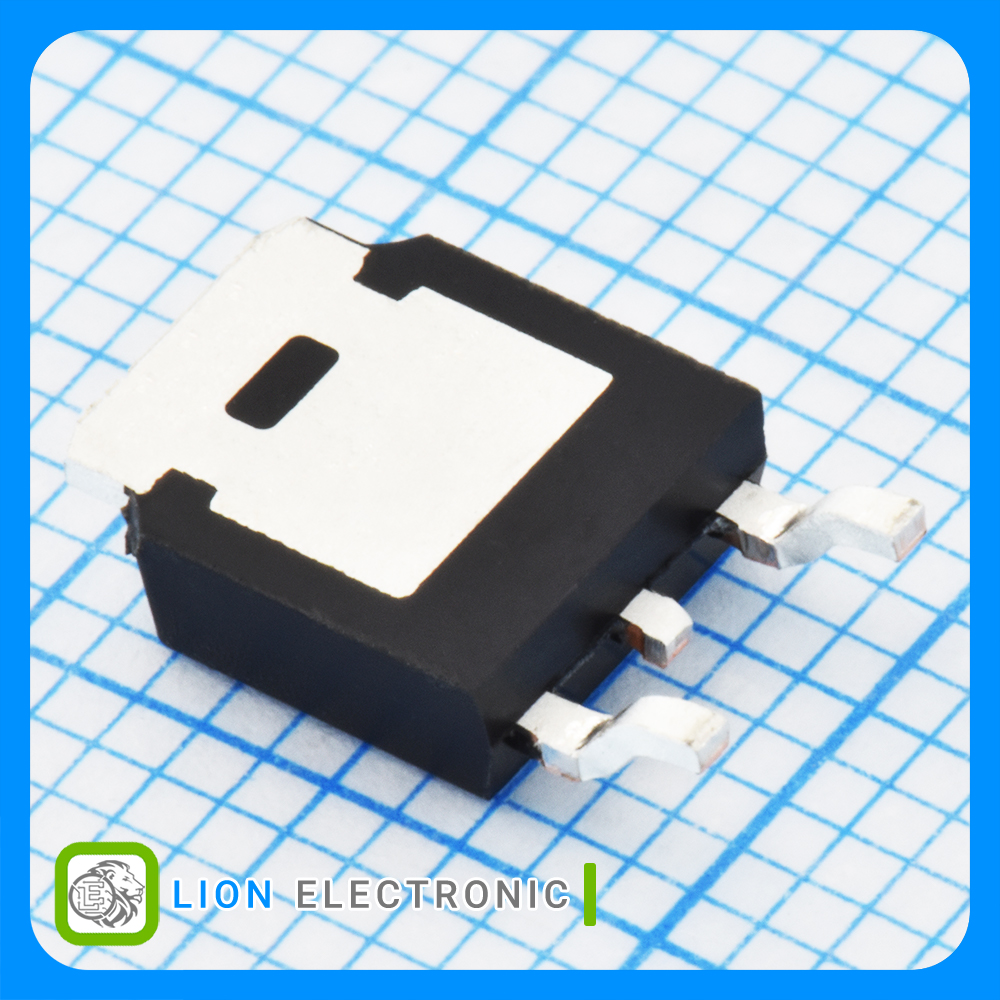

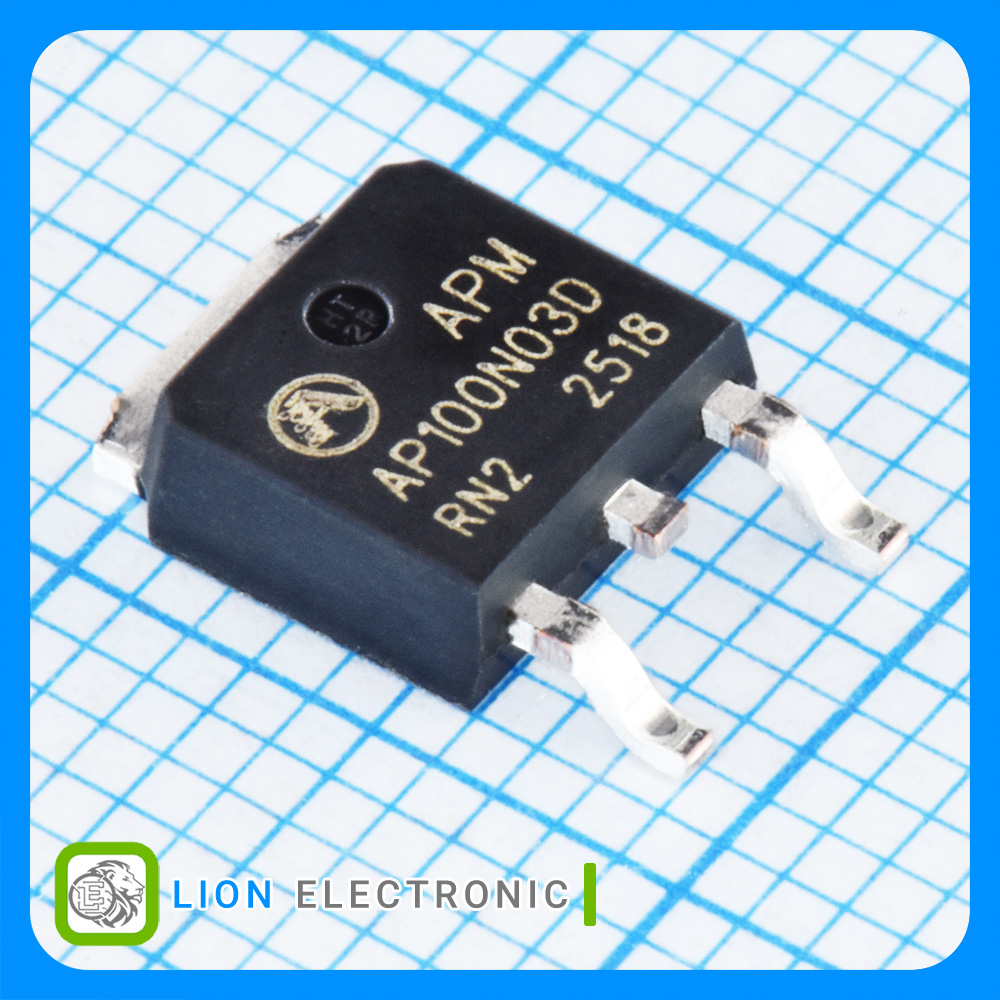

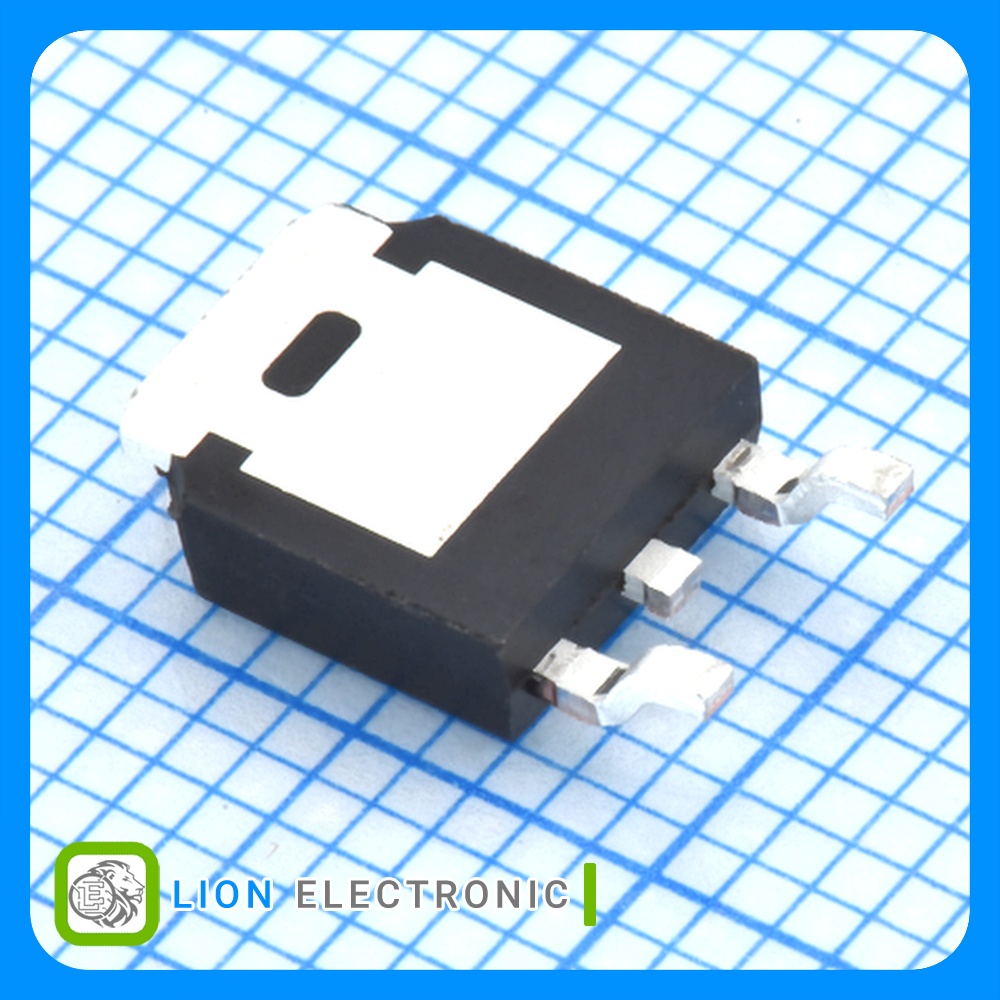

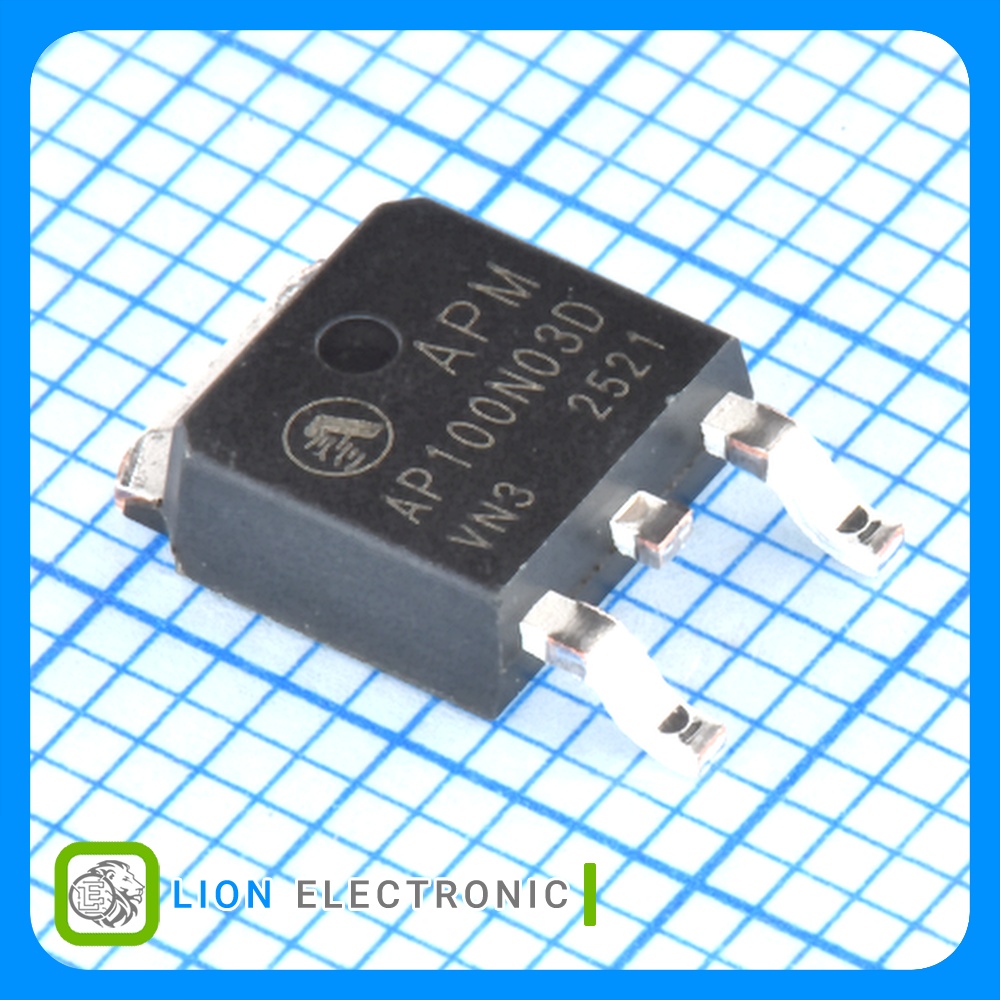

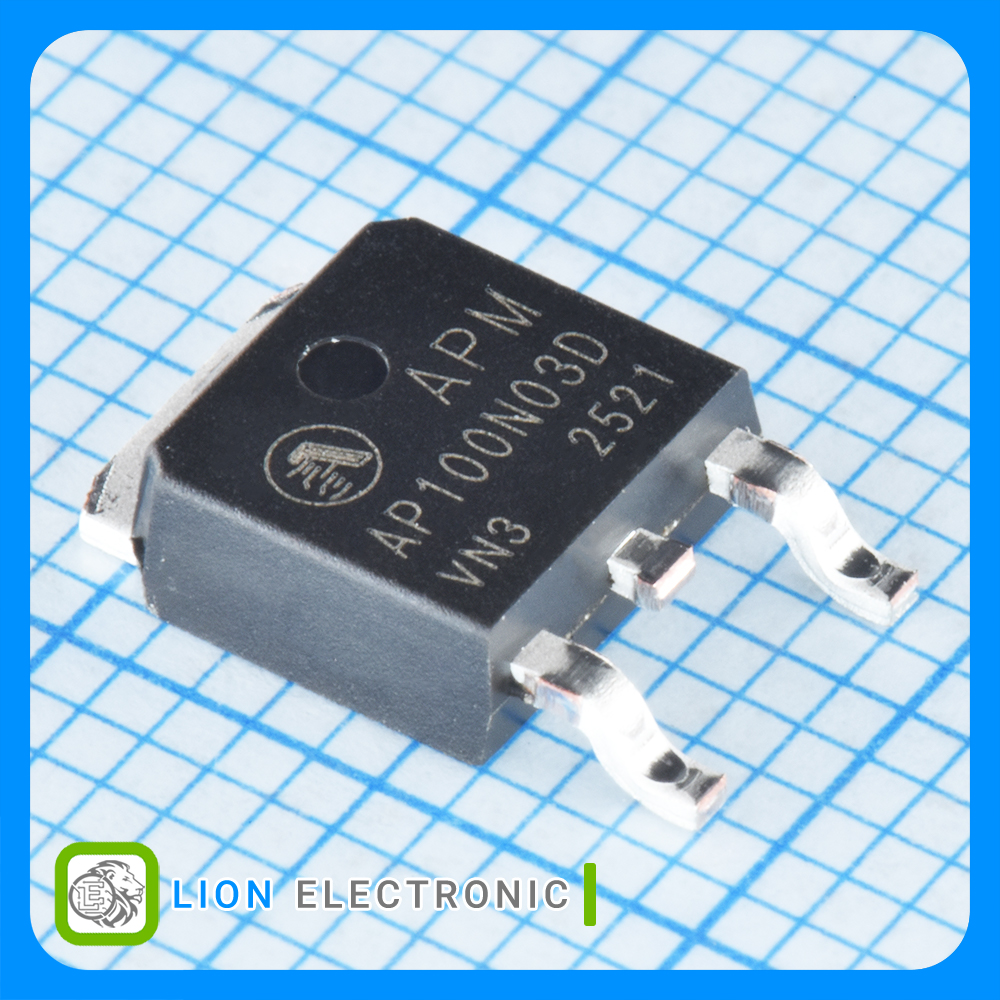

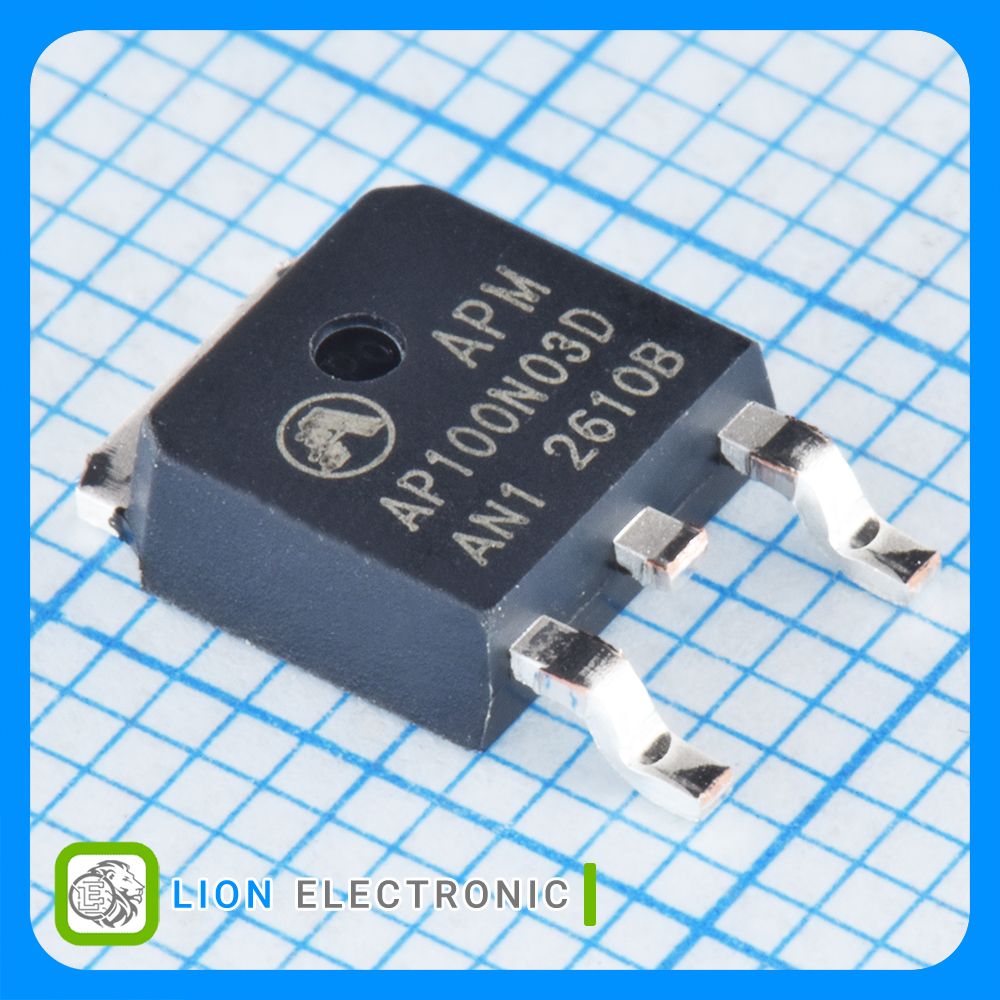

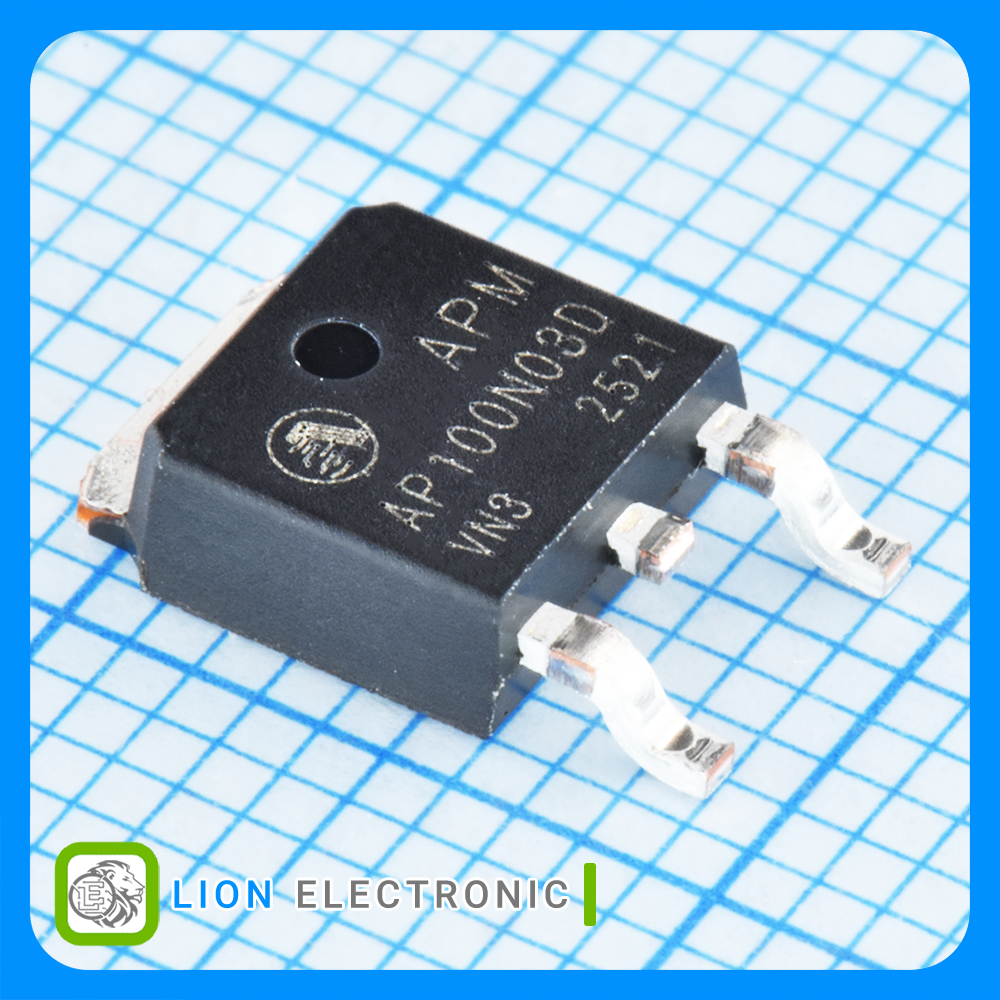

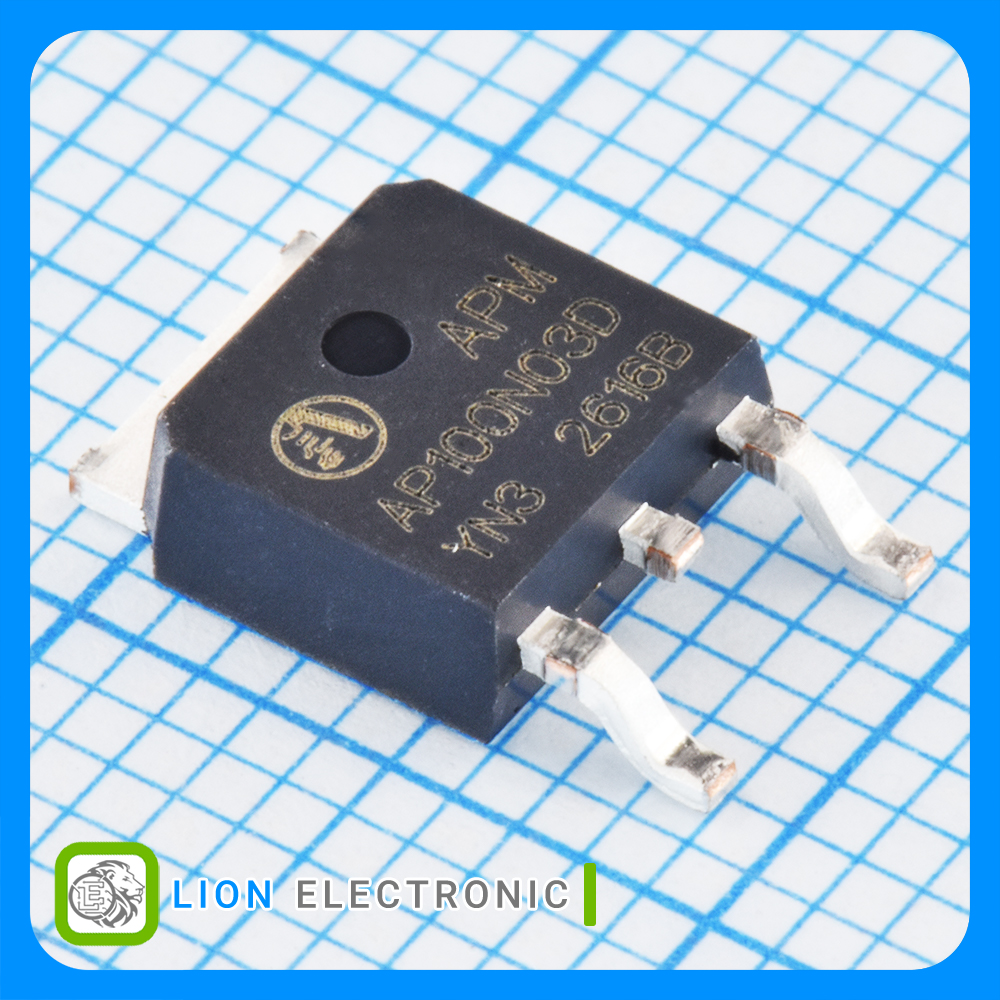

ماسفت AP100N03D
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Reel
Packaging
SMD/SMT
Mounting Style
30V
Vds - Drain - Source Breakdown Voltage
±20V
Vgs - Gate - Source Voltage
+175C
Maximum Operating Temperature
3.6mΩ
Rds On - Drain - Source Resistance
1V
Vgs th - Gate - Source Threshold Voltage
45nC
Qg - Gate Charge
DPAK
Package-Case
68W
Pd - Power Dissipation
100A
Id - Continuous Drain Current
