Bourns
معرفی
مقاومت مولتی ترن 50KΩ 25 ترن تلرانس 10% توان 500 میلیوات

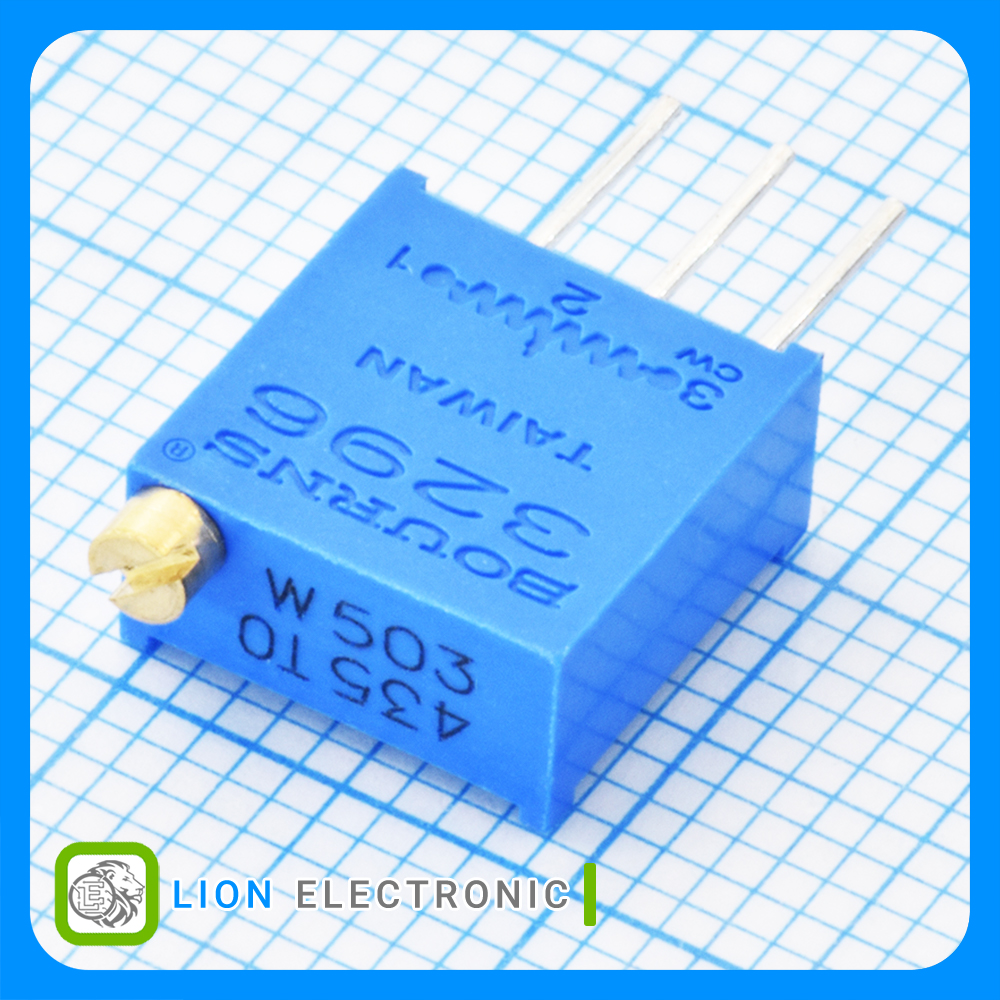

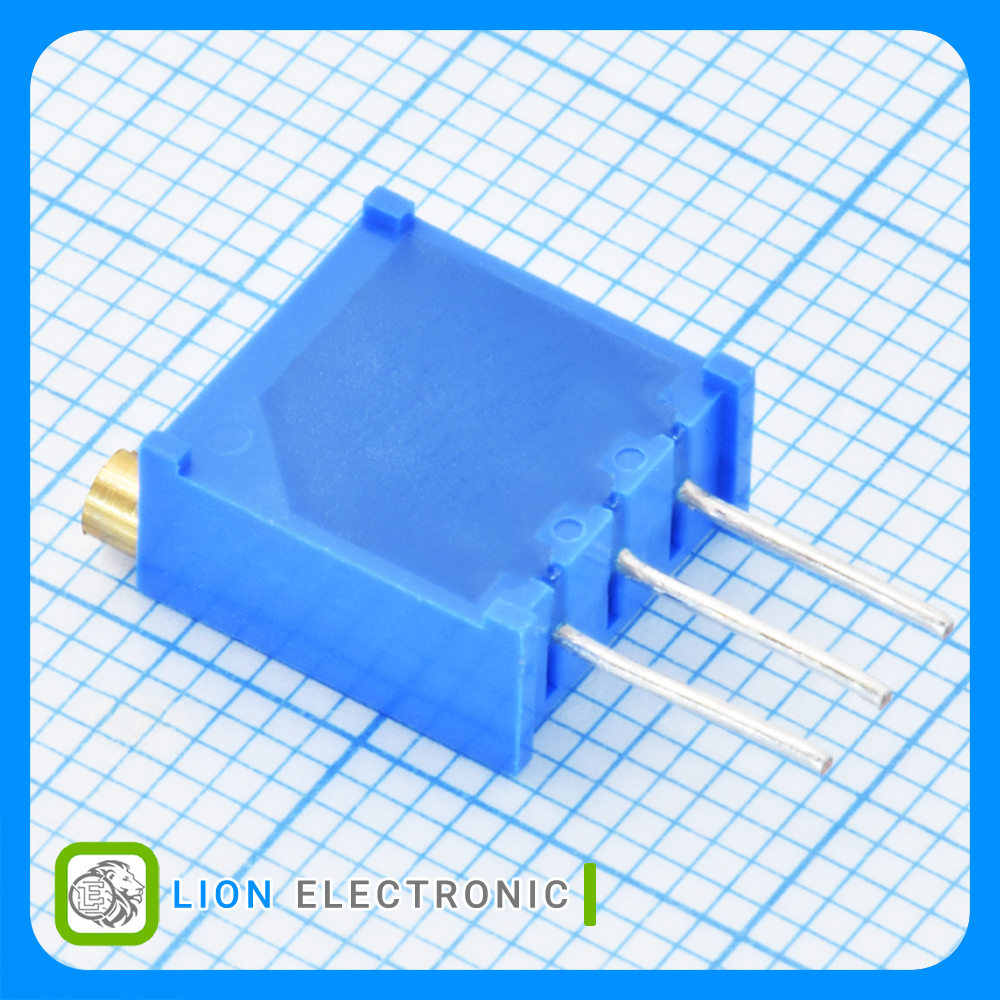

Multi-Turn Trimmer Resistor 50KΩ, 25 Turns, 10% with 500mW Power Rating
Specifications
- Adjustment: Top Cross
- Number of Turns: 25
- Resistance: 50KΩ
- Voltage Rating: 300V
- Power Rating: 500mW
- Tolerance: 10%
- Temperature Coefficient: 100PPM/C
- Orientation: Vertical Adjustment
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +125C
- Packaging: Tube
مشخصات مولتی ترن 3296W-1-503
مولتی ترن 3296W-1-503
Part Number
Top Cross
Adjustment
25
Number of Turns
-55C
Minimum Operating Temperature
Vertical Adjustment
Orientation
Tube
Packaging
300V
Voltage Rating
10%
Tolerance
500mW
Power Rating
+125C
Maximum Operating Temperature
100PPM/C
Temperature Coefficient
50KΩ
Resistance
