AO3416
AO3416
Part Number
3262
Lion Part
Datasheet
Alpha & Omega Semiconductor Manufacture
ماسفت 20 ولت 6.5 آمپر نوع N با پکیج SOT-23-3

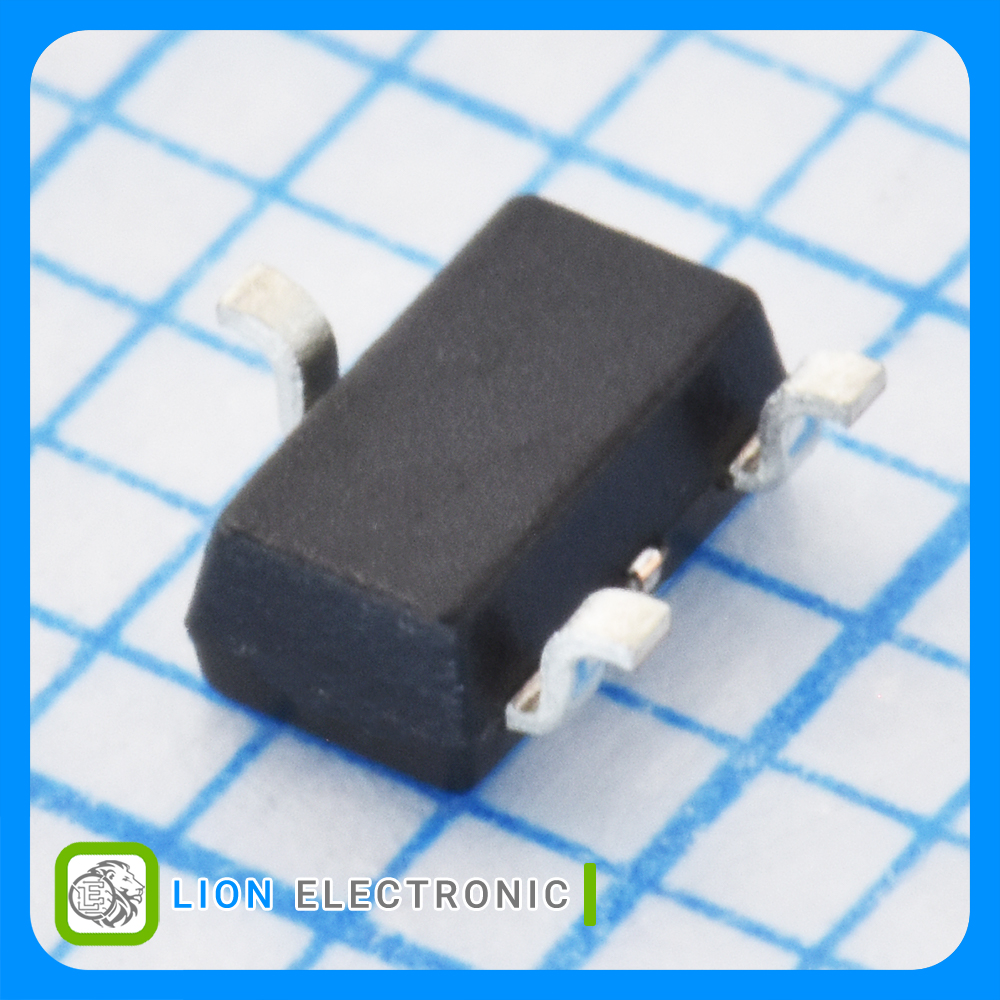

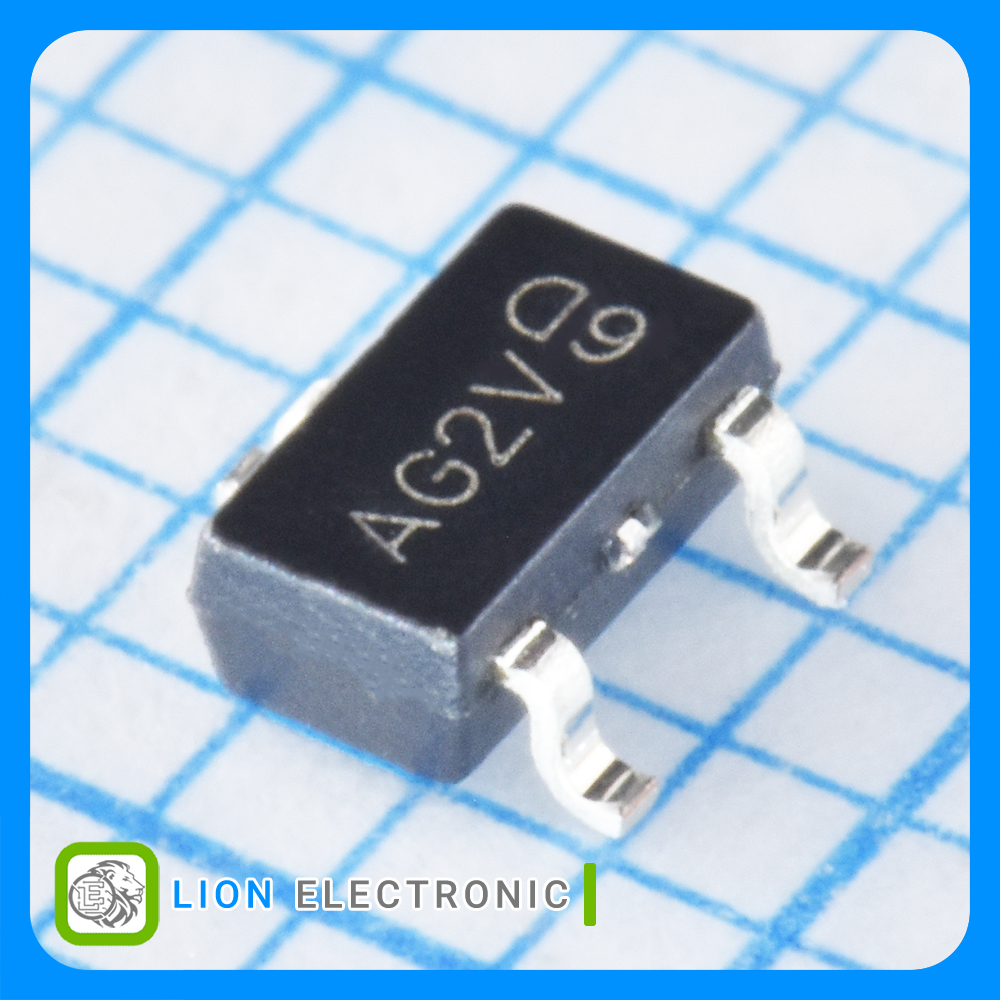

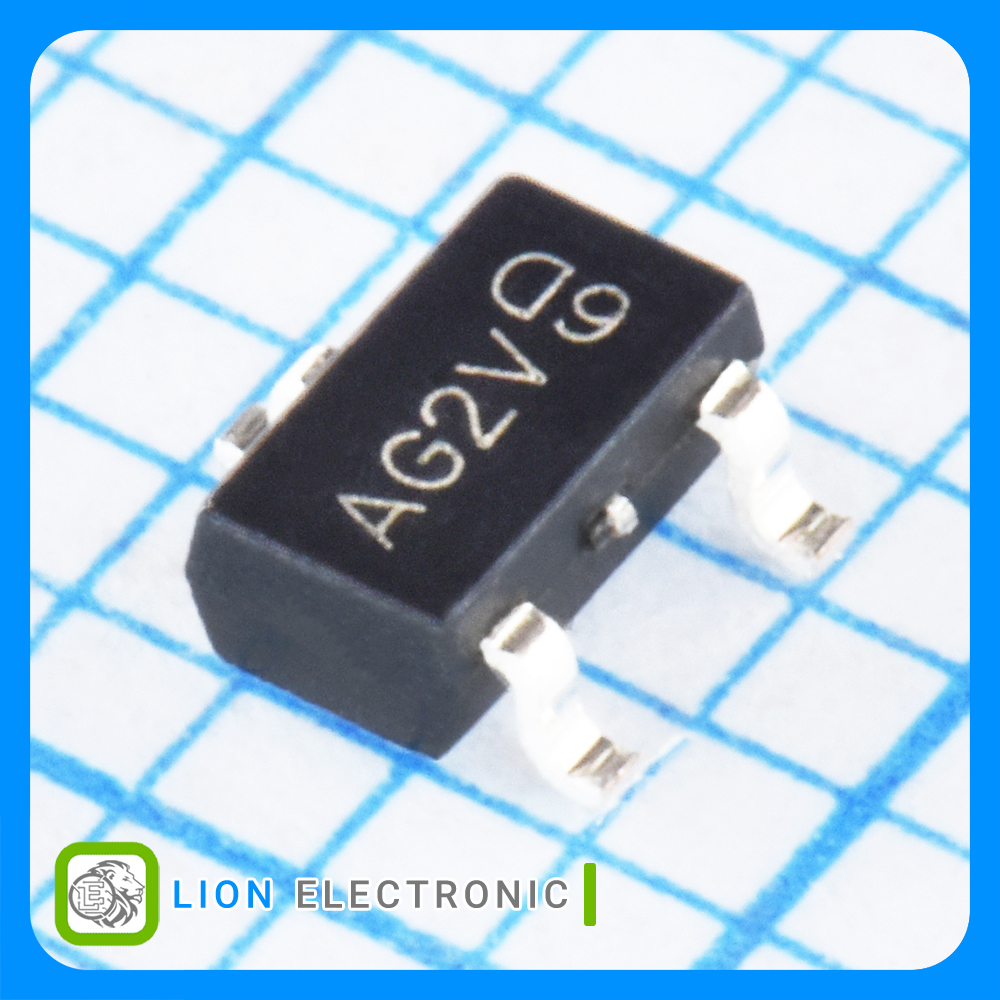

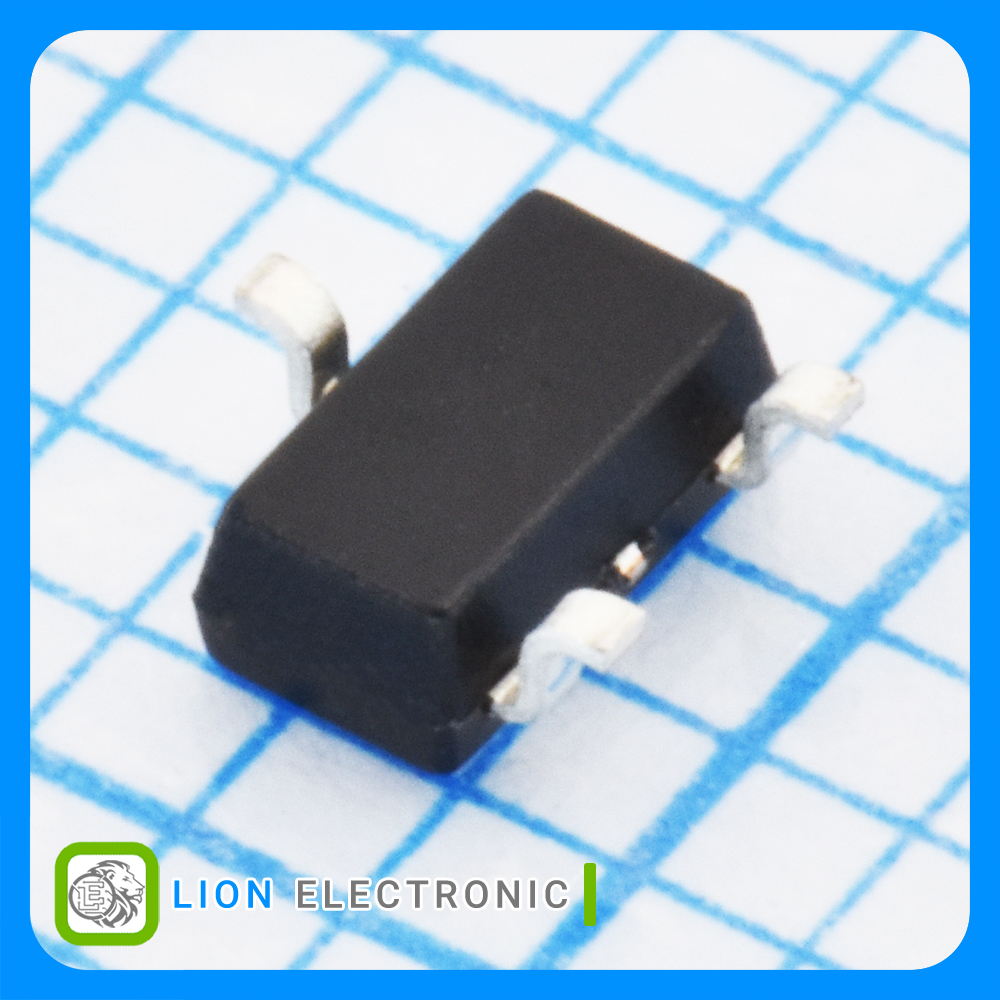

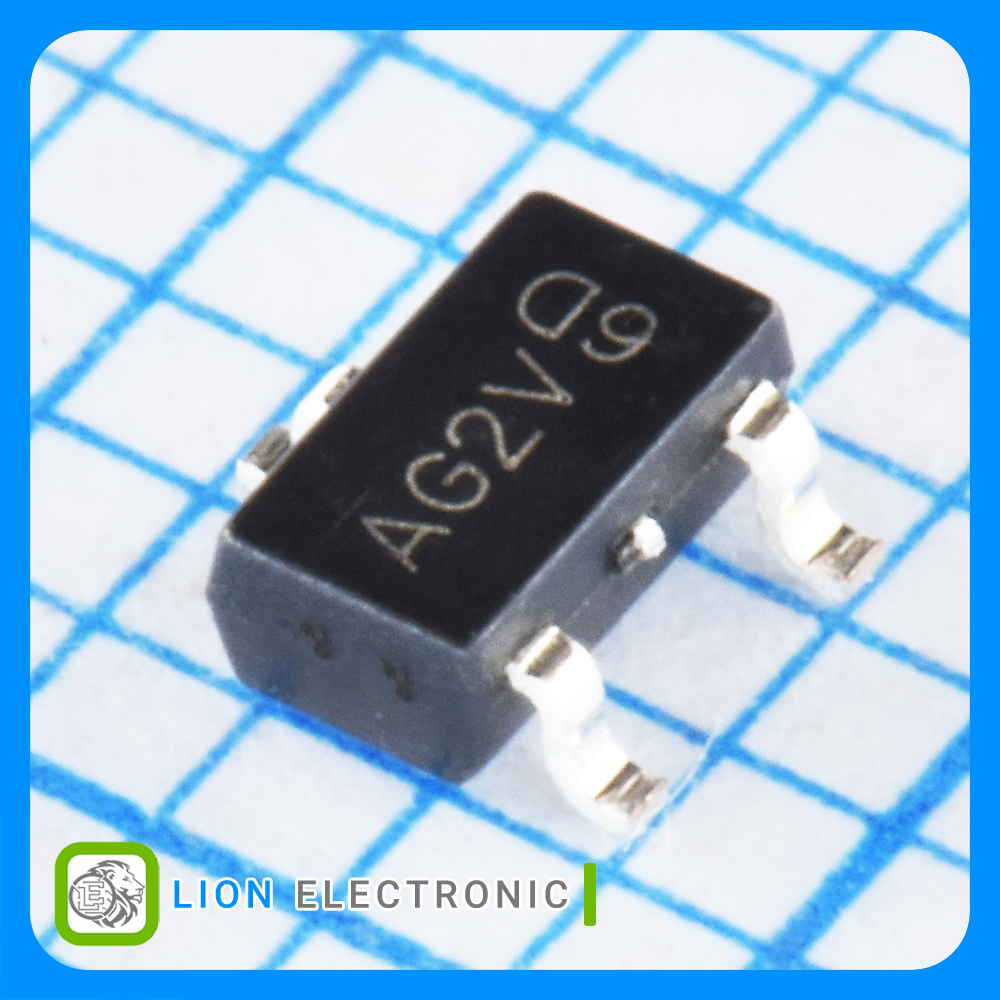

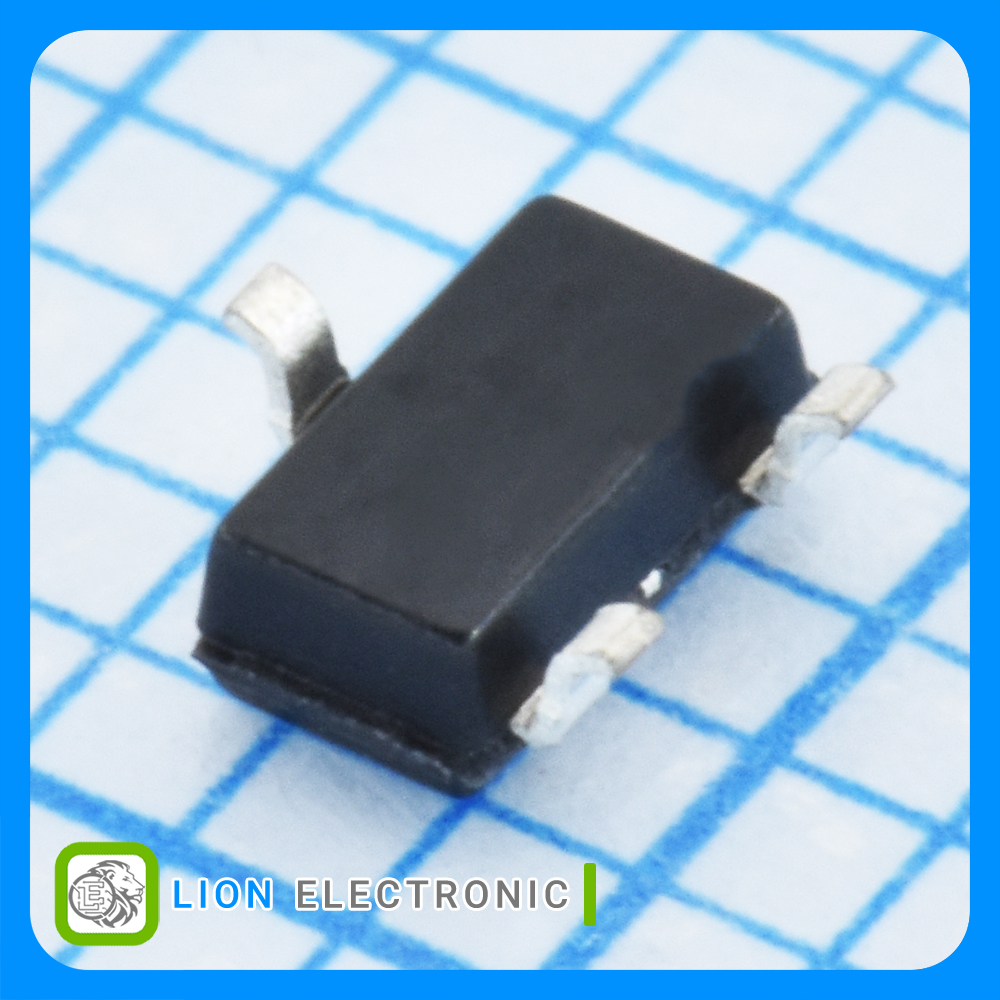

N-CH MOSFET 20V, 6.5A with SOT-23-3 Package
معرفی
ماسفت 20 ولت 6.5 آمپر نوع N با پکیج SOT-23-3
N-CH MOSFET 20V, 6.5A with SOT-23-3 Package
Specifications
- Package/Case: SOT-23-3
- Vds - Drain - Source Breakdown Voltage: 20V
- Id - Continuous Drain Current: 6.5A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 400mV
- Vgs - Gate - Source Voltage: ±8V
- Rds On - Drain - Source Resistance: 16mΩ
- Pd - Power Dissipation: 1.4W
- Qg - Gate Charge: 10nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات ماسفت AO3416
ماسفت AO3416
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Reel
Packaging
±8V
Vgs - Gate - Source Voltage
SMD/SMT
Mounting Style
20V
Vds - Drain - Source Breakdown Voltage
400mV
Vgs th - Gate - Source Threshold Voltage
+150C
Maximum Operating Temperature
10nC
Qg - Gate Charge
1.4W
Pd - Power Dissipation
16mΩ
Rds On - Drain - Source Resistance
6.5A
Id - Continuous Drain Current
SOT-23-3
Package-Case
