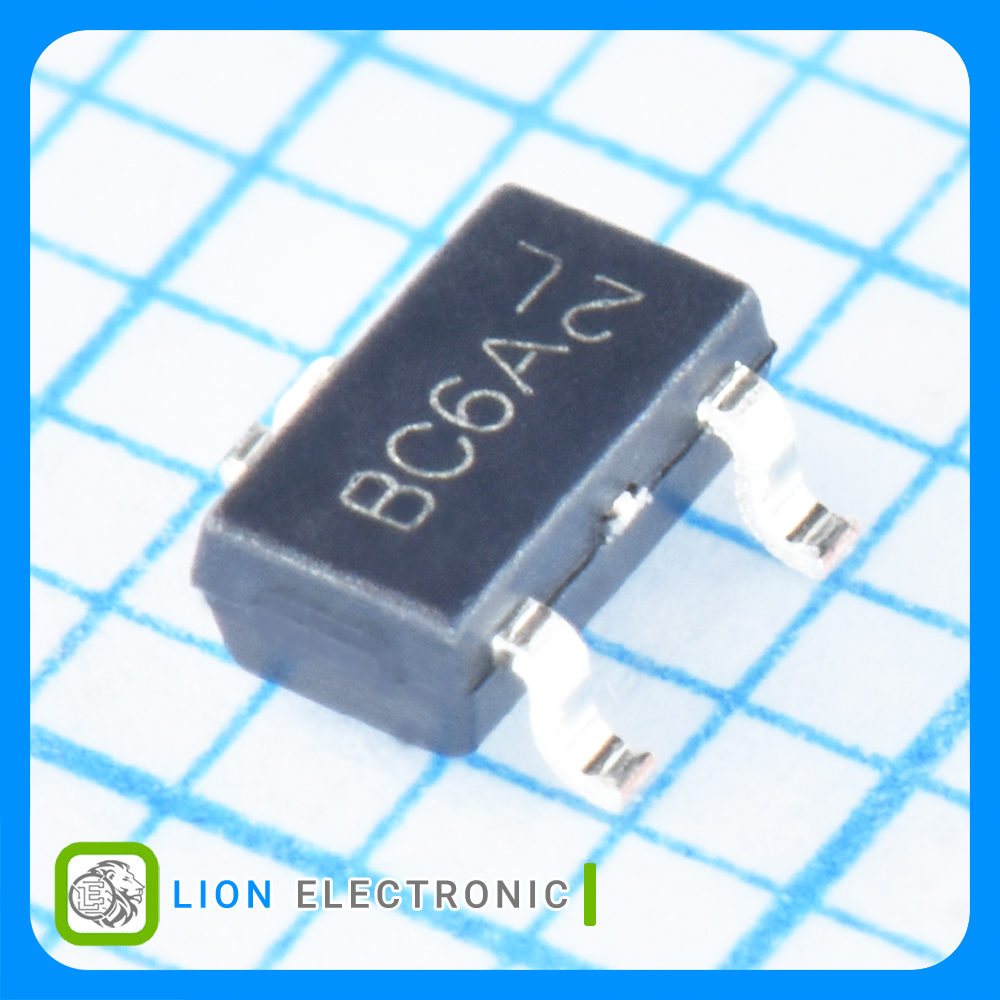

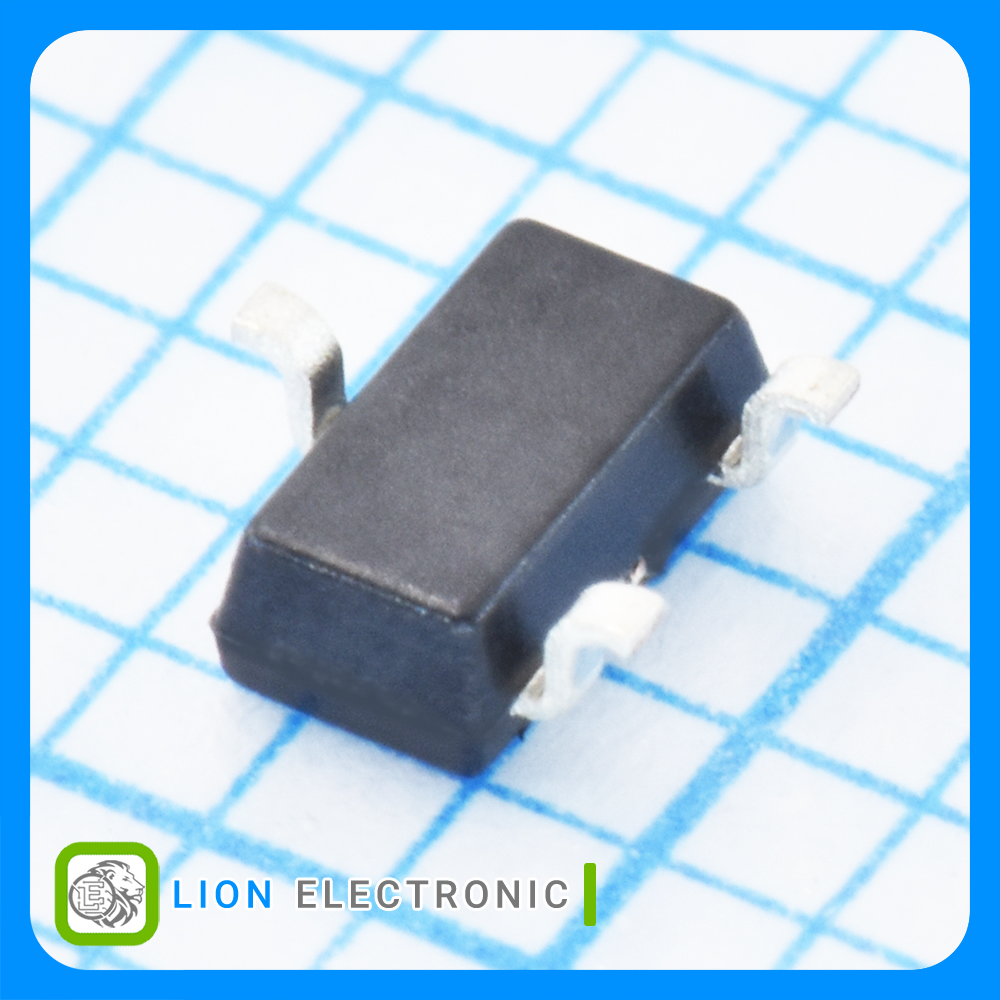

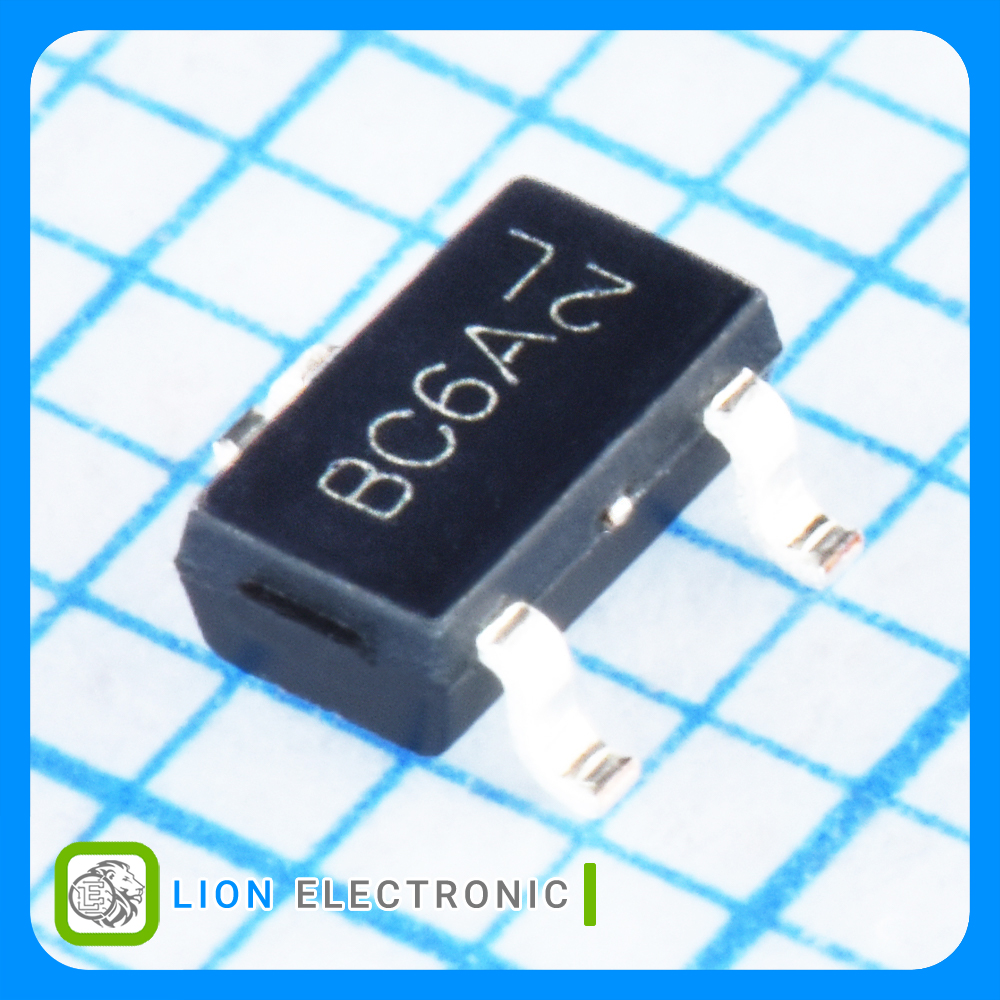

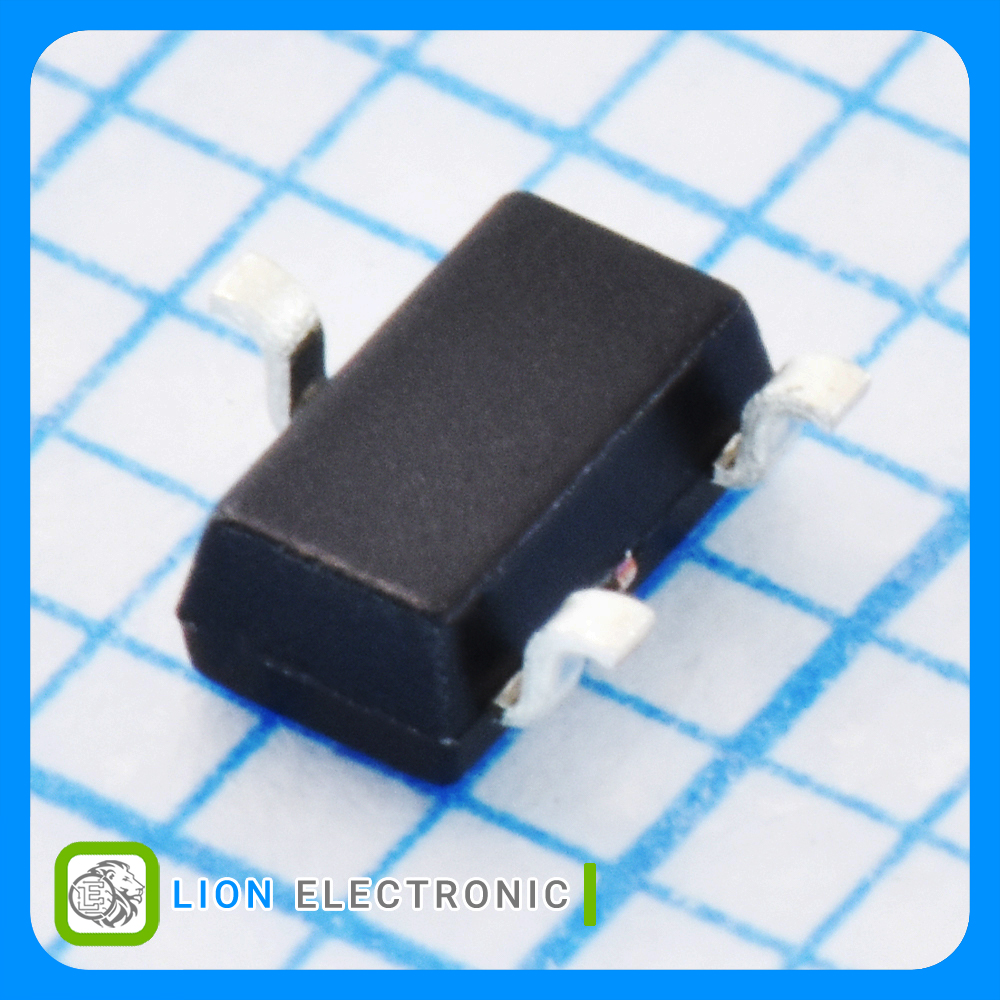

AO3442
AO3442
Part Number
3264
Lion Part
Datasheet
Alpha & Omega Semiconductor Manufacture
ماسفت 100 ولت 1 آمپر نوع N با پکیج SOT-23-3
N-CH MOSFET 100V, 1A with SOT-23-3 Package
معرفی
ماسفت 100 ولت 1 آمپر نوع N با پکیج SOT-23-3
N-CH MOSFET 100V, 1A with SOT-23-3 Package
Specifications
- Package/Case: SOT-23-3
- Vds - Drain - Source Breakdown Voltage: 100V
- Id - Continuous Drain Current: 1A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 1.7V
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 514mΩ
- Pd - Power Dissipation: 1.4W
- Qg - Gate Charge: 2.8nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C

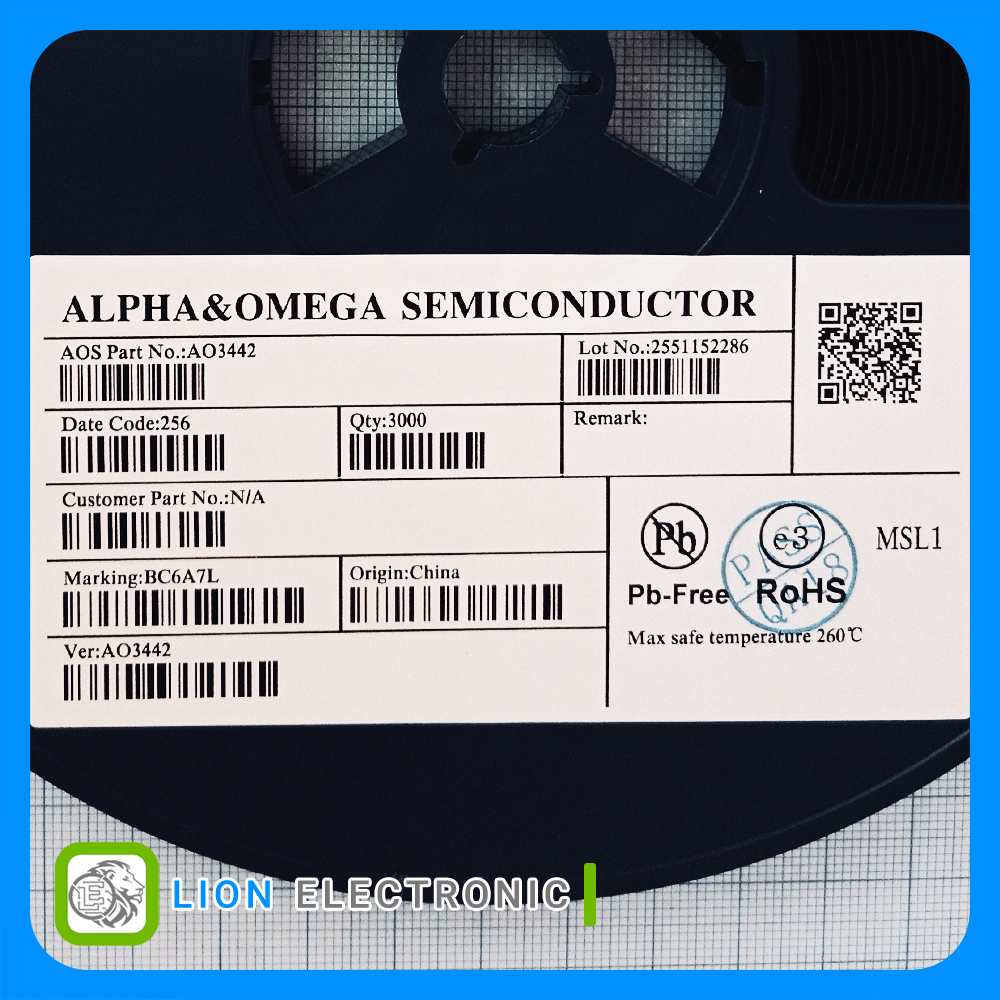

- Packaging: Reel
مشخصات ماسفت AO3442

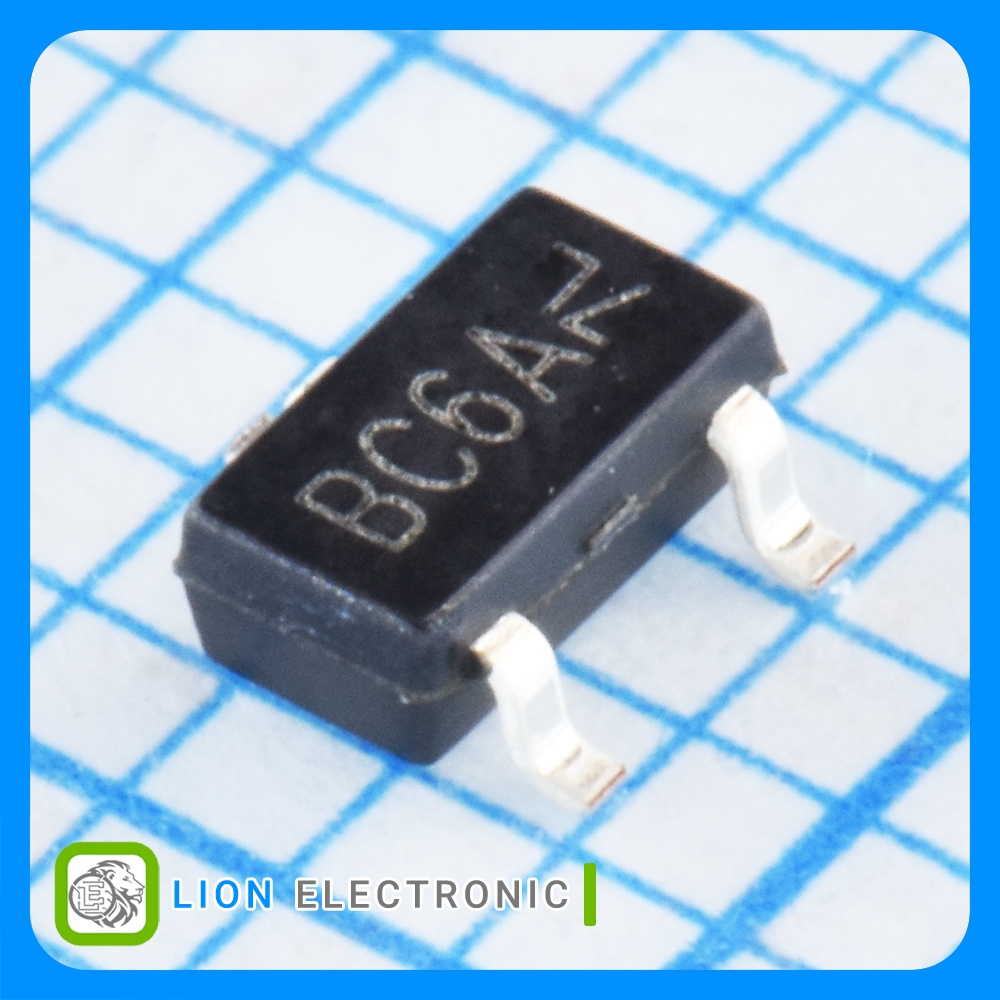

ماسفت AO3442
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Reel
Packaging
2.8nC
Qg - Gate Charge
SMD/SMT
Mounting Style
±20V
Vgs - Gate - Source Voltage
+150C
Maximum Operating Temperature
100V
Vds - Drain - Source Breakdown Voltage
1.7V
Vgs th - Gate - Source Threshold Voltage
1A
Id - Continuous Drain Current
1.4W
Pd - Power Dissipation
514mΩ
Rds On - Drain - Source Resistance
SOT-23-3
Package-Case
