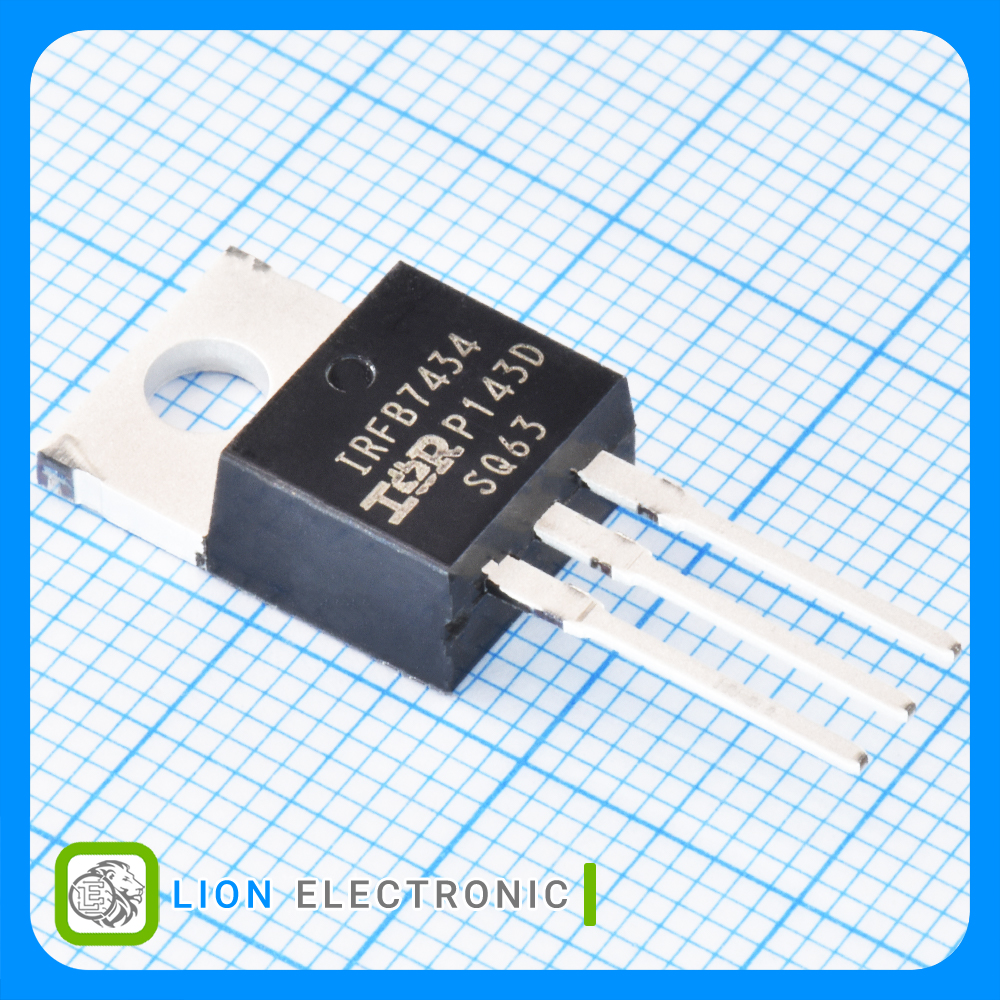

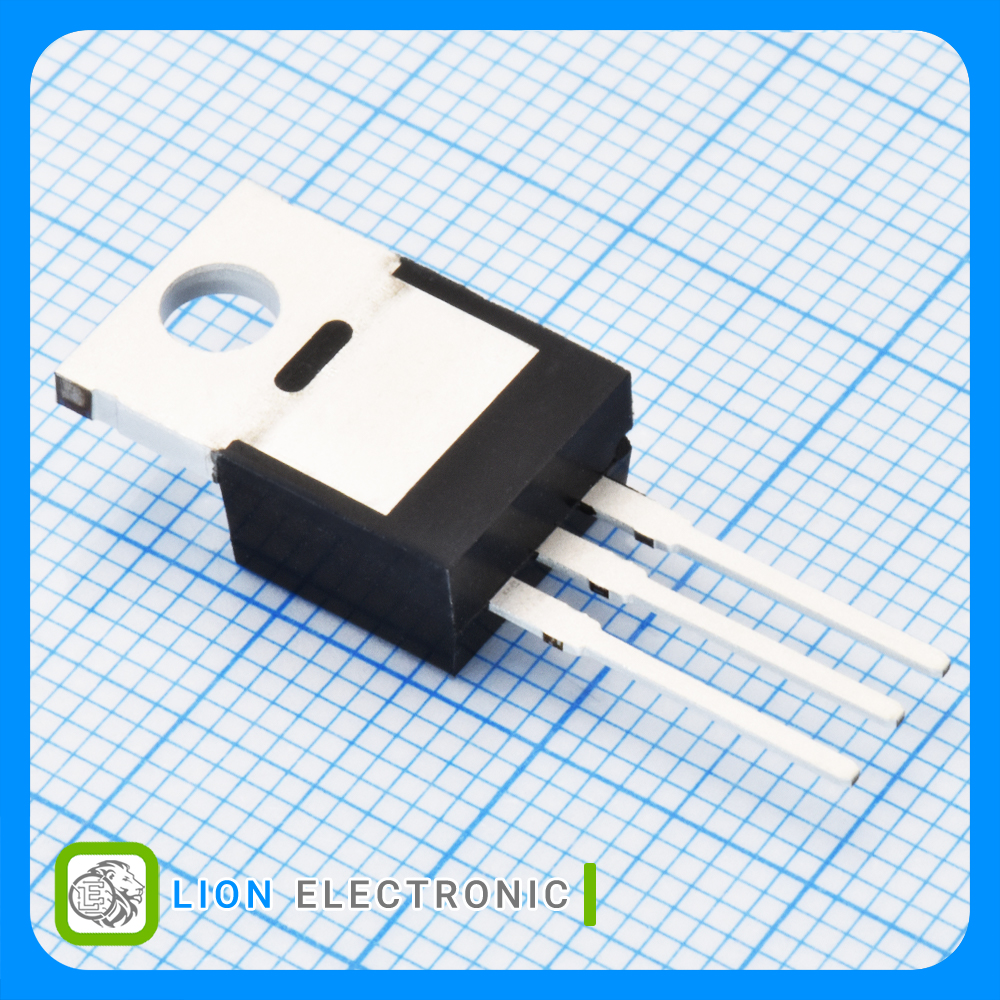

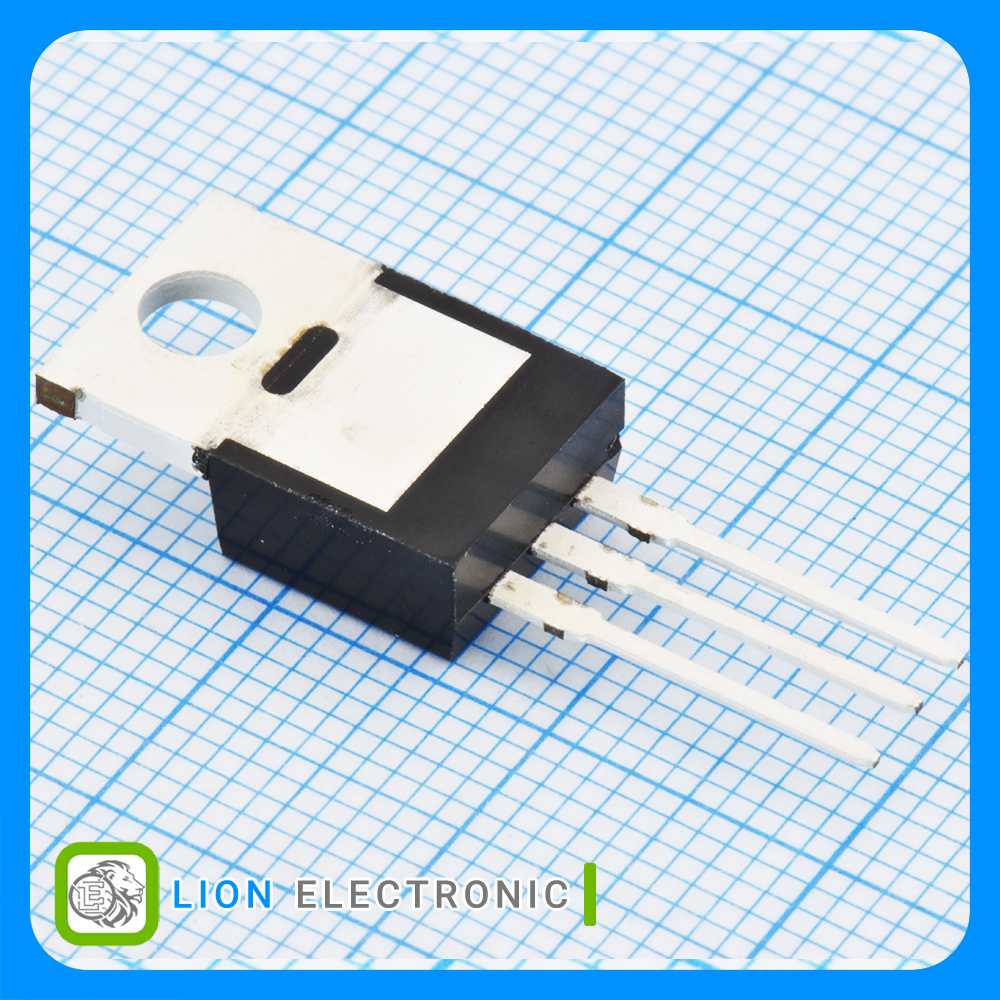

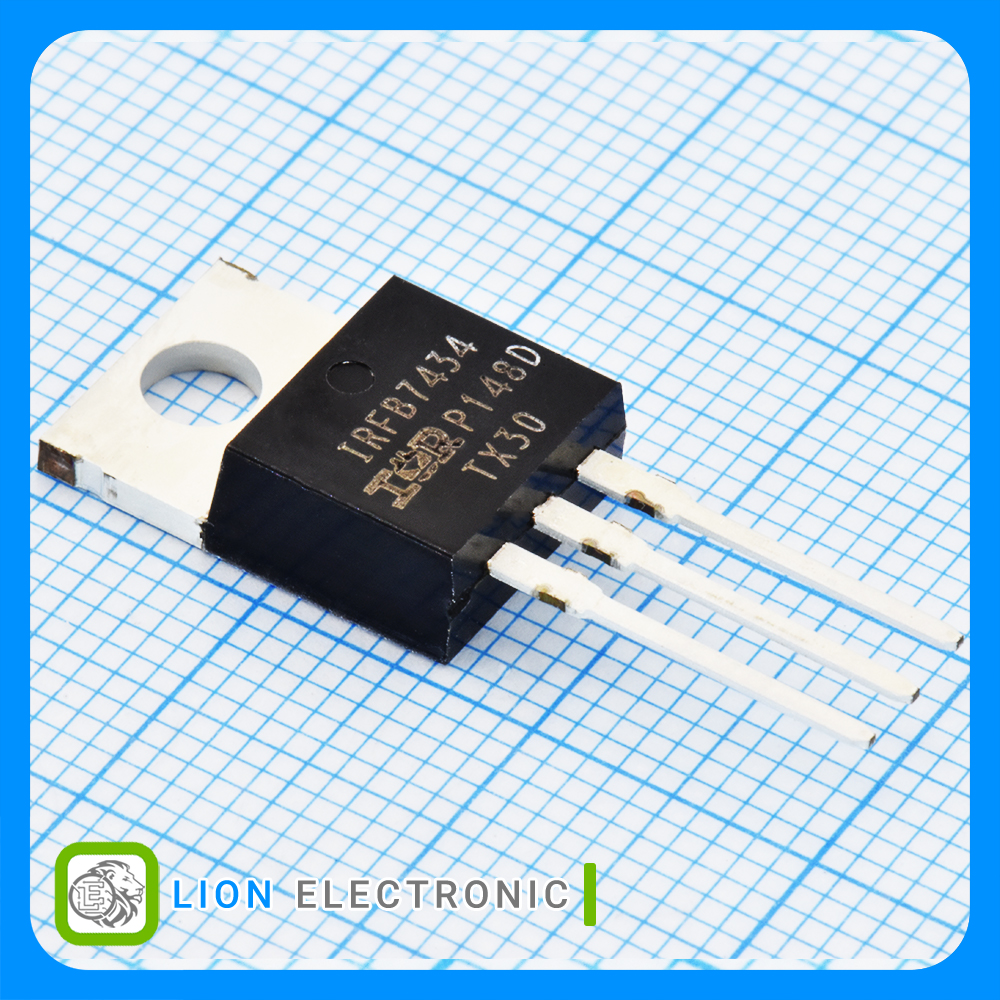

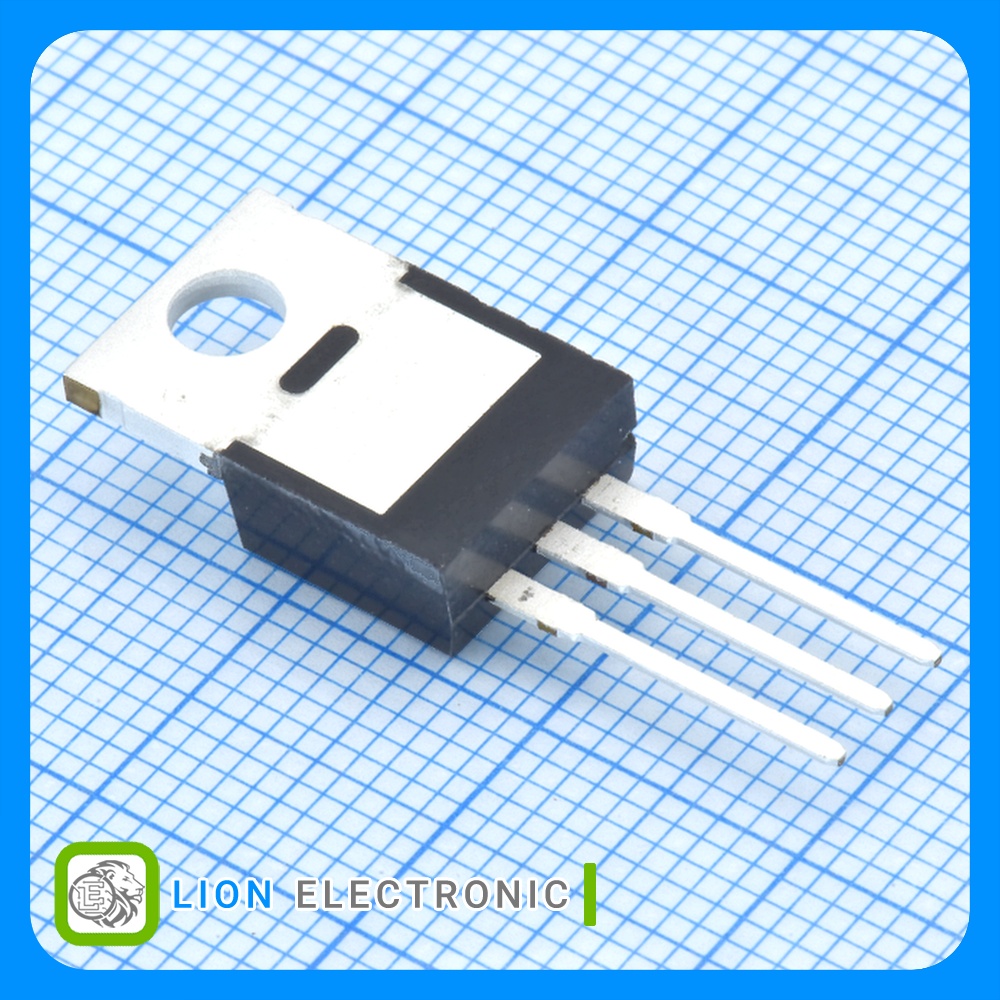

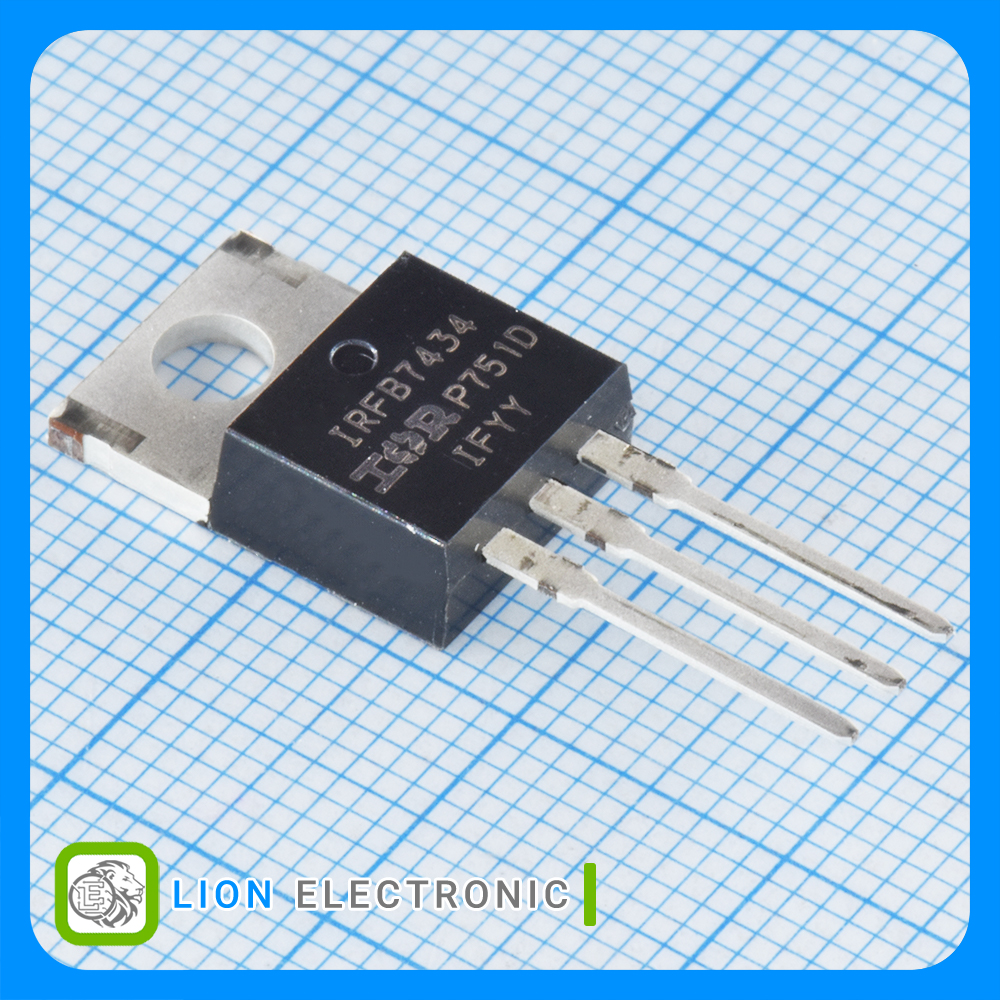

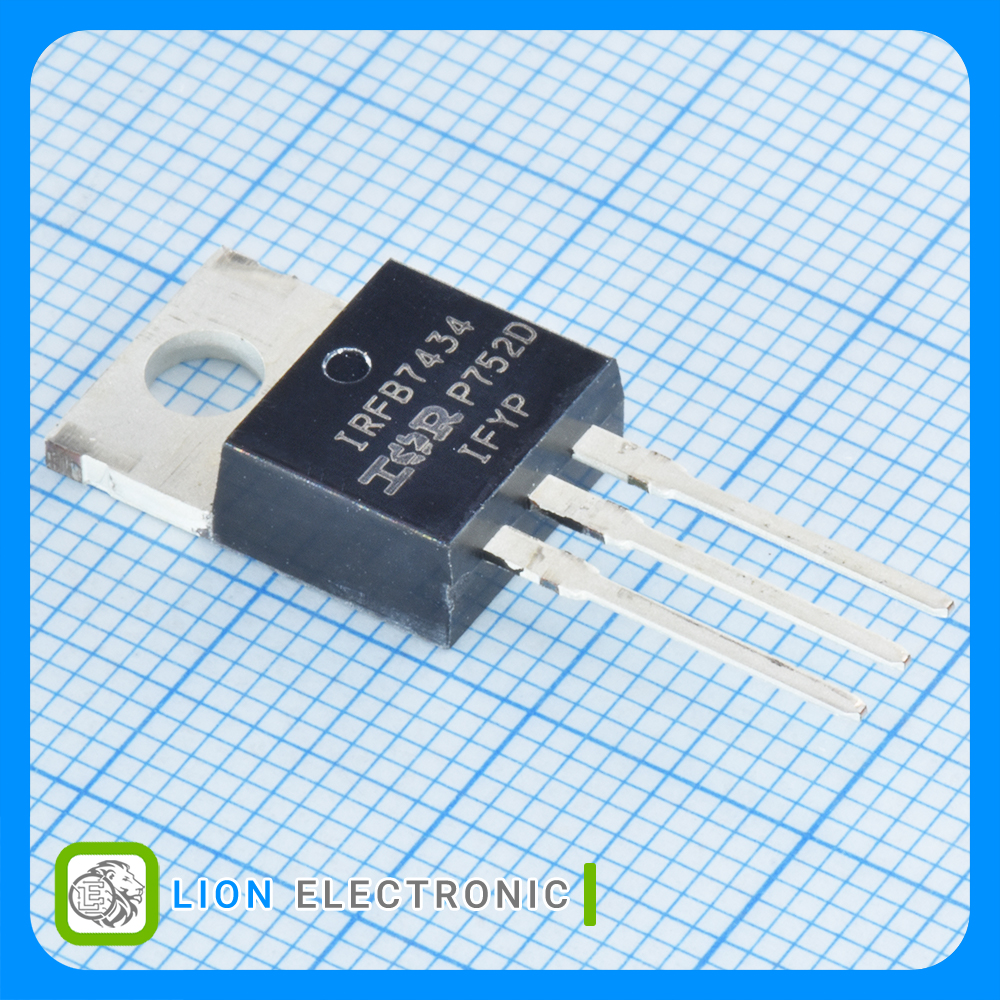

IRFB7434PBF
IRFB7434PBF
Part Number
3276
Lion Part
Datasheet
Infineon Technologies Manufacture
ماسفت 40 ولت نوع N با جریان 195 آمپر (317 آمپر) با پکیج TO-220-3
N-CH MOSFET 40V, 195A (317A) with TO-220-3 Package
معرفی
ماسفت 40 ولت نوع N با جریان 195 آمپر (317 آمپر) با پکیج TO-220-3
N-CH MOSFET 40V, 195A (317A) with TO-220-3 Package
Specifications
- Package/Case: TO-220-3
- Vds - Drain - Source Breakdown Voltage: 40V
- Id - Continuous Drain Current: 195A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 2.2V
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 1.25mΩ
- Pd - Power Dissipation: 294W
- Qg - Gate Charge: 216nC
- Mounting Style: Through Hole
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +175C
- Packaging: Tube
مشخصات ماسفت IRFB7434PBF
ماسفت IRFB7434PBF
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Tube
Packaging
Through Hole
Mounting Style
1.25mΩ
Rds On - Drain - Source Resistance
±20V
Vgs - Gate - Source Voltage
40V
Vds - Drain - Source Breakdown Voltage
+175C
Maximum Operating Temperature
2.2V
Vgs th - Gate - Source Threshold Voltage
216nC
Qg - Gate Charge
195A
Id - Continuous Drain Current
294W
Pd - Power Dissipation
TO-220
Package-Case
