NCE Power
مشخصات ماسفت NCEP40T20A

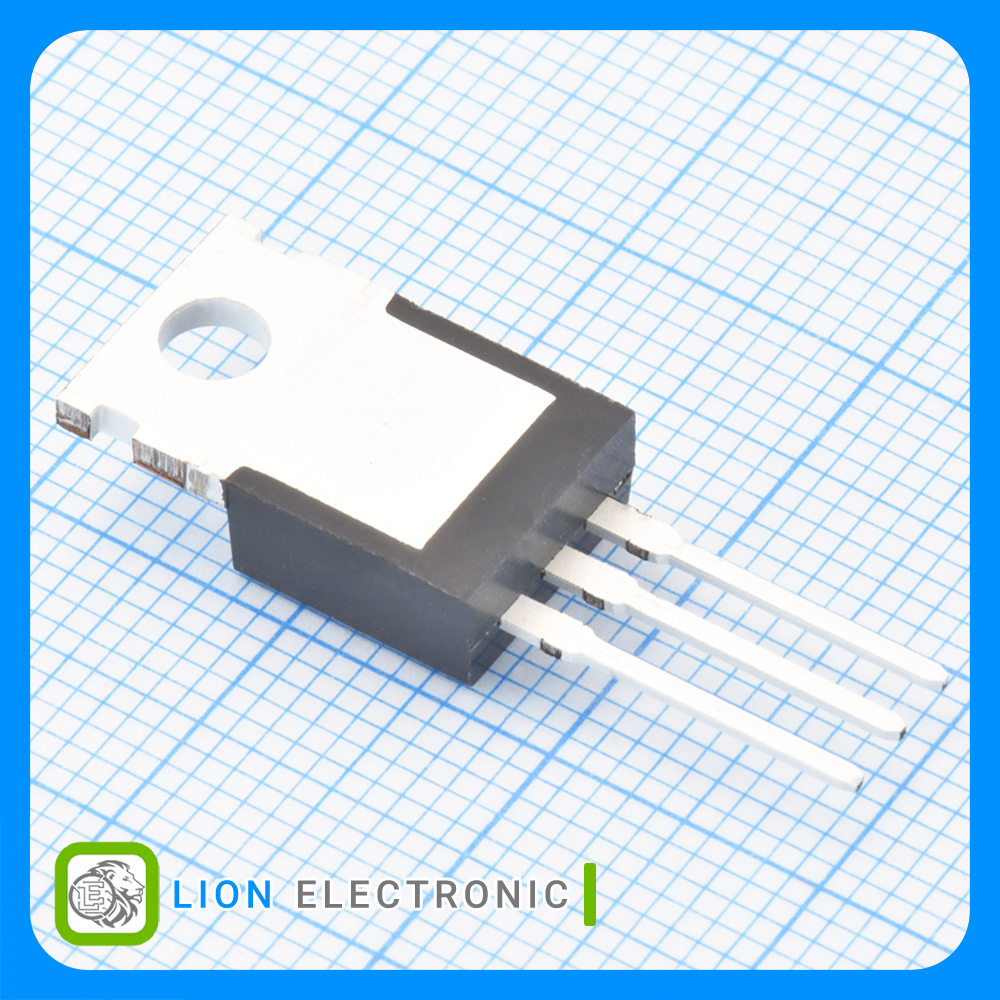

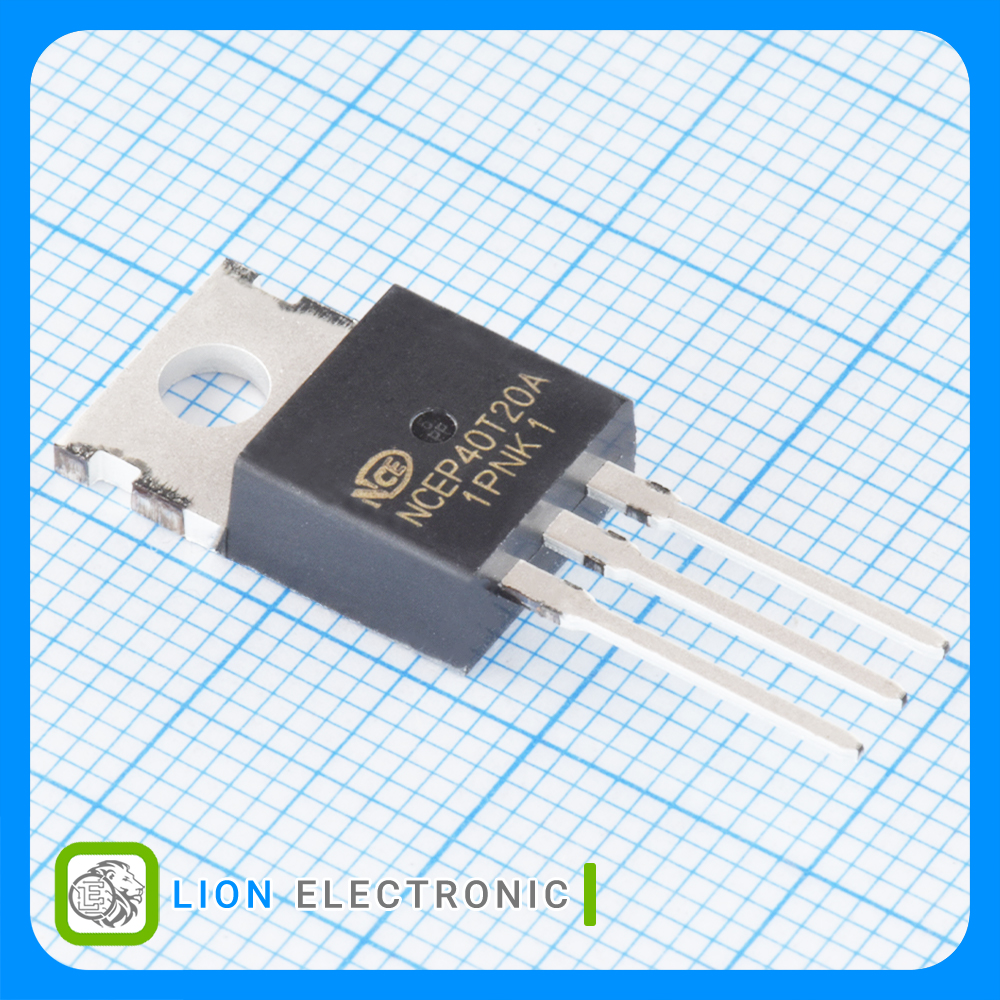

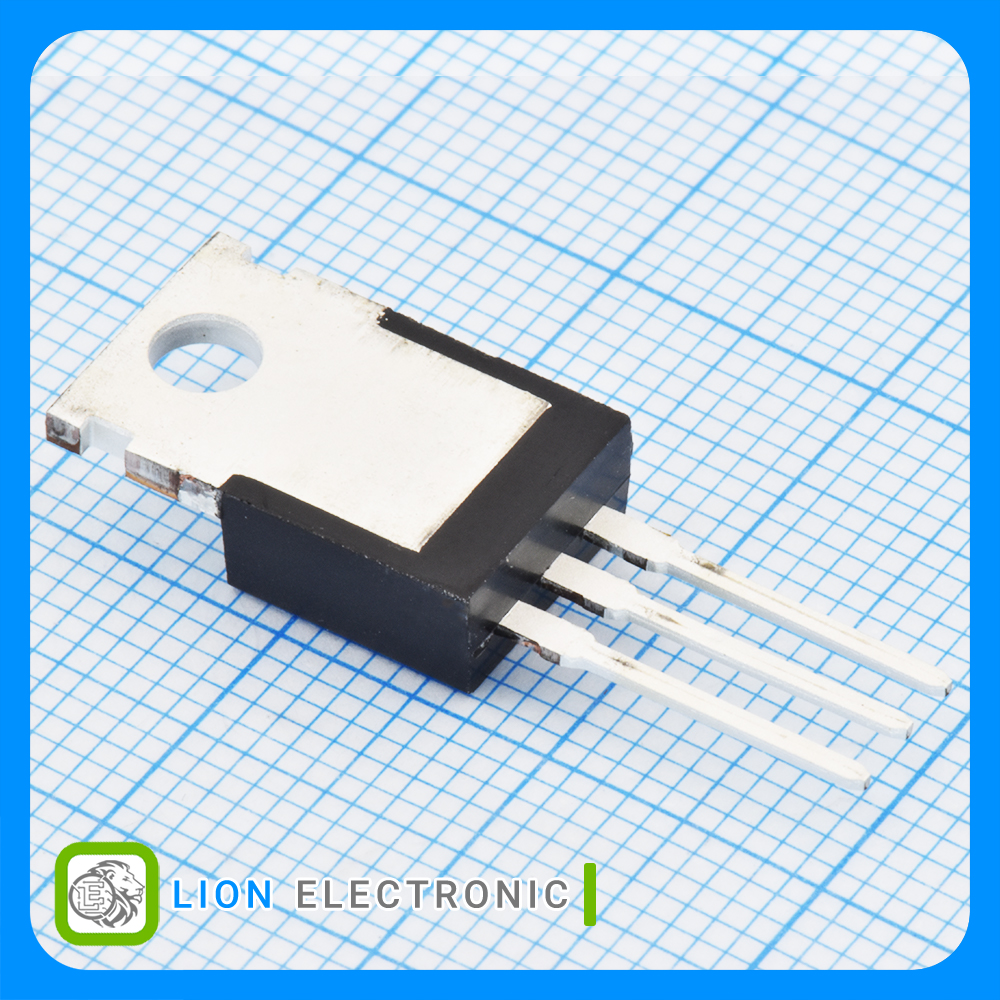

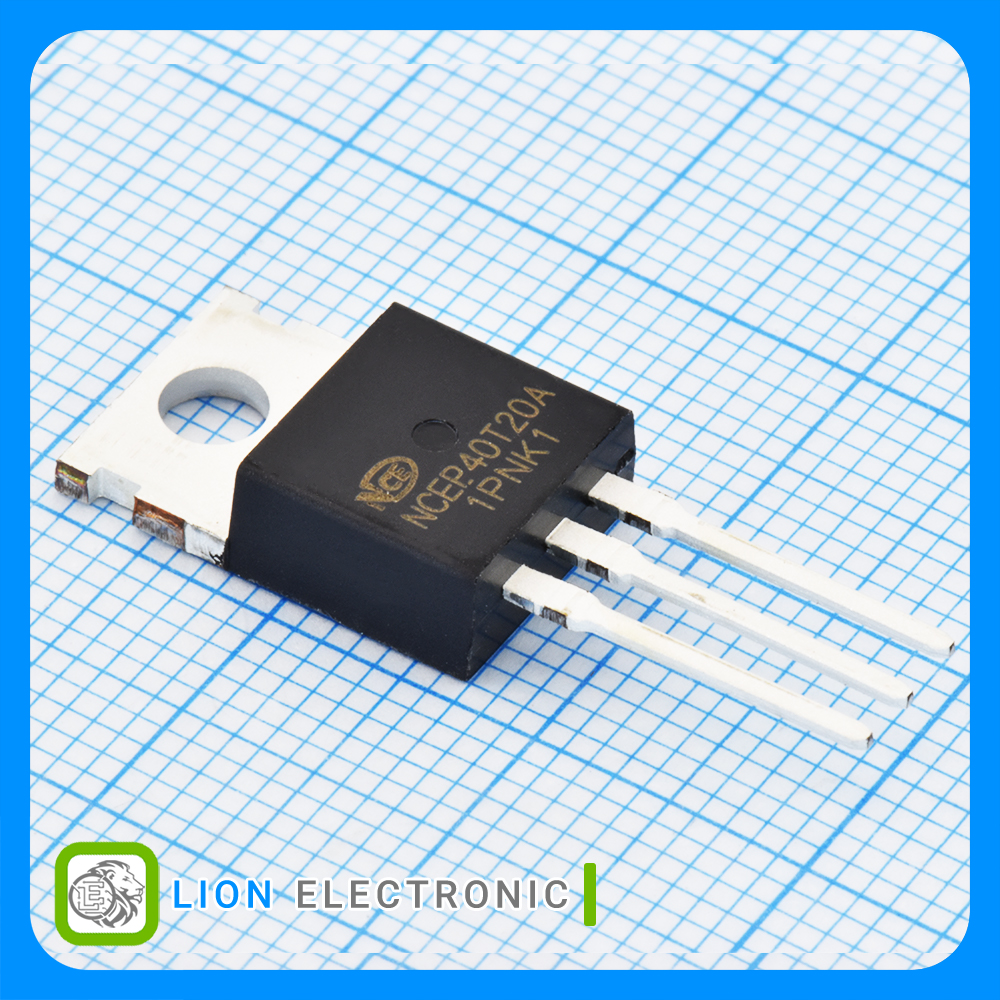

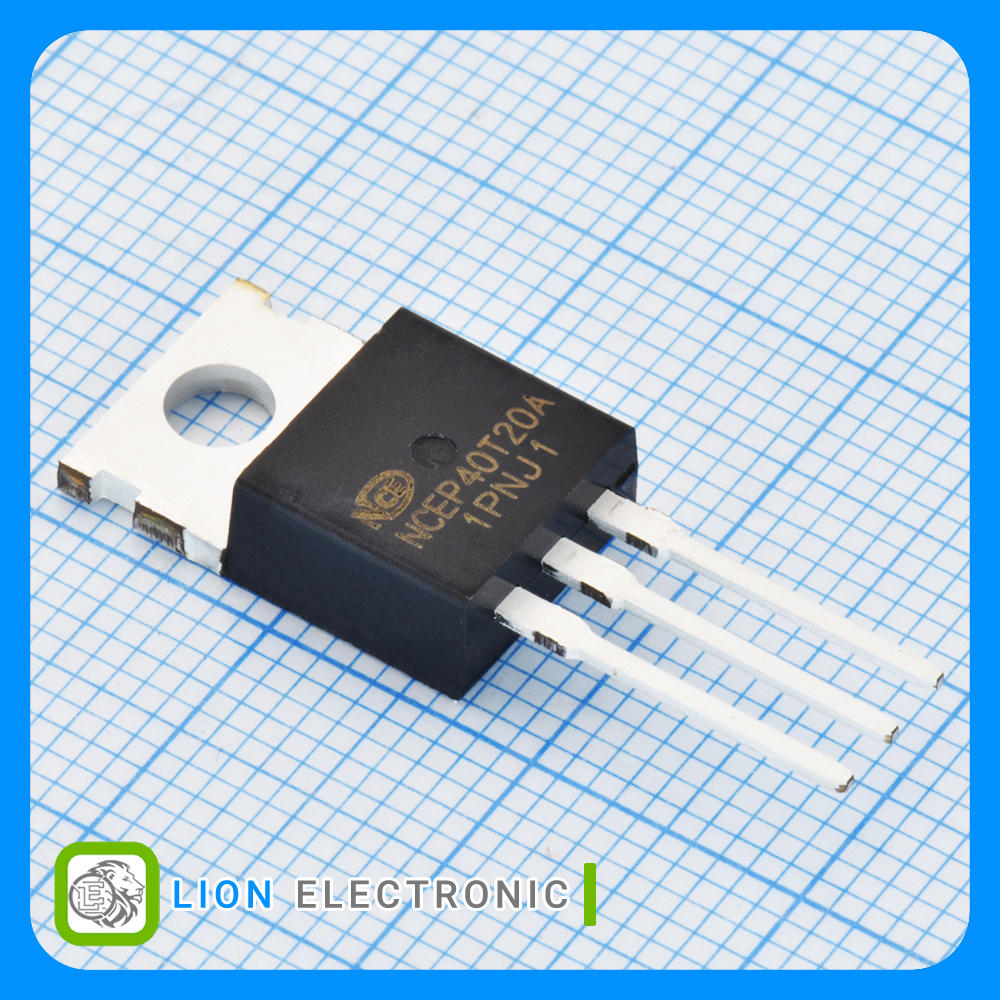

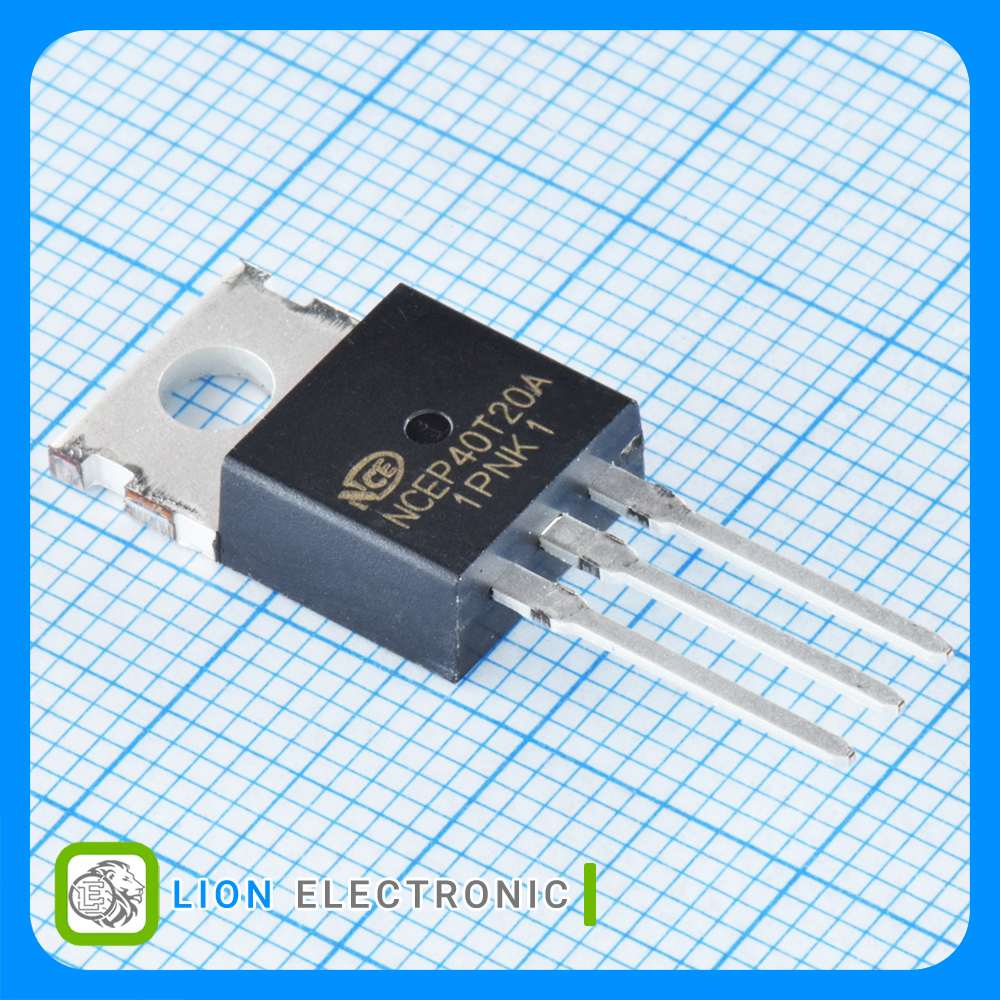

ماسفت NCEP40T20A
Part Number
1
Number of Channels
Enhancement
Channel Mode
N-Channel
Transistor Polarity
-55C
Minimum Operating Temperature
Tube
Packaging
Through Hole
Mounting Style
1.3mΩ
Rds On - Drain - Source Resistance
±20V
Vgs - Gate - Source Voltage
40V
Vds - Drain - Source Breakdown Voltage
+175C
Maximum Operating Temperature
2V
Vgs th - Gate - Source Threshold Voltage
91nC
Qg - Gate Charge
200A
Id - Continuous Drain Current
270W
Pd - Power Dissipation
TO-220-3
Package-Case
