CJ2310
CJ2310
Part Number
3278
Lion Part
Datasheet
Jiangsu Changjing Electronics Technology Manufacture
ماسفت 60 ولت 3 آمپر نوع N با پکیج SOT-23-3

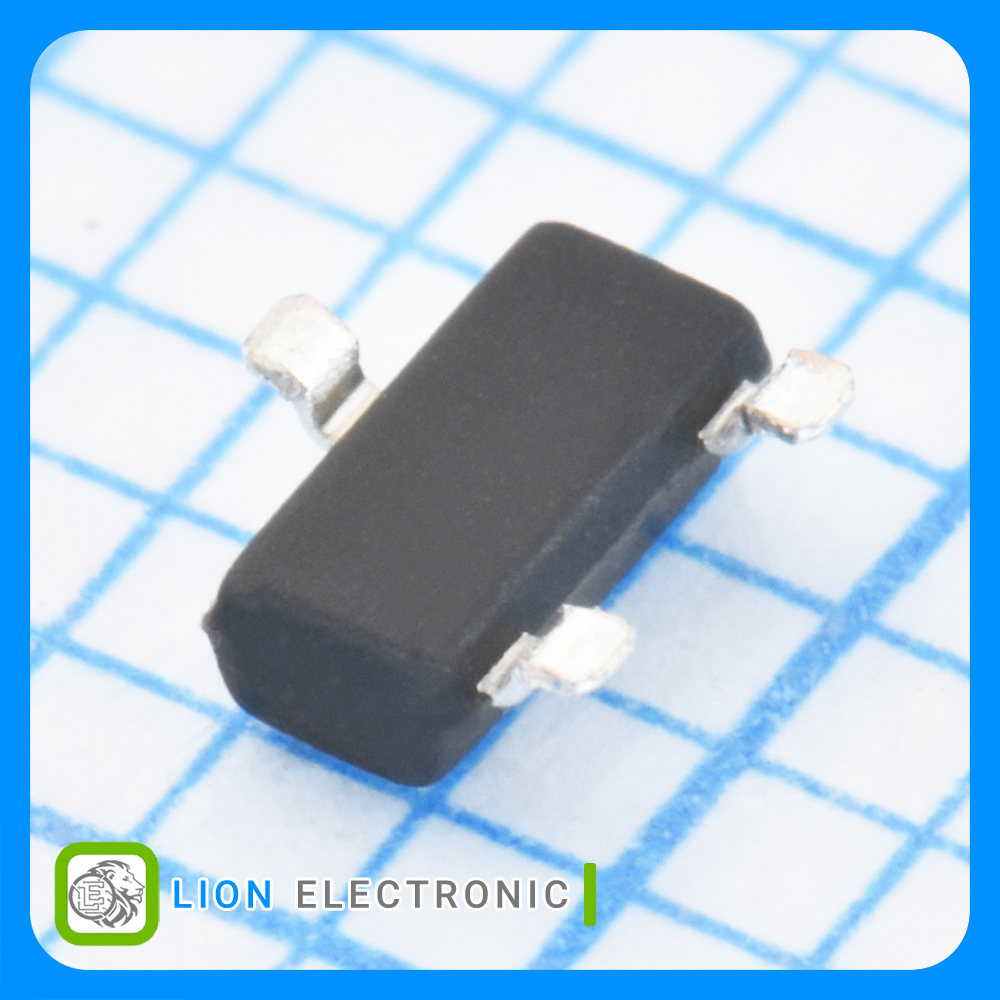

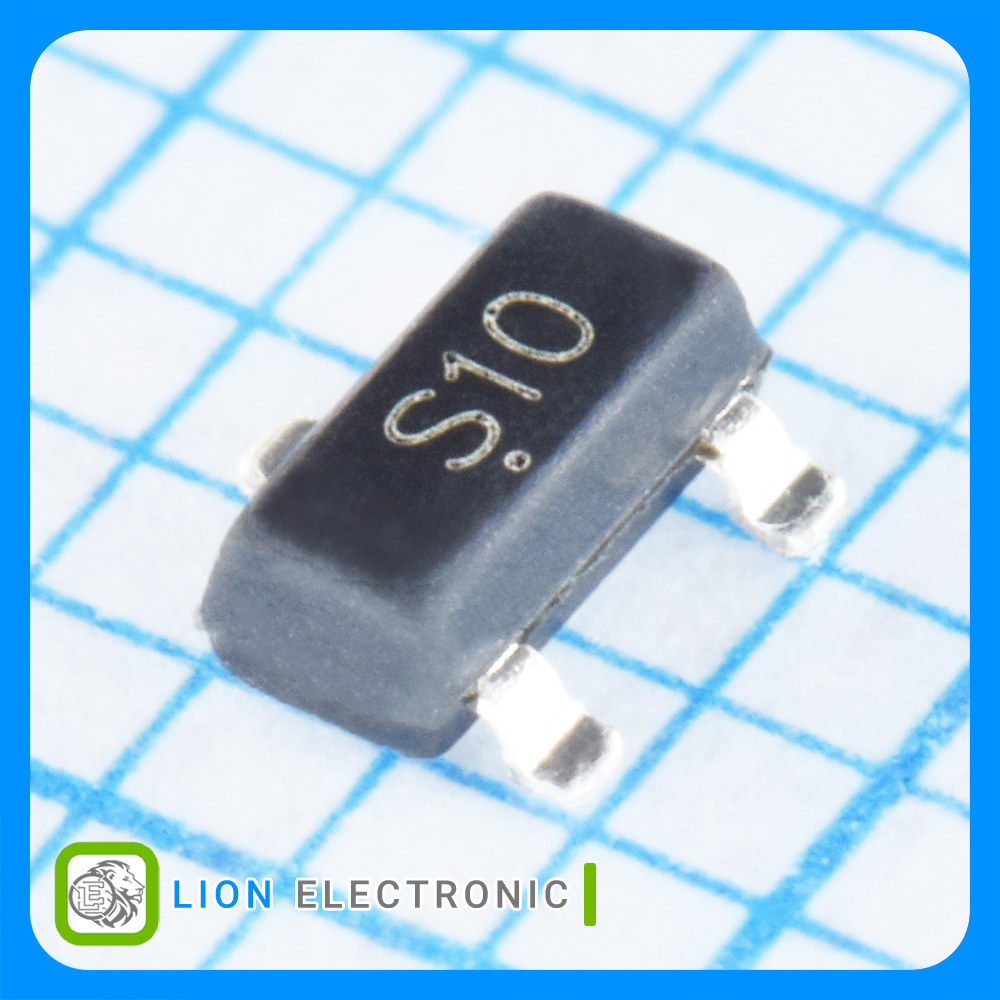

N-CH MOSFET 60V, 3A with SOT-23-3 Package
معرفی
ماسفت 60 ولت 3 آمپر نوع N با پکیج SOT-23-3
N-CH MOSFET 60V, 3A with SOT-23-3 Package
Specifications
- Package/Case: SOT-23-3
- Vds - Drain - Source Breakdown Voltage: 60V
- Id - Continuous Drain Current: 3A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 500mV
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 105mΩ
- Pd - Power Dissipation: 350mW
- Qg - Gate Charge: 6nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات ماسفت CJ2310
ماسفت CJ2310
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Reel
Packaging
SMD/SMT
Mounting Style
±20V
Vgs - Gate - Source Voltage
+150C
Maximum Operating Temperature
60V
Vds - Drain - Source Breakdown Voltage
6nC
Qg - Gate Charge
500mV
Vgs th - Gate - Source Threshold Voltage
350mW
Pd - Power Dissipation
3A
Id - Continuous Drain Current
105mΩ
Rds On - Drain - Source Resistance
SOT-23-3
Package-Case
