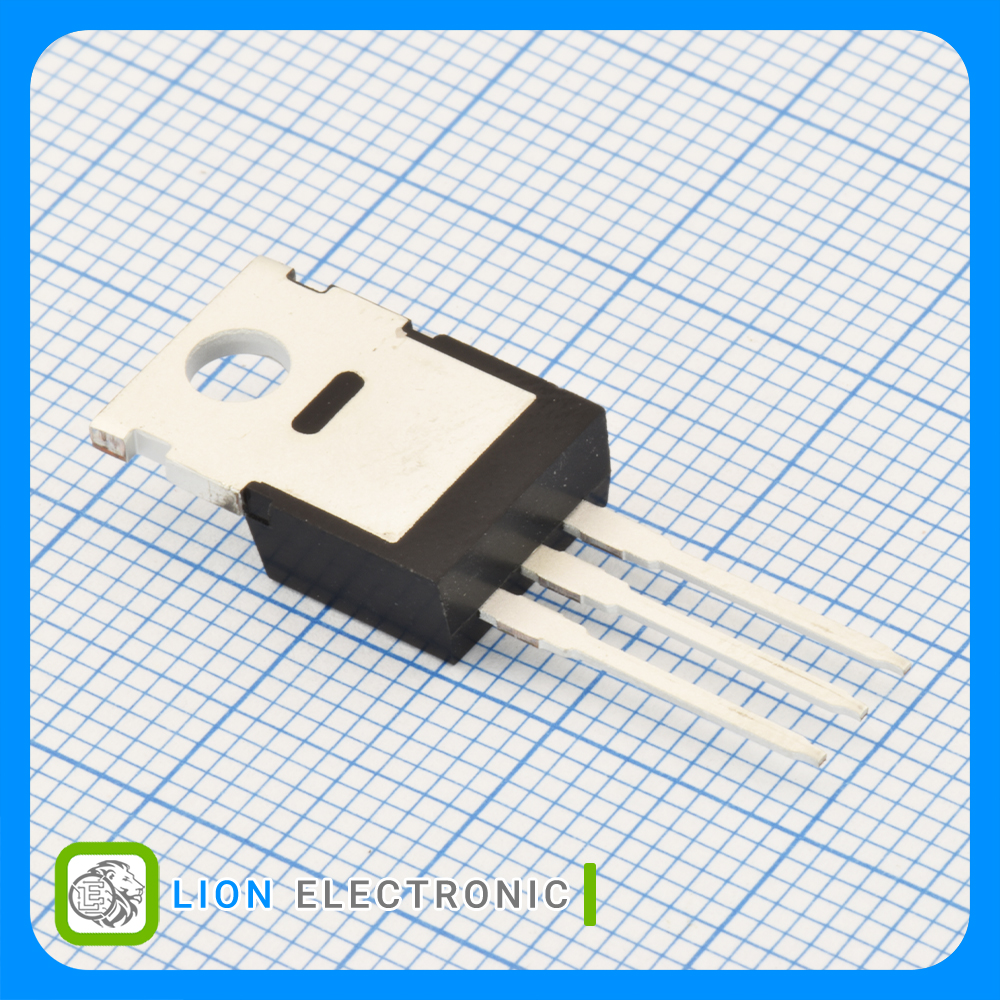

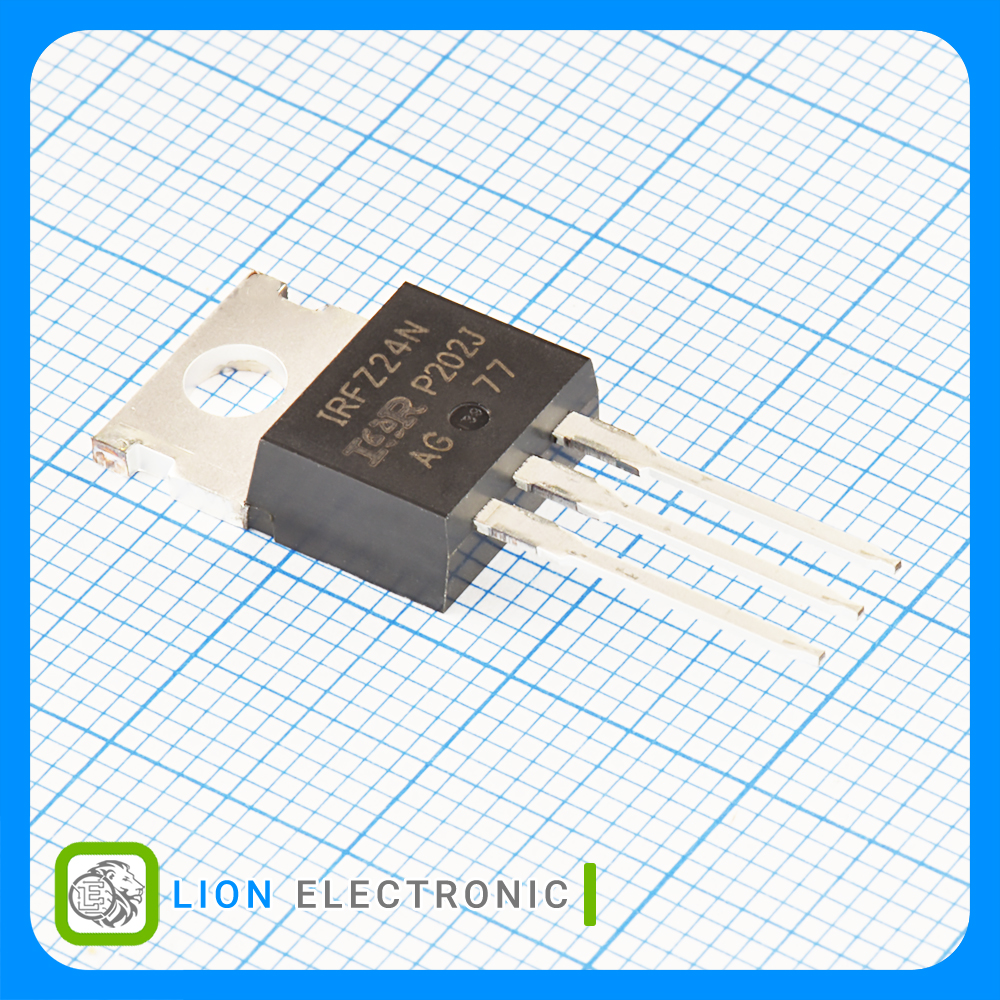

ماسفت IRFZ24N
IRFZ24N
Part Number
3281
Lion Part
Datasheet
Infineon Technologies Manufacture
ماسفت 55 ولت 17 آمپر نوع N با پکیج TO-220-3
N-CH MOS 55V 17A TO-220-3
معرفی
ماسفت منفی 55 ولت 17 آمپر پکیج TO-220
مشخصات ماسفت IRFZ24N
ماسفت IRFZ24N
Part Number
1
Number of Channels
Enhancement
Channel Mode
N-Channel
Transistor Polarity
-55C
Minimum Operating Temperature
Tube
Packaging
Through Hole
Mounting Style
±20V
Vgs - Gate - Source Voltage
55V
Vds - Drain - Source Breakdown Voltage
+175C
Maximum Operating Temperature
2V
Vgs th - Gate - Source Threshold Voltage
20nC
Qg - Gate Charge
17A
Id - Continuous Drain Current
45W
Pd - Power Dissipation
70mΩ
Rds On - Drain - Source Resistance
TO-220-3
Package-Case
