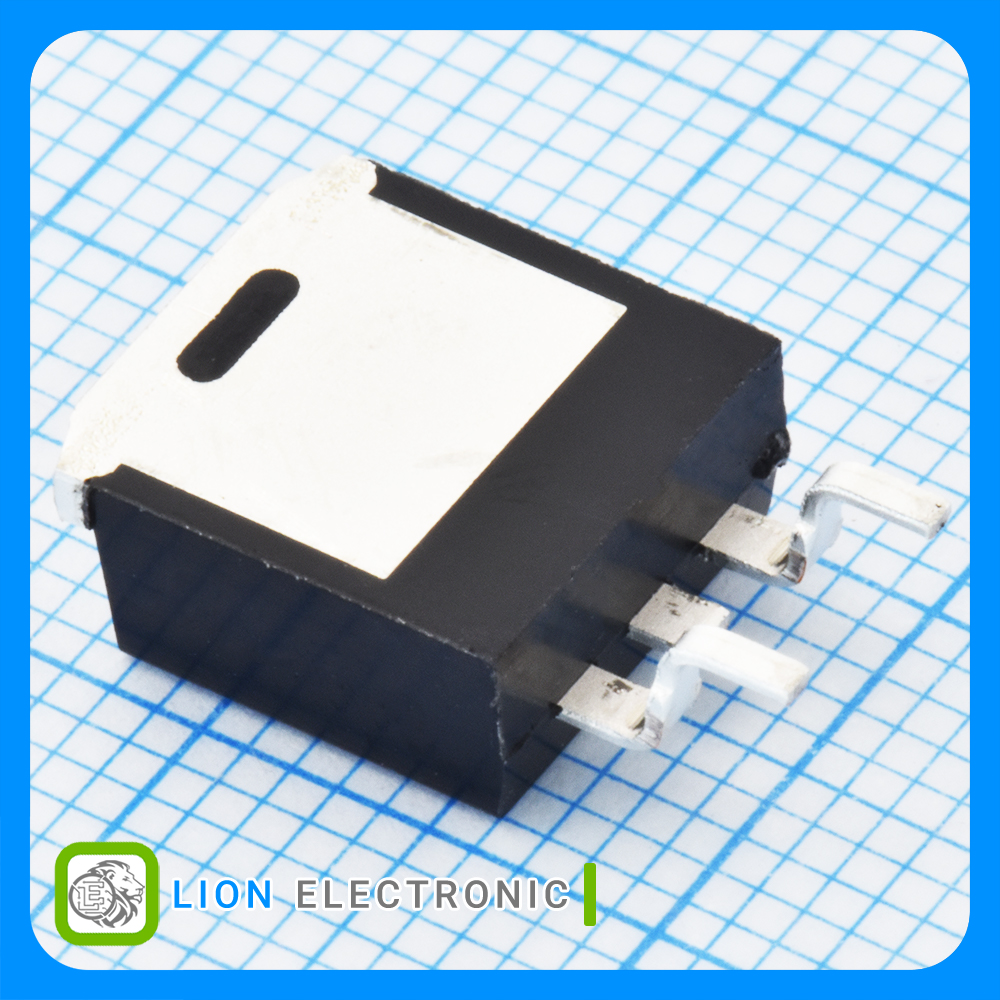

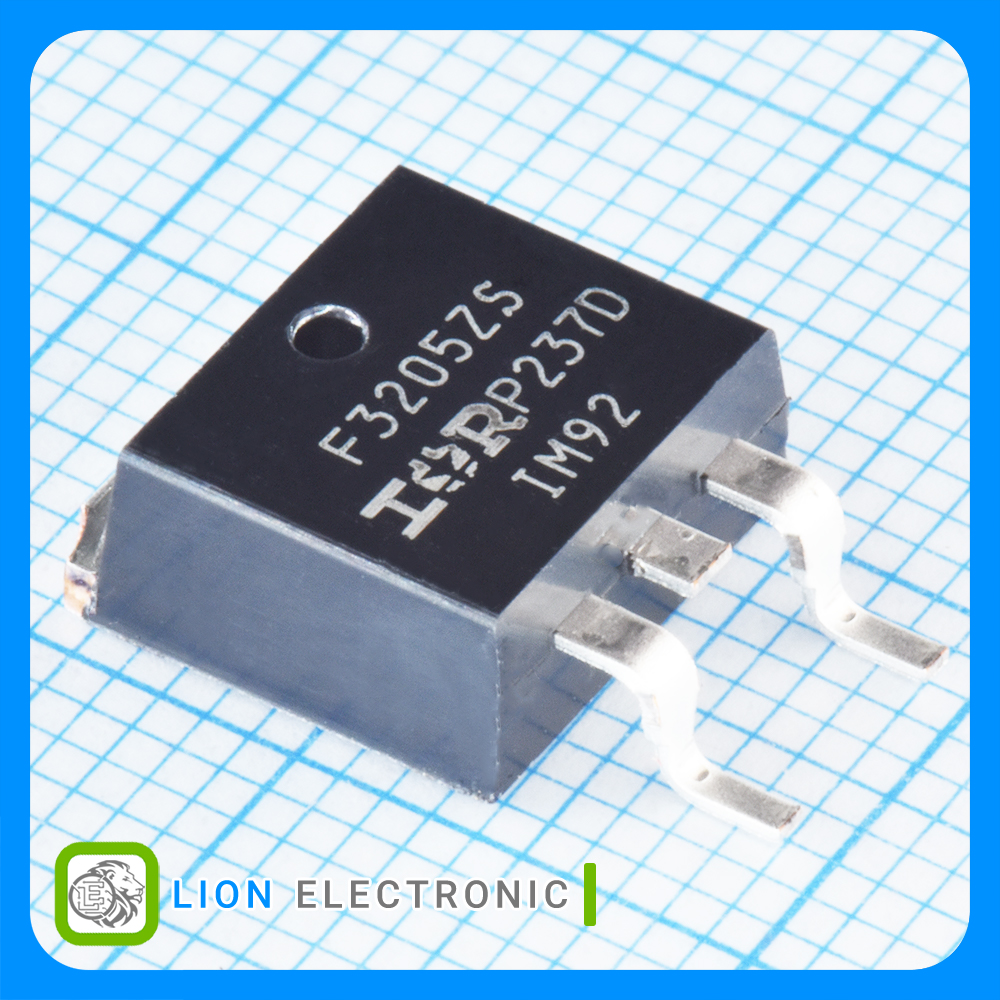

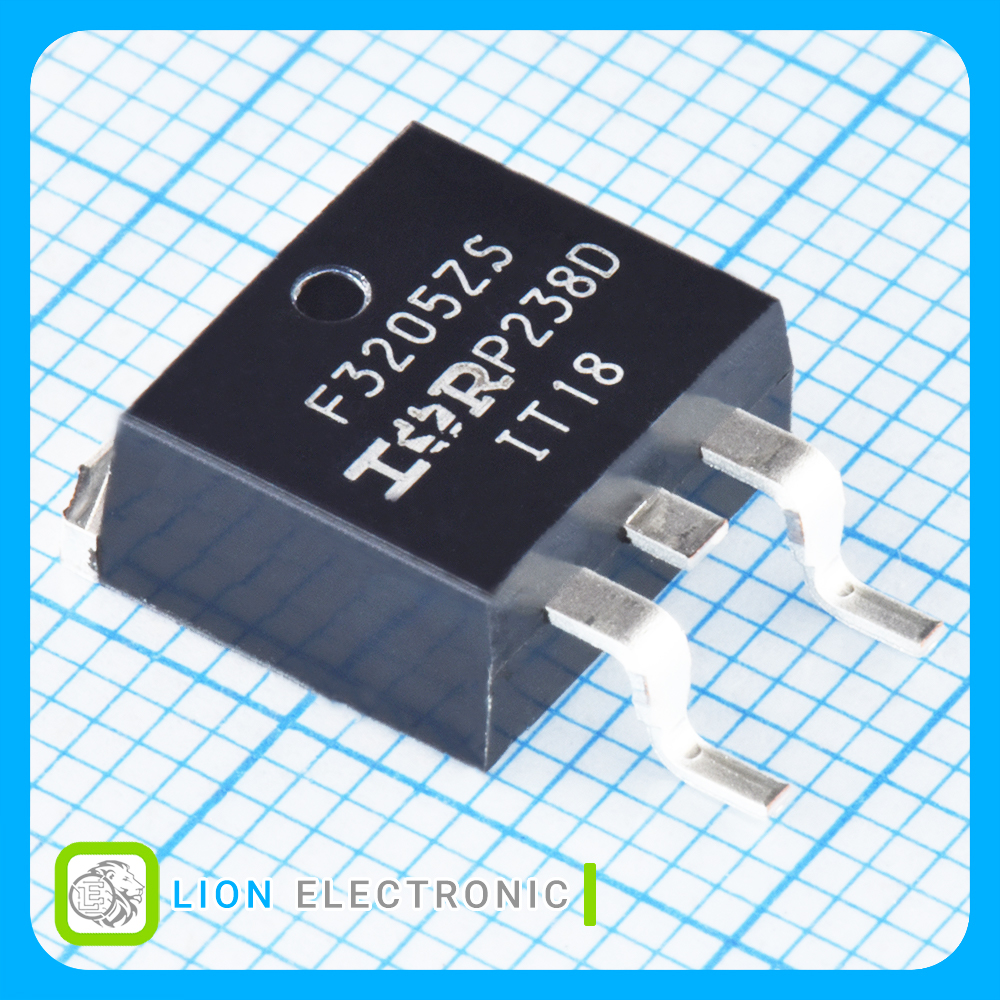

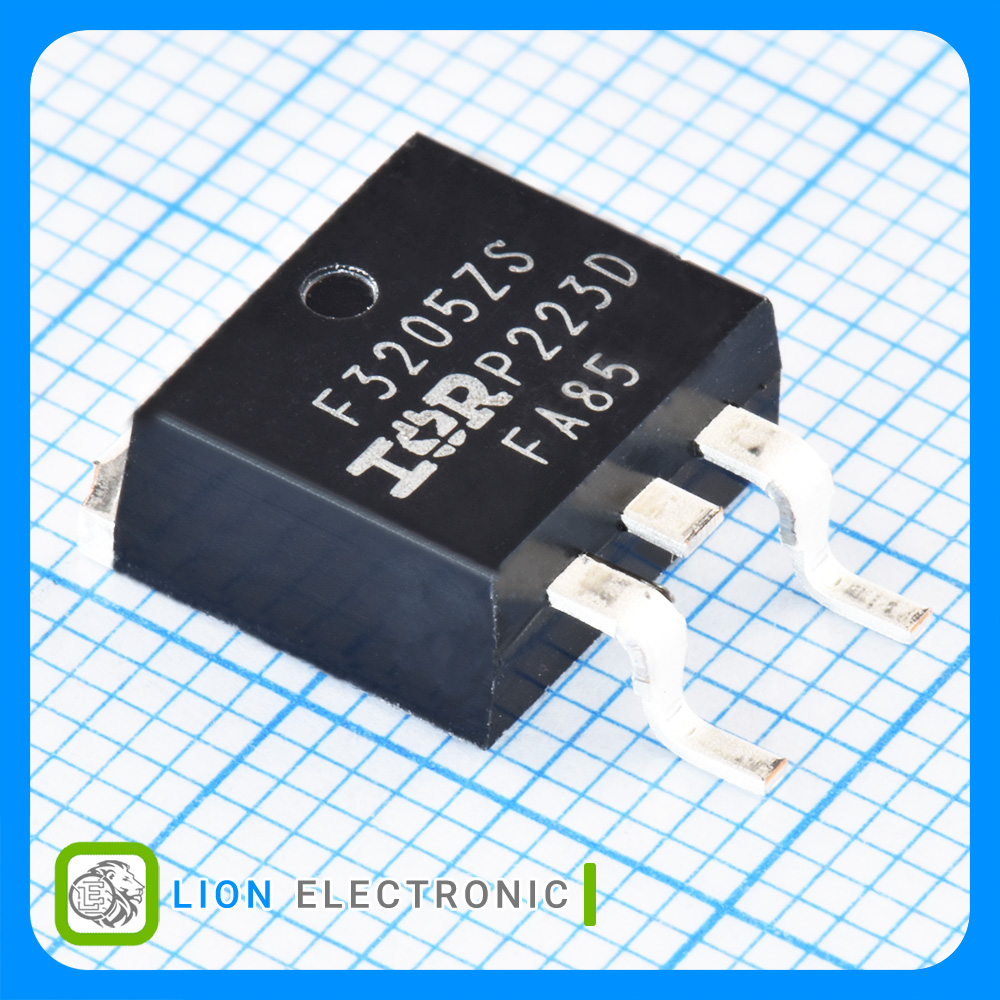

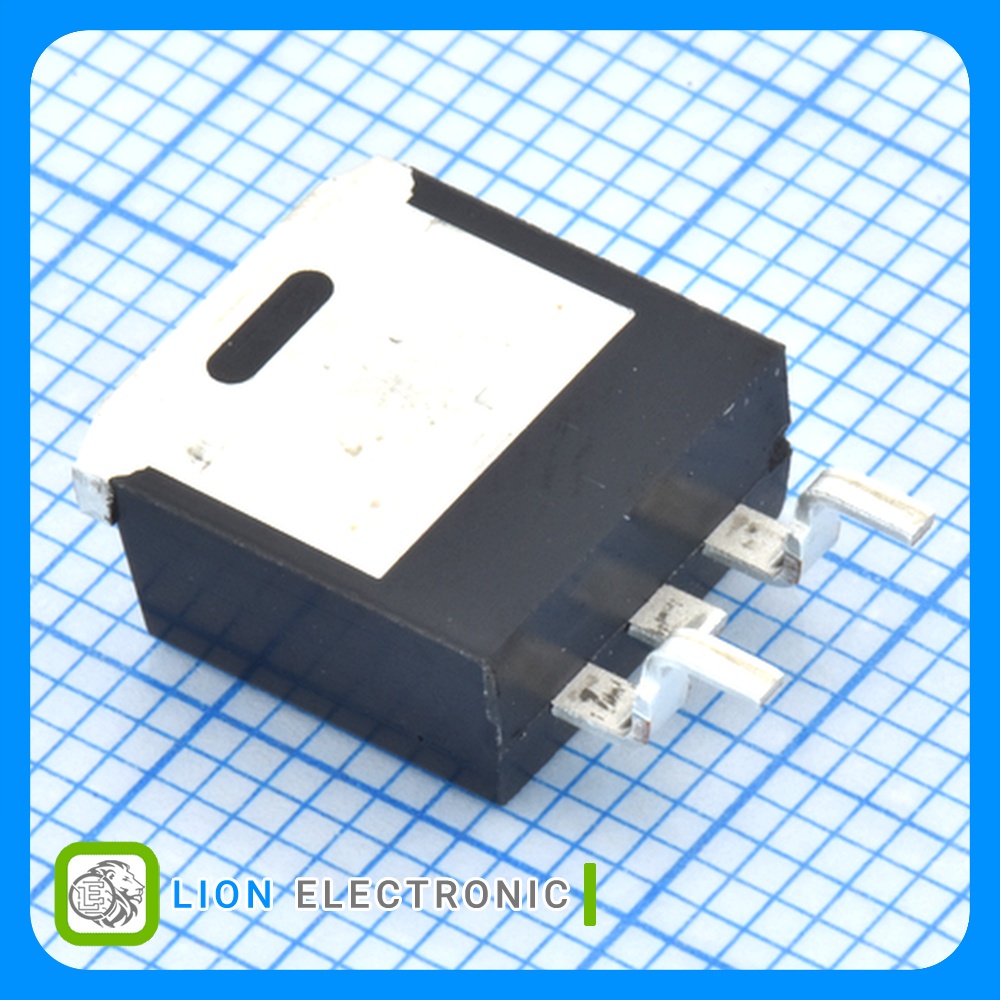

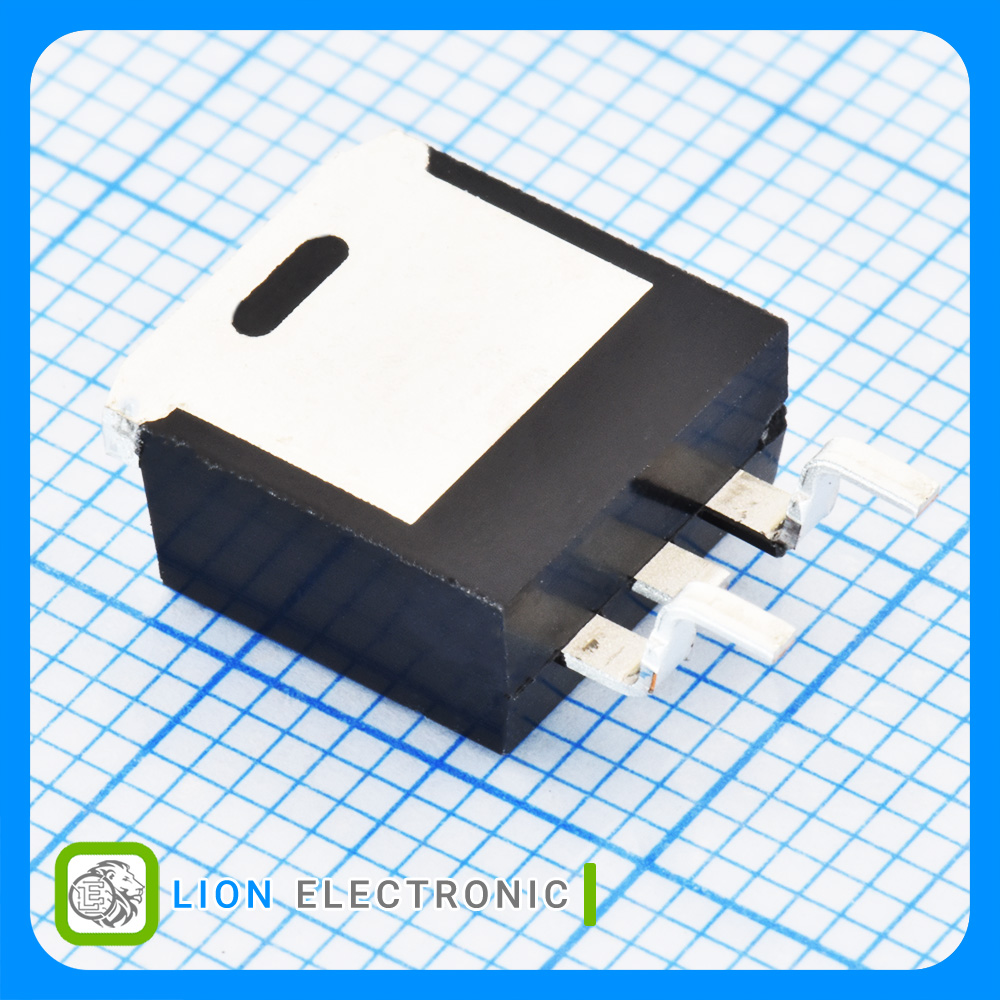

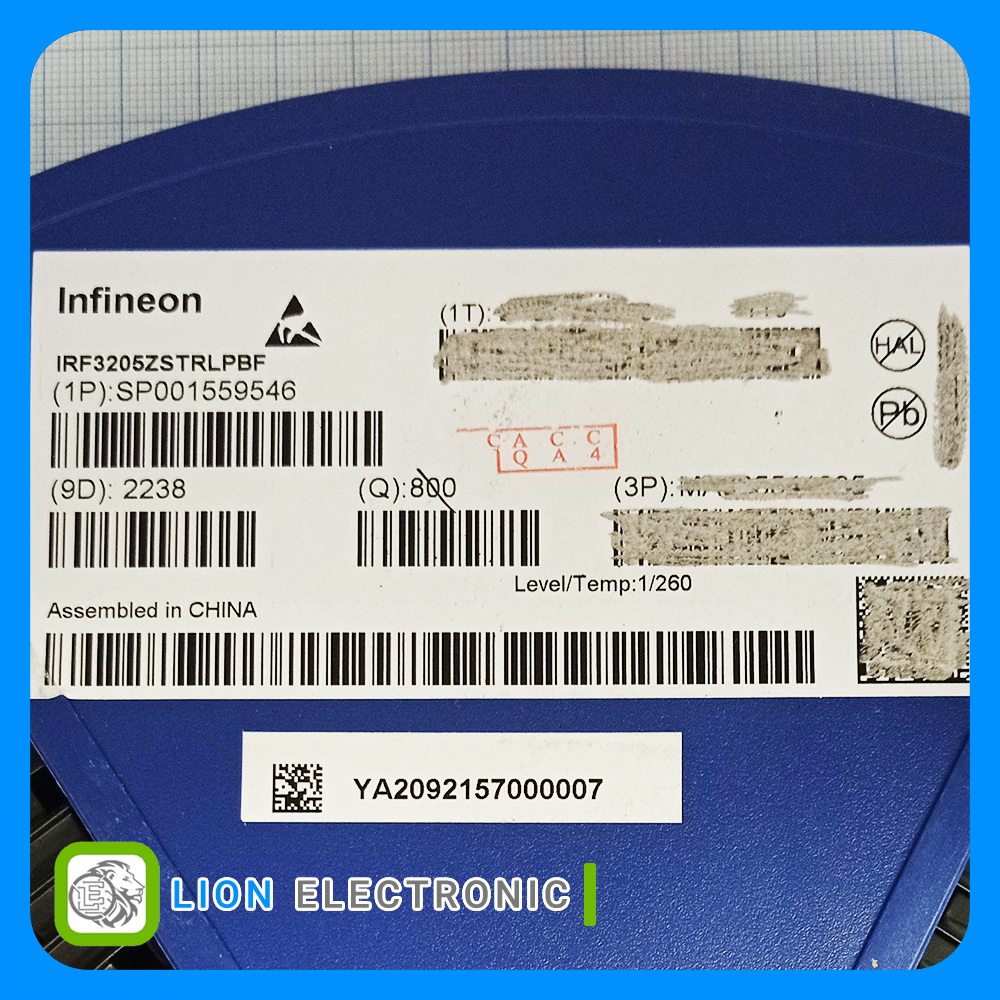

IRF3205ZSTRLPBF
IRF3205ZSTRLPBF
Part Number
3284
Lion Part
Datasheet
Infineon Technologies Manufacture
ماسفت 55 ولت 75 آمپر نوع N با پکیج TO-263-3

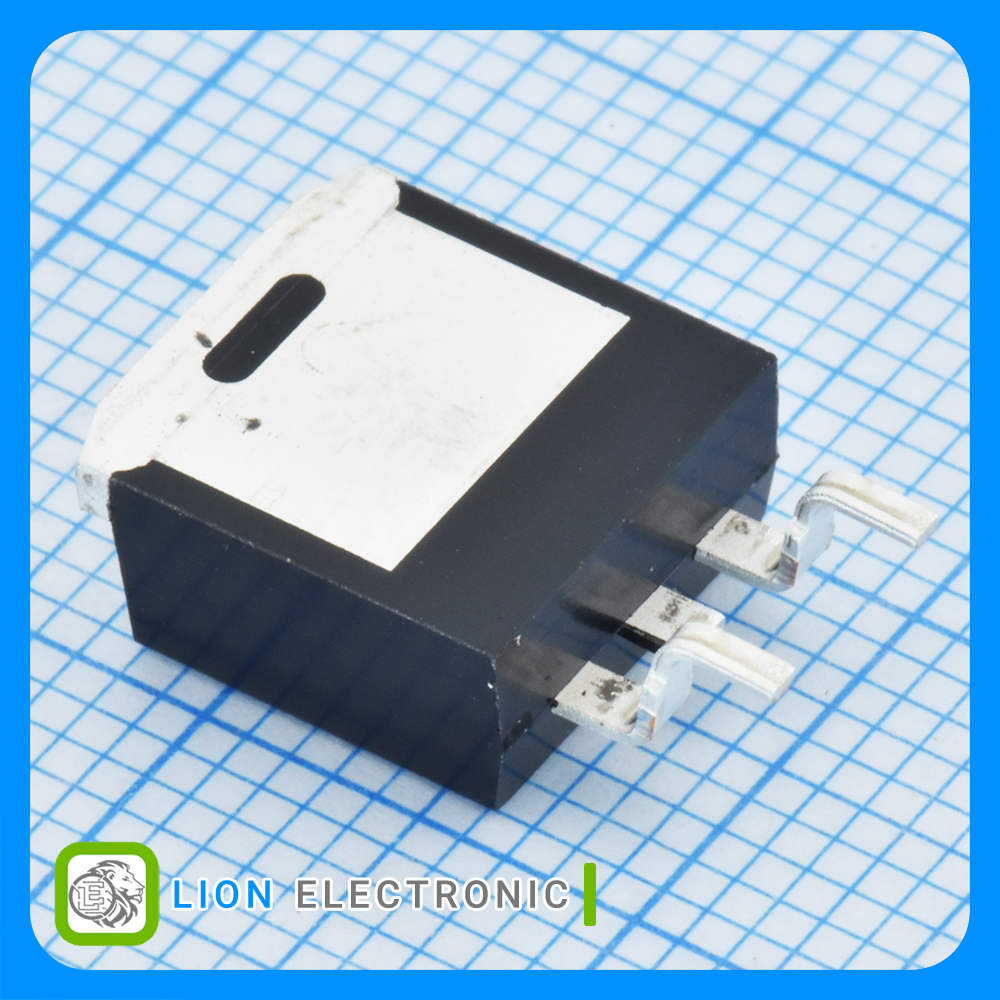

N-CH MOSFET 55V, 75A with TO-263-3 Package
معرفی
ماسفت 55 ولت 75 آمپر نوع N با پکیج TO-263-3
N-CH MOSFET 55V, 75A with TO-263-3 Package
Specifications
- Package/Case: TO-263
- Vds - Drain - Source Breakdown Voltage: 55V
- Id - Continuous Drain Current: 75A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 2V
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 6.5mΩ
- Pd - Power Dissipation: 170W
- Qg - Gate Charge: 76nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +175C

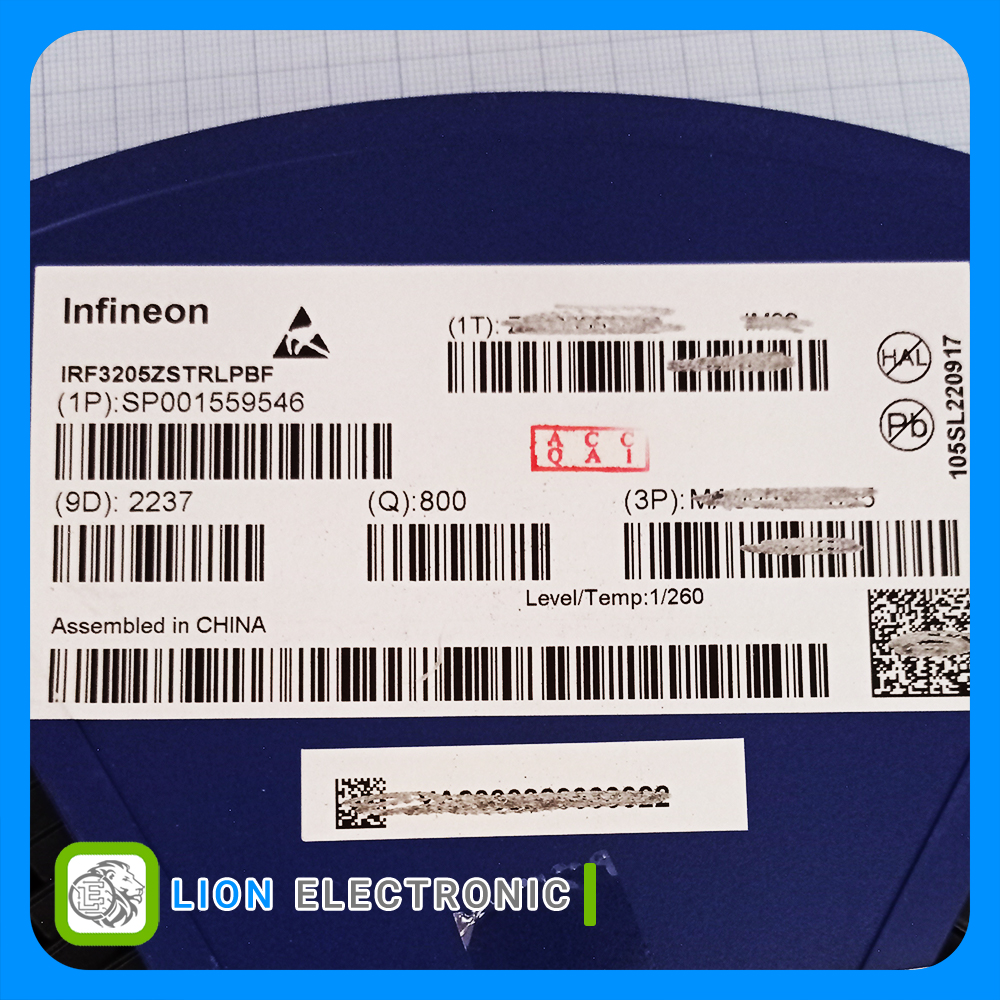

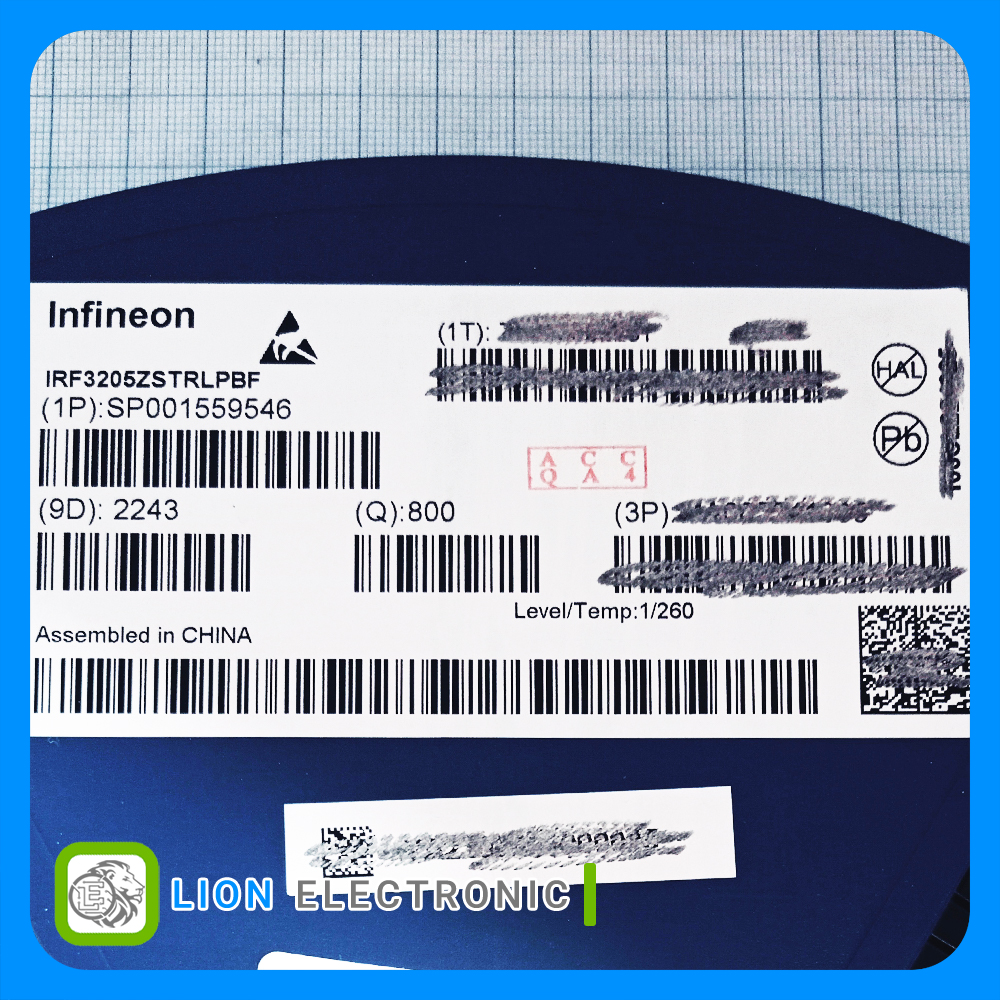

- Packaging: Reel
مشخصات ماسفت IRF3205ZSTRLPBF

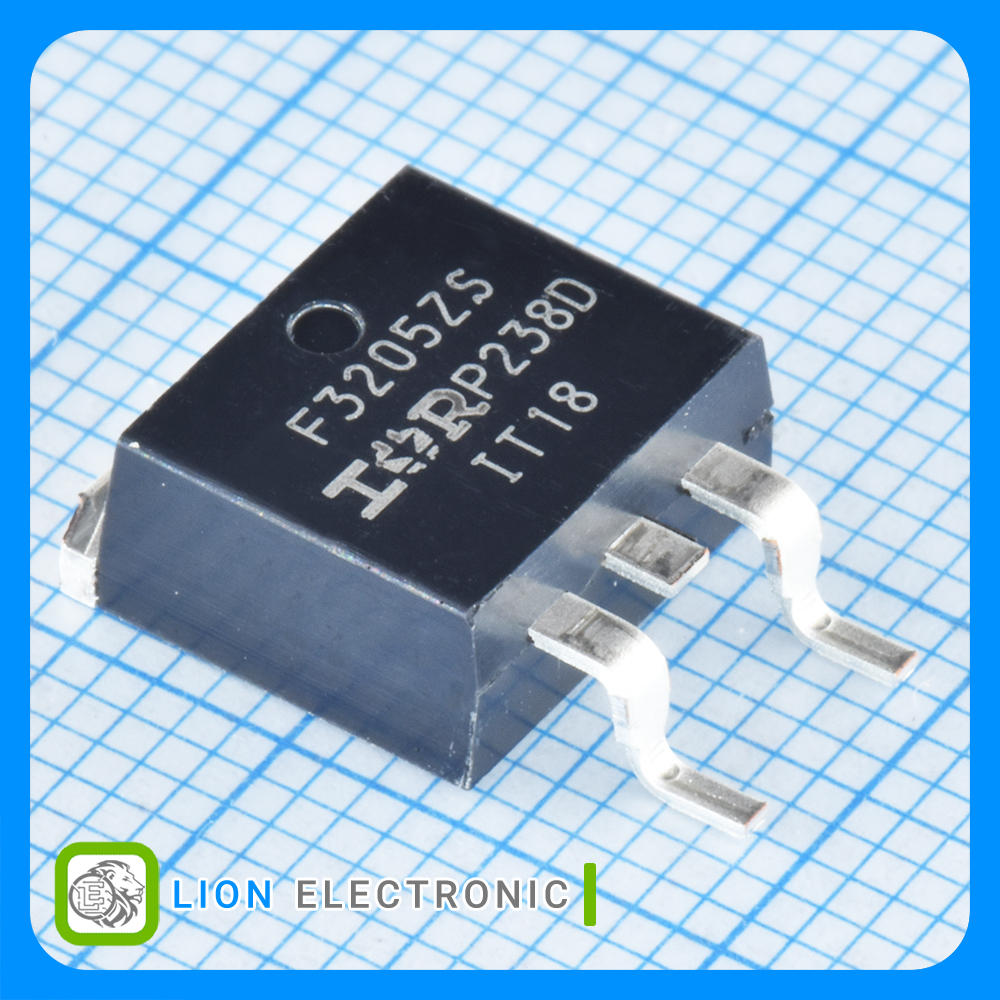

ماسفت IRF3205ZSTRLPBF
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Reel
Packaging
SMD/SMT
Mounting Style
±20V
Vgs - Gate - Source Voltage
55V
Vds - Drain - Source Breakdown Voltage
+175C
Maximum Operating Temperature
2V
Vgs th - Gate - Source Threshold Voltage
6.5mΩ
Rds On - Drain - Source Resistance
D2PAK
Package-Case
76nC
Qg - Gate Charge
75A
Id - Continuous Drain Current
170W
Pd - Power Dissipation
