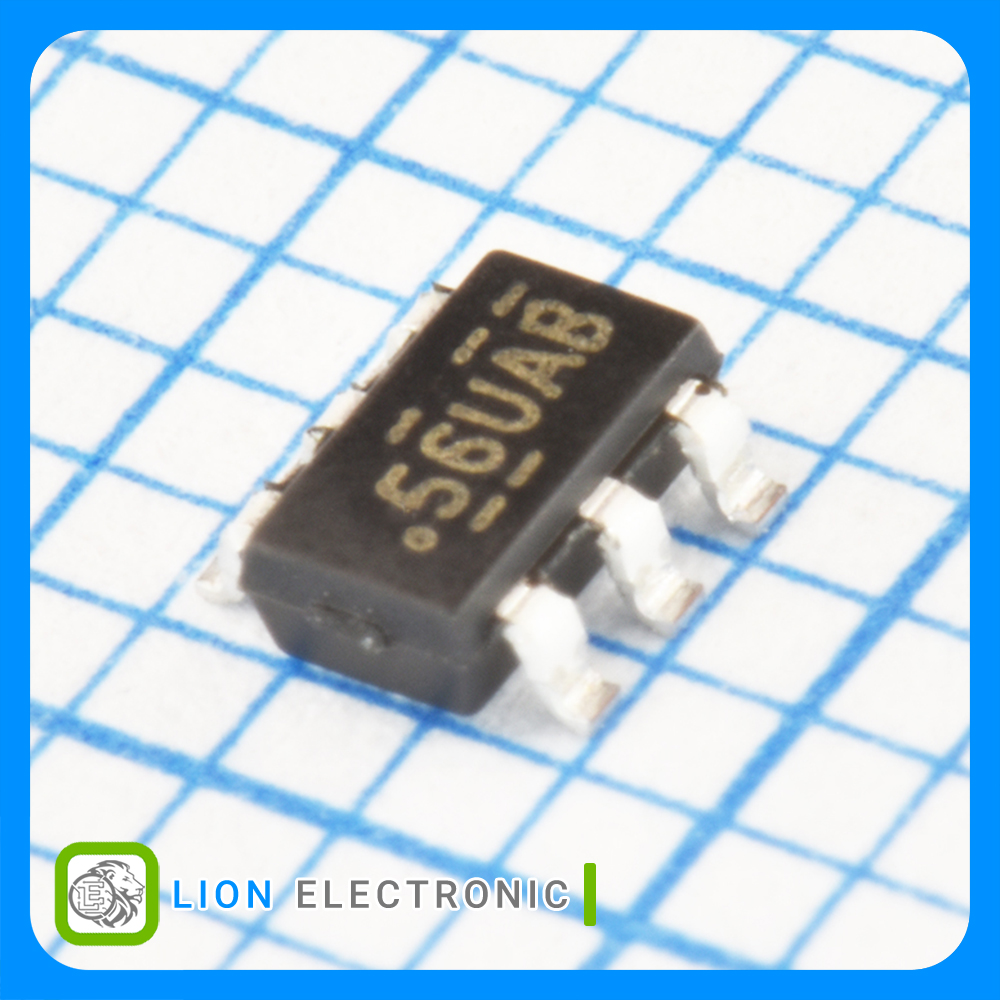

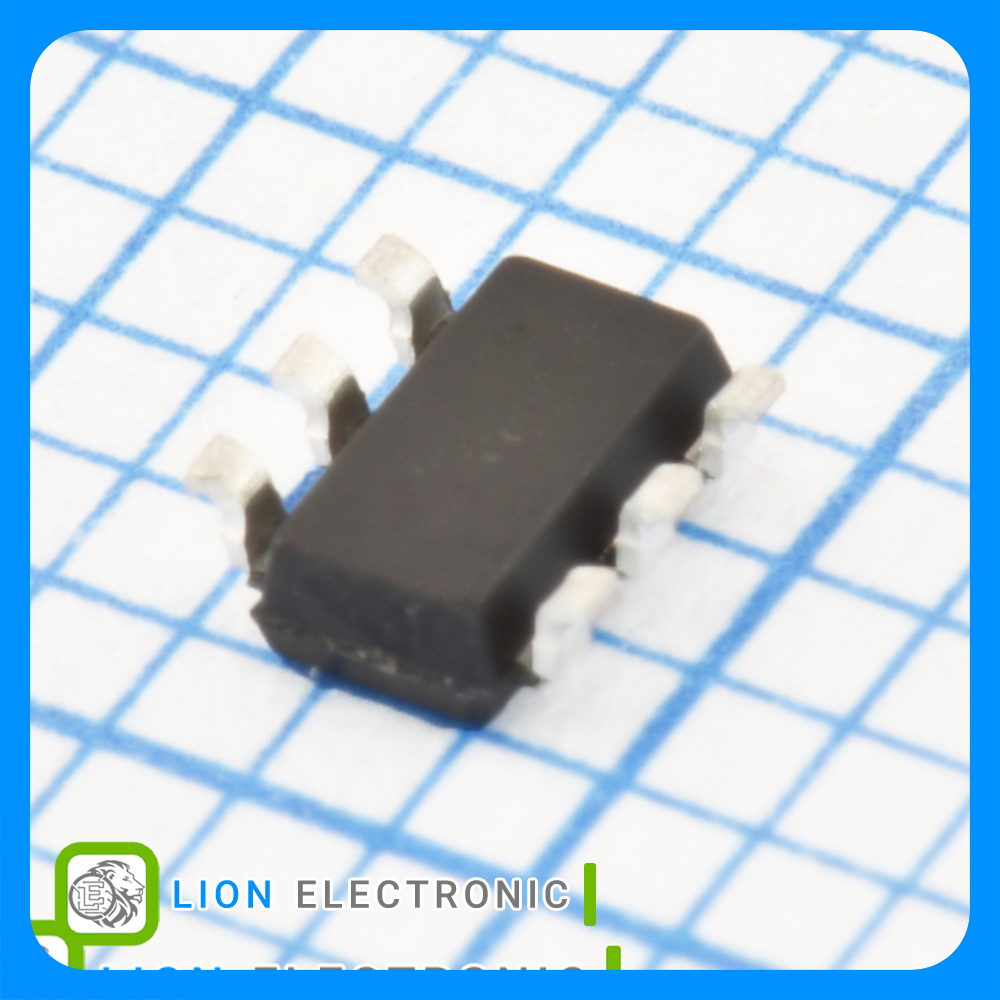

SI3456DV
SI3456DV
Part Number
3285
Lion Part
Datasheet
FAIRCHILD/ONSEMI Manufacture
ماسفت 30 ولت 5.1 آمپر نوع N با پکیج SSOT-6
N-CH MOSFET 30V, 5.1A with SSOT-6 Package
معرفی
ماسفت 30 ولت 5.1 آمپر نوع N با پکیج SSOT-6
N-CH MOSFET 30V, 5.1A with SSOT-6 Package
Specifications
- Package/Case: SSOT-6
- Vds - Drain - Source Breakdown Voltage: 30V
- Id - Continuous Drain Current: 5.1A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 1V
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 45mΩ
- Pd - Power Dissipation: 1.6W
- Qg - Gate Charge: 9nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات ماسفت SI3456DV
ماسفت SI3456DV
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Reel
Packaging
SMD/SMT
Mounting Style
±20V
Vgs - Gate - Source Voltage
30V
Vds - Drain - Source Breakdown Voltage
+150C
Maximum Operating Temperature
1V
Vgs th - Gate - Source Threshold Voltage
9nC
Qg - Gate Charge
1.6W
Pd - Power Dissipation
5.1A
Id - Continuous Drain Current
45mΩ
Rds On - Drain - Source Resistance
SSOT-6
Package-Case
