SPW21N50C3
SPW21N50C3
Part Number
3286
Lion Part
Datasheet
Infineon Technologies Manufacture
ماسفت 500 ولت 21 آمپر نوع N با پکیج TO-247-3

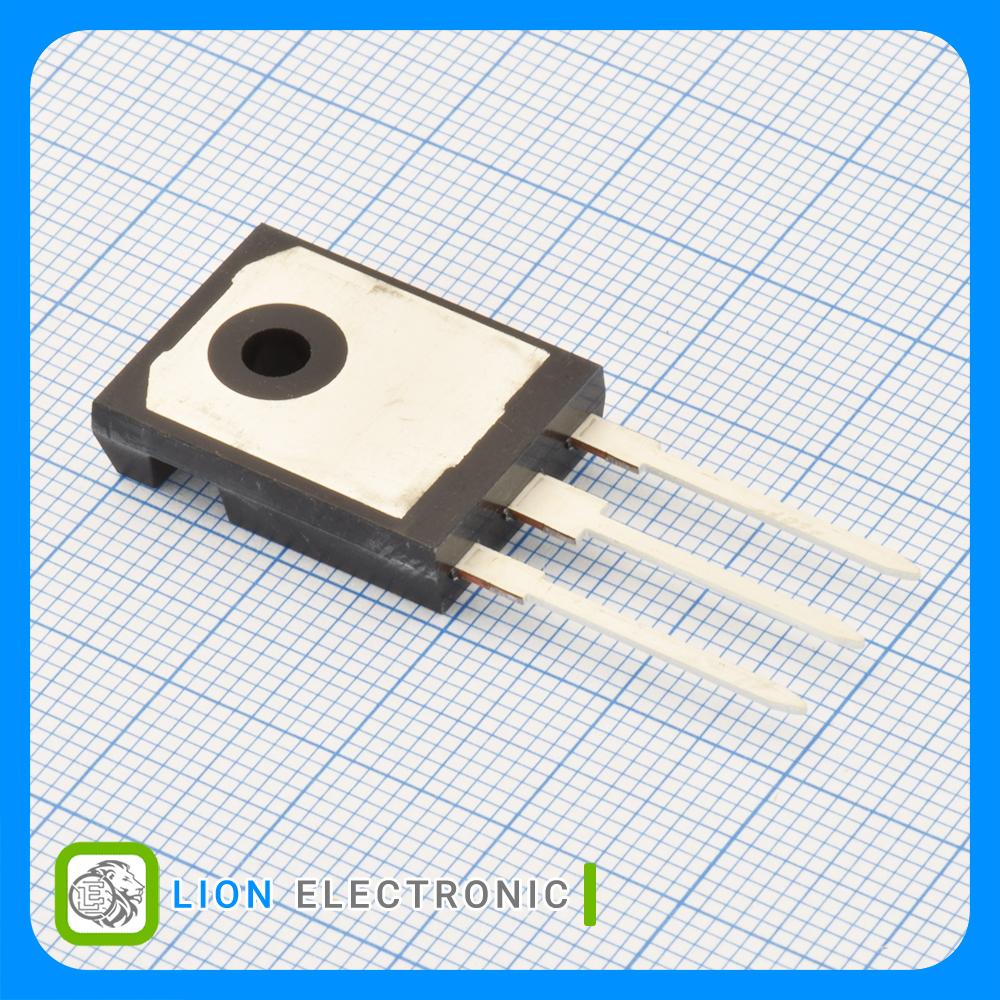

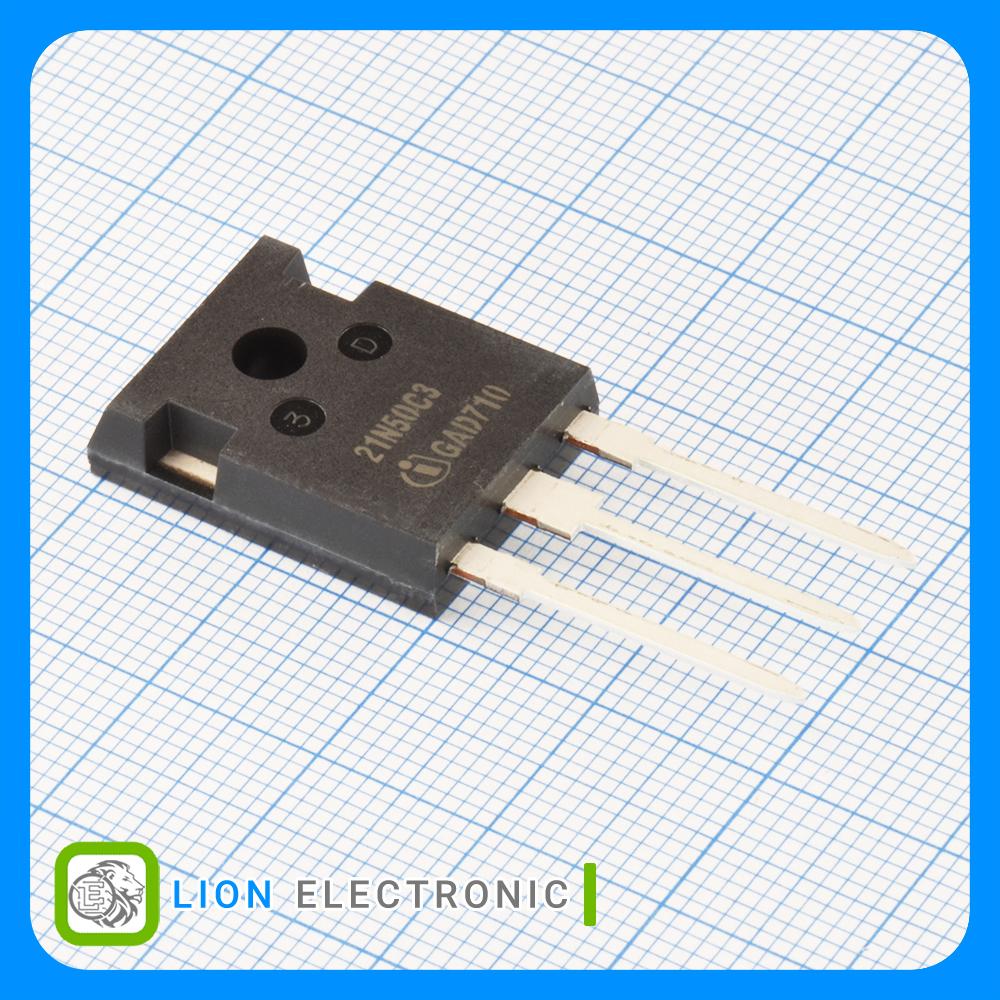

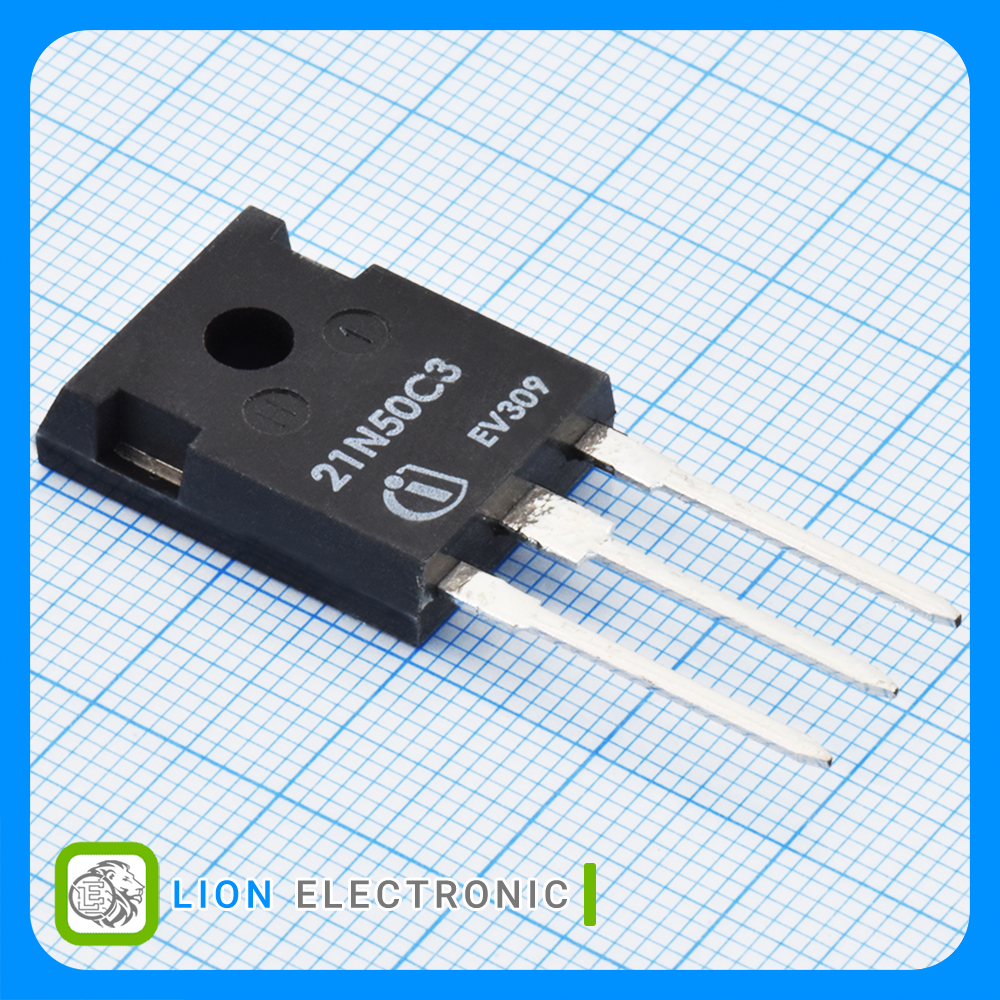

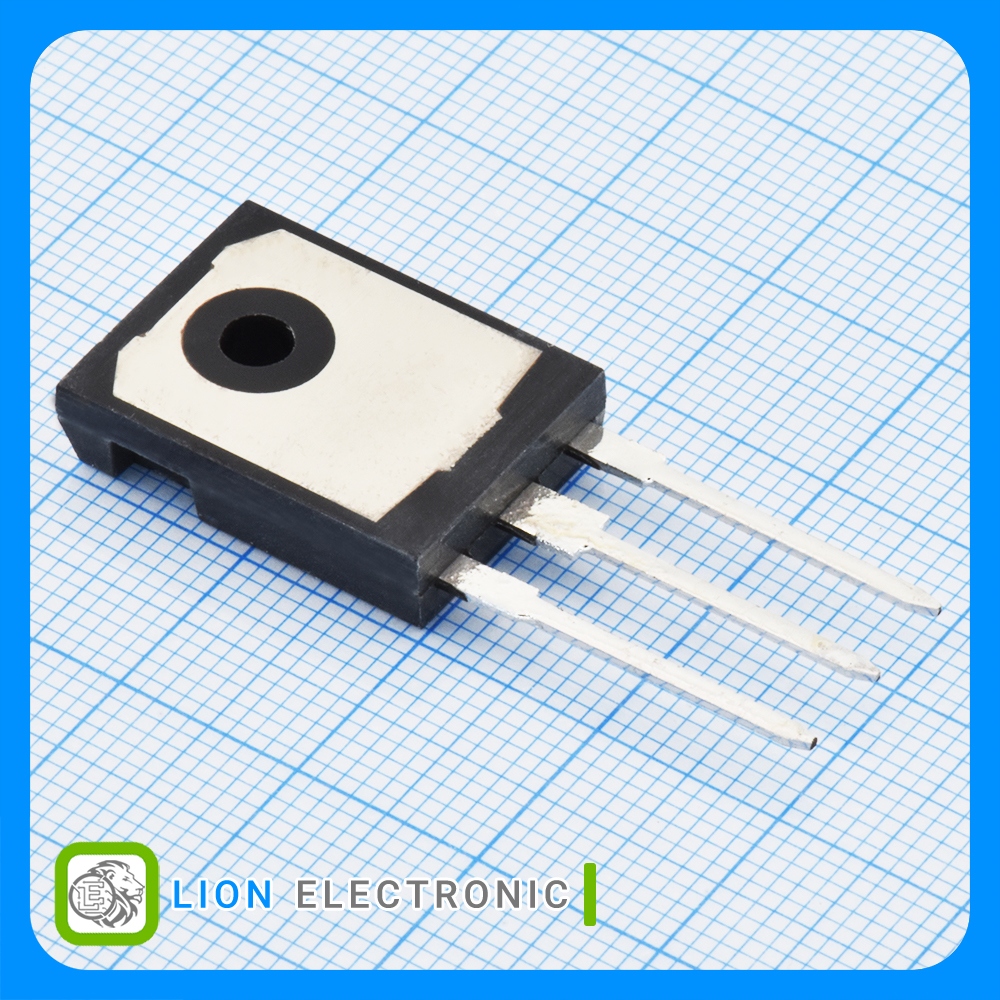

N-CH MOSFET 500V, 21A with TO-247-3 Package
معرفی
ماسفت 500 ولت 21 آمپر نوع N با پکیج TO-247-3
N-CH MOSFET 500V, 21A with TO-247-3 Package
Specifications
- Package/Case: TO-247
- Vds - Drain - Source Breakdown Voltage: 560V
- Id - Continuous Drain Current: 21A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 2.1V
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 160mΩ
- Pd - Power Dissipation: 208W
- Qg - Gate Charge: 95nC
- Mounting Style: Through Hole
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Tube
مشخصات ماسفت SPW21N50C3

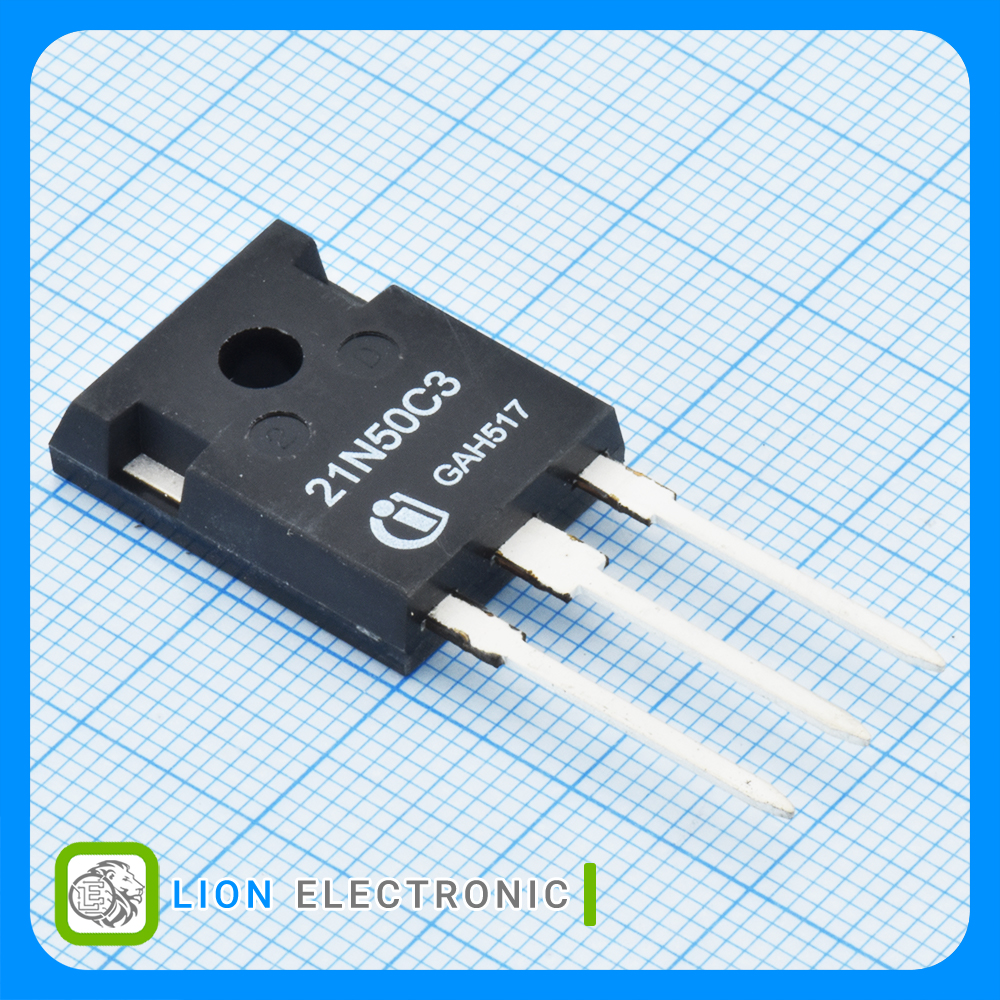

ماسفت SPW21N50C3
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Tube
Packaging
Through Hole
Mounting Style
±20V
Vgs - Gate - Source Voltage
+150C
Maximum Operating Temperature
560V
Vds - Drain - Source Breakdown Voltage
2.1V
Vgs th - Gate - Source Threshold Voltage
21A
Id - Continuous Drain Current
95nC
Qg - Gate Charge
160mΩ
Rds On - Drain - Source Resistance
208W
Pd - Power Dissipation
TO-247
Package-Case
