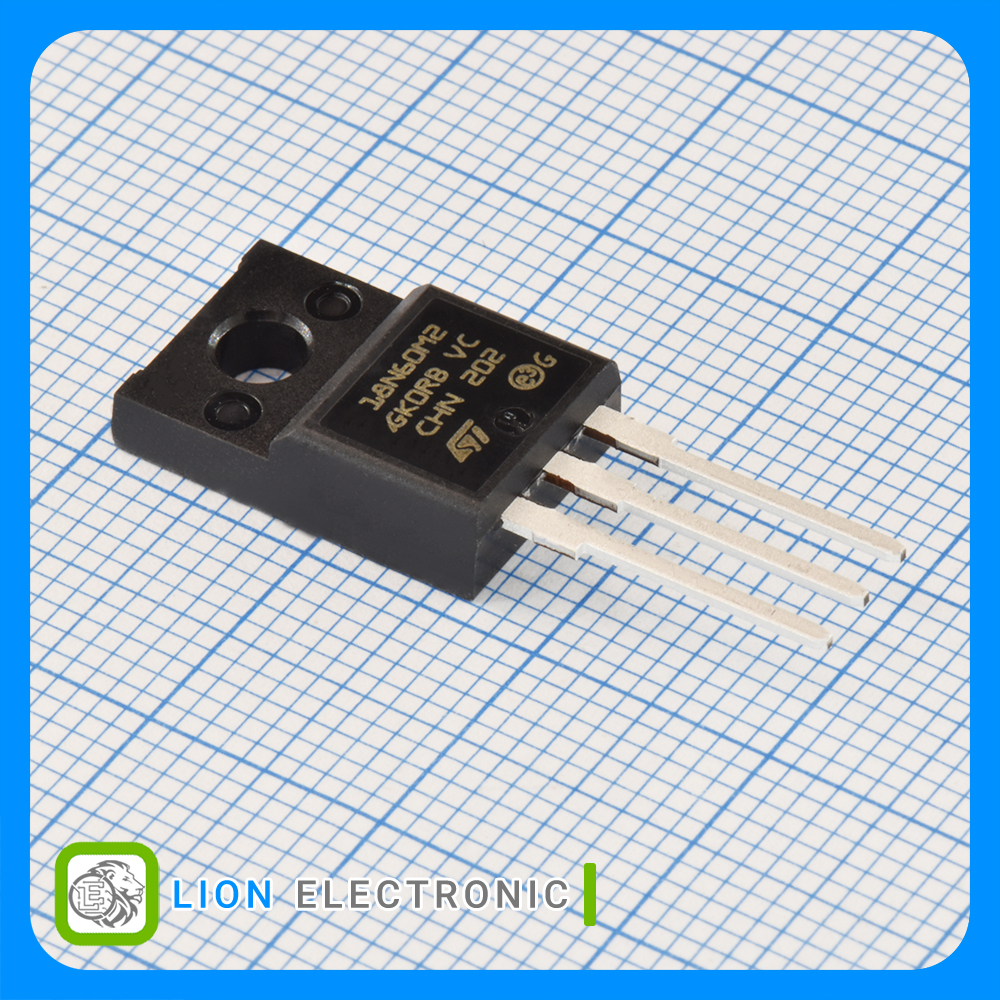

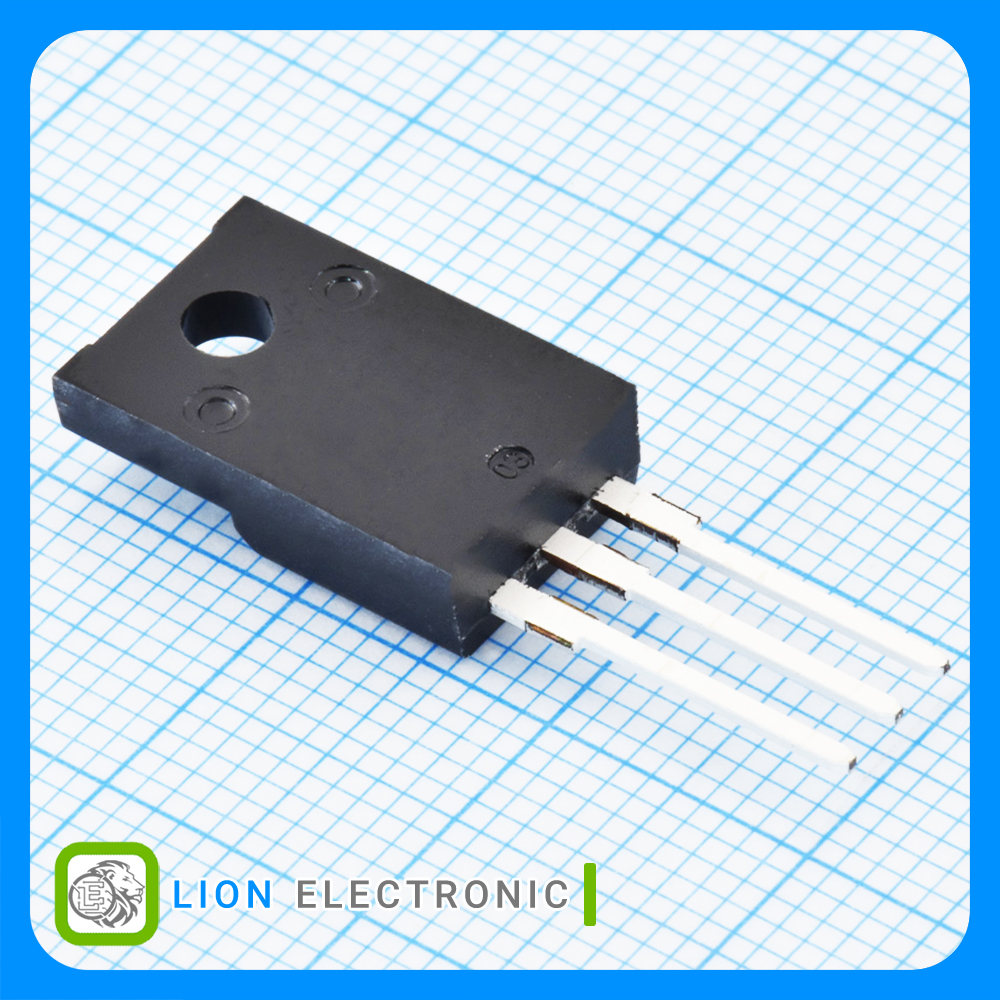

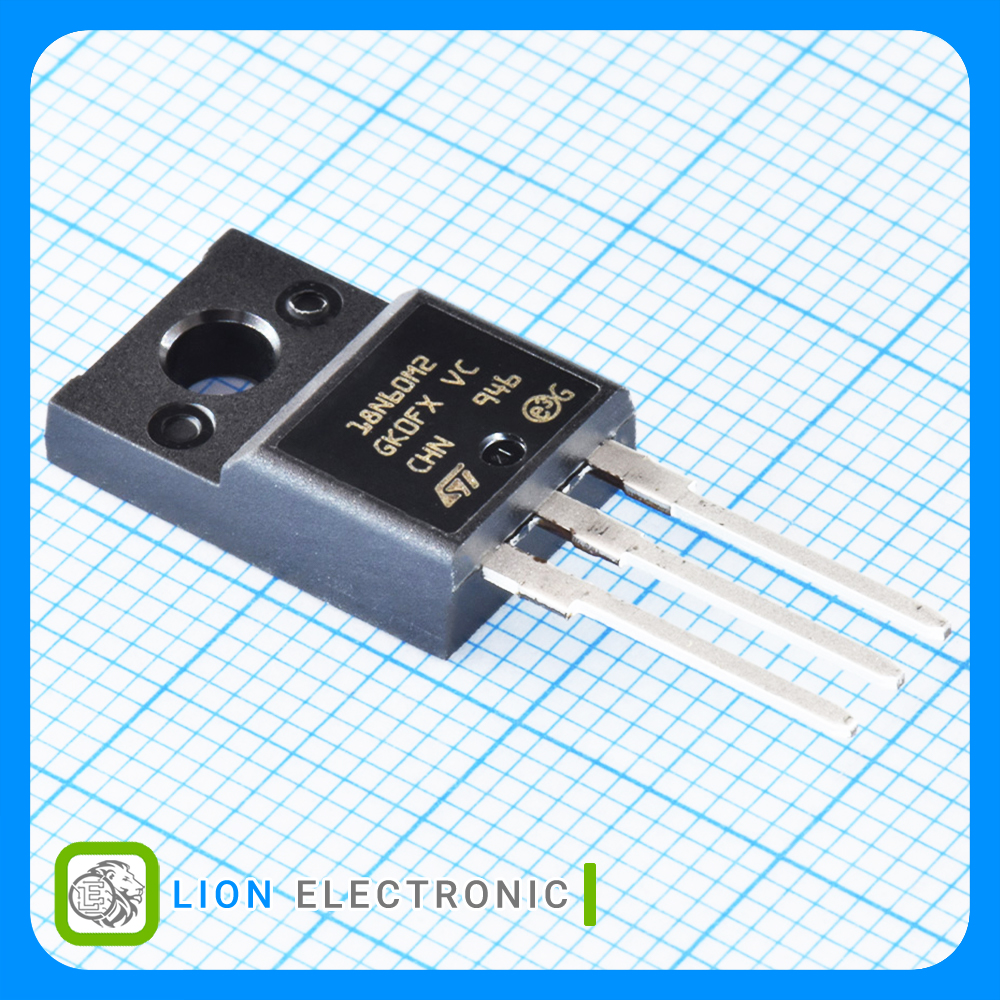

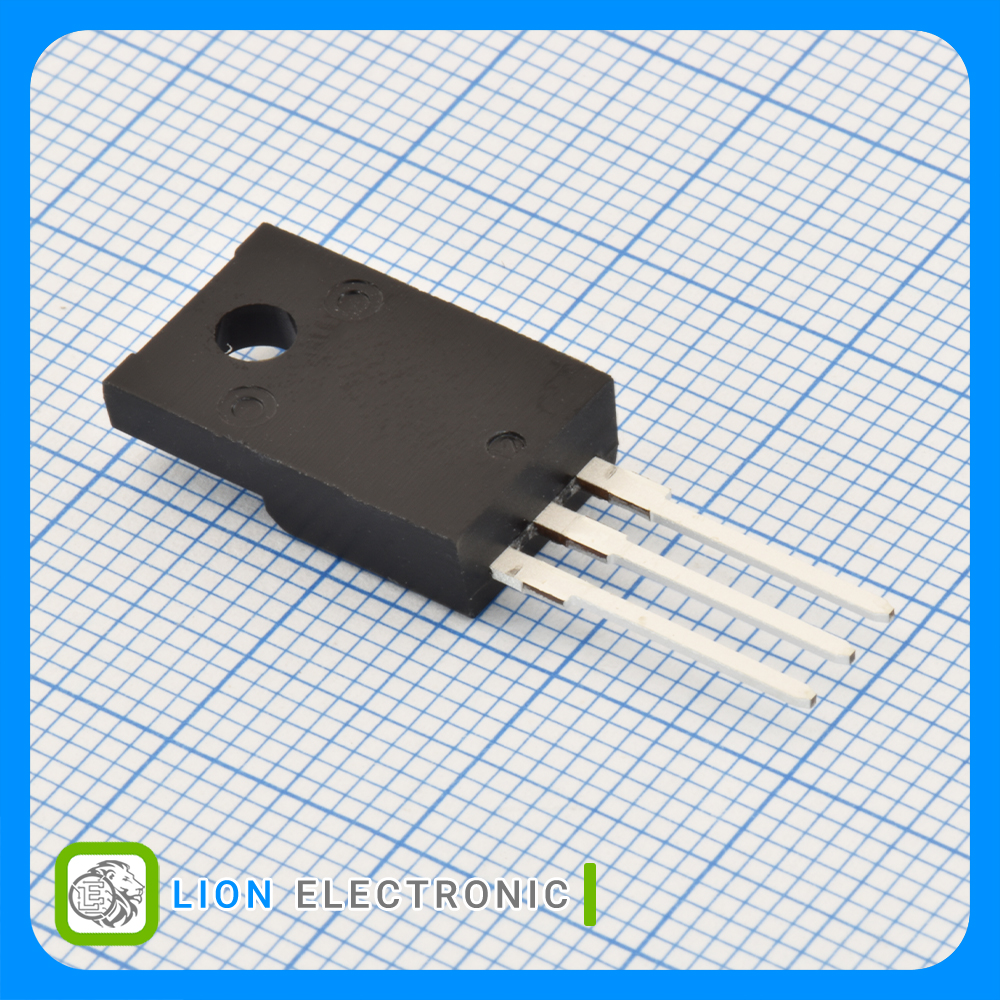

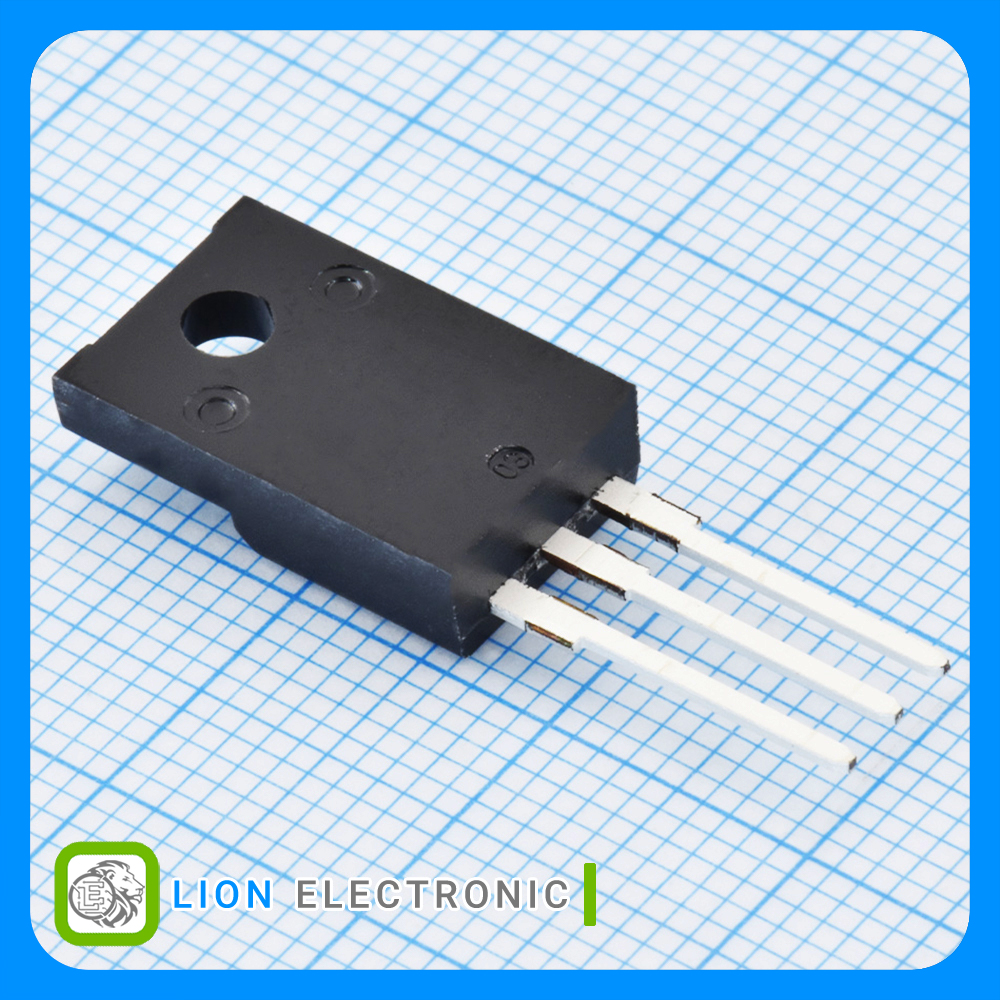

STF18N60M2
STF18N60M2
Part Number
3287
Lion Part
Datasheet
STMicroelectronics Manufacture
ماسفت 600 ولت 13 آمپر نوع N با پکیج TO-220-3
N-CH MOSFET 600V, 13A with TO-220-3 Package
معرفی
ماسفت 600 ولت 13 آمپر نوع N با پکیج TO-220-3
N-CH MOSFET 600V, 13A with TO-220-3 Package
Specifications
- Package/Case: TO-220-3
- Vds - Drain - Source Breakdown Voltage: 600V
- Id - Continuous Drain Current: 13A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 2V
- Vgs - Gate - Source Voltage: ±25V
- Rds On - Drain - Source Resistance: 255mΩ
- Pd - Power Dissipation: 25W
- Qg - Gate Charge: 21.5nC
- Mounting Style: Through Hole
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Tube
مشخصات ماسفت STF18N60M2

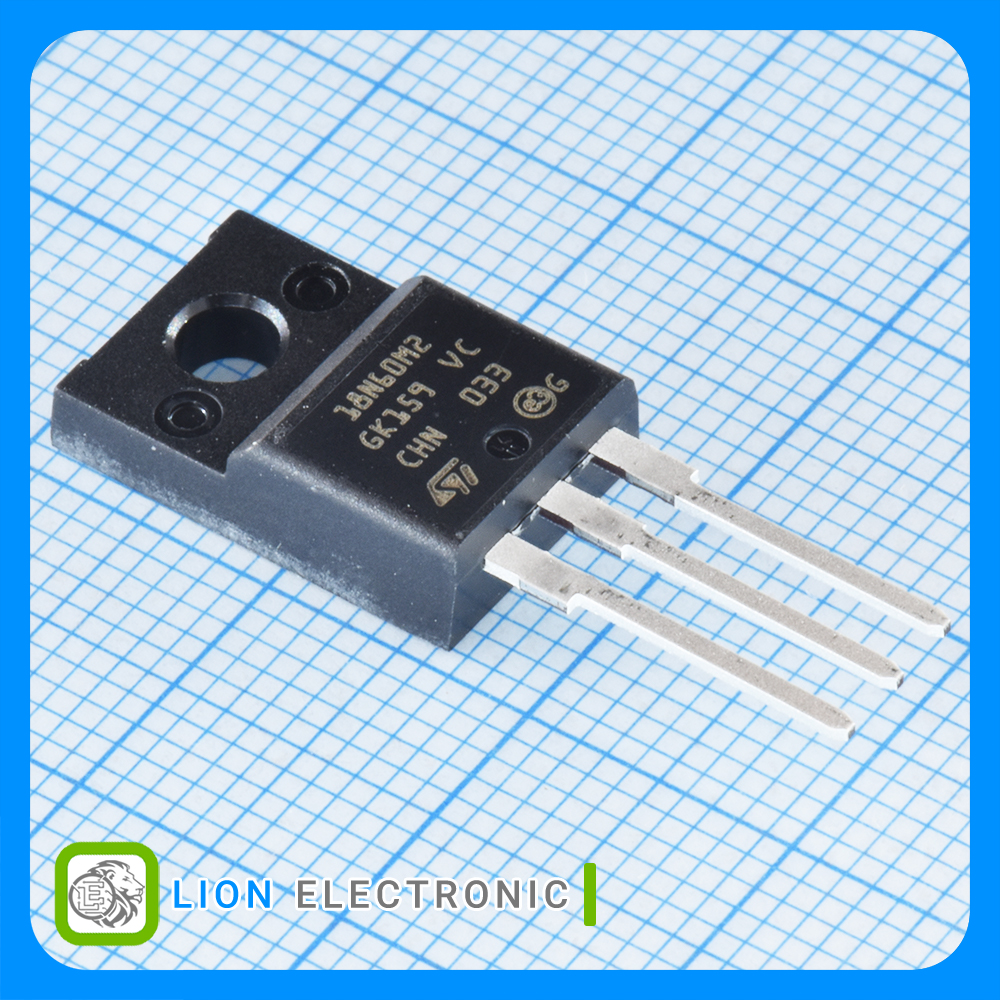

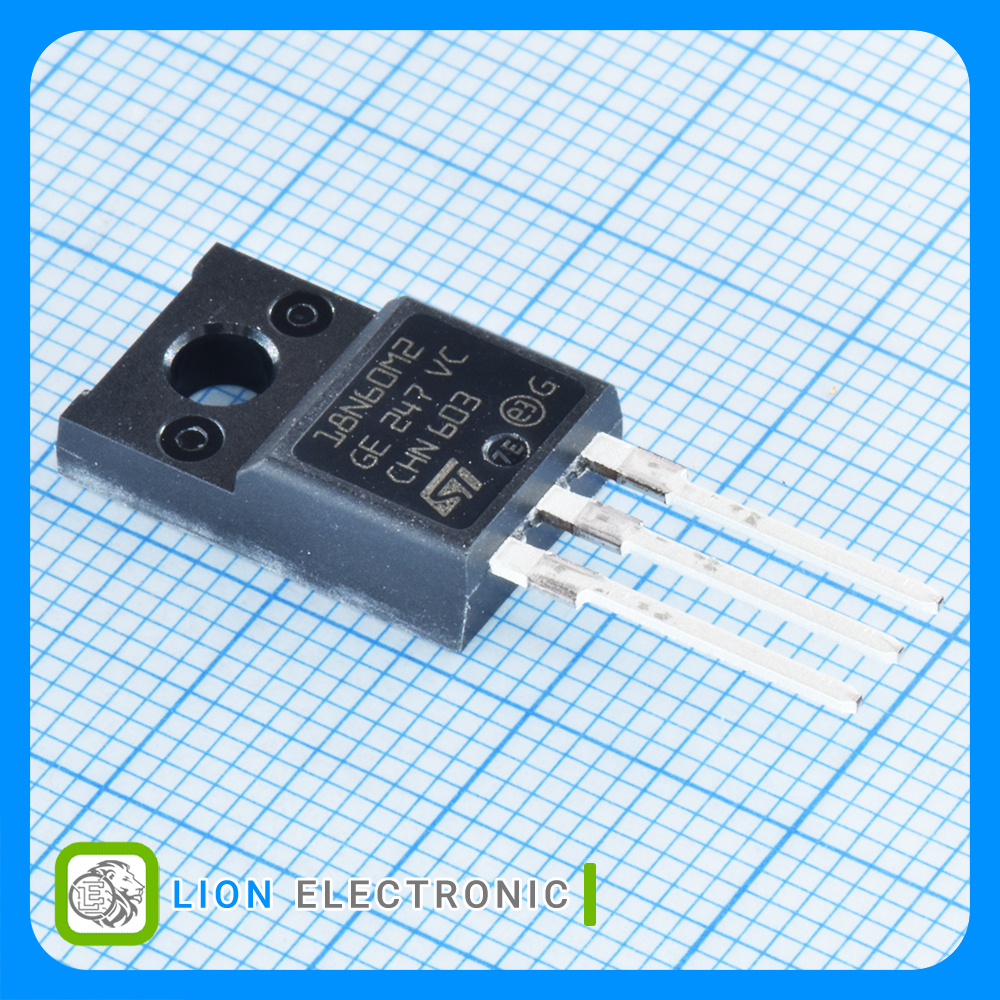

ماسفت STF18N60M2
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Tube
Packaging
Through Hole
Mounting Style
±25V
Vgs - Gate - Source Voltage
+150C
Maximum Operating Temperature
600V
Vds - Drain - Source Breakdown Voltage
2V
Vgs th - Gate - Source Threshold Voltage
21.5nC
Qg - Gate Charge
25W
Pd - Power Dissipation
13A
Id - Continuous Drain Current
255mΩ
Rds On - Drain - Source Resistance
TO-220
Package-Case
