AON6144
AON6144
Part Number
3288
Lion Part
Datasheet
Alpha & Omega Semiconductor Manufacture
ماسفت 40 ولت 100 آمپر نوع N با پکیج DFN-8(5x6)

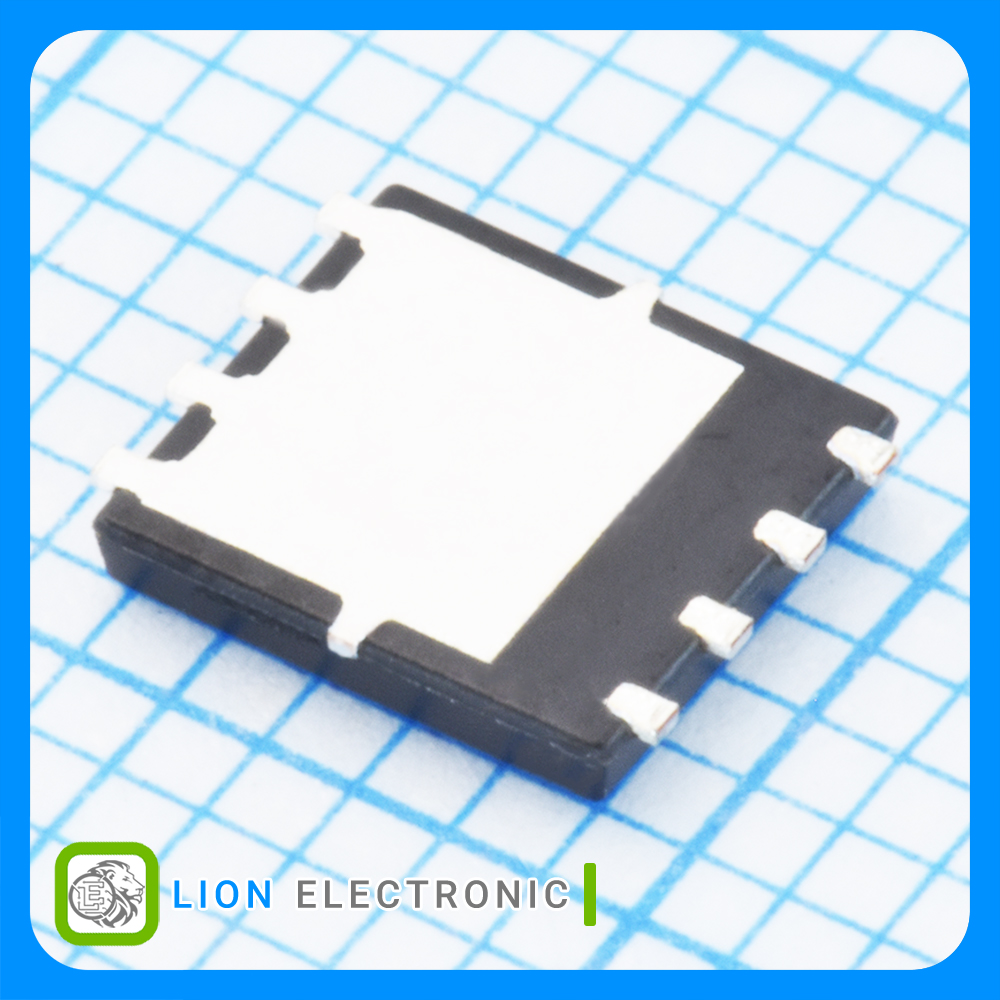

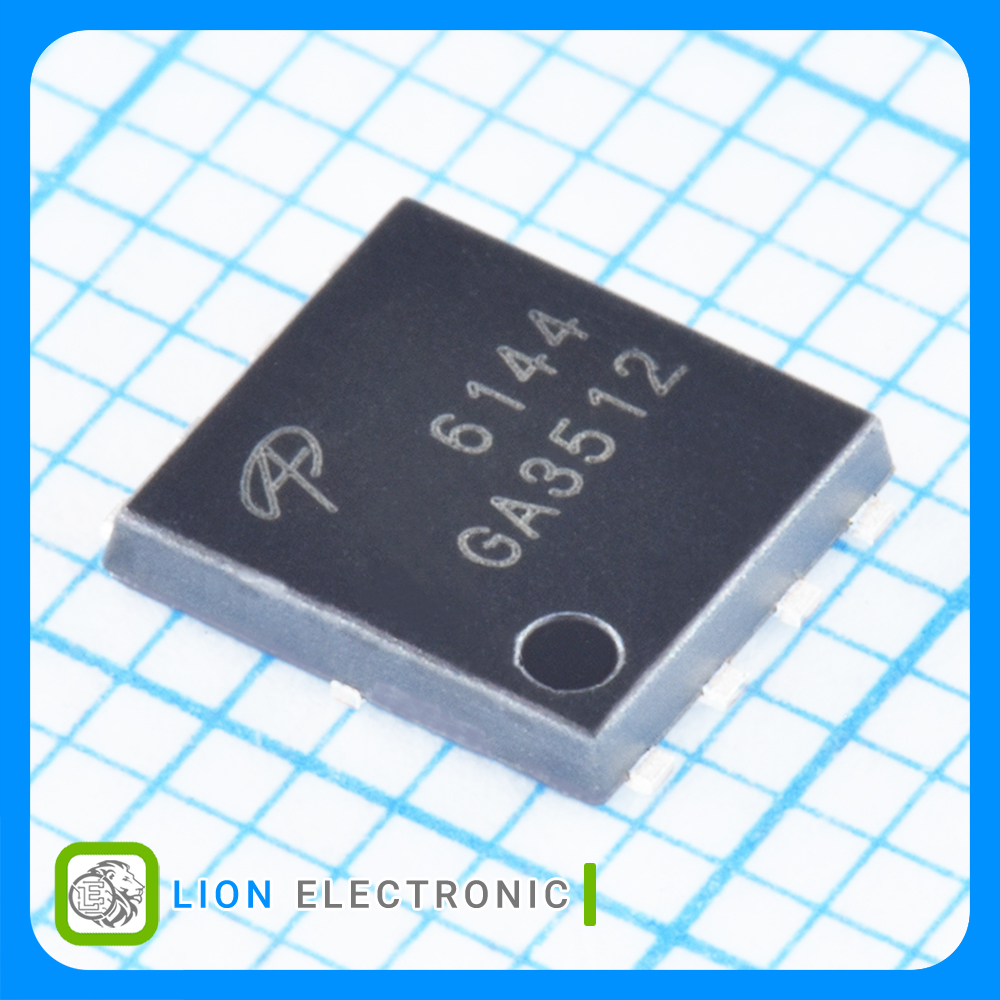

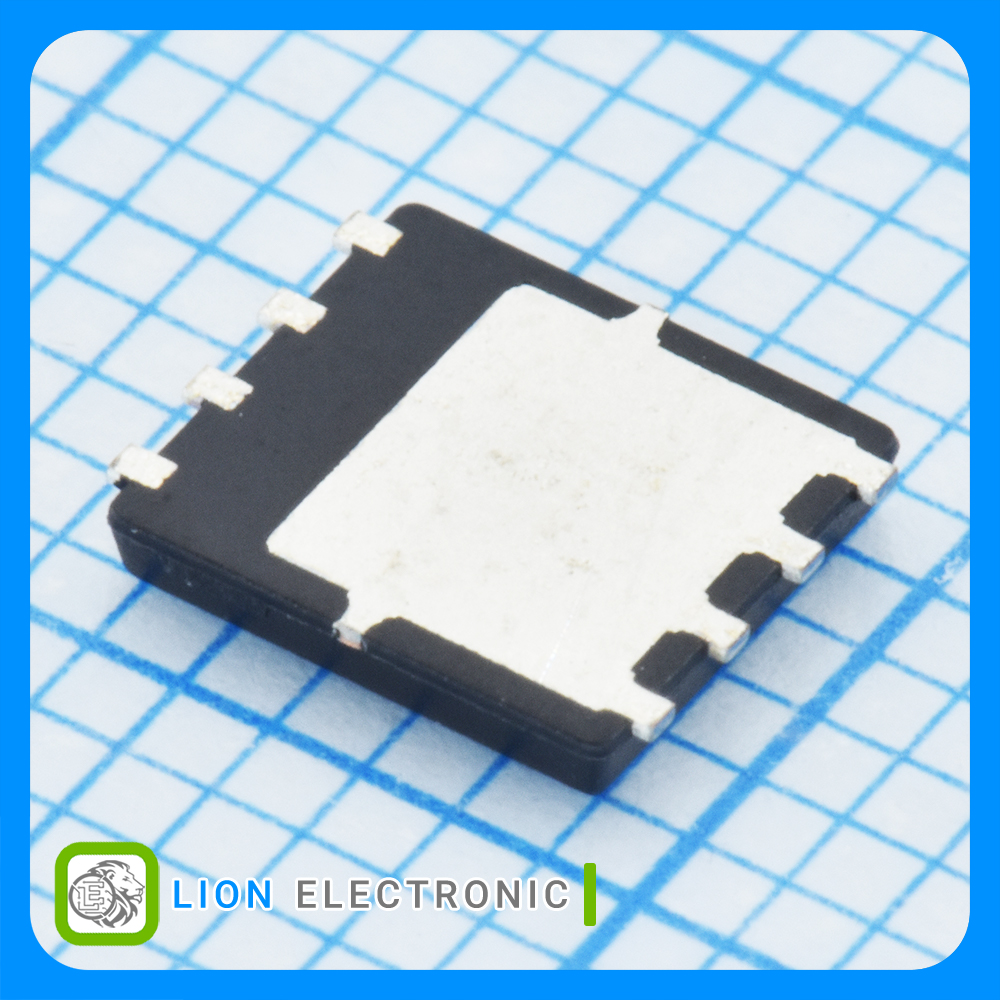

N-CH MOSFET 40V, 100A with DFN-8(5x6) Package
معرفی
ماسفت 40 ولت 100 آمپر نوع N با پکیج DFN-8(5x6)
N-CH MOSFET 40V, 100A with DFN-8(5x6) Package
Specifications
- Package/Case: DFN-8(5x6)
- Vds - Drain - Source Breakdown Voltage: 40V
- Id - Continuous Drain Current: 100A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 1.4V
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 2mΩ
- Pd - Power Dissipation: 78W
- Qg - Gate Charge: 50nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -50C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات ماسفت AON6144

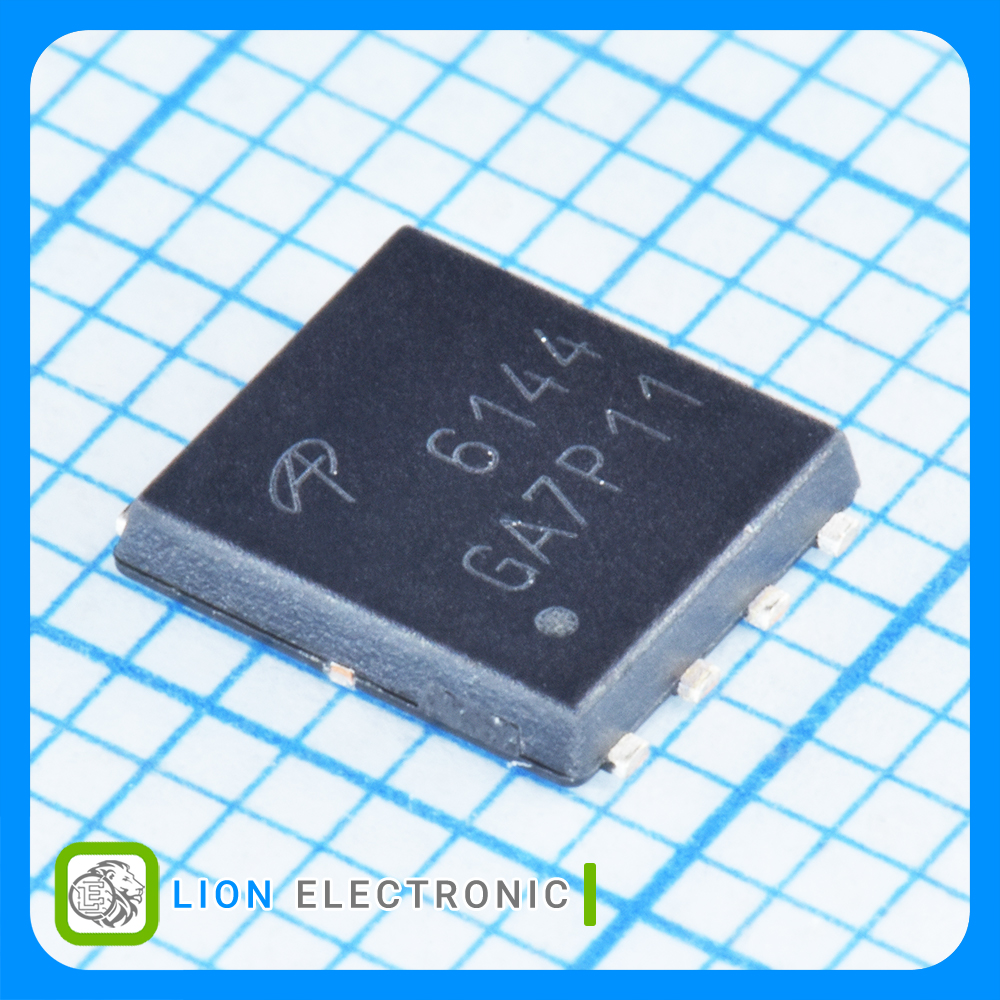

ماسفت AON6144
Part Number
1
Number of Channels
Enhancement
Channel Mode
-50C
Minimum Operating Temperature
Reel
Packaging
SMD/SMT
Mounting Style
±20V
Vgs - Gate - Source Voltage
40V
Vds - Drain - Source Breakdown Voltage
2mΩ
Rds On - Drain - Source Resistance
+150C
Maximum Operating Temperature
1.4V
Vgs th - Gate - Source Threshold Voltage
DFN-8
Package-Case
50nC
Qg - Gate Charge
78W
Pd - Power Dissipation
100A
Id - Continuous Drain Current
نظرات کاربران
عباس قره داغی
1404-09-17 02:16
این ماسفت رو استفاده کردم با این که RDSON یه ماسفت دیگه نصف این بود ایشون بهتر عمل کردالبته که QG هم مهمه
