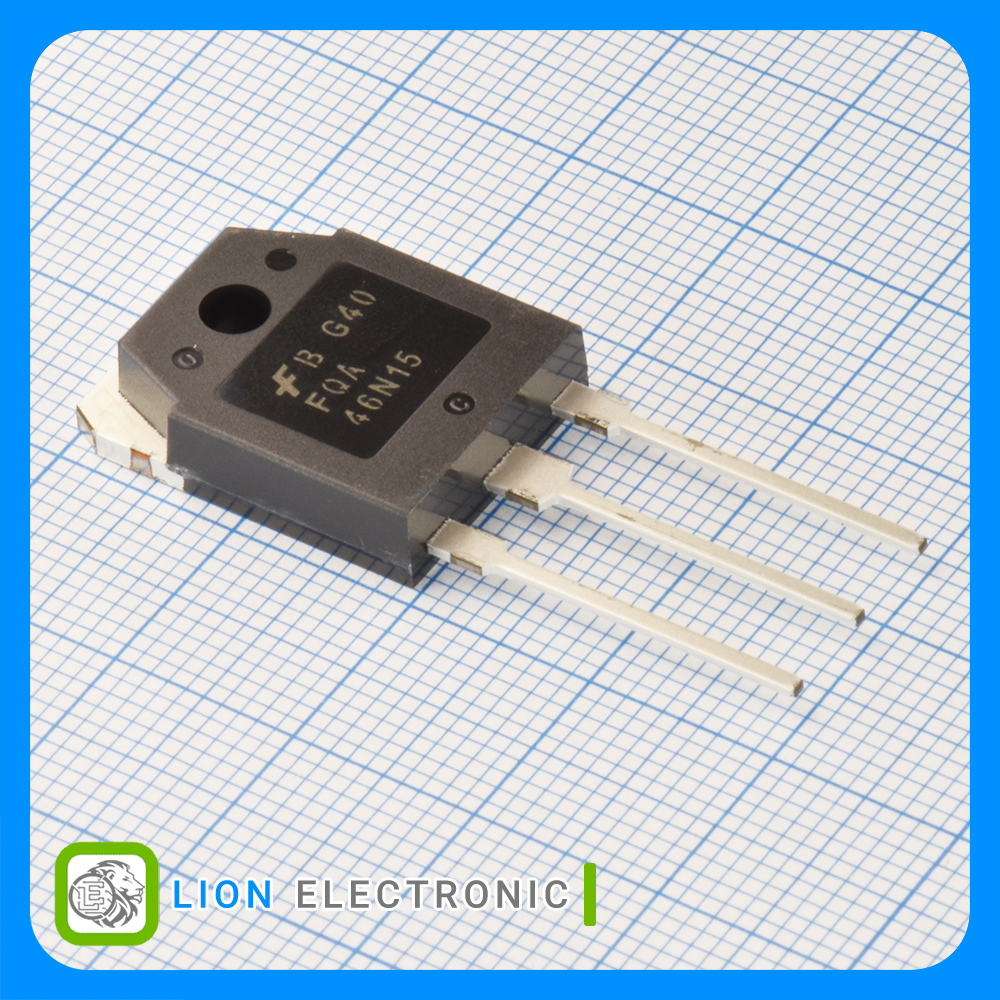

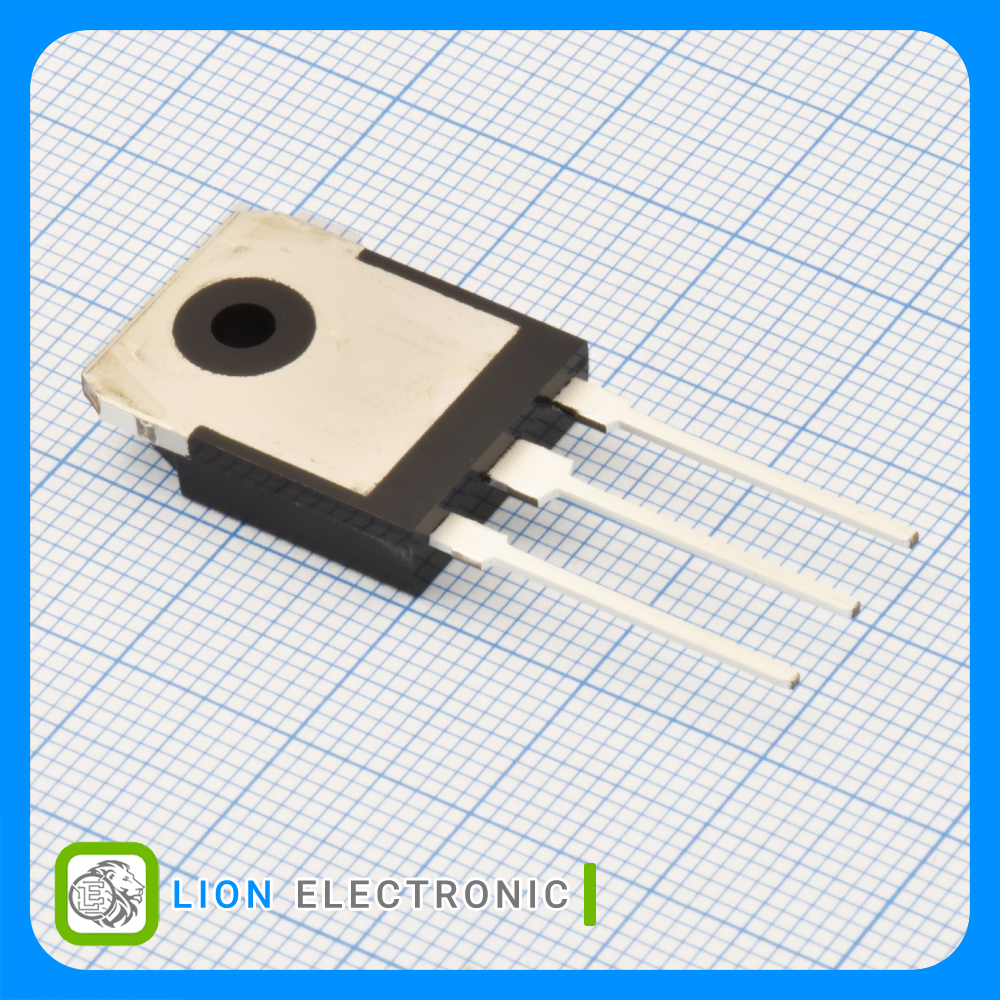

FQA46N15
FQA46N15
Part Number
3291
Lion Part
Datasheet
FAIRCHILD/ONSEMI Manufacture
ماسفت 150 ولت 50 آمپر نوع N با پکیج TO-3PN-3
N-CH MOSFET 150V, 50A with TO-3PN-3 Package
معرفی
ماسفت 150 ولت 50 آمپر نوع N با پکیج TO-3PN-3
N-CH MOSFET 150V, 50A with TO-3PN-3 Package
Specifications
- Package/Case: TO-3P
- Vds - Drain - Source Breakdown Voltage: 150V
- Id - Continuous Drain Current: 50A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 2V
- Vgs - Gate - Source Voltage: ±25V
- Rds On - Drain - Source Resistance: 33mΩ
- Pd - Power Dissipation: 250W
- Qg - Gate Charge: 85nC
- Mounting Style: Through Hole
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +175C
- Packaging: Tube
مشخصات ماسفت FQA46N15
ماسفت FQA46N15
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Tube
Packaging
Through Hole
Mounting Style
±25V
Vgs - Gate - Source Voltage
+175C
Maximum Operating Temperature
150V
Vds - Drain - Source Breakdown Voltage
2V
Vgs th - Gate - Source Threshold Voltage
33mΩ
Rds On - Drain - Source Resistance
85nC
Qg - Gate Charge
50A
Id - Continuous Drain Current
250W
Pd - Power Dissipation
TO-3P
Package-Case
