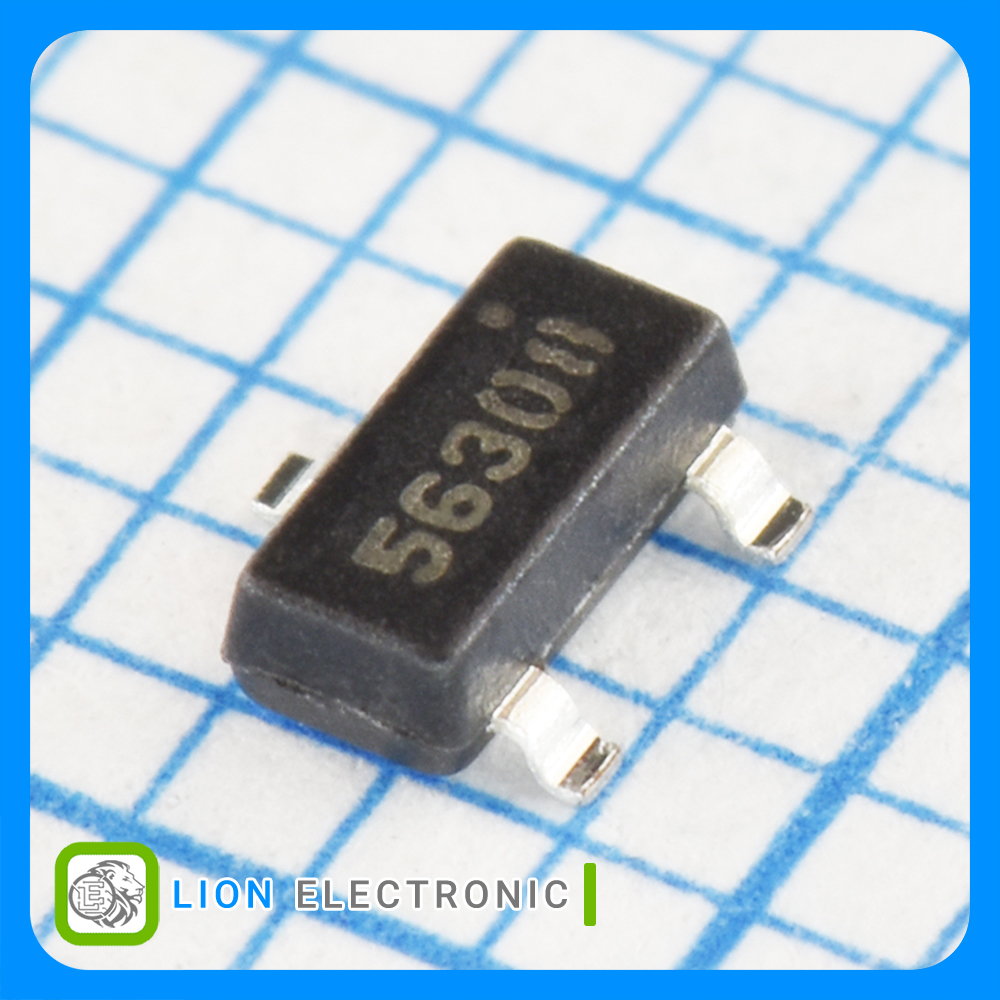

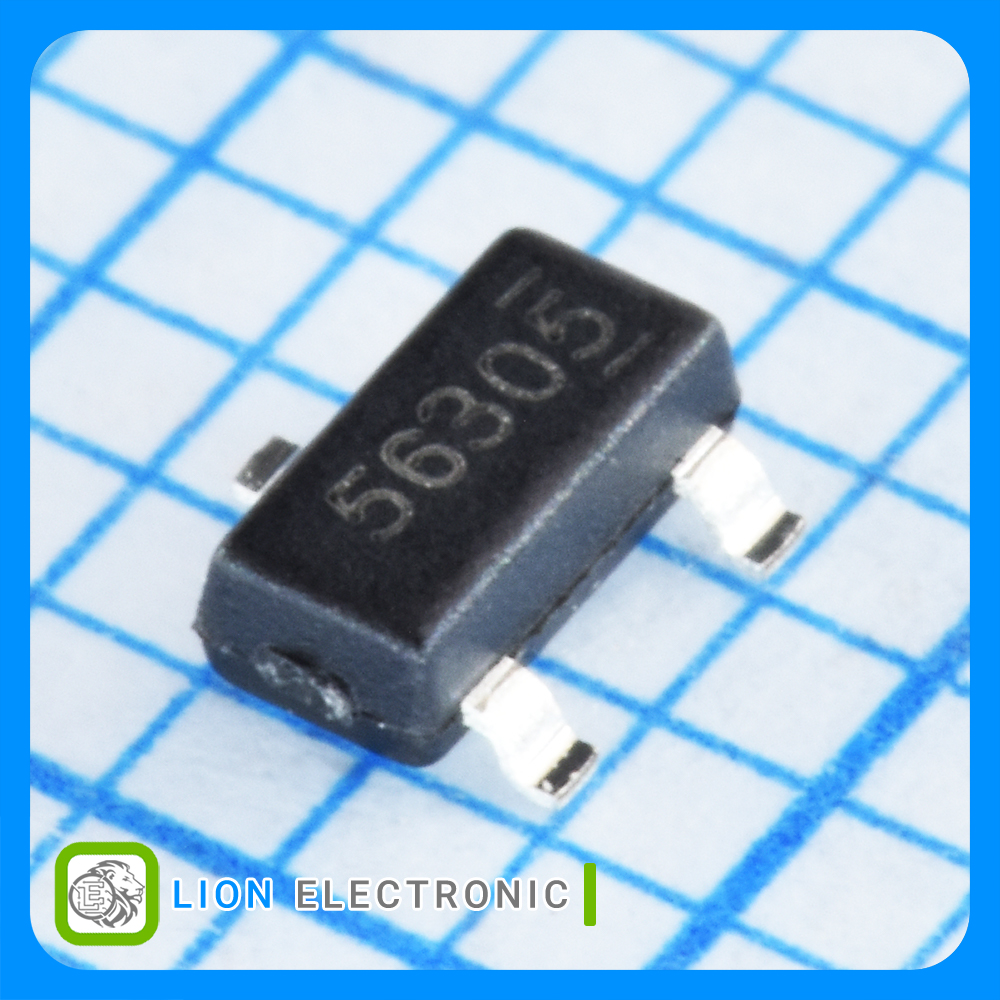

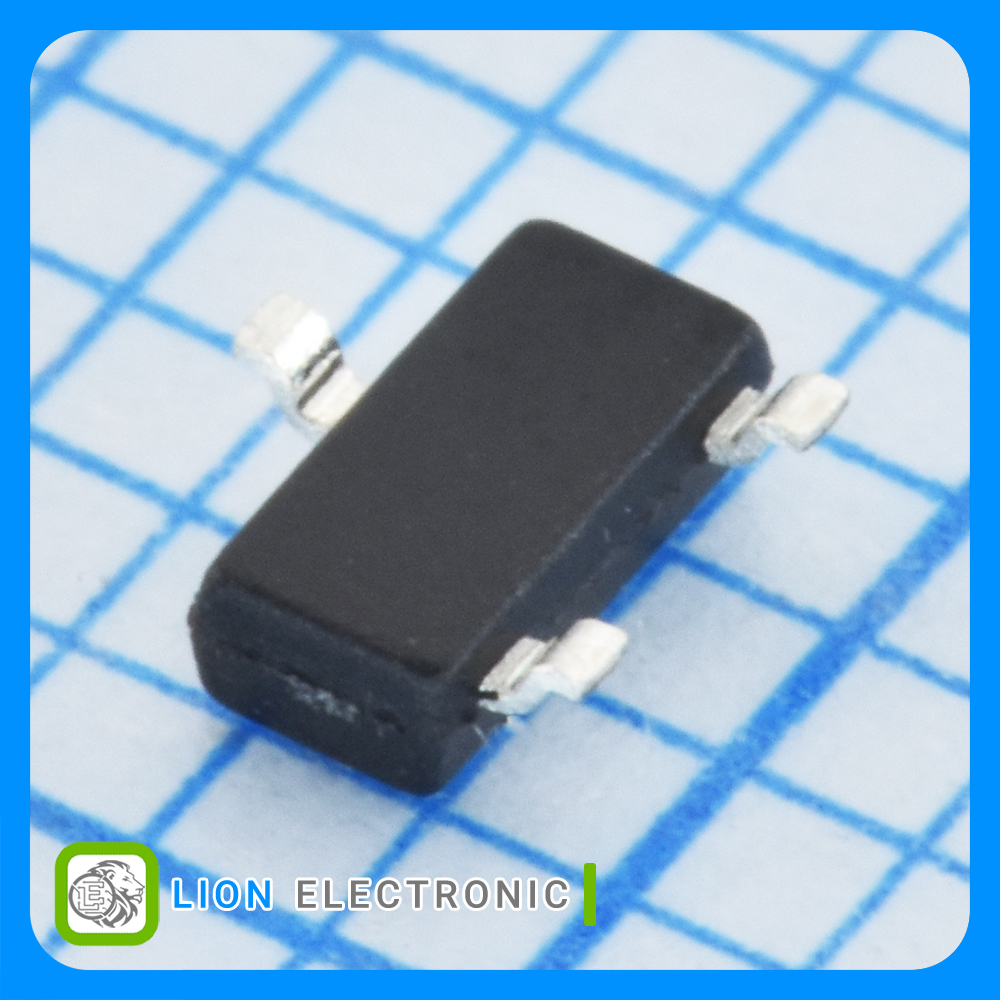

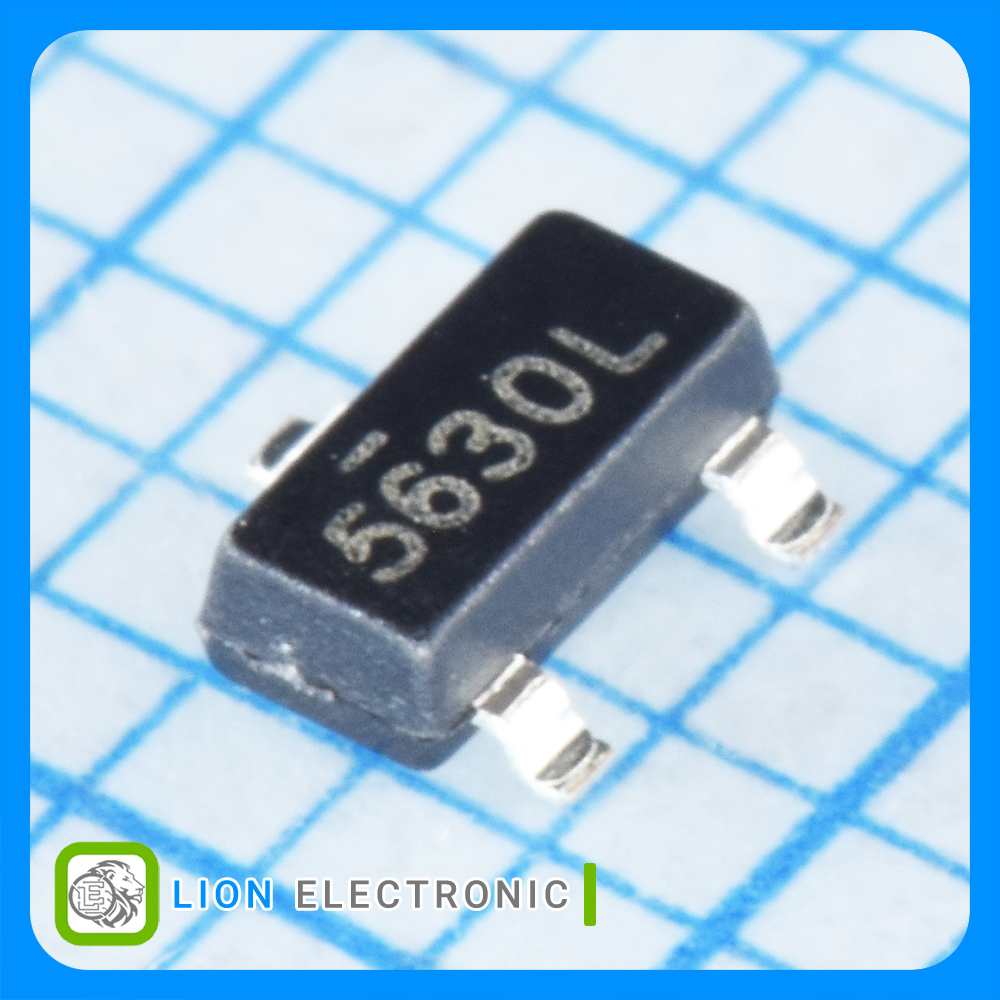

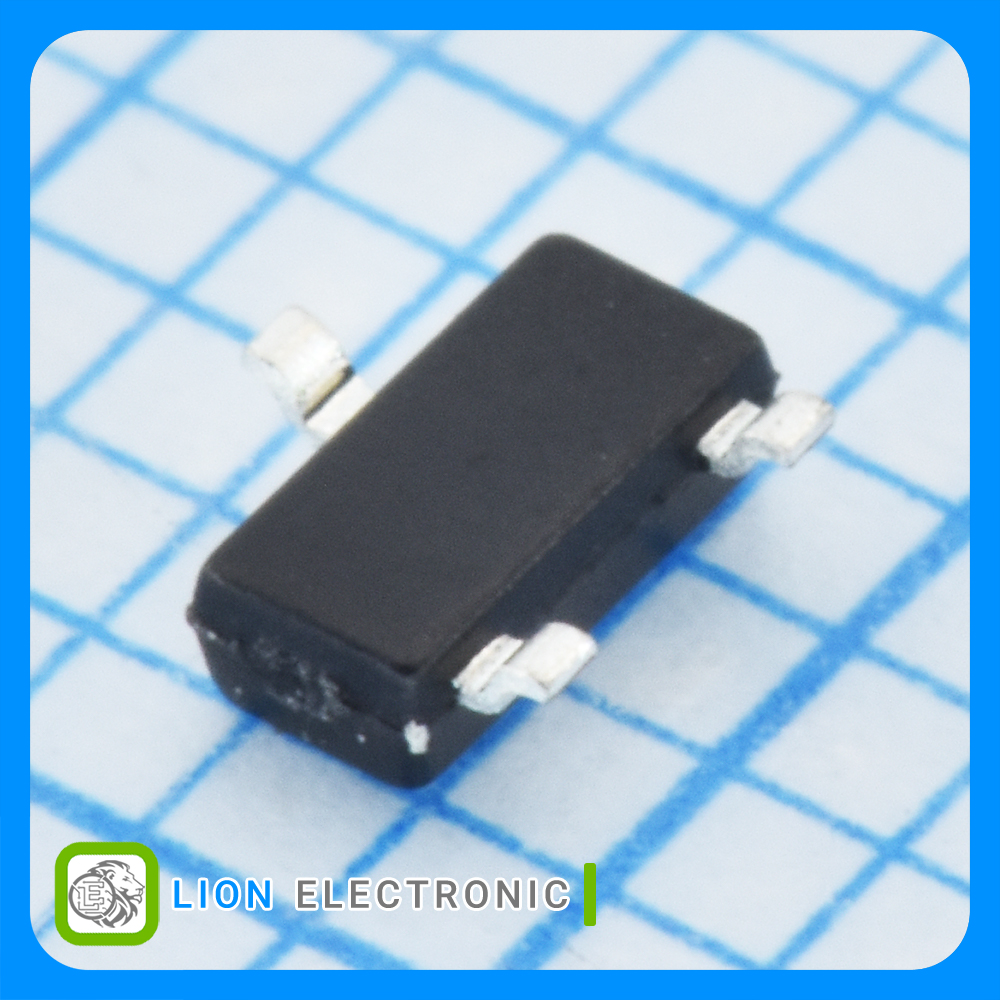

FDN5630
FDN5630
Part Number
3292
Lion Part
Datasheet
FAIRCHILD/ONSEMI Manufacture
ماسفت 60 ولت 1.7 آمپر نوع N با پکیج SSOT-3
N-CH MOSFET 60V, 1.7A with SSOT-3 Package
معرفی
ماسفت 60 ولت 1.7 آمپر نوع N با پکیج SSOT-3
N-CH MOSFET 60V, 1.7A with SSOT-3 Package
Specifications
- Package/Case: SSOT-3
- Vds - Drain - Source Breakdown Voltage: 60V
- Id - Continuous Drain Current: 1.7A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 1V
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 73mΩ
- Pd - Power Dissipation: 500mW
- Qg - Gate Charge: 10nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات ماسفت FDN5630
ماسفت FDN5630
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Reel
Packaging
SMD/SMT
Mounting Style
±20V
Vgs - Gate - Source Voltage
+150C
Maximum Operating Temperature
60V
Vds - Drain - Source Breakdown Voltage
1V
Vgs th - Gate - Source Threshold Voltage
500mW
Pd - Power Dissipation
10nC
Qg - Gate Charge
1.7A
Id - Continuous Drain Current
73mΩ
Rds On - Drain - Source Resistance
SSOT-3
Package-Case
