TOSHIBA
معرفی

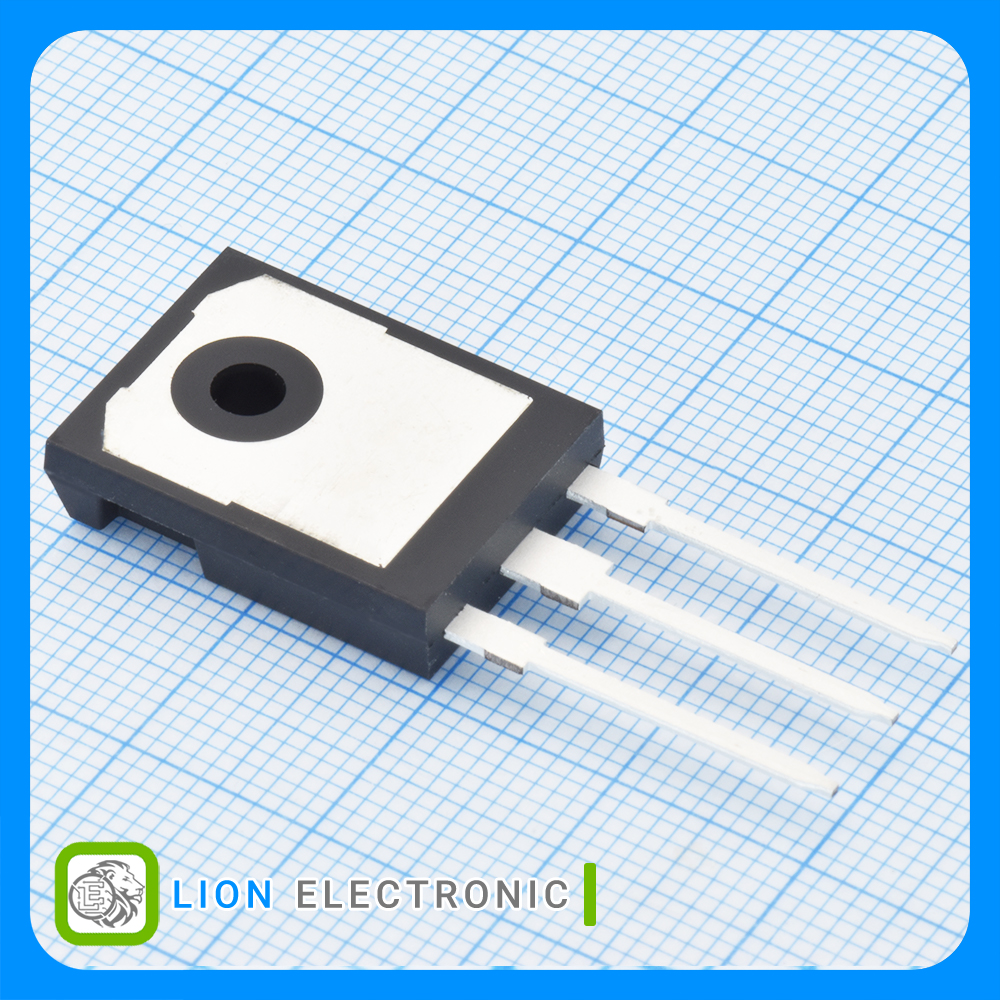

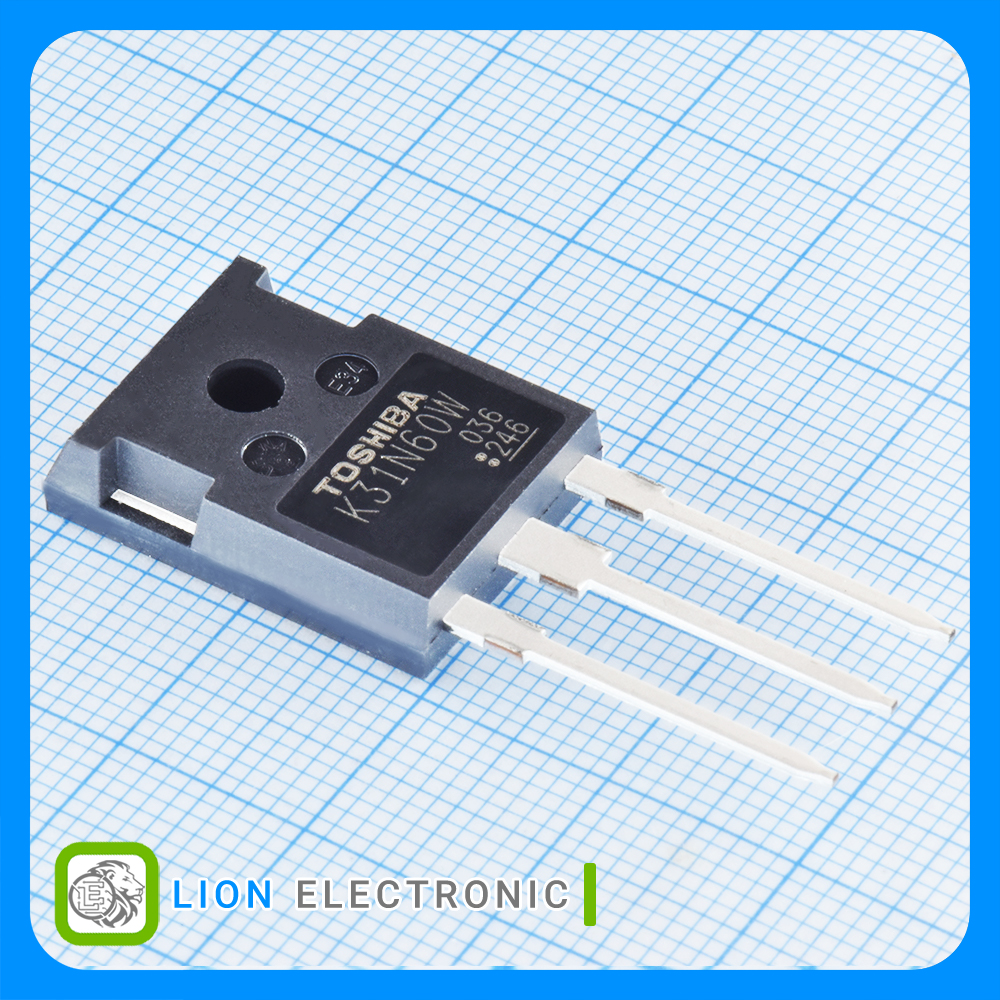

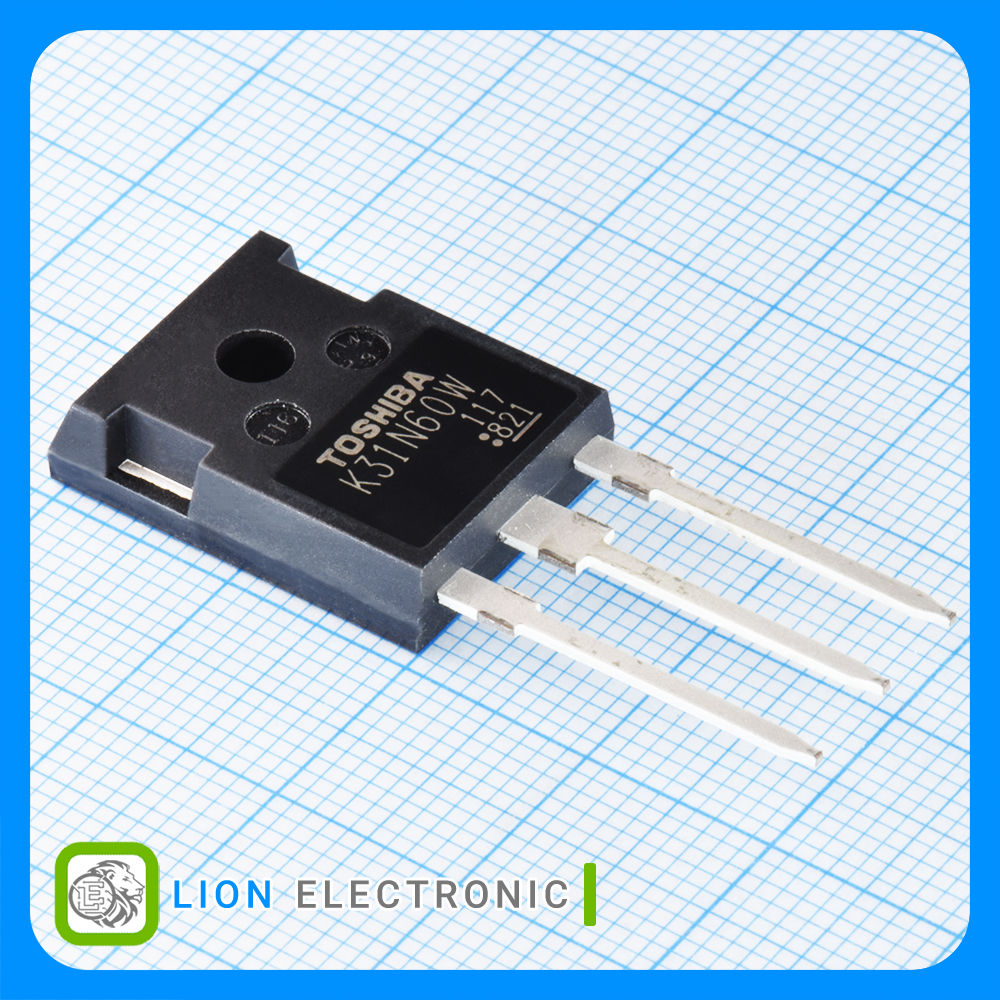

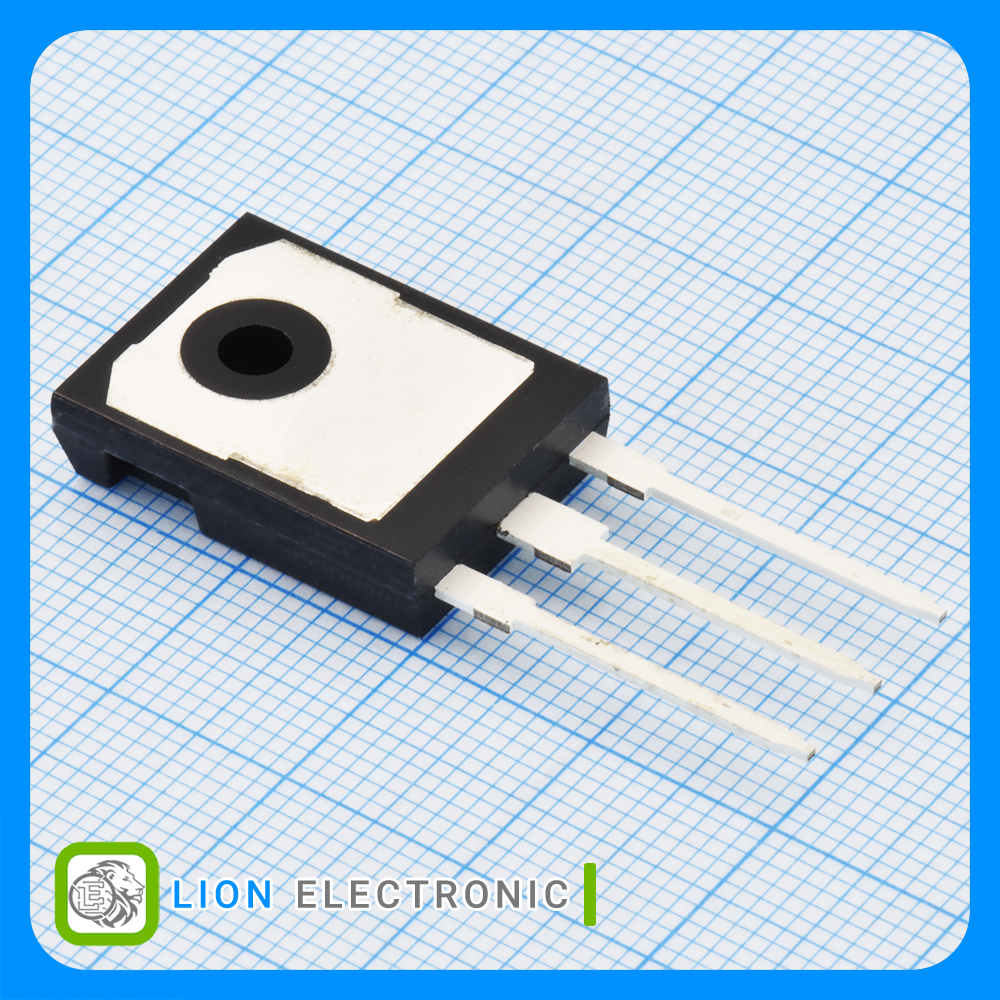

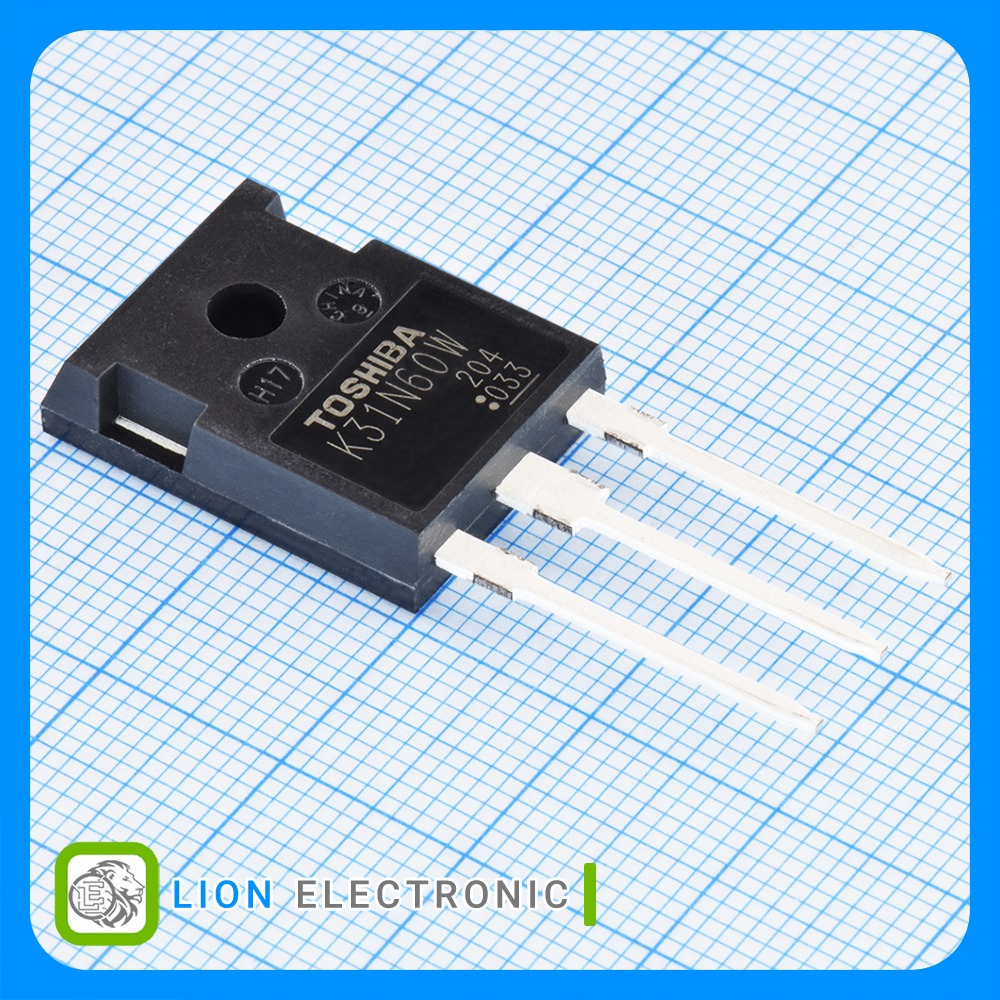

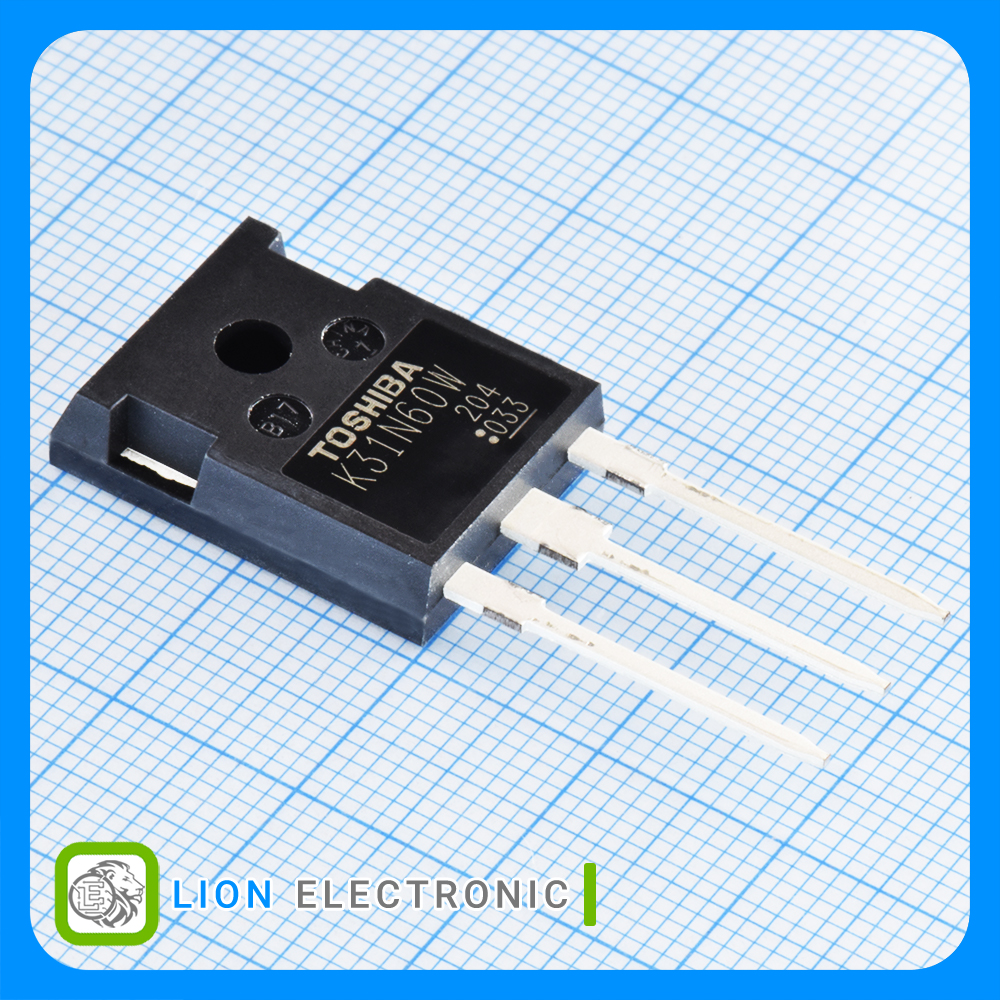

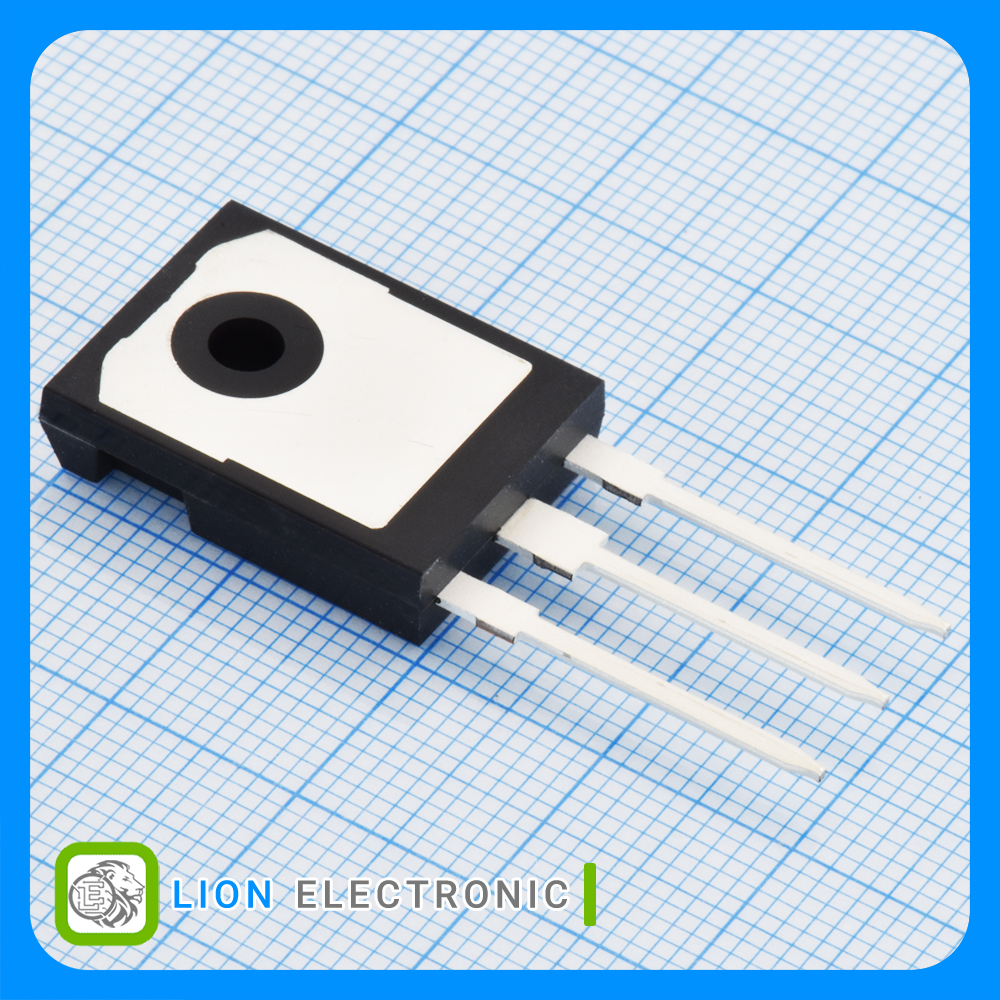

ماسفت 600 ولت 30.8 آمپر نوع N با پکیج TO-247-3
N-CH MOSFET 600V, 30.8A with TO-247-3 Package
Specifications
- Package/Case: TO-247
- Vds - Drain - Source Breakdown Voltage: 600V
- Id - Continuous Drain Current: 30.8A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 2.7V
- Vgs - Gate - Source Voltage: ±30V
- Rds On - Drain - Source Resistance: 73mΩ
- Pd - Power Dissipation: 230W
- Qg - Gate Charge: 86nC
- Mounting Style: Through Hole
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Tube
مشخصات ماسفت TK31N60W,S1VF
ماسفت TK31N60W,S1VF
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Tube
Packaging
Through Hole
Mounting Style
±30V
Vgs - Gate - Source Voltage
+150C
Maximum Operating Temperature
600V
Vds - Drain - Source Breakdown Voltage
2.7V
Vgs th - Gate - Source Threshold Voltage
73mΩ
Rds On - Drain - Source Resistance
30.8A
Id - Continuous Drain Current
86nC
Qg - Gate Charge
230W
Pd - Power Dissipation
TO-247
Package-Case
