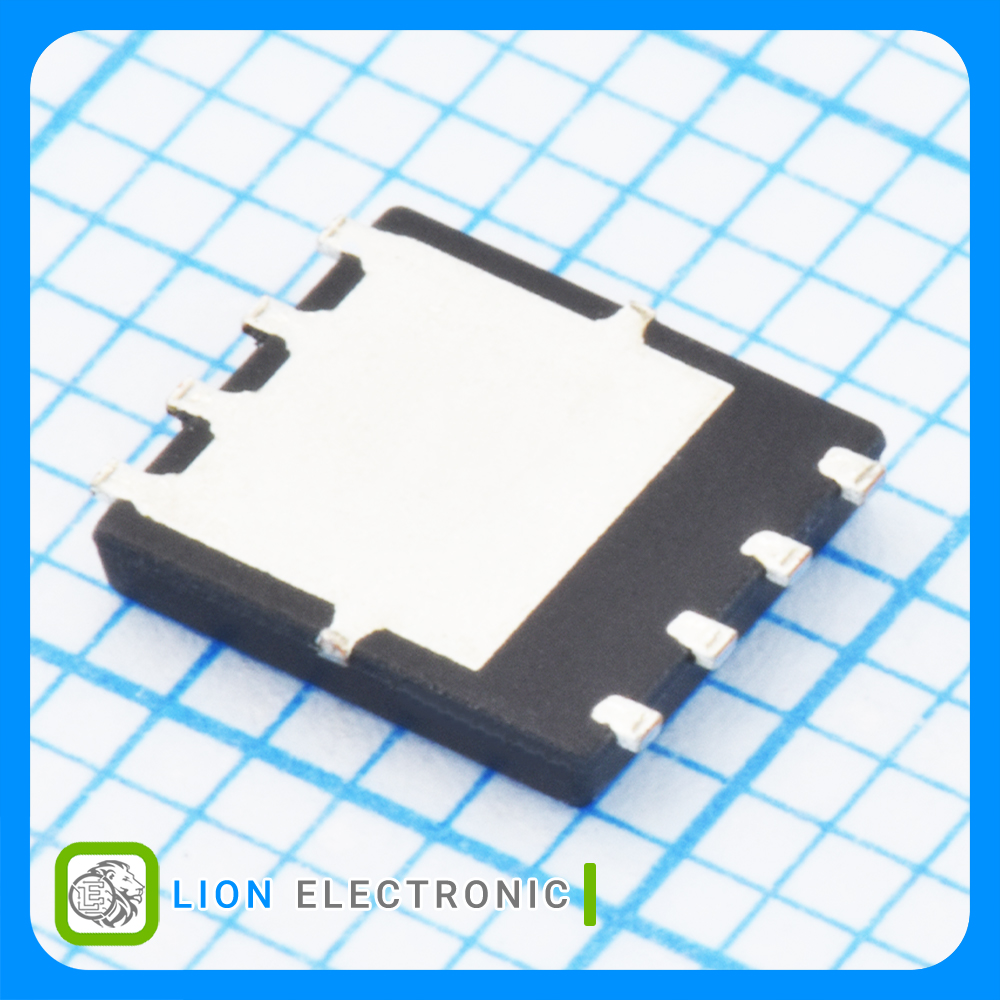

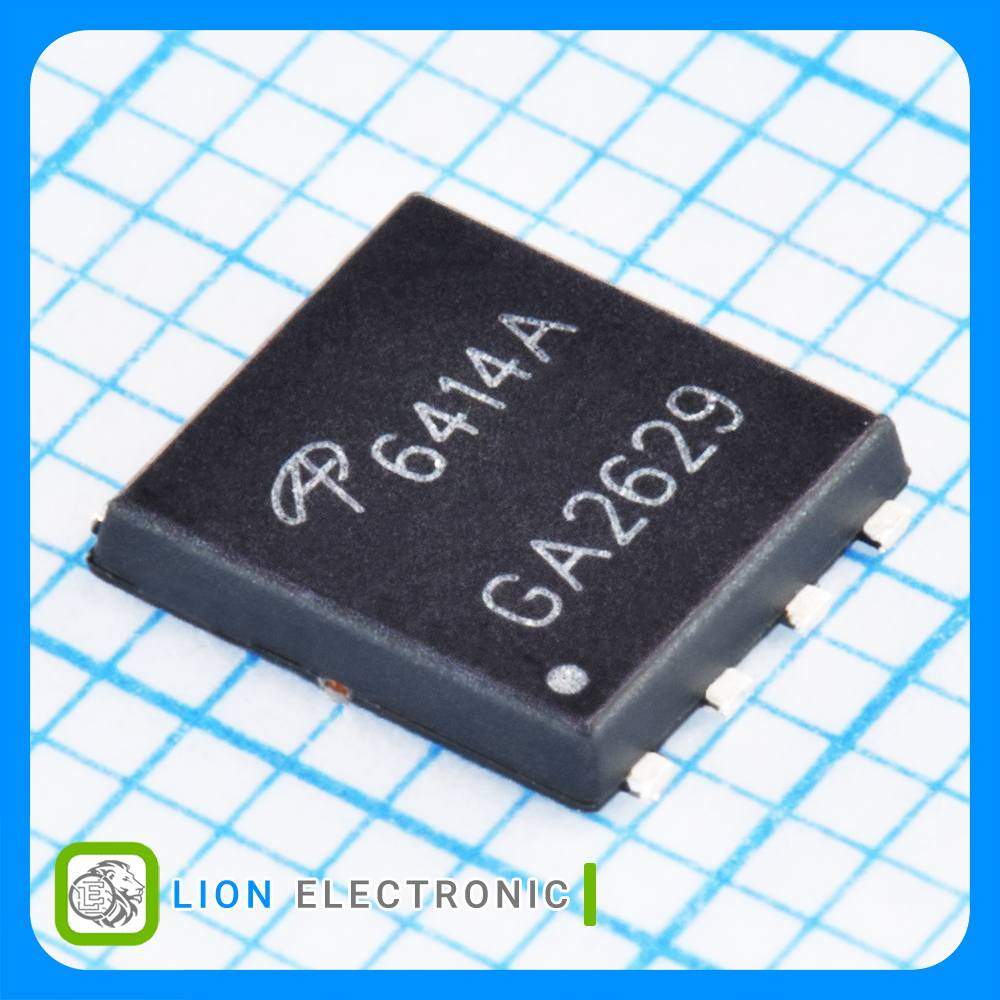

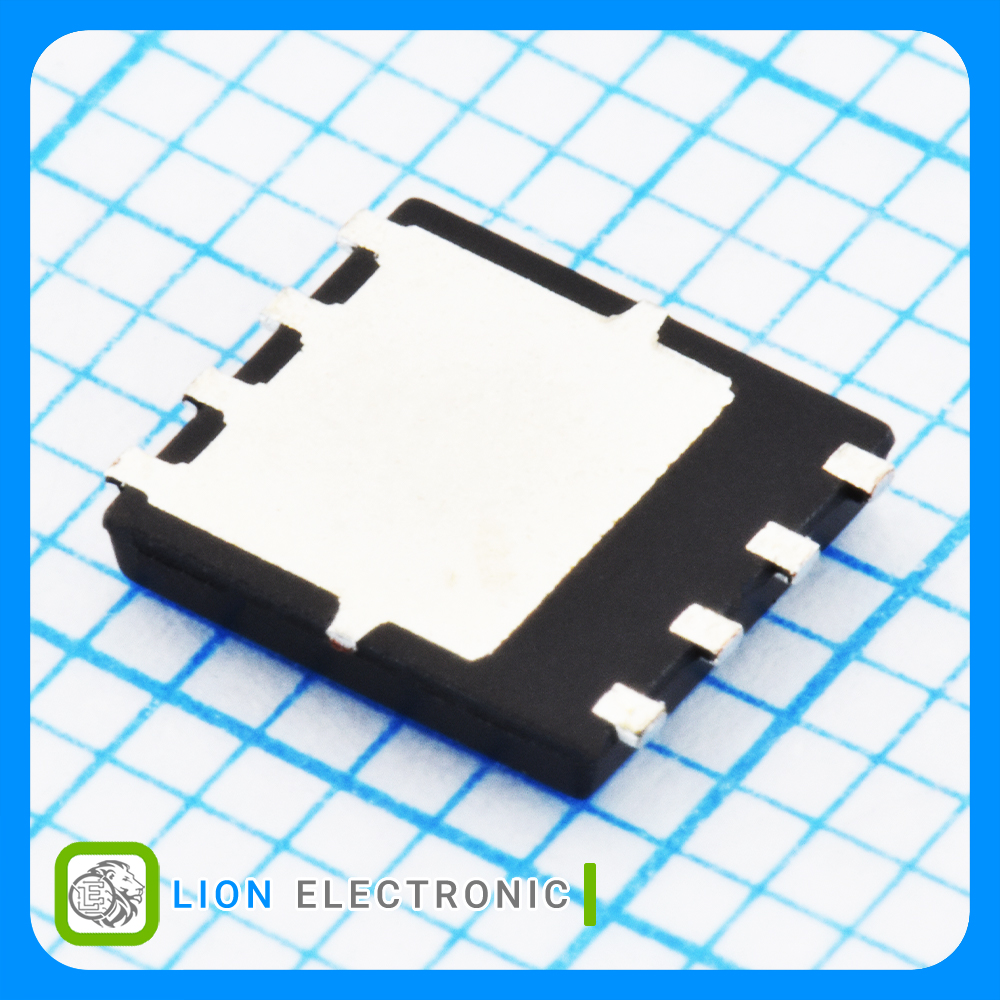

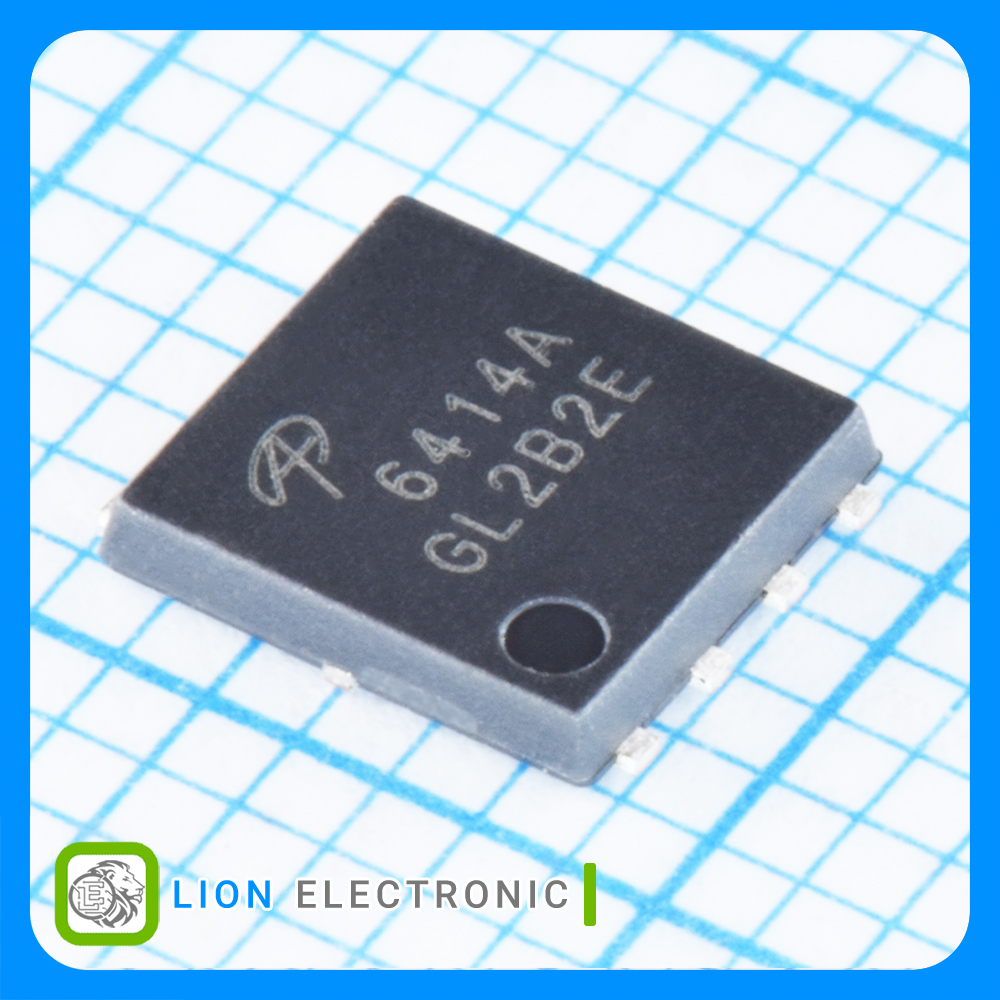

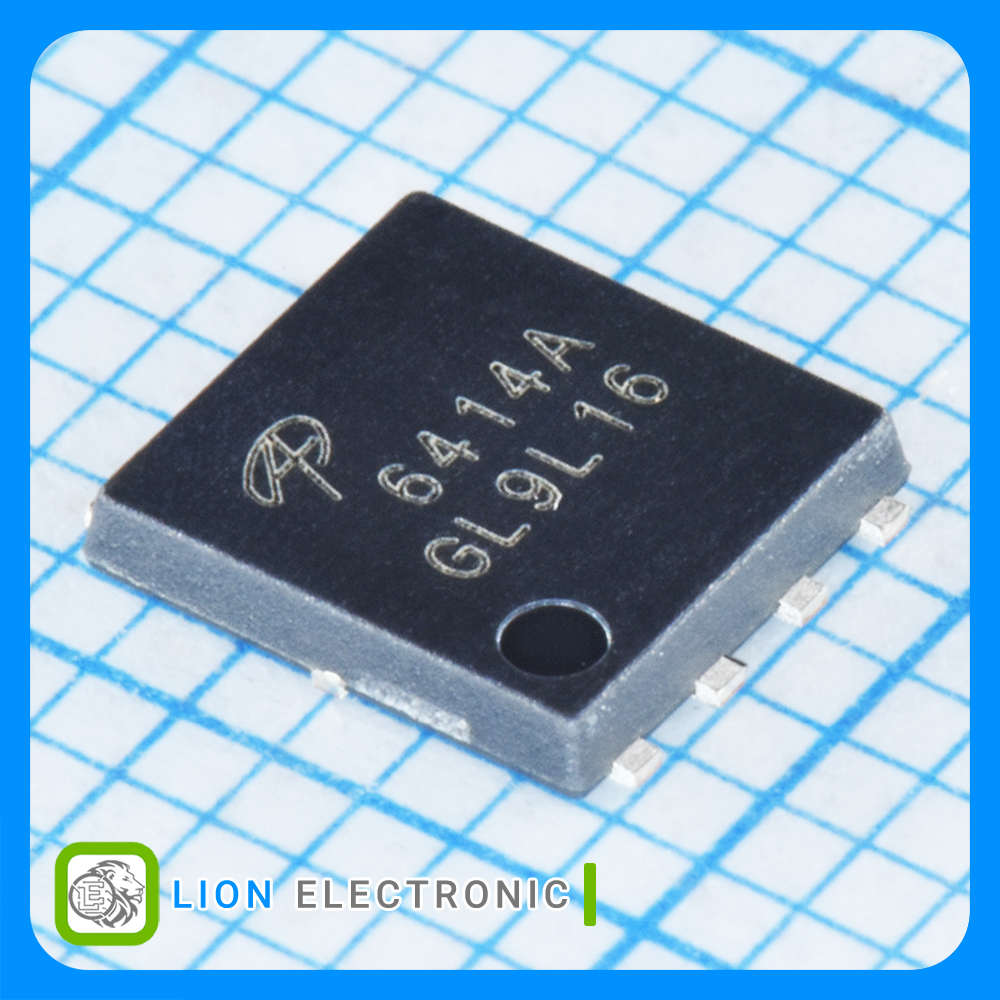

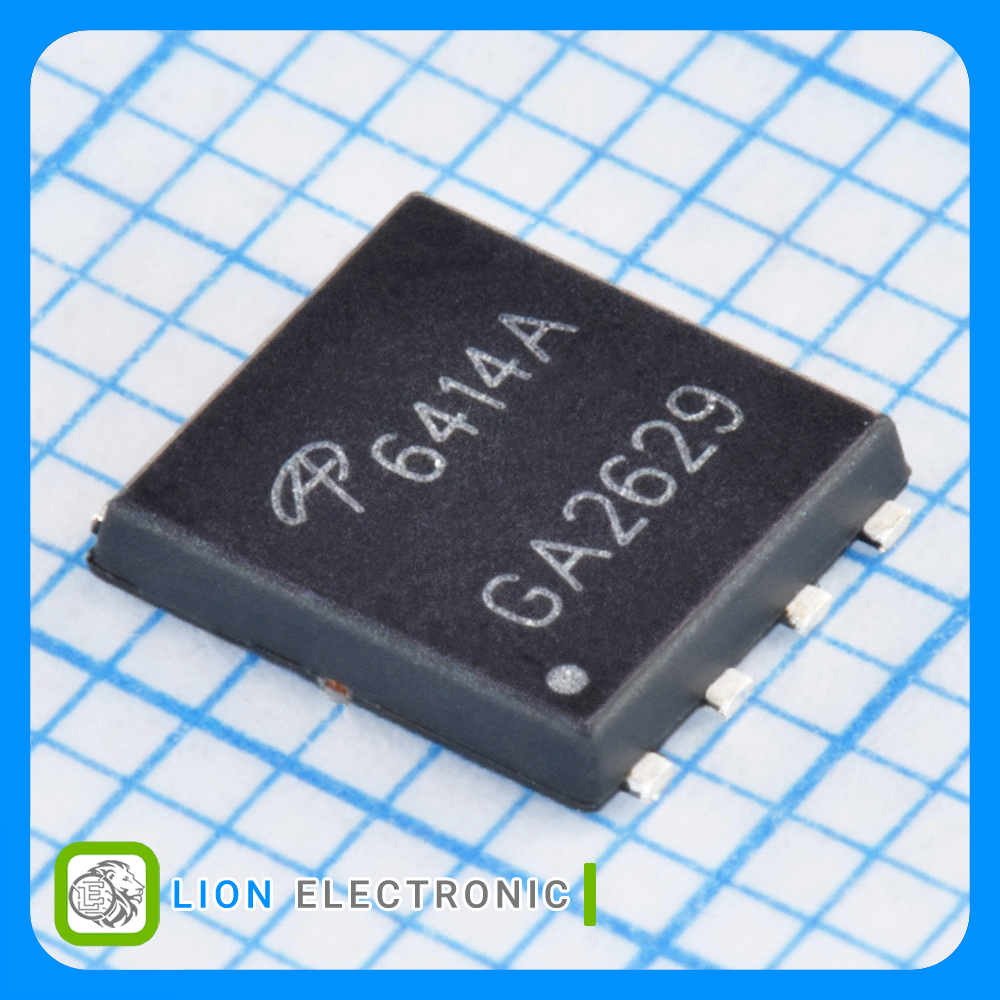

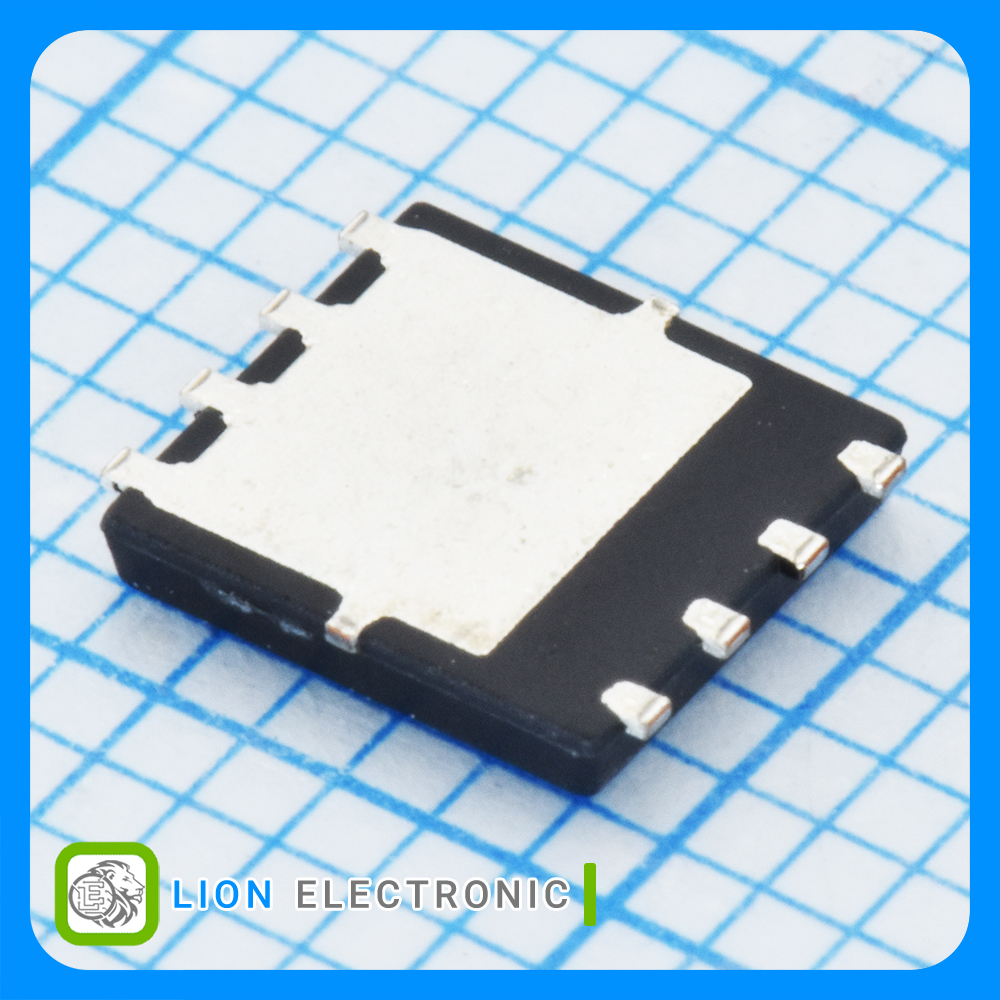

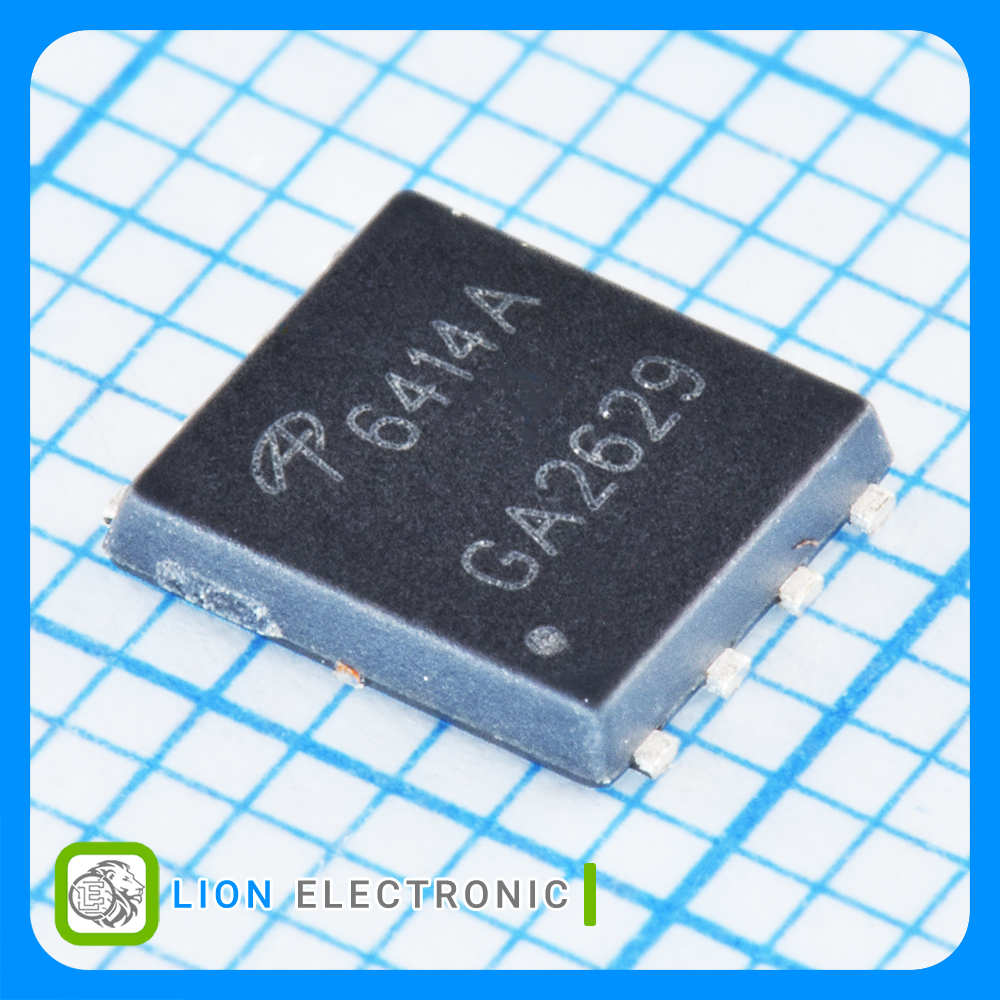

AON6414AL
AON6414AL
Part Number
3298
Lion Part
Datasheet
Alpha & Omega Semiconductor Manufacture
ماسفت 30 ولت 50 آمپر نوع N با پکیج DFN-8(5x6)
N-CH MOSFET 30V, 50A with DFN-8(5x6) Package
معرفی
ماسفت 30 ولت 50 آمپر نوع N با پکیج DFN-8(5x6)
N-CH MOSFET 30V, 50A with DFN-8(5x6) Package
Specifications
- Package/Case: DFN-8(5x6)
- Vds - Drain - Source Breakdown Voltage: 30V
- Id - Continuous Drain Current: 50A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 1.5V
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 6.6mΩ
- Pd - Power Dissipation: 31W
- Qg - Gate Charge: 20nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات ماسفت AON6414AL
ماسفت AON6414AL
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Reel
Packaging
SMD/SMT
Mounting Style
30V
Vds - Drain - Source Breakdown Voltage
±20V
Vgs - Gate - Source Voltage
+150C
Maximum Operating Temperature
1.5V
Vgs th - Gate - Source Threshold Voltage
6.6mΩ
Rds On - Drain - Source Resistance
20nC
Qg - Gate Charge
DFN-8
Package-Case
31W
Pd - Power Dissipation
50A
Id - Continuous Drain Current
