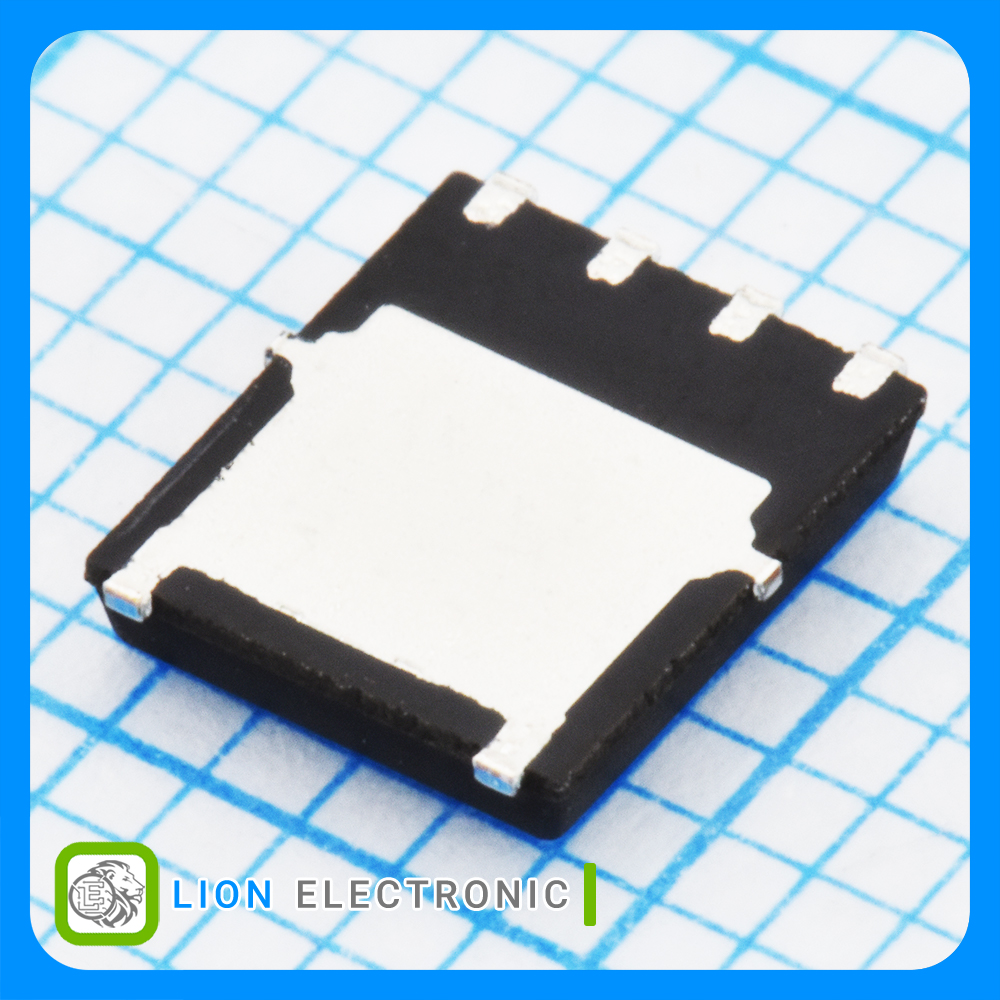

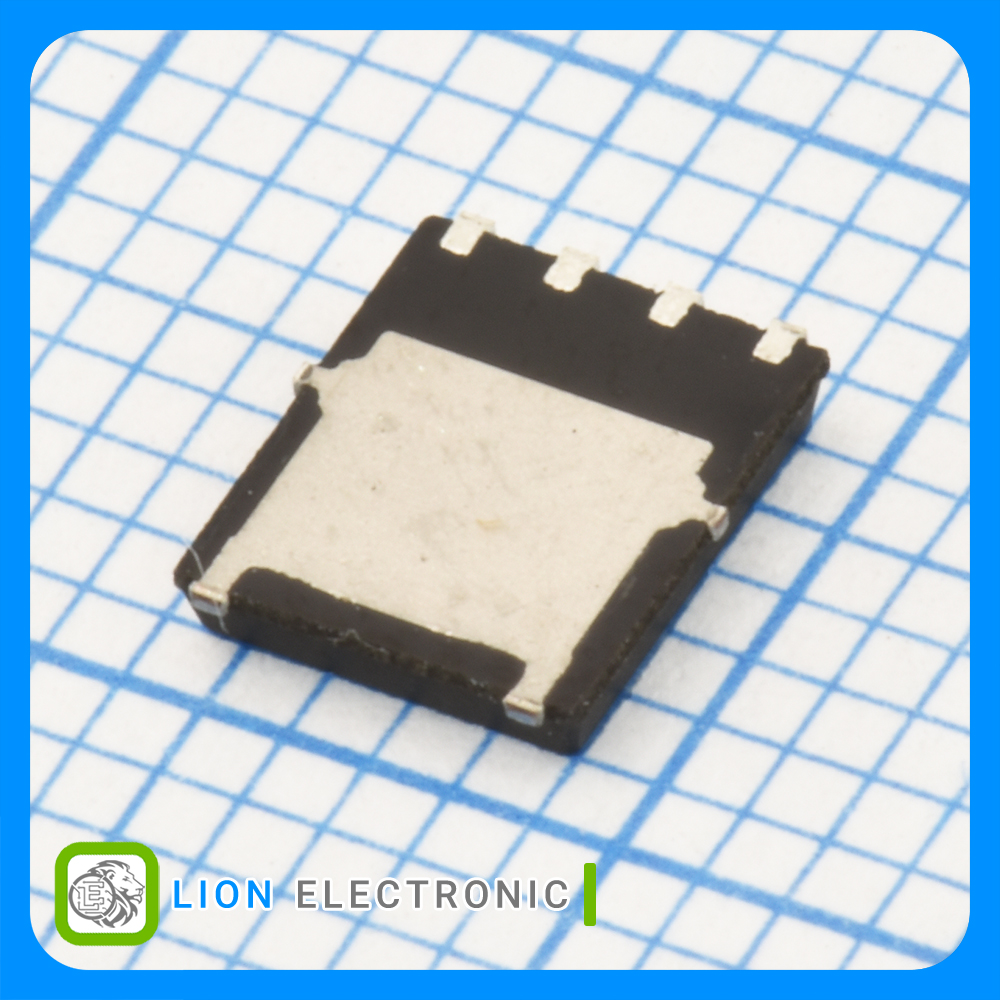

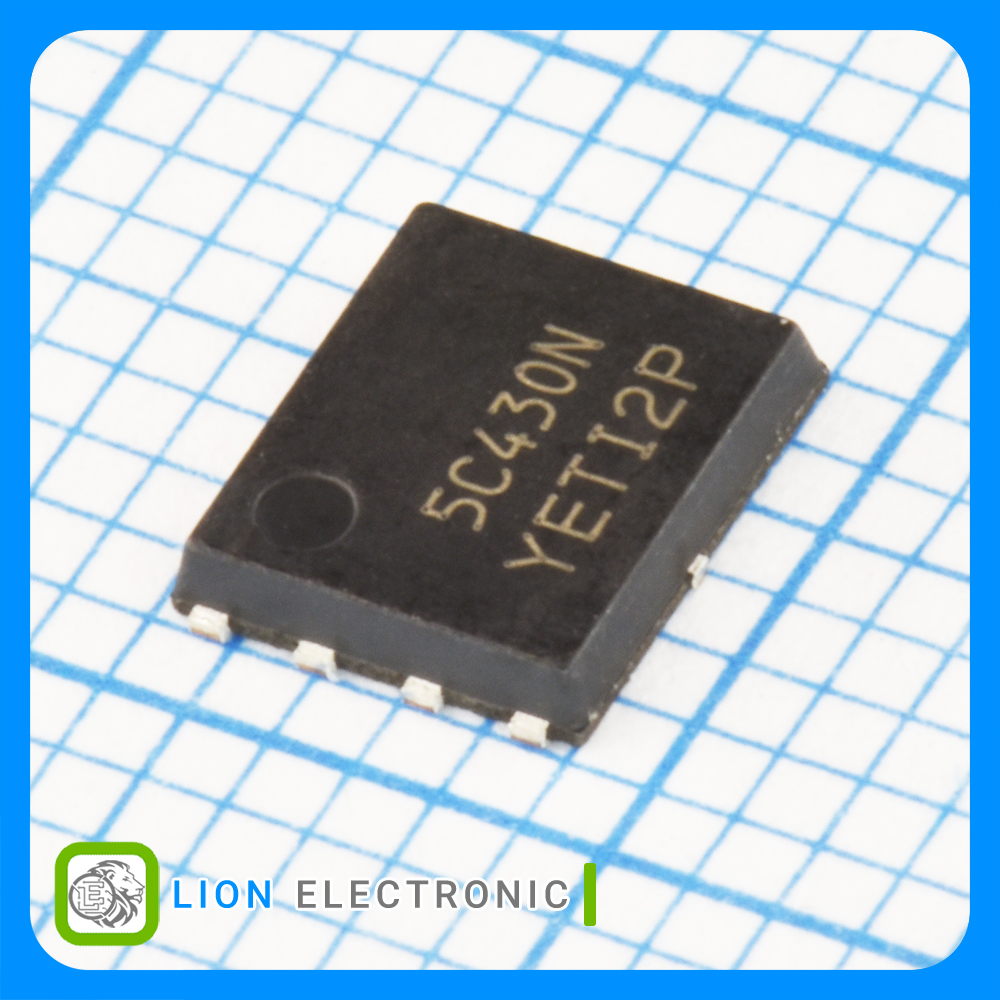

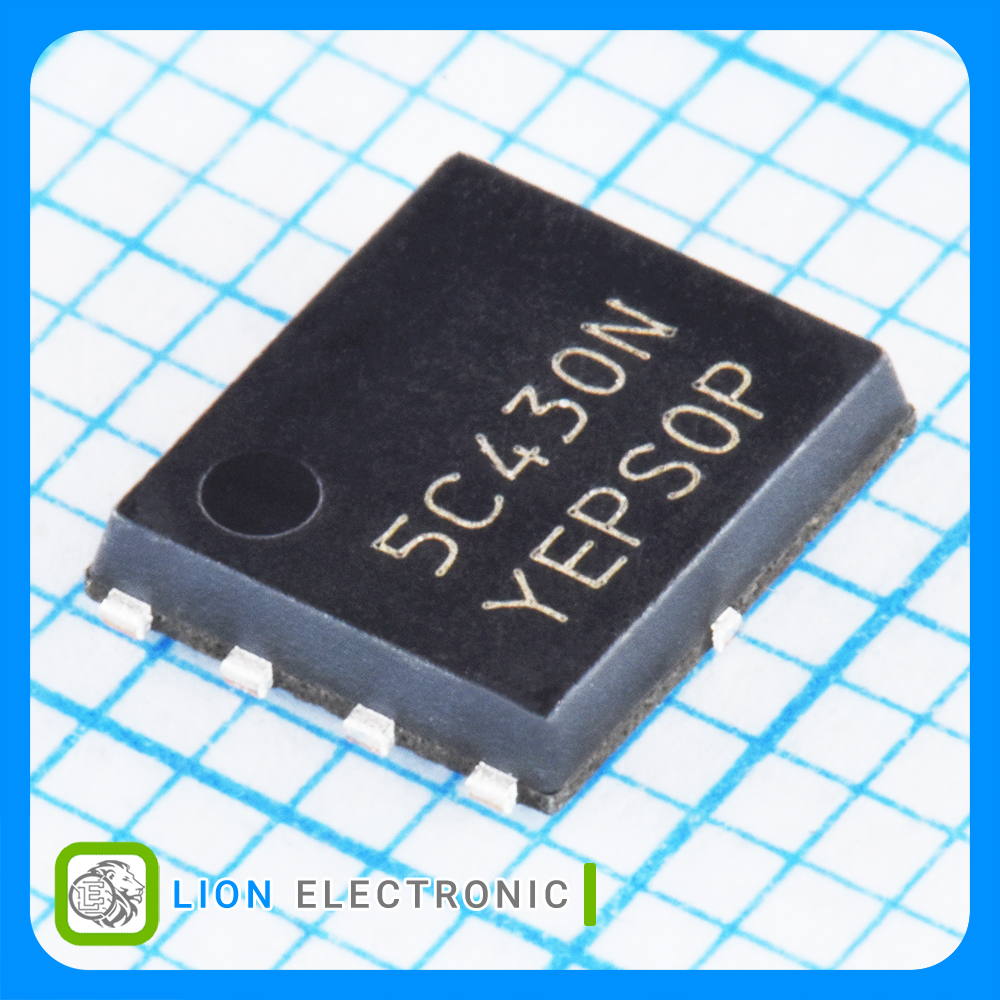

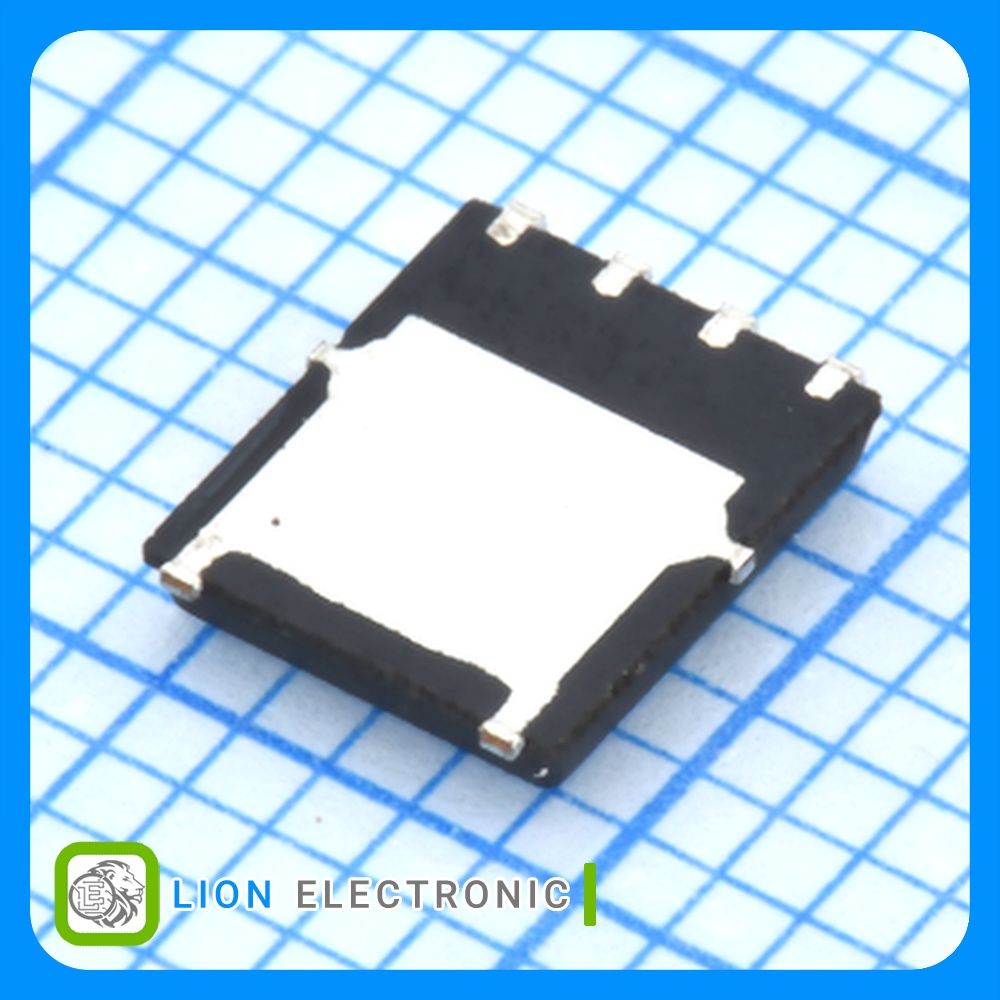

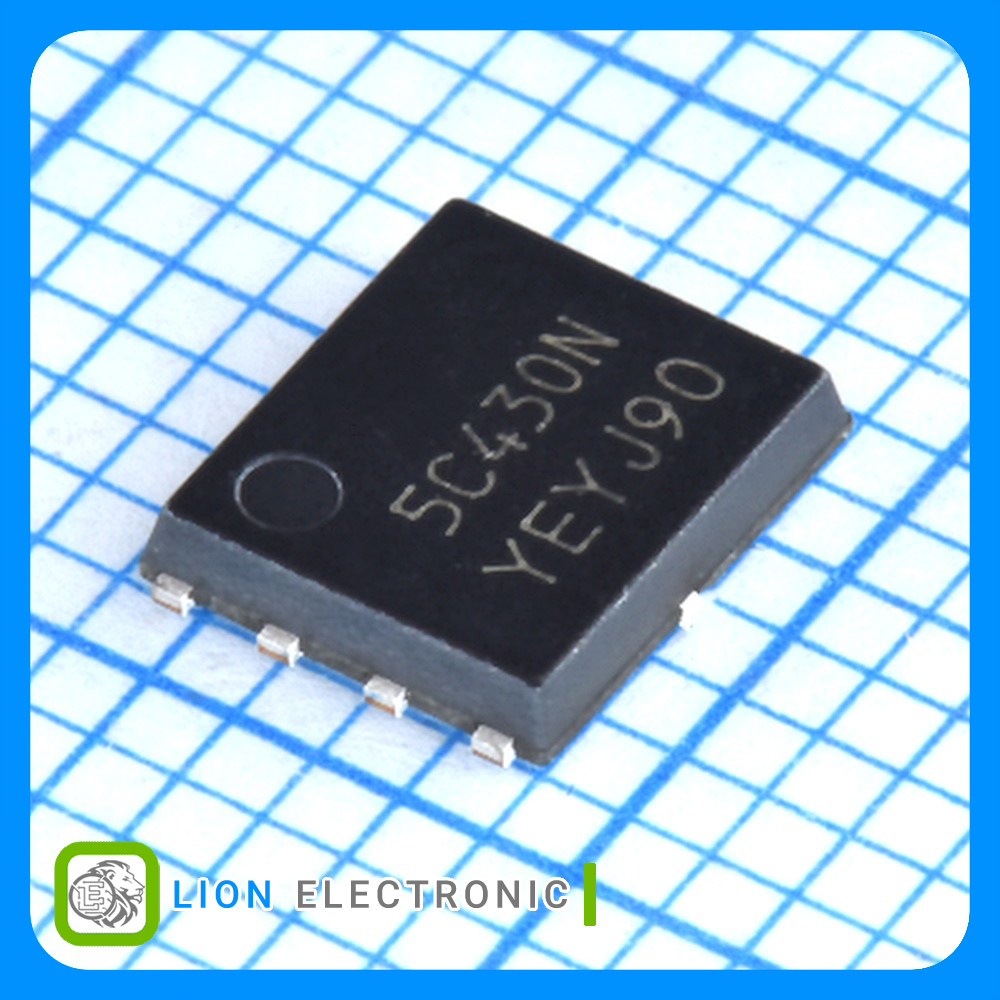

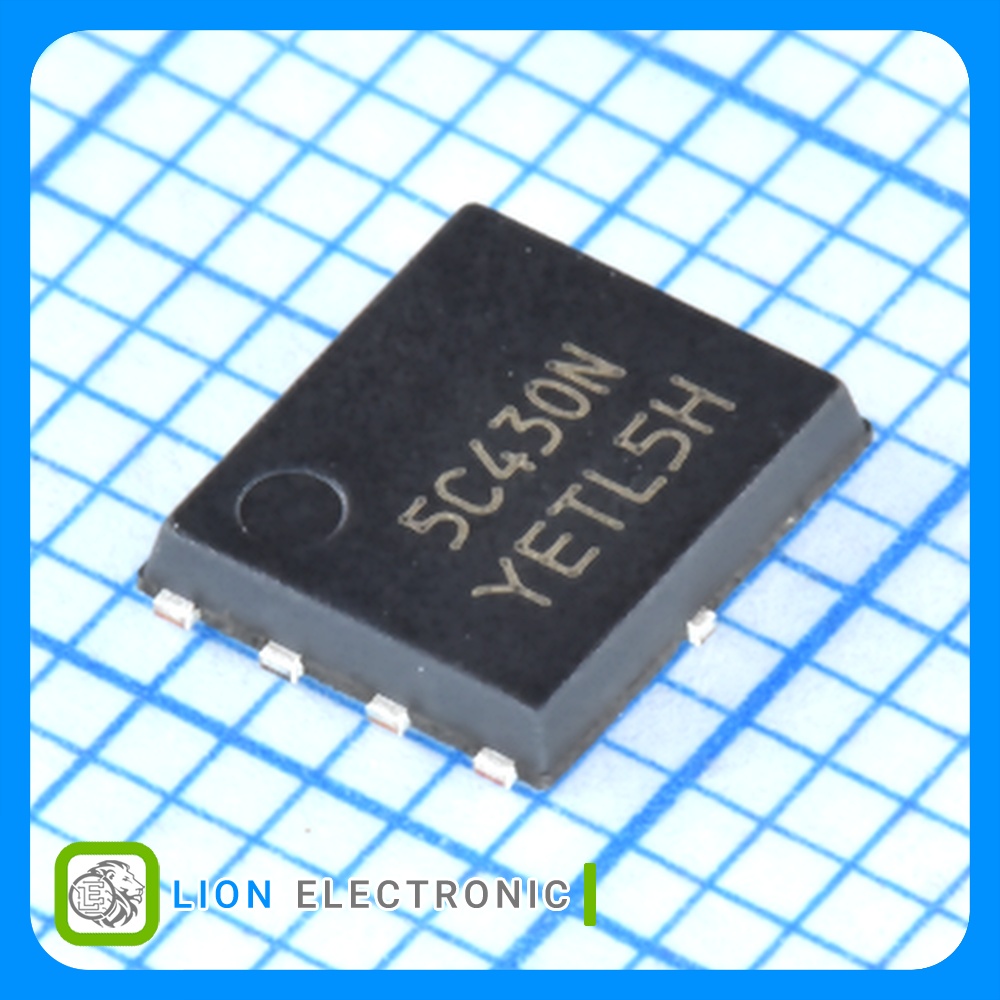

NTMFS5C430NT1G
NTMFS5C430NT1G
Part Number
3300
Lion Part
Datasheet
FAIRCHILD/ONSEMI Manufacture
ماسفت 40 ولت 185 آمپر نوع N با پکیج SO-8FL-4
N-CH MOSFET 40V, 185A with SO-8FL-4 Package
معرفی
ماسفت 40 ولت 185 آمپر نوع N با پکیج SO-8FL-4
N-CH MOSFET 40V, 185A with SO-8FL-4 Package
Specifications
- Package/Case: SO-8FL-4
- Vds - Drain - Source Breakdown Voltage: 40V
- Id - Continuous Drain Current: 185A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 2.5V
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 1.4mΩ
- Pd - Power Dissipation: 106W
- Qg - Gate Charge: 47nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +175C
- Packaging: Reel
مشخصات ماسفت NTMFS5C430NT1G
ماسفت NTMFS5C430NT1G
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Reel
Packaging
SMD/SMT
Mounting Style
1.4mΩ
Rds On - Drain - Source Resistance
±20V
Vgs - Gate - Source Voltage
40V
Vds - Drain - Source Breakdown Voltage
+175C
Maximum Operating Temperature
2.5V
Vgs th - Gate - Source Threshold Voltage
47nC
Qg - Gate Charge
106W
Pd - Power Dissipation
185A
Id - Continuous Drain Current
SO-8FL-4
Package-Case
