IRLZ44NPBF
IRLZ44NPBF
Part Number
3301
Lion Part
Datasheet
Infineon Technologies Manufacture
ماسفت 55 ولت 47 آمپر نوع N با پکیج TO-220-3

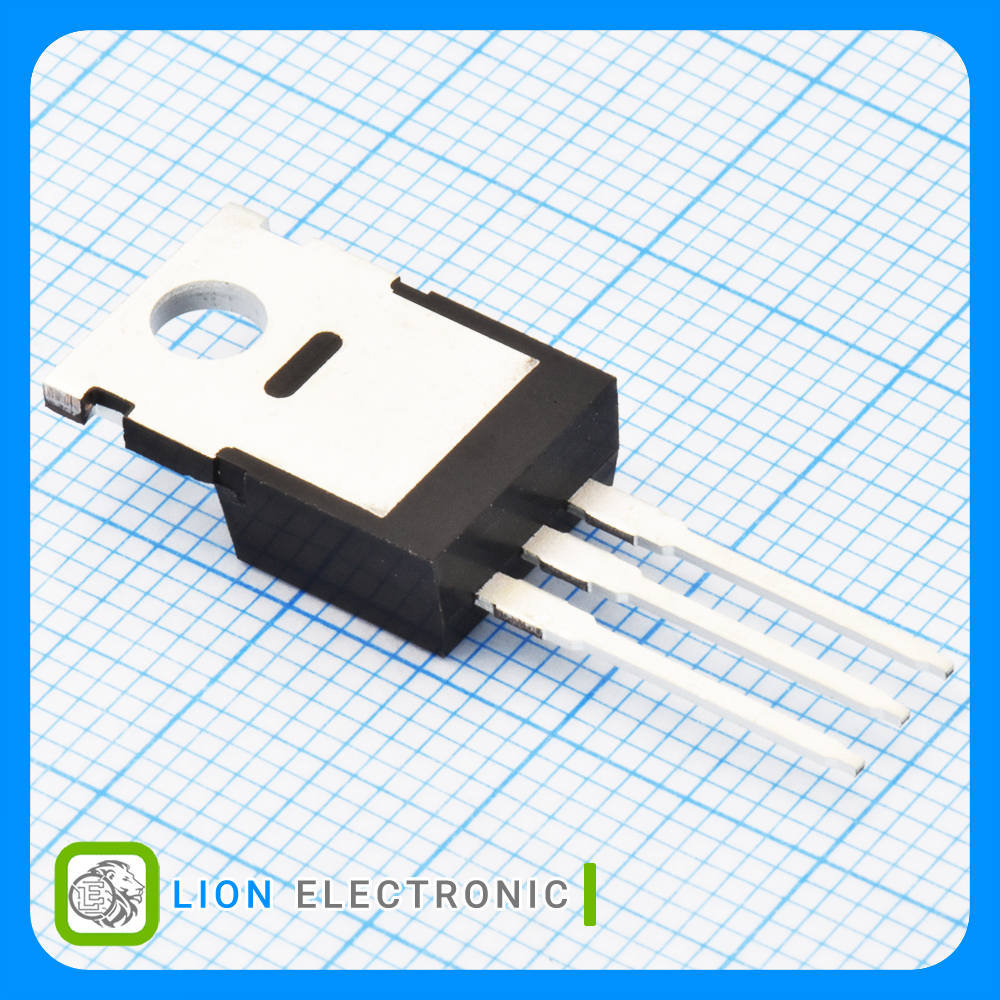

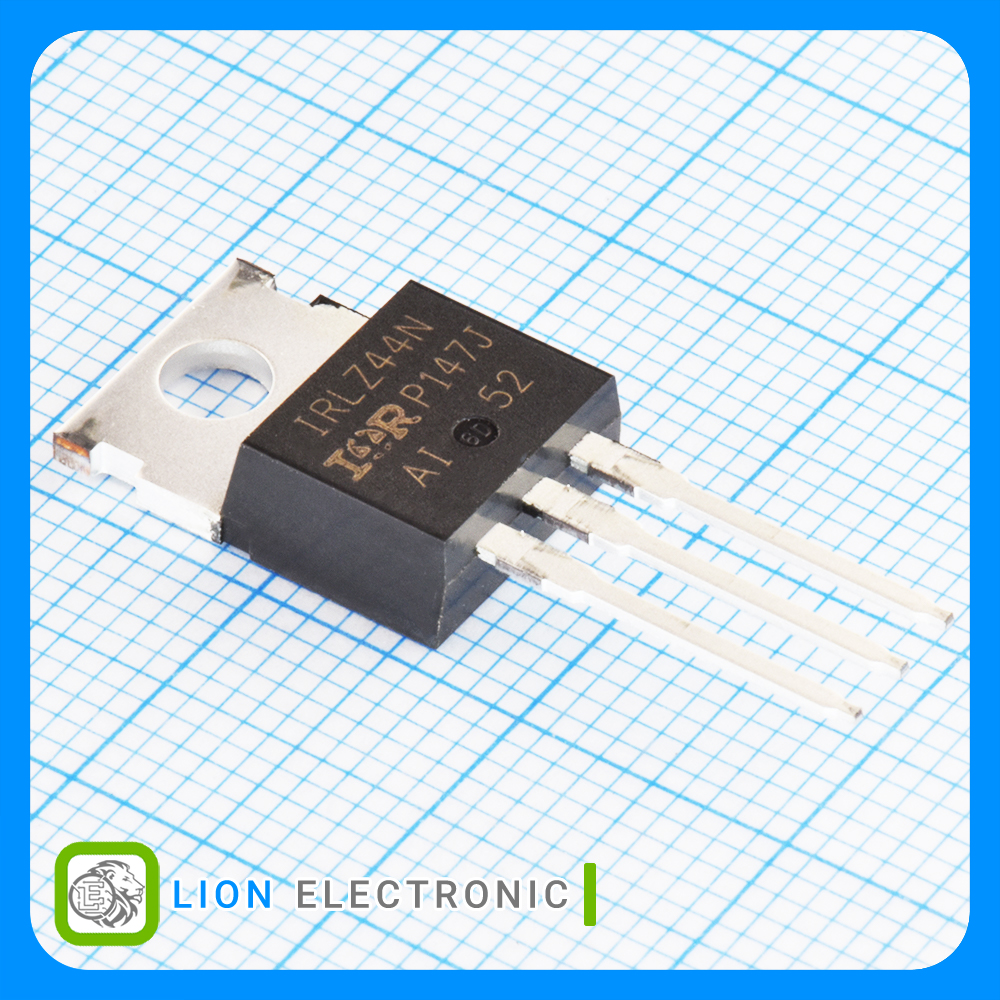

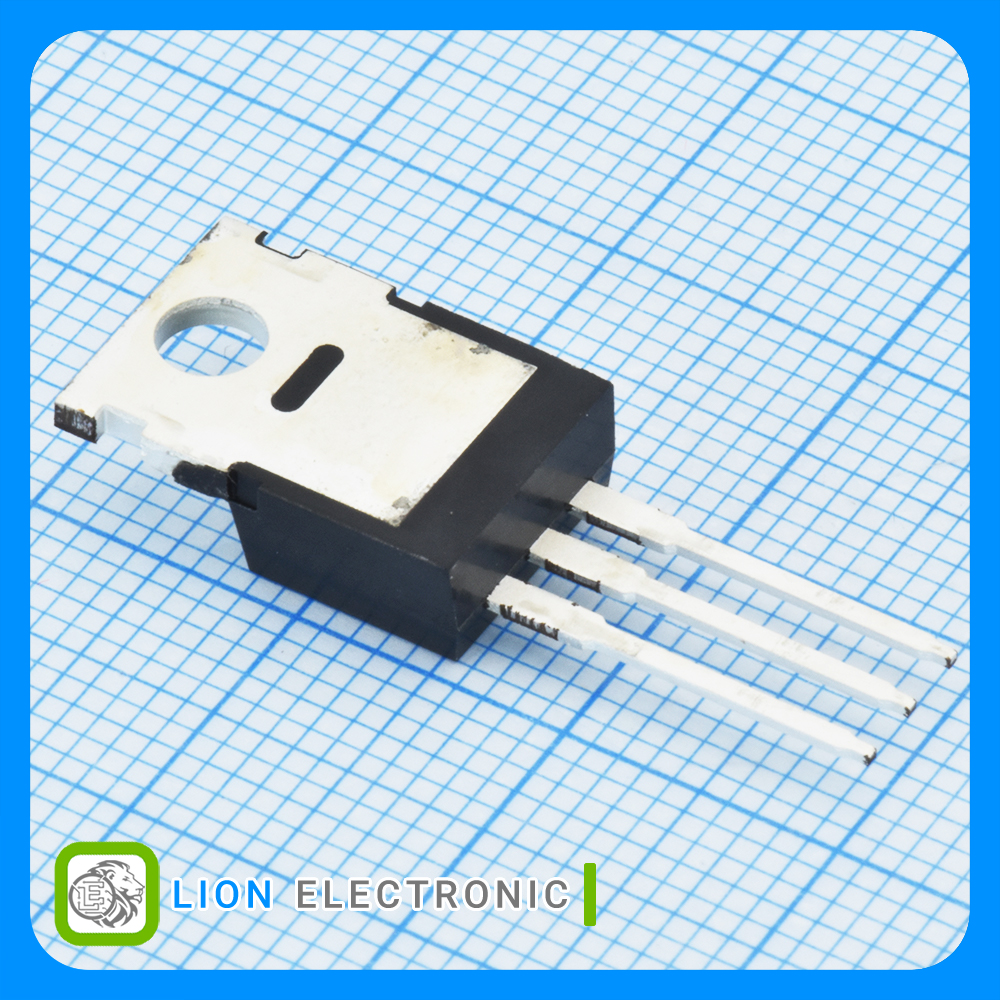

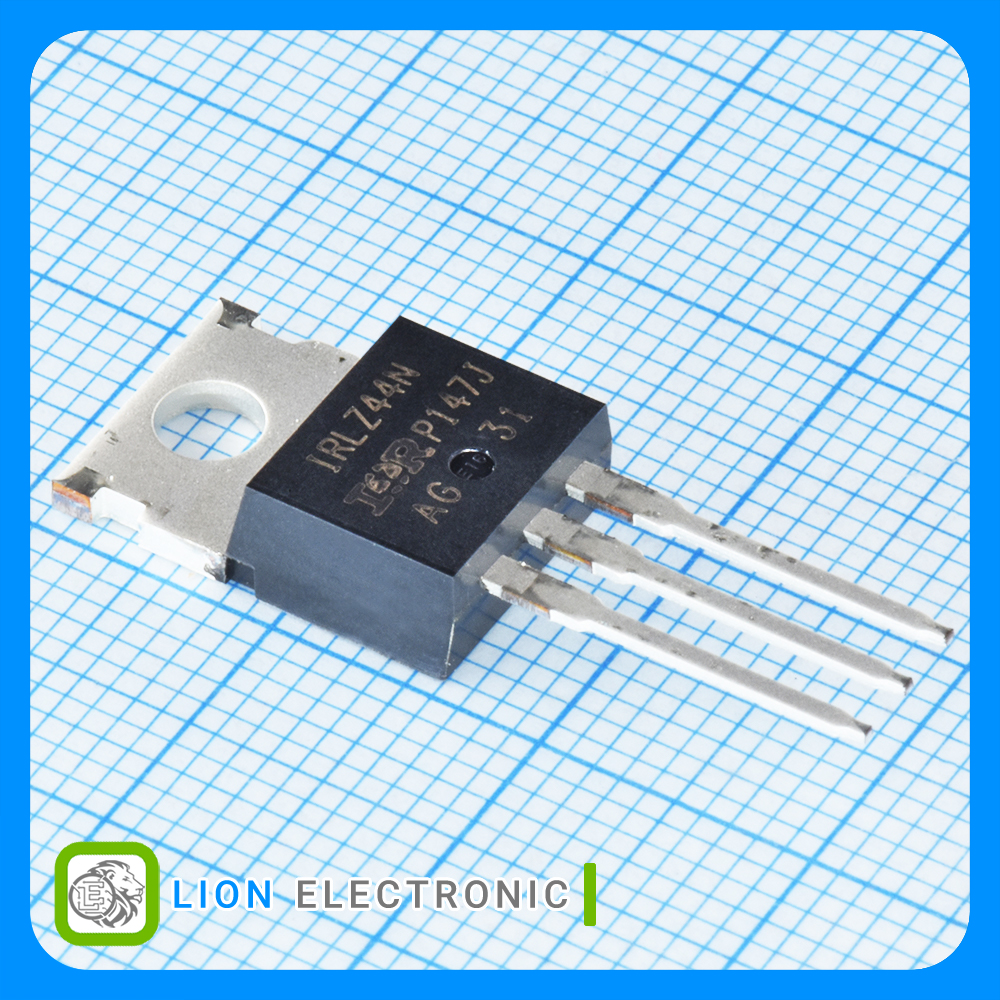

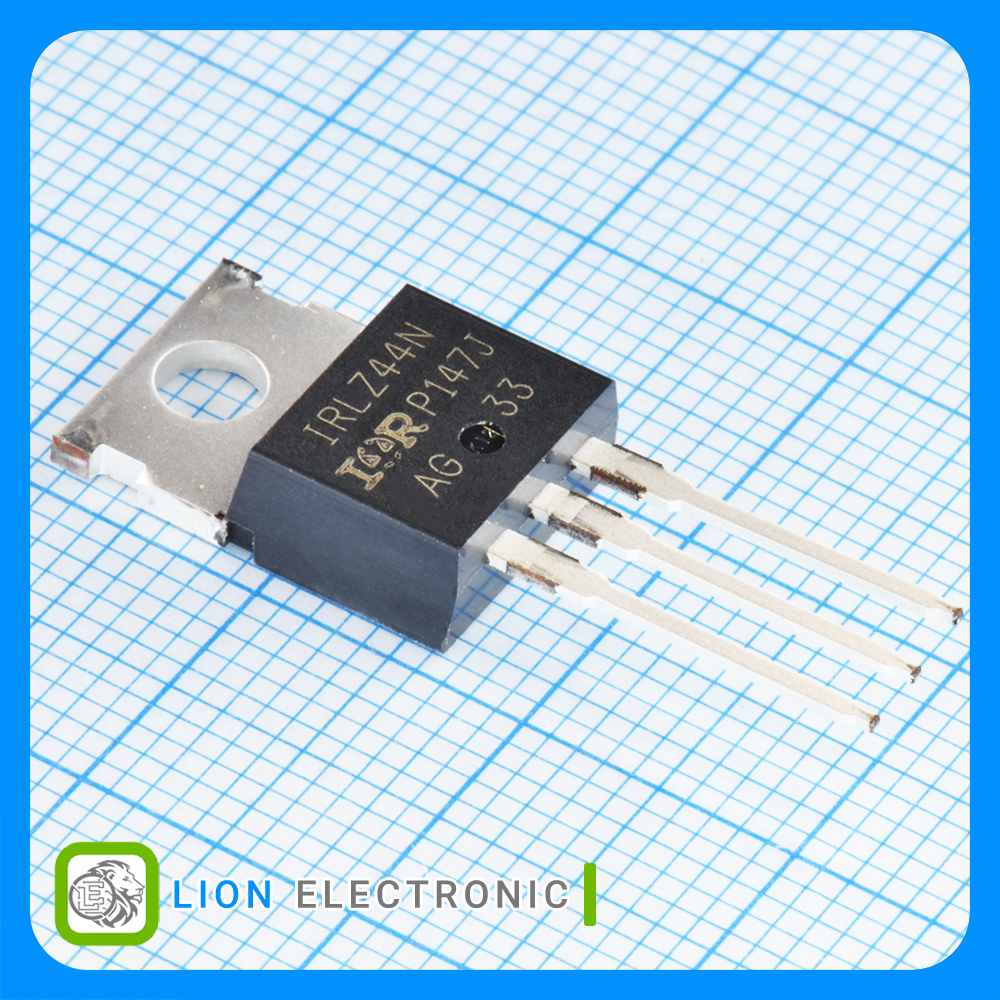

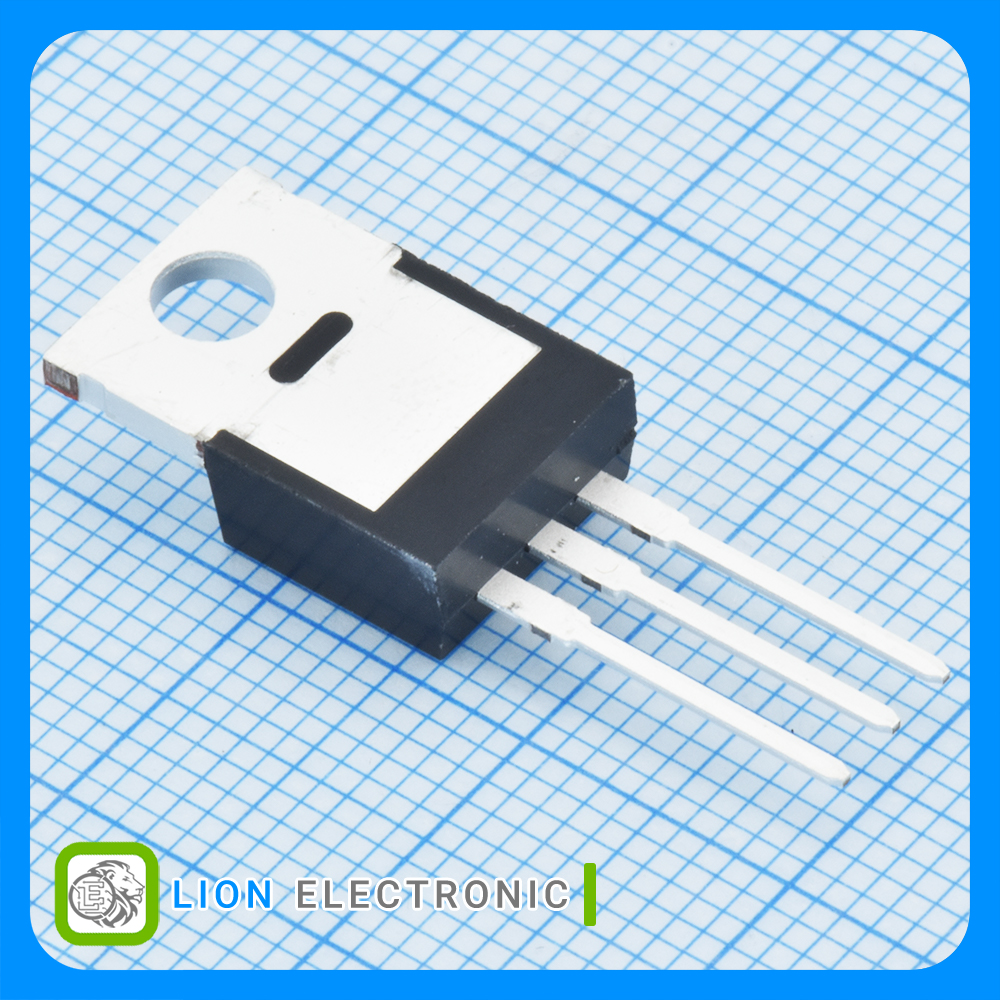

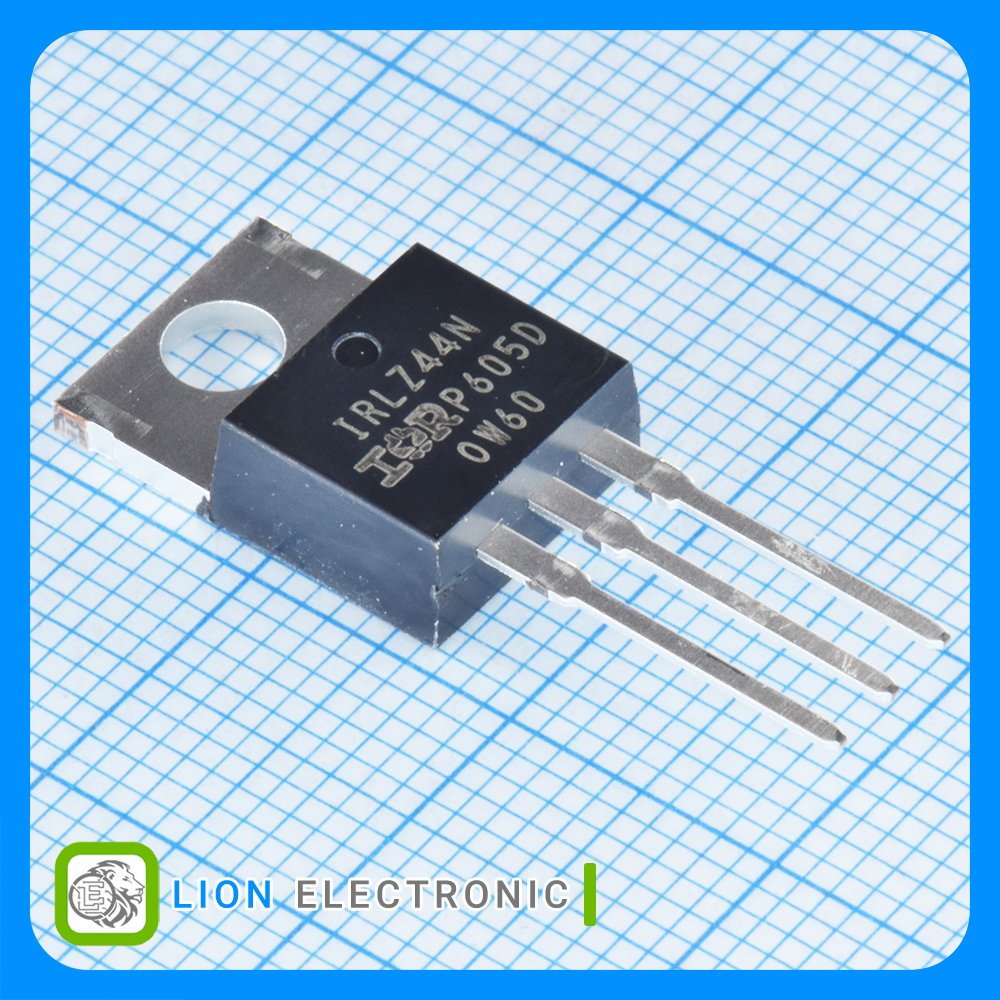

N-CH MOSFET 55V, 47A with TO-220-3 Package
معرفی
ماسفت 55 ولت 47 آمپر نوع N با پکیج TO-220-3
N-CH MOSFET 55V, 47A with TO-220-3 Package
Specifications
- Package/Case: TO-220-3
- Vds - Drain - Source Breakdown Voltage: 55V
- Id - Continuous Drain Current: 47A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 1V
- Vgs - Gate - Source Voltage: ±16V
- Rds On - Drain - Source Resistance: 22mΩ
- Pd - Power Dissipation: 110W
- Qg - Gate Charge: 48nC
- Mounting Style: Through Hole
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +175C
- Packaging: Tube
مشخصات ماسفت IRLZ44NPBF
ماسفت IRLZ44NPBF
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Tube
Packaging
Through Hole
Mounting Style
±16V
Vgs - Gate - Source Voltage
55V
Vds - Drain - Source Breakdown Voltage
+175C
Maximum Operating Temperature
1V
Vgs th - Gate - Source Threshold Voltage
22mΩ
Rds On - Drain - Source Resistance
48nC
Qg - Gate Charge
47A
Id - Continuous Drain Current
110W
Pd - Power Dissipation
TO-220
Package-Case
