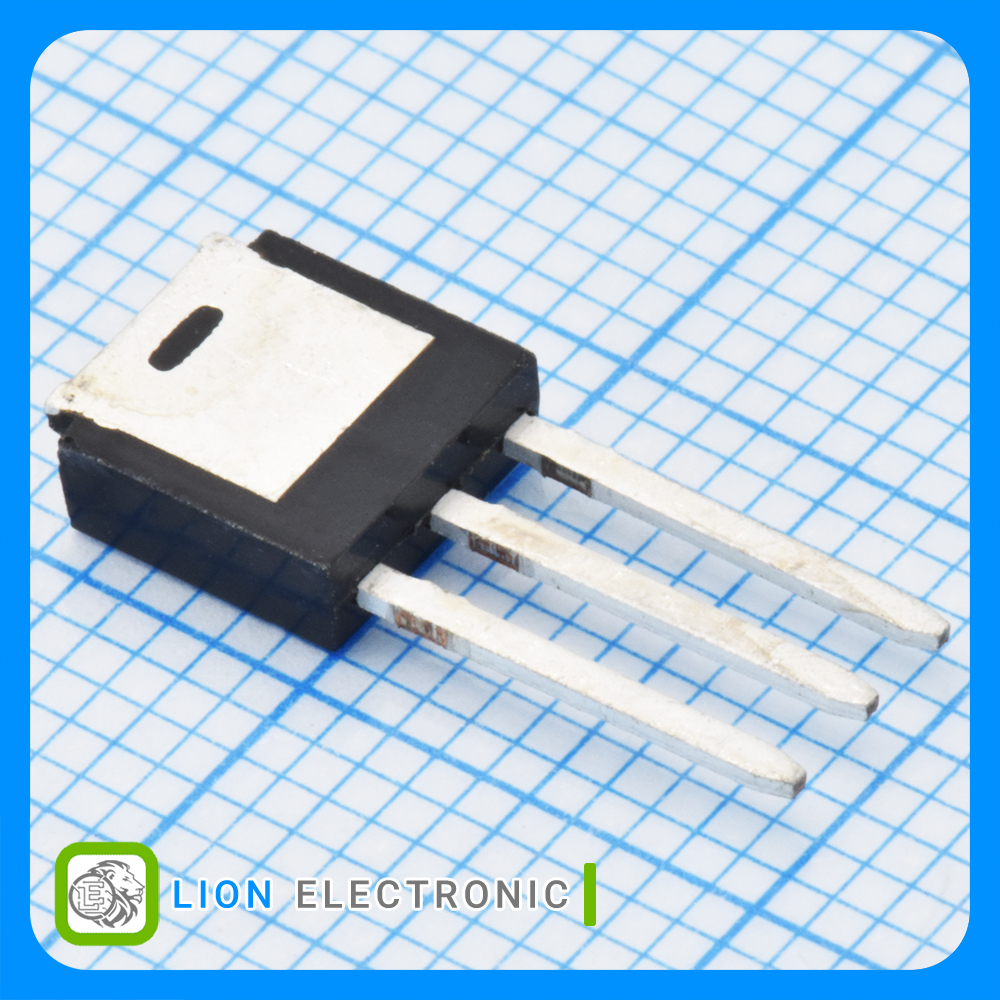

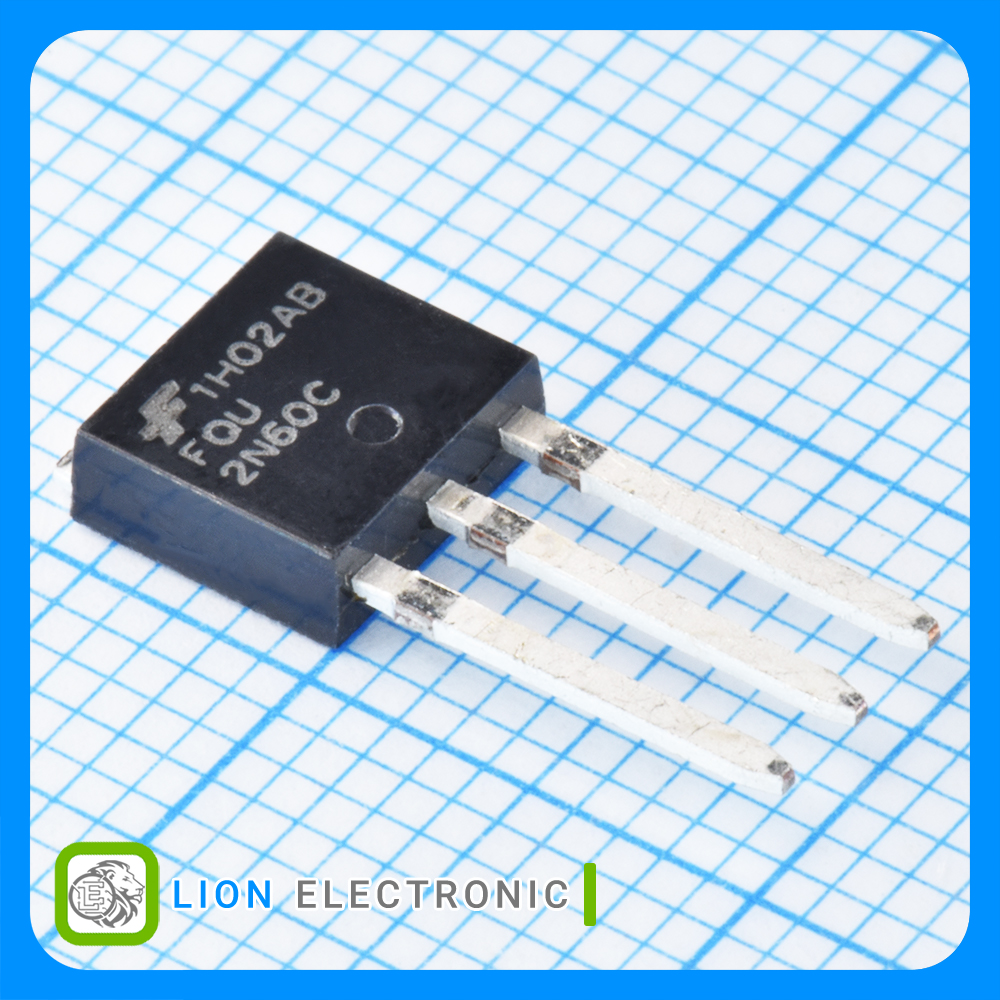

FQU2N60CTU
FQU2N60CTU
Part Number
3302
Lion Part
Datasheet
FAIRCHILD/ONSEMI Manufacture
ماسفت 600 ولت 1.9 آمپر نوع N با پکیج TO-251-3
N-CH MOSFET 600V, 1.9A with TO-251-3 Package
معرفی
ماسفت 600 ولت 1.9 آمپر نوع N با پکیج TO-251-3
N-CH MOSFET 600V, 1.9A with TO-251-3 Package
Specifications
- Package/Case: TO-251-3
- Vds - Drain - Source Breakdown Voltage: 600V
- Id - Continuous Drain Current: 1.9A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 2V
- Vgs - Gate - Source Voltage: ±30V
- Rds On - Drain - Source Resistance: 3.6Ω
- Pd - Power Dissipation: 44W
- Qg - Gate Charge: 8.5nC
- Mounting Style: Through Hole
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Tube
مشخصات ماسفت FQU2N60CTU
ماسفت FQU2N60CTU
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Tube
Packaging
Through Hole
Mounting Style
±30V
Vgs - Gate - Source Voltage
+150C
Maximum Operating Temperature
600V
Vds - Drain - Source Breakdown Voltage
8.5nC
Qg - Gate Charge
2V
Vgs th - Gate - Source Threshold Voltage
1.9A
Id - Continuous Drain Current
44W
Pd - Power Dissipation
3.6Ω
Rds On - Drain - Source Resistance
TO-251-3
Package-Case
