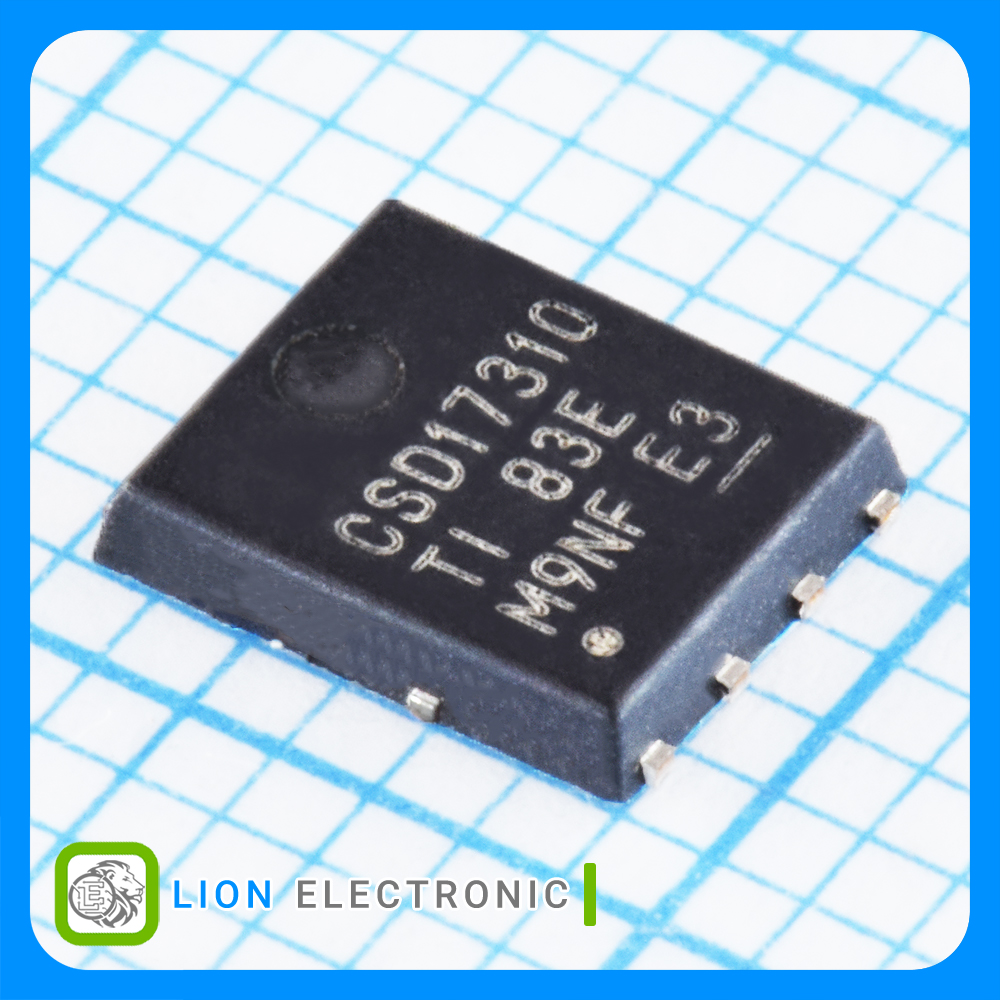

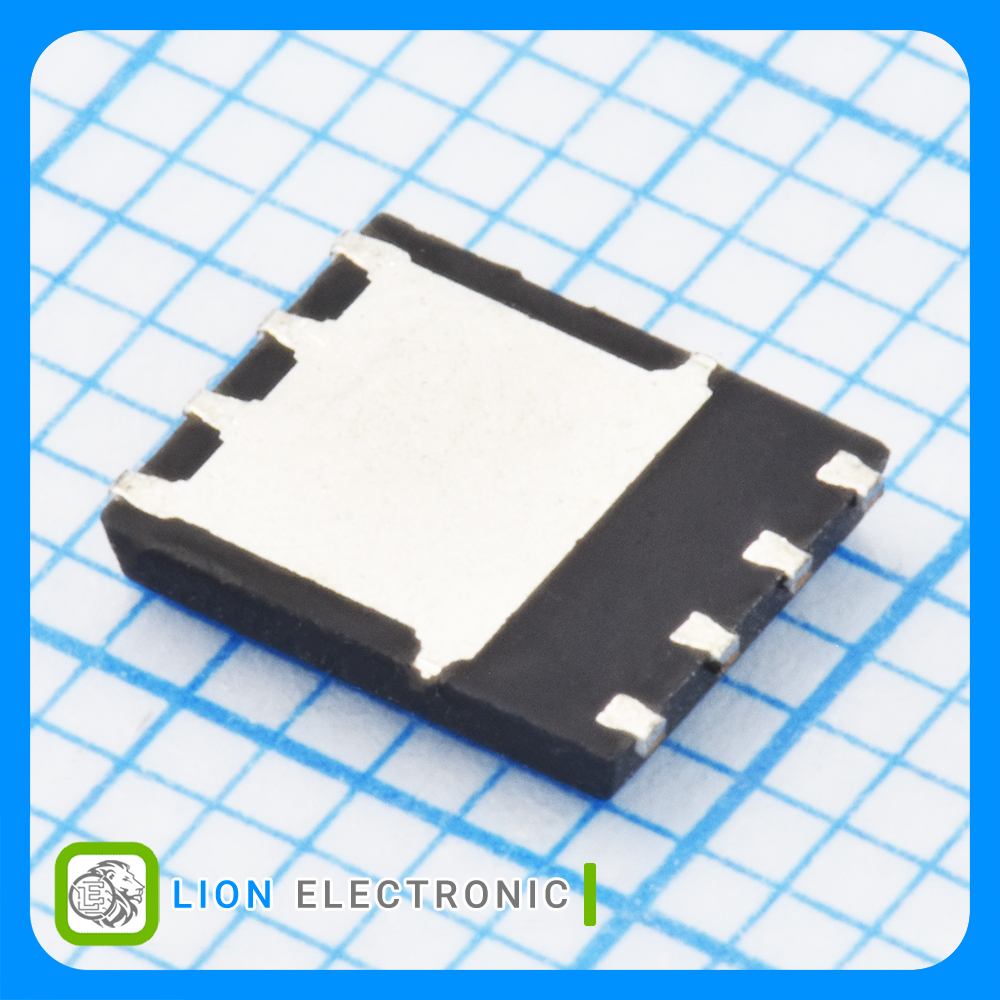

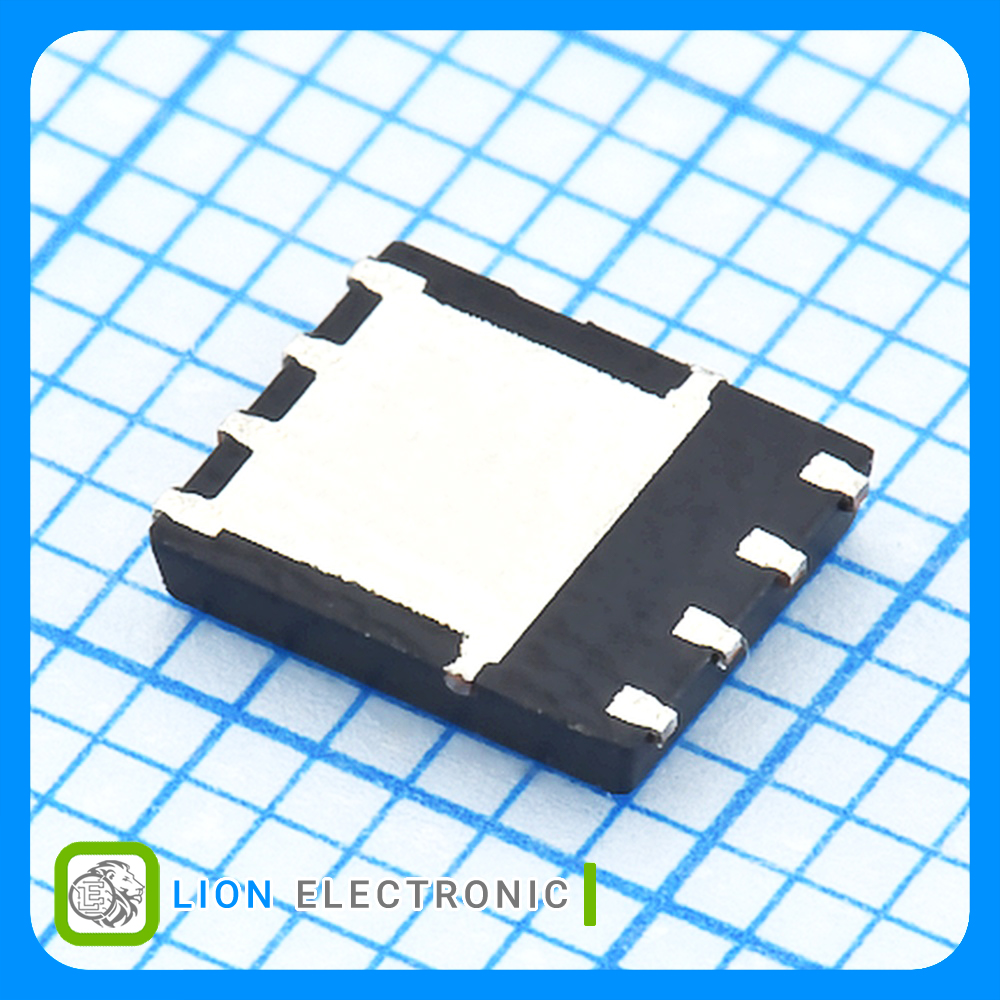

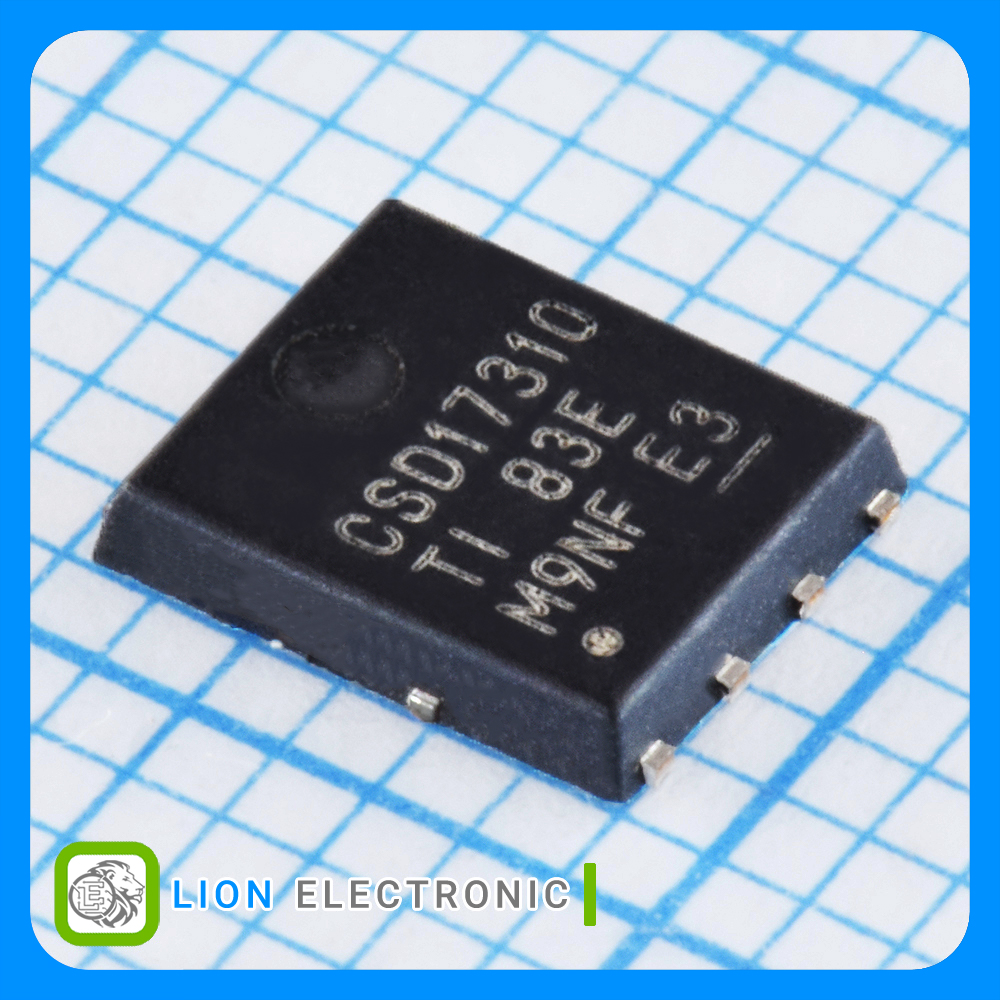

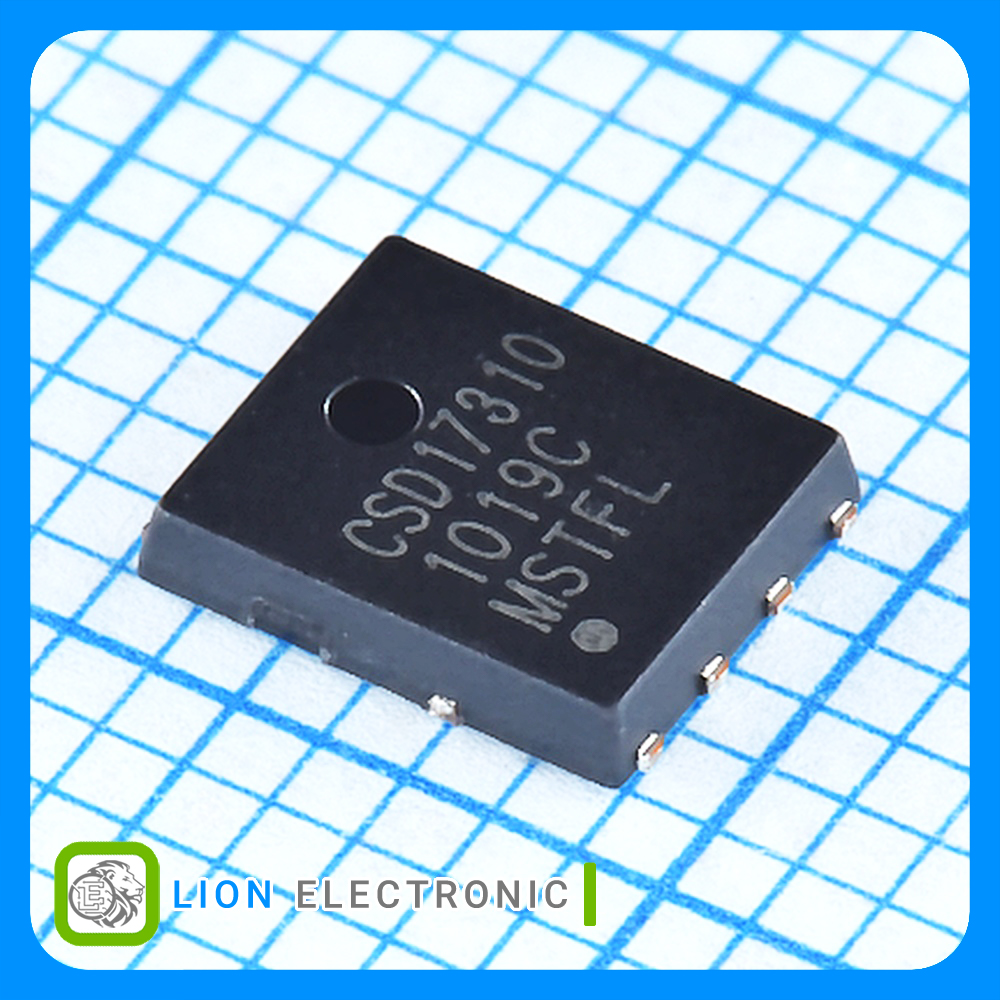

CSD17310Q5A
CSD17310Q5A
Part Number
3303
Lion Part
Datasheet
Texas Instruments Manufacture
ماسفت 30 ولت 100 آمپر نوع N با پکیج VSONP-8
N-CH MOSFET 30V, 100A with VSONP-8 Package
معرفی
ماسفت 30 ولت 100 آمپر نوع N با پکیج VSONP-8
N-CH MOSFET 30V, 100A with VSONP-8 Package
Specifications
- Package/Case: VSONP-8
- Vds - Drain - Source Breakdown Voltage: 30V
- Id - Continuous Drain Current: 100A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 900mV
- Vgs - Gate - Source Voltage: ±8V
- Rds On - Drain - Source Resistance: 3.9mΩ
- Pd - Power Dissipation: 3.1W
- Qg - Gate Charge: 8.9nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات ماسفت CSD17310Q5A
ماسفت CSD17310Q5A
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Reel
Packaging
SMD/SMT
Mounting Style
±8V
Vgs - Gate - Source Voltage
30V
Vds - Drain - Source Breakdown Voltage
+150C
Maximum Operating Temperature
900mV
Vgs th - Gate - Source Threshold Voltage
3.9mΩ
Rds On - Drain - Source Resistance
8.9nC
Qg - Gate Charge
3.1W
Pd - Power Dissipation
100A
Id - Continuous Drain Current
VSONP-8
Package-Case
